Isuzu WW
▶
TRUCKS
▶
FYH
▶
11664 - FYH LHD CHINA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#175419) — 64 parça
◀
[828A] FRONT SIDE NO.2 (7 parça)
[828A] FRONT SIDE NO.3 (9 parça)
[828A] RELAY; FRAME HARNESS (5 parça)
[828A] RELAY; CAB HARNESS (6 parça)
[828A] MAGNETIC VALVE NO.1 (18 parça)
[828A] MAGNETIC VALVE NO.2 (14 parça)
[828A] FRONT SIDE NO.1 (5 parça)
▶

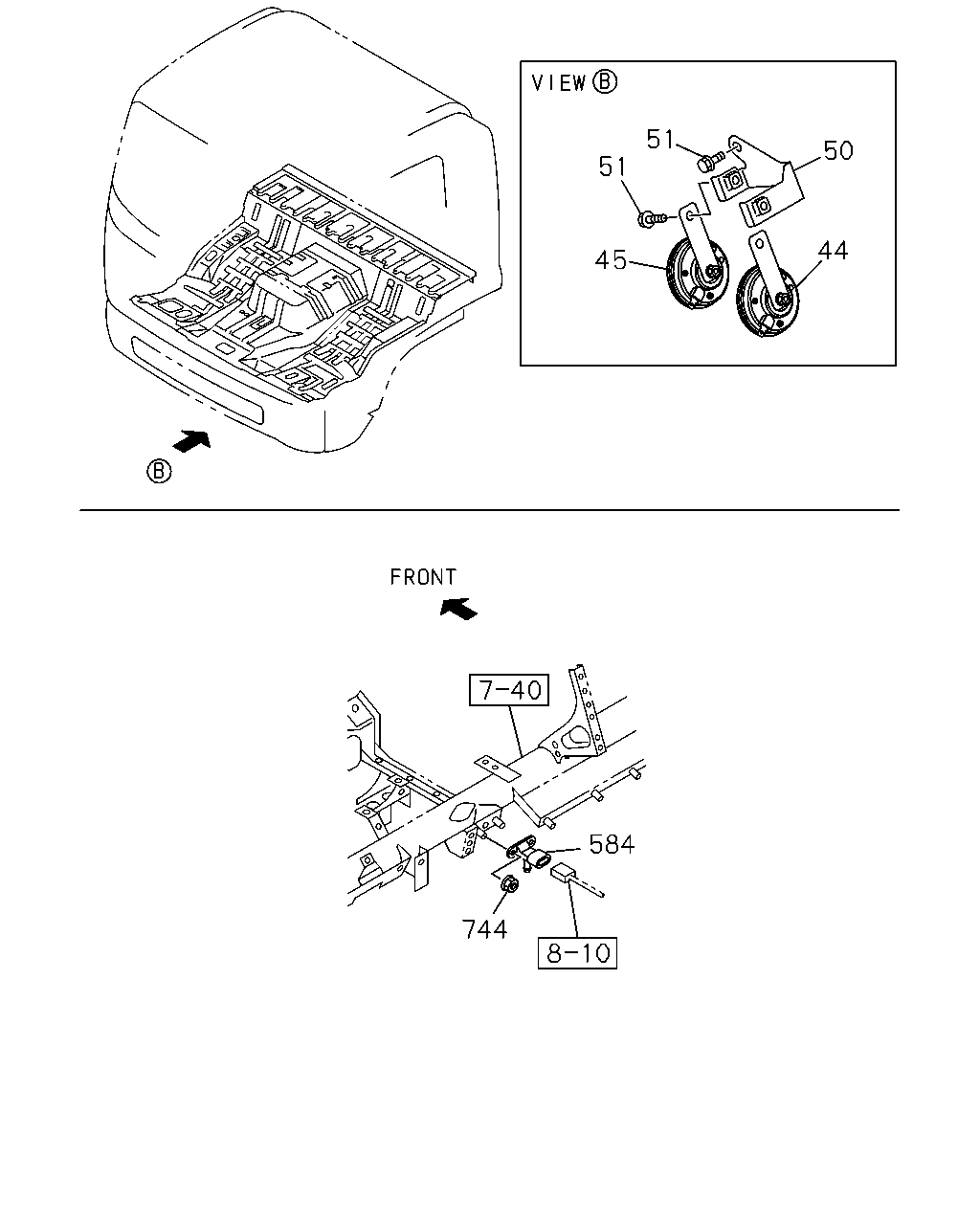

51
51
45
44
50
744
584
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
44
HORN; HIGH NOTE
8-97431-407-0
01
1
1509-
45
HORN; LOW NOTE
8-97431-408-0
01
1
1509-
50
BRACKET; HORN
8-97616-529-2
01
1
1509-
51
BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER
8-97086-825-0
02
1
1509-
51
BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER
8-97086-825-0
02
1
1509-
584
SENSOR; PRESSURE
8-98020-514-0
01
1
1509-
744
NUT; SENSOR
M6 FLANGE
0-91180-106-0
02
1
1509-
115
117
116
84
85
86
507
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
84
BUZZER; POWER CAB TILT
METRO DENSO
8-98069-860-0
01
1
1509-
85
BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE
0-28650-820-0
01
1
1509-
86
NUT; BUZZER
M8 FLANGE
0-91180-108-0
01
1
1509-
115
RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
1509-
115
RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO
8-98005-631-0
01
1
1509-
115
RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
1509-
116
BOLT; RELAY FIX
M8X20 FLANGE
0-28650-820-0
02
1
1509-
117
NUT; RELAY FIX
M8 FLANGE
0-91180-108-0
02
1
1509-
507
TUBE; NYLON
X2 L=22 OD=6
1-09389-003-0
01
1
1509-
531
115
769
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
115
RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
1509-
115
RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO
8-98005-631-0
01
1
1509-
115
RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
1509-
531
RELAY; MAIN
24V 30A MITSUBA
8-97238-540-0
01
1
1509-
769
RELAY; TURBO CONT
24V 10A PANASONIC
8-97173-035-1
01
1
1509-
22
694
770
115
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
RELAY; STOP LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
1509-
115
RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
1509-
115
RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO
8-98005-631-0
01
1
1509-
115
RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
1509-
694
RELAY; RR FOG LAMP
24V 10A PANASONIC
8-97173-035-1
01
1
1509-
770
RELAY; ENG BRK
24V 10A PANASONIC
8-97173-035-1
01
1
1509-

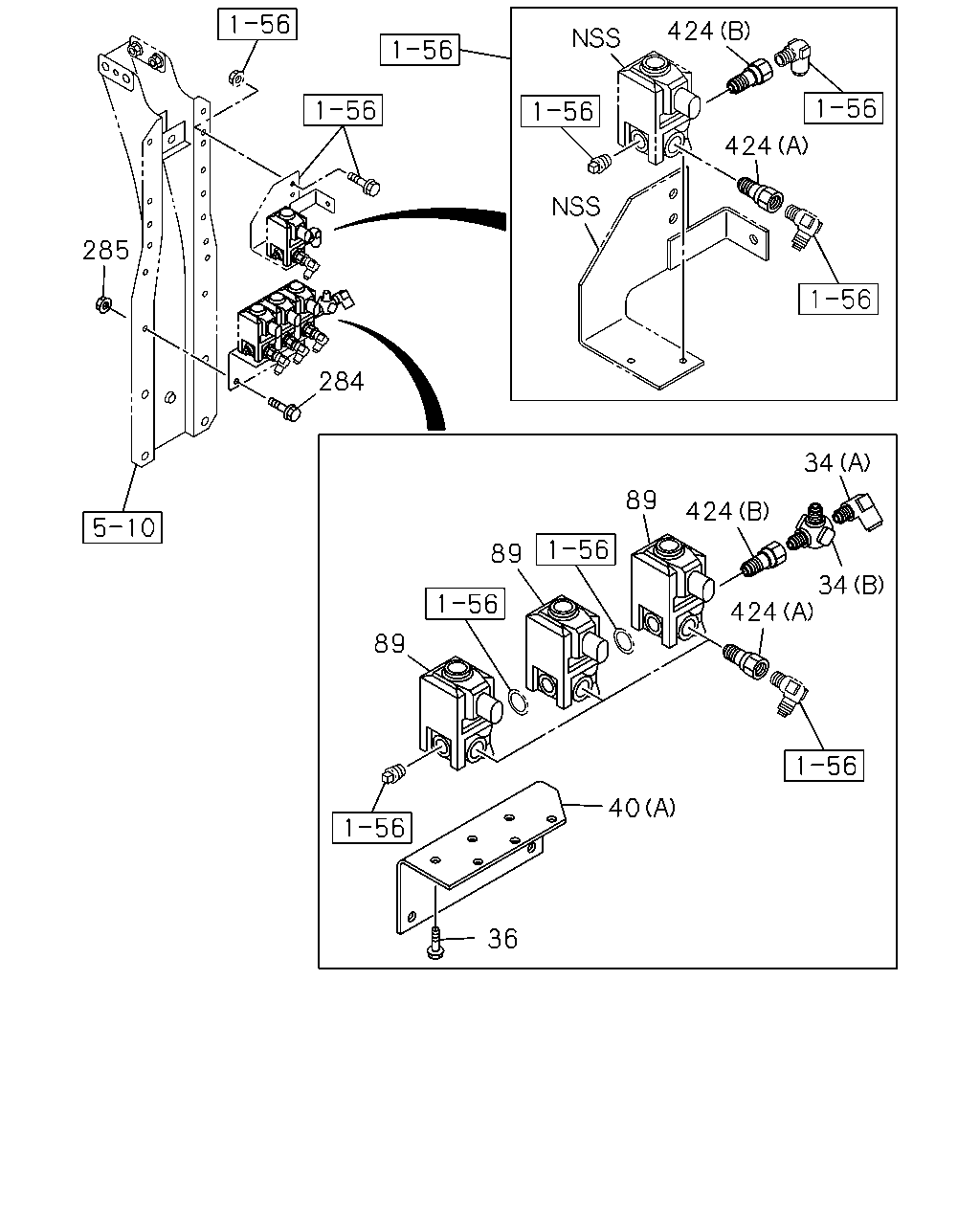

285
284
424
424
34
34
424
424
89
89
89
40
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW
8-97431-400-0
01
1
1509-
34
CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW
8-97431-400-0
01
1
1509-
34
CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW
8-97431-400-0
01
1
1509-
34
CONNECTOR; MAG VLV,INL PORT
(B) M12 & PT1/4 3WAY
1-09656-586-1
01
1
1509-
36
BOLT; MAG VLV,PTO CONT
M6X12 FLANGE
0-28050-612-0
02
1
1509-
36
BOLT; MAG VLV,PTO CONT
M6X12 FLANGE
0-28050-612-0
06
1
1509-
40
BRACKET; MAG VLV
(A)
8-97431-500-0
01
1
1509-
40
BRACKET; MAG VLV
(B)
8-97431-502-0
01
1
1509-
89
VALVE; MAG,DIFF LOCK
8-97431-459-0
01
1
1509-
89
VALVE; MAG,DIFF LOCK
8-97431-459-0
03
1
1509-
284
BOLT; MAG VLV
M8X25 FLANGE
0-28650-825-0
02
1
1509-
285
NUT; MAG VLV
M8 FLANGE
0-91180-108-0
02
1
1509-
424
ADAPTER
(B)
8-97431-769-0
01
1
1509-
424
ADAPTER
(A)
8-97431-253-0
01
1
1509-
424
ADAPTER
(A)
8-97431-253-0
01
1
1509-
424
ADAPTER
(B)
8-97431-769-0
01
1
1509-
424
ADAPTER
(A)
8-97431-253-0
03
1
1509-
424
ADAPTER
(B)
8-97431-769-0
01
1
1509-

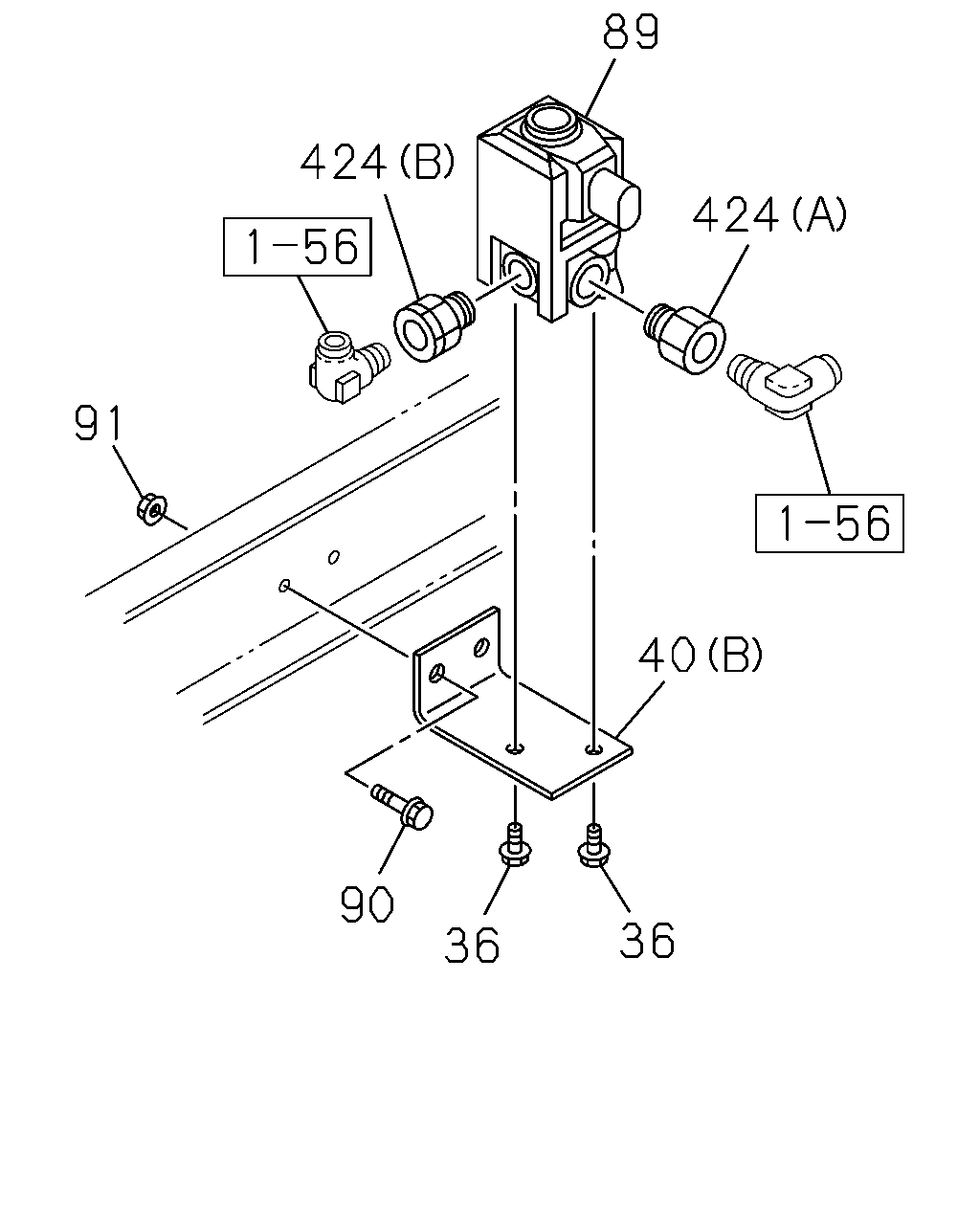

89
424
91
40
90
36
36
424
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
36
BOLT; MAG VLV,PTO CONT
M6X12 FLANGE
0-28050-612-0
02
1
1509-
36
BOLT; MAG VLV,PTO CONT
M6X12 FLANGE
0-28050-612-0
06
1
1509-
40
BRACKET; MAG VLV
(A)
8-97431-500-0
01
1
1509-
40
BRACKET; MAG VLV
(B)
8-97431-502-0
01
1
1509-
89
VALVE; MAG,DIFF LOCK
8-97431-459-0
01
1
1509-
89
VALVE; MAG,DIFF LOCK
8-97431-459-0
03
1
1509-
90
BOLT; MAG VLV
M8X25 FLANGE
0-28650-825-0
02
1
1509-
91
NUT; MAG VLV
M8 FLANGE
0-91180-108-0
02
1
1509-
424
ADAPTER
(B)
8-97431-769-0
01
1
1509-
424
ADAPTER
(A)
8-97431-253-0
01
1
1509-
424
ADAPTER
(A)
8-97431-253-0
01
1
1509-
424
ADAPTER
(B)
8-97431-769-0
01
1
1509-
424
ADAPTER
(A)
8-97431-253-0
03
1
1509-
424
ADAPTER
(B)
8-97431-769-0
01
1
1509-

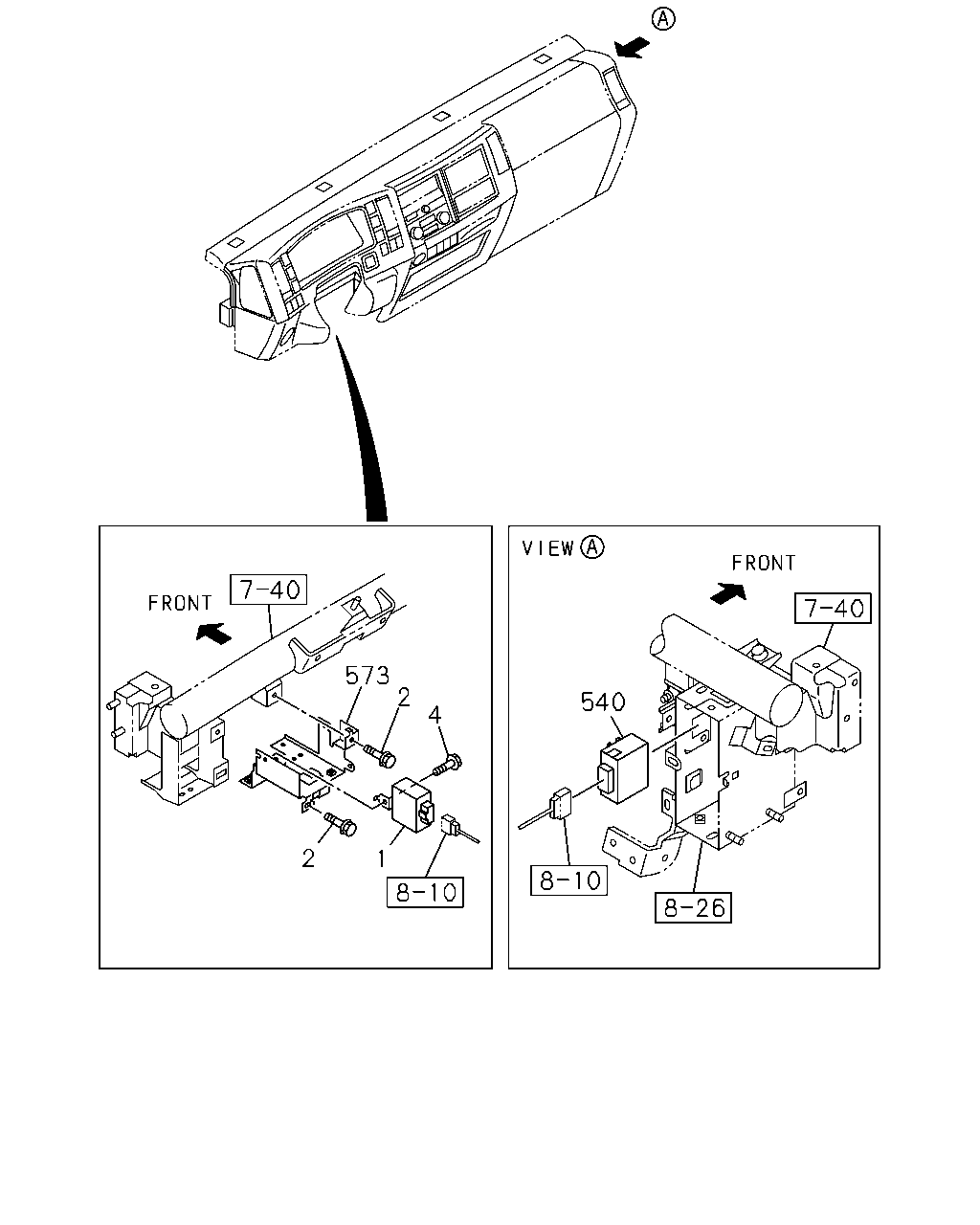

573
2
4
2
1
540
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
UNIT; FLASHER
8-98025-533-1
01
1
1509-
2
BOLT; FLASHER UNIT
M6X16 FLANGE
0-28650-616-0
02
1
1509-
4
SCREW; FLASHER UNIT
M6X16 FLANGE
0-28650-616-0
01
1
1509-
540
RELAY; WIPER INTERVAL
8-98233-976-0
01
1
1509-
573
BRACKET; FLASHER UNIT
8-97616-351-3
01
1
1509-
