◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11664 - FYH LHD CHINA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#175414) — 267 parça
çizim 514152
312 342 312 342 312 342 335 600
BalonParca AdiParca NoAdetTipApplied Date
312 BRACKET; CLIP HARNESS
(C) 		8-97430-373-0 01 1 1509-
312 BRACKET; CLIP HARNESS
(A) L=120 		8-97619-440-0 01 1 1509-
312 BRACKET; CLIP HARNESS
(B) 		8-97431-645-0 01 1 1509-
335 BRACKET; CONNECTOR 8-97430-873-0 01 1 1509-
342 BRACKET; HARNESS CAB MTG
(C) L=115 H=30 		1-47477-715-3 01 1 1509-
342 BRACKET; HARNESS CAB MTG
(A) L=120 H=35 		1-82698-088-0 02 1 1509-
342 BRACKET; HARNESS CAB MTG
(B) L=90 B=25 		1-47475-530-0 01 1 1509-
600 PROTECTOR; HEAT 8-97608-456-0 01 1 1509-

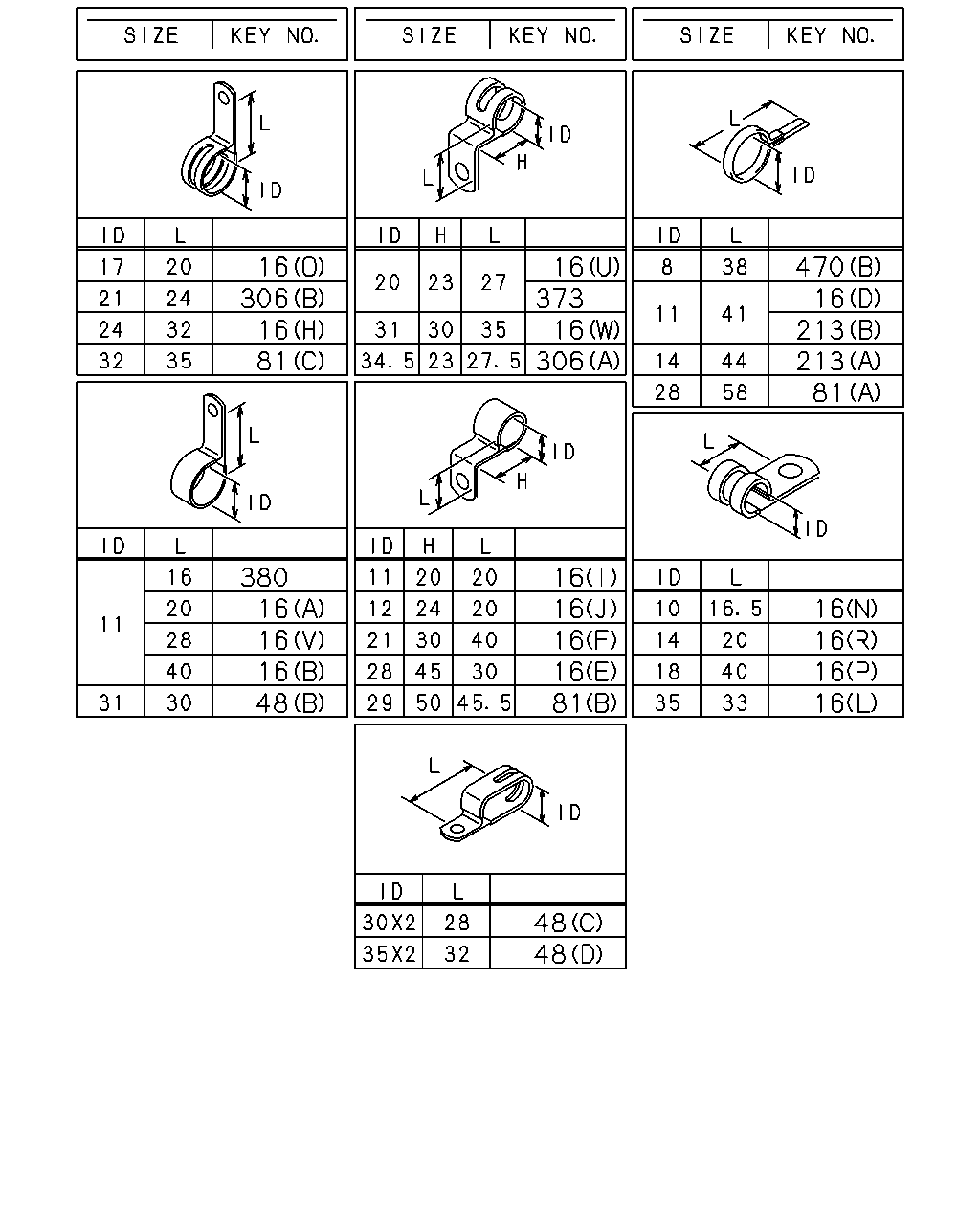

çizim 514711
16 306 16 81 380 16 16 16 48 16 373 16 306 16 16 16 16 81 48 48 470 16 213 213 81 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(X) 		8-98052-679-0 02 1 1509-
16 CLIP; HARNESS
(Y) L=155 		8-97173-307-0 18 1 1509-
16 CLIP; HARNESS
(Q) L=40.6 		8-97229-357-0 02 1 1509-
16 CLIP; HARNESS
(S) ID=10 & 16 		8-94413-325-0 01 1 1509-
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 1509-
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1509-
16 CLIP; HARNESS
(L) ID=35 L=33 		1-09700-945-0 01 1 1509-
16 CLIP; HARNESS
(F) ID=21 L=30 H=40 		1-09700-991-1 01 1 1509-
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1509-
16 CLIP; HARNESS
(P) ID=18 L=40 		1-09701-111-0 01 1 1509-
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1509-
16 CLIP; HARNESS
(O) ID=17 L=20 		8-97619-251-0 01 1 1509-
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 01 1 1509-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) (Z) ID=5-12 L=18 		1-09709-287-0 06 1 1509-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) (A) ID=11 L=20 		0-95235-035-0 01 1 1509-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) (J) ID=12 H=24 L=20 		1-09700-605-0 01 1 1509-
16 CLIP; HARNESS
WHEEL BASE 6400MM(64W) (Z) ID=5-12 L=18 		1-09709-287-0 04 1 1509-
16 CLIP; HARNESS
WHEEL BASE 6400MM(64W) (T) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1509-
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1509-
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1509-
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 02 1 1509-
16 CLIP; HARNESS
(G) L=250 		5-09707-030-1 03 1 1509-
16 CLIP; HARNESS
(G) L=250 		5-09707-030-1 02 1 1509-
16 CLIP; HARNESS
(B) ID=11 L=40 		0-95235-075-0 01 1 1509-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 1509-
16 CLIP; HARNESS
(N) ID=10 L=16.5 		8-98082-034-0 01 1 1509-
16 CLIP; HARNESS
(R) ID=14 L=20 		8-98144-944-0 01 1 1509-
16 CLIP; HARNESS
(V) ID=11 L=28 		0-95235-055-0 02 1 1509-
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 1509-
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 1509-
16 CLIP; HARNESS
(I) ID=11 H=20 L=20 		8-98033-780-0 01 1 1509-
16 CLIP; HARNESS
(E) ID=28 H=45 L=30 		1-09700-707-0 02 1 1509-
48 CLIP; FRAME HARNESS
(C) ID=30X2 L=28 		1-09701-266-0 02 1 1509-
48 CLIP; FRAME HARNESS
(D) ID=35X2 L=32 		1-09701-314-0 02 1 1509-
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 04 1 1509-
48 CLIP; FRAME HARNESS
(B) ID=31 L=30 		1-09700-969-0 01 1 1509-
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 13 1 1509-
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=18 		1-09709-287-0 02 1 1509-
48 CLIP; FRAME HARNESS
(F) ID=18-24 L=18 		1-09709-294-0 01 1 1509-
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 02 1 1509-
81 CLIP; HARNESS
(A) ID=28 L=58 		1-09700-400-0 01 1 1509-
81 CLIP; HARNESS
(B) ID=29 H=50 L=45.5 		1-09701-027-0 01 1 1509-
81 CLIP; HARNESS
(C) ID=32 L=35 		1-09701-244-0 02 1 1509-
213 CLIP; END CROSS HARNESS
(A) ID=14 L=44 		9-09917-427-0 02 1 1509-
213 CLIP; END CROSS HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1509-
306 CLIP; HARNESS,ELEC GOV
(A) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1509-
306 CLIP; HARNESS,ELEC GOV
(B) ID=21 L=24 		8-94176-807-1 01 1 1509-
373 CLIP; BAND,GEN HARNESS
ID=20 H=23 L=27 		1-09700-861-0 02 1 1509-
380 CLIP; EARTH HARNESS
ID=11 L=16 		0-95235-025-0 01 1 1509-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 1509-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=8 L=38 		9-09917-424-0 01 1 1509-
çizim 514778
38 139 150 466 242 480 150 38 38 127 38 38 386 490 38 139 313 490 242 38 86 139 38 38 377 524 24 219 294 515 525 423
BalonParca AdiParca NoAdetTipApplied Date
24 NUT; HARNESS
M8 FLANGE 		0-91180-108-0 01 1 1509-
38 BOLT; CLIP,HARNESS
(G) M8X14 W/PL WASHER 		8-98164-837-0 02 1 1509-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 04 1 1509-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1509-
38 BOLT; CLIP,HARNESS
(E) M10X40 FLANGE 		0-28651-040-0 01 1 1509-
38 BOLT; CLIP,HARNESS
(H) M12X40 FLANGE 		0-28051-240-0 01 1 1509-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 01 1 1509-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1509-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1509-
38 BOLT; CLIP,HARNESS
(C) M8X35 FLANGE 		0-28650-835-0 01 1 1509-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1509-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 01 1 1509-
38 BOLT; CLIP,HARNESS
(A) M8X40 FLANGE 		0-28650-840-0 01 1 1509-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1509-
38 BOLT; CLIP,HARNESS
(I) M6X10 FLANGE 		0-28050-610-0 01 1 1509-
38 BOLT; CLIP,HARNESS
(A) M8X40 FLANGE 		0-28650-840-0 01 1 1509-
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		0-28051-216-0 01 1 1509-
86 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1509-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1509-
139 BOLT; BRKT
(B) M8X12 FLANGE 		0-28050-812-0 01 1 1509-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1509-
139 BOLT; BRKT
(C) M8X35 FLANGE 		0-28650-835-0 04 1 1509-
150 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 06 1 1509-
150 BOLT; CLIP
(B) M8X66 FLANGE 		8-98081-507-0 01 1 1509-
150 BOLT; CLIP
WHEEL BASE 7700MM(77W) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1509-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1509-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1509-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1509-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1509-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1509-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1509-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1509-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1509-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1509-
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 1509-
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1509-
242 BOLT; BRKT,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1509-
242 BOLT; BRKT,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1509-
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1509-
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1509-
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1509-
313 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1509-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1509-
386 BOLT; GRAND HARNESS
M8X20 FLANGE 		0-28650-820-0 01 1 1509-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 1509-
466 BOLT; HEAT PROTECTOR
M8X16 FLANGE 		0-28050-816-0 02 1 1509-
480 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 02 1 1509-
490 BOLT; CLIP,RELAY BOX
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1509-
490 BOLT; CLIP,RELAY BOX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1509-
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1509-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 02 1 1509-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1509-
çizim 514822
16 116 470 16 16 48 16 612 341 48 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(X) 		8-98052-679-0 02 1 1509-
16 CLIP; HARNESS
(Y) L=155 		8-97173-307-0 18 1 1509-
16 CLIP; HARNESS
(Q) L=40.6 		8-97229-357-0 02 1 1509-
16 CLIP; HARNESS
(S) ID=10 & 16 		8-94413-325-0 01 1 1509-
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 1509-
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1509-
16 CLIP; HARNESS
(L) ID=35 L=33 		1-09700-945-0 01 1 1509-
16 CLIP; HARNESS
(F) ID=21 L=30 H=40 		1-09700-991-1 01 1 1509-
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1509-
16 CLIP; HARNESS
(P) ID=18 L=40 		1-09701-111-0 01 1 1509-
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1509-
16 CLIP; HARNESS
(O) ID=17 L=20 		8-97619-251-0 01 1 1509-
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 01 1 1509-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) (Z) ID=5-12 L=18 		1-09709-287-0 06 1 1509-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) (A) ID=11 L=20 		0-95235-035-0 01 1 1509-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) (J) ID=12 H=24 L=20 		1-09700-605-0 01 1 1509-
16 CLIP; HARNESS
WHEEL BASE 6400MM(64W) (Z) ID=5-12 L=18 		1-09709-287-0 04 1 1509-
16 CLIP; HARNESS
WHEEL BASE 6400MM(64W) (T) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1509-
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1509-
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1509-
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 02 1 1509-
16 CLIP; HARNESS
(G) L=250 		5-09707-030-1 03 1 1509-
16 CLIP; HARNESS
(G) L=250 		5-09707-030-1 02 1 1509-
16 CLIP; HARNESS
(B) ID=11 L=40 		0-95235-075-0 01 1 1509-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 1509-
16 CLIP; HARNESS
(N) ID=10 L=16.5 		8-98082-034-0 01 1 1509-
16 CLIP; HARNESS
(R) ID=14 L=20 		8-98144-944-0 01 1 1509-
16 CLIP; HARNESS
(V) ID=11 L=28 		0-95235-055-0 02 1 1509-
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 1509-
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 1509-
16 CLIP; HARNESS
(I) ID=11 H=20 L=20 		8-98033-780-0 01 1 1509-
16 CLIP; HARNESS
(E) ID=28 H=45 L=30 		1-09700-707-0 02 1 1509-
48 CLIP; FRAME HARNESS
(C) ID=30X2 L=28 		1-09701-266-0 02 1 1509-
48 CLIP; FRAME HARNESS
(D) ID=35X2 L=32 		1-09701-314-0 02 1 1509-
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 04 1 1509-
48 CLIP; FRAME HARNESS
(B) ID=31 L=30 		1-09700-969-0 01 1 1509-
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 13 1 1509-
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=18 		1-09709-287-0 02 1 1509-
48 CLIP; FRAME HARNESS
(F) ID=18-24 L=18 		1-09709-294-0 01 1 1509-
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 02 1 1509-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 1509-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1509-
341 CLIP; BAND,STARTER RELAY
(A) L=250 		5-09707-030-1 01 1 1509-
341 CLIP; BAND,STARTER RELAY
(B) ID=13-18 L=14.5 		1-09709-290-0 01 1 1509-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 1509-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=8 L=38 		9-09917-424-0 01 1 1509-
612 CLIP; HARNESS DPD
(A) L=350 		1-09707-183-0 01 1 1509-
612 CLIP; HARNESS DPD
(B) ID=5-12 L=26 		1-09709-289-0 01 1 1509-

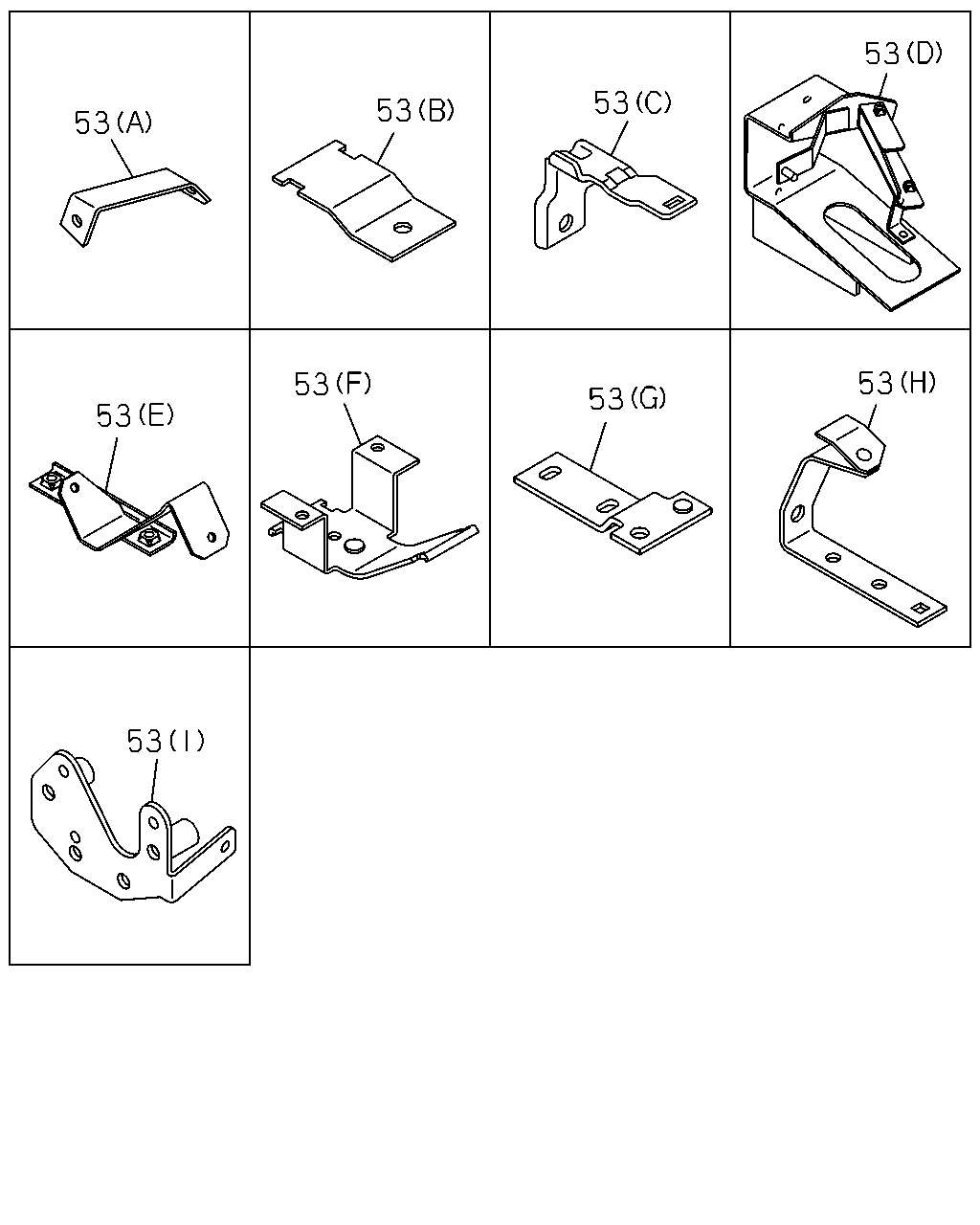

çizim 514836
53 53 53 53 53 53 53 53 53
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(C) 		8-98052-458-0 01 1 1509-
53 BRACKET; HARNESS
(I) 		8-97611-413-0 01 1 1509-
53 BRACKET; HARNESS
(E) 		8-97430-877-0 01 1 1509-
53 BRACKET; HARNESS
(H) 		8-97431-240-0 01 1 1509-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 01 1 1509-
53 BRACKET; HARNESS
(B) 		8-97430-374-0 01 1 1509-
53 BRACKET; HARNESS
(D) 		8-97430-874-0 01 1 1509-
53 BRACKET; HARNESS
(F) 		8-97430-943-0 01 1 1509-
53 BRACKET; HARNESS
(G) 		8-97430-944-0 01 1 1509-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 01 1 1509-
çizim 514894
16 16 16 16 142
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(X) 		8-98052-679-0 02 1 1509-
16 CLIP; HARNESS
(Y) L=155 		8-97173-307-0 18 1 1509-
16 CLIP; HARNESS
(Q) L=40.6 		8-97229-357-0 02 1 1509-
16 CLIP; HARNESS
(S) ID=10 & 16 		8-94413-325-0 01 1 1509-
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 1509-
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1509-
16 CLIP; HARNESS
(L) ID=35 L=33 		1-09700-945-0 01 1 1509-
16 CLIP; HARNESS
(F) ID=21 L=30 H=40 		1-09700-991-1 01 1 1509-
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1509-
16 CLIP; HARNESS
(P) ID=18 L=40 		1-09701-111-0 01 1 1509-
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1509-
16 CLIP; HARNESS
(O) ID=17 L=20 		8-97619-251-0 01 1 1509-
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 01 1 1509-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) (Z) ID=5-12 L=18 		1-09709-287-0 06 1 1509-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) (A) ID=11 L=20 		0-95235-035-0 01 1 1509-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) (J) ID=12 H=24 L=20 		1-09700-605-0 01 1 1509-
16 CLIP; HARNESS
WHEEL BASE 6400MM(64W) (Z) ID=5-12 L=18 		1-09709-287-0 04 1 1509-
16 CLIP; HARNESS
WHEEL BASE 6400MM(64W) (T) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1509-
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1509-
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1509-
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 02 1 1509-
16 CLIP; HARNESS
(G) L=250 		5-09707-030-1 03 1 1509-
16 CLIP; HARNESS
(G) L=250 		5-09707-030-1 02 1 1509-
16 CLIP; HARNESS
(B) ID=11 L=40 		0-95235-075-0 01 1 1509-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 1509-
16 CLIP; HARNESS
(N) ID=10 L=16.5 		8-98082-034-0 01 1 1509-
16 CLIP; HARNESS
(R) ID=14 L=20 		8-98144-944-0 01 1 1509-
16 CLIP; HARNESS
(V) ID=11 L=28 		0-95235-055-0 02 1 1509-
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 1509-
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 1509-
16 CLIP; HARNESS
(I) ID=11 H=20 L=20 		8-98033-780-0 01 1 1509-
16 CLIP; HARNESS
(E) ID=28 H=45 L=30 		1-09700-707-0 02 1 1509-
142 CLIP; HARNESS,ENG
(B) L=170.3 		8-97209-720-0 01 1 1509-
142 CLIP; HARNESS,ENG
(A) L=150 		8-97355-273-0 01 1 1509-

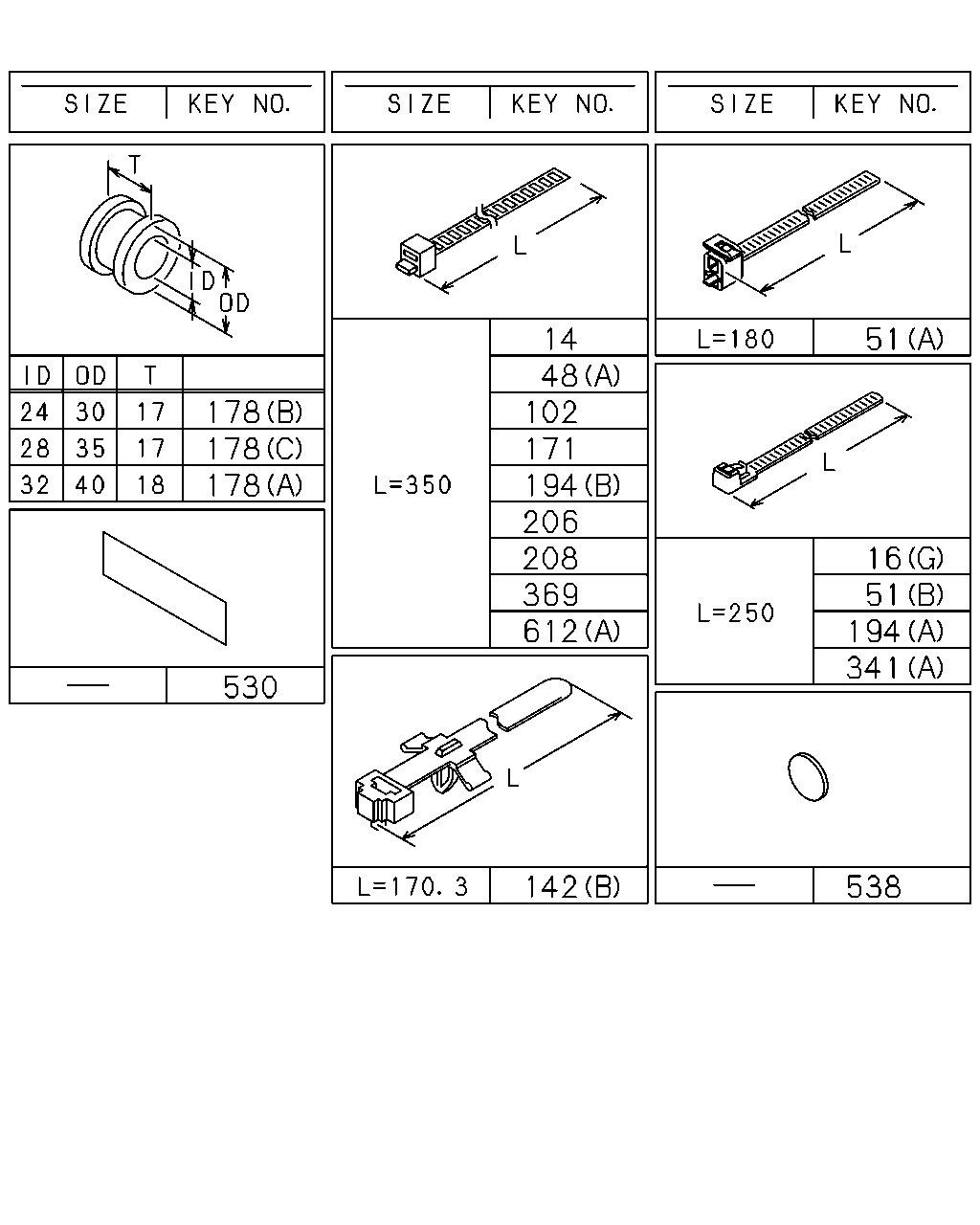

çizim 515100
178 178 178 530 142 612 369 208 206 194 171 102 48 14 51 16 194 51 341 538
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
L=350 		1-09707-183-0 02 1 1509-
16 CLIP; HARNESS
(X) 		8-98052-679-0 02 1 1509-
16 CLIP; HARNESS
(Y) L=155 		8-97173-307-0 18 1 1509-
16 CLIP; HARNESS
(Q) L=40.6 		8-97229-357-0 02 1 1509-
16 CLIP; HARNESS
(S) ID=10 & 16 		8-94413-325-0 01 1 1509-
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 1509-
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1509-
16 CLIP; HARNESS
(L) ID=35 L=33 		1-09700-945-0 01 1 1509-
16 CLIP; HARNESS
(F) ID=21 L=30 H=40 		1-09700-991-1 01 1 1509-
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1509-
16 CLIP; HARNESS
(P) ID=18 L=40 		1-09701-111-0 01 1 1509-
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1509-
16 CLIP; HARNESS
(O) ID=17 L=20 		8-97619-251-0 01 1 1509-
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 01 1 1509-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) (Z) ID=5-12 L=18 		1-09709-287-0 06 1 1509-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) (A) ID=11 L=20 		0-95235-035-0 01 1 1509-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) (J) ID=12 H=24 L=20 		1-09700-605-0 01 1 1509-
16 CLIP; HARNESS
WHEEL BASE 6400MM(64W) (Z) ID=5-12 L=18 		1-09709-287-0 04 1 1509-
16 CLIP; HARNESS
WHEEL BASE 6400MM(64W) (T) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1509-
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1509-
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1509-
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 02 1 1509-
16 CLIP; HARNESS
(G) L=250 		5-09707-030-1 03 1 1509-
16 CLIP; HARNESS
(G) L=250 		5-09707-030-1 02 1 1509-
16 CLIP; HARNESS
(B) ID=11 L=40 		0-95235-075-0 01 1 1509-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 1509-
16 CLIP; HARNESS
(N) ID=10 L=16.5 		8-98082-034-0 01 1 1509-
16 CLIP; HARNESS
(R) ID=14 L=20 		8-98144-944-0 01 1 1509-
16 CLIP; HARNESS
(V) ID=11 L=28 		0-95235-055-0 02 1 1509-
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 1509-
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 1509-
16 CLIP; HARNESS
(I) ID=11 H=20 L=20 		8-98033-780-0 01 1 1509-
16 CLIP; HARNESS
(E) ID=28 H=45 L=30 		1-09700-707-0 02 1 1509-
48 CLIP; FRAME HARNESS
(C) ID=30X2 L=28 		1-09701-266-0 02 1 1509-
48 CLIP; FRAME HARNESS
(D) ID=35X2 L=32 		1-09701-314-0 02 1 1509-
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 04 1 1509-
48 CLIP; FRAME HARNESS
(B) ID=31 L=30 		1-09700-969-0 01 1 1509-
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 13 1 1509-
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=18 		1-09709-287-0 02 1 1509-
48 CLIP; FRAME HARNESS
(F) ID=18-24 L=18 		1-09709-294-0 01 1 1509-
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 02 1 1509-
51 CLIP; COOLER CMPR
(A) L=180 		1-09707-162-1 01 1 1509-
51 CLIP; COOLER CMPR
(B) L=250 		5-09707-030-1 03 1 1509-
102 CLIP; BAND
L=350 		1-09707-183-0 03 1 1509-
102 CLIP; BAND
L=350 		1-09707-183-0 01 1 1509-
102 CLIP; BAND
L=350 		1-09707-183-0 03 1 1509-
142 CLIP; HARNESS,ENG
(B) L=170.3 		8-97209-720-0 01 1 1509-
142 CLIP; HARNESS,ENG
(A) L=150 		8-97355-273-0 01 1 1509-
171 CLIP; STARTER HARNESS
L=350 		1-09707-183-0 03 1 1509-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1509-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1509-
178 GROMMET; HARNESS
(A) ID=32 OD=40 T=18 		1-09891-003-0 02 1 1509-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1509-
194 CLIP; BAND
(B) L=350 		1-09707-183-0 02 1 1509-
194 CLIP; BAND
(A) L=250 		5-09707-030-1 01 1 1509-
206 CLIP; FUEL TANK HARNESS
L=350 		1-09707-183-0 01 1 1509-
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 01 1 1509-
341 CLIP; BAND,STARTER RELAY
(A) L=250 		5-09707-030-1 01 1 1509-
341 CLIP; BAND,STARTER RELAY
(B) ID=13-18 L=14.5 		1-09709-290-0 01 1 1509-
369 CLIP; BAND EDS HARNESS
L=350 		1-09707-183-0 01 1 1509-
530 SEAL; HARNESS
180X40 		1-72498-019-1 13 1 1509-
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 02 1 1509-
612 CLIP; HARNESS DPD
(A) L=350 		1-09707-183-0 01 1 1509-
612 CLIP; HARNESS DPD
(B) ID=5-12 L=26 		1-09709-289-0 01 1 1509-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
