8-10 — WIRING HARNESS AND FUSE (#175413) — 89 parça

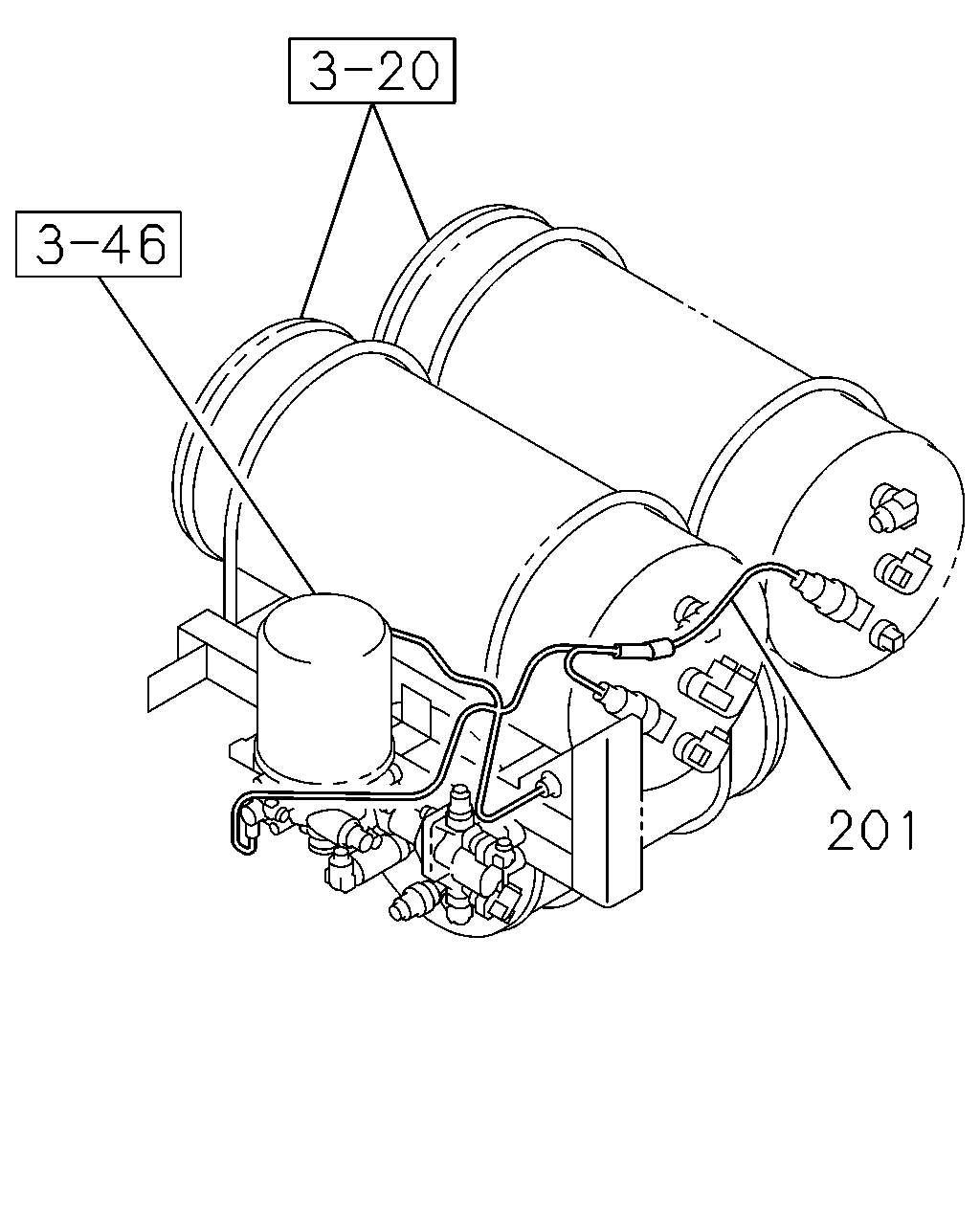

çizim 513173
201
BalonParca AdiParca NoAdetTipApplied Date
201 HARNESS; AIR TANK
X10 		8-97431-995-0 01 1 1509-
201 HARNESS; AIR TANK
Q10 		8-97431-376-0 01 1 1509-

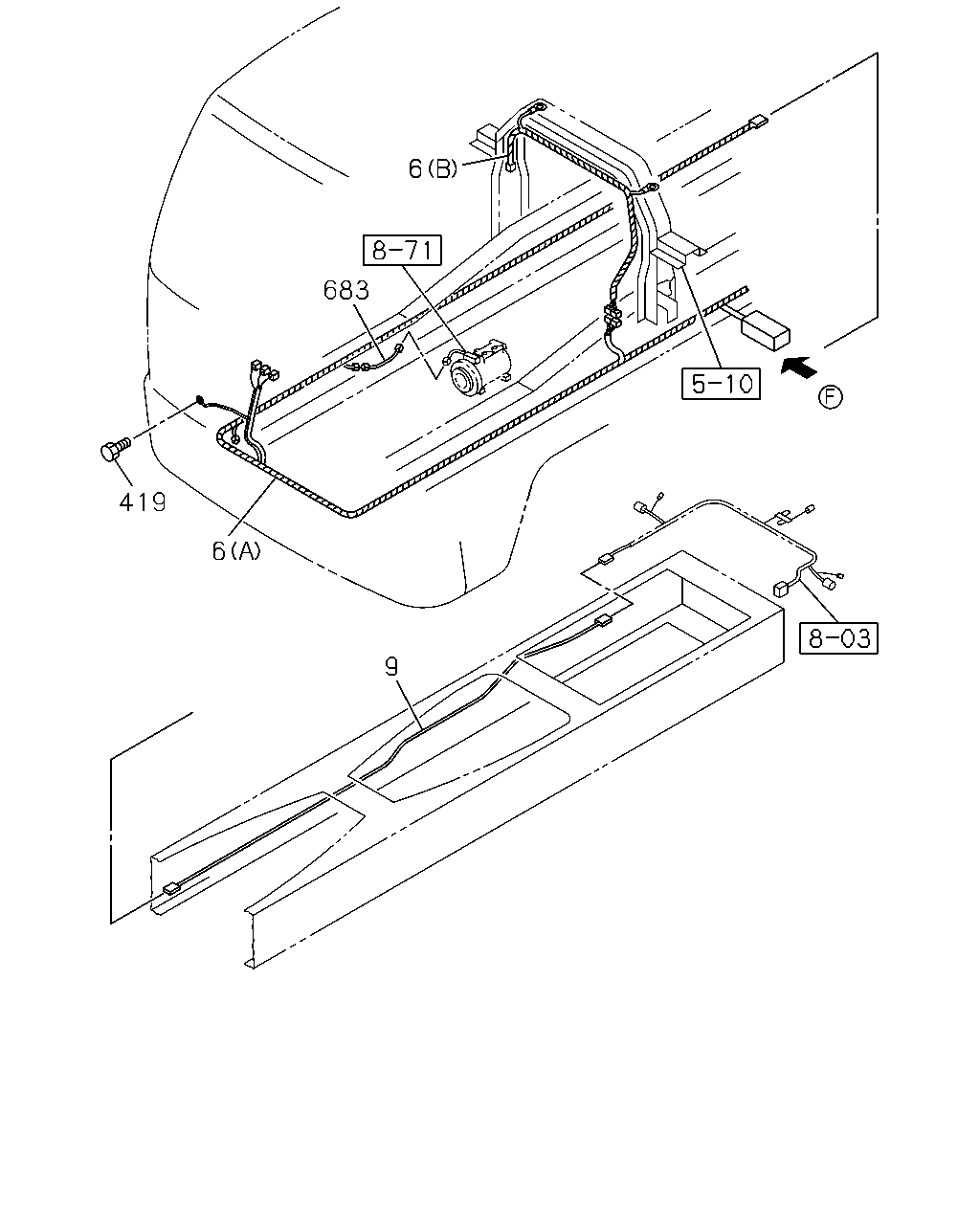

çizim 513527
9 6 419 6 683
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(A) 		8-97431-368-1 01 1 1509-
6 HARNESS; FRAME
(B) 		8-97430-867-0 01 1 1509-
9 HARNESS; FRAME,RR
WHEEL BASE 7700MM(77W) 		8-97431-373-0 01 1 1509-
9 HARNESS; FRAME,RR
WHEEL BASE 6400MM(64W) Q10 		8-97431-374-0 01 1 1509-
9 HARNESS; FRAME,RR
X10 		8-97432-069-0 01 1 1509-
419 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1509-
419 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1509-
683 HARNESS; EXT,COOLER 8-97609-020-1 01 1 1509-

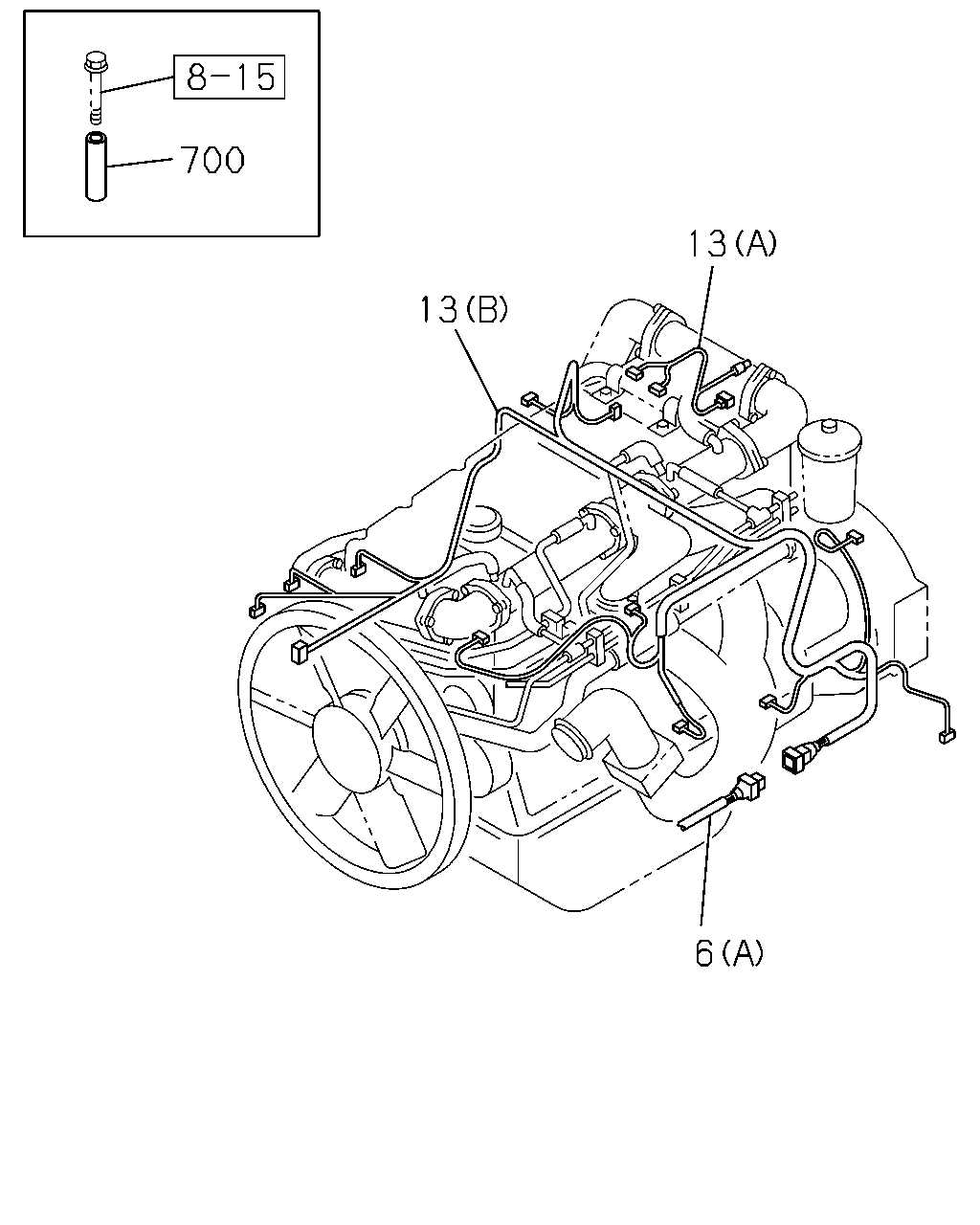

çizim 513920
700 13 13 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(A) 		8-97431-368-1 01 1 1509-
6 HARNESS; FRAME
(B) 		8-97430-867-0 01 1 1509-
13 HARNESS; ENG
(B) 		8-97430-646-2 01 1 1509-
13 HARNESS; ENG
(A) 		8-97430-691-0 01 1 1509-
700 TUBE; DISTANCE
L=51 		1-11369-157-0 01 1 1509-
çizim 514019
267 533 641 639 267 533 295 295 533 641
BalonParca AdiParca NoAdetTipApplied Date
267 BOLT; BRKT
(B) M8X12 FLANGE 		0-28050-812-0 06 1 1509-
267 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 15 1 1509-
295 NUT; BRKT
(B) M10 FLANGE 		0-91280-210-0 02 1 1509-
295 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 08 1 1509-
533 CLIP
(A) ID=24-30 L=18 		1-09709-297-0 02 1 1509-
533 CLIP
(B) ID=9 L=16 		0-95234-825-0 15 1 1509-
533 CLIP
(C) L=330 		5-09709-118-0 20 1 1509-
639 BOLT; CLIP
WHEEL BASE 6400MM(64W) M8X25 FLANGE 		0-28650-825-0 02 1 1509-
641 CLIP; SPD SENSOR
WHEEL BASE 6400MM(64W) (A) OD=9 H=6 		1-09709-178-0 01 1 1509-
641 CLIP; SPD SENSOR
WHEEL BASE 6400MM(64W) (B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1509-
çizim 514690
638 638 668 668 668 668
BalonParca AdiParca NoAdetTipApplied Date
638 BRACKET; SPD SENSOR
WHEEL BASE 6400MM(64W) (A) L=90 B=25 		1-47475-530-0 01 1 1509-
638 BRACKET; SPD SENSOR
WHEEL BASE 6400MM(64W) (B) L=130 		1-47478-959-0 01 1 1509-
668 BRACKET; HARNESS
(E) 		8-98095-653-2 01 1 1509-
668 BRACKET; HARNESS
(A) L=160 H=30 		1-47479-759-0 02 1 1509-
668 BRACKET; HARNESS
(B) L=115 H=30 		1-47477-715-3 02 1 1509-
668 BRACKET; HARNESS
(C) L=112 		1-47475-694-1 01 1 1509-
668 BRACKET; HARNESS
(D) L=120 		8-97619-440-0 01 1 1509-

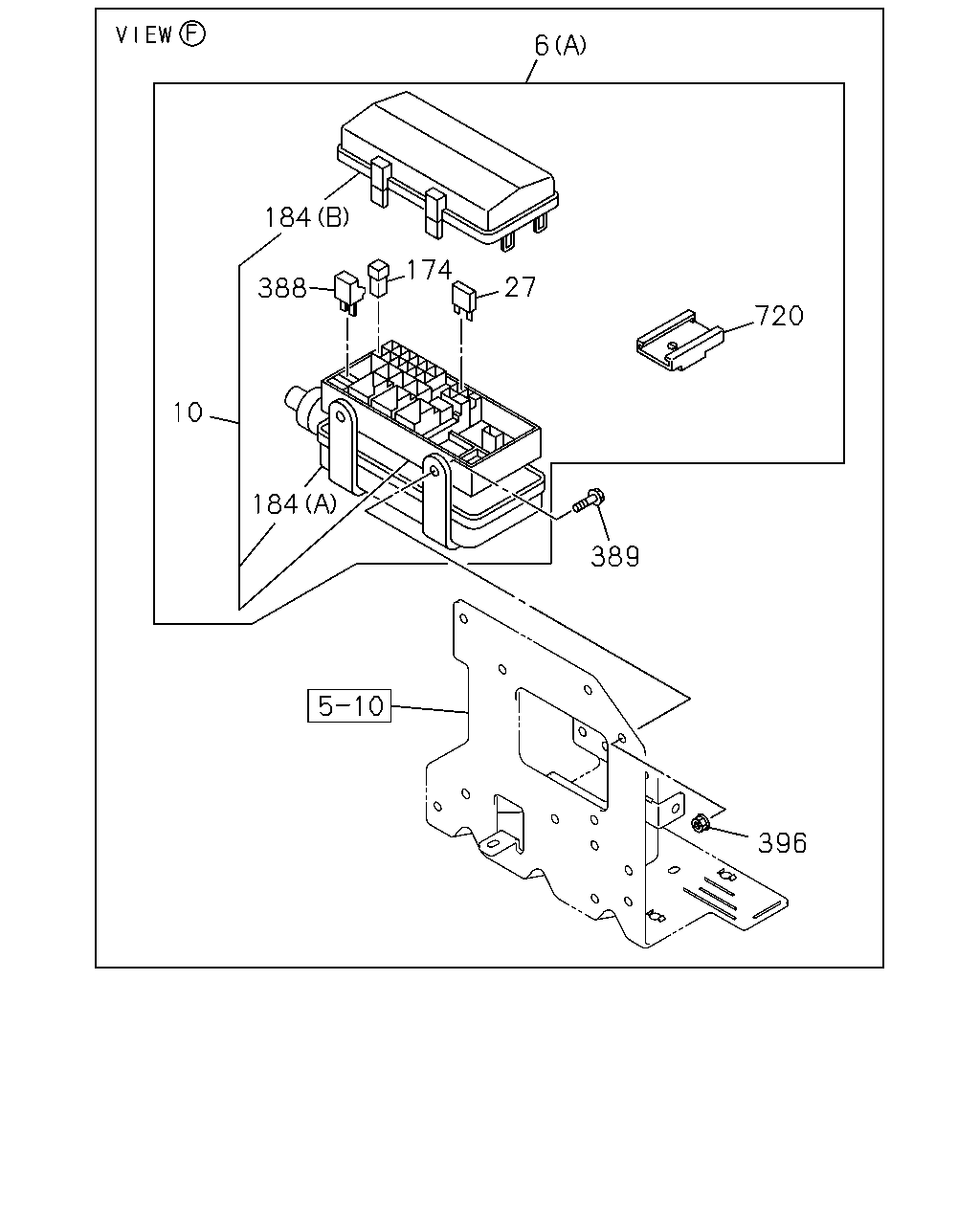

çizim 514728
6 184 388 174 27 720 10 184 389 396
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(A) 		8-97431-368-1 01 1 1509-
6 HARNESS; FRAME
(B) 		8-97430-867-0 01 1 1509-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1509-
27 FUSE UNIT
10A RED 		8-98054-257-0 03 1 1509-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 01 1 1509-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 1509-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 1509-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1509-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 03 1 1509-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1509-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1509-
388 DIODE; RELAY BOX
BLACK 4P-1.5A 		8-94381-730-0 01 1 1509-
389 BOLT; COVER,RELAY BOX
M8X30 W/LK&PL WASHER 		1-09030-095-0 03 1 1509-
396 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1509-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 01 1 1509-

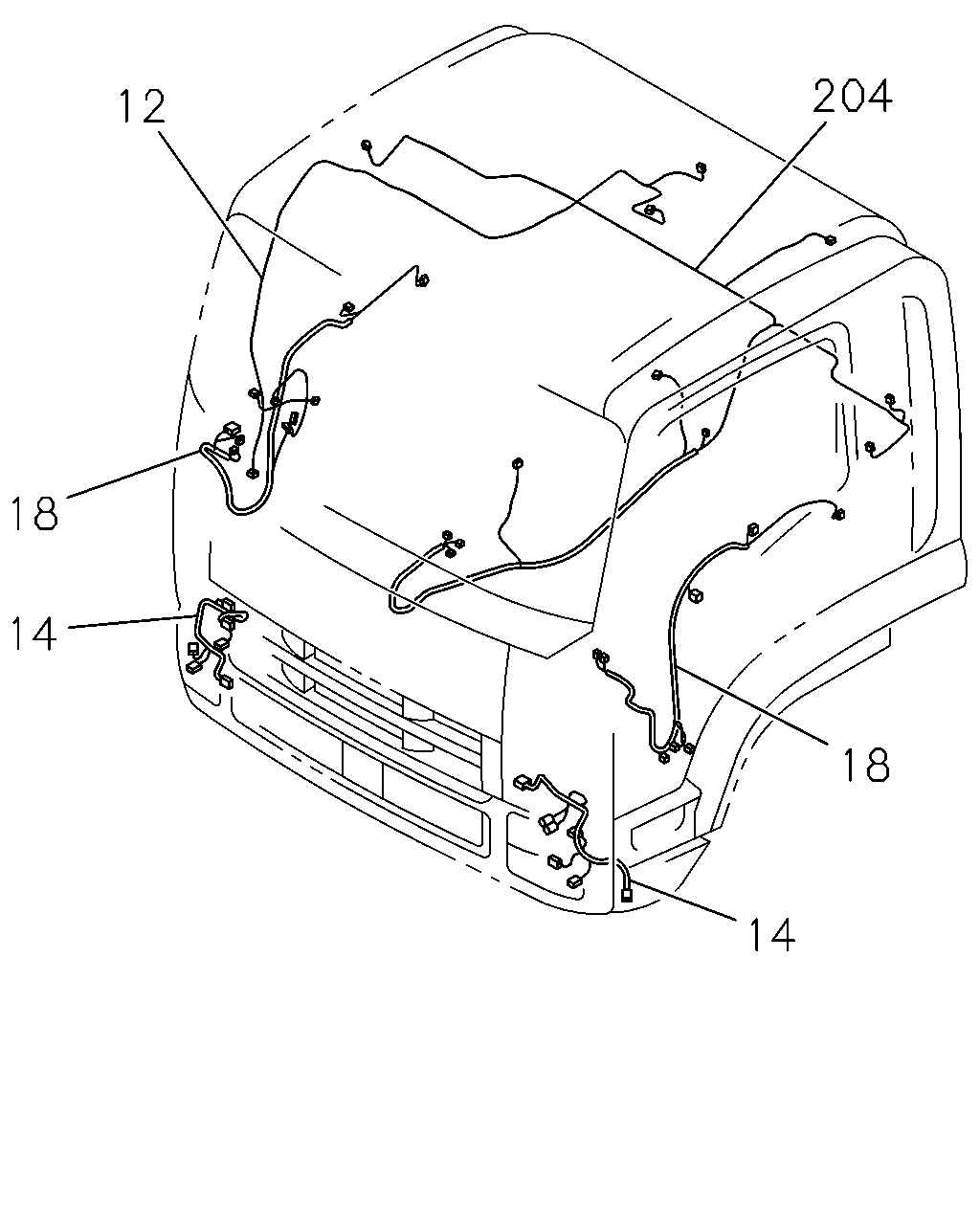

çizim 514793
12 18 14 14 18 204
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF 8-98085-336-1 01 1 1509-
14 HARNESS; HEADLAMP 8-98069-166-1 02 1 1509-
18 HARNESS; DOOR 8-98178-804-0 01 1 1509-
18 HARNESS; DOOR 8-98178-803-0 01 1 1509-
204 HARNESS; CABLE,FLOOR 8-97431-619-0 01 1 1509-

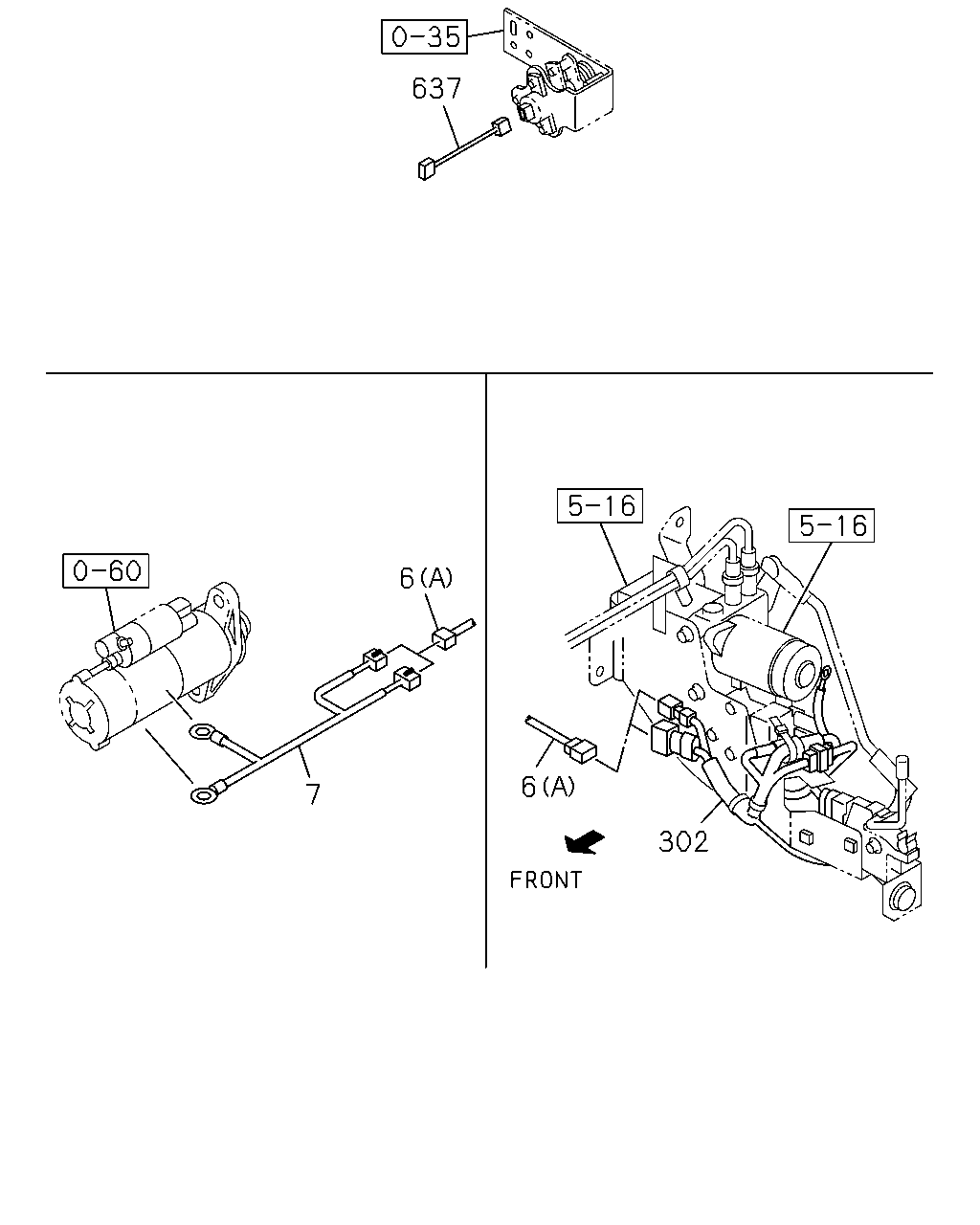

çizim 514811
637 6 7 6 302
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(A) 		8-97431-368-1 01 1 1509-
6 HARNESS; FRAME
(B) 		8-97430-867-0 01 1 1509-
7 LINK ASM; FUSIBLE
WHEEL BASE 7700MM(77W) 		8-98088-132-0 01 1 1509-
7 LINK ASM; FUSIBLE
WHEEL BASE 6400MM(64W) 		8-98106-137-0 01 1 1509-
302 HARNESS; POWER CAB TILT 8-97431-873-0 01 1 1509-
637 HARNESS; EXT,S/SENSOR
WHEEL BASE 6400MM(64W) 		1-82675-934-0 01 1 1509-
çizim 514845
2 2 2 2 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
Q8 		8-97431-357-1 01 1 1509-
1 HARNESS; CAB
X8 		1-87223-018-0 01 1 1509-
2 DIODE; CABLE HARNESS
(D) Q8 BLACK 3P-1.5A 		8-94422-640-1 AR 1 1509-
2 DIODE; CABLE HARNESS
(B) Q8 BLACK 2P-1.5A 		8-94422-639-1 AR 1 1509-
2 DIODE; CABLE HARNESS
(C) Q8 BLACK 3P-1.5A 		8-94416-438-1 AR 1 1509-
2 DIODE; CABLE HARNESS
(A) Q8 BLACK 10P 		1-82699-703-0 AR 1 1509-

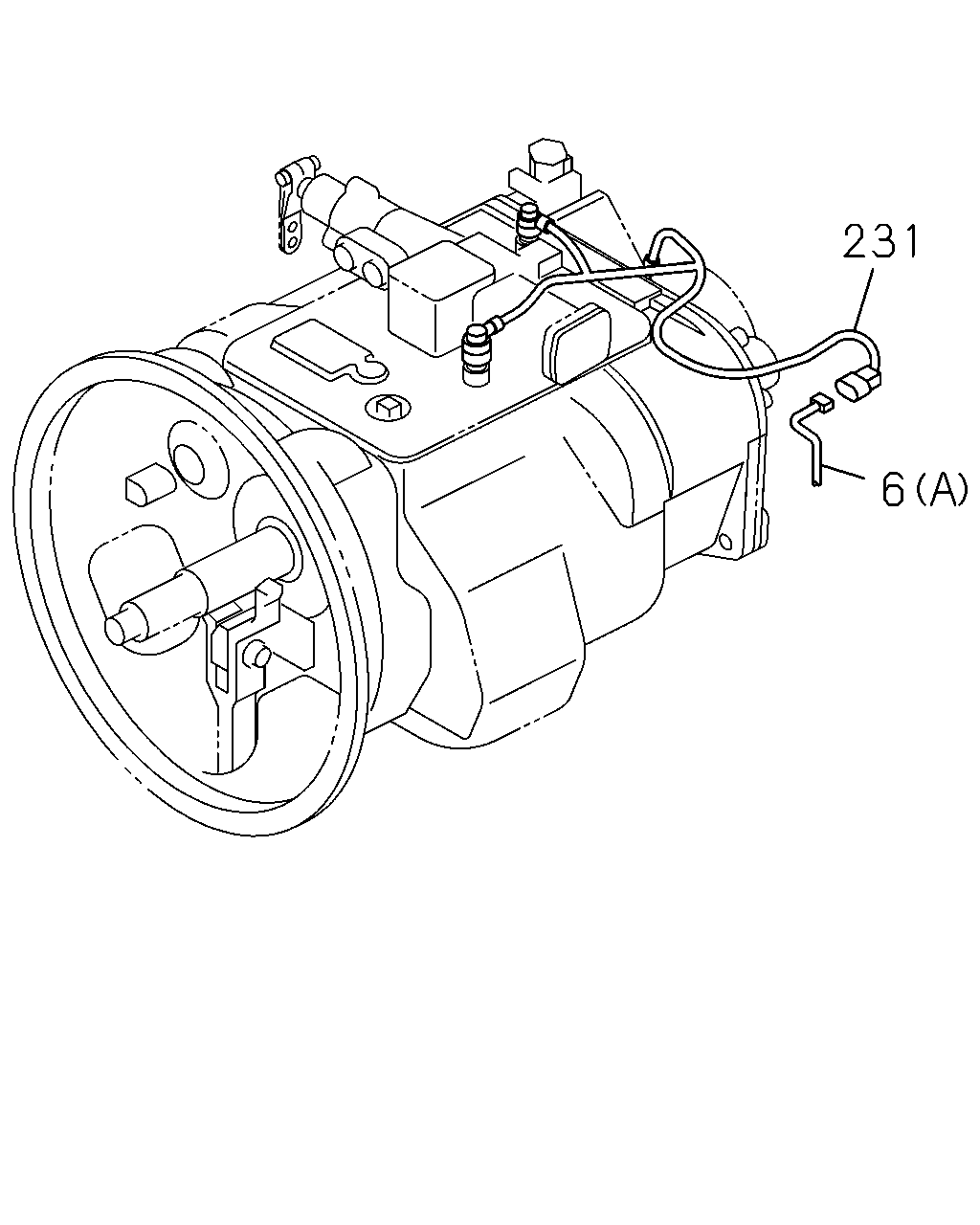

çizim 514865
231 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(A) 		8-97431-368-1 01 1 1509-
6 HARNESS; FRAME
(B) 		8-97430-867-0 01 1 1509-
231 HARNESS; TRANS 8-97431-375-0 01 1 1509-

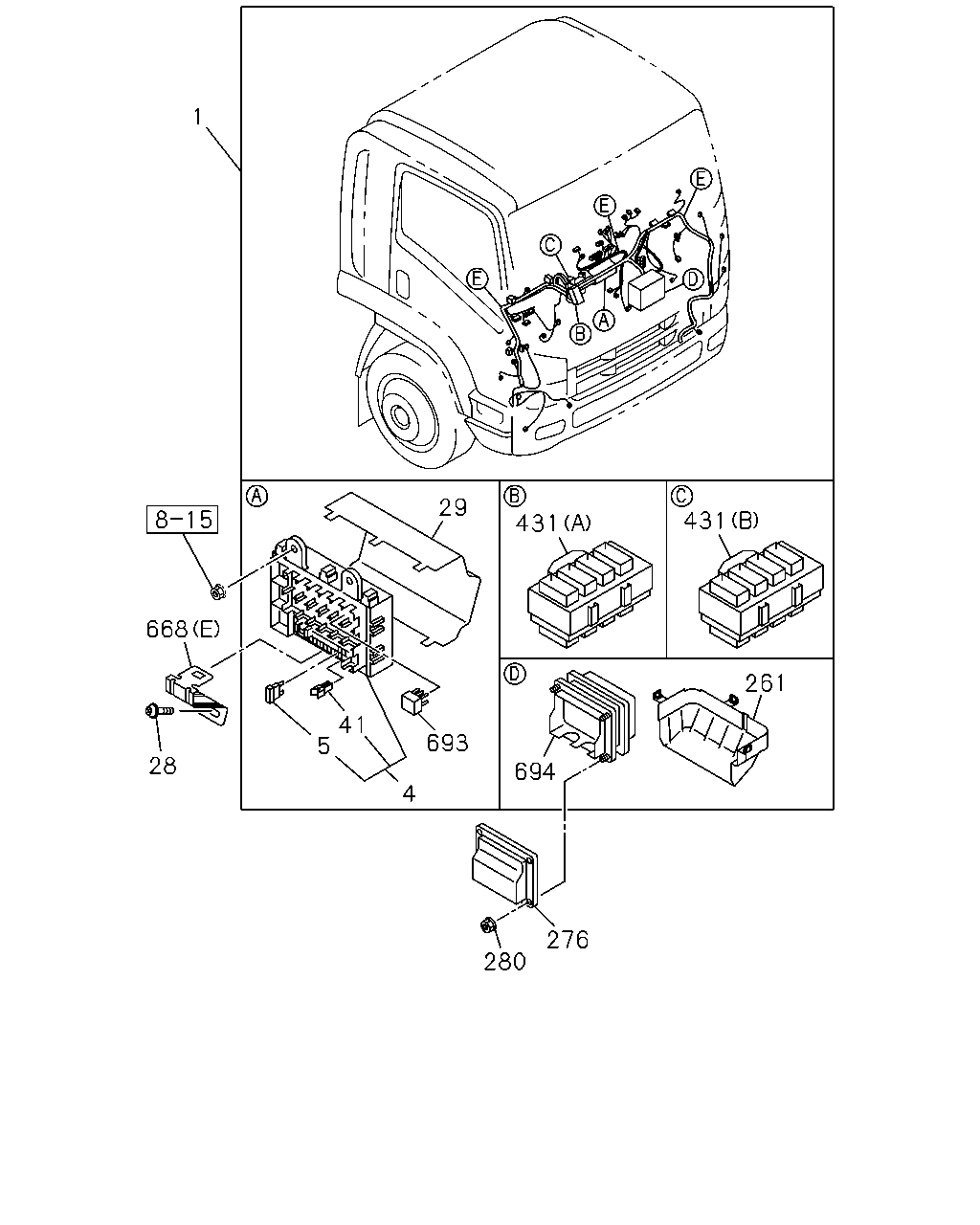

çizim 515083
276 280 4 5 41 693 29 28 668 431 694 261 431 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
Q8 		8-97431-357-1 01 1 1509-
1 HARNESS; CAB
X8 		1-87223-018-0 01 1 1509-
4 BOX ASM; FUSE,HARNESS
Q8 		8-98065-666-0 01 1 1509-
5 FUSE; FACIA HARNESS
Q8 25A WHITE 		8-98062-982-0 AR 1 1509-
5 FUSE; FACIA HARNESS
Q8 20A YELLOW 		8-98054-259-0 AR 1 1509-
5 FUSE; FACIA HARNESS
Q8 10A RED 		8-98054-257-0 AR 1 1509-
5 FUSE; FACIA HARNESS
Q8 15A BLUE 		8-98054-258-0 AR 1 1509-
28 SCREW; FUSE BOX
M6X16 FLANGE 		0-28650-616-0 01 1 1509-
29 COVER; FUSE BOX
Q8 		8-98056-968-0 01 1 1509-
41 PULLER; FUSE
Q8 		8-98054-260-0 01 1 1509-
261 COVER; CONNECTOR BOX
Q8 		8-98065-986-1 01 1 1509-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1509-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1509-
431 CONNECTOR; JOINT
(B) Q8 WHITE 		8-98056-375-0 01 1 1509-
431 CONNECTOR; JOINT
(A) Q8 WHITE 		8-98056-374-0 01 1 1509-
668 BRACKET; HARNESS
(E) 		8-98095-653-2 01 1 1509-
668 BRACKET; HARNESS
(A) L=160 H=30 		1-47479-759-0 02 1 1509-
668 BRACKET; HARNESS
(B) L=115 H=30 		1-47477-715-3 02 1 1509-
668 BRACKET; HARNESS
(C) L=112 		1-47475-694-1 01 1 1509-
668 BRACKET; HARNESS
(D) L=120 		8-97619-440-0 01 1 1509-
693 RELAY; FUSE BOX
Q8 24V 10A PANASONIC 		8-97173-035-1 AR 1 1509-
694 BOX ASM; CONNECTOR
Q8 		8-98057-771-0 01 1 1509-
