Sayfa 3-80 - Isuzu EPC

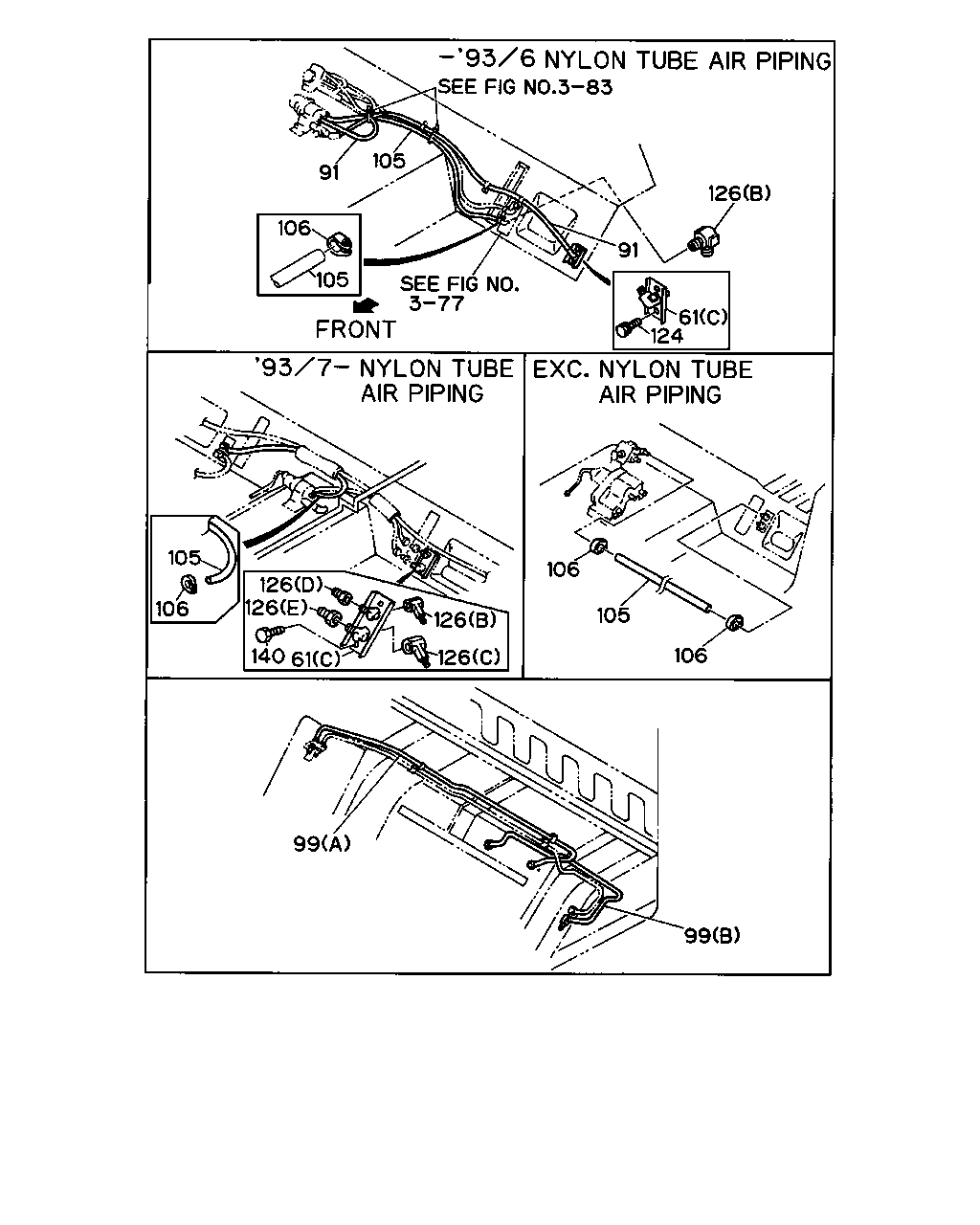

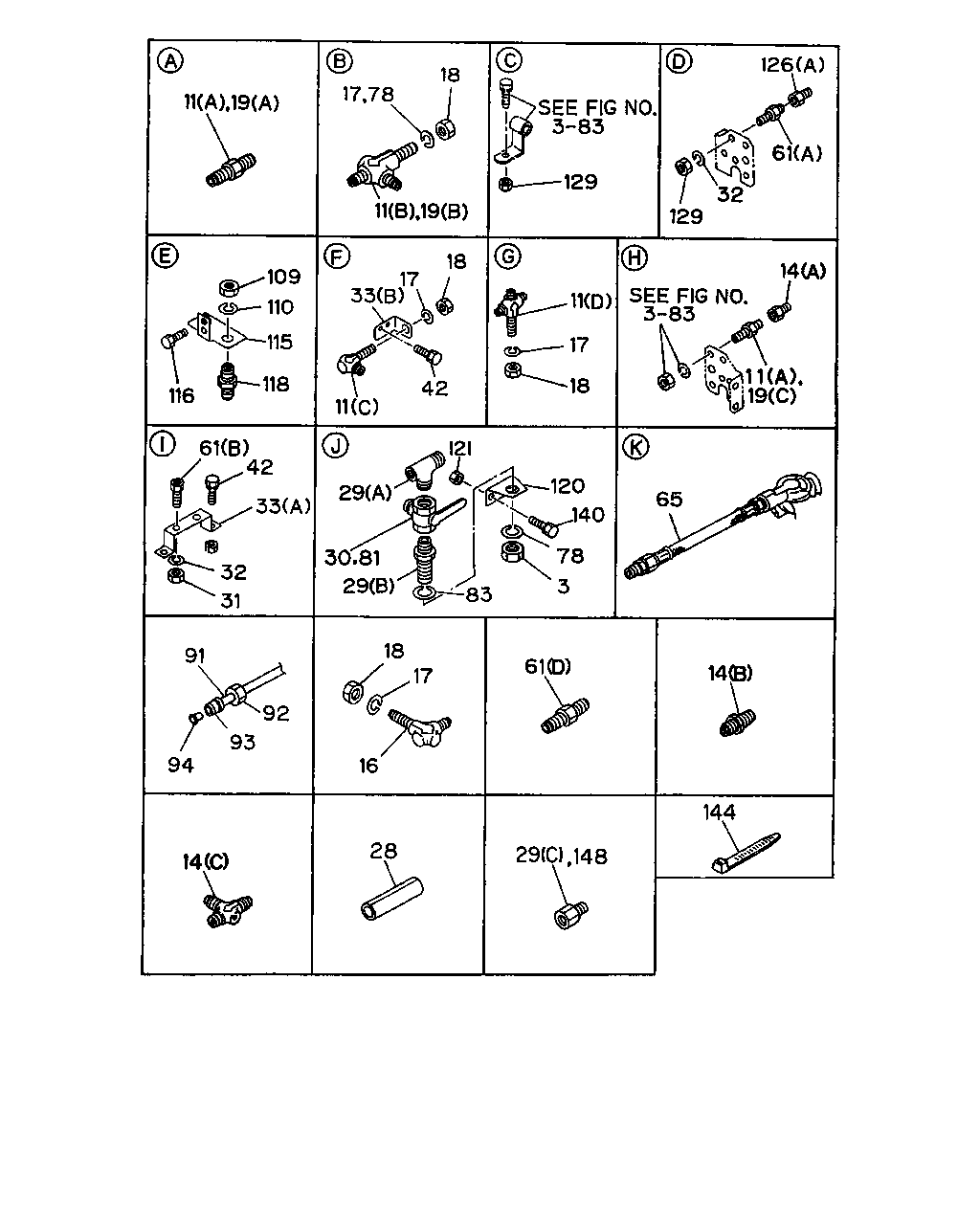

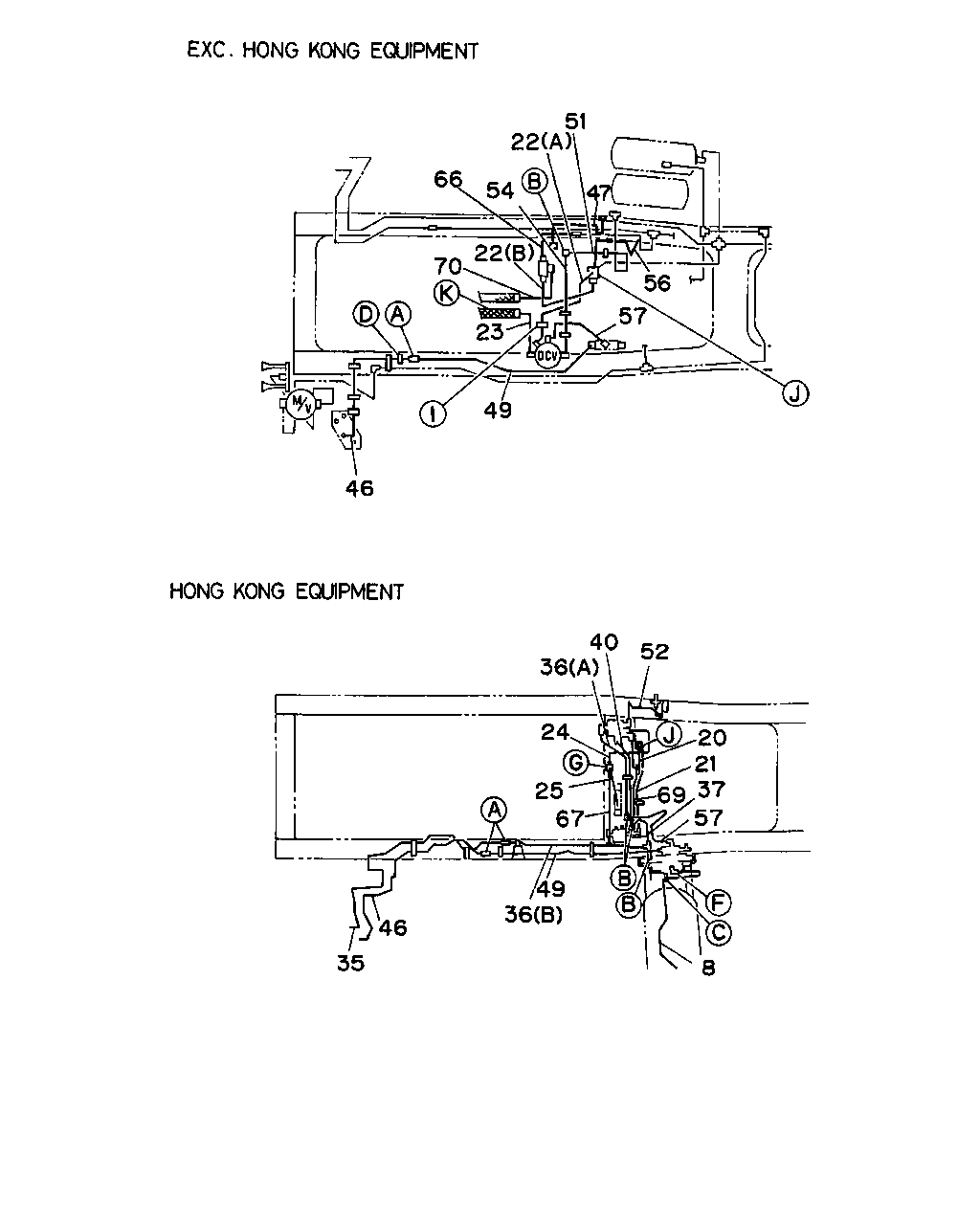

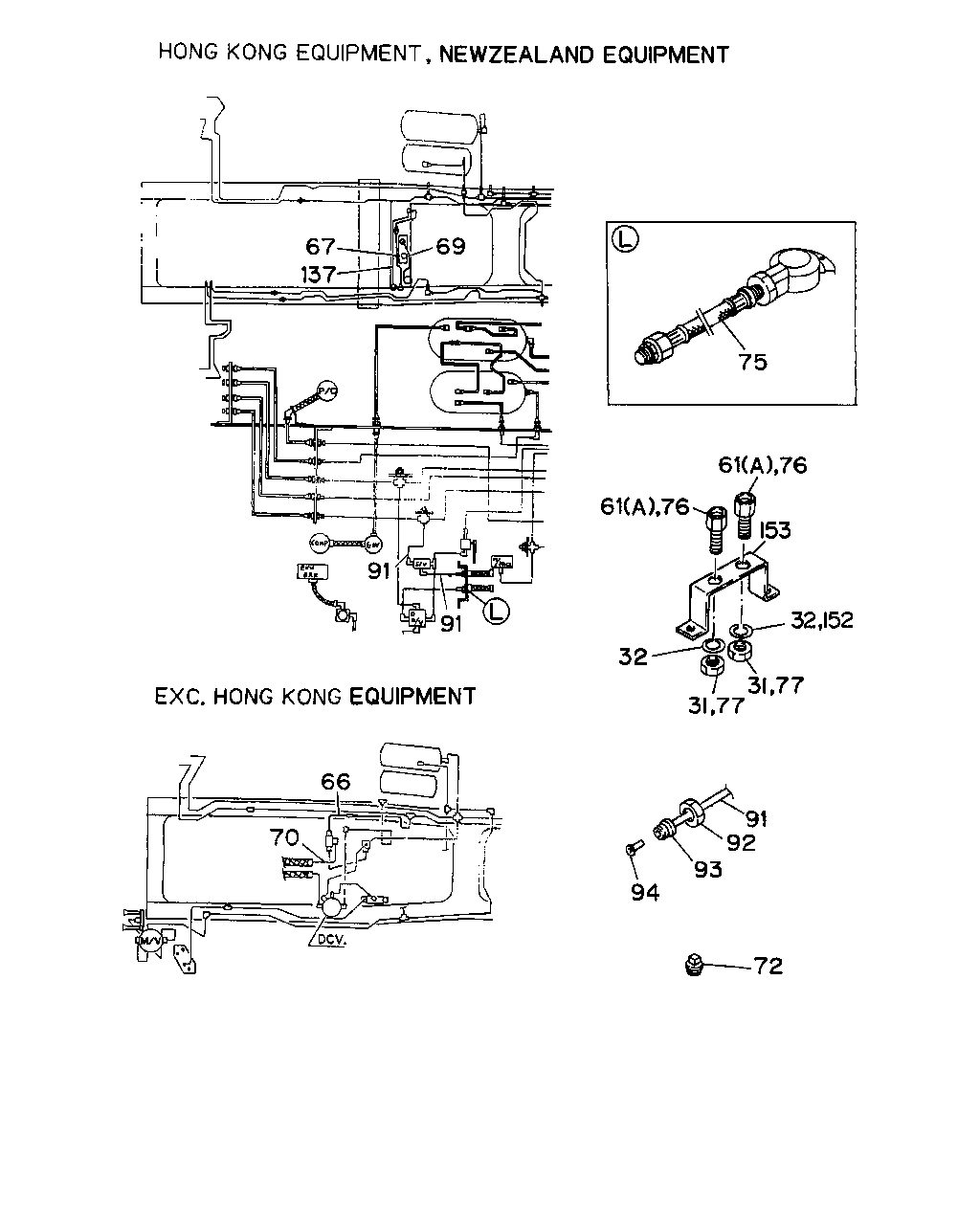

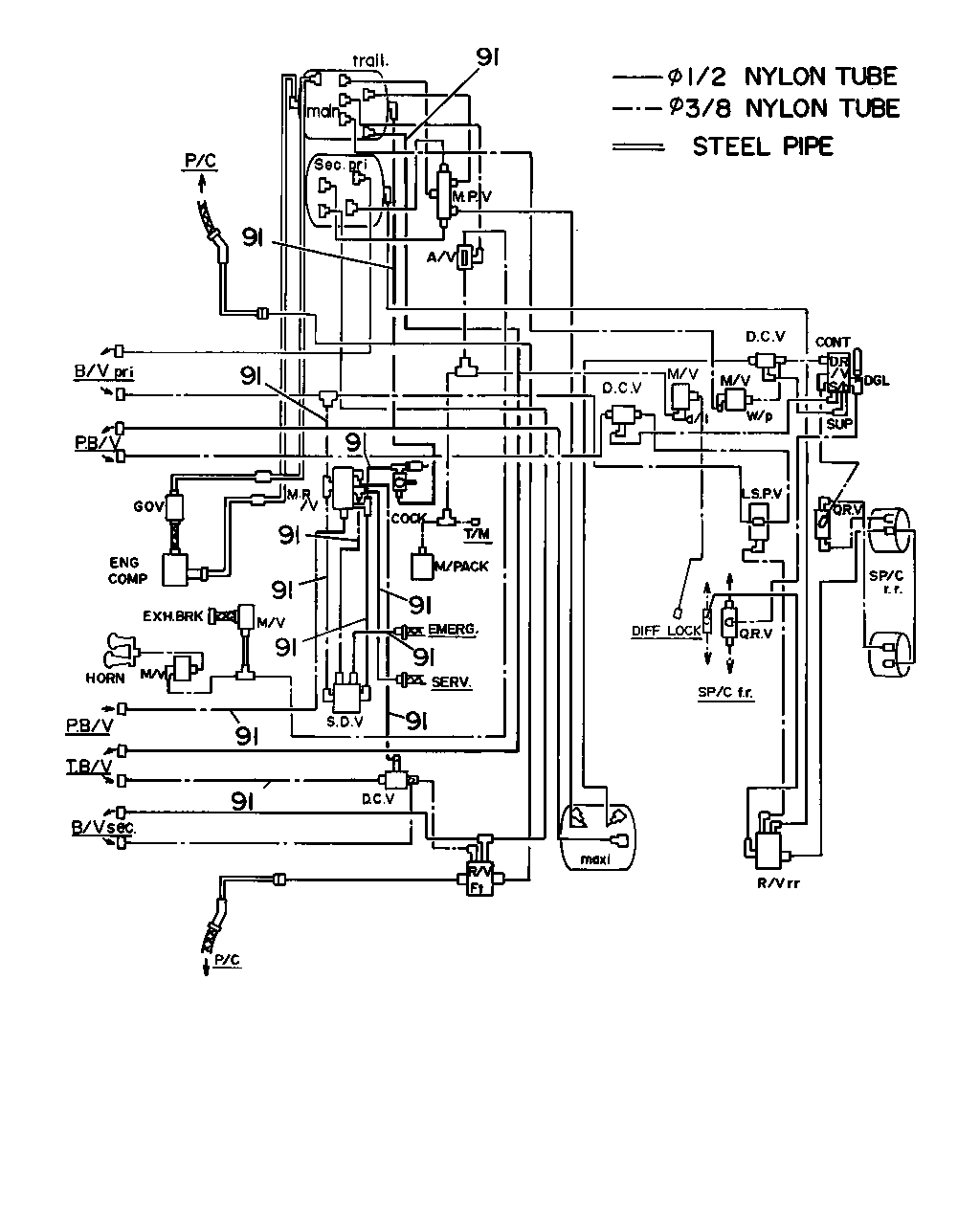

3-80 — BRAKE PIPING; TRAILER (#1754) — 391 parça

11 19 17 78 18 129 19 11 129 32 61 126 14 11 19 18 17 11 18 17 33 42 11 118 115 110 109 116 42 61 33 29 121 120 78 140 3 83 29 30 81 32 31 65 14 61 144 148 29 28 16 17 18 92 93 94 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	NUT; COCK NYLON TUBE AIR PIPING<Z29> M18	9-99111-418-0	01	1	9002-9306	●
3	NUT; COCK EXC. NYLON TUBE AIR PIPING<Z29> M22	9-09111-422-0	01	1	9002-9306	●
3	NUT; COCK M22	9-09111-422-0	01	1	9002-9306		●
3	NUT; COCK M22	9-09111-422-0	01	1	9307-	●	●
11	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C) M22	9-09235-215-1	01	1	9002-	●
11	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B) M16 2WAY	1-09650-182-1	01	1	9002-	●
11	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B) M14 2WAY	1-09654-034-2	02	1	9002-	●
11	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (A) M12 STRAIGHT	9-09233-008-1	01	1	9002-9509	●
11	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (A) M14 STRAIGHT	9-09223-008-1	01	1	9510-	●
11	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (D) M16	9-09238-310-1	01	1	9002-	●
14	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (A)	1-09660-219-0	01	1	9002-9306	●
14	CONNECTOR; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B) M22 & PT1/2 STRAIGHT	1-09650-220-1	01	1	9002-	●
14	CONNECTOR; AIR PIPE (B) M22 & PT1/2 STRAIGHT	1-09650-220-1	01	1	9002-		●
14	CONNECTOR; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-09656-498-1	01	1	9002-	●
14	CONNECTOR; AIR PIPE (C)	1-09656-498-1	01	1	9002-		●
16	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M14 2WAY	1-09654-034-2	01	1	9002-	●
16	UNION; AIR PIPE M14 2WAY	1-09654-034-2	01	1	9002-		●
17	WASHER; LK,UNION HONG KONG EQUIPMENT(PQ1) ID=22.5	9-09150-522-0	01	1	9002-	●
17	WASHER; LK,UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	03	1	9002-9306	●
17	WASHER; LK,UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	02	1	9002-9312	●
17	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	9002-9312		●
17	WASHER; LK,UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9307-	●
17	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	01	1	9002-9306	●
18	NUT; UNION HONG KONG EQUIPMENT(PQ1) M22	9-09111-422-0	01	1	9002-	●
18	NUT; UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	04	1	9002-9304	●
18	NUT; UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	04	1	9305-	●
18	NUT; UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	02	1	9305-	●
18	NUT; UNION M12	9-99110-512-0	02	1	9305-		●
18	NUT; UNION NYLON TUBE AIR PIPING<Z29> M14	9-99110-414-0	01	1	9002-9306	●
19	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M16 2WAY	1-09650-182-1	01	1	9002-	●
19	UNION; AIR PIPE (B) M16 2WAY	1-09650-182-1	01	1	9002-		●
19	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (C) M14	9-09223-208-1	01	1	9002-9306	●
19	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) M12 STRAIGHT	9-09233-008-1	01	1	9002-9509	●
19	UNION; AIR PIPE (A) M12 STRAIGHT	9-09233-008-1	01	1	9002-9509		●
19	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) M14 STRAIGHT	9-09223-008-1	01	1	9510-	●
19	UNION; AIR PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9510-		●
28	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=29 OD=39 L=40	1-09337-013-0	01	1	9307-	●
29	CONNECTOR; COCK NYLON TUBE AIR PIPING<Z29> (B)	1-09660-215-0	01	1	9002-9306	●
29	CONNECTOR; COCK NYLON TUBE AIR PIPING<Z29> (A)	1-09660-303-0	01	1	9002-9306	●
29	CONNECTOR; COCK NYLON TUBE AIR PIPING<Z29> (B) M22 & PT1/2 STRAIGHT	1-09650-220-1	01	1	9307-	●
29	CONNECTOR; COCK NYLON TUBE AIR PIPING<Z29> (A)	1-09656-332-1	01	1	9307-	●
29	CONNECTOR; COCK NYLON TUBE AIR PIPING<Z29> (C)	1-09660-638-0	02	1	9307-	●
30	COCK; AIR HOSE NYLON TUBE AIR PIPING<Z29> BLUE	9-09904-195-0	01	1	9002-9409	●
30	COCK; AIR HOSE NYLON TUBE AIR PIPING<Z29> BLUE	1-09680-068-0	01	1	9410-9512	●
30	COCK; AIR HOSE NYLON TUBE AIR PIPING<Z29> BLUE	1-09680-078-0	01	1	9601-	●
31	NUT; UNION NYLON TUBE AIR PIPING<Z29> M18	9-99111-418-0	02	1	9002-9306	●
31	NUT; UNION NYLON TUBE AIR PIPING<Z29> M20	9-99110-420-0	01	1	9307-	●
31	NUT; UNION NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	02	1	9307-	●
32	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	01	1	9002-9306	●
32	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=18.2	9-09150-518-0	02	1	9002-9306	●
32	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9307-	●
32	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	02	1	9307-	●
33	BRACKET HONG KONG EQUIPMENT(PQ1) (B)	1-47475-773-1	01	1	9002-9005	●
33	BRACKET HONG KONG EQUIPMENT(PQ1) (B)	1-47476-631-0	01	1	9006-	●
33	BRACKET NYLON TUBE AIR PIPING<Z29> (A)	1-47475-853-0	01	1	9002-9306	●
33	BRACKET NYLON TUBE AIR PIPING<Z29> (A)	1-47475-388-0	01	1	9307-	●
42	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●
42	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9306	●
42	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28080-820-0	02	1	9307-	●
42	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●
42	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204		●
42	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306	●
42	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306		●
42	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-	●
42	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9307-		●
42	BOLT; BRKT M10X25 W/LK WASHER	0-50041-025-0	02	1	9002-	●	●
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-214-0	02	1	9002-9306	●
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	1-47470-232-0	01	1	9002-9008	●
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	1-47470-301-0	01	1	9009-9306	●
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M14	9-09223-208-1	01	1	9002-9306	●
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09650-222-1	02	1	9307-	●
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) UNS 17/32-24 L=57	1-09664-083-0	01	1	9307-	●
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	1-47470-312-0	01	1	9307-	●
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	9-09233-212-1	01	1	9307-	●
65	HOSE; AIR EXC. JUMPER HOSE & CABLE DELETE<SJK> L=5636	1-09363-163-1	01	1	9002-	●	●
78	WASHER; LK HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9312	●
78	WASHER; LK EXC. NYLON TUBE AIR PIPING<Z29> ID=22.5	9-09150-522-0	01	1	9002-	●
78	WASHER; LK ID=22.5	9-09150-522-0	01	1	9002-		●
81	COCK; AIR COUPLING EXC. NYLON TUBE AIR PIPING<Z29> BLUE	9-09904-195-0	01	1	9307-9409	●
81	COCK; AIR COUPLING BLUE	9-09904-195-0	01	1	9307-9409		●
81	COCK; AIR COUPLING EXC. NYLON TUBE AIR PIPING<Z29> BLUE	1-09680-068-0	01	1	9410-9512	●
81	COCK; AIR COUPLING BLUE	1-09680-068-0	01	1	9410-9512		●
81	COCK; AIR COUPLING EXC. NYLON TUBE AIR PIPING<Z29> BLUE	1-09680-078-0	01	1	9601-	●
81	COCK; AIR COUPLING BLUE	1-09680-078-0	01	1	9601-		●
83	WASHER; LK,CONNECTOR NYLON TUBE AIR PIPING<Z29> ID=18.2	9-09150-518-0	01	1	9002-9306	●
83	WASHER; LK,CONNECTOR NYLON TUBE AIR PIPING<Z29> ID=22.5	9-09150-522-0	01	1	9307-	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9307-9404	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE SERVICED BY L=30000 OD=3/8"	1-09368-323-0	AR	1	9405-	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9307-	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE SERVICED BY L=30000 OD=3/8"	1-09368-323-0	AR	1	9307-	●
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-9306	●
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M18	1-09660-213-0	AR	1	9002-9306	●
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	AR	1	9307-	●
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09660-558-0	AR	1	9307-	●
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09666-042-0	AR	1	9002-9306	●
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09666-043-0	AR	1	9002-9306	●
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9307-	●
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9307-	●
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-9306	●
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09669-055-0	AR	1	9002-9306	●
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	AR	1	9307-	●
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	AR	1	9307-	●
109	NUT; JOINT EXC. NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	01	1	9002-	●
109	NUT; JOINT M14	9-99111-414-0	01	1	9002-		●
110	WASHER; LK,JOINT EXC. NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	01	1	9002-	●
110	WASHER; LK,JOINT ID=14.2	9-09150-514-0	01	1	9002-		●
115	BRACKET; PIPE JOINT HONG KONG EQUIPMENT(PQ1)	1-47476-296-0	01	1	9002-	●
115	BRACKET; PIPE JOINT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-47475-259-0	01	1	9002-	●
115	BRACKET; PIPE JOINT	1-47475-259-0	01	1	9002-		●
116	BOLT; JOINT BRKT EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204	●
116	BOLT; JOINT BRKT M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204		●
116	BOLT; JOINT BRKT EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302	●
116	BOLT; JOINT BRKT M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302		●
116	BOLT; JOINT BRKT EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9303-	●
116	BOLT; JOINT BRKT M6X16 FLANGE	0-28080-616-0	02	1	9303-		●
118	JOINT; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M14	9-09223-208-1	01	1	9002-	●
118	JOINT; AIR PIPE M14	9-09223-208-1	01	1	9002-		●
120	BRACKET; COCK NYLON TUBE AIR PIPING<Z29>	1-48499-003-0	01	1	9002-9306	●
120	BRACKET; COCK EXC. NYLON TUBE AIR PIPING<Z29>	1-48499-001-1	01	1	9002-9306	●
120	BRACKET; COCK	1-48499-001-1	01	1	9002-9306		●
120	BRACKET; COCK	1-48499-001-1	01	1	9307-	●	●
121	NUT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-	●
121	NUT; BRKT M8	9-09110-408-0	02	1	9002-		●
121	NUT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	02	1	9002-	●
121	NUT; BRKT M10	9-09110-510-0	02	1	9002-		●
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	1-09660-219-0	01	1	9002-9008	●
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	1-09660-219-0	02	1	9009-9306	●
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-584-1	01	1	9009-9302	●
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-699-0	01	1	9303-9306	●
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-606-0	01	1	9307-	●
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D)	1-09650-373-0	01	1	9307-	●
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (E)	1-09660-576-0	03	1	9307-	●
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	1-09660-607-0	01	1	9307-	●
129	NUT; UNION,NYLON TUBE NYLON TUBE AIR PIPING<Z29> M6 FLANGE	1-09984-141-0	01	1	9002-9306	●
129	NUT; UNION,NYLON TUBE NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	04	1	9002-9306	●
129	NUT; UNION,NYLON TUBE NYLON TUBE AIR PIPING<Z29> UNS 17/32-24 B=17	1-09487-023-0	01	1	9307-	●
140	BOLT; UNION NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9307-9312	●
140	BOLT; UNION NYLON TUBE AIR PIPING<Z29> M6X20 FLANGE	0-28080-620-0	02	1	9401-	●
144	CLIP; BAND NYLON TUBE AIR PIPING<Z29> L=140	5-09707-031-0	06	1	9307-	●
148	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29>	1-09660-637-0	02	1	9307-	●

91 91 91 91 91 46 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
46	PIPE; AIR,FLEX HOSE TO UNION AUTO CAB TILT<WV2> CAB UP 50MM(W60) EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=2185	1-47485-158-0	01	1	9002-9306	●
46	PIPE; AIR,FLEX HOSE TO UNION 8PD1 STD ENG(38L) EXC. NYLON TUBE AIR PIPING<Z29> L=1725	1-47495-885-0	01	1	9307-	●
46	PIPE; AIR,FLEX HOSE TO UNION CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> L=1453 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9306	●
46	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=1401 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●
46	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=1401 SERVICED BY L=1550	1-47426-390-0	01	1	9307-9410	●
46	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29>	1-49115-002-0	01	1	9411-	●
46	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),AUTO CAB TILT<WV2>, NYLON TUBE AIR PIPING<Z29> L=1593	1-47485-705-0	01	1	9002-9306	●
46	PIPE; AIR,FLEX HOSE TO UNION L=1593	1-47485-705-0	01	1	9002-9306		●
46	PIPE; AIR,FLEX HOSE TO UNION 6RB1TC ENG(30L),10PD1 STD ENG(40L) EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1608	1-47496-169-0	01	1	9307-9308	●
46	PIPE; AIR,FLEX HOSE TO UNION L=1608	1-47496-169-0	01	1	9307-9308		●
46	PIPE; AIR,FLEX HOSE TO UNION 6RB1TC ENG(30L),10PD1 STD ENG(40L) EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1593	1-49111-219-0	01	1	9309-	●
46	PIPE; AIR,FLEX HOSE TO UNION L=1593	1-49111-219-0	01	1	9309-		●
46	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) L=1310	1-47487-293-0	01	1	9002-9306	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9307-9404	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE SERVICED BY L=30000 OD=3/8"	1-09368-323-0	AR	1	9405-	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9307-	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE SERVICED BY L=30000 OD=3/8"	1-09368-323-0	AR	1	9307-	●

105 91 106 105 91 126 61 124 105 106 126 140 126 126 126 106 105 106 99 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-214-0	02	1	9002-9306	●
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	1-47470-232-0	01	1	9002-9008	●
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	1-47470-301-0	01	1	9009-9306	●
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M14	9-09223-208-1	01	1	9002-9306	●
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09650-222-1	02	1	9307-	●
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) UNS 17/32-24 L=57	1-09664-083-0	01	1	9307-	●
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	1-47470-312-0	01	1	9307-	●
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	9-09233-212-1	01	1	9307-	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9307-9404	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE SERVICED BY L=30000 OD=3/8"	1-09368-323-0	AR	1	9405-	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9307-	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE SERVICED BY L=30000 OD=3/8"	1-09368-323-0	AR	1	9307-	●
99	PIPE; AIR,JOINT TO JOINT HONG KONG EQUIPMENT(PQ1) (A) L=1928 SERVICED BY L=2150	1-47437-958-0	01	1	9002-9306	●
99	PIPE; AIR,JOINT TO JOINT HONG KONG EQUIPMENT(PQ1) (A) L=1928	1-47495-957-0	01	1	9307-	●
99	PIPE; AIR,JOINT TO JOINT HONG KONG EQUIPMENT(PQ1) (B) L=1542 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306	●
99	PIPE; AIR,JOINT TO JOINT HONG KONG EQUIPMENT(PQ1) (B) L=1542 SERVICED BY L=1550	1-47426-419-0	01	1	9307-	●
99	PIPE; AIR,JOINT TO JOINT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1975 SERVICED BY L=2150	1-47437-958-0	01	1	9002-9212	●
99	PIPE; AIR,JOINT TO JOINT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1975 SERVICED BY L=2150	1-47426-394-0	01	1	9301-	●
99	PIPE; AIR,JOINT TO JOINT L=1001 SERVICED BY L=1100	1-47434-409-0	01	1	9002-9306		●
99	PIPE; AIR,JOINT TO JOINT L=1001	1-47495-960-0	01	1	9307-		●
105	PIPE; VINYL,EXH,PARKING BRK VLV NYLON TUBE AIR PIPING<Z29> L=800 SERVICED BY L=10000	9-09914-701-0	01	1	9307-	●
105	PIPE; VINYL,EXH,PARKING BRK VLV L=1150 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9303	●	●
105	PIPE; VINYL,EXH,PARKING BRK VLV L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9304-9306	●	●
105	PIPE; VINYL,EXH,PARKING BRK VLV EXC. NYLON TUBE AIR PIPING<Z29> L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9307-	●
105	PIPE; VINYL,EXH,PARKING BRK VLV L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9307-		●
106	CLIP; PIPE ID=15	9-09715-098-0	02	1	9002-	●	●
124	BOLT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50000-616-0	02	1	9002-9204	●
124	BOLT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50080-616-0	02	1	9205-9301	●
124	BOLT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	02	1	9302-9302	●
124	BOLT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9303-9306	●
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	1-09660-219-0	01	1	9002-9008	●
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	1-09660-219-0	02	1	9009-9306	●
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-584-1	01	1	9009-9302	●
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-699-0	01	1	9303-9306	●
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-606-0	01	1	9307-	●
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D)	1-09650-373-0	01	1	9307-	●
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (E)	1-09660-576-0	03	1	9307-	●
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	1-09660-607-0	01	1	9307-	●
140	BOLT; UNION NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9307-9312	●
140	BOLT; UNION NYLON TUBE AIR PIPING<Z29> M6X20 FLANGE	0-28080-620-0	02	1	9401-	●

119 107 104 99 104 107 110 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
99	PIPE; AIR,JOINT TO JOINT HONG KONG EQUIPMENT(PQ1) (A) L=1928 SERVICED BY L=2150	1-47437-958-0	01	1	9002-9306	●
99	PIPE; AIR,JOINT TO JOINT HONG KONG EQUIPMENT(PQ1) (A) L=1928	1-47495-957-0	01	1	9307-	●
99	PIPE; AIR,JOINT TO JOINT HONG KONG EQUIPMENT(PQ1) (B) L=1542 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306	●
99	PIPE; AIR,JOINT TO JOINT HONG KONG EQUIPMENT(PQ1) (B) L=1542 SERVICED BY L=1550	1-47426-419-0	01	1	9307-	●
99	PIPE; AIR,JOINT TO JOINT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1975 SERVICED BY L=2150	1-47437-958-0	01	1	9002-9212	●
99	PIPE; AIR,JOINT TO JOINT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1975 SERVICED BY L=2150	1-47426-394-0	01	1	9301-	●
99	PIPE; AIR,JOINT TO JOINT L=1001 SERVICED BY L=1100	1-47434-409-0	01	1	9002-9306		●
99	PIPE; AIR,JOINT TO JOINT L=1001	1-47495-960-0	01	1	9307-		●
104	PIPE; AIR,JOINT TO PARKING BRK VLV EXC. NYLON TUBE AIR PIPING<Z29> L=561	1-47445-965-0	01	1	9002-9212	●
104	PIPE; AIR,JOINT TO PARKING BRK VLV EXC. NYLON TUBE AIR PIPING<Z29> L=561	1-47495-953-0	01	1	9301-	●
104	PIPE; AIR,JOINT TO PARKING BRK VLV L=562	1-47446-012-0	01	1	9002-9306		●
104	PIPE; AIR,JOINT TO PARKING BRK VLV L=562	1-47495-954-0	01	1	9307-		●
107	PIPE; AIR,JOINT TO PARKING BRK VLV EXC. NYLON TUBE AIR PIPING<Z29> L=620	1-47445-966-1	01	1	9002-9212	●
107	PIPE; AIR,JOINT TO PARKING BRK VLV EXC. NYLON TUBE AIR PIPING<Z29> L=621	1-47495-955-0	01	1	9301-	●
107	PIPE; AIR,JOINT TO PARKING BRK VLV L=574	1-47446-013-0	01	1	9002-9306		●
107	PIPE; AIR,JOINT TO PARKING BRK VLV L=575	1-47495-959-0	01	1	9307-		●
110	WASHER; LK,JOINT EXC. NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	01	1	9002-	●
110	WASHER; LK,JOINT ID=14.2	9-09150-514-0	01	1	9002-		●
119	PIPE; AIR,JOINT TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=1430 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9212	●
119	PIPE; AIR,JOINT TO FLEX HOSE L=1430 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9212		●
119	PIPE; AIR,JOINT TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=1430 SERVICED BY L=1550	1-47426-390-0	01	1	9301-9306	●
119	PIPE; AIR,JOINT TO FLEX HOSE L=1430 SERVICED BY L=1550	1-47426-390-0	01	1	9301-9306		●
119	PIPE; AIR,JOINT TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=1430	1-47495-958-0	01	1	9307-	●
119	PIPE; AIR,JOINT TO FLEX HOSE L=1430	1-47495-958-0	01	1	9307-		●

91 91 91 91 91 91 91 91 91 91 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9307-9404	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE SERVICED BY L=30000 OD=3/8"	1-09368-323-0	AR	1	9405-	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9307-	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE SERVICED BY L=30000 OD=3/8"	1-09368-323-0	AR	1	9307-	●

69 67 137 75 61 76 153 76 61 32 32 152 77 31 77 31 91 92 93 94 72 66 70 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NUT; UNION NYLON TUBE AIR PIPING<Z29> M18	9-99111-418-0	02	1	9002-9306	●
31	NUT; UNION NYLON TUBE AIR PIPING<Z29> M20	9-99110-420-0	01	1	9307-	●
31	NUT; UNION NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	02	1	9307-	●
32	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	01	1	9002-9306	●
32	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=18.2	9-09150-518-0	02	1	9002-9306	●
32	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9307-	●
32	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	02	1	9307-	●
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-214-0	02	1	9002-9306	●
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	1-47470-232-0	01	1	9002-9008	●
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	1-47470-301-0	01	1	9009-9306	●
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M14	9-09223-208-1	01	1	9002-9306	●
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09650-222-1	02	1	9307-	●
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) UNS 17/32-24 L=57	1-09664-083-0	01	1	9307-	●
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	1-47470-312-0	01	1	9307-	●
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	9-09233-212-1	01	1	9307-	●
66	PIPE; AIR,UNION TO SYN VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=221	1-47447-782-0	01	1	9002-9306	●
66	PIPE; AIR,UNION TO SYN VLV L=221	1-47447-782-0	01	1	9002-9306		●
66	PIPE; AIR,UNION TO SYN VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=221	1-47496-184-0	01	1	9307-	●
66	PIPE; AIR,UNION TO SYN VLV L=221	1-47496-184-0	01	1	9307-		●
67	PIPE ASM; AIR,3 WAY TO SUPPLY DUMP VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=397 SERVICED BY L=400	1-47434-471-0	01	1	9002-9306	●
67	PIPE ASM; AIR,3 WAY TO SUPPLY DUMP VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=398 SERVICED BY L=400	1-47426-404-0	01	1	9307-	●
69	PIPE ASM; AIR,SUPPLY VLV TO AIR HOSE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=406 SERVICED BY L=450	1-47437-962-0	01	1	9002-9306	●
69	PIPE ASM; AIR,SUPPLY VLV TO AIR HOSE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=407 SERVICED BY L=450	1-47426-405-0	01	1	9307-	●
70	PIPE; AIR,SYN VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=330	1-47447-776-0	01	1	9002-9306	●
70	PIPE; AIR,SYN VLV L=330	1-47447-776-0	01	1	9002-9306		●
70	PIPE; AIR,SYN VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=330	1-47496-187-0	01	1	9307-	●
70	PIPE; AIR,SYN VLV L=330	1-47496-187-0	01	1	9307-		●
72	PLUG JUMPER HOSE & CABLE DELETE<SJK> PT1/2	9-09204-521-0	01	1	9002-	●	●
75	HOSE; FLEX,TRAILER EMERGENCY EXC. JUMPER HOSE & CABLE DELETE<SJK> L=5640	1-09363-164-1	01	1	9002-	●	●
76	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29>	1-09650-222-1	01	1	9002-	●
76	NIPPLE; AIR PIPE	1-09650-222-1	01	1	9002-		●
77	NUT; NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	01	1	9002-	●
77	NUT; NIPPLE M16	9-99111-416-0	01	1	9002-		●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9307-9404	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE SERVICED BY L=30000 OD=3/8"	1-09368-323-0	AR	1	9405-	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9307-	●
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE SERVICED BY L=30000 OD=3/8"	1-09368-323-0	AR	1	9307-	●
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-9306	●
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M18	1-09660-213-0	AR	1	9002-9306	●
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	AR	1	9307-	●
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09660-558-0	AR	1	9307-	●
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09666-042-0	AR	1	9002-9306	●
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09666-043-0	AR	1	9002-9306	●
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9307-	●
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9307-	●
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-9306	●
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09669-055-0	AR	1	9002-9306	●
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	AR	1	9307-	●
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	AR	1	9307-	●
137	PIPE; AIR,RELAY VALVE TO DUMP VALVE HONG KONG EQUIPMENT(PQ1) L=898 SERVICED BY L=900	1-47437-966-0	01	1	9002-9306	●
137	PIPE; AIR,RELAY VALVE TO DUMP VALVE HONG KONG EQUIPMENT(PQ1) L=898 SERVICED BY L=900	1-47426-413-0	01	1	9307-	●
152	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	01	1	9002-	●
152	WASHER; LK,NIPPLE ID=16.2	9-09150-516-0	01	1	9002-		●
153	BRACKET; NIPPLE EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-388-0	01	1	9002-	●
153	BRACKET; NIPPLE	1-47475-388-0	01	1	9002-		●

51 47 54 66 22 22 70 23 57 56 49 46 40 52 36 20 21 37 57 8 69 67 49 25 24 36 46 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1)	1-47489-513-0	01	1	9002-9204	●
8	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1)	1-47494-959-0	01	1	9205-	●
20	PIPE ASM; AIR,COCK TO MULTI RELAY VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=558 SERVICED BY L=1000	1-47434-491-0	01	1	9002-	●
21	PIPE ASM; AIR,COCK TO SUPPLY DUMP VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=1148 SERVICED BY L=1150	1-47437-992-0	01	1	9002-	●
22	PIPE; AIR,COCK TO SYN VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=694 SERVICED BY L=1000	1-47434-491-0	01	1	9002-	●
22	PIPE; AIR,COCK TO SYN VLV (B) L=694 SERVICED BY L=1000	1-47434-491-0	01	1	9002-		●
22	PIPE; AIR,COCK TO SYN VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1127 SERVICED BY L=1150	1-47437-992-0	01	1	9002-	●
22	PIPE; AIR,COCK TO SYN VLV (A) L=1127 SERVICED BY L=1150	1-47437-992-0	01	1	9002-		●
23	PIPE; AIR,RELAY VLV TO JUMPER HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=630 SERVICED BY L=660	1-47437-964-0	01	1	9002-9306	●
23	PIPE; AIR,RELAY VLV TO JUMPER HOSE L=630 SERVICED BY L=660	1-47437-964-0	01	1	9002-9306		●
23	PIPE; AIR,RELAY VLV TO JUMPER HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=630 SERVICED BY L=660	1-47426-409-0	01	1	9307-9309	●
23	PIPE; AIR,RELAY VLV TO JUMPER HOSE L=630 SERVICED BY L=660	1-47426-409-0	01	1	9307-9309		●
23	PIPE; AIR,RELAY VLV TO JUMPER HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=615 SERVICED BY L=660	1-47426-409-0	01	1	9310-	●
23	PIPE; AIR,RELAY VLV TO JUMPER HOSE L=615 SERVICED BY L=660	1-47426-409-0	01	1	9310-		●
24	PIPE ASM; AIR,MULTI RELAY VLV TO UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=480 SERVICED BY L=500	1-47434-472-0	01	1	9002-9306	●
24	PIPE ASM; AIR,MULTI RELAY VLV TO UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=480 SERVICED BY L=500	1-47426-406-0	01	1	9307-	●
25	PIPE ASM; AIR,UNION TO JOINT HOSE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=501 SERVICED BY L=550	1-47437-963-0	01	1	9002-9306	●
25	PIPE ASM; AIR,UNION TO JOINT HOSE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=501 SERVICED BY L=550	1-47426-407-0	01	1	9307-	●
35	PIPE ASM; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=1759 SERVICED BY L=1950	1-47434-414-0	01	1	9002-9306	●
35	PIPE ASM; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=1759 SERVICED BY L=1800	1-47426-392-0	01	1	9307-9410	●
35	PIPE ASM; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=1758 SERVICED BY L=1800	1-47426-392-0	01	1	9411-9501	●
35	PIPE ASM; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=1758 SERVICED BY L=1800	1-47426-392-0	01	1	9502-	●
36	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B) L=822 SERVICED BY L=900	1-47434-407-0	01	1	9002-9306	●
36	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B) L=822 SERVICED BY L=900	1-47426-384-0	01	1	9307-	●
36	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (A) L=665 SERVICED BY L=730	1-47437-965-0	01	1	9002-9306	●
36	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (A) L=665 SERVICED BY L=700	1-47426-410-0	01	1	9307-	●
37	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=527 SERVICED BY L=550	1-47437-953-0	01	1	9002-9306	●
37	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=527 SERVICED BY L=550	1-47426-377-0	01	1	9307-	●
40	PIPE ASM; AIR,2 WAY TO MULTI RELAY VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=717 SERVICED BY L=730	1-47437-955-0	01	1	9002-9306	●
40	PIPE ASM; AIR,2 WAY TO MULTI RELAY VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=718 SERVICED BY L=730	1-47426-382-0	01	1	9307-	●
46	PIPE; AIR,FLEX HOSE TO UNION AUTO CAB TILT<WV2> CAB UP 50MM(W60) EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=2185	1-47485-158-0	01	1	9002-9306	●
46	PIPE; AIR,FLEX HOSE TO UNION 8PD1 STD ENG(38L) EXC. NYLON TUBE AIR PIPING<Z29> L=1725	1-47495-885-0	01	1	9307-	●
46	PIPE; AIR,FLEX HOSE TO UNION CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> L=1453 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9306	●
46	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=1401 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●
46	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=1401 SERVICED BY L=1550	1-47426-390-0	01	1	9307-9410	●
46	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29>	1-49115-002-0	01	1	9411-	●
46	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),AUTO CAB TILT<WV2>, NYLON TUBE AIR PIPING<Z29> L=1593	1-47485-705-0	01	1	9002-9306	●
46	PIPE; AIR,FLEX HOSE TO UNION L=1593	1-47485-705-0	01	1	9002-9306		●
46	PIPE; AIR,FLEX HOSE TO UNION 6RB1TC ENG(30L),10PD1 STD ENG(40L) EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1608	1-47496-169-0	01	1	9307-9308	●
46	PIPE; AIR,FLEX HOSE TO UNION L=1608	1-47496-169-0	01	1	9307-9308		●
46	PIPE; AIR,FLEX HOSE TO UNION 6RB1TC ENG(30L),10PD1 STD ENG(40L) EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1593	1-49111-219-0	01	1	9309-	●
46	PIPE; AIR,FLEX HOSE TO UNION L=1593	1-49111-219-0	01	1	9309-		●
46	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) L=1310	1-47487-293-0	01	1	9002-9306	●
47	PIPE; AIR,UNION TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=813 SERVICED BY L=900	1-47426-384-0	01	1	9307-9405	●
47	PIPE; AIR,UNION TO UNION L=813 SERVICED BY L=900	1-47426-384-0	01	1	9307-9405		●
47	PIPE; AIR,UNION TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=791 SERVICED BY L=900	1-47426-384-0	01	1	9406-	●
47	PIPE; AIR,UNION TO UNION L=791 SERVICED BY L=900	1-47426-384-0	01	1	9406-		●
47	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=815 SERVICED BY L=900	1-47434-407-0	01	1	9002-9306	●
47	PIPE; AIR,UNION TO UNION L=815 SERVICED BY L=900	1-47434-407-0	01	1	9002-9306		●
47	PIPE; AIR,UNION TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=820 SERVICED BY L=900	1-47426-384-0	01	1	9307-	●
49	PIPE; AIR,UNION TO CHECK VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=964 SERVICED BY L=970	1-47426-385-0	01	1	9307-	●
49	PIPE; AIR,UNION TO CHECK VLV L=964 SERVICED BY L=970	1-47426-385-0	01	1	9307-		●
49	PIPE; AIR,UNION TO CHECK VLV EXC. NYLON TUBE AIR PIPING<Z29> L=964 SERVICED BY L=1000	1-47437-956-0	01	1	9002-9306	●
49	PIPE; AIR,UNION TO CHECK VLV L=964 SERVICED BY L=1000	1-47437-956-0	01	1	9002-9306		●
49	PIPE; AIR,UNION TO CHECK VLV FRAME EQUIPMENT HEAVY DUTY<F03> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=962 SERVICED BY L=970	1-47426-385-0	01	1	9307-	●
51	PIPE; AIR,UNION TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=675 SERVICED BY L=700	1-47426-410-0	01	1	9307-	●
51	PIPE; AIR,UNION TO UNION L=675 SERVICED BY L=700	1-47426-410-0	01	1	9307-		●
51	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=675 SERVICED BY L=730	1-47437-965-0	01	1	9002-9306	●
51	PIPE; AIR,UNION TO UNION L=675 SERVICED BY L=730	1-47437-965-0	01	1	9002-9306		●
51	PIPE; AIR,UNION TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=684 SERVICED BY L=700	1-47426-410-0	01	1	9307-	●
52	PIPE ASM; AIR,3 WAY TO MULTI RELAY VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=713 SERVICED BY L=800	1-47434-475-0	01	1	9002-9306	●
52	PIPE ASM; AIR,3 WAY TO MULTI RELAY VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=713 SERVICED BY L=730	1-47426-411-0	01	1	9307-	●
54	PIPE; AIR,UNION TO DUAL RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=729 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306	●
54	PIPE; AIR,UNION TO DUAL RELAY VLV L=729 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306		●
54	PIPE; AIR,UNION TO DUAL RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=729 SERVICED BY L=730	1-47426-411-0	01	1	9307-	●
54	PIPE; AIR,UNION TO DUAL RELAY VLV L=729 SERVICED BY L=730	1-47426-411-0	01	1	9307-		●
56	PIPE; AIR,UNION TO COCK FRAME EQUIPMENT HEAVY DUTY<F03> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1289	1-47493-414-0	01	1	9307-	●
56	PIPE; AIR,UNION TO COCK EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1296 SERVICED BY L=1350	1-47437-995-0	01	1	9307-	●
56	PIPE; AIR,UNION TO COCK L=1296 SERVICED BY L=1350	1-47437-995-0	01	1	9307-		●
56	PIPE; AIR,UNION TO COCK HONG KONG EQUIPMENT(PQ1) L=1083	1-47489-514-0	01	1	9002-9204	●
56	PIPE; AIR,UNION TO COCK HONG KONG EQUIPMENT(PQ1) L=1085	1-47495-155-0	01	1	9205-	●
56	PIPE; AIR,UNION TO COCK EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1296 SERVICED BY L=1350	1-47437-995-0	01	1	9002-9306	●
56	PIPE; AIR,UNION TO COCK L=1296 SERVICED BY L=1350	1-47437-995-0	01	1	9002-9306		●
57	PIPE; AIR,CHECK VLV TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> FULLER M/T<X9B> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=794 SERVICED BY L=800	1-47426-412-0	01	1	9307-	●
57	PIPE; AIR,CHECK VLV TO UNION FULLER M/T<X9B> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=795	1-47449-598-1	01	1	9005-9306	●
57	PIPE; AIR,CHECK VLV TO UNION FULLER M/T<X9B> L=795	1-47449-598-1	01	1	9005-9306		●
57	PIPE; AIR,CHECK VLV TO UNION FULLER M/T<X9B> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=795 SERVICED BY L=800	1-47426-412-0	01	1	9307-	●
57	PIPE; AIR,CHECK VLV TO UNION FULLER M/T<X9B> L=795 SERVICED BY L=800	1-47426-412-0	01	1	9307-		●
57	PIPE; AIR,CHECK VLV TO UNION HONG KONG EQUIPMENT(PQ1) FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> L=903 SERVICED BY L=1000	1-47434-476-0	01	1	9005-9306	●
57	PIPE; AIR,CHECK VLV TO UNION HONG KONG EQUIPMENT(PQ1) FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> L=903 SERVICED BY L=1000	1-47426-414-0	01	1	9307-	●
57	PIPE; AIR,CHECK VLV TO UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=843 SERVICED BY L=900	1-47437-966-0	01	1	9002-9004	●
57	PIPE; AIR,CHECK VLV TO UNION HONG KONG EQUIPMENT(PQ1) ISUZU M/T<X9A> EXC. NYLON TUBE AIR PIPING<Z29> L=843 SERVICED BY L=900	1-47437-966-0	01	1	9005-9306	●
57	PIPE; AIR,CHECK VLV TO UNION HONG KONG EQUIPMENT(PQ1) ISUZU M/T<X9A> EXC. NYLON TUBE AIR PIPING<Z29> L=843 SERVICED BY L=900	1-47426-413-0	01	1	9307-	●
57	PIPE; AIR,CHECK VLV TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=723	1-47488-497-0	01	1	9002-9004	●
57	PIPE; AIR,CHECK VLV TO UNION L=723	1-47488-497-0	01	1	9002-9004		●
57	PIPE; AIR,CHECK VLV TO UNION ISUZU M/T<X9A> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=723	1-47488-497-0	01	1	9005-9306	●
57	PIPE; AIR,CHECK VLV TO UNION ISUZU M/T<X9A> L=723	1-47488-497-0	01	1	9005-9306		●
57	PIPE; AIR,CHECK VLV TO UNION ISUZU M/T<X9A> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=724 SERVICED BY L=730	1-47426-411-0	01	1	9307-	●
57	PIPE; AIR,CHECK VLV TO UNION ISUZU M/T<X9A> L=724 SERVICED BY L=730	1-47426-411-0	01	1	9307-		●
66	PIPE; AIR,UNION TO SYN VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=221	1-47447-782-0	01	1	9002-9306	●
66	PIPE; AIR,UNION TO SYN VLV L=221	1-47447-782-0	01	1	9002-9306		●
66	PIPE; AIR,UNION TO SYN VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=221	1-47496-184-0	01	1	9307-	●
66	PIPE; AIR,UNION TO SYN VLV L=221	1-47496-184-0	01	1	9307-		●
67	PIPE ASM; AIR,3 WAY TO SUPPLY DUMP VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=397 SERVICED BY L=400	1-47434-471-0	01	1	9002-9306	●
67	PIPE ASM; AIR,3 WAY TO SUPPLY DUMP VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=398 SERVICED BY L=400	1-47426-404-0	01	1	9307-	●
69	PIPE ASM; AIR,SUPPLY VLV TO AIR HOSE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=406 SERVICED BY L=450	1-47437-962-0	01	1	9002-9306	●
69	PIPE ASM; AIR,SUPPLY VLV TO AIR HOSE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=407 SERVICED BY L=450	1-47426-405-0	01	1	9307-	●
70	PIPE; AIR,SYN VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=330	1-47447-776-0	01	1	9002-9306	●
70	PIPE; AIR,SYN VLV L=330	1-47447-776-0	01	1	9002-9306		●
70	PIPE; AIR,SYN VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=330	1-47496-187-0	01	1	9307-	●
70	PIPE; AIR,SYN VLV L=330	1-47496-187-0	01	1	9307-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
