◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11664 - FYH LHD CHINA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#175391) — 61 parça

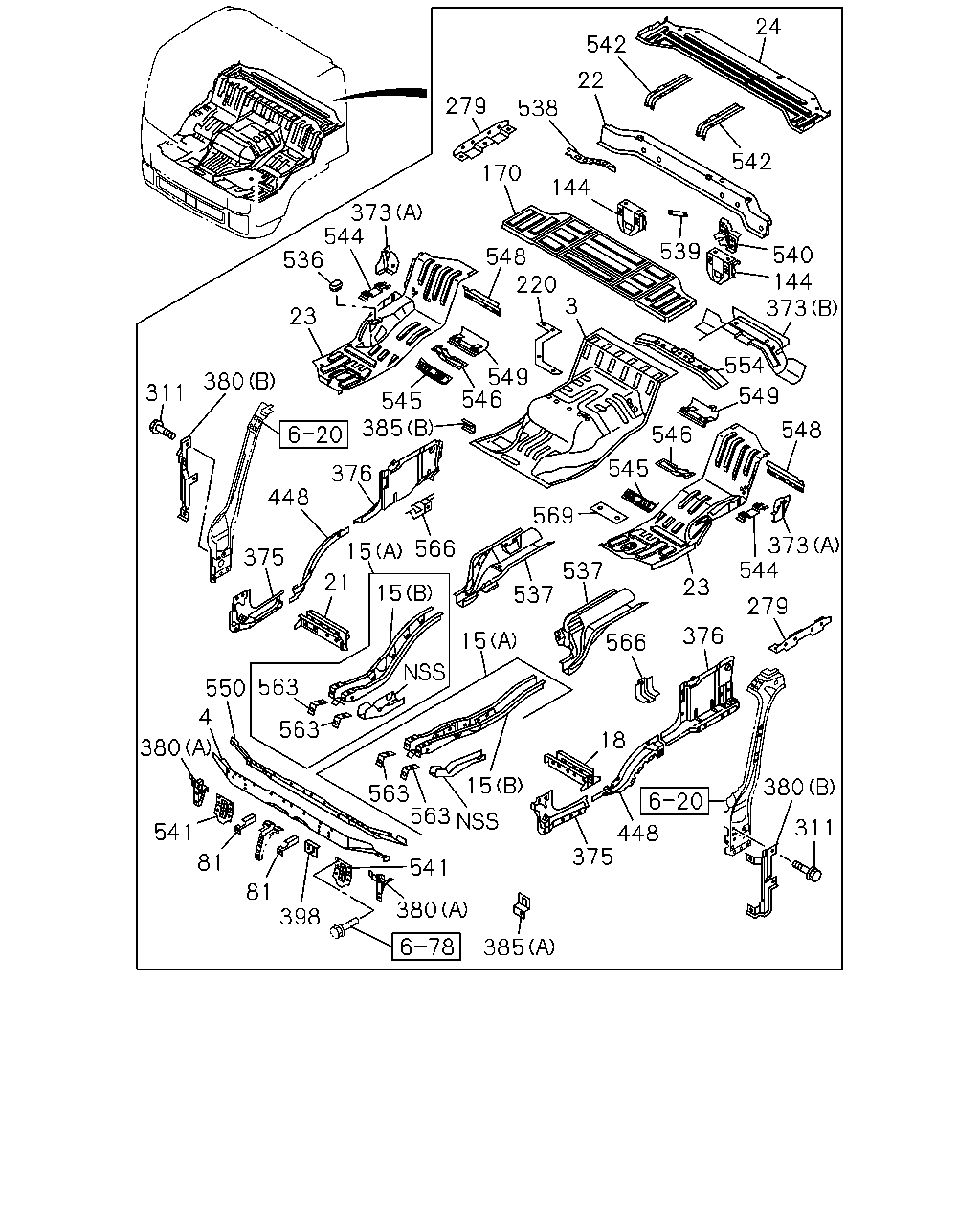

çizim 513690
542 24 542 22 144 279 170 548 3 549 546 545 536 373 23 380 448 376 385 566 15 375 21 220 539 540 373 144 554 548 549 546 373 544 279 23 376 566 569 537 15 15 311 550 380 541 81 81 398 380 541 563 563 563 563 15 537 545 18 375 380 311 385 538 544 4 448
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG 8-97430-014-1 01 1 1509-
4 FRAME; FLOOR,FRT 8-97431-037-0 01 1 1509-
15 FRAME; UNDER
(A) 		8-97430-018-0 01 1 1509-
15 FRAME; UNDER
(B) 		8-97430-019-0 01 1 1509-
15 FRAME; UNDER
(A) 		8-97430-027-1 01 1 1509-
15 FRAME; UNDER
(B) 		8-97430-333-0 01 1 1509-
18 FRAME; FLOOR,CENTER SIDE 8-97430-028-1 01 1 1509-
21 FRAME; FLOOR CENTER 8-97430-022-0 01 1 1509-
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1509-
23 PANEL; FLOOR,SIDE 8-97430-321-0 01 1 1509-
23 PANEL; FLOOR,SIDE 8-97430-324-0 01 1 1509-
24 PANEL; BED PAN 8-97584-378-6 01 1 1509-
81 BRACKET; HARNESS SUPPORT 8-97430-037-0 02 1 1509-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1509-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1509-
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1509-
220 PATCH 8-97430-015-0 01 1 1509-
279 REINFORCEMENT 8-97430-904-0 01 1 1509-
279 REINFORCEMENT 8-97430-904-0 01 1 1509-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1509-
373 REINFORCEMENT; SEAT BELT
(B) 		8-97430-880-0 01 1 1509-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1509-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1509-
375 CLOSING; PILLAR 8-97430-040-0 01 1 1509-
375 CLOSING; PILLAR 8-97430-043-0 01 1 1509-
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1509-
376 CLOSING; PILLAR,LWR 8-97589-556-4 01 1 1509-
380 BRACKET; HEAD LAMP
(B) 		8-97430-539-0 01 1 1509-
380 BRACKET; HEAD LAMP
(B) 		8-97430-538-0 01 1 1509-
380 BRACKET; HEAD LAMP
(A) 		8-97430-033-0 01 1 1509-
380 BRACKET; HEAD LAMP
(A) 		8-97589-708-1 01 1 1509-
385 BRACKET
(B) 		8-98053-825-1 01 1 1509-
385 BRACKET
(A) 		8-97430-035-0 01 1 1509-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1509-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1509-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1509-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1509-
537 SUPPORT ASM; MTG RR 8-97430-327-0 01 1 1509-
537 SUPPORT ASM; MTG RR 8-97430-328-0 01 1 1509-
538 REINFORCEMENT ASM; AIR INT DUCT 8-98098-707-1 01 1 1509-
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1509-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1509-
541 REINFORCEMENT; MTG,FRT 8-98076-127-0 02 1 1509-
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1509-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1509-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1509-
545 BRACKET; SEAT FRT 8-97430-976-0 01 1 1509-
545 BRACKET; SEAT FRT 8-97430-994-0 01 1 1509-
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 01 1 1509-
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 01 1 1509-
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1509-
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1509-
549 BRACKET; SEAT RR 8-97430-322-0 01 1 1509-
549 BRACKET; SEAT RR 8-97430-992-0 01 1 1509-
550 CLOSING ASM; MTG,FRT 8-97589-710-3 01 1 1509-
554 REINFORCEMENT; FLOOR CENTER 8-97430-973-0 01 1 1509-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 02 1 1509-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 02 1 1509-
566 REINFORCEMENT; FENDER,RR 8-97430-041-0 01 1 1509-
566 REINFORCEMENT; FENDER,RR 8-98076-133-0 01 1 1509-
569 REINFORCEMENT; FRT,ENG HOOD 8-98108-382-0 01 1 1509-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
