4-01 — PROPELLER SHAFT (#17538) — 1167 parça

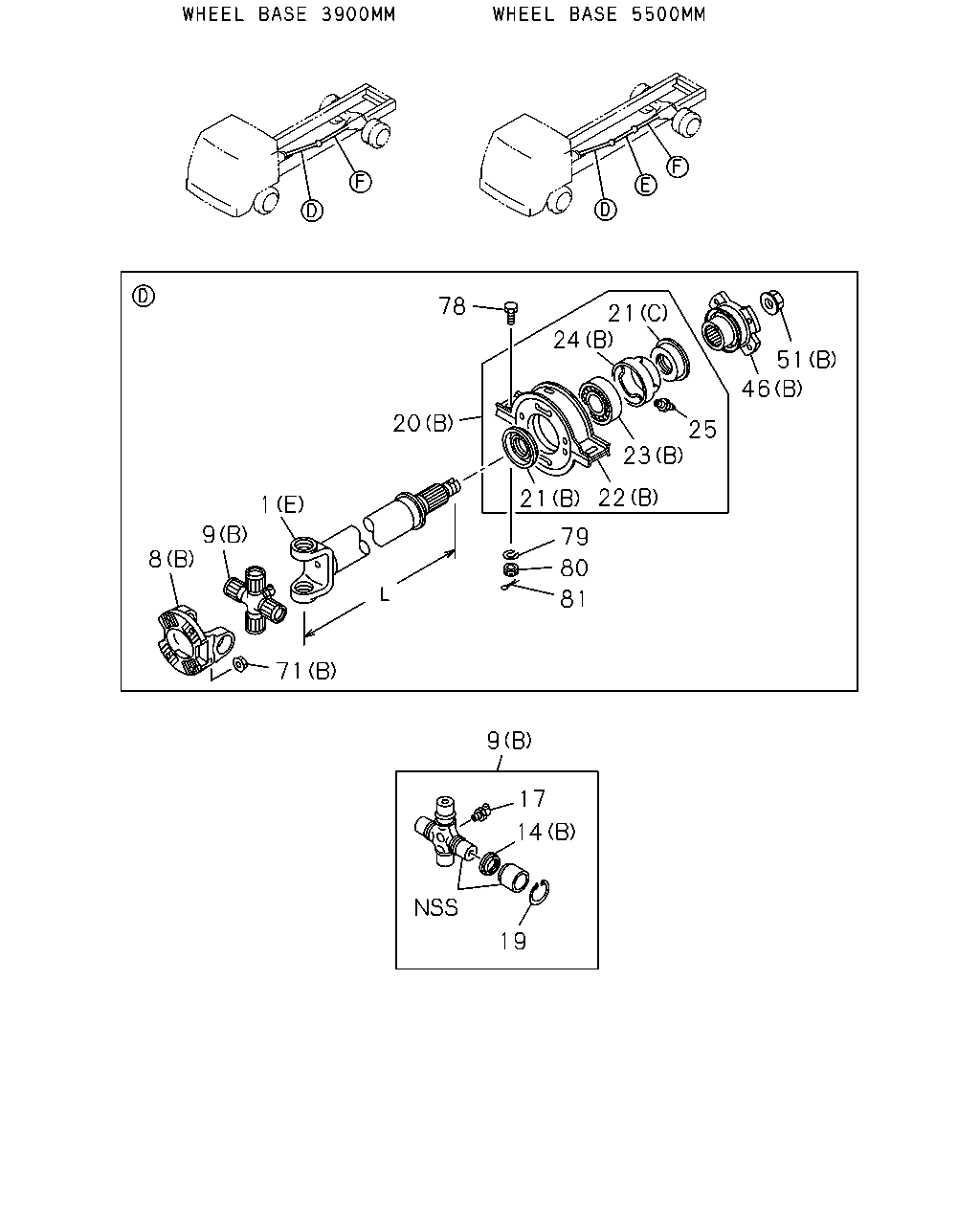

çizim 110102
78 21 24 51 46 20 25 23 22 21 1 9 8 79 80 81 71 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (G) L=772 		1-37124-058-0 01 1 1206- ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (D) L=874 		8-98162-641-1 01 1 1206- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (G) L=892 		1-37124-106-0 01 1 1206- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (I) L=1122 		8-98210-180-0 01 1 1206- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (A) L=869 		1-37124-216-0 01 1 1206- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (H) L=677 		8-98210-178-0 01 1 1206- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (H) L=1097 		8-98210-179-0 01 1 1206- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=1489 		8-98173-568-0 01 1 1109- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (A) L=1214 		1-37124-501-0 01 1 1109- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (C) L=1229 		8-98091-222-0 01 1 1109- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=704 		8-98173-564-0 01 1 1109-1205 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=704 		8-98173-564-0 01 1 1206- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1259 		1-37124-820-1 01 1 1109-1205 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (D) L=1259 		1-37124-820-1 01 1 1206- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=595 		8-98091-464-1 01 1 1109-1205 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (E) L=595 		8-98091-464-1 01 1 1206- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1225 		8-98091-473-1 01 1 1109-1205 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (F) L=1225 		8-98091-473-1 01 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 1206- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 1109-1205 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 1206- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1109-1205 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1109-1205 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1206- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1109-1205 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1206- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 1109-1205 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 1206- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506-1506 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (D) 		1-37300-091-1 AR 1 1206- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (D) 		1-37300-091-1 AR 1 1206- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1109-1205 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1109-1205 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1109-1205 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1206- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1206- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1206- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 1109-1205 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 1206-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1109-1205 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1109-1205 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1206-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1206-1505 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ● ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 1206- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 1109-1205 ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 1206- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1109-1205 ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1109-1205 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1206- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1206- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1109-1205 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1206- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 1109- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1109-1205 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1109-1205 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1206- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1206- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1109-1205 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1206- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1109-1205 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1206- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1206- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 08 1 1206- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 1109-1205 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 1206- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 12 1 1109-1205 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 12 1 1206- ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37510-094-3 01 1 1206- ● ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37510-094-3 01 1 1206- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1109-1205 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1109-1205 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1206- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1206- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1109-1205 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1109-1205 ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1206- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1206- ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 02 1 1206- ● ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 02 1 1206- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1109-1205 ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1206- ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1206- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1206- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1206- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1206- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1206- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1109-1205 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1109-1205 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1206- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1206- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1109-1205 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1109-1205 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1206- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1206- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1109-1205 ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1109-1205 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1206- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1206- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1109-1205 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1109-1205 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1206- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1206- ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37529-041-0 01 1 1206- ● ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37529-041-0 01 1 1206- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1109-1205 ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1109-1205 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1206- ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1206- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1109-1205 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1109-1205 ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1206- ● ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1206- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1109-1205 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1109-1205 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1206- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1206- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37245-271-1 01 1 1206- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37245-271-1 01 1 1206- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1109-1205 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1109-1205 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1206- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1206- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1109-1205 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1109-1205 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1206- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1206- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1109-1205 ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1109-1205 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1206- ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1206- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1109-1205 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1109-1205 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1206- ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1206- ●
71 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1109-1205 ● ●
71 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1206- ● ● ●
71 NUT; YOKE
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (A) M16 FLANGE 		1-09449-065-0 04 1 1206- ● ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 1109-1205 ●
71 NUT; YOKE
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 1206- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 1109-1205 ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 1206- ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) ID=17 		1-09503-241-1 02 1 1109-1205 ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) ID=17 		1-09503-241-1 02 1 1206- ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 SLOTTED 		0-91116-516-0 02 1 1109-1204 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 SLOTTED 		8-98049-689-0 02 1 1205-1205 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 SLOTTED 		8-98049-689-0 02 1 1206- ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) OD=3.7 L=25 		0-81124-025-0 02 1 1109-1205 ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) OD=3.7 L=25 		0-81124-025-0 02 1 1206- ● ● ●

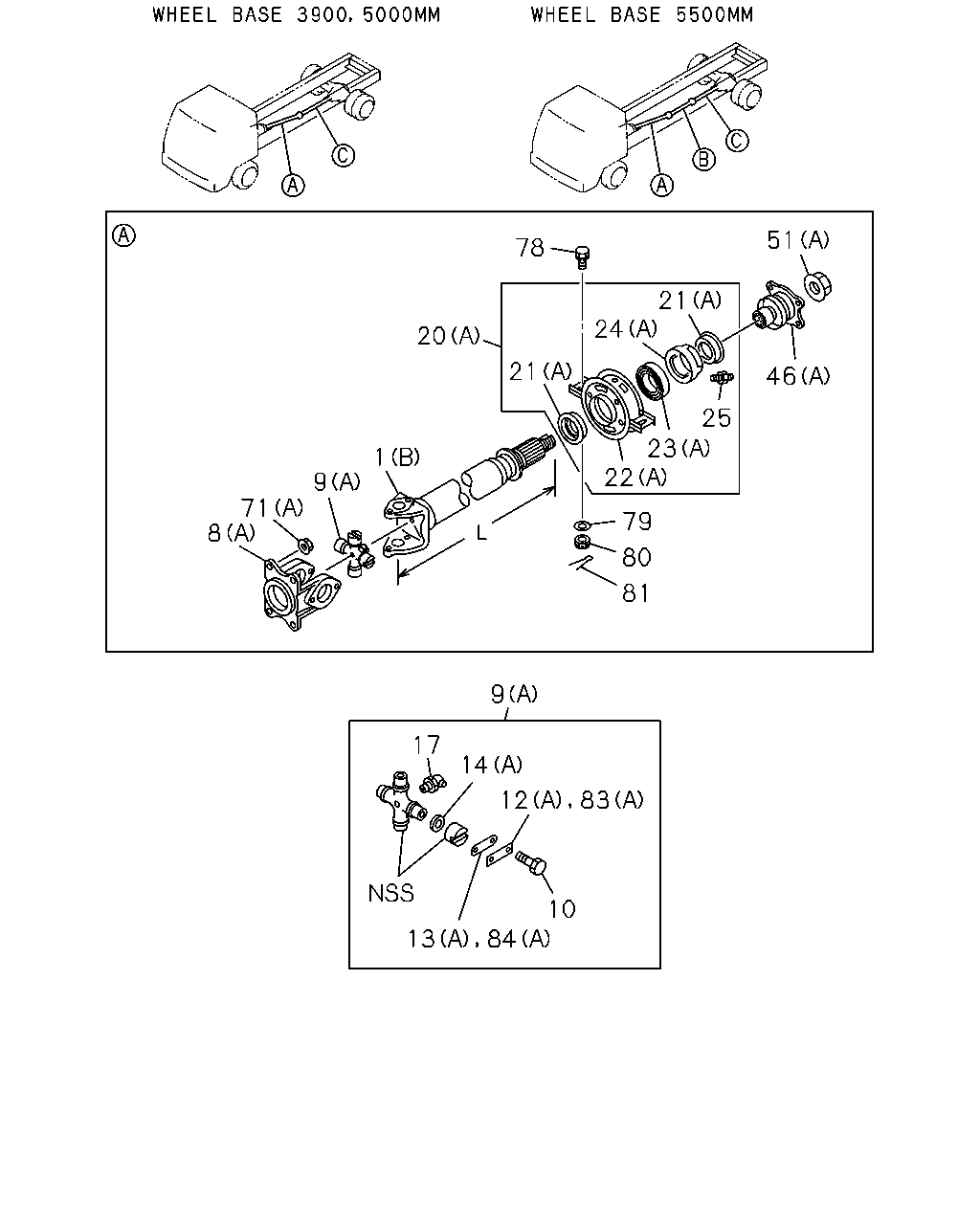

çizim 110105
51 78 21 24 20 21 46 25 23 22 1 9 71 8 79 80 81 9 17 14 12 83 10 13 84
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (G) L=772 		1-37124-058-0 01 1 1206- ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (D) L=874 		8-98162-641-1 01 1 1206- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (G) L=892 		1-37124-106-0 01 1 1206- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (I) L=1122 		8-98210-180-0 01 1 1206- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (A) L=869 		1-37124-216-0 01 1 1206- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (H) L=677 		8-98210-178-0 01 1 1206- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (H) L=1097 		8-98210-179-0 01 1 1206- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=1489 		8-98173-568-0 01 1 1109- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (A) L=1214 		1-37124-501-0 01 1 1109- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (C) L=1229 		8-98091-222-0 01 1 1109- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=704 		8-98173-564-0 01 1 1109-1205 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=704 		8-98173-564-0 01 1 1206- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1259 		1-37124-820-1 01 1 1109-1205 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (D) L=1259 		1-37124-820-1 01 1 1206- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=595 		8-98091-464-1 01 1 1109-1205 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (E) L=595 		8-98091-464-1 01 1 1206- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1225 		8-98091-473-1 01 1 1109-1205 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (F) L=1225 		8-98091-473-1 01 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 1206- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 1109-1205 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 1206- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1109-1205 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1109-1205 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1206- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1109-1205 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1206- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 1109-1205 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 1206- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506-1506 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (D) 		1-37300-091-1 AR 1 1206- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (D) 		1-37300-091-1 AR 1 1206- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1109-1205 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1109-1205 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1109-1205 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1206- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1206- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1206- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 1109-1205 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 1206-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1109-1205 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1109-1205 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1206-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1206-1505 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) M10X20 		0-20951-020-0 24 1 1206- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1109-1205 ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1206- ● ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) M10X20 		0-20951-020-0 08 1 1206- ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1206- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1109-1205 ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1109-1205 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1206- ● ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) M10X20 		0-20951-020-0 16 1 1206- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37356-008-0 08 1 1206- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37356-008-0 04 1 1206- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37356-008-0 04 1 1206- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1109-1205 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1109-1205 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1109-1205 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1206- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1206- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1206- ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37355-020-0 08 1 1206- ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37355-020-0 04 1 1206- ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37355-020-0 04 1 1206- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1109-1205 ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1109-1205 ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1109-1205 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1206- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1206- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1206- ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 1206- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 1109-1205 ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 1206- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1109-1205 ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1109-1205 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1206- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1206- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1109-1205 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1206- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 1109- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1109-1205 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1109-1205 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1206- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1206- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1109-1205 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1206- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1109-1205 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1206- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1206- ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37510-094-3 01 1 1206- ● ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37510-094-3 01 1 1206- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1109-1205 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1109-1205 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1206- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1206- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1109-1205 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1109-1205 ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1206- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1206- ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 02 1 1206- ● ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 02 1 1206- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1109-1205 ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1206- ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1206- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1206- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1206- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1206- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1206- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1109-1205 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1109-1205 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1206- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1206- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1109-1205 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1109-1205 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1206- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1206- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1109-1205 ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1109-1205 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1206- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1206- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1109-1205 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1109-1205 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1206- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1206- ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37529-041-0 01 1 1206- ● ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37529-041-0 01 1 1206- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1109-1205 ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1109-1205 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1206- ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1206- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1109-1205 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1109-1205 ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1206- ● ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1206- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1109-1205 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1109-1205 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1206- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1206- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37245-271-1 01 1 1206- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37245-271-1 01 1 1206- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1109-1205 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1109-1205 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1206- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1206- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1109-1205 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1109-1205 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1206- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1206- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1109-1205 ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1109-1205 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1206- ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1206- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1109-1205 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1109-1205 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1206- ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1206- ●
71 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1109-1205 ● ●
71 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1206- ● ● ●
71 NUT; YOKE
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (A) M16 FLANGE 		1-09449-065-0 04 1 1206- ● ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 1109-1205 ●
71 NUT; YOKE
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 1206- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 1109-1205 ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 1206- ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) ID=17 		1-09503-241-1 02 1 1109-1205 ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) ID=17 		1-09503-241-1 02 1 1206- ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 SLOTTED 		0-91116-516-0 02 1 1109-1204 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 SLOTTED 		8-98049-689-0 02 1 1205-1205 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 SLOTTED 		8-98049-689-0 02 1 1206- ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) OD=3.7 L=25 		0-81124-025-0 02 1 1109-1205 ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) OD=3.7 L=25 		0-81124-025-0 02 1 1206- ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37356-008-0 04 1 1206- ● ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1109-1205 ● ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1206- ● ● ●
84 COVER; UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37355-020-0 04 1 1206- ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1109-1205 ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1206- ● ● ●

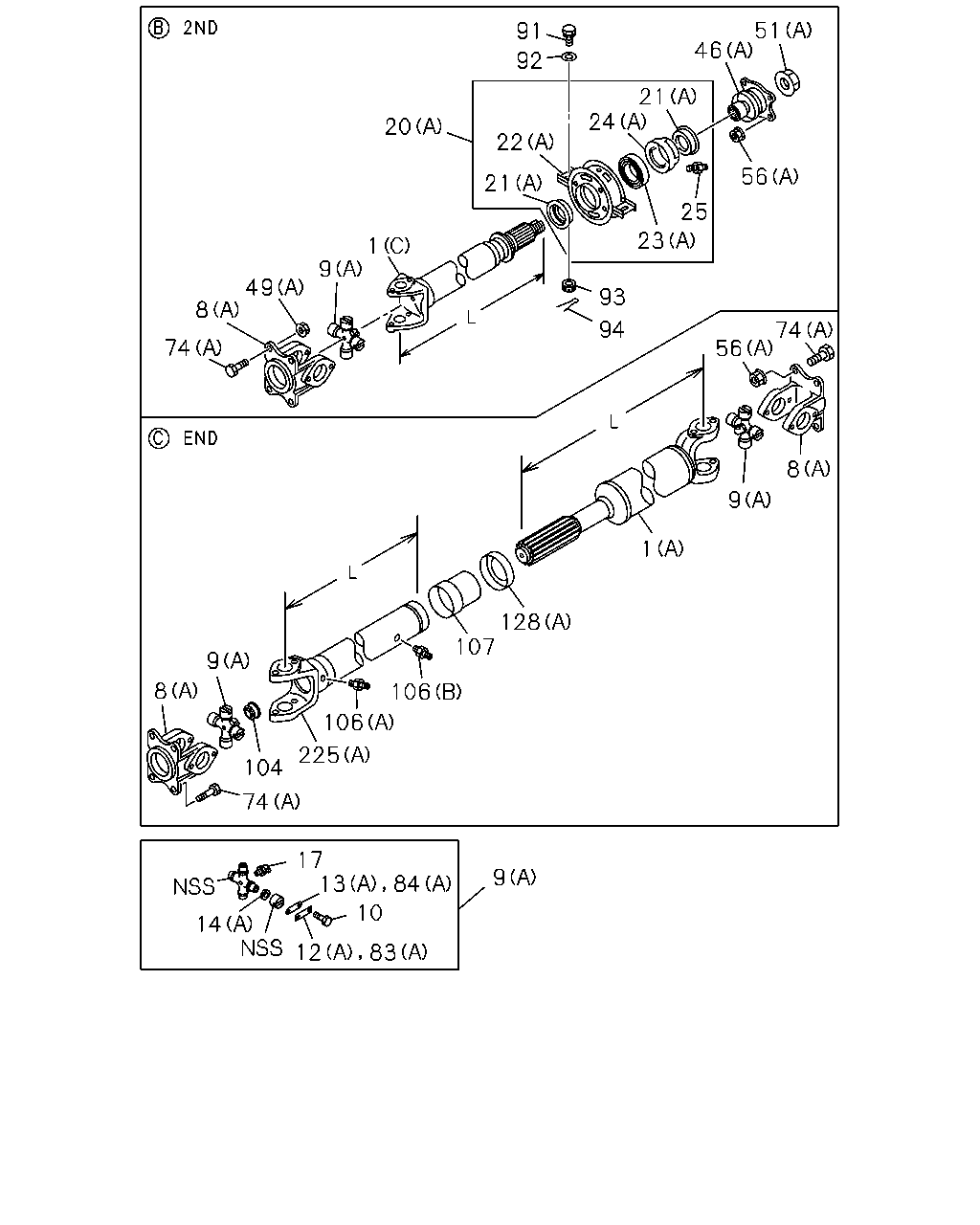

çizim 110109
51 91 46 92 21 24 20 22 56 21 25 23 1 9 49 93 8 94 74 74 56 8 9 1 128 107 9 8 106 106 225 104 74 17 13 9 84 10 14 12 83
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (G) L=772 		1-37124-058-0 01 1 1206- ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (D) L=874 		8-98162-641-1 01 1 1206- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (G) L=892 		1-37124-106-0 01 1 1206- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (I) L=1122 		8-98210-180-0 01 1 1206- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (A) L=869 		1-37124-216-0 01 1 1206- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (H) L=677 		8-98210-178-0 01 1 1206- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (H) L=1097 		8-98210-179-0 01 1 1206- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=1489 		8-98173-568-0 01 1 1109- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (A) L=1214 		1-37124-501-0 01 1 1109- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (C) L=1229 		8-98091-222-0 01 1 1109- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=704 		8-98173-564-0 01 1 1109-1205 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=704 		8-98173-564-0 01 1 1206- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1259 		1-37124-820-1 01 1 1109-1205 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (D) L=1259 		1-37124-820-1 01 1 1206- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=595 		8-98091-464-1 01 1 1109-1205 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (E) L=595 		8-98091-464-1 01 1 1206- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1225 		8-98091-473-1 01 1 1109-1205 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (F) L=1225 		8-98091-473-1 01 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 1206- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 1109-1205 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 1206- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1109-1205 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1109-1205 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1206- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1109-1205 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1206- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 1109-1205 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 1206- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506-1506 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (D) 		1-37300-091-1 AR 1 1206- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (D) 		1-37300-091-1 AR 1 1206- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1109-1205 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1109-1205 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1109-1205 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1206- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1206- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1206- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 1109-1205 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 1206-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1109-1205 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1109-1205 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1206-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1206-1505 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) M10X20 		0-20951-020-0 24 1 1206- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1109-1205 ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1206- ● ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) M10X20 		0-20951-020-0 08 1 1206- ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1206- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1109-1205 ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1109-1205 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1206- ● ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) M10X20 		0-20951-020-0 16 1 1206- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37356-008-0 08 1 1206- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37356-008-0 04 1 1206- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37356-008-0 04 1 1206- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1109-1205 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1109-1205 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1109-1205 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1206- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1206- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1206- ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37355-020-0 08 1 1206- ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37355-020-0 04 1 1206- ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37355-020-0 04 1 1206- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1109-1205 ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1109-1205 ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1109-1205 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1206- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1206- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1206- ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 1206- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 1109-1205 ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 1206- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1109-1205 ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1109-1205 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1206- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1206- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1109-1205 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1206- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 1109- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1109-1205 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1109-1205 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1206- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1206- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1109-1205 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1206- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1109-1205 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1206- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1206- ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37510-094-3 01 1 1206- ● ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37510-094-3 01 1 1206- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1109-1205 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1109-1205 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1206- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1206- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1109-1205 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1109-1205 ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1206- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1206- ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 02 1 1206- ● ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 02 1 1206- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1109-1205 ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1206- ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1206- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1206- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1206- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1206- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1206- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1109-1205 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1109-1205 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1206- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1206- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1109-1205 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1109-1205 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1206- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1206- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1109-1205 ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1109-1205 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1206- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1206- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1109-1205 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1109-1205 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1206- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1206- ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37529-041-0 01 1 1206- ● ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37529-041-0 01 1 1206- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1109-1205 ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1109-1205 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1206- ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1206- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1109-1205 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1109-1205 ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1206- ● ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1206- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1109-1205 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1109-1205 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1206- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1206- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37245-271-1 01 1 1206- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37245-271-1 01 1 1206- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1109-1205 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1109-1205 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1206- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1206- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1109-1205 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1109-1205 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1206- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1206- ●
49 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1109-1205 ●
49 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1206- ●
49 NUT; YOKE
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (A) M16 FLANGE 		1-09449-065-0 04 1 1206- ●
49 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 1109-1205 ●
49 NUT; YOKE
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 1206- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1109-1205 ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1109-1205 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1206- ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1206- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1109-1205 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1109-1205 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1206- ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1206- ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 08 1 1109-1205 ● ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 08 1 1206- ● ● ●
56 NUT; YOKE
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (A) M16 FLANGE 		1-09449-065-0 08 1 1206- ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 08 1 1109-1205 ●
56 NUT; YOKE
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 08 1 1206- ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (A) M16X48 		1-09000-383-0 08 1 1109-1205 ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (A) M16X48 		1-09000-383-0 08 1 1206- ● ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (A) M16X48 		1-09000-383-0 08 1 1206- ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (A) M16X48 		1-09000-383-0 04 1 1109-1205 ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) (A) M16X48 		1-09000-383-0 04 1 1206- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (A) M16X48 		1-09000-383-0 04 1 1206- ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (A) M16X48 		1-09000-383-0 04 1 1206- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (B) M14X50 		1-09000-645-0 08 1 1109-1205 ● ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) M14X50 		1-09000-645-0 08 1 1206- ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (B) M14X50 		1-09000-645-0 04 1 1109-1205 ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) M14X50 		1-09000-645-0 04 1 1206- ●
83 PLATE; LK,UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37356-008-0 04 1 1206- ● ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1109-1205 ● ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1206- ● ● ●
84 COVER; UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37355-020-0 04 1 1206- ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1109-1205 ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1206- ● ● ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 1109- ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 1109- ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 1109-1204 ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1109- ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M) 		1-09600-067-0 01 1 1109-1205 ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 1109-1205 ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M) 		1-09600-067-0 01 1 1206- ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 1206- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1109-1205 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1109-1205 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1206- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1206- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1109-1205 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1206- ● ● ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 1109-1205 ● ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 1206- ● ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (A) 		1-37247-021-0 01 1 1109-1205 ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (A) 		1-37247-021-0 01 1 1206- ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (B) 		1-37247-019-0 01 1 1109-1205 ●
128 SEAL; SLEEVE
ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37247-019-0 01 1 1206- ● ●
225 YOKE; SLEEVE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) L=332 		1-37241-103-1 01 1 1206- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) L=332 		1-37241-109-1 01 1 1109-1205 ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) L=332 		1-37241-109-1 01 1 1206- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) L=330 		1-37241-124-0 01 1 1109-1205 ●
225 YOKE; SLEEVE,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) L=330 		1-37241-124-0 01 1 1206- ● ●
çizim 110111
91 21 24 51 46 20 25 23 22 21 1 9 8 92 93 94 74 49 56 9 74 1 8 128 225 104 9 8 74 106 56 17 17 9 9 14 19 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (G) L=772 		1-37124-058-0 01 1 1206- ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (D) L=874 		8-98162-641-1 01 1 1206- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (G) L=892 		1-37124-106-0 01 1 1206- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (I) L=1122 		8-98210-180-0 01 1 1206- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (A) L=869 		1-37124-216-0 01 1 1206- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (H) L=677 		8-98210-178-0 01 1 1206- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (H) L=1097 		8-98210-179-0 01 1 1206- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=1489 		8-98173-568-0 01 1 1109- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (A) L=1214 		1-37124-501-0 01 1 1109- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (C) L=1229 		8-98091-222-0 01 1 1109- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=704 		8-98173-564-0 01 1 1109-1205 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=704 		8-98173-564-0 01 1 1206- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1259 		1-37124-820-1 01 1 1109-1205 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (D) L=1259 		1-37124-820-1 01 1 1206- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=595 		8-98091-464-1 01 1 1109-1205 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (E) L=595 		8-98091-464-1 01 1 1206- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1225 		8-98091-473-1 01 1 1109-1205 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (F) L=1225 		8-98091-473-1 01 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 1206- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 1109-1205 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 1206- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1109-1205 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1109-1205 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1206- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1109-1205 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1206- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 1109-1205 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 1206- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506-1506 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (D) 		1-37300-091-1 AR 1 1206- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (D) 		1-37300-091-1 AR 1 1206- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1109-1205 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1109-1205 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1109-1205 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1206- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1206- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1206- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 1109-1205 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 1206-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1109-1205 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1109-1205 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1206-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1206-1505 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ● ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 1206- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 1109-1205 ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 1206- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1109-1205 ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1109-1205 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1206- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1206- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1109-1205 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1206- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 1109- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1109-1205 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1109-1205 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1206- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1206- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1109-1205 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1206- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1109-1205 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1206- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1206- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 08 1 1206- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 1109-1205 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 1206- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 12 1 1109-1205 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 12 1 1206- ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37510-094-3 01 1 1206- ● ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37510-094-3 01 1 1206- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1109-1205 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1109-1205 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1206- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1206- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1109-1205 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1109-1205 ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1206- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1206- ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 02 1 1206- ● ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 02 1 1206- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1109-1205 ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1206- ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1206- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1206- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1206- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1206- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1206- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1109-1205 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1109-1205 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1206- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1206- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1109-1205 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1109-1205 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1206- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1206- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1109-1205 ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1109-1205 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1206- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1206- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1109-1205 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1109-1205 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1206- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1206- ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37529-041-0 01 1 1206- ● ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37529-041-0 01 1 1206- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1109-1205 ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1109-1205 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1206- ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1206- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1109-1205 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1109-1205 ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1206- ● ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1206- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1109-1205 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1109-1205 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1206- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1206- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37245-271-1 01 1 1206- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37245-271-1 01 1 1206- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1109-1205 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1109-1205 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1206- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1206- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1109-1205 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1109-1205 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1206- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1206- ●
49 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1109-1205 ●
49 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1206- ●
49 NUT; YOKE
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (A) M16 FLANGE 		1-09449-065-0 04 1 1206- ●
49 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 1109-1205 ●
49 NUT; YOKE
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 1206- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1109-1205 ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1109-1205 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1206- ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1206- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1109-1205 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1109-1205 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1206- ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1206- ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 08 1 1109-1205 ● ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 08 1 1206- ● ● ●
56 NUT; YOKE
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (A) M16 FLANGE 		1-09449-065-0 08 1 1206- ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 08 1 1109-1205 ●
56 NUT; YOKE
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 08 1 1206- ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (A) M16X48 		1-09000-383-0 08 1 1109-1205 ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (A) M16X48 		1-09000-383-0 08 1 1206- ● ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (A) M16X48 		1-09000-383-0 08 1 1206- ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (A) M16X48 		1-09000-383-0 04 1 1109-1205 ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) (A) M16X48 		1-09000-383-0 04 1 1206- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (A) M16X48 		1-09000-383-0 04 1 1206- ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (A) M16X48 		1-09000-383-0 04 1 1206- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (B) M14X50 		1-09000-645-0 08 1 1109-1205 ● ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) M14X50 		1-09000-645-0 08 1 1206- ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (B) M14X50 		1-09000-645-0 04 1 1109-1205 ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) M14X50 		1-09000-645-0 04 1 1206- ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 1109- ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 1109- ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 1109-1204 ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1109- ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M) 		1-09600-067-0 01 1 1109-1205 ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 1109-1205 ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M) 		1-09600-067-0 01 1 1206- ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 1206- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1109-1205 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1109-1205 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1206- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1206- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1109-1205 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1206- ● ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (A) 		1-37247-021-0 01 1 1109-1205 ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (A) 		1-37247-021-0 01 1 1206- ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (B) 		1-37247-019-0 01 1 1109-1205 ●
128 SEAL; SLEEVE
ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37247-019-0 01 1 1206- ● ●
225 YOKE; SLEEVE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) L=332 		1-37241-103-1 01 1 1206- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) L=332 		1-37241-109-1 01 1 1109-1205 ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) L=332 		1-37241-109-1 01 1 1206- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) L=330 		1-37241-124-0 01 1 1109-1205 ●
225 YOKE; SLEEVE,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) L=330 		1-37241-124-0 01 1 1206- ● ●
çizim 284153
51 78 21 24 20 21 46 25 23 22 1 9 71 8 79 80 81 9 17 14 10 12 83 13 84
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (G) L=772 		1-37124-058-0 01 1 1206- ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (D) L=874 		8-98162-641-1 01 1 1206- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (G) L=892 		1-37124-106-0 01 1 1206- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (I) L=1122 		8-98210-180-0 01 1 1206- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (A) L=869 		1-37124-216-0 01 1 1206- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (H) L=677 		8-98210-178-0 01 1 1206- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (H) L=1097 		8-98210-179-0 01 1 1206- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=1489 		8-98173-568-0 01 1 1109- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (A) L=1214 		1-37124-501-0 01 1 1109- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (C) L=1229 		8-98091-222-0 01 1 1109- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=704 		8-98173-564-0 01 1 1109-1205 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=704 		8-98173-564-0 01 1 1206- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1259 		1-37124-820-1 01 1 1109-1205 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (D) L=1259 		1-37124-820-1 01 1 1206- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=595 		8-98091-464-1 01 1 1109-1205 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (E) L=595 		8-98091-464-1 01 1 1206- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1225 		8-98091-473-1 01 1 1109-1205 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (F) L=1225 		8-98091-473-1 01 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 1206- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 1109-1205 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 1206- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1109-1205 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1109-1205 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1206- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1109-1205 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1206- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 1109-1205 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 1206- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506-1506 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (D) 		1-37300-091-1 AR 1 1206- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (D) 		1-37300-091-1 AR 1 1206- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1109-1205 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1109-1205 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1109-1205 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1206- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1206- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1206- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 1109-1205 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 1206-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1109-1205 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1109-1205 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1206-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1206-1505 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) M10X20 		0-20951-020-0 24 1 1206- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1109-1205 ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1206- ● ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) M10X20 		0-20951-020-0 08 1 1206- ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1206- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1109-1205 ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1109-1205 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1206- ● ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) M10X20 		0-20951-020-0 16 1 1206- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37356-008-0 08 1 1206- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37356-008-0 04 1 1206- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37356-008-0 04 1 1206- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1109-1205 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1109-1205 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1109-1205 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1206- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1206- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1206- ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37355-020-0 08 1 1206- ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37355-020-0 04 1 1206- ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37355-020-0 04 1 1206- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1109-1205 ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1109-1205 ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1109-1205 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1206- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1206- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1206- ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 1206- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 1109-1205 ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 1206- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1109-1205 ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1109-1205 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1206- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1206- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1109-1205 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1206- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 1109- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1109-1205 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1109-1205 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1206- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1206- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1109-1205 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1206- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1109-1205 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1206- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1206- ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37510-094-3 01 1 1206- ● ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37510-094-3 01 1 1206- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1109-1205 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1109-1205 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1206- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1206- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1109-1205 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1109-1205 ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1206- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1206- ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 02 1 1206- ● ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 02 1 1206- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1109-1205 ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1206- ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1206- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1206- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1206- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1206- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1206- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1109-1205 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1109-1205 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1206- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1206- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1109-1205 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1109-1205 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1206- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1206- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1109-1205 ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1109-1205 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1206- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1206- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1109-1205 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1109-1205 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1206- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1206- ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37529-041-0 01 1 1206- ● ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37529-041-0 01 1 1206- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1109-1205 ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1109-1205 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1206- ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1206- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1109-1205 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1109-1205 ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1206- ● ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1206- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1109-1205 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1109-1205 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1206- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1206- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37245-271-1 01 1 1206- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37245-271-1 01 1 1206- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1109-1205 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1109-1205 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1206- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1206- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1109-1205 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1109-1205 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1206- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1206- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1109-1205 ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1109-1205 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1206- ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1206- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1109-1205 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1109-1205 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1206- ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1206- ●
71 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1109-1205 ● ●
71 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1206- ● ● ●
71 NUT; YOKE
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (A) M16 FLANGE 		1-09449-065-0 04 1 1206- ● ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 1109-1205 ●
71 NUT; YOKE
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 1206- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 1109-1205 ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 1206- ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) ID=17 		1-09503-241-1 02 1 1109-1205 ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) ID=17 		1-09503-241-1 02 1 1206- ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 SLOTTED 		0-91116-516-0 02 1 1109-1204 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 SLOTTED 		8-98049-689-0 02 1 1205-1205 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 SLOTTED 		8-98049-689-0 02 1 1206- ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) OD=3.7 L=25 		0-81124-025-0 02 1 1109-1205 ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) OD=3.7 L=25 		0-81124-025-0 02 1 1206- ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37356-008-0 04 1 1206- ● ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1109-1205 ● ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1206- ● ● ●
84 COVER; UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37355-020-0 04 1 1206- ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1109-1205 ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1206- ● ● ●
çizim 284327
51 46 91 92 21 24 20 22 56 21 25 23 1 9 49 8 93 94 74 74 56 8 9 1 128 9 8 106 225 104 74 17 9 10 14 12 83 84 13
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (G) L=772 		1-37124-058-0 01 1 1206- ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (D) L=874 		8-98162-641-1 01 1 1206- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (G) L=892 		1-37124-106-0 01 1 1206- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (I) L=1122 		8-98210-180-0 01 1 1206- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (A) L=869 		1-37124-216-0 01 1 1206- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (H) L=677 		8-98210-178-0 01 1 1206- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (H) L=1097 		8-98210-179-0 01 1 1206- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=1489 		8-98173-568-0 01 1 1109- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (A) L=1214 		1-37124-501-0 01 1 1109- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (C) L=1229 		8-98091-222-0 01 1 1109- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=704 		8-98173-564-0 01 1 1109-1205 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=704 		8-98173-564-0 01 1 1206- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1259 		1-37124-820-1 01 1 1109-1205 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (D) L=1259 		1-37124-820-1 01 1 1206- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=595 		8-98091-464-1 01 1 1109-1205 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (E) L=595 		8-98091-464-1 01 1 1206- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1225 		8-98091-473-1 01 1 1109-1205 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (F) L=1225 		8-98091-473-1 01 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 1206- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 1109-1205 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 1206- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1109-1205 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1109-1205 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1206- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1109-1205 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1206- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 1109-1205 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 1206- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506-1506 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (D) 		1-37300-091-1 AR 1 1206- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (D) 		1-37300-091-1 AR 1 1206- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1109-1205 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1109-1205 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1109-1205 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1206- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1206- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37300-094-1 AR 1 1206- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 1109-1205 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 1206-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1109-1205 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1109-1205 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1206-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1206-1505 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) M10X20 		0-20951-020-0 24 1 1206- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1109-1205 ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1206- ● ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) M10X20 		0-20951-020-0 08 1 1206- ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1206- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1109-1205 ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1109-1205 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1206- ● ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) M10X20 		0-20951-020-0 16 1 1206- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37356-008-0 08 1 1206- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37356-008-0 04 1 1206- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37356-008-0 04 1 1206- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1109-1205 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1109-1205 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1109-1205 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1206- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1206- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1206- ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37355-020-0 08 1 1206- ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37355-020-0 04 1 1206- ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37355-020-0 04 1 1206- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1109-1205 ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1109-1205 ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1109-1205 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1206- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1206- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1206- ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 1206- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 1109-1205 ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 1206- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1109-1205 ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1109-1205 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1206- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1206- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1109-1205 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1206- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 1109- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1109-1205 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1109-1205 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1206- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1206- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1109-1205 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1206- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1109-1205 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1206- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1206- ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37510-094-3 01 1 1206- ● ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37510-094-3 01 1 1206- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1109-1205 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1109-1205 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1206- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1206- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1109-1205 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1109-1205 ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1206- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1206- ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 02 1 1206- ● ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 02 1 1206- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1109-1205 ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1206- ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1206- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1206- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1206- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1109-1205 ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1206- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1206- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1109-1205 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1109-1205 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1206- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1206- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1109-1205 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1109-1205 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1206- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1206- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1109-1205 ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1109-1205 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1206- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1206- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1109-1205 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1109-1205 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1206- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1206- ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37529-041-0 01 1 1206- ● ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37529-041-0 01 1 1206- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1109-1205 ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1109-1205 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1206- ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1206- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1109-1205 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1109-1205 ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1206- ● ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1206- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1109-1205 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1109-1205 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1206- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1206- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37245-271-1 01 1 1206- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) 		1-37245-271-1 01 1 1206- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1109-1205 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1109-1205 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1206- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1206- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1109-1205 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1109-1205 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1206- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1206- ●
49 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1109-1205 ●
49 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1206- ●
49 NUT; YOKE
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (A) M16 FLANGE 		1-09449-065-0 04 1 1206- ●
49 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 1109-1205 ●
49 NUT; YOKE
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 1206- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1109-1205 ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1109-1205 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1206- ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1206- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1109-1205 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1109-1205 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1206- ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1206- ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 08 1 1109-1205 ● ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 08 1 1206- ● ● ●
56 NUT; YOKE
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (A) M16 FLANGE 		1-09449-065-0 08 1 1206- ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 08 1 1109-1205 ●
56 NUT; YOKE
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 08 1 1206- ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (A) M16X48 		1-09000-383-0 08 1 1109-1205 ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (A) M16X48 		1-09000-383-0 08 1 1206- ● ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (A) M16X48 		1-09000-383-0 08 1 1206- ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (A) M16X48 		1-09000-383-0 04 1 1109-1205 ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) (A) M16X48 		1-09000-383-0 04 1 1206- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (A) M16X48 		1-09000-383-0 04 1 1206- ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (A) M16X48 		1-09000-383-0 04 1 1206- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (B) M14X50 		1-09000-645-0 08 1 1109-1205 ● ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) M14X50 		1-09000-645-0 08 1 1206- ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (B) M14X50 		1-09000-645-0 04 1 1109-1205 ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) M14X50 		1-09000-645-0 04 1 1206- ●
83 PLATE; LK,UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37356-008-0 04 1 1206- ● ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1109-1205 ● ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 04 1 1206- ● ● ●
84 COVER; UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37355-020-0 04 1 1206- ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1109-1205 ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 04 1 1206- ● ● ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 1109- ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 1109- ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 1109-1204 ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1109- ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M) 		1-09600-067-0 01 1 1109-1205 ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 1109-1205 ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M) 		1-09600-067-0 01 1 1206- ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 1206- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1109-1205 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1109-1205 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1206- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1206- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1109-1205 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1206- ● ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (A) 		1-37247-021-0 01 1 1109-1205 ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (A) 		1-37247-021-0 01 1 1206- ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (B) 		1-37247-019-0 01 1 1109-1205 ●
128 SEAL; SLEEVE
ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (B) 		1-37247-019-0 01 1 1206- ● ●
225 YOKE; SLEEVE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) P90 PROP SHAFT(C5T) (C) L=332 		1-37241-103-1 01 1 1206- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) L=332 		1-37241-109-1 01 1 1109-1205 ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) L=332 		1-37241-109-1 01 1 1206- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) L=330 		1-37241-124-0 01 1 1109-1205 ●
225 YOKE; SLEEVE,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) L=330 		1-37241-124-0 01 1 1206- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
