◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11664 - FYH LHD CHINA ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#175372) — 229 parça

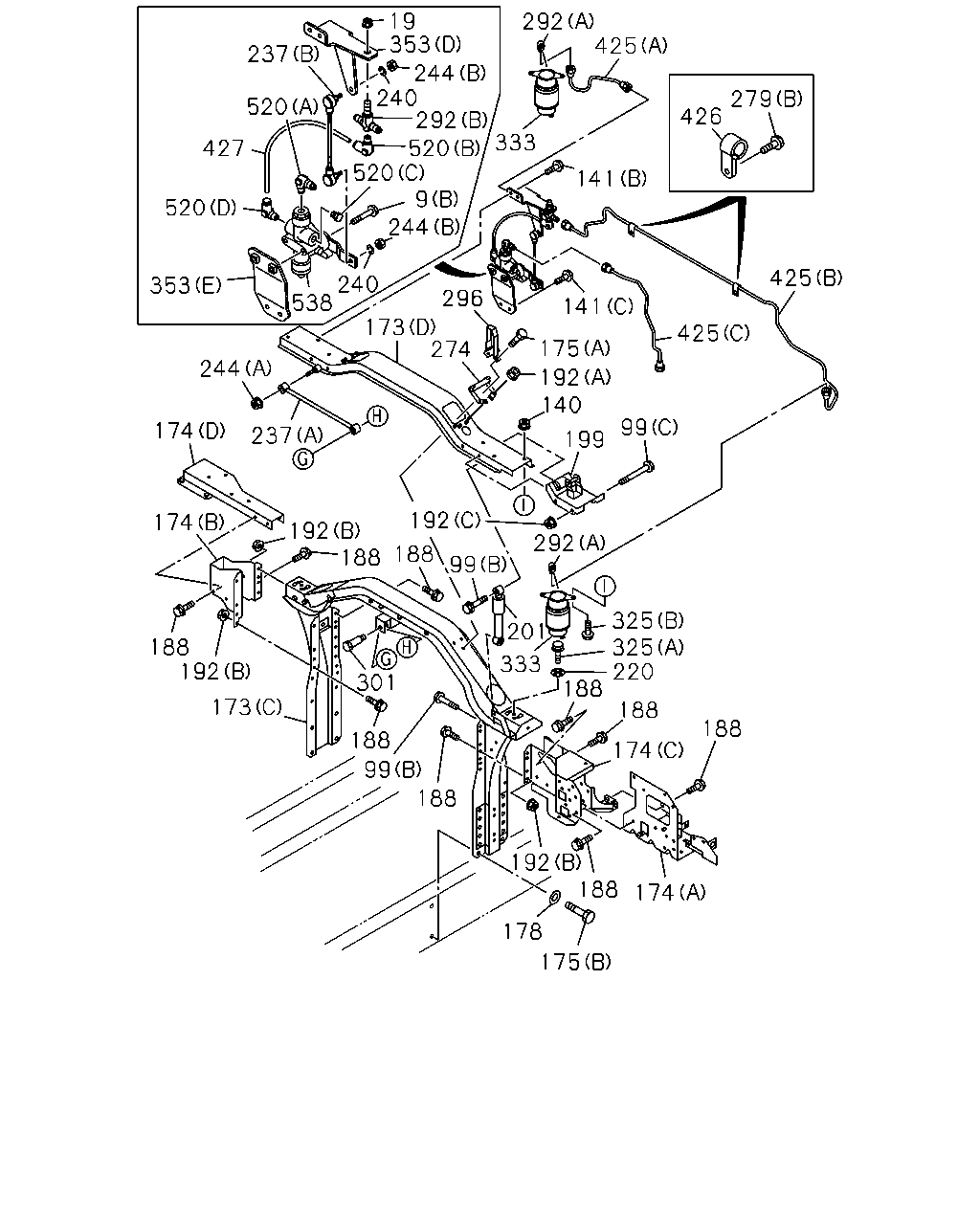

çizim 513112
237 520 427 520 353 538 240 244 9 520 520 292 240 244 353 19 292 425 333 141 141 175 192 140 199 292 192 188 99 201 325 325 220 188 333 188 174 188 174 188 192 178 175 188 99 188 301 173 192 188 174 174 237 244 192 188 173 296 274 426 279 425 425 99
BalonParca AdiParca NoAdetTipApplied Date
9 BOLT
(B) X2 M8X45 FLANGE 		0-28050-845-0 02 1 1509-
9 BOLT
(A) M18X90 		0-10856-890-0 02 1 1509-
19 NUT
X2 M12 FLANGE 		0-91180-212-0 01 1 1509-
99 BOLT; BRKT
(C) M10X150 FLANGE 		0-28166-015-0 04 1 1509-
99 BOLT; BRKT
(B) M12X60 FLANGE 		0-28051-260-0 04 1 1509-
99 BOLT; BRKT
(A) Q2 M8X25 FLANGE 		0-28650-825-0 04 1 1509-
99 BOLT; BRKT
(A) X2 M8X25 FLANGE 		0-28650-825-0 06 1 1509-
140 NUT; BRKT
X2 M8 FLANGE 		0-91180-108-0 04 1 1509-
140 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1509-
141 BOLT; BRKT
(B) X2 M8X20 FLANGE 		0-28650-820-0 02 1 1509-
141 BOLT; BRKT
(C) X2 M8X25 FLANGE 		0-28650-825-0 02 1 1509-
141 BOLT; BRKT
(A) M14X50 		0-20951-450-0 04 1 1509-
173 MEMBER; CAB MTG RR
(A) Q2 		8-97430-158-2 01 1 1509-
173 MEMBER; CAB MTG RR
(C) X2 		8-97430-159-2 01 1 1509-
173 MEMBER; CAB MTG RR
(B) Q2 		8-97430-160-2 01 1 1509-
173 MEMBER; CAB MTG RR
(D) X2 		8-97430-161-2 01 1 1509-
174 OUTRIGGER
(A) 		8-97430-162-1 01 1 1509-
174 OUTRIGGER
(D) 		8-98237-297-0 01 1 1509-
174 OUTRIGGER
(B) 		8-97430-163-0 01 1 1509-
174 OUTRIGGER
(C) 		8-97430-164-1 01 1 1509-
175 BOLT; MEMBER TO FRAME
(A) 		0-20851-025-0 06 1 1509-
175 BOLT; MEMBER TO FRAME
(B) M14X40 		0-20951-440-0 08 1 1509-
178 WASHER; LK,MEMBER
ID=15 		8-98010-627-1 08 1 1509-
188 BOLT; OUTRIGGER
M10X25 FLANGE 		0-28651-025-0 21 1 1509-
192 NUT; BRKT FIX
(A) X2 M8 FLANGE 		0-91180-108-0 02 1 1509-
192 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 08 1 1509-
192 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 09 1 1509-
192 NUT; BRKT FIX
(C) M10 FLANGE 		0-91280-210-0 04 1 1509-
199 BRACKET; CAB RR MTG 8-97431-334-0 01 1 1509-
199 BRACKET; CAB RR MTG 8-97431-335-0 01 1 1509-
201 ABSORBER ASM; SHOCK,RR MTG 8-98237-282-0 02 1 1509-
220 GUIDE; SPR
X2 		1-53458-648-1 02 1 1509-
237 ROD ASM; LATERAL
(B) X2 		1-33670-407-0 01 1 1509-
237 ROD ASM; LATERAL
(A) 		8-98237-283-0 01 1 1509-
240 WASHER; PL,BRKT
X2 ID=5.1 		0-91510-505-0 02 1 1509-
244 NUT; LATERAL ROD
(B) X2 M5 		0-91110-505-0 02 1 1509-
244 NUT; LATERAL ROD
(A) M16 FLANGE 		0-91180-216-0 01 1 1509-
274 PIN 8-98259-740-0 02 1 1509-
279 BOLT
(A) M12X40 FLANGE 		0-28061-240-0 04 1 1509-
279 BOLT
(B) X2 M8X20 FLANGE 		0-28650-820-0 02 1 1509-
279 BOLT
(D) X2 M8X16 FLANGE 		0-28050-816-0 04 1 1509-
279 BOLT
(E) X2 M8X25 FLANGE 		0-28050-825-0 02 1 1509-
279 BOLT
(C) M10X25 FLANGE 		0-28051-025-0 04 1 1509-
292 CONNECTOR; CAB SUSPENSION
(A) X2 M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1509-
292 CONNECTOR; CAB SUSPENSION
(B) X2 M12X2 & PT1/8 3WAY 		1-09656-655-0 01 1 1509-
296 STOPPER; UPR 8-98237-280-0 02 1 1509-
301 PIN; LATERAL ROD
M12X57.5 		1-53459-498-1 01 1 1509-
325 BOLT; GUIDE NUT
(A) X2 M8X20 FLANGE 		0-28650-820-0 02 1 1509-
325 BOLT; GUIDE NUT
(B) X2 M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 1509-
333 SPRING
X2 		1-52110-143-3 02 1 1509-
353 BRACKET
(D) X2 		8-98237-287-0 01 1 1509-
353 BRACKET
(E) X2 		8-98237-288-1 01 1 1509-
353 BRACKET
(A) 		8-97430-203-0 01 1 1509-
353 BRACKET
(C) X2 		8-97430-205-0 01 1 1509-
353 BRACKET
(B) 		8-97431-139-0 01 1 1509-
425 PIPE ASM; AIR
(A) X2 		8-98237-285-0 01 1 1509-
425 PIPE ASM; AIR
(B) X2 		8-98237-286-0 01 1 1509-
425 PIPE ASM; AIR
(C) X2 		8-97431-644-0 01 1 1509-
426 CLIP
X2 ID=7 L=20 		0-95234-635-0 02 1 1509-
427 TUBE
X2 SERVICED BY L=2000 OD=6 		1-87410-081-0 01 1 1509-
520 ADAPTER
(A) X2 M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1509-
520 ADAPTER
(B) X2 DIN6 & R1/4 ELBOW 		8-97431-410-0 01 1 1509-
520 ADAPTER
(C) X2 		1-26239-027-0 01 1 1509-
520 ADAPTER
(D) X2 		8-97431-409-0 01 1 1509-
538 VALVE ASM; LEVELING
X2 		8-98237-292-0 01 1 1509-

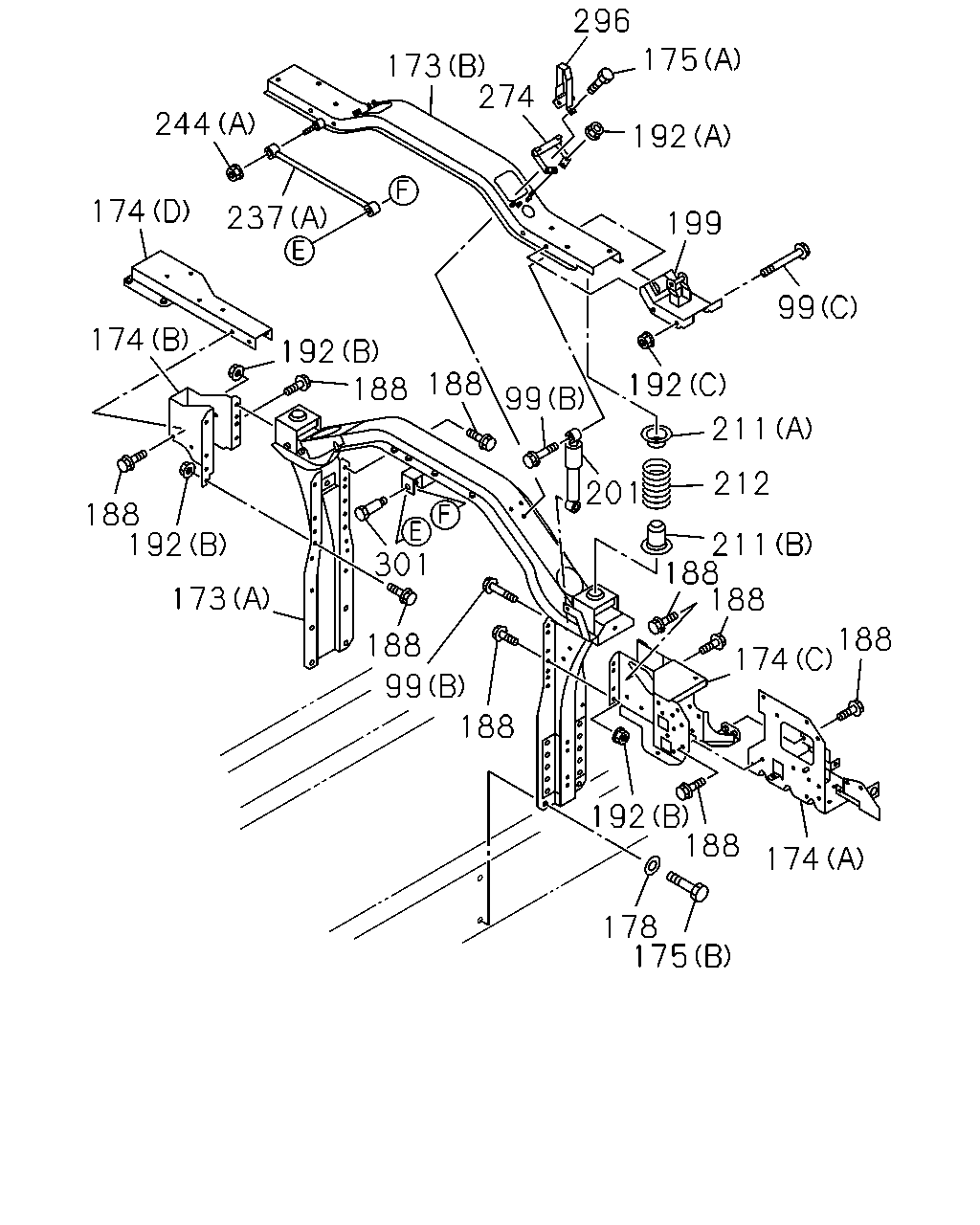

çizim 513404
173 244 237 192 174 174 188 188 199 192 296 175 99 192 212 211 188 174 99 201 211 188 188 192 188 174 178 175 188 99 188 173 192 188 274 301
BalonParca AdiParca NoAdetTipApplied Date
99 BOLT; BRKT
(C) M10X150 FLANGE 		0-28166-015-0 04 1 1509-
99 BOLT; BRKT
(B) M12X60 FLANGE 		0-28051-260-0 04 1 1509-
99 BOLT; BRKT
(A) Q2 M8X25 FLANGE 		0-28650-825-0 04 1 1509-
99 BOLT; BRKT
(A) X2 M8X25 FLANGE 		0-28650-825-0 06 1 1509-
173 MEMBER; CAB MTG RR
(A) Q2 		8-97430-158-2 01 1 1509-
173 MEMBER; CAB MTG RR
(C) X2 		8-97430-159-2 01 1 1509-
173 MEMBER; CAB MTG RR
(B) Q2 		8-97430-160-2 01 1 1509-
173 MEMBER; CAB MTG RR
(D) X2 		8-97430-161-2 01 1 1509-
174 OUTRIGGER
(A) 		8-97430-162-1 01 1 1509-
174 OUTRIGGER
(D) 		8-98237-297-0 01 1 1509-
174 OUTRIGGER
(B) 		8-97430-163-0 01 1 1509-
174 OUTRIGGER
(C) 		8-97430-164-1 01 1 1509-
175 BOLT; MEMBER TO FRAME
(A) 		0-20851-025-0 06 1 1509-
175 BOLT; MEMBER TO FRAME
(B) M14X40 		0-20951-440-0 08 1 1509-
178 WASHER; LK,MEMBER
ID=15 		8-98010-627-1 08 1 1509-
188 BOLT; OUTRIGGER
M10X25 FLANGE 		0-28651-025-0 21 1 1509-
192 NUT; BRKT FIX
(A) X2 M8 FLANGE 		0-91180-108-0 02 1 1509-
192 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 08 1 1509-
192 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 09 1 1509-
192 NUT; BRKT FIX
(C) M10 FLANGE 		0-91280-210-0 04 1 1509-
199 BRACKET; CAB RR MTG 8-97431-334-0 01 1 1509-
199 BRACKET; CAB RR MTG 8-97431-335-0 01 1 1509-
201 ABSORBER ASM; SHOCK,RR MTG 8-98237-282-0 02 1 1509-
211 RUBBER; CUSHION,S/ABS
(B) Q2 		1-53366-128-0 02 1 1509-
211 RUBBER; CUSHION,S/ABS
(A) Q2 		1-53366-132-1 02 1 1509-
212 SPRING; COIL
Q2 		1-09580-515-0 02 1 1509-
237 ROD ASM; LATERAL
(B) X2 		1-33670-407-0 01 1 1509-
237 ROD ASM; LATERAL
(A) 		8-98237-283-0 01 1 1509-
244 NUT; LATERAL ROD
(B) X2 M5 		0-91110-505-0 02 1 1509-
244 NUT; LATERAL ROD
(A) M16 FLANGE 		0-91180-216-0 01 1 1509-
274 PIN 8-98259-740-0 02 1 1509-
296 STOPPER; UPR 8-98237-280-0 02 1 1509-
301 PIN; LATERAL ROD
M12X57.5 		1-53459-498-1 01 1 1509-

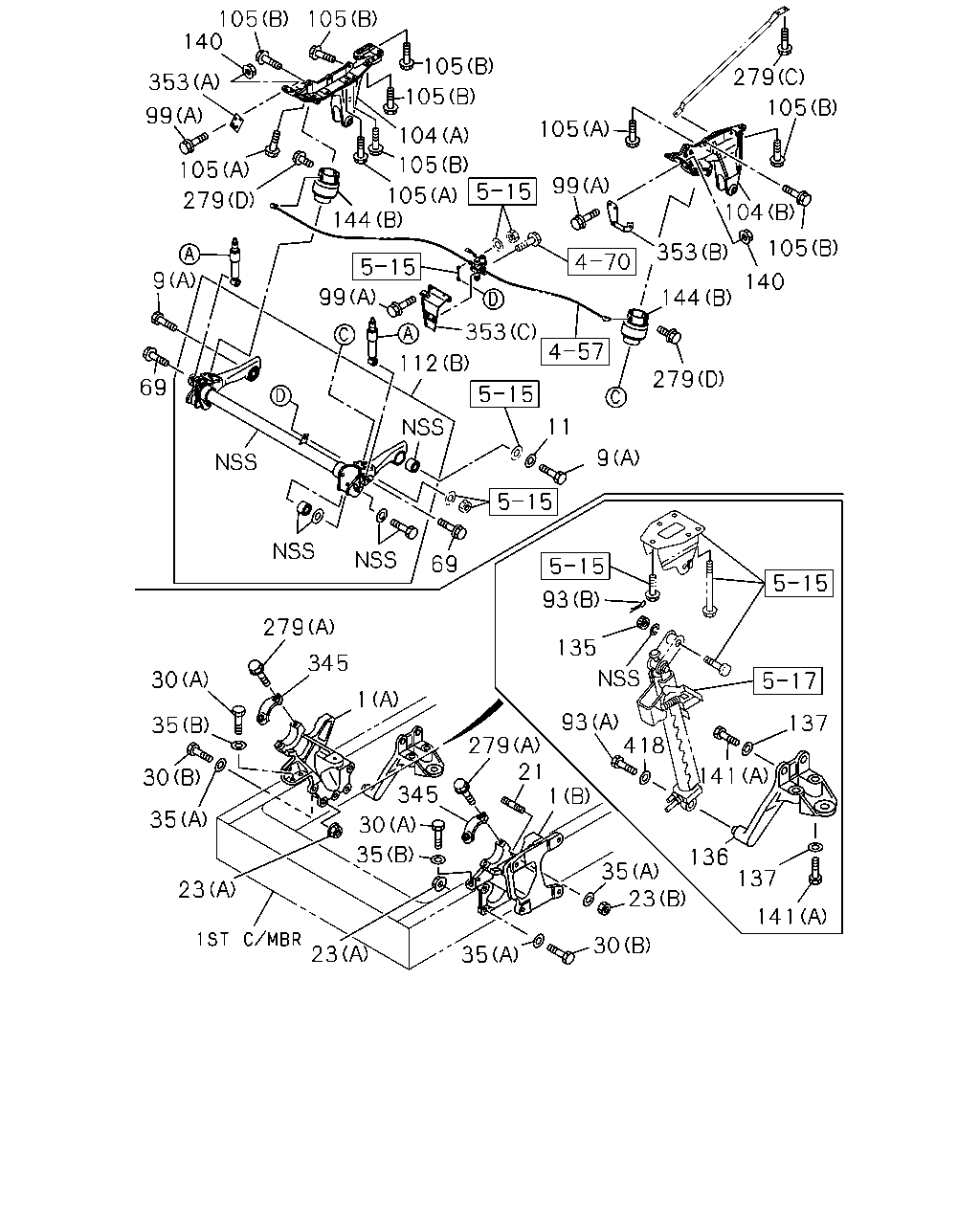

çizim 513668
141 137 136 141 137 418 93 135 93 23 35 30 35 23 23 35 345 30 279 21 1 1 345 279 35 35 30 30 69 9 11 279 144 140 105 353 104 105 279 105 99 353 112 69 9 279 144 99 105 105 104 105 105 105 105 140 353 99 105
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; CAB MTG
(B) 		8-97430-810-0 01 1 1509-
1 BRACKET; CAB MTG
(A) 		8-97430-155-1 01 1 1509-
9 BOLT
(B) X2 M8X45 FLANGE 		0-28050-845-0 02 1 1509-
9 BOLT
(A) M18X90 		0-10856-890-0 02 1 1509-
11 WASHER; LK
ID=19 OD=30 		1-09503-279-0 02 1 1509-
21 STUD; BRKT,CAB TILT
M16X50 L=74 		1-09300-117-0 01 1 1509-
23 NUT; MTG BRKT
(A) M16 FLANGE 		0-91180-216-0 11 1 1509-
23 NUT; MTG BRKT
(B) M16 		0-91110-516-0 01 1 1509-
30 BOLT; CAB FRT FOOT
(A) M14X50 		0-20951-450-0 04 1 1509-
30 BOLT; CAB FRT FOOT
(B) M16X60 		0-20951-660-0 10 1 1509-
35 WASHER; PL,CAB MTG BRKT
(A) ID=16.2 		1-09503-316-0 11 1 1509-
35 WASHER; PL,CAB MTG BRKT
(B) ID=15 		8-98010-627-1 04 1 1509-
69 BOLT; S/ABS,CAB FRT SUSPENSION
M12X60 FLANGE 		0-28051-260-0 02 1 1509-
93 BOLT; PIN
(A) M10X30 		1-09000-283-0 01 1 1509-
93 BOLT; PIN
(B) OD=2.8 L=25 		0-81123-025-0 01 1 1509-
99 BOLT; BRKT
(C) M10X150 FLANGE 		0-28166-015-0 04 1 1509-
99 BOLT; BRKT
(B) M12X60 FLANGE 		0-28051-260-0 04 1 1509-
99 BOLT; BRKT
(A) Q2 M8X25 FLANGE 		0-28650-825-0 04 1 1509-
99 BOLT; BRKT
(A) X2 M8X25 FLANGE 		0-28650-825-0 06 1 1509-
104 BRACKET; CAB FRAME,CAB FRT MTG
(A) Q2 		8-97430-200-0 01 1 1509-
104 BRACKET; CAB FRAME,CAB FRT MTG
(A) X2 		8-97430-200-0 01 1 1509-
104 BRACKET; CAB FRAME,CAB FRT MTG
(B) Q2 		8-97430-202-0 01 1 1509-
104 BRACKET; CAB FRAME,CAB FRT MTG
(B) X2 		8-97430-202-0 01 1 1509-
105 BOLT; BRKT TO CAB FRAME
(A) M12X35 FLANGE 		0-28651-235-0 08 1 1509-
105 BOLT; BRKT TO CAB FRAME
(B) M10X35 FLANGE 		0-28661-035-0 13 1 1509-
112 ARM ASM; LINK,CAB FRT SUSP
(A) Q2 		8-97431-658-0 01 1 1509-
112 ARM ASM; LINK,CAB FRT SUSP
(B) X2 		8-97431-657-0 01 1 1509-
135 NUT; PIN
M14 SLOTTED 		0-91116-514-0 01 1 1509-
136 BRACKET; OIL CYL 8-97430-282-0 01 1 1509-
137 WASHER; PL,BRKT
ID=15 		8-98010-627-1 04 1 1509-
140 NUT; BRKT
X2 M8 FLANGE 		0-91180-108-0 04 1 1509-
140 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1509-
141 BOLT; BRKT
(B) X2 M8X20 FLANGE 		0-28650-820-0 02 1 1509-
141 BOLT; BRKT
(C) X2 M8X25 FLANGE 		0-28650-825-0 02 1 1509-
141 BOLT; BRKT
(A) M14X50 		0-20951-450-0 04 1 1509-
144 SPRING; COIL,CAB FRT SUSPENSION
(B) X2 		1-52110-142-3 02 1 1509-
144 SPRING; COIL,CAB FRT SUSPENSION
(A) Q2 		8-98259-510-0 02 1 1509-
279 BOLT
(A) M12X40 FLANGE 		0-28061-240-0 04 1 1509-
279 BOLT
(B) X2 M8X20 FLANGE 		0-28650-820-0 02 1 1509-
279 BOLT
(D) X2 M8X16 FLANGE 		0-28050-816-0 04 1 1509-
279 BOLT
(E) X2 M8X25 FLANGE 		0-28050-825-0 02 1 1509-
279 BOLT
(C) M10X25 FLANGE 		0-28051-025-0 04 1 1509-
345 CAP; CAB 1-53458-336-3 02 1 1509-
353 BRACKET
(D) X2 		8-98237-287-0 01 1 1509-
353 BRACKET
(E) X2 		8-98237-288-1 01 1 1509-
353 BRACKET
(A) 		8-97430-203-0 01 1 1509-
353 BRACKET
(C) X2 		8-97430-205-0 01 1 1509-
353 BRACKET
(B) 		8-97431-139-0 01 1 1509-
418 WASHER; PL,PIN
ID=10.5 OD=32 		0-91614-810-0 01 1 1509-

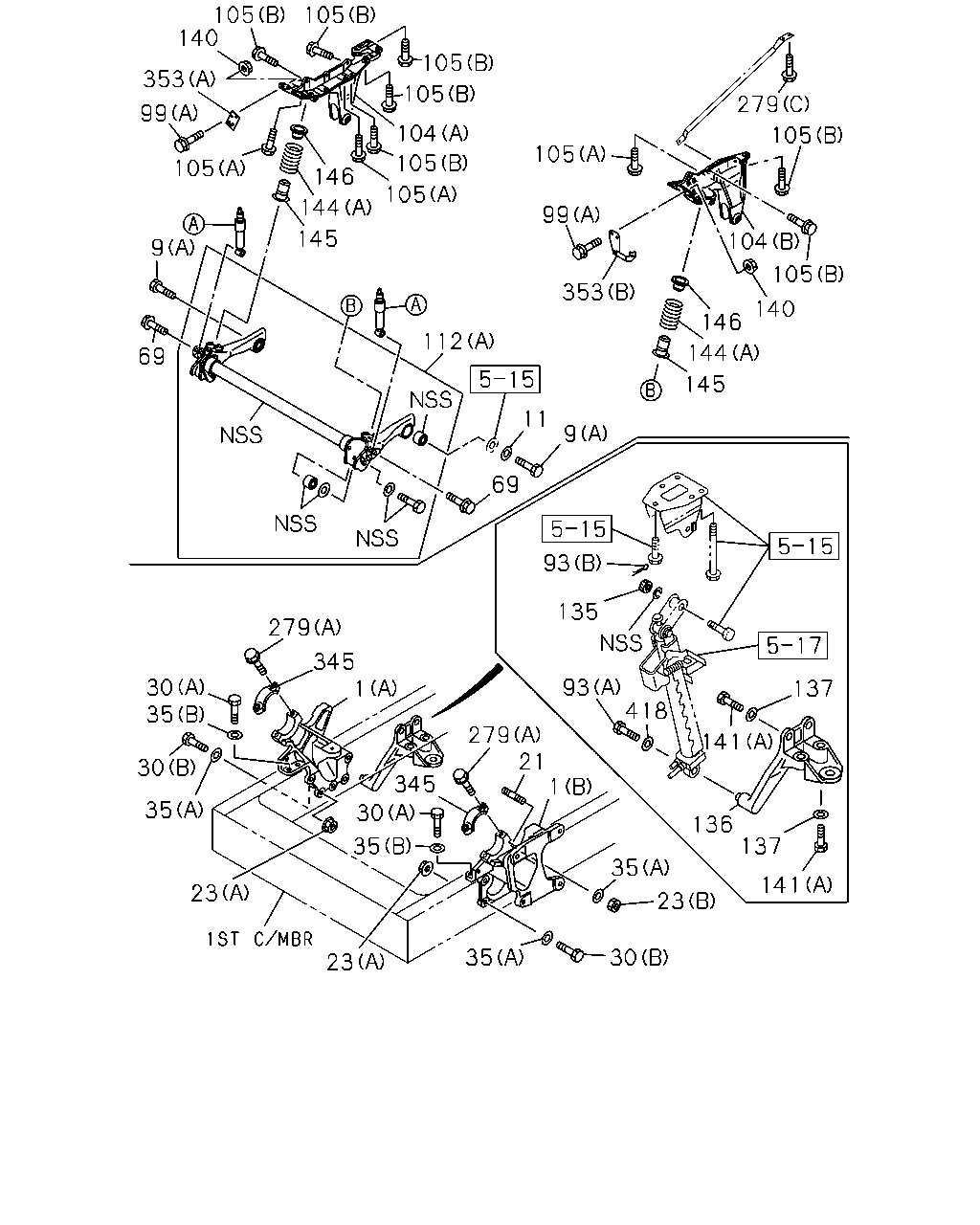

çizim 513963
279 105 104 105 140 146 144 145 353 9 99 105 93 135 93 418 137 141 136 137 141 11 69 112 105 105 104 105 105 146 144 145 105 105 140 353 99 105 9 69 279 345 1 30 35 30 35 23 23 35 279 21 1 35 23 345 30 35 30
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; CAB MTG
(B) 		8-97430-810-0 01 1 1509-
1 BRACKET; CAB MTG
(A) 		8-97430-155-1 01 1 1509-
9 BOLT
(B) X2 M8X45 FLANGE 		0-28050-845-0 02 1 1509-
9 BOLT
(A) M18X90 		0-10856-890-0 02 1 1509-
11 WASHER; LK
ID=19 OD=30 		1-09503-279-0 02 1 1509-
21 STUD; BRKT,CAB TILT
M16X50 L=74 		1-09300-117-0 01 1 1509-
23 NUT; MTG BRKT
(A) M16 FLANGE 		0-91180-216-0 11 1 1509-
23 NUT; MTG BRKT
(B) M16 		0-91110-516-0 01 1 1509-
30 BOLT; CAB FRT FOOT
(A) M14X50 		0-20951-450-0 04 1 1509-
30 BOLT; CAB FRT FOOT
(B) M16X60 		0-20951-660-0 10 1 1509-
35 WASHER; PL,CAB MTG BRKT
(A) ID=16.2 		1-09503-316-0 11 1 1509-
35 WASHER; PL,CAB MTG BRKT
(B) ID=15 		8-98010-627-1 04 1 1509-
69 BOLT; S/ABS,CAB FRT SUSPENSION
M12X60 FLANGE 		0-28051-260-0 02 1 1509-
93 BOLT; PIN
(A) M10X30 		1-09000-283-0 01 1 1509-
93 BOLT; PIN
(B) OD=2.8 L=25 		0-81123-025-0 01 1 1509-
99 BOLT; BRKT
(C) M10X150 FLANGE 		0-28166-015-0 04 1 1509-
99 BOLT; BRKT
(B) M12X60 FLANGE 		0-28051-260-0 04 1 1509-
99 BOLT; BRKT
(A) Q2 M8X25 FLANGE 		0-28650-825-0 04 1 1509-
99 BOLT; BRKT
(A) X2 M8X25 FLANGE 		0-28650-825-0 06 1 1509-
104 BRACKET; CAB FRAME,CAB FRT MTG
(A) Q2 		8-97430-200-0 01 1 1509-
104 BRACKET; CAB FRAME,CAB FRT MTG
(A) X2 		8-97430-200-0 01 1 1509-
104 BRACKET; CAB FRAME,CAB FRT MTG
(B) Q2 		8-97430-202-0 01 1 1509-
104 BRACKET; CAB FRAME,CAB FRT MTG
(B) X2 		8-97430-202-0 01 1 1509-
105 BOLT; BRKT TO CAB FRAME
(A) M12X35 FLANGE 		0-28651-235-0 08 1 1509-
105 BOLT; BRKT TO CAB FRAME
(B) M10X35 FLANGE 		0-28661-035-0 13 1 1509-
112 ARM ASM; LINK,CAB FRT SUSP
(A) Q2 		8-97431-658-0 01 1 1509-
112 ARM ASM; LINK,CAB FRT SUSP
(B) X2 		8-97431-657-0 01 1 1509-
135 NUT; PIN
M14 SLOTTED 		0-91116-514-0 01 1 1509-
136 BRACKET; OIL CYL 8-97430-282-0 01 1 1509-
137 WASHER; PL,BRKT
ID=15 		8-98010-627-1 04 1 1509-
140 NUT; BRKT
X2 M8 FLANGE 		0-91180-108-0 04 1 1509-
140 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1509-
141 BOLT; BRKT
(B) X2 M8X20 FLANGE 		0-28650-820-0 02 1 1509-
141 BOLT; BRKT
(C) X2 M8X25 FLANGE 		0-28650-825-0 02 1 1509-
141 BOLT; BRKT
(A) M14X50 		0-20951-450-0 04 1 1509-
144 SPRING; COIL,CAB FRT SUSPENSION
(B) X2 		1-52110-142-3 02 1 1509-
144 SPRING; COIL,CAB FRT SUSPENSION
(A) Q2 		8-98259-510-0 02 1 1509-
145 RUBBER; CUSHION,CAB FRT SUSPENSION
Q2 		1-53366-139-0 02 1 1509-
146 SEAT; SPRING,CAB FRT SUSPENSION
Q2 		1-53366-138-0 02 1 1509-
279 BOLT
(A) M12X40 FLANGE 		0-28061-240-0 04 1 1509-
279 BOLT
(B) X2 M8X20 FLANGE 		0-28650-820-0 02 1 1509-
279 BOLT
(D) X2 M8X16 FLANGE 		0-28050-816-0 04 1 1509-
279 BOLT
(E) X2 M8X25 FLANGE 		0-28050-825-0 02 1 1509-
279 BOLT
(C) M10X25 FLANGE 		0-28051-025-0 04 1 1509-
345 CAP; CAB 1-53458-336-3 02 1 1509-
353 BRACKET
(D) X2 		8-98237-287-0 01 1 1509-
353 BRACKET
(E) X2 		8-98237-288-1 01 1 1509-
353 BRACKET
(A) 		8-97430-203-0 01 1 1509-
353 BRACKET
(C) X2 		8-97430-205-0 01 1 1509-
353 BRACKET
(B) 		8-97431-139-0 01 1 1509-
418 WASHER; PL,PIN
ID=10.5 OD=32 		0-91614-810-0 01 1 1509-
çizim 514271
411 411 411 410 411 279 141 99 140 192
BalonParca AdiParca NoAdetTipApplied Date
99 BOLT; BRKT
(C) M10X150 FLANGE 		0-28166-015-0 04 1 1509-
99 BOLT; BRKT
(B) M12X60 FLANGE 		0-28051-260-0 04 1 1509-
99 BOLT; BRKT
(A) Q2 M8X25 FLANGE 		0-28650-825-0 04 1 1509-
99 BOLT; BRKT
(A) X2 M8X25 FLANGE 		0-28650-825-0 06 1 1509-
140 NUT; BRKT
X2 M8 FLANGE 		0-91180-108-0 04 1 1509-
140 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1509-
141 BOLT; BRKT
(B) X2 M8X20 FLANGE 		0-28650-820-0 02 1 1509-
141 BOLT; BRKT
(C) X2 M8X25 FLANGE 		0-28650-825-0 02 1 1509-
141 BOLT; BRKT
(A) M14X50 		0-20951-450-0 04 1 1509-
192 NUT; BRKT FIX
(A) X2 M8 FLANGE 		0-91180-108-0 02 1 1509-
192 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 08 1 1509-
192 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 09 1 1509-
192 NUT; BRKT FIX
(C) M10 FLANGE 		0-91280-210-0 04 1 1509-
279 BOLT
(A) M12X40 FLANGE 		0-28061-240-0 04 1 1509-
279 BOLT
(B) X2 M8X20 FLANGE 		0-28650-820-0 02 1 1509-
279 BOLT
(D) X2 M8X16 FLANGE 		0-28050-816-0 04 1 1509-
279 BOLT
(E) X2 M8X25 FLANGE 		0-28050-825-0 02 1 1509-
279 BOLT
(C) M10X25 FLANGE 		0-28051-025-0 04 1 1509-
410 REINFORCEMENT; CAB TILT 8-97430-075-0 01 1 1509-
410 REINFORCEMENT; CAB TILT 8-98054-960-3 01 1 1509-
411 BOLT; REINFORCEMENT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1509-
411 BOLT; REINFORCEMENT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1509-
411 BOLT; REINFORCEMENT
(B) M10X30 FLANGE 		0-28661-030-0 02 1 1509-
411 BOLT; REINFORCEMENT
(B) M10X30 FLANGE 		0-28661-030-0 04 1 1509-
çizim 514313
202 202 203 204 205 204 203 65
BalonParca AdiParca NoAdetTipApplied Date
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1509-
202 NUT; S/ABS
(A) M10 FLANGE 		0-91180-110-0 02 1 1509-
202 NUT; S/ABS
(B) M10 		9-09111-410-0 02 1 1509-
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 02 1 1509-
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1509-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 04 1 1509-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 02 1 1509-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
