5-01 — FRAME AND OTHER PARTS (#175371) — 97 parça

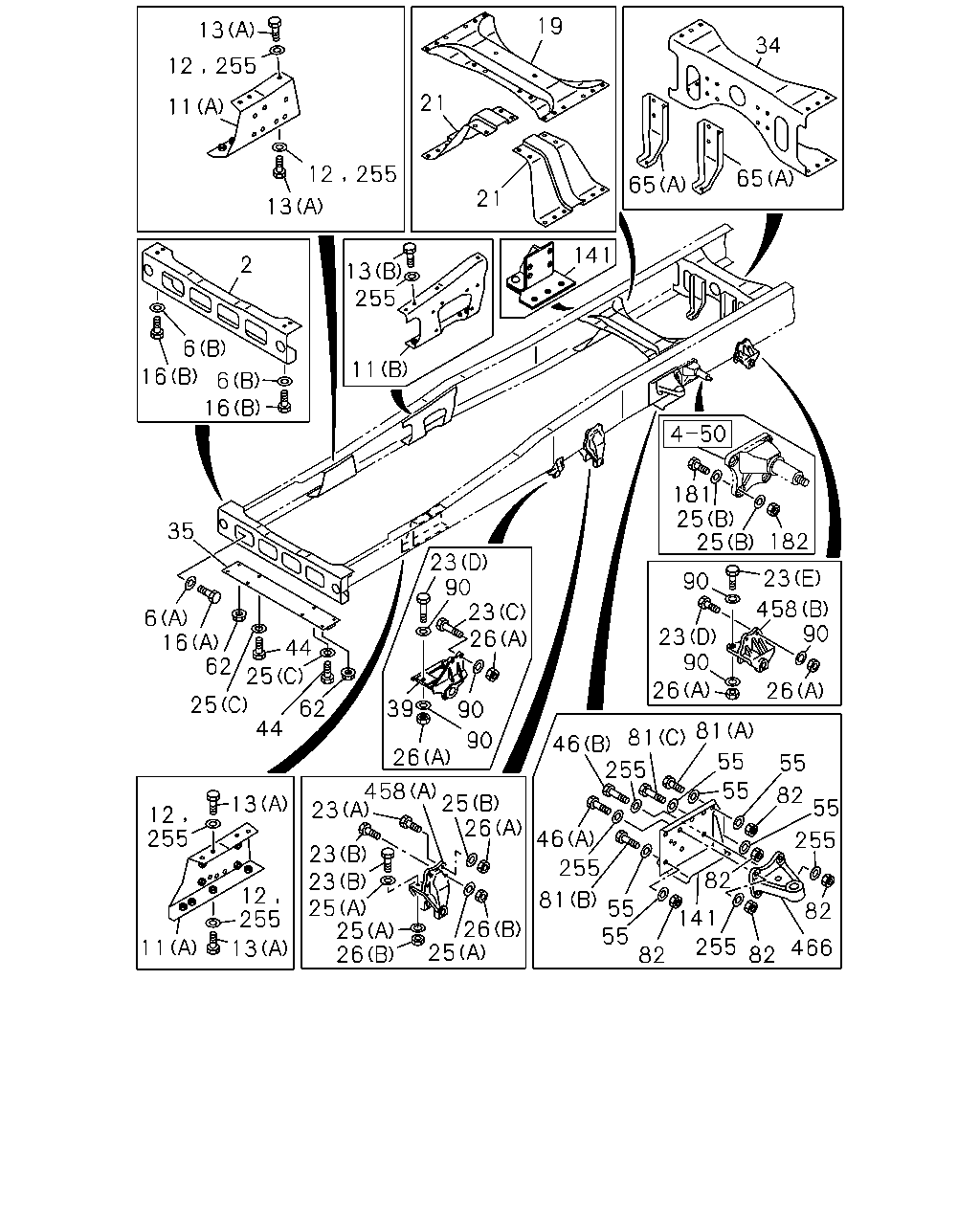

çizim 513653
13 255 12 11 13 12 255 21 21 19 65 34 65 13 255 2 6 16 16 6 35 11 6 16 62 25 25 44 62 44 23 90 23 26 141 181 25 25 182 23 90 23 90 26 458 90 26 81 55 55 82 55 255 82 466 82 255 141 82 55 81 46 90 90 39 26 458 23 23 23 25 25 26 13 12 255 13 11 255 12 25 26 26 25 46 255 81 55 55 82 255
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 8-97430-268-0 01 1 1509- ● ●
6 WASHER; LK,1ST C/MBR
(B) Q10 ID=15 		8-98010-627-1 04 1 1509- ● ●
6 WASHER; LK,1ST C/MBR
(A) Q10 ID=17 OD=30 		0-91610-516-0 08 1 1509- ● ●
11 BRACKET; ENG MTG
(A) 		8-97430-277-0 01 1 1509- ● ●
11 BRACKET; ENG MTG
(A) 		8-97430-278-0 01 1 1509- ● ●
11 BRACKET; ENG MTG
(B) Q10 		8-97430-280-0 01 1 1509- ● ●
11 BRACKET; ENG MTG
(B) Q10 		8-97430-281-0 01 1 1509- ● ●
11 BRACKET; ENG MTG
(B) X10 		8-97431-780-0 01 1 1509- ● ●
11 BRACKET; ENG MTG
(B) X10 		8-97431-781-0 01 1 1509- ● ●
12 WASHER; PL,BRKT,ENG MTG
X10 ID=15 		8-98010-627-1 09 1 1509- ● ●
13 BOLT; BRKT,ENG MTG
(A) M14X40 		0-20951-440-0 09 1 1509- ● ●
13 BOLT; BRKT,ENG MTG
(B) M14X50 		0-20951-450-0 08 1 1509- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) Q10 M14X30 		0-20951-430-0 04 1 1509- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) Q10 M16X35 		0-20951-635-0 08 1 1509- ● ●
19 MEMBER; CROSS,2ND
Q10 		8-98098-302-0 01 1 1509- ● ●
21 GUSSET; 2ND CROSS
Q10 		8-98098-309-0 01 1 1509- ● ●
21 GUSSET; 2ND CROSS
Q10 		8-98098-309-0 01 1 1509- ● ●
23 BOLT; BRKT,SPR
(C) Q10 M14X45 		0-20951-445-0 02 1 1509- ● ●
23 BOLT; BRKT,SPR
(D) M14X50 		0-20951-450-0 06 1 1509- ● ●
23 BOLT; BRKT,SPR
(A) Q10 M14X40 		0-20951-440-0 04 1 1509- ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 08 1 1509- ● ●
23 BOLT; BRKT,SPR
(D) M14X50 		0-20951-450-0 04 1 1509- ● ●
23 BOLT; BRKT,SPR
(E) M14X60 		0-20951-460-0 04 1 1509- ● ●
23 BOLT; BRKT,SPR
(A) X10 M14X50 		0-20951-450-0 04 1 1509- ● ●
25 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 04 1 1509- ● ●
25 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-316-0 12 1 1509- ● ●
25 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 16 1 1509- ● ●
25 WASHER; PL,BRKT
(C) ID=17 		0-91614-516-0 04 1 1509- ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 08 1 1509- ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 04 1 1509- ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 08 1 1509- ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 08 1 1509- ● ●
34 MEMBER; CROSS,3RD 8-98224-576-0 01 1 1509- ●
34 MEMBER; CROSS,3RD 1-53181-643-1 01 1 1509- ●
35 MEMBER; UNDER 8-97430-171-0 01 1 1509- ● ●
39 BRACKET; FRT SPR,RR 1-53352-179-0 01 1 1509- ● ●
39 BRACKET; FRT SPR,RR 1-53352-180-0 01 1 1509- ● ●
44 BOLT; UNDER MBR
M16X35 		0-20951-635-0 04 1 1509- ● ●
46 BOLT; BRKT FIX
(A) Q10 M14X50 		0-20951-450-0 02 1 1509- ● ●
46 BOLT; BRKT FIX
(B) M14X60 		0-20951-460-0 02 1 1509- ● ●
55 WASHER; PL
ID=15 		8-98010-627-1 10 1 1509- ● ●
62 NUT; MBR
M12 FLANGE 		0-91180-212-0 04 1 1509- ● ●
65 BRACKET; CENTER BRG
(A) 		8-97614-126-0 02 1 1509- ●
65 BRACKET; CENTER BRG
(B) 		8-97614-127-0 02 1 1509- ●
65 BRACKET; CENTER BRG
(A) 		8-97621-881-0 02 1 1509- ●
81 BOLT; BRKT
(B) M14X50 		0-20951-450-0 01 1 1509- ● ●
81 BOLT; BRKT
(A) Q10 M14X40 		0-20951-440-0 03 1 1509- ● ●
81 BOLT; BRKT
(C) Q10 M14X60 		0-20951-460-0 01 1 1509- ● ●
81 BOLT; BRKT
(B) M14X50 		0-20951-450-0 02 1 1509- ● ●
81 BOLT; BRKT
(D) M14X205 		1-09000-147-0 02 1 1509- ● ●
82 NUT; BRKT
M14 		0-91110-514-0 05 1 1509- ● ●
82 NUT; BRKT
M14 		0-91110-514-0 04 1 1509- ● ●
82 NUT; BRKT
M14 		0-91110-514-0 04 1 1509- ● ●
90 WASHER; PL
ID=15 		8-98010-627-1 12 1 1509- ● ●
90 WASHER; PL
ID=15 		8-98010-627-1 12 1 1509- ● ●
141 STIFFENER 1-53151-700-0 01 1 1509- ● ●
141 STIFFENER 8-97431-773-0 01 1 1509- ● ●
181 BOLT; S/ABS BRKT TO FRAME
M14X50 		0-20951-450-0 08 1 1509- ● ●
182 NUT; S/ABS BRKT TO FRAME
M14 		0-91110-514-0 08 1 1509- ● ●
255 WASHER; PL,BRKT
Q10 ID=15 		8-98010-627-1 09 1 1509- ● ●
255 WASHER; PL,BRKT
ID=15 		8-98010-627-1 08 1 1509- ● ●
255 WASHER; PL,BRKT
ID=15 		8-98010-627-1 08 1 1509- ● ●
458 BRACKET; LEAF SPRING
(A) 		1-53351-217-0 01 1 1509- ● ●
458 BRACKET; LEAF SPRING
(A) 		1-53351-218-0 01 1 1509- ● ●
458 BRACKET; LEAF SPRING
(B) 		1-53352-067-3 01 1 1509- ● ●
458 BRACKET; LEAF SPRING
(B) 		1-53352-067-3 01 1 1509- ● ●
466 BRACKET; BOOSTER 8-98249-975-0 01 1 1509- ● ●

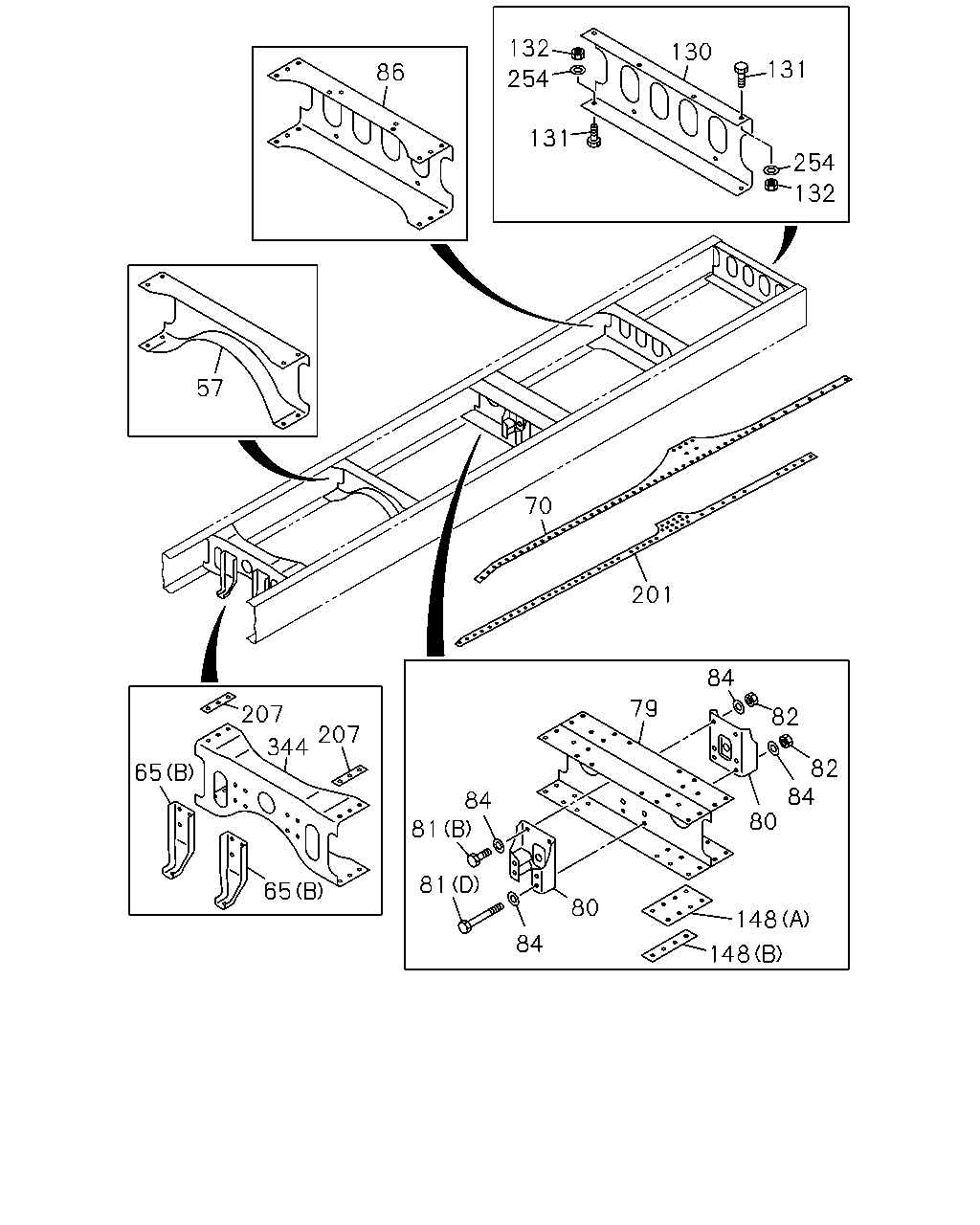

çizim 514331
86 132 254 131 130 131 254 132 70 201 79 84 82 82 84 80 148 148 80 84 81 81 84 207 344 207 65 65 57
BalonParca AdiParca NoAdetTipApplied Date A B
57 MEMBER; CROSS,RR SUSP FRT 1-53181-994-1 01 1 1509- ● ●
65 BRACKET; CENTER BRG
(A) 		8-97614-126-0 02 1 1509- ●
65 BRACKET; CENTER BRG
(B) 		8-97614-127-0 02 1 1509- ●
65 BRACKET; CENTER BRG
(A) 		8-97621-881-0 02 1 1509- ●
70 GUSSET; TRUNNION,UPR
Q10 		1-53161-478-0 02 1 1509- ● ●
79 MEMBER; CROSS,TRUNNION ASM
Q10 		8-97623-020-3 01 1 1509- ● ●
79 MEMBER; CROSS,TRUNNION ASM
X10 		8-97623-020-3 01 1 1509- ● ●
80 BRACKET; C/MBR 1-53363-031-2 02 1 1509- ● ●
81 BOLT; BRKT
(B) M14X50 		0-20951-450-0 01 1 1509- ● ●
81 BOLT; BRKT
(A) Q10 M14X40 		0-20951-440-0 03 1 1509- ● ●
81 BOLT; BRKT
(C) Q10 M14X60 		0-20951-460-0 01 1 1509- ● ●
81 BOLT; BRKT
(B) M14X50 		0-20951-450-0 02 1 1509- ● ●
81 BOLT; BRKT
(D) M14X205 		1-09000-147-0 02 1 1509- ● ●
82 NUT; BRKT
M14 		0-91110-514-0 05 1 1509- ● ●
82 NUT; BRKT
M14 		0-91110-514-0 04 1 1509- ● ●
82 NUT; BRKT
M14 		0-91110-514-0 04 1 1509- ● ●
84 WASHER; PL,BRKT
ID=15 		8-98010-627-1 08 1 1509- ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-757-3 01 1 1509- ● ●
130 MEMBER; CROSS,END
Q10 		8-97430-271-0 01 1 1509- ● ●
130 MEMBER; CROSS,END
X10 		8-97431-784-0 01 1 1509- ● ●
131 BOLT; END C/MBR
M14X40 		0-20951-440-0 04 1 1509- ● ●
132 NUT; END C/MBR
M14 		0-91110-514-0 04 1 1509- ● ●
148 SPACER; C/MBR
(A) Q10 		8-97430-273-0 02 1 1509- ● ●
148 SPACER; C/MBR
(B) Q10 		8-97623-199-0 02 1 1509- ● ●
148 SPACER; C/MBR
(A) X10 		8-97430-273-0 02 1 1509- ● ●
201 GUSSET; C/MBR 8-97430-287-0 02 1 1509- ●
201 GUSSET; C/MBR
Q10 		8-97430-286-0 02 1 1509- ●
207 SPACER; 4TH C/MBR 8-98203-934-0 02 1 1509- ●
254 WASHER; PL,C/MBR
Q10 ID=15 		8-98010-627-1 04 1 1509- ● ●
344 MEMBER; CROSS,4TH 8-98224-577-0 01 1 1509- ●
