◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11369 - FVR(LHD)EURO4 W/DOC ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#17537) — 83 parça

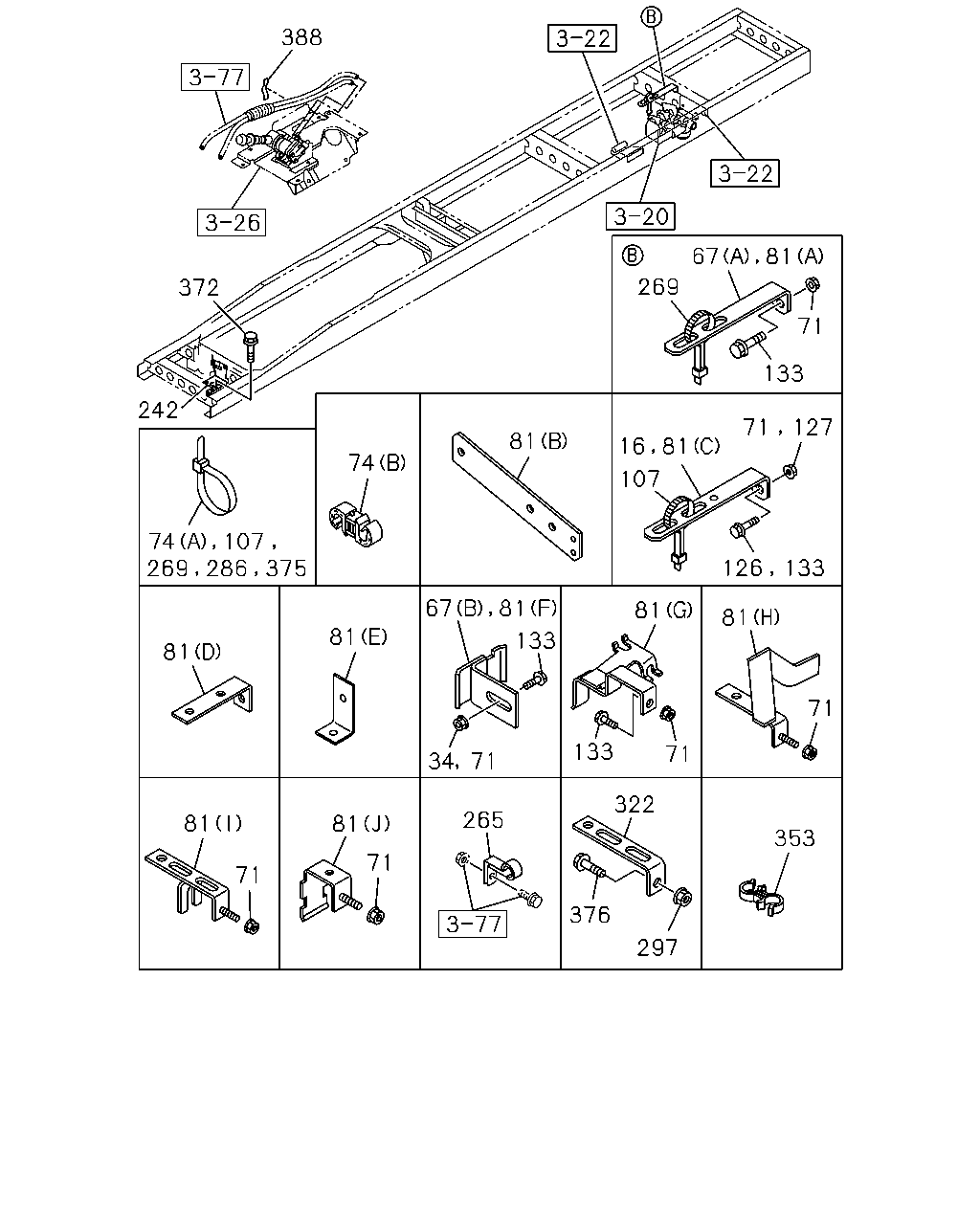

çizim 110101
388 67 81 269 372 71 133 242 127 71 81 74 107 74 107 126 133 81 81 81 133 81 71 133 71 71 34 322 265 81 81 353 71 71 376 297 16 81 81 67 269 286 375
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
L=225 		1-47477-646-3 01 1 1109-1205
16 BRACKET; PIPE CLIP
CHILE EQUIPMENT(KE1) L=225 		1-47477-646-3 01 1 1206-
34 NUT; BRKT
EXC. CHILE EQUIPMENT(KE1) M8 FLANGE 		0-91180-108-0 02 1 1206-
67 BRACKET; CLIP
EXC. CHILE EQUIPMENT(KE1) (A) L=150 H=30 		1-47477-629-2 01 1 1206-
67 BRACKET; CLIP
EXC. CHILE EQUIPMENT(KE1) (B) 		1-47479-693-0 01 1 1206-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1109-1205
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 1206-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 1109-1205
71 NUT; BRKT
H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 01 1 1206-
71 NUT; BRKT
EXC. CHILE EQUIPMENT(KE1) M8 FLANGE 		0-91180-108-0 01 1 1206-
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1109-
71 NUT; BRKT
H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 01 1 1109-1205
71 NUT; BRKT
CHILE EQUIPMENT(KE1) M8 FLANGE 		0-91180-108-0 04 1 1206-
74 CLIP; NYLON TUBE
BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 01 1 1206-
74 CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W) (A) L=350 		1-09707-183-0 07 1 1206-
74 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) EXC. CHILE EQUIPMENT(KE1) (A) L=350 		1-09707-183-0 11 1 1206-
74 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) EXC. CHILE EQUIPMENT(KE1) (A) L=350 		1-09707-183-0 12 1 1206-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 1109-
74 CLIP; NYLON TUBE
(B) ID=12 & 15 		1-09709-281-1 01 1 1109-
74 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) (A) L=350 		1-09707-183-0 09 1 1109-1205
74 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (A) L=350 		1-09707-183-0 09 1 1206-
74 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 10 1 1109-1205
74 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) CHILE EQUIPMENT(KE1) (A) L=350 		1-09707-183-0 10 1 1206-
81 BRACKET; CLIP
(A) L=150 H=30 		1-47477-629-2 01 1 1109-
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 1109-1205
81 BRACKET; CLIP
H.S.A SYSTEM<6EP> (C) L=100 H=30 		1-47477-645-2 01 1 1109-1205
81 BRACKET; CLIP
CHILE EQUIPMENT(KE1) (C) L=100 H=30 		1-47477-645-2 01 1 1206-
81 BRACKET; CLIP
H.S.A SYSTEM<6EP> (C) L=100 H=30 		1-47477-645-2 01 1 1206-
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 1109-1205
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 1109-1205
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 1206-
81 BRACKET; CLIP
CHILE EQUIPMENT(KE1) (D) L=60 H=30 		1-47477-716-1 02 1 1206-
81 BRACKET; CLIP
(F) 		1-47479-693-0 01 1 1109-
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 1109-
81 BRACKET; CLIP
(E) L=65 B=25 		8-98135-584-0 01 1 1109-
81 BRACKET; CLIP
(J) 		8-98186-380-0 01 1 1109-
81 BRACKET; CLIP
MZW6P M/T(RSZ) (I) 		8-98177-873-0 02 1 1109-
81 BRACKET; CLIP
MZW6P M/T(RSZ) (H) 		8-98182-331-0 01 1 1109-
81 BRACKET; CLIP
MZW6P M/T(RSZ) (G) 		8-98182-760-0 01 1 1109-
81 BRACKET; CLIP
ZF9S1110 M/T(Y5E) (I) 		8-98177-873-0 04 1 1109-1205
81 BRACKET; CLIP
ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (I) 		8-98177-873-0 04 1 1206-
107 CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W) L=350 		1-09707-183-0 36 1 1206-
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) EXC. CHILE EQUIPMENT(KE1) L=350 		1-09707-183-0 40 1 1206-
107 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) EXC. CHILE EQUIPMENT(KE1) L=350 		1-09707-183-0 42 1 1206-
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> L=350 		1-09707-183-0 01 1 1109-
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) L=350 		1-09707-183-0 41 1 1109-1205
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) L=350 		1-09707-183-0 41 1 1206-
107 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) L=350 		1-09707-183-0 43 1 1109-1205
107 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) CHILE EQUIPMENT(KE1) L=350 		1-09707-183-0 43 1 1206-
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1109-1205
126 BOLT; CLIP BRKT
CHILE EQUIPMENT(KE1) M8X30 FLANGE 		0-28650-830-0 01 1 1206-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1109-1205
127 NUT; CLIP BRKT
CHILE EQUIPMENT(KE1) M8 FLANGE 		0-91180-108-0 01 1 1206-
133 BOLT; BRKT
EXC. CHILE EQUIPMENT(KE1) M8X25 FLANGE 		0-28650-825-0 01 1 1206-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1109-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1109-
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1109-1205
133 BOLT; BRKT
CHILE EQUIPMENT(KE1) M8X35 FLANGE 		0-28650-835-0 02 1 1206-
133 BOLT; BRKT
H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 01 1 1109-
133 BOLT; BRKT
MZW6P M/T(RSZ) M8X30 FLANGE 		0-28650-830-0 03 1 1109-
133 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 02 1 1109-1205
133 BOLT; BRKT
ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) M8X30 FLANGE 		0-28650-830-0 02 1 1206-
242 BRACKET; PIPE CLIP 8-98158-602-0 01 1 1109-
265 CLIP; NYLON TUBE
ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1109-
269 CLIP; BAND,NYLON TUBE
ANTI LOCK BRAKE<JE5> L=350 		1-09707-183-0 02 1 1206-
269 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 1109-1205
269 CLIP; BAND,NYLON TUBE
CHILE EQUIPMENT(KE1) L=350 		1-09707-183-0 01 1 1206-
269 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 03 1 1109-1205
269 CLIP; BAND,NYLON TUBE
EXC. ANTI LOCK BRAKE<JE5> L=350 		1-09707-183-0 03 1 1206-
286 CLIP; NYLON TUBE
VIN MODEL YEAR 2011<VZB> L=350 		1-09707-183-0 01 1 1109-
297 NUT; BRKT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		0-91180-108-0 02 1 1206-
322 BRACKET; CLIP
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		1-47479-598-0 02 1 1206-
353 CLIP; AIR PIPE
ID=18 & 18 		8-94323-068-0 01 1 1109-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1109-
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> L=350 		1-09707-183-0 01 1 1109-1205
375 CLIP; AIR PIPE
EXC. VIN MODEL YEAR 2011<VZB> L=350 		1-09707-183-0 01 1 1109-1205
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=350 		1-09707-183-0 01 1 1206-1402
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) L=350 		1-09707-183-0 01 1 1206-1402
375 CLIP; AIR PIPE
EXC. VIN MODEL YEAR 2011<VZB> L=350 		1-09707-183-0 01 1 1206-1402
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=350 		1-09707-183-0 01 1 1403-
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) L=350 		1-09707-183-0 01 1 1403-
376 BOLT; BRKT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE 		0-28650-830-0 02 1 1206-
388 SEAL
100X40 		1-72498-022-1 03 1 1109-
