4-55 — FRONT LEAF SPRING (#175365) — 53 parça

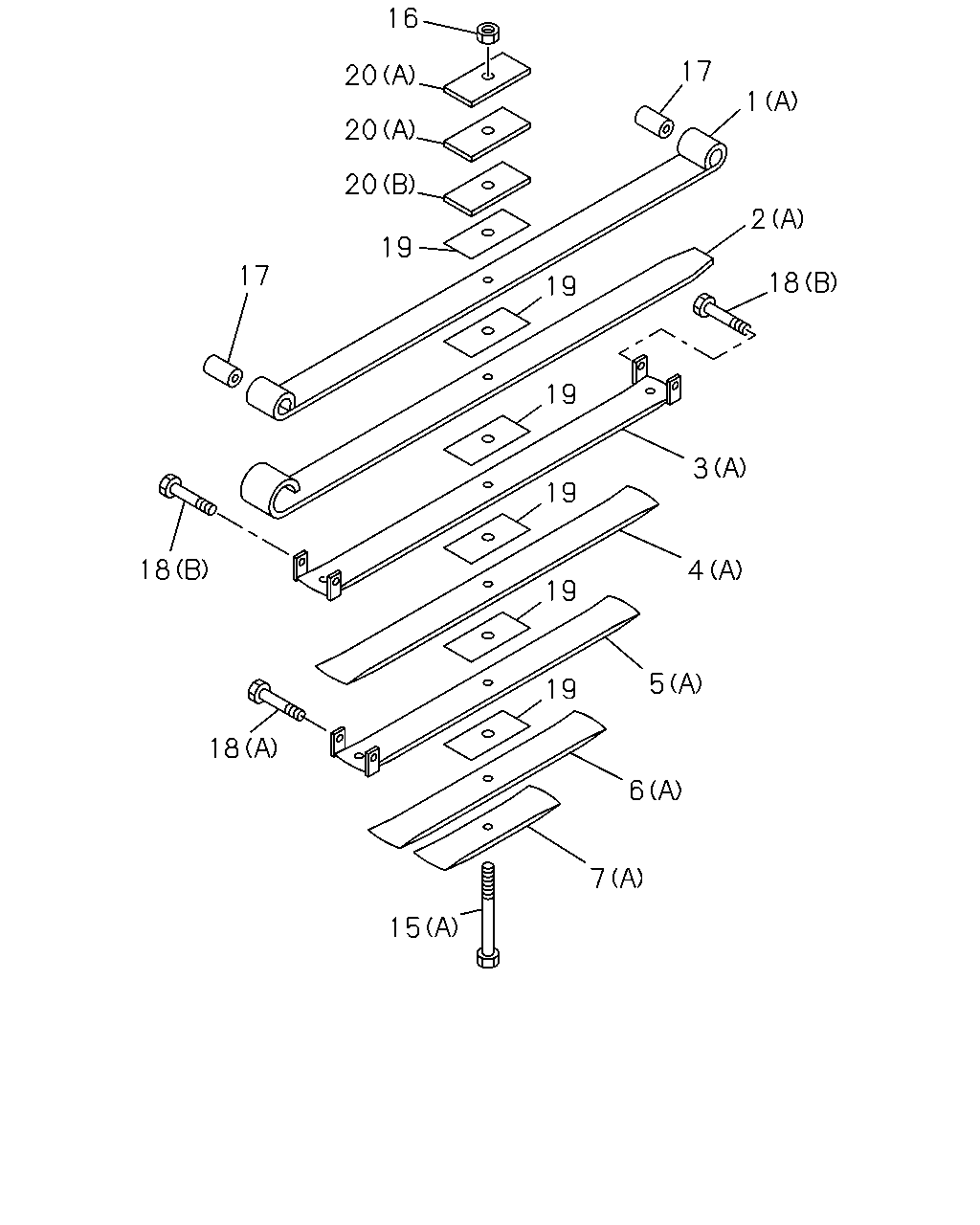

16 20 20 20 17 19 18 18 15 19 19 19 19 19 17 1 2 18 3 4 5 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: B = 8-98179-185-0	8-98165-027-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 8-97431-347-0	8-98188-249-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: B = 8-98179-185-0	8-98165-028-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 8-97431-347-0	8-98188-250-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: B = 8-98179-185-0	1-51133-966-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 8-97431-347-0	8-98188-251-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: B = 8-98179-185-0	1-51134-966-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: A = 8-97431-347-0	8-98188-252-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B) ASM PART: B = 8-98179-185-0	1-51135-966-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A) ASM PART: A = 8-97431-347-0	8-98188-253-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B) ASM PART: B = 8-98179-185-0	1-51136-966-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A) ASM PART: A = 8-97431-347-0	8-98188-254-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B) ASM PART: B = 8-98179-185-0	1-51137-966-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A) ASM PART: A = 8-97431-347-0	8-98188-255-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=190 ASM PART: B = 8-98179-185-0	1-51156-342-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=165 ASM PART: A = 8-97431-347-0	1-51156-366-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 8-97431-347-0, B = 8-98179-185-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 8-97431-347-0, B = 8-98179-185-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: A = 8-97431-347-0	1-09000-328-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: B = 8-98179-185-0	1-09000-328-0	04	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: A = 8-97431-347-0	1-09000-536-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-97431-347-0, B = 8-98179-185-0	1-51177-071-0	06	1	-
20	SEAT; LEAF SPR,FRT (A), T=9 ASM PART: A = 8-97431-347-0	1-51177-085-0	02	1	-
20	SEAT; LEAF SPR,FRT (A), T=9 ASM PART: B = 8-98179-185-0	1-51177-085-0	03	1	-
20	SEAT; LEAF SPR,FRT (B), T=11 ASM PART: B = 8-98179-185-0	1-51177-347-0	02	1	-
20	SEAT; LEAF SPR,FRT (B), T=11 ASM PART: A = 8-97431-347-0	1-51177-347-0	01	1	-

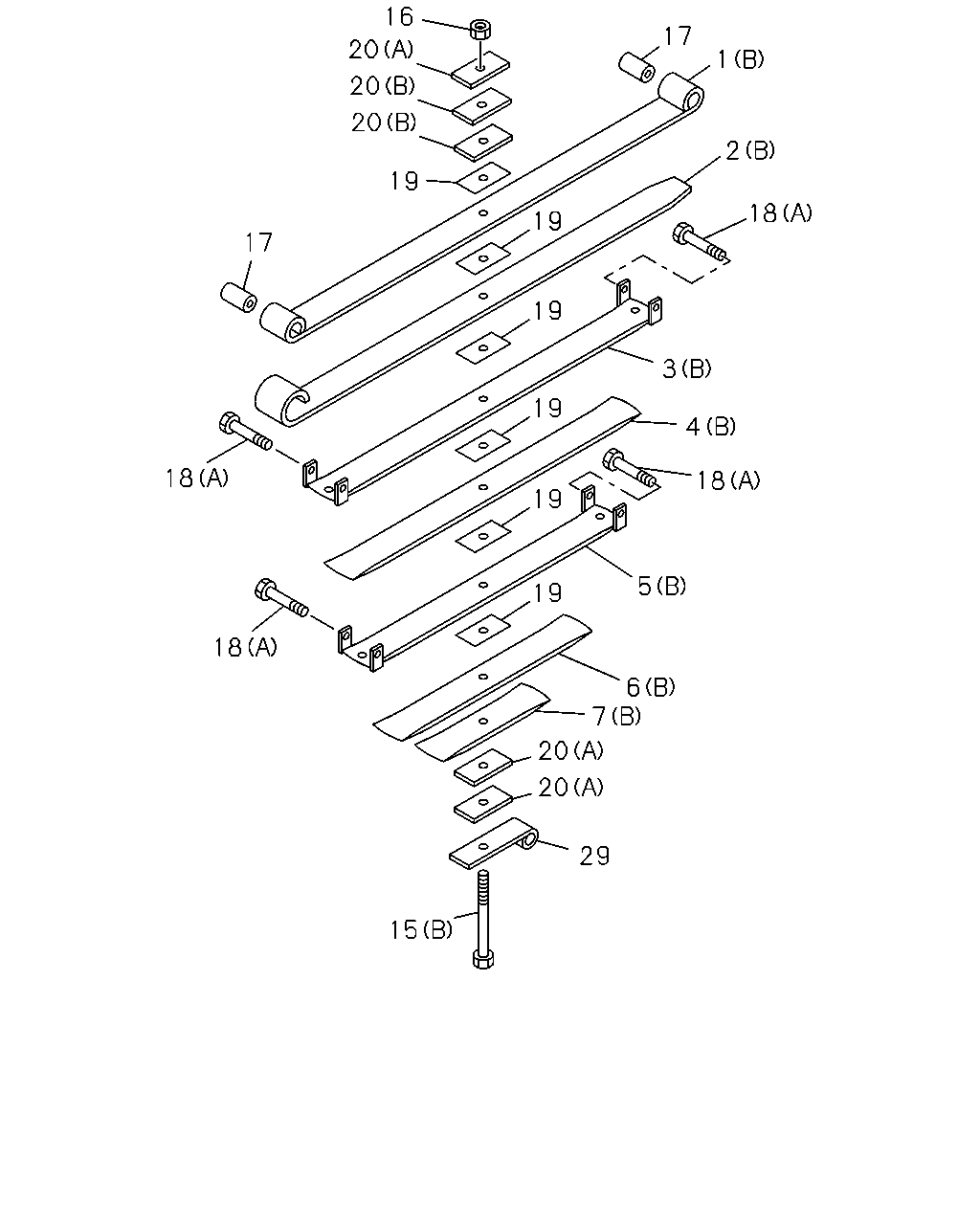

17 18 18 15 16 20 20 20 19 19 19 19 19 19 6 7 20 20 29 17 1 2 18 3 4 18 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: B = 8-98179-185-0	8-98165-027-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 8-97431-347-0	8-98188-249-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: B = 8-98179-185-0	8-98165-028-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 8-97431-347-0	8-98188-250-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: B = 8-98179-185-0	1-51133-966-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 8-97431-347-0	8-98188-251-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: B = 8-98179-185-0	1-51134-966-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: A = 8-97431-347-0	8-98188-252-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B) ASM PART: B = 8-98179-185-0	1-51135-966-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A) ASM PART: A = 8-97431-347-0	8-98188-253-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B) ASM PART: B = 8-98179-185-0	1-51136-966-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A) ASM PART: A = 8-97431-347-0	8-98188-254-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B) ASM PART: B = 8-98179-185-0	1-51137-966-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A) ASM PART: A = 8-97431-347-0	8-98188-255-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=190 ASM PART: B = 8-98179-185-0	1-51156-342-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=165 ASM PART: A = 8-97431-347-0	1-51156-366-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 8-97431-347-0, B = 8-98179-185-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 8-97431-347-0, B = 8-98179-185-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: A = 8-97431-347-0	1-09000-328-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: B = 8-98179-185-0	1-09000-328-0	04	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: A = 8-97431-347-0	1-09000-536-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-97431-347-0, B = 8-98179-185-0	1-51177-071-0	06	1	-
20	SEAT; LEAF SPR,FRT (A), T=9 ASM PART: A = 8-97431-347-0	1-51177-085-0	02	1	-
20	SEAT; LEAF SPR,FRT (A), T=9 ASM PART: B = 8-98179-185-0	1-51177-085-0	03	1	-
20	SEAT; LEAF SPR,FRT (B), T=11 ASM PART: B = 8-98179-185-0	1-51177-347-0	02	1	-
20	SEAT; LEAF SPR,FRT (B), T=11 ASM PART: A = 8-97431-347-0	1-51177-347-0	01	1	-
29	SUPPORTER; LEAF SPR,FRT ASM PART: B = 8-98179-185-0	1-51681-650-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
