◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11664 - FYH LHD CHINA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#175364) — 116 parça

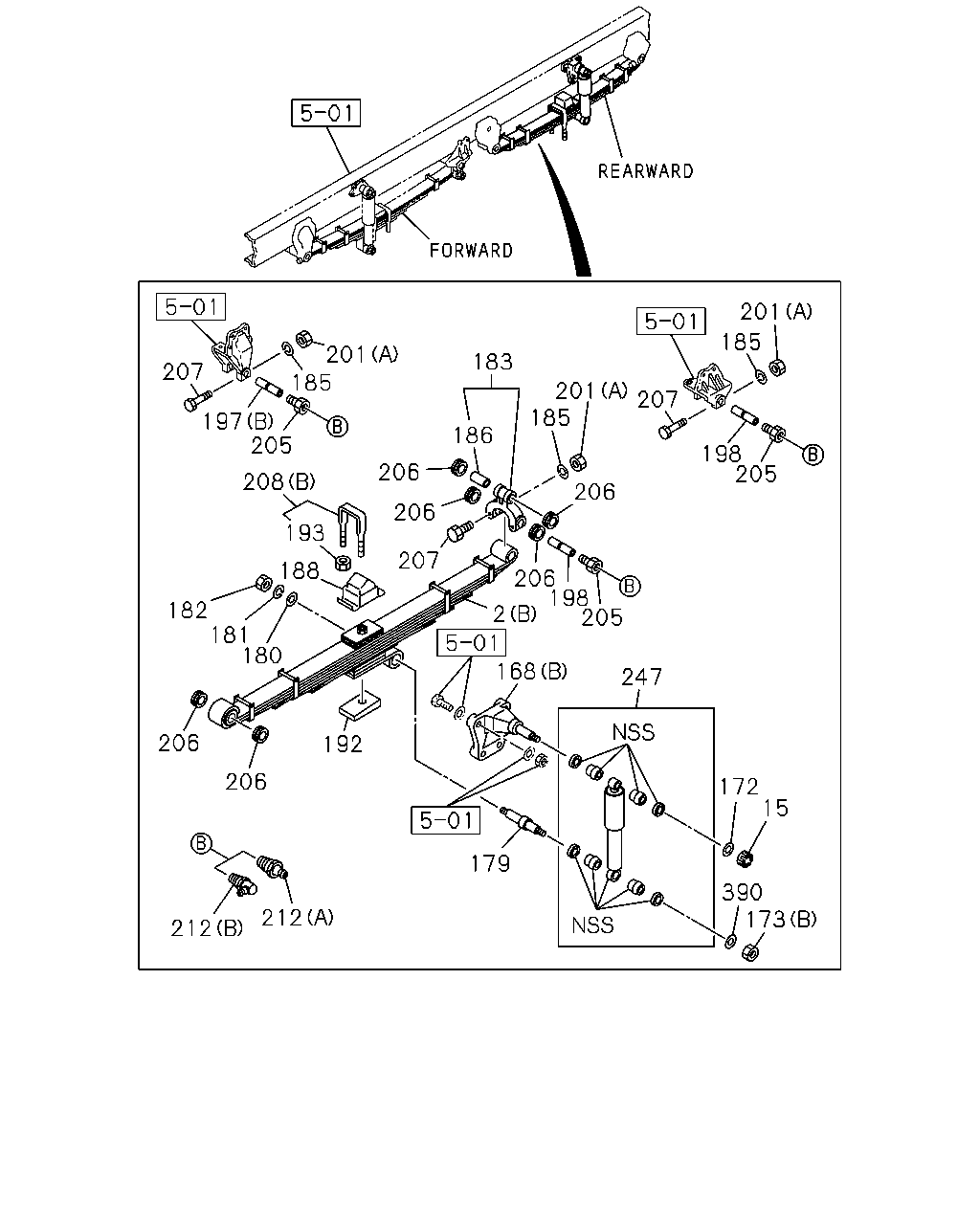

çizim 513912
207 201 185 197 208 205 193 188 182 181 180 206 206 212 212 192 206 206 207 183 186 185 206 206 198 205 201 207 198 205 185 201 2 168 179 247 172 15 390 173
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) FORWARD 		8-97431-347-0 02 1 1509-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) REARWARD 		8-98179-185-0 02 1 1509-
15 NUT; S/ABS,UPR
M20 		0-91110-520-0 02 1 1509-
15 NUT; S/ABS,UPR
M20 		0-91110-520-0 02 1 1509-
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1509-
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 01 1 1509-
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 01 1 1509-
172 WASHER; PL,S/ABS BRKT
ID=21 		0-91610-520-0 02 1 1509-
172 WASHER; PL,S/ABS BRKT
ID=21 		0-91610-520-0 02 1 1509-
173 NUT; S/ABS
(A) M14 		0-91110-514-0 04 1 1509-
173 NUT; S/ABS
(B) M20 		0-91110-520-0 01 1 1509-
173 NUT; S/ABS
(A) M14 		0-91110-514-0 04 1 1509-
173 NUT; S/ABS
(B) M20 		0-91110-520-0 01 1 1509-
173 NUT; S/ABS
(B) M20 		0-91110-520-0 01 1 1509-
173 NUT; S/ABS
(B) M20 		0-91110-520-0 01 1 1509-
179 PIN 1-51682-094-1 01 1 1509-
179 PIN 1-51682-094-1 01 1 1509-
179 PIN 1-51682-094-1 01 1 1509-
179 PIN 1-51682-094-1 01 1 1509-
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 01 1 1509-
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 01 1 1509-
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 01 1 1509-
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 01 1 1509-
181 WASHER; LK,PIN 8-98179-317-0 01 1 1509-
181 WASHER; LK,PIN 8-98179-317-0 01 1 1509-
181 WASHER; LK,PIN 8-98179-317-0 01 1 1509-
181 WASHER; LK,PIN 8-98179-317-0 01 1 1509-
182 NUT; S/ABS LWR
M24 		0-91110-524-0 01 1 1509-
182 NUT; S/ABS LWR
M24 		0-91110-524-0 01 1 1509-
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1509-
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 22 1 1509-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1509-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-081-1 02 1 1509-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-081-1 02 1 1509-
192 PIECE; DIST 8-98200-748-0 02 1 1509-
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1509-
197 PIN; FRT SPR,FRT
(A) FORWARD 		8-98198-447-0 02 1 1509-
197 PIN; FRT SPR,FRT
(B) REARWARD 		1-51161-031-0 02 1 1509-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 04 1 1509-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 04 1 1509-
201 NUT; PIN LK
(A) M12 		0-91110-512-0 22 1 1509-
201 NUT; PIN LK
(B) M24 		0-91110-524-0 01 1 1509-
201 NUT; PIN LK
(B) M24 		0-91110-524-0 01 1 1509-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 1509-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 1509-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 22 1 1509-
208 U-BOLT SET; FRT SPRING
(A) L=240 		1-87870-376-2 04 1 1509-
208 U-BOLT SET; FRT SPRING
(B) L=250 		1-87870-494-0 04 1 1509-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 04 1 1509-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1509-
212 NIPPLE; GREASE,ELBOW
(B) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 05 1 1509-
247 ABSORBER ASM; SHOCK,RWD FRT 8-97431-345-0 01 1 1509-
247 ABSORBER ASM; SHOCK,RWD FRT 8-97431-345-0 01 1 1509-
390 WASHER; PL,S/ABS,UPR
ID=21 		0-91610-520-0 01 1 1509-
390 WASHER; PL,S/ABS,UPR
ID=21 		0-91610-520-0 01 1 1509-

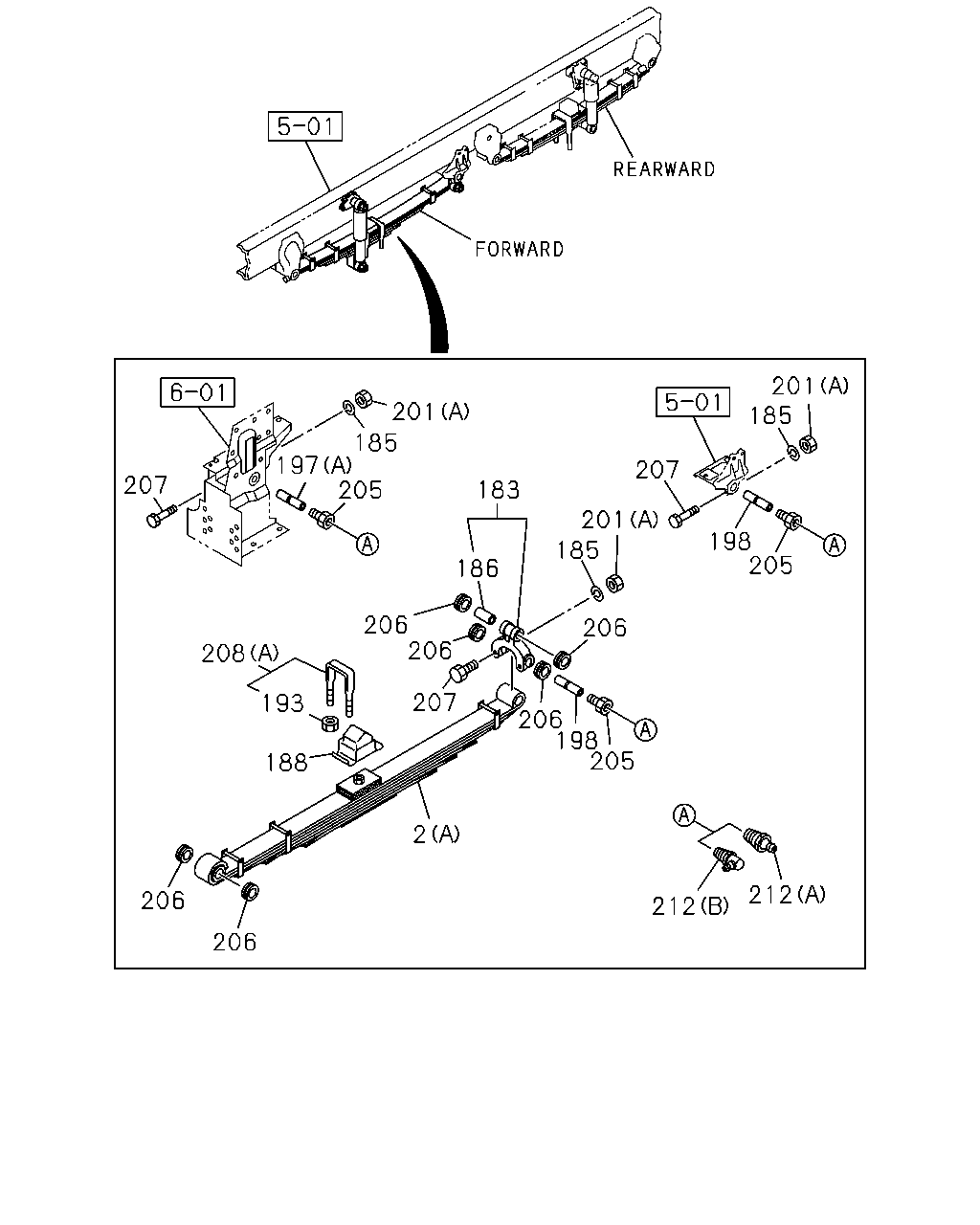

çizim 514304
207 197 185 201 205 208 193 188 206 206 2 212 212 205 198 206 207 206 206 185 186 183 207 205 198 185 201 201 206
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) FORWARD 		8-97431-347-0 02 1 1509-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) REARWARD 		8-98179-185-0 02 1 1509-
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1509-
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 22 1 1509-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1509-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-081-1 02 1 1509-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-081-1 02 1 1509-
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1509-
197 PIN; FRT SPR,FRT
(A) FORWARD 		8-98198-447-0 02 1 1509-
197 PIN; FRT SPR,FRT
(B) REARWARD 		1-51161-031-0 02 1 1509-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 04 1 1509-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 04 1 1509-
201 NUT; PIN LK
(A) M12 		0-91110-512-0 22 1 1509-
201 NUT; PIN LK
(B) M24 		0-91110-524-0 01 1 1509-
201 NUT; PIN LK
(B) M24 		0-91110-524-0 01 1 1509-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 1509-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 1509-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 22 1 1509-
208 U-BOLT SET; FRT SPRING
(A) L=240 		1-87870-376-2 04 1 1509-
208 U-BOLT SET; FRT SPRING
(B) L=250 		1-87870-494-0 04 1 1509-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 04 1 1509-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1509-
212 NIPPLE; GREASE,ELBOW
(B) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 05 1 1509-
çizim 514354
171 168 173 62 174 172 63 15 173 201 180 111 179 181
BalonParca AdiParca NoAdetTipApplied Date
15 NUT; S/ABS,UPR
M20 		0-91110-520-0 02 1 1509-
15 NUT; S/ABS,UPR
M20 		0-91110-520-0 02 1 1509-
62 ABSORBER ASM; SHOCK,FRT 8-97431-344-0 01 1 1509-
62 ABSORBER ASM; SHOCK,FRT 8-97431-344-0 01 1 1509-
63 WASHER; PL,S/ABS,LWR
ID=21 		0-91610-520-0 01 1 1509-
63 WASHER; PL,S/ABS,LWR
ID=21 		0-91610-520-0 01 1 1509-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-627-0 01 1 1509-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-627-0 01 1 1509-
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1509-
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 01 1 1509-
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 01 1 1509-
171 BOLT; S/ABS BRKT
M14X45 		0-20951-445-0 04 1 1509-
171 BOLT; S/ABS BRKT
M14X45 		0-20951-445-0 04 1 1509-
172 WASHER; PL,S/ABS BRKT
ID=21 		0-91610-520-0 02 1 1509-
172 WASHER; PL,S/ABS BRKT
ID=21 		0-91610-520-0 02 1 1509-
173 NUT; S/ABS
(A) M14 		0-91110-514-0 04 1 1509-
173 NUT; S/ABS
(B) M20 		0-91110-520-0 01 1 1509-
173 NUT; S/ABS
(A) M14 		0-91110-514-0 04 1 1509-
173 NUT; S/ABS
(B) M20 		0-91110-520-0 01 1 1509-
173 NUT; S/ABS
(B) M20 		0-91110-520-0 01 1 1509-
173 NUT; S/ABS
(B) M20 		0-91110-520-0 01 1 1509-
174 WASHER; LK,S/ABS 8-98179-316-0 04 1 1509-
174 WASHER; LK,S/ABS 8-98179-316-0 04 1 1509-
179 PIN 1-51682-094-1 01 1 1509-
179 PIN 1-51682-094-1 01 1 1509-
179 PIN 1-51682-094-1 01 1 1509-
179 PIN 1-51682-094-1 01 1 1509-
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 01 1 1509-
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 01 1 1509-
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 01 1 1509-
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 01 1 1509-
181 WASHER; LK,PIN 8-98179-317-0 01 1 1509-
181 WASHER; LK,PIN 8-98179-317-0 01 1 1509-
181 WASHER; LK,PIN 8-98179-317-0 01 1 1509-
181 WASHER; LK,PIN 8-98179-317-0 01 1 1509-
201 NUT; PIN LK
(A) M12 		0-91110-512-0 22 1 1509-
201 NUT; PIN LK
(B) M24 		0-91110-524-0 01 1 1509-
201 NUT; PIN LK
(B) M24 		0-91110-524-0 01 1 1509-
