4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#175361) — 150 parça

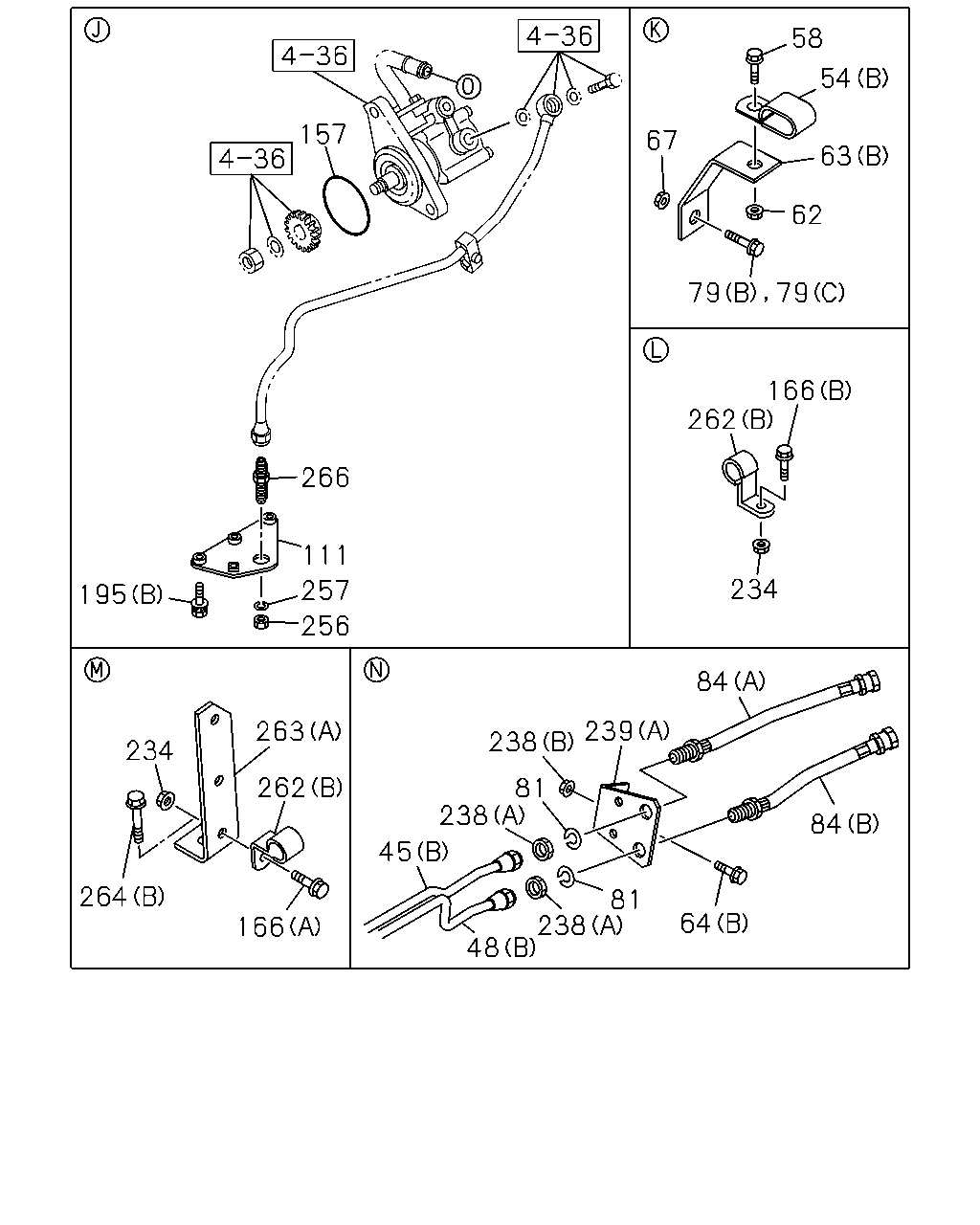

157 266 111 257 256 195 234 263 262 264 166 58 67 54 63 62 79 79 166 262 234 84 239 238 81 238 45 238 48 84 64 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-97430-509-0	01	1	1509-
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-97431-535-0	01	1	1509-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	8-97430-508-0	01	1	1509-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-97431-536-0	01	1	1509-
54	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-535-0	01	1	1509-
54	CLIP; OIL PIPE (C) ID=16X2 L=20	0-95325-535-0	02	1	1509-
54	CLIP; OIL PIPE (D) ID=19 L=24 H=21	1-09700-109-1	02	1	1509-
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-235-0	04	1	1509-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1509-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1509-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1509-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1509-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	1509-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1509-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	1509-
63	BRACKET; CLIP,P/S (A)	1-47477-261-0	01	1	1509-
63	BRACKET; CLIP,P/S (B)	1-47478-371-0	03	1	1509-
64	BOLT; CLIP BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1509-
64	BOLT; CLIP BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1509-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	1509-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1509-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1509-
79	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1509-
79	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1509-
79	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1509-
79	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	1509-
79	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1509-
79	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1509-
79	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	02	1	1509-
81	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	01	1	1509-
81	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	01	1	1509-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	1509-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	1509-
111	BRACKET; OIL PIPE	8-98086-991-0	01	1	1509-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77	1-09623-143-0	01	1	1509-
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1509-
166	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1509-
195	BOLT; BRKT (B) M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	1509-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	03	1	1509-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	02	1	1509-
238	NUT; FLEX HOSE (A) M20	0-91111-520-0	01	1	1509-
238	NUT; FLEX HOSE (B) M8 FLANGE	0-91180-108-0	02	1	1509-
238	NUT; FLEX HOSE (A) M20	0-91111-520-0	01	1	1509-
239	BRACKET; FLEX HOSE (B)	8-97608-869-1	01	1	1509-
239	BRACKET; FLEX HOSE (A)	1-47479-146-0	01	1	1509-
256	NUT; UNION M22	0-91111-522-0	01	1	1509-
256	NUT; UNION M22	0-91111-522-0	01	1	1509-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1509-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1509-
262	CLIP; P/S PIPE (A) ID=16 L=20	0-95235-535-0	01	1	1509-
262	CLIP; P/S PIPE (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1509-
263	BRACKET; P/S PIPE (A)	1-47471-191-1	01	1	1509-
263	BRACKET; P/S PIPE (B)	8-97430-506-0	01	1	1509-
264	BOLT; PIPE BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1509-
264	BOLT; PIPE BRKT (B) M8X40 FLANGE	0-28650-840-0	01	1	1509-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1509-

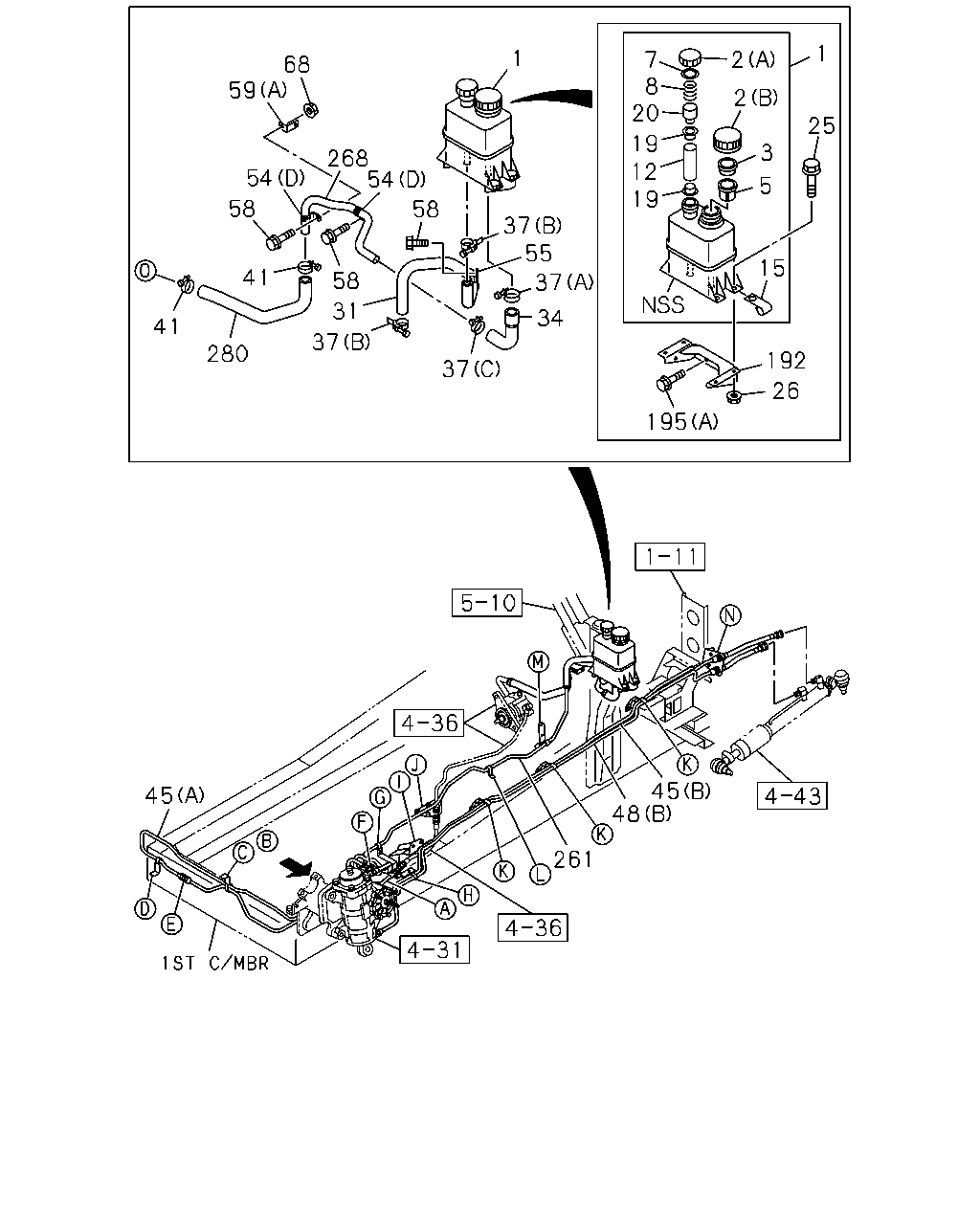

68 59 54 58 41 41 37 280 31 58 37 34 37 55 37 58 54 268 1 7 8 20 19 19 12 5 3 2 2 1 25 15 192 195 26 45 261 48 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1509-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	1509-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	1509-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	1509-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	1509-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	1509-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	1509-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1509-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1509-
19	SEAT; OIL TANK	1-21262-001-0	02	1	1509-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	1509-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	1509-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	04	1	1509-
31	HOSE; P/S OIL TANK,INL	8-97430-526-0	01	1	1509-
34	HOSE; P/S OIL TANK,OUTLET	8-97641-944-0	01	1	1509-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1509-
37	CLIP; HOSE,P/S (C) ID=32	1-09704-085-0	01	1	1509-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	01	1	1509-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1509-
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-97430-509-0	01	1	1509-
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-97431-535-0	01	1	1509-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	8-97430-508-0	01	1	1509-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-97431-536-0	01	1	1509-
54	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-535-0	01	1	1509-
54	CLIP; OIL PIPE (C) ID=16X2 L=20	0-95325-535-0	02	1	1509-
54	CLIP; OIL PIPE (D) ID=19 L=24 H=21	1-09700-109-1	02	1	1509-
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-235-0	04	1	1509-
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1509-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1509-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1509-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1509-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1509-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	1509-
59	BRACKET; CLIP,OIL PIPE (A) L=40	1-47478-410-0	02	1	1509-
59	BRACKET; CLIP,OIL PIPE (B)	8-97430-507-0	01	1	1509-
59	BRACKET; CLIP,OIL PIPE (A) L=40	1-47478-410-0	01	1	1509-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1509-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1509-
192	BRACKET; P/S OIL TANK	8-97430-213-0	01	1	1509-
195	BOLT; BRKT (B) M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	1509-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	03	1	1509-
261	PIPE; OIL,UNION TO HOSE	8-97431-158-0	01	1	1509-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-97430-511-0	01	1	1509-
280	HOSE; P/S OIL PUMP,INL	8-97430-524-0	01	1	1509-

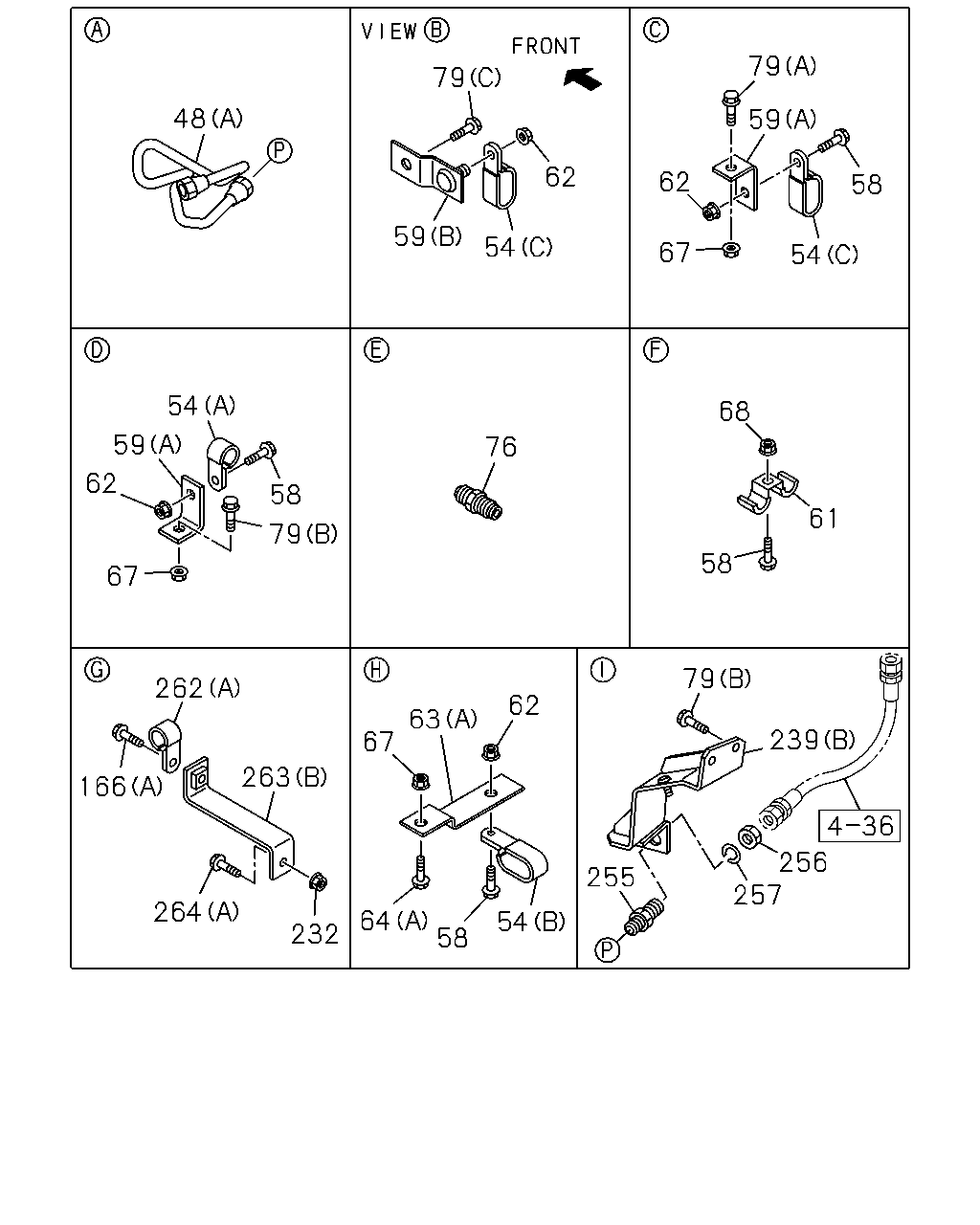

48 79 62 59 54 79 59 62 67 54 58 54 59 62 67 79 58 76 68 61 58 262 166 263 264 232 67 62 63 64 58 255 54 257 239 79 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	8-97430-508-0	01	1	1509-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-97431-536-0	01	1	1509-
54	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-535-0	01	1	1509-
54	CLIP; OIL PIPE (C) ID=16X2 L=20	0-95325-535-0	02	1	1509-
54	CLIP; OIL PIPE (D) ID=19 L=24 H=21	1-09700-109-1	02	1	1509-
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-235-0	04	1	1509-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1509-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1509-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1509-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1509-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	1509-
59	BRACKET; CLIP,OIL PIPE (A) L=40	1-47478-410-0	02	1	1509-
59	BRACKET; CLIP,OIL PIPE (B)	8-97430-507-0	01	1	1509-
59	BRACKET; CLIP,OIL PIPE (A) L=40	1-47478-410-0	01	1	1509-
61	CLIP; OIL PIPE ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1509-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1509-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	1509-
63	BRACKET; CLIP,P/S (A)	1-47477-261-0	01	1	1509-
63	BRACKET; CLIP,P/S (B)	1-47478-371-0	03	1	1509-
64	BOLT; CLIP BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1509-
64	BOLT; CLIP BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1509-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	1509-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1509-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1509-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1509-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1509-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1509-
79	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1509-
79	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1509-
79	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1509-
79	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	1509-
79	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1509-
79	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1509-
79	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	02	1	1509-
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1509-
166	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1509-
232	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1509-
239	BRACKET; FLEX HOSE (B)	8-97608-869-1	01	1	1509-
239	BRACKET; FLEX HOSE (A)	1-47479-146-0	01	1	1509-
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1509-
256	NUT; UNION M22	0-91111-522-0	01	1	1509-
256	NUT; UNION M22	0-91111-522-0	01	1	1509-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1509-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1509-
262	CLIP; P/S PIPE (A) ID=16 L=20	0-95235-535-0	01	1	1509-
262	CLIP; P/S PIPE (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1509-
263	BRACKET; P/S PIPE (A)	1-47471-191-1	01	1	1509-
263	BRACKET; P/S PIPE (B)	8-97430-506-0	01	1	1509-
264	BOLT; PIPE BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1509-
264	BOLT; PIPE BRKT (B) M8X40 FLANGE	0-28650-840-0	01	1	1509-
