Sayfa 4-25 - Isuzu EPC

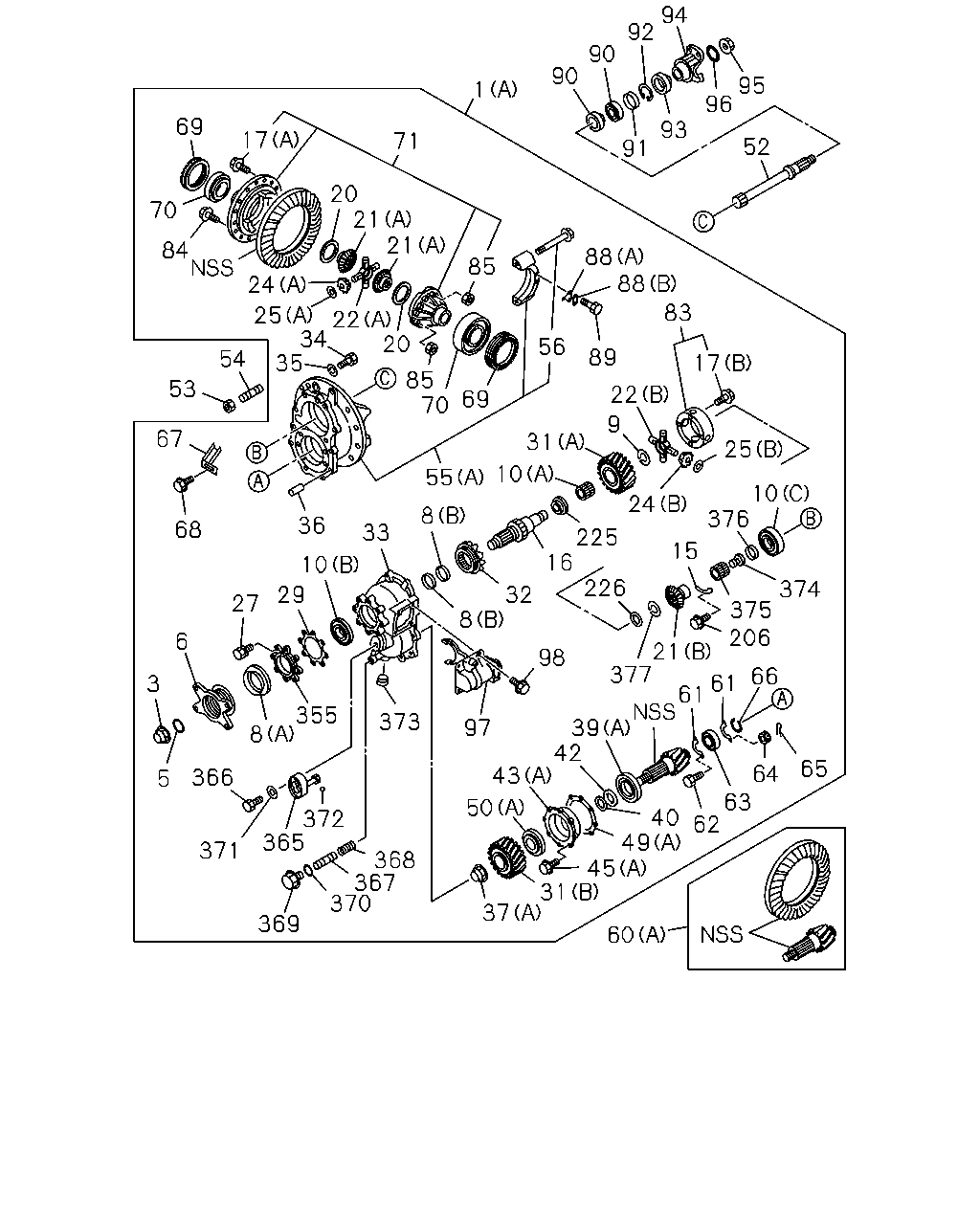

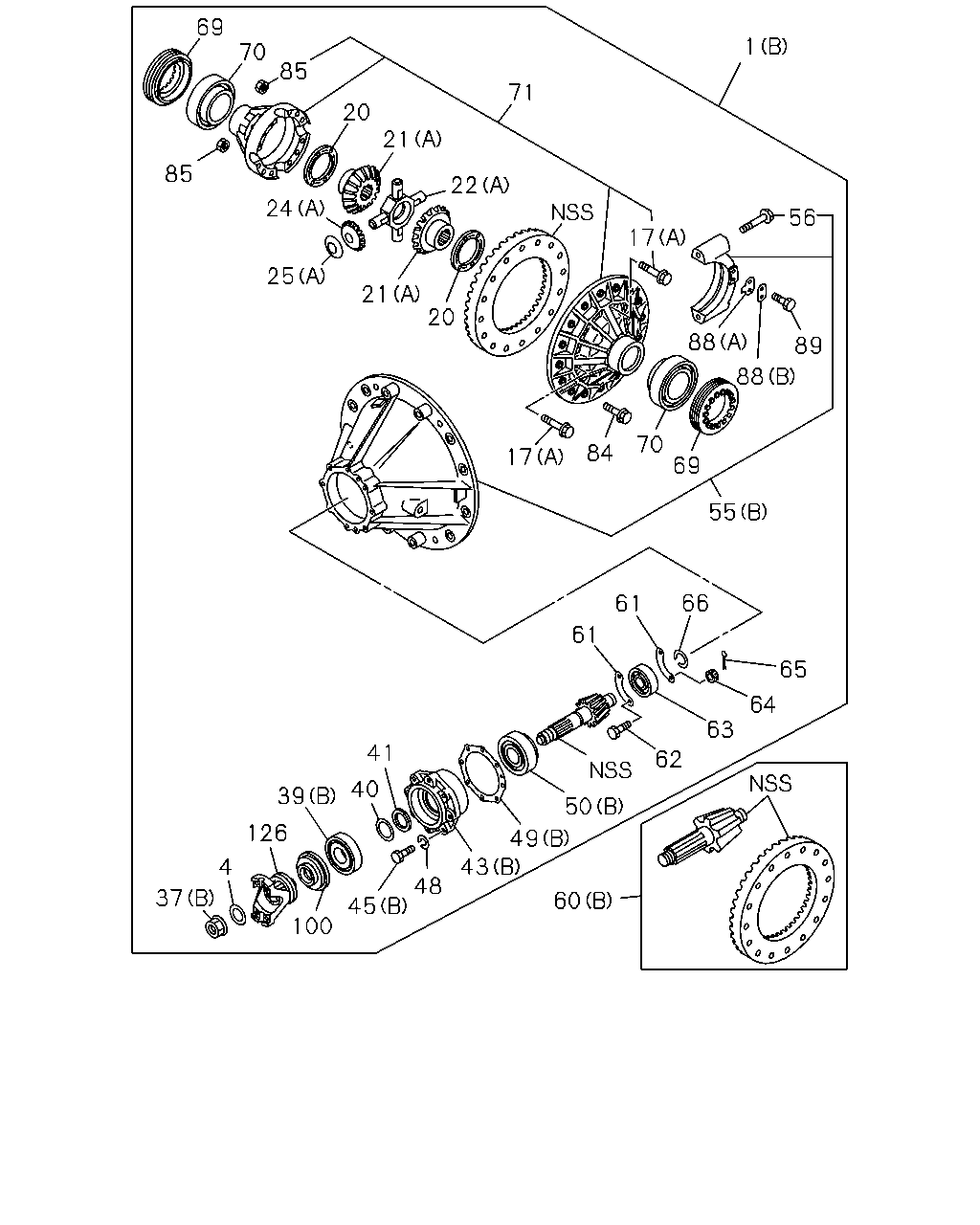

4-25 — REAR FINAL DRIVE (#175357) — 380 parça

69 70 84 17 24 20 71 1 21 25 68 67 53 54 3 5 6 29 27 366 371 8 22 34 35 21 90 90 92 94 91 93 96 95 52 88 85 88 56 83 89 9 22 17 25 10 20 70 69 31 55 8 33 36 10 10 24 225 16 32 226 8 373 355 376 15 374 375 206 21 66 61 61 65 64 63 62 40 49 377 39 42 43 50 97 98 365 369 367 370 368 37 60 45 372 85 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR (B) Q10 45/7	1-41001-391-0	01	1	1509-	●	●
1	DRIVE ASM; FINAL,RR (A) X10 39/7	1-41002-443-0	01	1	1509-	●	●
1	DRIVE ASM; FINAL,RR (B) X10 39/7	1-41001-393-0	01	1	1509-	●	●
1	DRIVE ASM; FINAL,RR (A) Q10 45/7	1-41002-036-0	01	1	1509-	●	●
3	NUT; INPUT SHAFT Q10 M46 FLANGE	1-09449-071-0	01	1	1509-	●	●
5	GASKET; INPUT SHAFT Q10 ID=57	1-09623-386-0	01	1	1509-	●	●
6	FLANGE ASM; INPUT SHAFT Q10	1-37245-265-2	01	1	1509-	●	●
8	SEAL; OIL,INPUT SHAFT (B)	1-41349-145-0	02	1	1509-	●	●
8	SEAL; OIL,INPUT SHAFT (A)	1-09625-323-0	01	1	1509-	●	●
9	RING; SNAP,BRG,INPUT	1-09588-192-0	01	1	1509-	●	●
10	BEARING; INPUT SHAFT (B) NSK	1-09812-094-0	01	1	1509-	●	●
10	BEARING; INPUT SHAFT (B) JTEKT	1-09812-198-0	01	1	1509-	●	●
10	BEARING; INPUT SHAFT (C) JTEKT	1-09812-182-0	01	1	1509-	●	●
10	BEARING; INPUT SHAFT (C) NSK	1-09812-183-0	01	1	1509-	●	●
10	BEARING; INPUT SHAFT (A) JTEKT	1-09811-346-0	01	1	1509-	●	●
10	BEARING; INPUT SHAFT (A) NSK	1-09811-347-0	01	1	1509-	●	●
15	CATCHER; OIL	1-41129-007-0	01	1	1509-	●	●
16	SHAFT ASM; INPUT	1-41341-025-0	01	1	1509-	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	04	1	1509-	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	04	1	1509-	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X125	1-09070-007-0	04	1	1509-	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X125	1-09070-007-0	04	1	1509-	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	04	1	1509-	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	04	1	1509-	●	●
17	BOLT; DIFF CAGE SETTING (B) M10X55	1-09070-108-0	04	1	1509-	●	●
17	BOLT; DIFF CAGE SETTING (B) M10X55	1-09070-108-0	04	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-112-0	01	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-112-0	01	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-113-0	01	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-113-0	01	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-114-0	02	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-114-0	02	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-115-0	02	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-115-0	02	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-116-0	01	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-116-0	01	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-117-0	01	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-117-0	01	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-118-0	01	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-118-0	01	1	1509-	●	●
21	GEAR; SIDE,DIFF (A) Q10 Z=16	1-41561-139-0	01	1	1509-	●	●
21	GEAR; SIDE,DIFF (A) Q10 Z=16	1-41561-139-0	01	1	1509-	●	●
21	GEAR; SIDE,DIFF (A) Q10 Z=16	1-41561-139-0	01	1	1509-	●	●
21	GEAR; SIDE,DIFF (A) Q10 Z=16	1-41561-139-0	01	1	1509-	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-169-0	01	1	1509-	●	●
21	GEAR; SIDE,DIFF (A) X10 Z=16	1-41561-151-0	01	1	1509-	●	●
21	GEAR; SIDE,DIFF (A) X10 Z=16	1-41561-151-0	01	1	1509-	●	●
21	GEAR; SIDE,DIFF (A) X10 Z=16	1-41561-151-0	01	1	1509-	●	●
21	GEAR; SIDE,DIFF (A) X10 Z=16	1-41561-151-0	01	1	1509-	●	●
22	SPIDER; DIFF PINION (A) OD=35	1-41521-037-2	01	1	1509-	●	●
22	SPIDER; DIFF PINION (A) OD=35	1-41521-037-2	01	1	1509-	●	●
22	SPIDER; DIFF PINION (B)	1-41521-049-2	01	1	1509-	●	●
24	GEAR; PINION,DIFF (A) Q10 Z=10	1-41551-044-0	04	1	1509-	●	●
24	GEAR; PINION,DIFF (A) Q10 Z=10	1-41551-044-0	04	1	1509-	●	●
24	GEAR; PINION,DIFF (B) Q10 Z=10	1-41551-055-0	04	1	1509-	●	●
24	GEAR; PINION,DIFF (A) X10 Z=10	1-41551-053-0	04	1	1509-	●	●
24	GEAR; PINION,DIFF (A) X10 Z=10	1-41551-053-0	04	1	1509-	●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	04	1	1509-	●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	04	1	1509-	●	●
25	WASHER; THRUST,PINION (B) T=1.6	1-41552-023-0	04	1	1509-	●	●
27	BOLT; BRG RET M12X35 W/LK WASHER	0-50051-235-0	08	1	1509-	●	●
29	SHIM; BRG RET T=0.30	1-41349-146-0	01	1	1509-	●	●
29	SHIM; BRG RET T=0.40	1-41349-147-0	01	1	1509-	●	●
29	SHIM; BRG RET T=0.50	1-41349-148-0	01	1	1509-	●	●
29	SHIM; BRG RET T=1.000	1-41349-149-0	01	1	1509-	●	●
31	GEAR; DRIVEN,HELICAL (B) Z=31	1-41352-029-0	01	1	1509-	●	●
31	GEAR; DRIVEN,HELICAL (A) Z=16	1-41351-044-0	01	1	1509-	●	●
32	SLEEVE; CLU,DIFF LK	1-41355-038-0	01	1	1509-	●	●
33	CASE; POWER DIVIDER	1-41321-024-1	01	1	1509-	●	●
34	BOLT; CASE TO CARRIER M14X40	0-23851-440-0	10	1	1509-	●	●
35	WASHER; CASE TO CARRIER ID=14.2	0-91510-814-0	10	1	1509-	●	●
36	PIN; STRAIGHT OD=14 L=28	9-08161-428-0	02	1	1509-	●	●
37	NUT; DRIVING PINION (B) M46 FLANGE	1-09449-071-0	01	1	1509-	●	●
37	NUT; DRIVING PINION (A) M42	1-09449-061-0	01	1	1509-	●	●
39	BEARING; FINAL PINION (B) Q10 NSK	1-09812-075-0	01	1	1509-	●	●
39	BEARING; FINAL PINION (B) Q10 JTEKT	1-09812-076-1	01	1	1509-	●	●
39	BEARING; FINAL PINION (A) NSK	1-09812-073-1	01	1	1509-	●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-074-3	01	1	1509-	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	02	1	1509-	●	●
40	SHIM; FINAL PINION Q10 T=3.25	1-41229-245-0	02	1	1509-	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	02	1	1509-	●	●
40	SHIM; FINAL PINION Q10 T=3.26	1-41229-246-0	02	1	1509-	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	02	1	1509-	●	●
40	SHIM; FINAL PINION Q10 T=3.27	1-41229-247-0	02	1	1509-	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	02	1	1509-	●	●
40	SHIM; FINAL PINION Q10 T=3.28	1-41229-248-0	02	1	1509-	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	02	1	1509-	●	●
40	SHIM; FINAL PINION Q10 T=3.29	1-41229-249-0	02	1	1509-	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	02	1	1509-	●	●
40	SHIM; FINAL PINION Q10 T=3.30	1-41229-250-0	02	1	1509-	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	02	1	1509-	●	●
40	SHIM; FINAL PINION Q10 T=3.31	1-41229-251-0	02	1	1509-	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	02	1	1509-	●	●
40	SHIM; FINAL PINION Q10 T=3.32	1-41229-252-0	02	1	1509-	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	02	1	1509-	●	●
40	SHIM; FINAL PINION Q10 T=3.33	1-41229-253-0	02	1	1509-	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	02	1	1509-	●	●
40	SHIM; FINAL PINION Q10 T=3.34	1-41229-254-0	02	1	1509-	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	02	1	1509-	●	●
40	SHIM; FINAL PINION Q10 T=3.35	1-41229-255-0	02	1	1509-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-237-0	01	1	1509-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-238-0	01	1	1509-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-239-0	01	1	1509-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-240-0	01	1	1509-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.40	1-41229-241-0	01	1	1509-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.60	1-41229-242-0	01	1	1509-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.80	1-41229-243-0	01	1	1509-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=9.00	1-41229-244-0	01	1	1509-	●	●
43	CAGE; FINAL PINION (B) T=81	1-41151-030-0	01	1	1509-	●	●
43	CAGE; FINAL PINION (A) T=53	1-41151-053-0	01	1	1509-	●	●
45	BOLT; FINAL PINION CAGE (B) M16X55	0-16806-655-0	08	1	1509-	●	●
45	BOLT; FINAL PINION CAGE (A) M16X40	1-09070-107-0	08	1	1509-	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-024-0	02	1	1509-	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-025-0	02	1	1509-	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-057-0	02	1	1509-	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-058-0	02	1	1509-	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-071-0	02	1	1509-	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.000	1-41154-072-0	02	1	1509-	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-073-0	02	1	1509-	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-074-0	02	1	1509-	●	●
50	BEARING; FINAL PINION (B) Q10 NSK	1-09812-073-1	01	1	1509-	●	●
50	BEARING; FINAL PINION (B) Q10 JTEKT	1-09812-074-3	01	1	1509-	●	●
50	BEARING; FINAL PINION (A) NSK	1-09812-075-0	01	1	1509-	●	●
50	BEARING; FINAL PINION (A) JTEKT	1-09812-076-1	01	1	1509-	●	●
52	SHAFT; OUTPUT	1-41343-020-0	01	1	1509-	●	●
53	NUT; FINAL DRIVE SET M16	0-91110-516-0	01	1	1509-	●	●
54	STUD; FINAL DRIVE SET M16X32 L=56	9-09830-243-0	01	1	1509-	●	●
55	CARRIER; DIFF (A) X10	1-41310-050-0	01	1	1509-	●	●
55	CARRIER; DIFF (B) X10	1-41110-109-0	01	1	1509-	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	1509-	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	1509-	●	●
60	GEAR SET; FINAL DRIVE,RR (B) 39/7	1-41210-604-0	01	1	1509-	●	●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-476-0	01	1	1509-	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	1509-	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	1509-	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	1509-	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	1509-	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-182-0	01	1	1509-	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-182-0	01	1	1509-	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	1509-	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	1509-	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1509-	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1509-	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1509-	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1509-	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-2	01	1	1509-	●	●
66	RING; SNAP,PILOT BRG Q10 OD=37.2	1-09588-086-1	01	1	1509-	●	●
66	RING; SNAP,PILOT BRG X10 OD=37.2	1-09588-086-2	01	1	1509-	●	●
67	PICKUP; OIL,CARRIER	1-41129-008-0	01	1	1509-	●	●
68	BOLT; OIL PICKUP FIX M8X12 FLANGE	8-94479-696-1	02	1	1509-	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	1509-	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	1509-	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	1509-	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	1509-	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	01	1	1509-	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	01	1	1509-	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	01	1	1509-	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	01	1	1509-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE X10	1-41510-141-0	01	1	1509-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE X10	1-41510-141-0	01	1	1509-	●	●
83	CAGE ASM; DIFF X10	1-41510-224-0	01	1	1509-	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	1509-	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	1509-	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	04	1	1509-	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	04	1	1509-	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	08	1	1509-	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	08	1	1509-	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	01	1	1509-	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	01	1	1509-	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	01	1	1509-	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	01	1	1509-	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	01	1	1509-	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	01	1	1509-	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	01	1	1509-	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	01	1	1509-	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	02	1	1509-	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	02	1	1509-	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	02	1	1509-	●	●
89	BOLT; LK PLATE Q10 M8X16	0-20850-816-0	02	1	1509-	●	●
90	BEARING; OUTPUT SHAFT NSK	1-09812-068-0	02	1	1509-	●	●
90	BEARING; OUTPUT SHAFT JTEKT	1-09812-069-0	02	1	1509-	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.60	1-41349-020-0	01	1	1509-	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.70	1-41349-021-0	01	1	1509-	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.80	1-41349-022-0	01	1	1509-	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.90	1-41349-023-0	01	1	1509-	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.00	1-41349-024-0	01	1	1509-	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.10	1-41349-025-0	01	1	1509-	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.20	1-41349-026-0	01	1	1509-	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.30	1-41349-027-0	01	1	1509-	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.50	1-41349-091-0	01	1	1509-	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.40	1-41349-092-0	01	1	1509-	●	●
92	RING; SNAP,BRG,OUTPUT SHAFT OD=90.5	9-09180-185-0	01	1	1509-	●	●
93	SEAL; OIL,OUTPUT SHAFT	1-09625-217-0	01	1	1509-	●	●
94	FLANGE ASM; OUTPUT SHAFT	1-37245-130-1	01	1	1509-	●	●
95	NUT; OUTPUT SHAFT M36 FLANGE	1-09449-067-0	01	1	1509-	●	●
96	GASKET; SHAFT,OUTPUT ID=42	1-09623-387-0	01	1	1509-	●	●
97	SHIFT UNIT; DIFF LOCK	1-48260-060-1	01	1	1509-	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X50 FLANGE	0-28151-050-0	01	1	1509-	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X25 FLANGE	0-28751-025-0	03	1	1509-	●	●
206	BOLT; OIL CATCHER M8X12 FLANGE	8-94479-696-1	02	1	1509-	●	●
225	WASHER; THRUST T=5.9	1-41552-024-2	01	1	1509-	●	●
225	WASHER; THRUST T=6.0	1-41552-025-2	01	1	1509-	●	●
225	WASHER; THRUST T=6.1	1-41552-026-2	01	1	1509-	●	●
225	WASHER; THRUST T=6.2	1-41552-027-2	01	1	1509-	●	●
225	WASHER; THRUST T=6.3	1-41552-028-2	01	1	1509-	●	●
225	WASHER; THRUST T=6.4	1-41552-029-2	01	1	1509-	●	●
225	WASHER; THRUST T=6.5	1-41552-030-2	01	1	1509-	●	●
225	WASHER; THRUST T=6.6	1-41552-031-2	01	1	1509-	●	●
225	WASHER; THRUST T=6.7	1-41552-032-2	01	1	1509-	●	●
225	WASHER; THRUST T=6.8	1-41552-033-2	01	1	1509-	●	●
225	WASHER; THRUST T=6.9	1-41552-034-2	01	1	1509-	●	●
225	WASHER; THRUST T=7.0	1-41552-035-2	01	1	1509-	●	●
225	WASHER; THRUST T=7.1	1-41552-036-2	01	1	1509-	●	●
226	WASHER; THRUST	1-41562-267-0	01	1	1509-	●	●
355	RETAINER; BRG	1-41227-016-0	01	1	1509-	●	●
365	PUMP ASM; OIL	1-41381-008-1	01	1	1509-	●	●
366	BOLT; PUMP M8X40	0-10805-840-0	04	1	1509-	●	●
367	STRAINER; OIL PUMP	1-41383-003-0	01	1	1509-	●	●
368	SPRING; STRAINER	1-09580-504-0	01	1	1509-	●	●
369	PLUG; STRAINER M24X17 FLANGE	1-09604-023-0	01	1	1509-	●	●
370	GASKET; STRAINER ID=26.8	1-09623-058-0	01	1	1509-	●	●
371	WASHER; LK,PUMP ID=8.2	0-91510-808-0	04	1	1509-	●	●
372	BALL; CASE	9-00097-517-0	01	1	1509-	●	●
373	PLUG; CASE PT1/4	1-09605-019-0	01	1	1509-	●	●
374	PLUG; INPUT SHAFT	1-09609-020-1	01	1	1509-	●	●
375	BEARING; SIDE GEAR JTEKT	1-09811-348-0	01	1	1509-	●	●
375	BEARING; SIDE GEAR NSK	1-09811-362-0	01	1	1509-	●	●
376	SPACER; BRG,SIDE GEAR	1-41349-150-0	01	1	1509-	●	●
377	RING; SNAP,BRG,SIDE GEAR	1-09587-091-0	01	1	1509-	●	●

69 70 85 85 20 71 1 21 24 25 21 20 17 56 89 88 88 69 70 84 17 55 66 61 61 65 64 63 62 50 49 60 43 48 45 100 37 4 126 39 40 41 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR (B) Q10 45/7	1-41001-391-0	01	1	1509-	●	●
1	DRIVE ASM; FINAL,RR (A) X10 39/7	1-41002-443-0	01	1	1509-	●	●
1	DRIVE ASM; FINAL,RR (B) X10 39/7	1-41001-393-0	01	1	1509-	●	●
1	DRIVE ASM; FINAL,RR (A) Q10 45/7	1-41002-036-0	01	1	1509-	●	●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	1509-	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	04	1	1509-	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	04	1	1509-	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X125	1-09070-007-0	04	1	1509-	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X125	1-09070-007-0	04	1	1509-	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	04	1	1509-	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	04	1	1509-	●	●
17	BOLT; DIFF CAGE SETTING (B) M10X55	1-09070-108-0	04	1	1509-	●	●
17	BOLT; DIFF CAGE SETTING (B) M10X55	1-09070-108-0	04	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-112-0	01	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-112-0	01	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-113-0	01	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-113-0	01	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-114-0	02	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-114-0	02	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-115-0	02	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-115-0	02	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-116-0	01	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-116-0	01	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-117-0	01	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-117-0	01	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-118-0	01	1	1509-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-118-0	01	1	1509-	●	●
21	GEAR; SIDE,DIFF (A) Q10 Z=16	1-41561-139-0	01	1	1509-	●	●
21	GEAR; SIDE,DIFF (A) Q10 Z=16	1-41561-139-0	01	1	1509-	●	●
21	GEAR; SIDE,DIFF (A) Q10 Z=16	1-41561-139-0	01	1	1509-	●	●
21	GEAR; SIDE,DIFF (A) Q10 Z=16	1-41561-139-0	01	1	1509-	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-169-0	01	1	1509-	●	●
21	GEAR; SIDE,DIFF (A) X10 Z=16	1-41561-151-0	01	1	1509-	●	●
21	GEAR; SIDE,DIFF (A) X10 Z=16	1-41561-151-0	01	1	1509-	●	●
21	GEAR; SIDE,DIFF (A) X10 Z=16	1-41561-151-0	01	1	1509-	●	●
21	GEAR; SIDE,DIFF (A) X10 Z=16	1-41561-151-0	01	1	1509-	●	●
22	SPIDER; DIFF PINION (A) OD=35	1-41521-037-2	01	1	1509-	●	●
22	SPIDER; DIFF PINION (A) OD=35	1-41521-037-2	01	1	1509-	●	●
22	SPIDER; DIFF PINION (B)	1-41521-049-2	01	1	1509-	●	●
24	GEAR; PINION,DIFF (A) Q10 Z=10	1-41551-044-0	04	1	1509-	●	●
24	GEAR; PINION,DIFF (A) Q10 Z=10	1-41551-044-0	04	1	1509-	●	●
24	GEAR; PINION,DIFF (B) Q10 Z=10	1-41551-055-0	04	1	1509-	●	●
24	GEAR; PINION,DIFF (A) X10 Z=10	1-41551-053-0	04	1	1509-	●	●
24	GEAR; PINION,DIFF (A) X10 Z=10	1-41551-053-0	04	1	1509-	●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	04	1	1509-	●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	04	1	1509-	●	●
25	WASHER; THRUST,PINION (B) T=1.6	1-41552-023-0	04	1	1509-	●	●
37	NUT; DRIVING PINION (B) M46 FLANGE	1-09449-071-0	01	1	1509-	●	●
37	NUT; DRIVING PINION (A) M42	1-09449-061-0	01	1	1509-	●	●
39	BEARING; FINAL PINION (B) Q10 NSK	1-09812-075-0	01	1	1509-	●	●
39	BEARING; FINAL PINION (B) Q10 JTEKT	1-09812-076-1	01	1	1509-	●	●
39	BEARING; FINAL PINION (A) NSK	1-09812-073-1	01	1	1509-	●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-074-3	01	1	1509-	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	02	1	1509-	●	●
40	SHIM; FINAL PINION Q10 T=3.25	1-41229-245-0	02	1	1509-	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	02	1	1509-	●	●
40	SHIM; FINAL PINION Q10 T=3.26	1-41229-246-0	02	1	1509-	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	02	1	1509-	●	●
40	SHIM; FINAL PINION Q10 T=3.27	1-41229-247-0	02	1	1509-	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	02	1	1509-	●	●
40	SHIM; FINAL PINION Q10 T=3.28	1-41229-248-0	02	1	1509-	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	02	1	1509-	●	●
40	SHIM; FINAL PINION Q10 T=3.29	1-41229-249-0	02	1	1509-	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	02	1	1509-	●	●
40	SHIM; FINAL PINION Q10 T=3.30	1-41229-250-0	02	1	1509-	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	02	1	1509-	●	●
40	SHIM; FINAL PINION Q10 T=3.31	1-41229-251-0	02	1	1509-	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	02	1	1509-	●	●
40	SHIM; FINAL PINION Q10 T=3.32	1-41229-252-0	02	1	1509-	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	02	1	1509-	●	●
40	SHIM; FINAL PINION Q10 T=3.33	1-41229-253-0	02	1	1509-	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	02	1	1509-	●	●
40	SHIM; FINAL PINION Q10 T=3.34	1-41229-254-0	02	1	1509-	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	02	1	1509-	●	●
40	SHIM; FINAL PINION Q10 T=3.35	1-41229-255-0	02	1	1509-	●	●
41	SPACER; FINAL DRIVE PINION BRG Q10 T=7.60	1-41229-237-0	01	1	1509-	●	●
41	SPACER; FINAL DRIVE PINION BRG Q10 T=7.80	1-41229-238-0	01	1	1509-	●	●
41	SPACER; FINAL DRIVE PINION BRG Q10 T=8.00	1-41229-239-0	01	1	1509-	●	●
41	SPACER; FINAL DRIVE PINION BRG Q10 T=8.20	1-41229-240-0	01	1	1509-	●	●
41	SPACER; FINAL DRIVE PINION BRG Q10 T=8.40	1-41229-241-0	01	1	1509-	●	●
41	SPACER; FINAL DRIVE PINION BRG Q10 T=8.60	1-41229-242-0	01	1	1509-	●	●
41	SPACER; FINAL DRIVE PINION BRG Q10 T=8.80	1-41229-243-0	01	1	1509-	●	●
41	SPACER; FINAL DRIVE PINION BRG Q10 T=9.00	1-41229-244-0	01	1	1509-	●	●
43	CAGE; FINAL PINION (B) T=81	1-41151-030-0	01	1	1509-	●	●
43	CAGE; FINAL PINION (A) T=53	1-41151-053-0	01	1	1509-	●	●
45	BOLT; FINAL PINION CAGE (B) M16X55	0-16806-655-0	08	1	1509-	●	●
45	BOLT; FINAL PINION CAGE (A) M16X40	1-09070-107-0	08	1	1509-	●	●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	1509-	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-024-0	02	1	1509-	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-025-0	02	1	1509-	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-057-0	02	1	1509-	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-058-0	02	1	1509-	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-071-0	02	1	1509-	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.000	1-41154-072-0	02	1	1509-	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-073-0	02	1	1509-	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-074-0	02	1	1509-	●	●
50	BEARING; FINAL PINION (B) Q10 NSK	1-09812-073-1	01	1	1509-	●	●
50	BEARING; FINAL PINION (B) Q10 JTEKT	1-09812-074-3	01	1	1509-	●	●
50	BEARING; FINAL PINION (A) NSK	1-09812-075-0	01	1	1509-	●	●
50	BEARING; FINAL PINION (A) JTEKT	1-09812-076-1	01	1	1509-	●	●
55	CARRIER; DIFF (A) X10	1-41310-050-0	01	1	1509-	●	●
55	CARRIER; DIFF (B) X10	1-41110-109-0	01	1	1509-	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	1509-	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	1509-	●	●
60	GEAR SET; FINAL DRIVE,RR (B) 39/7	1-41210-604-0	01	1	1509-	●	●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-476-0	01	1	1509-	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	1509-	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	1509-	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	1509-	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	1509-	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-182-0	01	1	1509-	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-182-0	01	1	1509-	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	1509-	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	1509-	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1509-	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1509-	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1509-	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1509-	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-2	01	1	1509-	●	●
66	RING; SNAP,PILOT BRG Q10 OD=37.2	1-09588-086-1	01	1	1509-	●	●
66	RING; SNAP,PILOT BRG X10 OD=37.2	1-09588-086-2	01	1	1509-	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	1509-	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	1509-	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	1509-	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	1509-	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	01	1	1509-	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	01	1	1509-	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	01	1	1509-	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	01	1	1509-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE X10	1-41510-141-0	01	1	1509-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE X10	1-41510-141-0	01	1	1509-	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	1509-	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	1509-	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	04	1	1509-	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	04	1	1509-	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	08	1	1509-	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	08	1	1509-	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	01	1	1509-	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	01	1	1509-	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	01	1	1509-	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	01	1	1509-	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	01	1	1509-	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	01	1	1509-	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	01	1	1509-	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	01	1	1509-	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	02	1	1509-	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	02	1	1509-	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	02	1	1509-	●	●
89	BOLT; LK PLATE Q10 M8X16	0-20850-816-0	02	1	1509-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	1509-	●	●
126	COUPLING; DRIVING PINION	1-37245-336-0	01	1	1509-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
