Isuzu WW
▶
TRUCKS
▶
FYH
▶
11664 - FYH LHD CHINA
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-01 - PROPELLER SHAFT
▶
4-01 — PROPELLER SHAFT
(#175353) — 33 parça
Tümü
A - WHEEL BASE 7700MM
B - WHEEL BASE 6400MM
◀

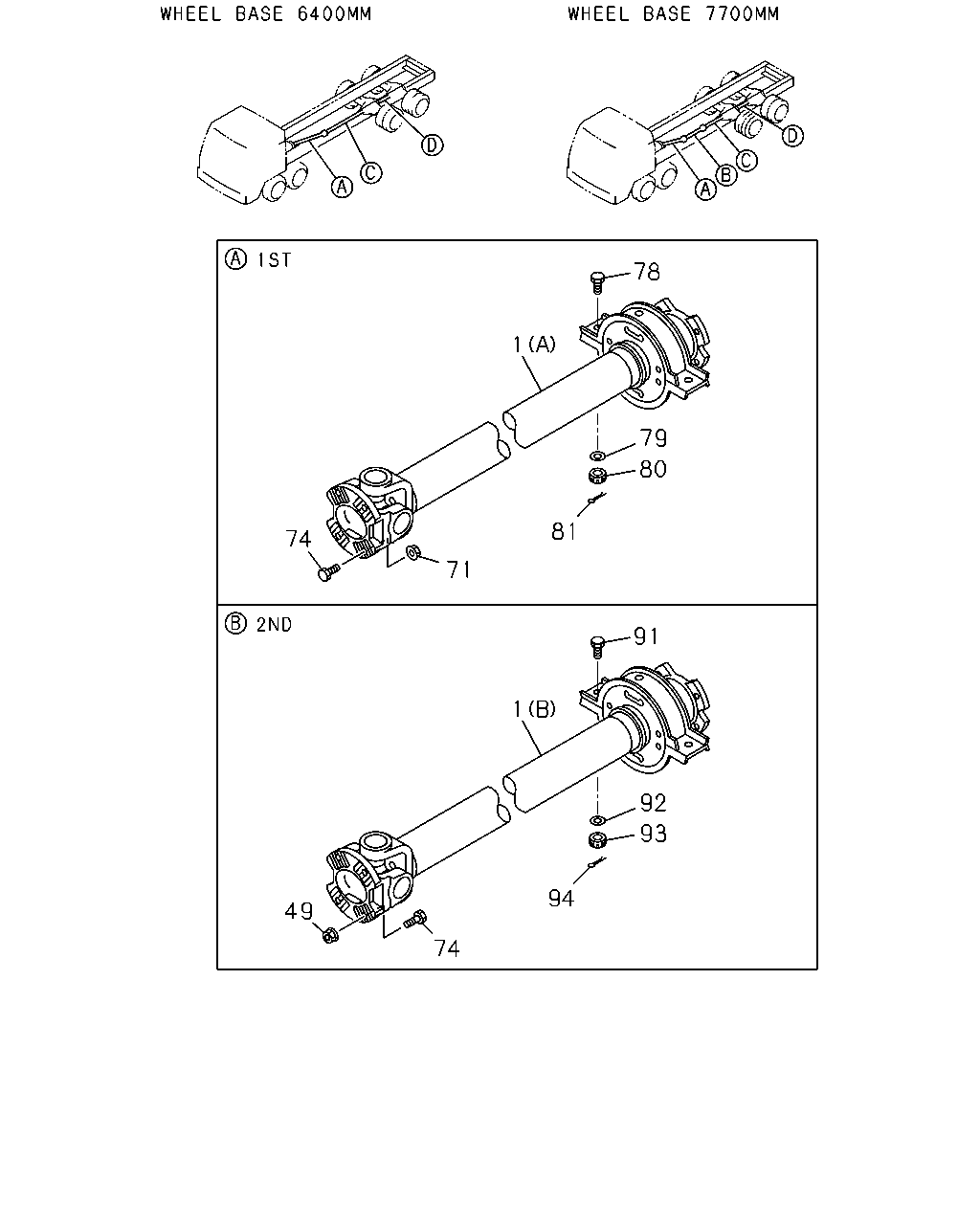

[401A] 1ST AND 2ND PROPELLER SHAFT (19 parça)
[401A] END AND REAR PROPELLER SHAFT (14 parça)
▶
78
1
79
80
81
71
74
91
1
92
93
94
74
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SHAFT; PROP
(A)
8-97431-276-0
01
1
1509-
●
1
SHAFT; PROP
(B)
8-97431-277-0
01
1
1509-
●
1
SHAFT; PROP
(C)
8-97431-281-0
01
1
1509-
●
1
SHAFT; PROP
(A)
8-97431-275-0
01
1
1509-
●
1
SHAFT; PROP
(C)
8-97431-280-0
01
1
1509-
●
1
SHAFT; PROP
(D) L=449
1-37170-149-3
01
1
1509-
●
●
49
NUT; YOKE
M14 FLANGE
8-97365-444-0
04
1
1509-
●
71
NUT; YOKE
M14 FLANGE
8-97365-444-0
04
1
1509-
●
●
74
BOLT; YOKE,TRANS
M14X50
1-09000-645-0
04
1
1509-
●
74
BOLT; YOKE,TRANS
M14X50
1-09000-645-0
04
1
1509-
●
●
74
BOLT; YOKE,TRANS
M14X50
1-09000-645-0
04
1
1509-
●
●
78
BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45
1-09042-030-0
02
1
1509-
●
●
79
WASHER; PL,HOLDER SET,CENTER BRG
ID=17
1-09503-241-1
02
1
1509-
●
●
80
NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED
8-98049-689-0
02
1
1509-
●
●
81
PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25
0-81124-025-0
02
1
1509-
●
●
91
BOLT; HOLDER SET,CTR BRG
M16X45
1-09042-030-0
02
1
1509-
●
92
WASHER; LK,HOLDER SET,CTR BRG
ID=17
1-09503-241-1
02
1
1509-
●
93
NUT; HOLDER SET,CTR BRG
M16 SLOTTED
8-98049-689-0
02
1
1509-
●
94
PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25
0-81124-025-0
02
1
1509-
●
95
56
1
74
56
1
57
96
57
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SHAFT; PROP
(A)
8-97431-276-0
01
1
1509-
●
1
SHAFT; PROP
(B)
8-97431-277-0
01
1
1509-
●
1
SHAFT; PROP
(C)
8-97431-281-0
01
1
1509-
●
1
SHAFT; PROP
(A)
8-97431-275-0
01
1
1509-
●
1
SHAFT; PROP
(C)
8-97431-280-0
01
1
1509-
●
1
SHAFT; PROP
(D) L=449
1-37170-149-3
01
1
1509-
●
●
56
NUT; YOKE
M14 FLANGE
8-97365-444-0
04
1
1509-
●
●
56
NUT; YOKE
M14 FLANGE
8-97365-444-0
04
1
1509-
●
●
57
WASHER; LK,YOKE
ID=12.2
0-91510-612-0
08
1
1509-
●
●
74
BOLT; YOKE,TRANS
M14X50
1-09000-645-0
04
1
1509-
●
74
BOLT; YOKE,TRANS
M14X50
1-09000-645-0
04
1
1509-
●
●
74
BOLT; YOKE,TRANS
M14X50
1-09000-645-0
04
1
1509-
●
●
95
BOLT; YOKE,FINAL
M14X50
1-09000-645-0
04
1
1509-
●
●
96
BOLT; PROP SHAFT
M12X45
8-98036-382-0
08
1
1509-
●
●
