3-20 — AIR TANK (#175340) — 113 parça

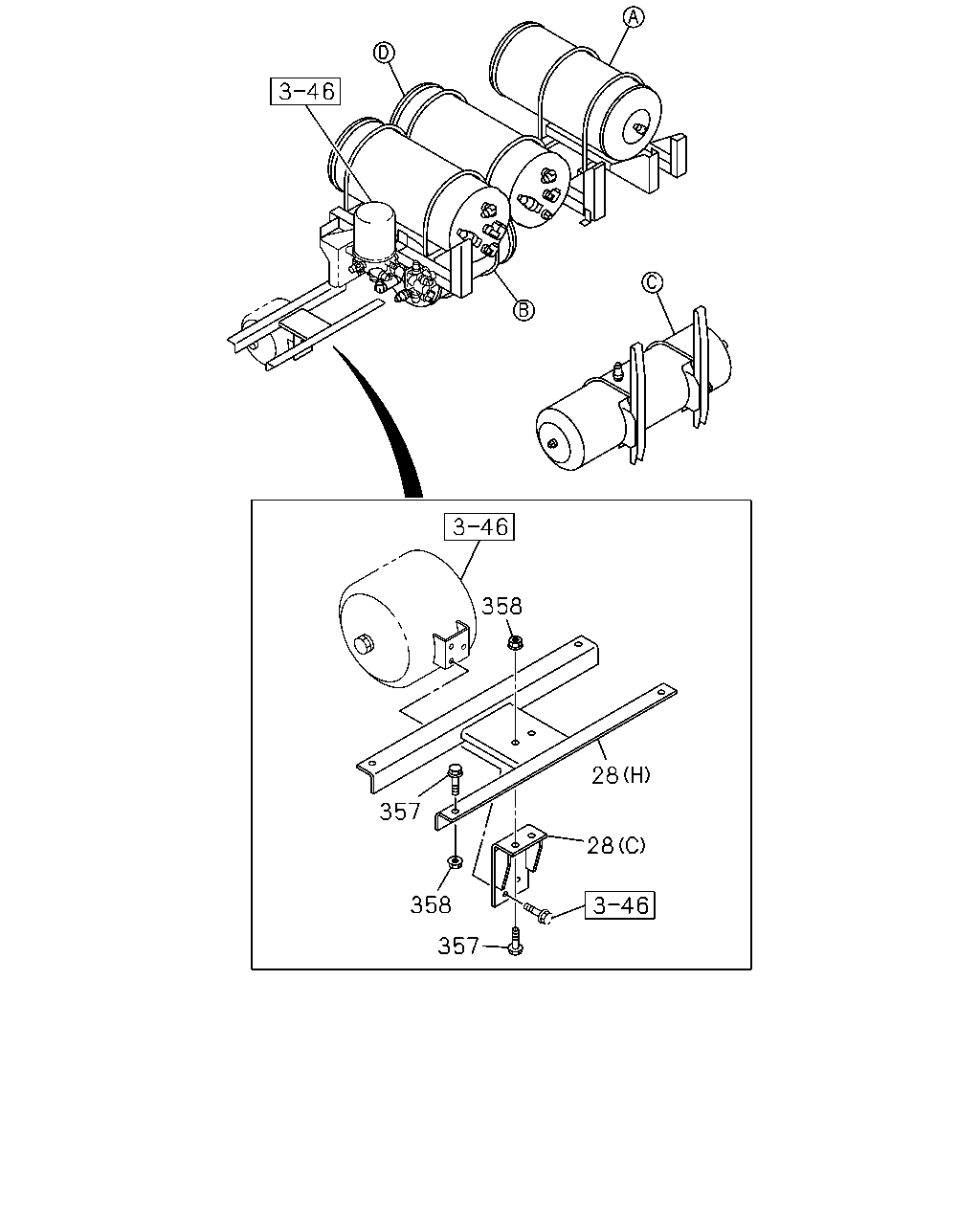

çizim 512595
358 28 28 357 358 357
BalonParca AdiParca NoAdetTipApplied Date
28 BRACKET; AIR TANK
WHEEL BASE 7700MM(77W) (D) 		8-97431-486-0 01 1 1509-
28 BRACKET; AIR TANK
WHEEL BASE 6400MM(64W) (F) 		8-97431-672-0 02 1 1509-
28 BRACKET; AIR TANK
WHEEL BASE 6400MM(64W) (G) 		8-97431-673-0 01 1 1509-
28 BRACKET; AIR TANK
(A) 		8-97431-487-0 01 1 1509-
28 BRACKET; AIR TANK
(B) 		8-97431-516-0 01 1 1509-
28 BRACKET; AIR TANK
(H) 		8-97431-492-0 01 1 1509-
28 BRACKET; AIR TANK
(C) 		8-97431-493-0 01 1 1509-
28 BRACKET; AIR TANK
(E) 		8-97431-485-0 01 1 1509-
357 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 06 1 1509-
358 NUT; BRKT
M10 FLANGE 		0-91180-210-0 06 1 1509-

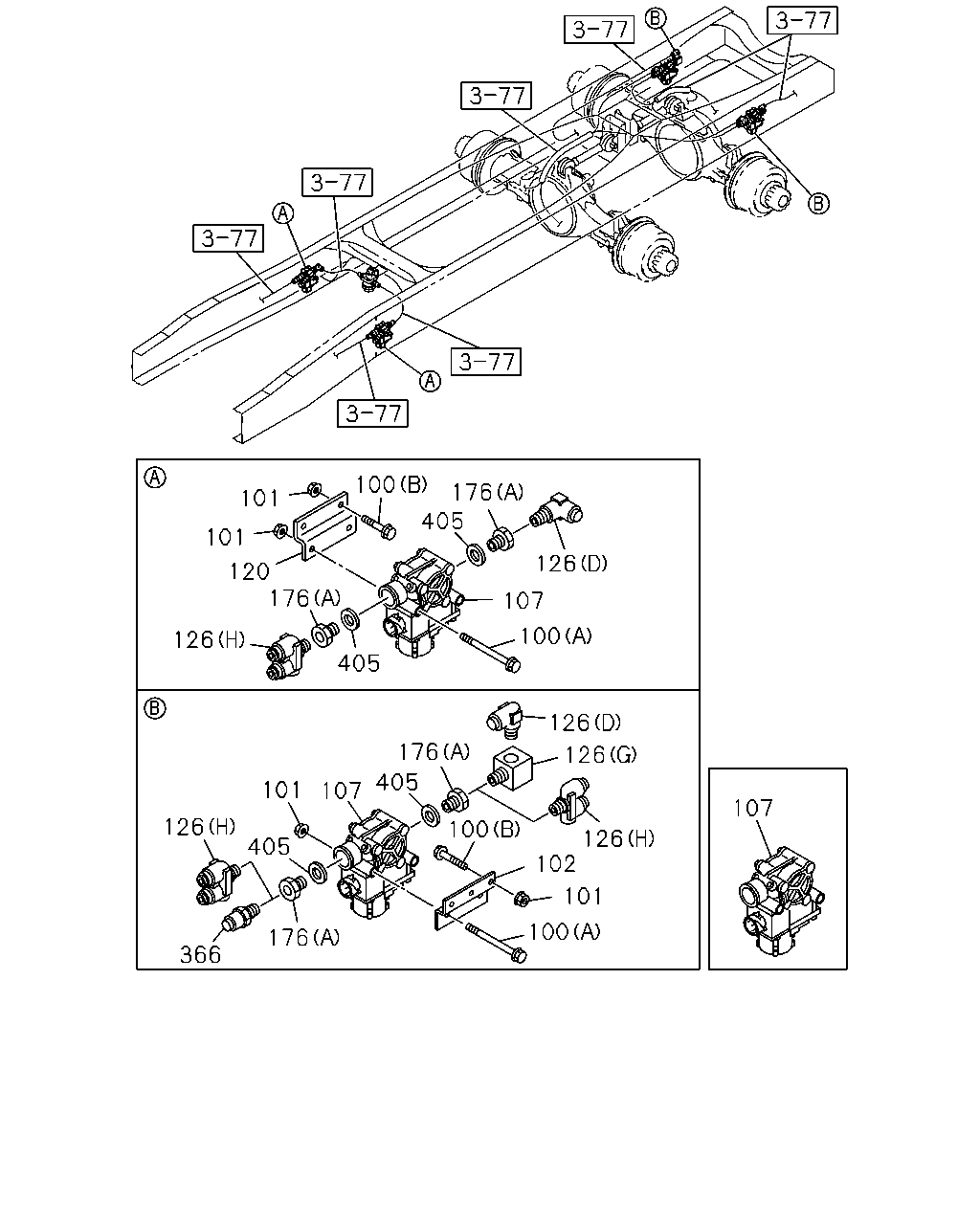

çizim 512908
101 101 100 120 176 126 405 405 176 126 107 100 126 101 405 366 176 107 405 176 126 126 126 100 102 101 100 107
BalonParca AdiParca NoAdetTipApplied Date
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 02 1 1509-
100 BOLT; MODULATOR
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1509-
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 02 1 1509-
100 BOLT; MODULATOR
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1509-
100 BOLT; MODULATOR
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1509-
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1509-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 1509-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 1509-
102 BRACKET; MODULATOR 1-87223-013-0 01 1 1509-
102 BRACKET; MODULATOR 1-87223-013-0 01 1 1509-
102 BRACKET; MODULATOR 1-87223-013-0 02 1 1509-
107 MODULATOR; RR 1-87223-002-0 04 1 1509-
107 MODULATOR; RR 1-87223-002-0 04 1 1509-
126 CONNECTOR; ELBOW
WHEEL BASE 7700MM(77W) (D) DIN12 & R3/8 ELBOW 		8-97431-399-0 01 1 1509-
126 CONNECTOR; ELBOW
(H) DIN12X2 & R3/8 3WAY 		8-97430-308-0 02 1 1509-
126 CONNECTOR; ELBOW
(D) DIN12 & R3/8 ELBOW 		8-97431-399-0 02 1 1509-
126 CONNECTOR; ELBOW
(H) DIN12X2 & R3/8 3WAY 		8-97430-308-0 02 1 1509-
126 CONNECTOR; ELBOW
(D) DIN12 & R3/8 ELBOW 		8-97431-399-0 02 1 1509-
126 CONNECTOR; ELBOW
(D) DIN12 & R3/8 ELBOW 		8-97431-399-0 01 1 1509-
126 CONNECTOR; ELBOW
(H) DIN12X2 & R3/8 3WAY 		8-97430-308-0 02 1 1509-
126 CONNECTOR; ELBOW
(A) DIN8 & R1/4 ELBOW 		8-97431-400-0 01 1 1509-
126 CONNECTOR; ELBOW
(B) DIN8 & M22 ELBOW 		8-97431-447-0 01 1 1509-
126 CONNECTOR; ELBOW
(C) DIN12 & M22 ELBOW 		8-97431-448-0 01 1 1509-
126 CONNECTOR; ELBOW
(D) DIN12 & R3/8 ELBOW 		8-97431-399-0 02 1 1509-
126 CONNECTOR; ELBOW
(E) DIN8 & R3/8 ELBOW 		8-97431-398-0 01 1 1509-
126 CONNECTOR; ELBOW
(F) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1509-
126 CONNECTOR; ELBOW
(G) PT3/8 ELBOW 		1-09660-696-0 02 1 1509-
126 CONNECTOR; ELBOW
(G) PT3/8 ELBOW 		1-09660-696-0 01 1 1509-
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1509-
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1509-
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1509-
176 ADAPTER
(B) 		8-97431-462-0 02 1 1509-
366 CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT 		8-97431-397-0 01 1 1509-
405 GASKET
ID=22.5 		9-09571-422-0 02 1 1509-
405 GASKET
ID=22.5 		9-09571-422-0 02 1 1509-
405 GASKET
ID=22.5 		9-09571-422-0 04 1 1509-
çizim 513298
241 158
BalonParca AdiParca NoAdetTipApplied Date
158 GROMMET; PIPE
OD=35 		8-94122-971-0 01 1 1509-
241 BOLT; SET,CONT VLV
M6X16 		0-52000-616-0 02 1 1509-

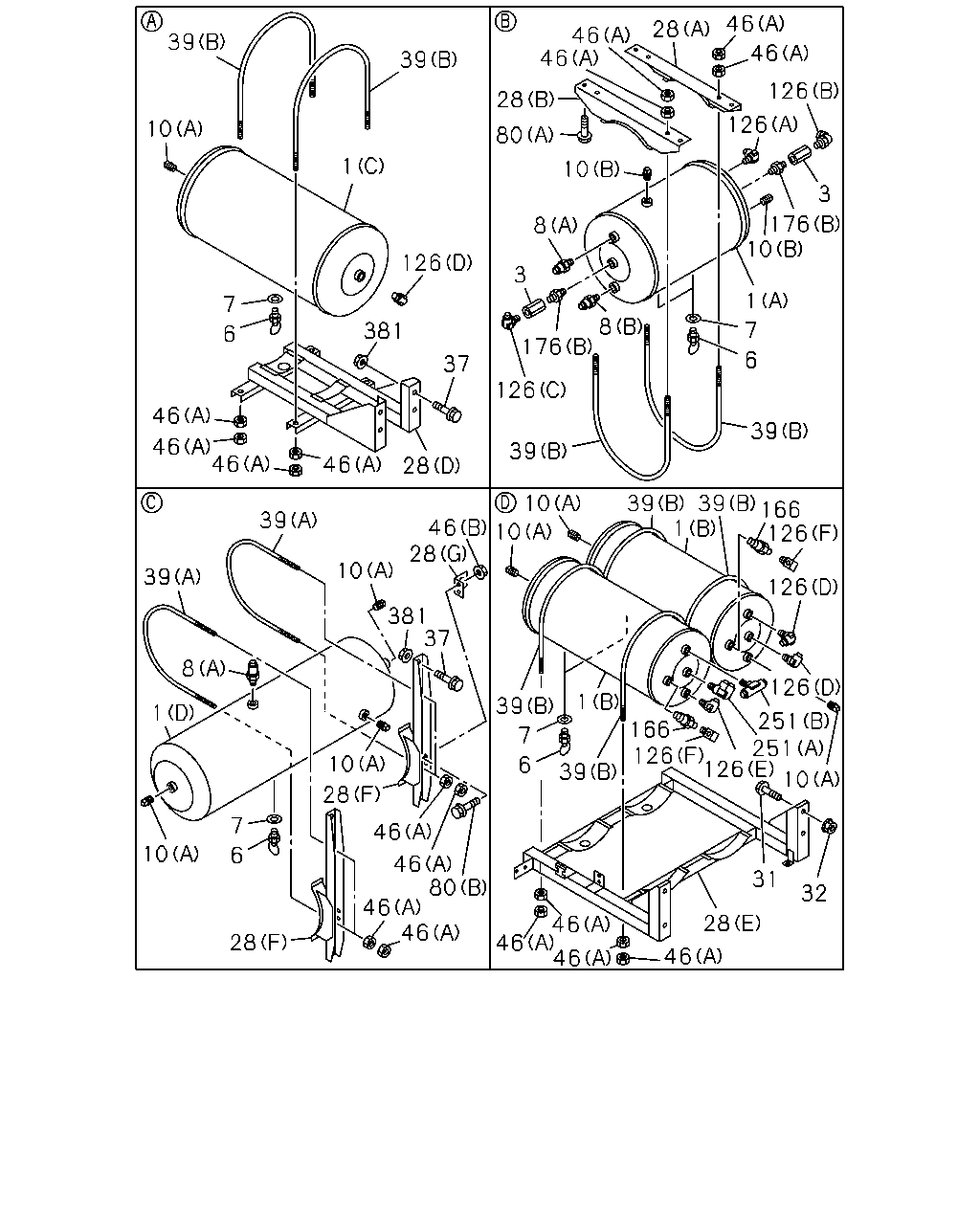

çizim 513687
39 10 1 39 7 6 46 46 381 126 37 28 46 46 46 46 28 80 10 8 3 176 8 126 39 28 46 46 126 126 3 176 10 1 7 6 39 39 46 28 10 39 381 37 8 1 10 6 7 28 10 28 46 46 46 46 80 10 10 39 39 1 166 126 126 39 1 7 6 39 166 126 126 126 251 251 10 31 32 28 46 46 46 46
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
WHEEL BASE 7700MM(77W) (C) 		8-97431-424-0 01 1 1509-
1 TANK ASM; AIR
WHEEL BASE 6400MM(64W) (D) 		8-97431-671-0 01 1 1509-
1 TANK ASM; AIR
(A) 		8-97431-423-0 01 1 1509-
1 TANK ASM; AIR
(B) 		8-97431-425-0 02 1 1509-
3 VALVE; CHECK,AIR TANK 8-97431-414-0 02 1 1509-
6 COCK; DRAIN,AIR TANK
WHEEL BASE 7700MM(77W) 		8-97431-413-0 01 1 1509-
6 COCK; DRAIN,AIR TANK
WHEEL BASE 6400MM(64W) 		8-97431-413-0 01 1 1509-
6 COCK; DRAIN,AIR TANK 8-97431-413-0 02 1 1509-
6 COCK; DRAIN,AIR TANK 8-97431-413-0 02 1 1509-
7 GASKET; DRAIN COCK
WHEEL BASE 7700MM(77W) 		9-09572-022-0 01 1 1509-
7 GASKET; DRAIN COCK
WHEEL BASE 6400MM(64W) 		9-09572-022-0 01 1 1509-
7 GASKET; DRAIN COCK 9-09572-022-0 02 1 1509-
7 GASKET; DRAIN COCK 9-09572-022-0 02 1 1509-
8 CONNECTOR; AIR TANK
WHEEL BASE 6400MM(64W) (A) DIN12 & R3/8 STRAIGHT 		8-97431-397-0 01 1 1509-
8 CONNECTOR; AIR TANK
(B) DIN8 & R3/8 STRAIGHT 		8-97431-396-0 01 1 1509-
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT 		8-97431-397-0 01 1 1509-
10 PLUG; AIR TANK
WHEEL BASE 7700MM(77W) (A) PT3/8 		9-09204-517-0 01 1 1509-
10 PLUG; AIR TANK
WHEEL BASE 6400MM(64W) (A) PT3/8 		9-09204-517-0 03 1 1509-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 02 1 1509-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1509-
28 BRACKET; AIR TANK
WHEEL BASE 7700MM(77W) (D) 		8-97431-486-0 01 1 1509-
28 BRACKET; AIR TANK
WHEEL BASE 6400MM(64W) (F) 		8-97431-672-0 02 1 1509-
28 BRACKET; AIR TANK
WHEEL BASE 6400MM(64W) (G) 		8-97431-673-0 01 1 1509-
28 BRACKET; AIR TANK
(A) 		8-97431-487-0 01 1 1509-
28 BRACKET; AIR TANK
(B) 		8-97431-516-0 01 1 1509-
28 BRACKET; AIR TANK
(H) 		8-97431-492-0 01 1 1509-
28 BRACKET; AIR TANK
(C) 		8-97431-493-0 01 1 1509-
28 BRACKET; AIR TANK
(E) 		8-97431-485-0 01 1 1509-
31 BOLT; BRKT TO FRAME
M12X40 FLANGE 		0-28651-240-0 04 1 1509-
32 NUT; BRKT TO FRAME
M12 FLANGE 		0-91180-212-0 04 1 1509-
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28651-035-0 04 1 1509-
39 U-BOLT; AIR TANK
WHEEL BASE 7700MM(77W) (B) L=290 		8-97431-484-0 02 1 1509-
39 U-BOLT; AIR TANK
WHEEL BASE 6400MM(64W) (A) 		8-97431-691-0 02 1 1509-
39 U-BOLT; AIR TANK
(B) L=290 		8-97431-484-0 02 1 1509-
39 U-BOLT; AIR TANK
(B) L=290 		8-97431-484-0 04 1 1509-
46 NUT; U-BOLT
WHEEL BASE 7700MM(77W) (A) M8 		0-91110-508-0 08 1 1509-
46 NUT; U-BOLT
WHEEL BASE 6400MM(64W) (A) M8 		0-91110-508-0 08 1 1509-
46 NUT; U-BOLT
WHEEL BASE 6400MM(64W) (B) M8 FLANGE 		0-91180-108-0 02 1 1509-
46 NUT; U-BOLT
(A) M8 		0-91110-508-0 08 1 1509-
46 NUT; U-BOLT
(A) M8 		0-91110-508-0 16 1 1509-
80 BOLT; BRKT
WHEEL BASE 6400MM(64W) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1509-
80 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 04 1 1509-
126 CONNECTOR; ELBOW
WHEEL BASE 7700MM(77W) (D) DIN12 & R3/8 ELBOW 		8-97431-399-0 01 1 1509-
126 CONNECTOR; ELBOW
(H) DIN12X2 & R3/8 3WAY 		8-97430-308-0 02 1 1509-
126 CONNECTOR; ELBOW
(D) DIN12 & R3/8 ELBOW 		8-97431-399-0 02 1 1509-
126 CONNECTOR; ELBOW
(H) DIN12X2 & R3/8 3WAY 		8-97430-308-0 02 1 1509-
126 CONNECTOR; ELBOW
(D) DIN12 & R3/8 ELBOW 		8-97431-399-0 02 1 1509-
126 CONNECTOR; ELBOW
(D) DIN12 & R3/8 ELBOW 		8-97431-399-0 01 1 1509-
126 CONNECTOR; ELBOW
(H) DIN12X2 & R3/8 3WAY 		8-97430-308-0 02 1 1509-
126 CONNECTOR; ELBOW
(A) DIN8 & R1/4 ELBOW 		8-97431-400-0 01 1 1509-
126 CONNECTOR; ELBOW
(B) DIN8 & M22 ELBOW 		8-97431-447-0 01 1 1509-
126 CONNECTOR; ELBOW
(C) DIN12 & M22 ELBOW 		8-97431-448-0 01 1 1509-
126 CONNECTOR; ELBOW
(D) DIN12 & R3/8 ELBOW 		8-97431-399-0 02 1 1509-
126 CONNECTOR; ELBOW
(E) DIN8 & R3/8 ELBOW 		8-97431-398-0 01 1 1509-
126 CONNECTOR; ELBOW
(F) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1509-
126 CONNECTOR; ELBOW
(G) PT3/8 ELBOW 		1-09660-696-0 02 1 1509-
126 CONNECTOR; ELBOW
(G) PT3/8 ELBOW 		1-09660-696-0 01 1 1509-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 02 1 1509-
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1509-
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1509-
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1509-
176 ADAPTER
(B) 		8-97431-462-0 02 1 1509-
251 CONNECTOR; DELIVERY
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		8-97431-450-0 01 1 1509-
251 CONNECTOR; DELIVERY
(B) DIN12X2 & R3/8 3WAY 		8-97431-452-0 01 1 1509-
381 NUT; SUB TANK
M10 FLANGE 		0-91180-210-0 04 1 1509-
