3-70 — BRAKE PIPING; AIR,AIR MASTER (#17534) — 71 parça

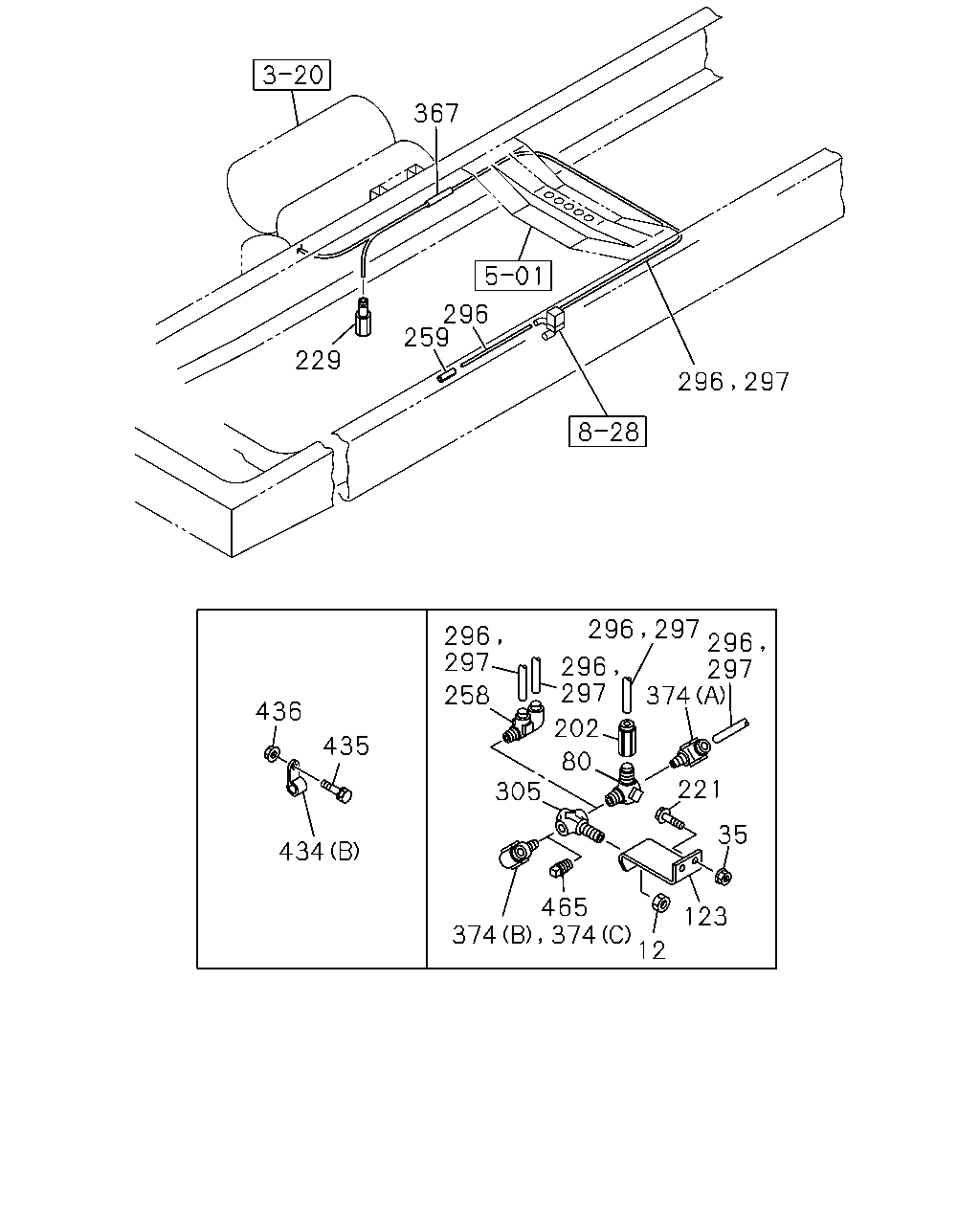

çizim 110090
367 296 259 229 296 297 374 296 297 296 297 258 436 202 435 80 305 221 35 434 465 12 123 296 297 296 297 374 374
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> M12 		0-91111-512-0 01 1 1109-1205
12 NUT; UNION
FULLER ES11109 DD M/T(Y5N) EXC. H.S.A SYSTEM<6EP> M12 		0-91111-512-0 01 1 1206-
12 NUT; UNION
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> M12 		0-91111-512-0 01 1 1206-
35 NUT; BRKT
EXC. PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 02 1 1109-
80 UNION; 3 WAY
MZW6P M/T(RSZ) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1109-1111
80 UNION; 3 WAY
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1109-1111
80 UNION; 3 WAY
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1109-1111
80 UNION; 3 WAY
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112-1205
80 UNION; 3 WAY
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112-1205
80 UNION; 3 WAY
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1206-
80 UNION; 3 WAY
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1206-
80 UNION; 3 WAY
FULLER ES11109 DD M/T(Y5N) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1206-
123 BRACKET; UNION
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> 		8-98118-545-0 01 1 1109-1205
123 BRACKET; UNION
FULLER ES11109 DD M/T(Y5N) EXC. H.S.A SYSTEM<6EP> 		8-98118-545-0 01 1 1206-
123 BRACKET; UNION
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> 		8-98118-545-0 01 1 1206-
202 ADAPTER
MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1109-1111
202 ADAPTER
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1109-1205
202 ADAPTER
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1109-1205
202 ADAPTER
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1206-
202 ADAPTER
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1206-
202 ADAPTER
FULLER ES11109 DD M/T(Y5N) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1206-
221 BOLT; BRKT
EXC. PTO CONTROL<SV6> M8X35 FLANGE 		0-28650-835-0 02 1 1109-
229 ADAPTER; NYLON TUBE
MZW6P M/T(RSZ) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1109-1205
229 ADAPTER; NYLON TUBE
MZW6P M/T(RSZ),FULLER ES11109 DD M/T(Y5N) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1206-
258 CONNECTOR; NYLON TUBE
MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1112-1205
258 CONNECTOR; NYLON TUBE
FULLER ES11109 DD M/T(Y5N) EXC. H.S.A SYSTEM<6EP> DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1206-
258 CONNECTOR; NYLON TUBE
MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1206-
259 SLEEVE; RUBBER,NYLON TUBE
VIN MODEL YEAR 2011<VZB> ID=29 OD=39 L=40 		1-09337-013-0 01 1 1109-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1109-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1109-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1109-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1109-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1109-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1109-
305 UNION ASM; NYLON TUBE
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY 		8-98120-049-0 01 1 1109-1205
305 UNION ASM; NYLON TUBE
FULLER ES11109 DD M/T(Y5N) EXC. H.S.A SYSTEM<6EP> M12 & RC1/4X2 2WAY 		8-98120-049-0 01 1 1206-
305 UNION ASM; NYLON TUBE
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY 		8-98120-049-0 01 1 1206-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1109-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1109-
374 CONNECTOR
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1109-1205
374 CONNECTOR
MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1109-1205
374 CONNECTOR
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1206-
374 CONNECTOR
MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1206-
374 CONNECTOR
FULLER ES11109 DD M/T(Y5N) EXC. H.S.A SYSTEM<6EP> (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1206-
374 CONNECTOR
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1109-1111
374 CONNECTOR
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-
374 CONNECTOR
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1109-
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 1109-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 1109-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1109-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1109-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1109-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1109-
465 PLUG
MZW6P M/T(RSZ) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1109-

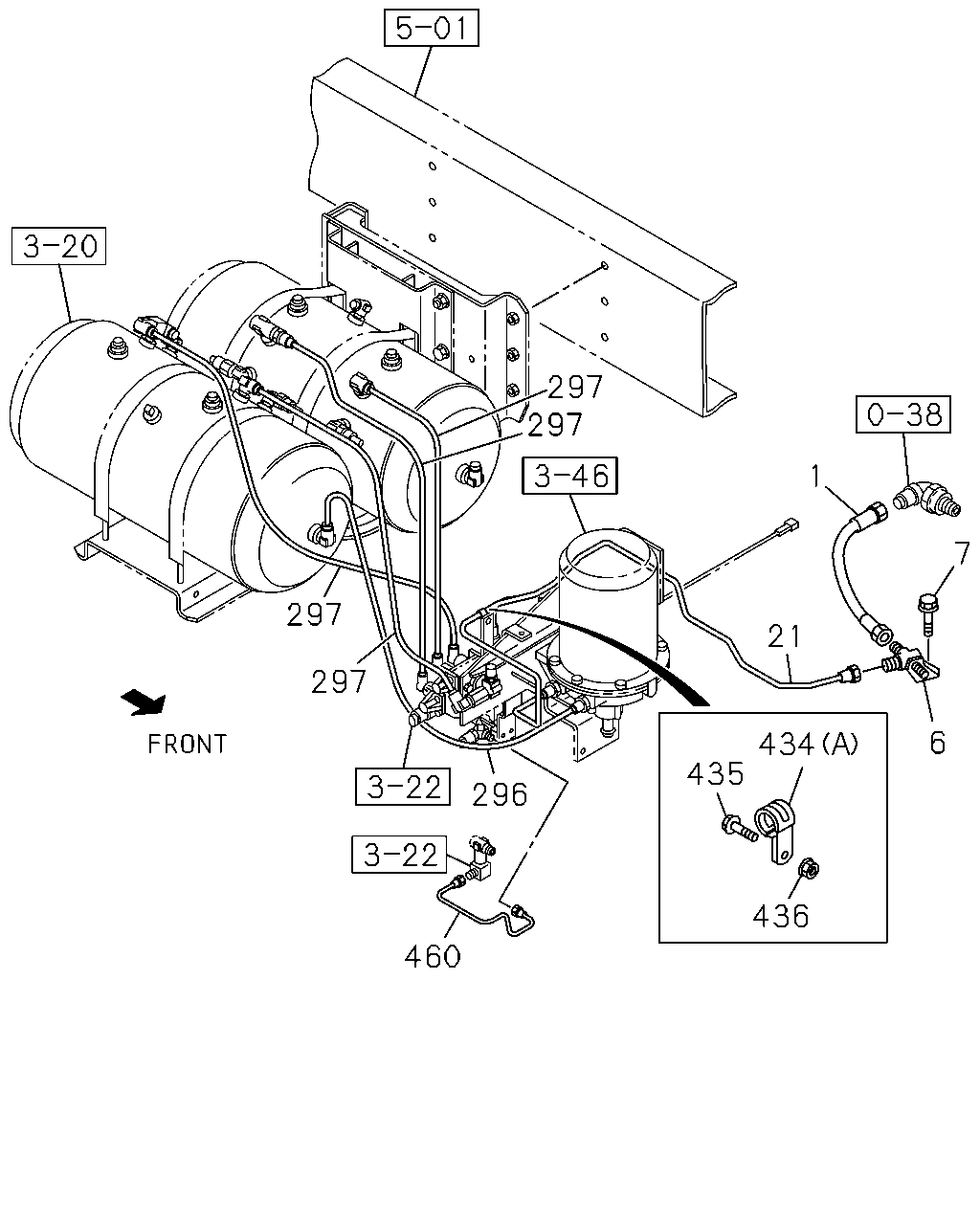

çizim 110110
297 297 1 7 297 21 297 6 434 435 296 436 460
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 1109-
6 BRACKET; FLEX HOSE,AIR TANK 8-98076-344-0 01 1 1109-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1109-
21 PIPE; AIR,UNION TO AIR DRYER
L=1715 		8-98095-083-0 01 1 1109-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1109-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1109-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1109-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1109-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1109-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1109-
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 1109-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 1109-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1109-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1109-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1109-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1109-
460 PIPE; AIR,PROTECTION VALVE
VIN MODEL YEAR 2011<VZB> 		8-98184-394-0 01 1 1109-
