2-05 — CLUTCH PIPING (#175329) — 46 parça

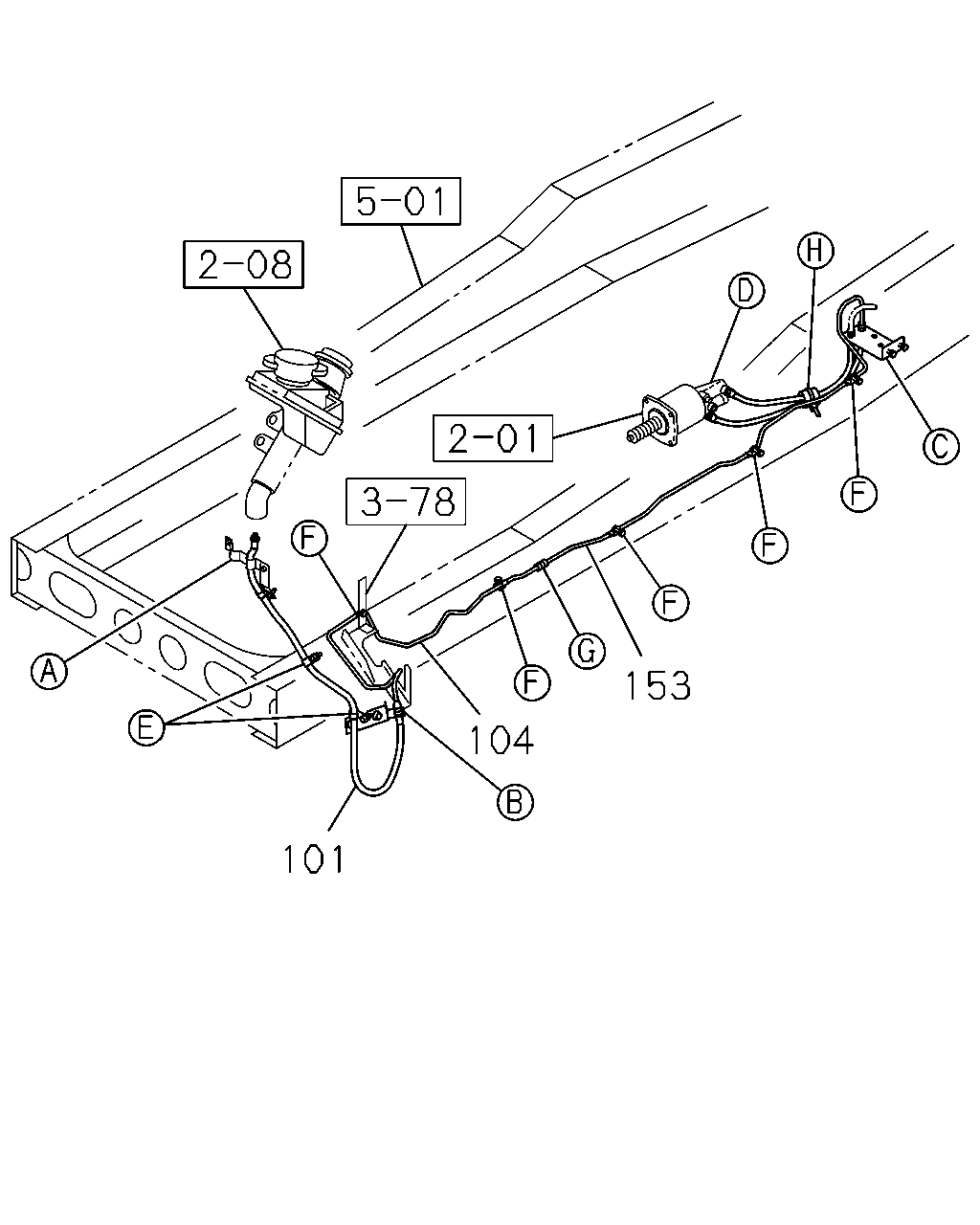

çizim 512525
101 104 153
BalonParca AdiParca NoAdetTipApplied Date
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-97431-525-0 01 1 1509-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1417 SERVICED BY L=1550 		1-47428-766-0 01 1 1509-
153 PIPE ASM; CLU,UNION TO FLEX
WHEEL BASE 7700MM(77W) 		8-97431-528-0 01 1 1509-
153 PIPE ASM; CLU,UNION TO FLEX
WHEEL BASE 6400MM(64W) 		8-97431-714-0 01 1 1509-
çizim 512530
235 101 16 104 115 116 101 27 42 29
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=16 L=28 		1-09700-872-0 03 1 1509-
27 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1509-
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 1509-
42 BRACKET; FLEX HOSE,CLU CONT
WHEEL BASE 7700MM(77W) (B) 		8-97431-531-0 01 1 1509-
42 BRACKET; FLEX HOSE,CLU CONT
WHEEL BASE 6400MM(64W) (B) 		8-97431-713-0 01 1 1509-
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		8-97430-495-0 01 1 1509-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-97431-525-0 01 1 1509-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1417 SERVICED BY L=1550 		1-47428-766-0 01 1 1509-
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1509-
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 1509-
235 GASKET; FLEX HOSE
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1509-
çizim 513262
153 115 42 116 47 45 43 46 44 47 29 207 26 35 44 210 164 233 26 35 44 210 28 33 29 34 207 34 33 35 48 48 106 47 107 51 47 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=16 L=28 		1-09700-872-0 03 1 1509-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 02 1 1509-
28 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 02 1 1509-
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 1509-
33 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 02 1 1509-
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1509-
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1509-
42 BRACKET; FLEX HOSE,CLU CONT
WHEEL BASE 7700MM(77W) (B) 		8-97431-531-0 01 1 1509-
42 BRACKET; FLEX HOSE,CLU CONT
WHEEL BASE 6400MM(64W) (B) 		8-97431-713-0 01 1 1509-
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		8-97430-495-0 01 1 1509-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE 		0-28650-835-0 02 1 1509-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 1509-
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 01 1 1509-
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 		0-91510-512-0 01 1 1509-
47 HOSE; FLEX,CLU CONT
WHEEL BASE 7700MM(77W) (A) L=570 		8-97431-526-0 01 1 1509-
47 HOSE; FLEX,CLU CONT
WHEEL BASE 7700MM(77W) (B) L=670 		8-97431-529-0 01 1 1509-
47 HOSE; FLEX,CLU CONT
WHEEL BASE 6400MM(64W) (A) L=530 		8-97431-527-0 01 1 1509-
47 HOSE; FLEX,CLU CONT
WHEEL BASE 6400MM(64W) (B) L=600 		8-97431-530-0 01 1 1509-
48 GASKET; FLEX HOSE,CLU CONT
ID=14.2 OD=20.0 		9-09571-414-0 01 1 1509-
48 GASKET; FLEX HOSE,CLU CONT
ID=14.2 OD=20.0 		9-09571-414-0 01 1 1509-
51 WASHER; LK
ID=14.2 		0-91510-514-0 01 1 1509-
106 UNION; OIL PIPE
M14 STRAIGHT 		0-92113-008-0 01 1 1509-
107 NUT; UNION,OIL PIPE
M14 		0-91111-514-0 01 1 1509-
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1509-
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 1509-
153 PIPE ASM; CLU,UNION TO FLEX
WHEEL BASE 7700MM(77W) 		8-97431-528-0 01 1 1509-
153 PIPE ASM; CLU,UNION TO FLEX
WHEEL BASE 6400MM(64W) 		8-97431-714-0 01 1 1509-
164 CLIP; BAND,FLEX HOSE
L=350 		1-09707-183-0 01 1 1509-
207 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 1509-
210 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1509-
233 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 1509-
