1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

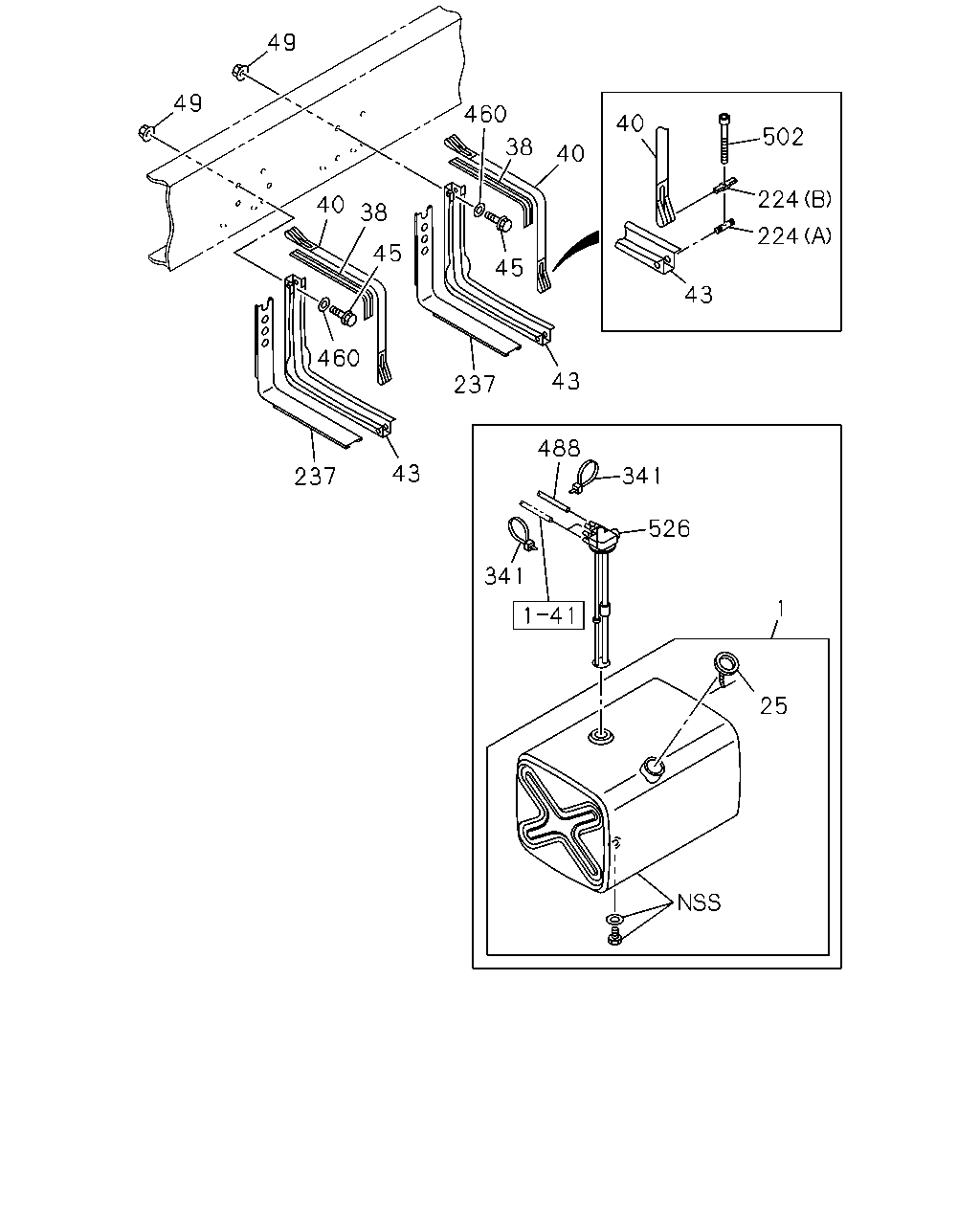

1-40 — FUEL TANK
(#175321) — 15 parça
25
1
341
526
341
488
43
237
43
237
460
45
38
40
49
49
460
38
40
40
502
224
224
43
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
1040X690X625 400L
8-97431-285-0
01
1
1509-
25
CAP; FILLER,FUEL TANK
8-97431-287-0
01
1
1509-
38
INSULATION; SUPPORT BELT
L=1210
8-97431-293-0
02
1
1509-
40
BELT; SUPPORT,FUEL TANK
8-97431-292-0
02
1
1509-
43
BRACKET; FUEL TANK
8-97431-290-0
02
1
1509-
45
BOLT; BRKT,FUEL TANK
8-97431-444-0
06
1
1509-
49
NUT; BRKT
M16 FLANGE
0-91180-216-0
06
1
1509-
224
BRACKET; FUEL TANK BRKT TO FRAME
(B)
8-97431-294-0
04
1
1509-
224
BRACKET; FUEL TANK BRKT TO FRAME
(A)
8-97431-295-0
04
1
1509-
237
GASKET; BRKT TO FUEL TANK
8-97431-291-0
02
1
1509-
341
CLIP; BAND,RUBBER HOSE
L=350
1-09707-183-0
02
1
1509-
460
WASHER; PL,BRKT
ID=17 OD=32
0-91614-616-0
06
1
1509-
488
HOSE; RUBBER
8-98134-936-0
01
1
1509-
502
PLATE; DISTANCE
8-97431-296-0
04
1
1509-
526
SENDER; FUEL TANK
8-97431-289-0
01
1
1509-
