Isuzu WW
▶
TRUCKS
▶
FYH
▶
11664 - FYH LHD CHINA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#175317) — 22 parça
◀

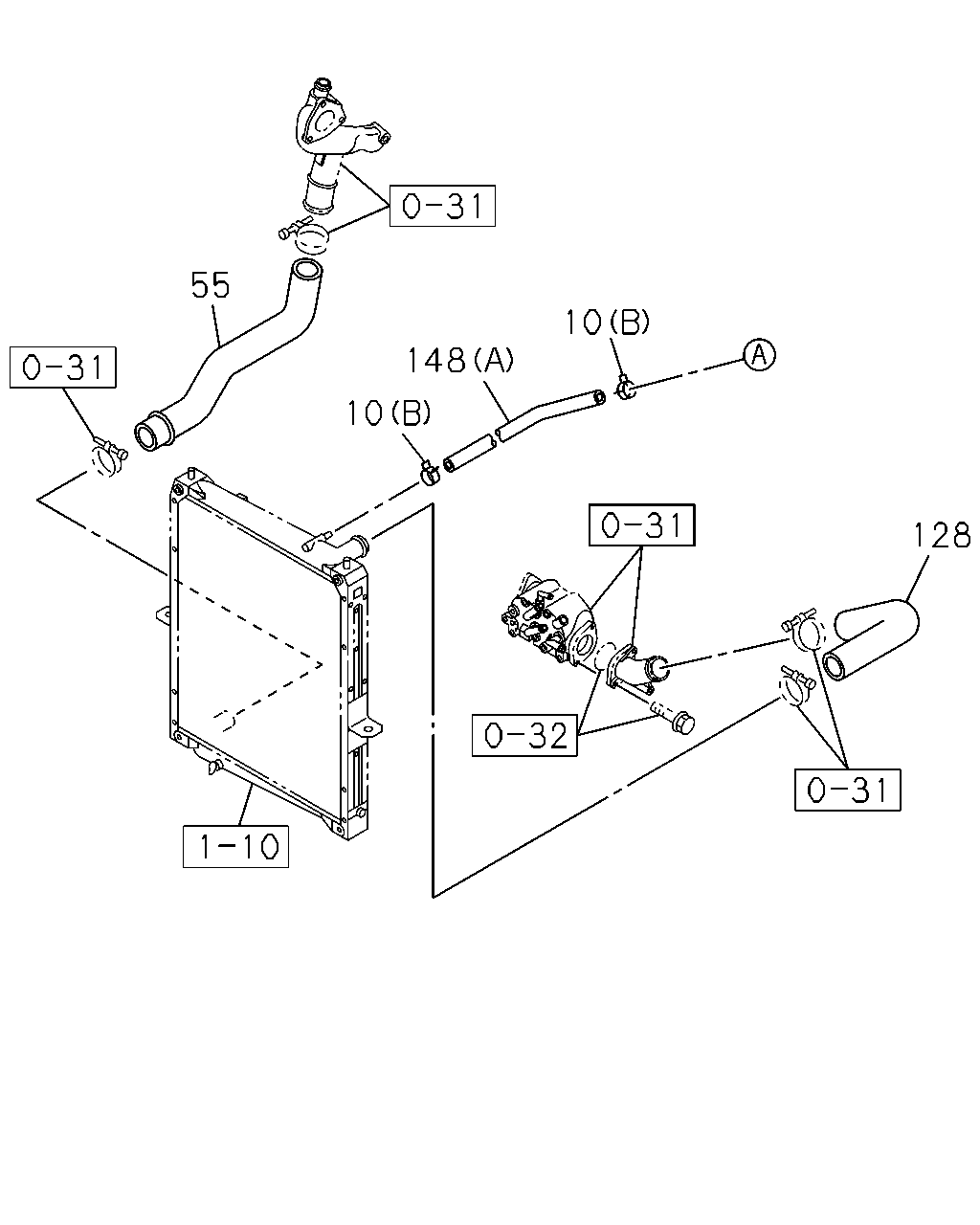

[111A] RADIATOR SIDE (8 parça)

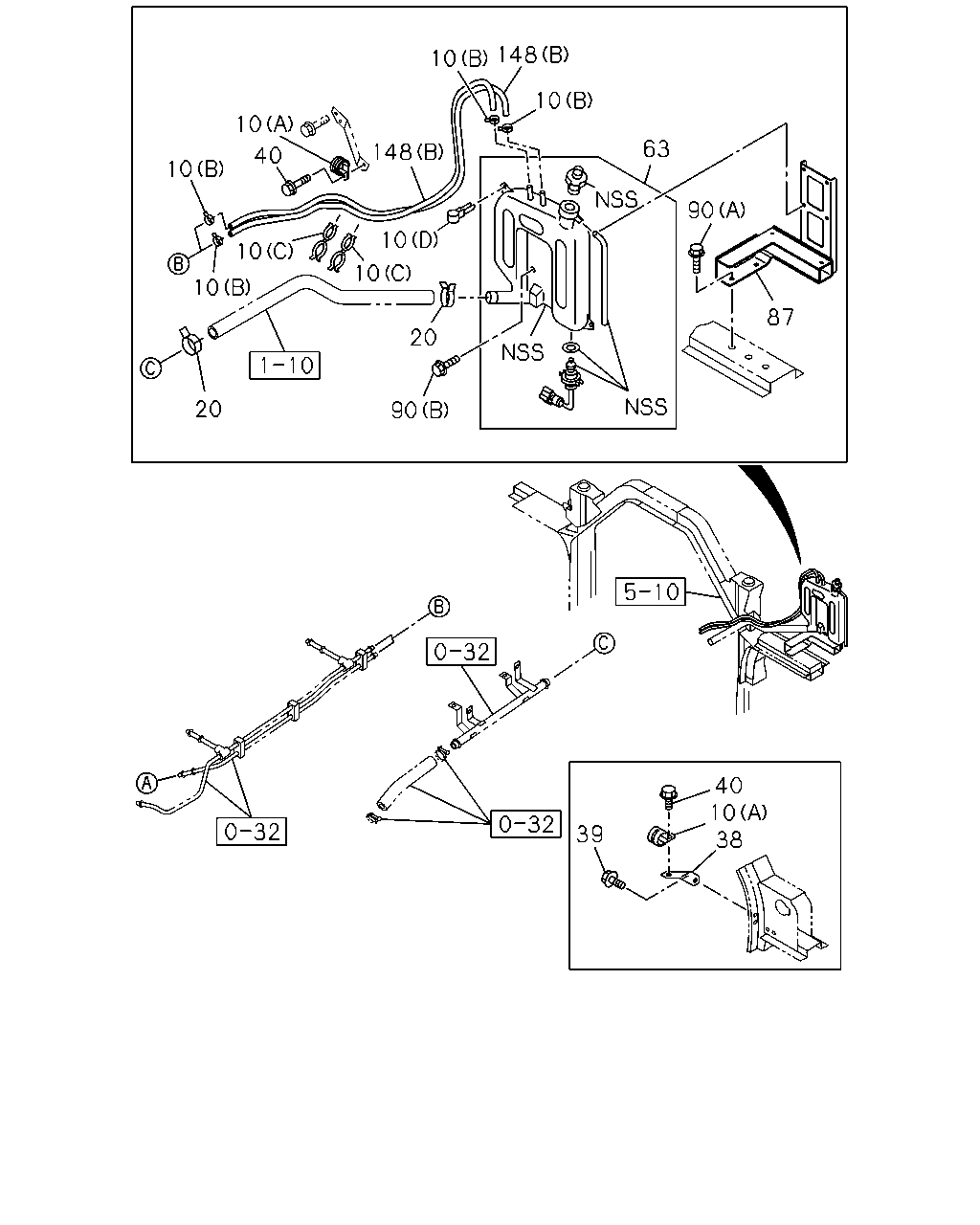

[111A] SUB TANK SIDE (14 parça)
▶
55
10
148
10
128
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
06
1
1509-
10
CLIP; RUBBER HOSE
(D) ID=28 L=58
1-09700-400-0
02
1
1509-
10
CLIP; RUBBER HOSE
(C) ID=44 & 16
1-09709-125-0
08
1
1509-
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
02
1
1509-
55
HOSE; WATER,RAD OUTLET
8-98193-421-0
01
1
1509-
128
HOSE; WATER,RAD INL
8-98193-418-0
01
1
1509-
148
HOSE; RUBBER,OUT
(A) L=450
8-97430-214-0
01
1
1509-
148
HOSE; RUBBER,OUT
(B) L=1530
8-97430-215-0
02
1
1509-
10
148
10
63
90
87
20
20
10
10
10
10
10
10
40
148
90
39
40
10
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
06
1
1509-
10
CLIP; RUBBER HOSE
(D) ID=28 L=58
1-09700-400-0
02
1
1509-
10
CLIP; RUBBER HOSE
(C) ID=44 & 16
1-09709-125-0
08
1
1509-
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
02
1
1509-
20
CLIP; HOSE,RAD
ID=31
1-09707-093-1
02
1
1509-
38
BRACKET; RUBBER HOSE
8-97608-796-0
01
1
1509-
39
BOLT; BRKT FIX
M10X20 FLANGE
0-28151-020-0
01
1
1509-
40
BOLT; CLIP
M10X25 FLANGE
0-28651-025-0
02
1
1509-
63
TANK ASM; SUB
1-21481-143-2
01
1
1509-
87
BRACKET; SUB TANK
8-97430-191-1
01
1
1509-
90
BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER
1-09030-027-0
04
1
1509-
90
BOLT; SUB TANK TO BRKT
(A) M12X30 FLANGE
0-28051-230-0
03
1
1509-
148
HOSE; RUBBER,OUT
(A) L=450
8-97430-214-0
01
1
1509-
148
HOSE; RUBBER,OUT
(B) L=1530
8-97430-215-0
02
1
1509-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
