◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11369 - FVR(LHD)EURO4 W/DOC ▶ 3 - Brakes, Brake System ▶ 3-46 - AIR DRYER ▶
3-46 — AIR DRYER (#17531) — 77 parça

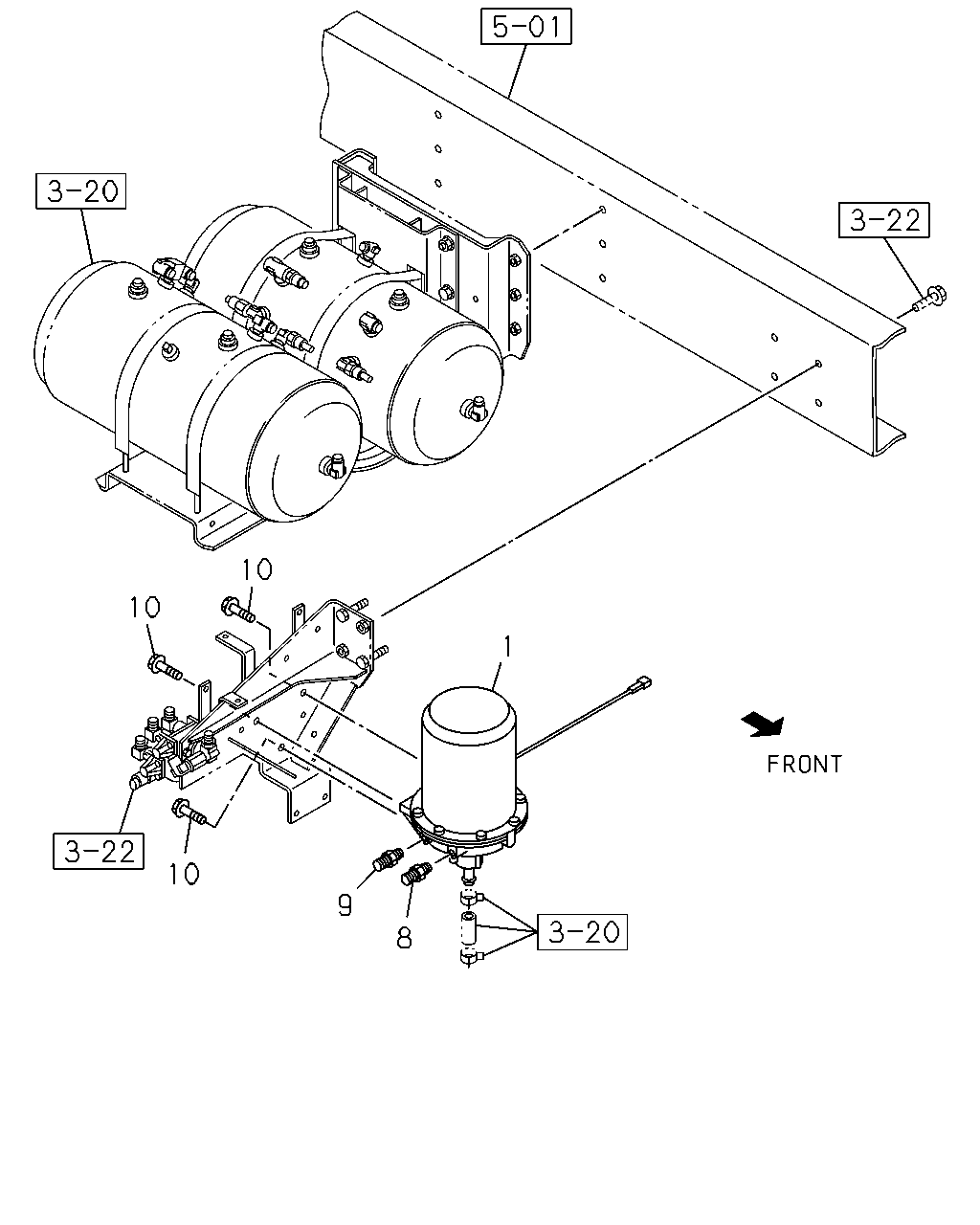

çizim 110086
10 10 1 10 9 8
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR 1-48190-371-2 01 1 1109-1205
1 DRYER; AIR
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		1-48190-371-2 01 1 1206-1211
1 DRYER; AIR
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		8-98225-292-0 01 1 1212-
8 CONNECTOR; OUT,AIR DRYER
DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 1109-1205
8 CONNECTOR; OUT,AIR DRYER
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 1206-
9 CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 FLARE 		0-92121-815-0 01 1 1109-1205
9 CONNECTOR; PIPE,AIR DRYER
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) M22 & PT1/2 FLARE 		0-92121-815-0 01 1 1206-
10 BOLT; AIR DRYER
M12X25 FLANGE 		0-28051-225-0 03 1 1109-

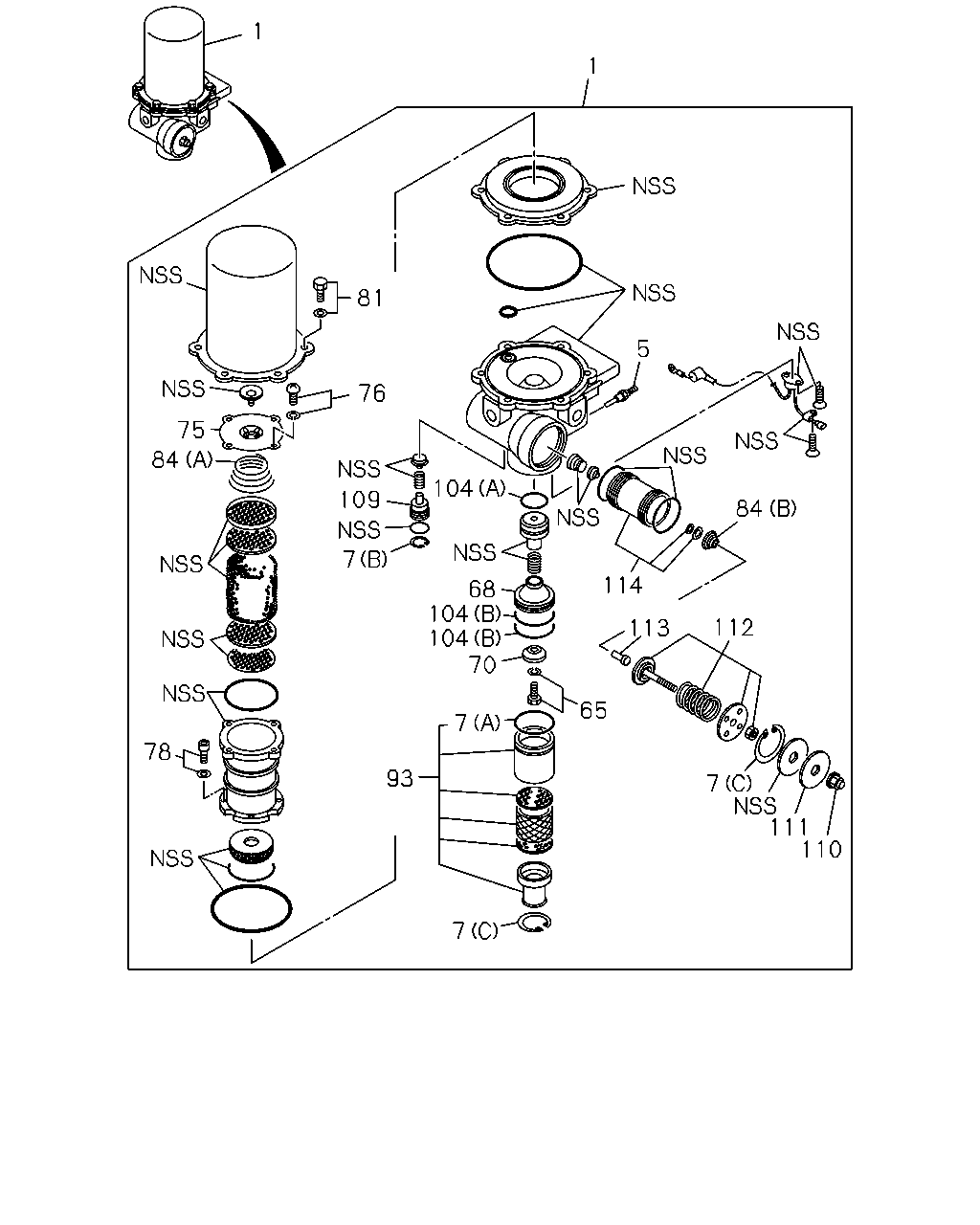

çizim 110093
1 1 81 5 76 75 84 104 109 84 7 114 68 104 104 70 112 113 65 7 78 93 7 111 110 7
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR 1-48190-371-2 01 1 1109-1205
1 DRYER; AIR
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		1-48190-371-2 01 1 1206-1211
1 DRYER; AIR
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		8-98225-292-0 01 1 1212-
5 HEATER ASM; AIR DRYER 1-48199-530-0 01 1 1109-1205
5 HEATER ASM; AIR DRYER
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		1-48199-530-0 01 1 1206-
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 1109-1205
7 RING; SNAP,AIR DRYER
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (C) 		1-48199-520-0 02 1 1206-
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 1109-1205
7 RING; SNAP,AIR DRYER
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (B) 		1-48199-529-0 01 1 1206-
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 1109-1205
7 RING; SNAP,AIR DRYER
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (A) 		1-48199-579-0 01 1 1206-
65 BOLT; PURGE VLV 1-48199-517-0 01 1 1109-1205
65 BOLT; PURGE VLV
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		1-48199-517-0 01 1 1206-
68 BODY; VALVE 1-48199-515-0 01 1 1109-1205
68 BODY; VALVE
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		1-48199-515-0 01 1 1206-
70 VALVE; AIR DRYER 1-48199-504-0 01 1 1109-1205
70 VALVE; AIR DRYER
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		1-48199-504-0 01 1 1206-
75 COVER; CASE,AIR DRYER 1-48199-562-0 01 1 1109-1205
75 COVER; CASE,AIR DRYER
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		1-48199-562-0 01 1 1206-
76 BOLT; COVER,AIR DRYER 1-48199-561-0 06 1 1109-1205
76 BOLT; COVER,AIR DRYER
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		1-48199-561-0 06 1 1206-
78 BOLT; OIL FILTER,AIR DRYER 1-48199-557-0 04 1 1109-1205
78 BOLT; OIL FILTER,AIR DRYER
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		1-48199-557-0 04 1 1206-
81 BOLT; CASE,AIR DRYER 1-48199-436-0 08 1 1109-1205
81 BOLT; CASE,AIR DRYER
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		1-48199-436-0 08 1 1206-
84 SPRING; AIR DRYER
(B) 		1-48199-523-0 01 1 1109-1205
84 SPRING; AIR DRYER
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (B) 		1-48199-523-0 01 1 1206-
84 SPRING; AIR DRYER
(A) 		1-48199-564-0 01 1 1109-1205
84 SPRING; AIR DRYER
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (A) 		1-48199-564-0 01 1 1206-
93 SILENCER; AIR DRYER 1-48199-619-0 01 1 1109-1205
93 SILENCER; AIR DRYER
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		1-48199-619-0 01 1 1206-
104 GASKET
(A) 		1-48199-495-0 01 1 1109-1205
104 GASKET
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (A) 		1-48199-495-0 01 1 1206-1211
104 GASKET
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (A) 		8-98226-321-0 01 1 1212-
104 GASKET
(B) 		1-48199-496-0 02 1 1109-1205
104 GASKET
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (B) 		1-48199-496-0 02 1 1206-1211
104 GASKET
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (B) 		1-48199-496-0 01 1 1212-
109 STOPPER; CHECK VALVE 1-48199-539-0 01 1 1109-1205
109 STOPPER; CHECK VALVE
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		1-48199-539-0 01 1 1206-
110 NUT; CAP 1-48199-527-0 01 1 1109-1205
110 NUT; CAP
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		1-48199-527-0 01 1 1206-
111 PLATE; GOVERNOR 1-48199-526-0 01 1 1109-1205
111 PLATE; GOVERNOR
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		1-48199-526-0 01 1 1206-
112 SCREW & SPRING ASM; AIR DRYER 1-48199-524-0 01 1 1109-1205
112 SCREW & SPRING ASM; AIR DRYER
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		1-48199-524-0 01 1 1206-
113 STEM; EXHAUST 1-48199-522-0 01 1 1109-1205
113 STEM; EXHAUST
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		1-48199-522-0 01 1 1206-
114 PISTON ASM; GOVERNOR 1-48199-521-0 01 1 1109-1205
114 PISTON ASM; GOVERNOR
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		1-48199-521-0 01 1 1206-

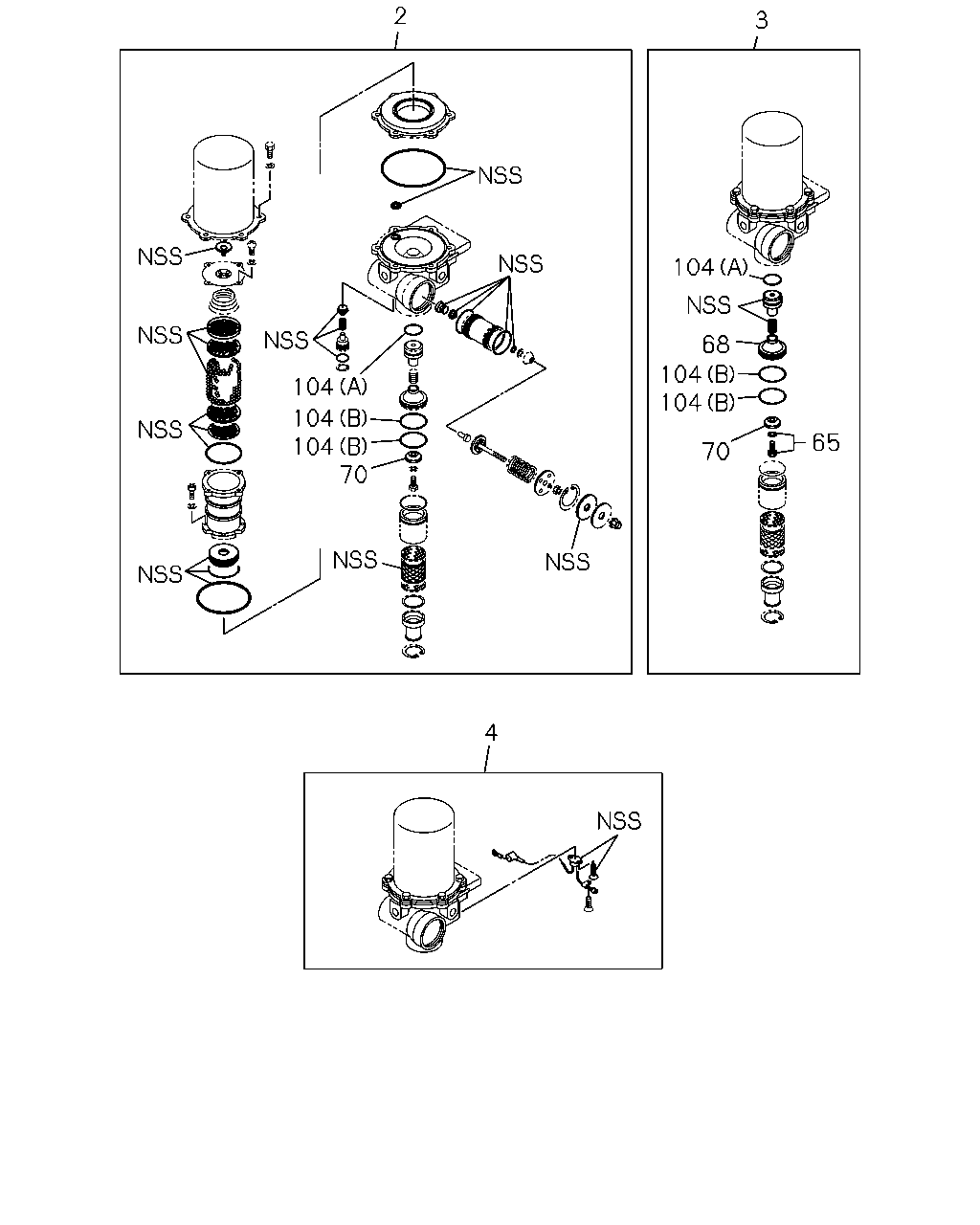

çizim 110094
2 3 104 68 104 104 104 104 104 70 65 70 4
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; AIR DRYER 1-85576-448-0 01 1 1109-1205
2 REPAIR KIT; AIR DRYER
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		1-85576-448-0 01 1 1206-1211
2 REPAIR KIT; AIR DRYER
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		8-98226-328-0 01 1 1212-
3 PISTON KIT; AIR DRYER 1-85576-383-0 01 1 1109-1205
3 PISTON KIT; AIR DRYER
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		1-85576-383-0 01 1 1206-1211
3 PISTON KIT; AIR DRYER
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		8-98226-322-0 01 1 1212-
4 THERMOSTAT KIT; AIR DRYER 1-85576-444-0 01 1 1109-1205
4 THERMOSTAT KIT; AIR DRYER
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		1-85576-444-0 01 1 1206-
65 BOLT; PURGE VLV 1-48199-517-0 01 1 1109-1205
65 BOLT; PURGE VLV
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		1-48199-517-0 01 1 1206-
68 BODY; VALVE 1-48199-515-0 01 1 1109-1205
68 BODY; VALVE
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		1-48199-515-0 01 1 1206-
70 VALVE; AIR DRYER 1-48199-504-0 01 1 1109-1205
70 VALVE; AIR DRYER
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		1-48199-504-0 01 1 1206-
104 GASKET
(A) 		1-48199-495-0 01 1 1109-1205
104 GASKET
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (A) 		1-48199-495-0 01 1 1206-1211
104 GASKET
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (A) 		8-98226-321-0 01 1 1212-
104 GASKET
(B) 		1-48199-496-0 02 1 1109-1205
104 GASKET
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (B) 		1-48199-496-0 02 1 1206-1211
104 GASKET
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (B) 		1-48199-496-0 01 1 1212-
