Sayfa 3-78 - Isuzu EPC

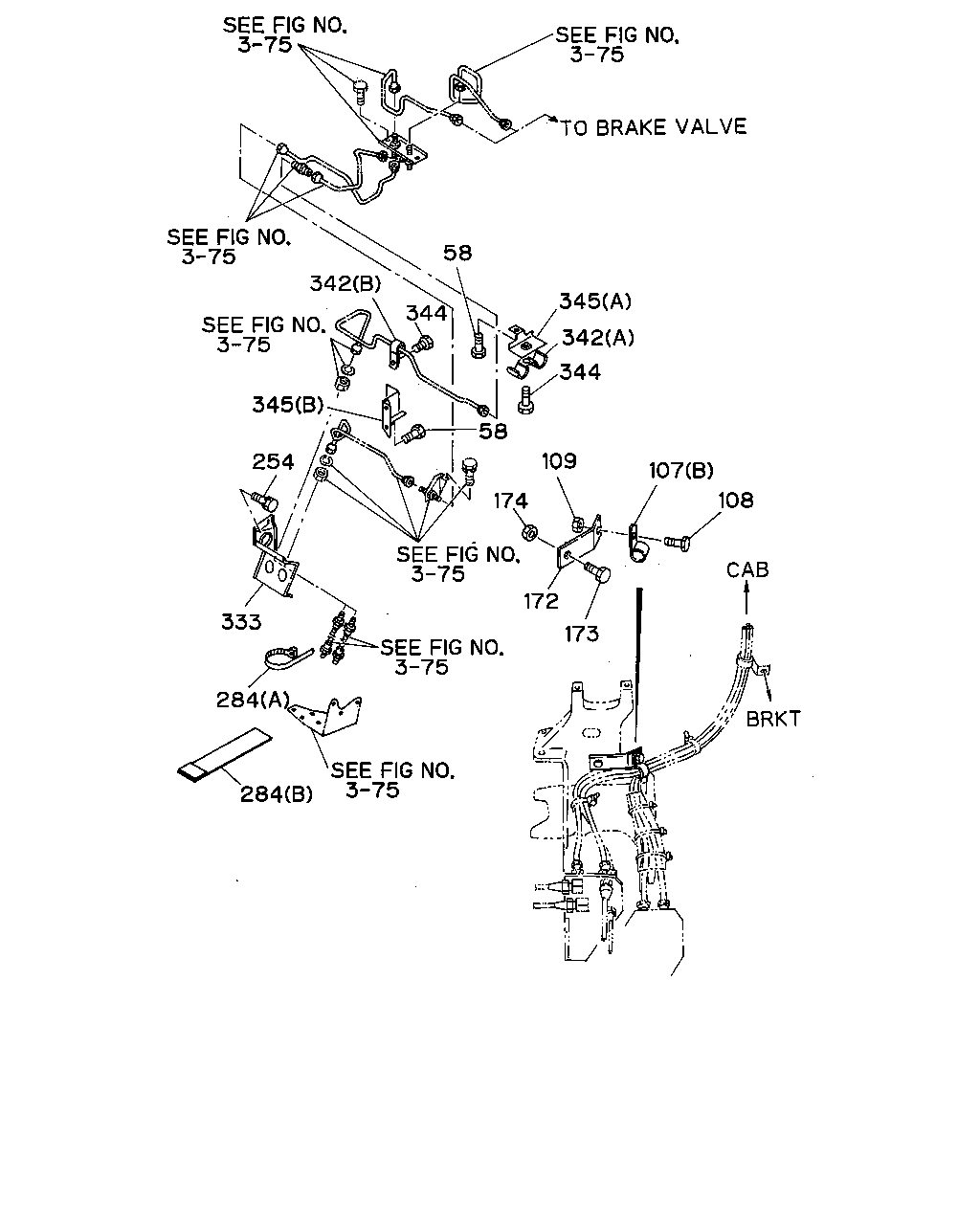

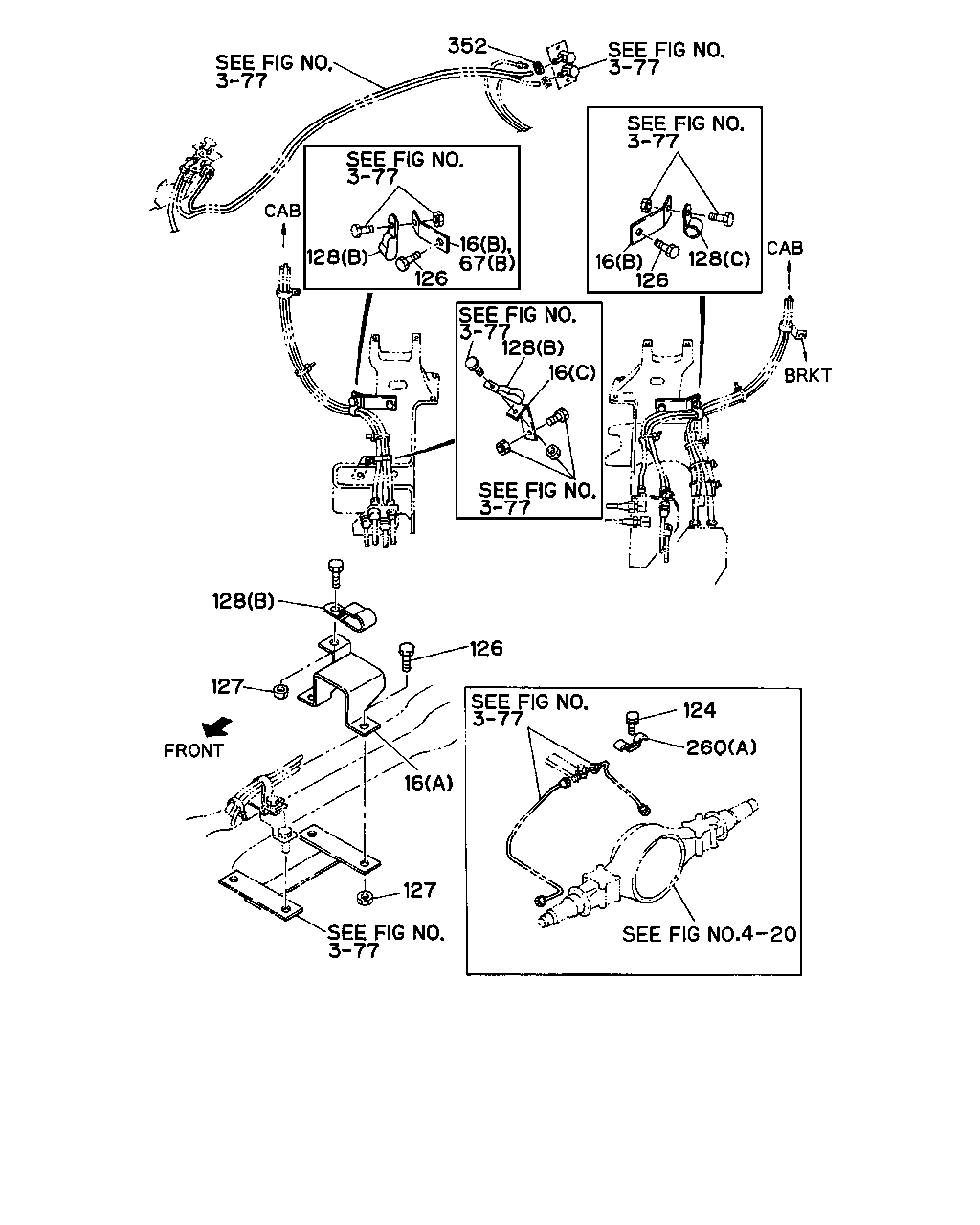

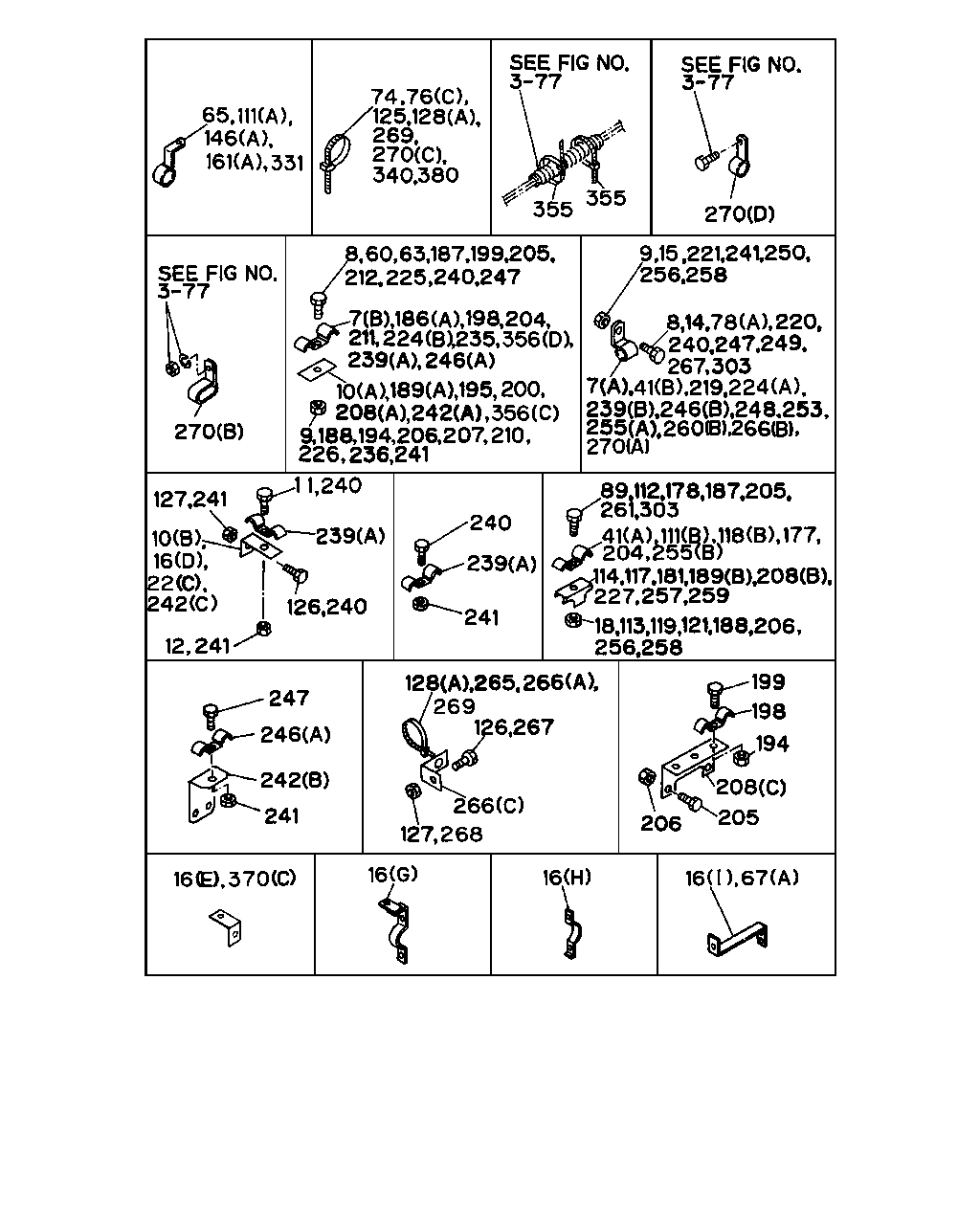

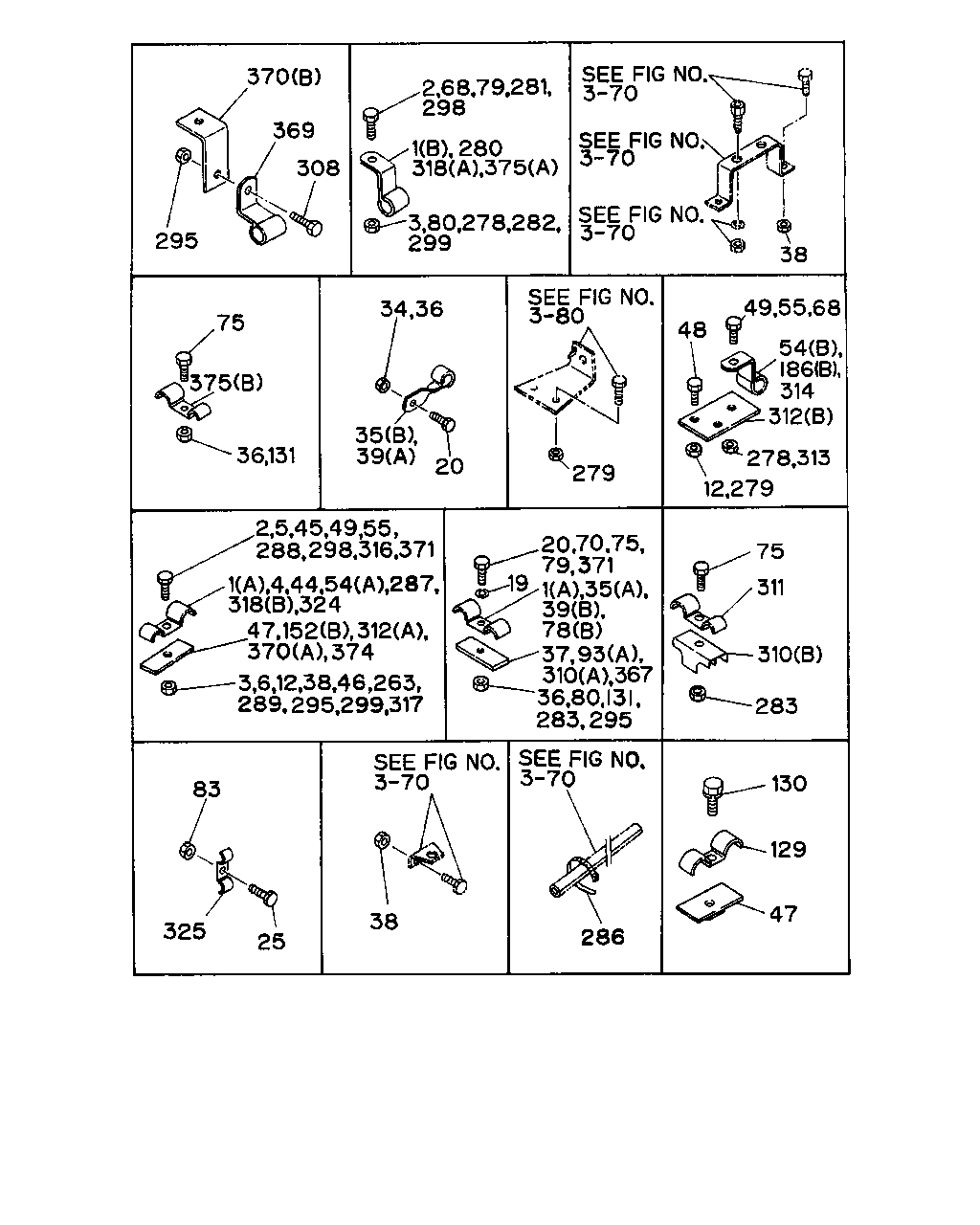

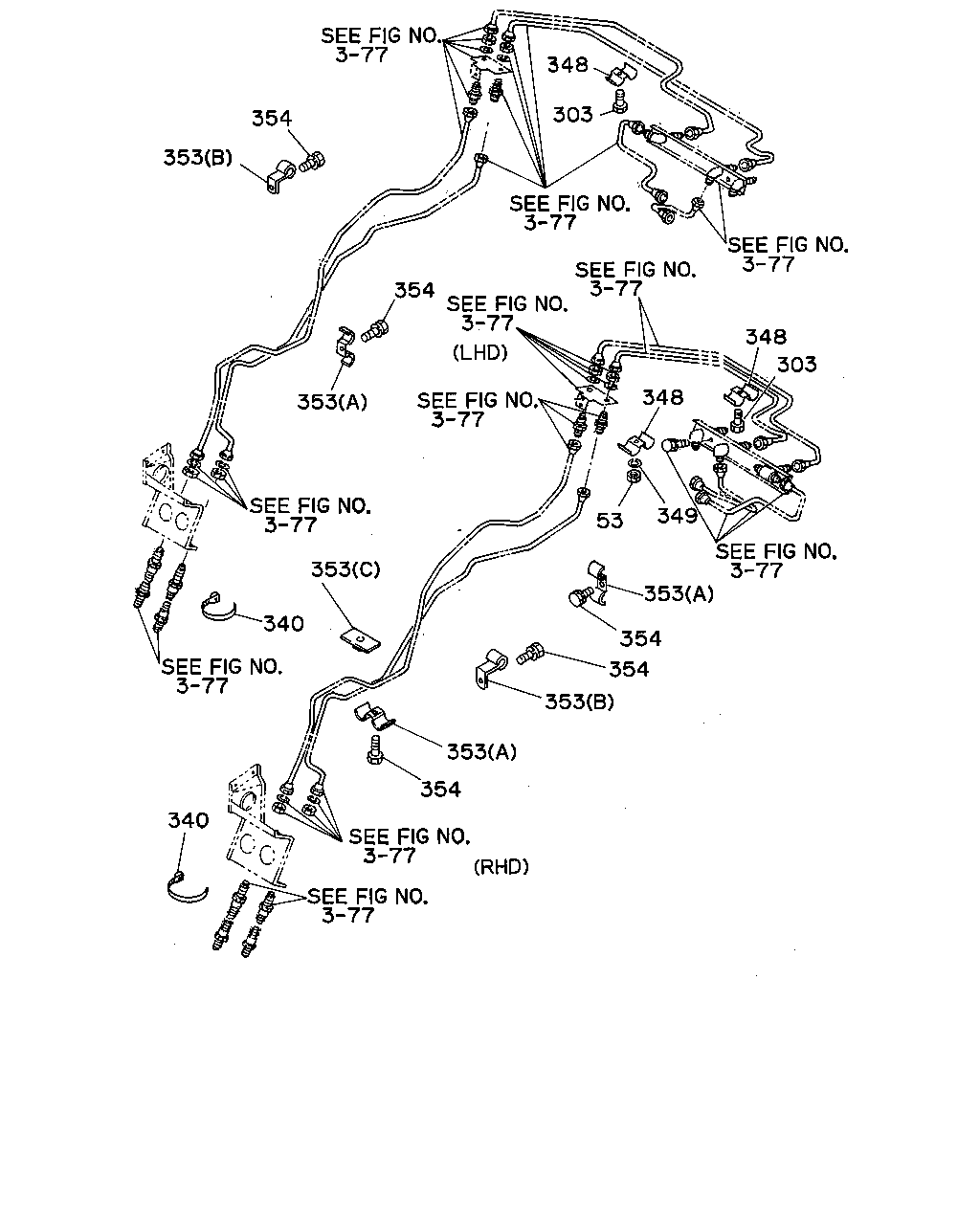

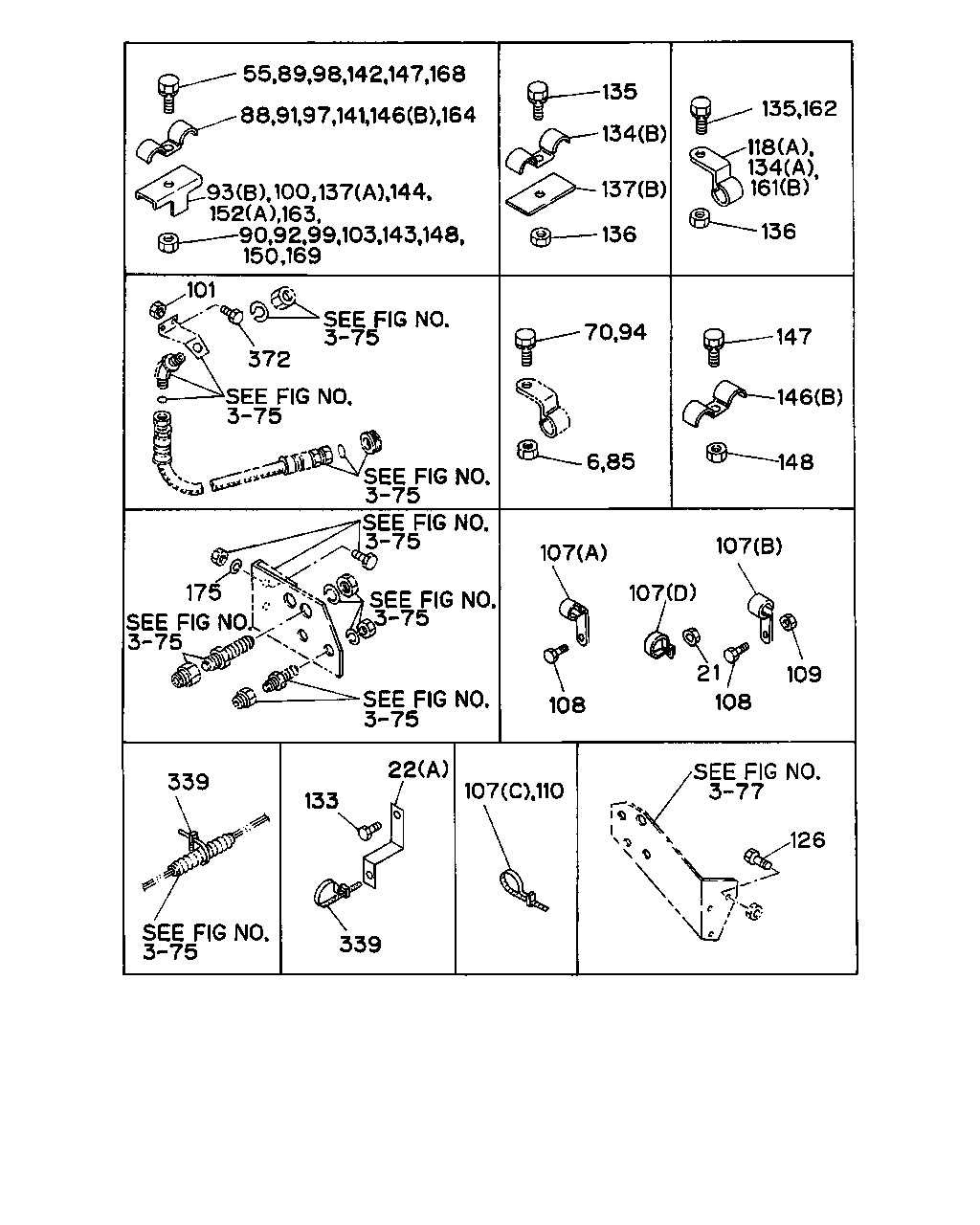

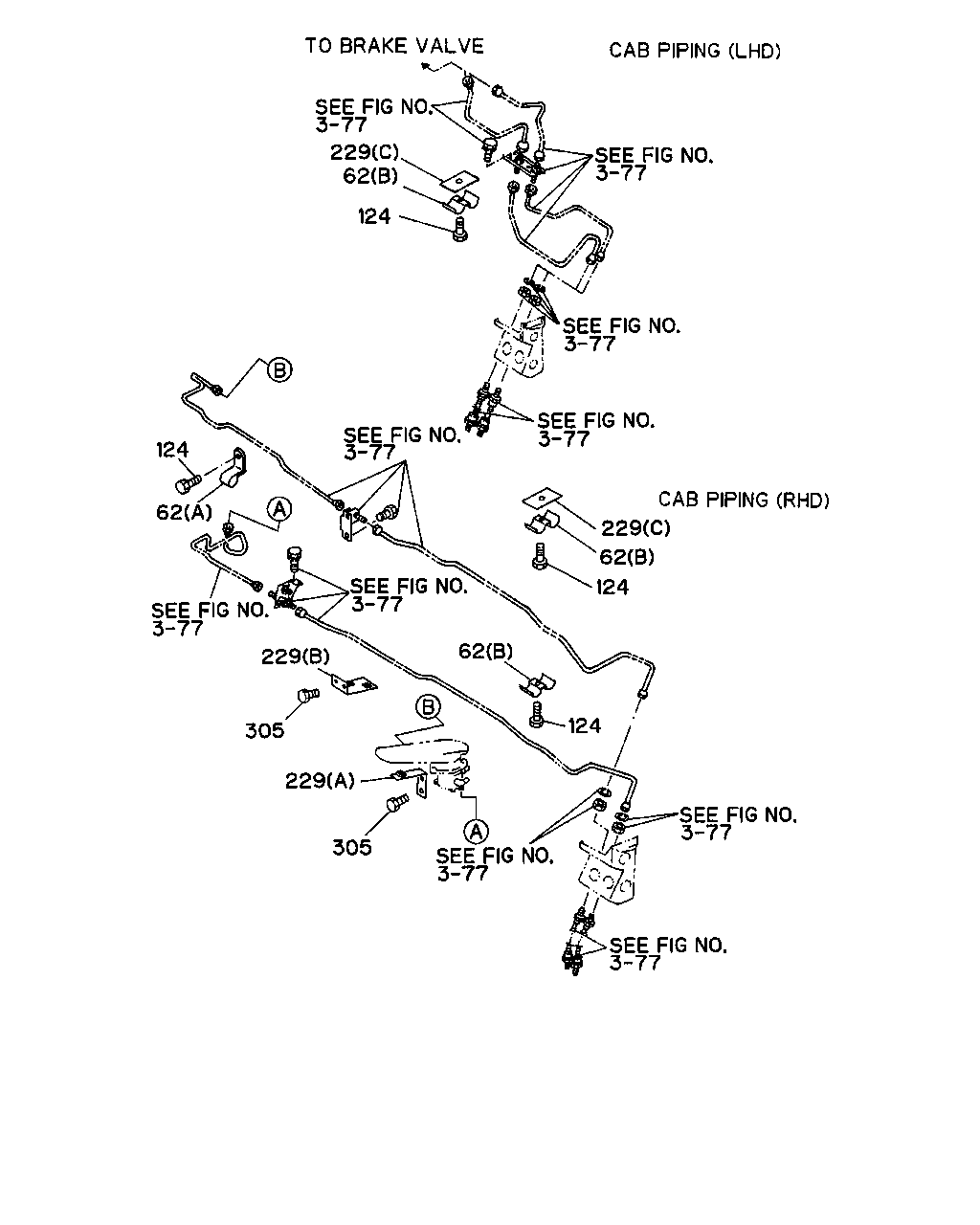

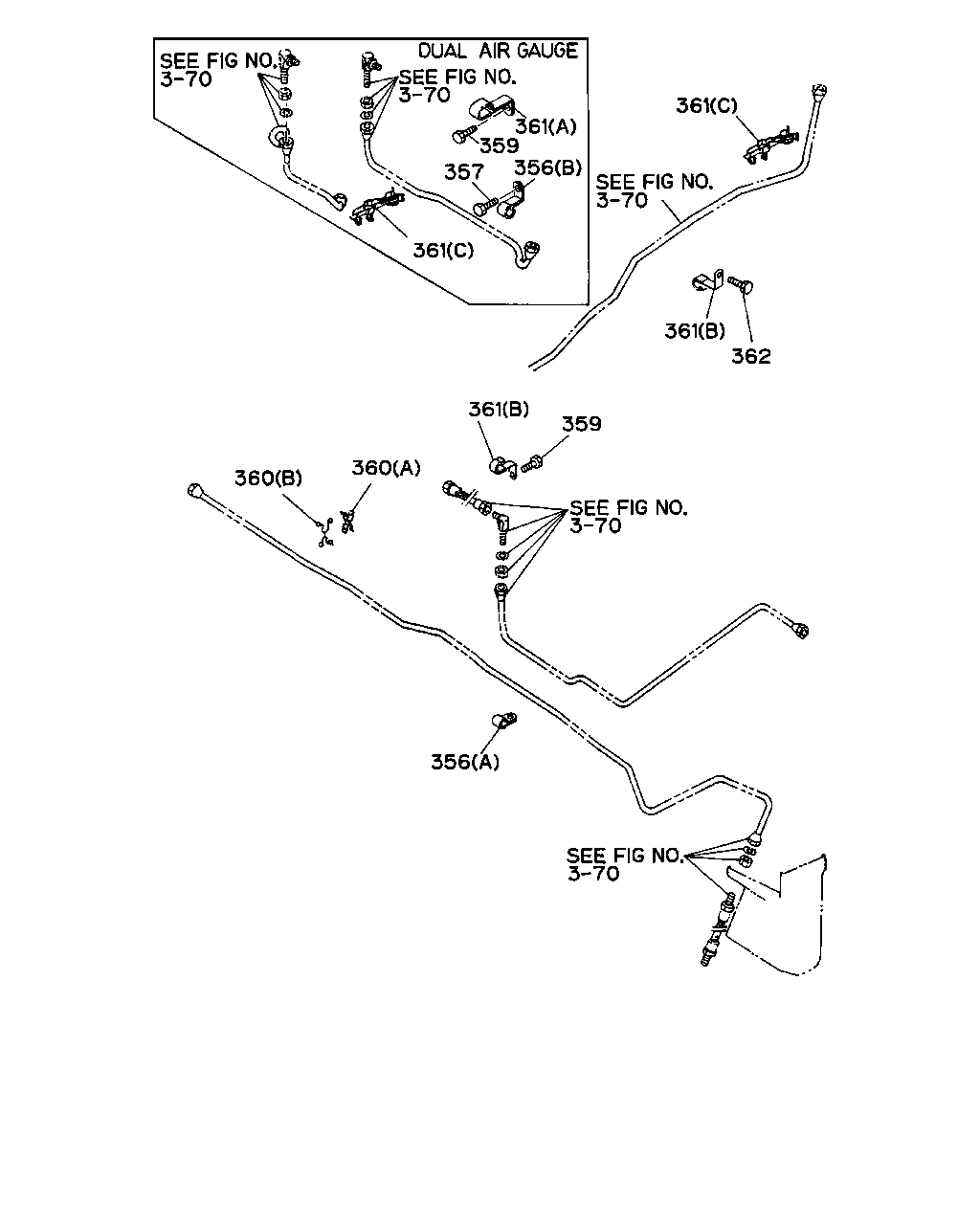

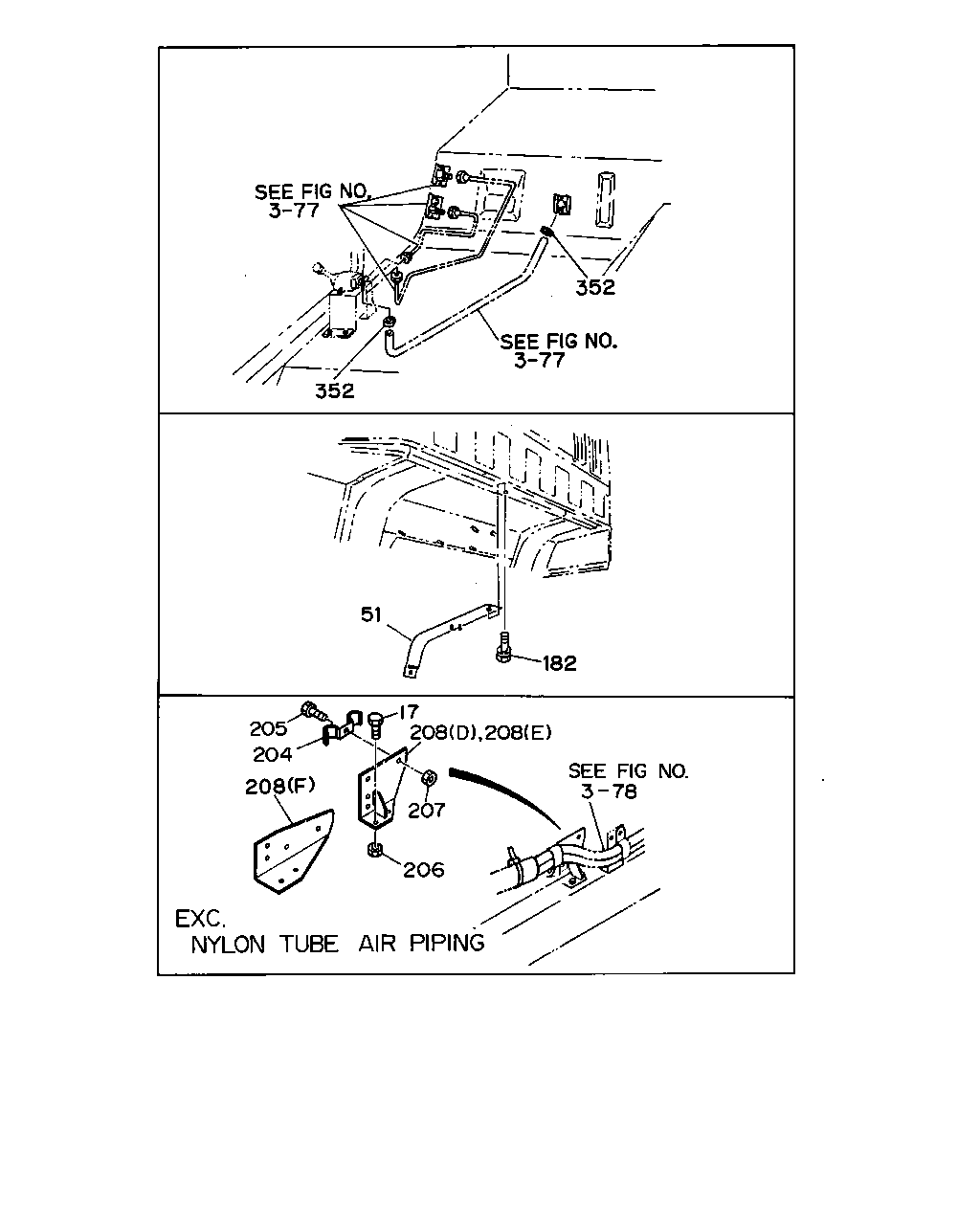

3-78 — FIXING PARTS; AIR PIPING (#1753) — 1188 parça

370 308 369 295 2 68 79 281 298 1 280 318 375 3 80 278 282 299 38 49 55 68 48 54 186 278 313 312 314 279 12 279 34 36 35 39 20 36 131 375 75 2 5 45 49 55 288 298 316 371 287 54 44 4 1 312 318 324 152 47 370 374 263 317 299 46 38 12 6 3 289 295 20 70 75 79 371 75 311 310 283 295 283 1 35 19 93 37 78 39 310 367 36 80 131 130 129 47 286 38 83 25 325

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-09700-659-0	01	1	9002-	●
1	CLIP; AIR PIPE (A)	1-09700-659-0	01	1	9002-		●
1	CLIP; AIR PIPE (B)	1-09700-603-0	01	1	9002-	●	●
2	BOLT; CLIP FIX EXC. NYLON TUBE AIR PIPING<Z29> M8X16 FLANGE	0-28010-816-0	01	1	9002-9204	●
2	BOLT; CLIP FIX M8X16 FLANGE	0-28010-816-0	01	1	9002-9204		●
2	BOLT; CLIP FIX EXC. NYLON TUBE AIR PIPING<Z29> M8X16 FLANGE	0-28080-816-0	01	1	9205-	●
2	BOLT; CLIP FIX M8X16 FLANGE	0-28080-816-0	01	1	9205-		●
2	BOLT; CLIP FIX EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●
2	BOLT; CLIP FIX NEW ZEALAND EQUIPMENT(PK5) NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●
2	BOLT; CLIP FIX M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204		●
2	BOLT; CLIP FIX EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-	●	●
2	BOLT; CLIP FIX NEW ZEALAND EQUIPMENT(PK5) NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-	●
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8	9-09110-408-0	01	1	9002-	●	●
3	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8	9-09110-408-0	02	1	9002-	●	●
4	CLIP; AIR PIPE HONG KONG EQUIPMENT(PQ1) ID=16 & 13 L=18 & 17	1-09700-658-0	02	1	9002-	●
5	BOLT; PIPE CLIP HONG KONG EQUIPMENT(PQ1) M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●
5	BOLT; PIPE CLIP HONG KONG EQUIPMENT(PQ1) M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9306	●
5	BOLT; PIPE CLIP HONG KONG EQUIPMENT(PQ1) M8X16 FLANGE	0-28080-816-0	02	1	9307-	●
6	NUT; PIPE CLIP HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9002-	●
12	NUT; CLIP BRKT SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	9307-	●
12	NUT; CLIP BRKT SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9002-9306	●	●
12	NUT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9007-	●
12	NUT; CLIP BRKT M8	9-09110-408-0	01	1	9007-		●
19	WASHER; LK,CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> ID=10.2	9-09150-510-0	03	1	9002-	●
19	WASHER; LK,CLIP BRKT ID=10.2	9-09150-510-0	04	1	9002-		●
20	BOLT; CLIP AIR DRYER<PS7> M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204	●	●
20	BOLT; CLIP AIR DRYER<PS7> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9306	●	●
20	BOLT; CLIP AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	02	1	9307-	●	●
20	BOLT; CLIP AIR DRYER<PS7> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●
20	BOLT; CLIP AIR DRYER<PS7> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9306	●	●
20	BOLT; CLIP AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	01	1	9307-	●	●
25	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●
25	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●
25	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	01	1	9303-9306	●
25	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M6X20 W/LK&PL WASHER	1-09980-493-0	03	1	9307-9312	●
25	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M6X20 FLANGE	0-28080-620-0	04	1	9401-	●
34	NUT; BRKT 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> M8	9-09110-408-0	02	1	9307-	●
35	CLIP; AIR PIPE AIR DRYER<PS7> (A) ID=16 & 7 L=18 & 15	1-09700-661-0	02	1	9002-	●	●
35	CLIP; AIR PIPE AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9002-	●	●
35	CLIP; AIR PIPE AIR DRYER<PS7> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) ID=16 L=48	9-09916-568-1	01	1	9002-	●	●
36	NUT; CLIP AIR DRYER<PS7> M8	9-09110-408-0	01	1	9002-9009	●	●
36	NUT; CLIP NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> M8	9-09110-408-0	01	1	9002-9009	●
36	NUT; CLIP AIR DRYER<PS7> M8	9-09110-408-0	01	1	9010-9306	●	●
36	NUT; CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9010-9306	●
36	NUT; CLIP AIR DRYER<PS7> M8	9-09110-408-0	03	1	9002-	●	●
36	NUT; CLIP AIR DRYER<PS7> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8	9-09110-408-0	01	1	9307-	●	●
37	BRACKET; PIPE CLIP EXC. AIR DRYER<PS7> L=50	1-47475-299-2	01	1	9010-	●	●
38	NUT; BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9002-9306	●
39	CLIP; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B) ID=11 & 13 L=15 & 16	1-09700-670-0	01	1	9405-	●
39	CLIP; AIR PIPE EXC. AIR DRYER<PS7> (B) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9002-	●	●
39	CLIP; AIR PIPE EXC. AIR DRYER<PS7> (A) ID=16 L=48	9-09916-568-1	01	1	9002-	●	●
39	CLIP; AIR PIPE EXC. AIR DRYER<PS7> (B) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9010-	●	●
44	CLIP; AIR PIPE NYLON TUBE AIR PIPING<Z29> ID=13 & 13 L=16 & 16	1-09700-666-0	01	1	9002-9306	●
45	BOLT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●
45	BOLT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9306	●
46	NUT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9002-9306	●
47	BRACKET; PIPE CLIP NYLON TUBE AIR PIPING<Z29> L=50	1-47475-299-2	01	1	9002-9103	●
47	BRACKET; PIPE CLIP L=50	1-47475-299-2	01	1	9104-9306	●	●
47	BRACKET; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8 W/NUT	1-47475-729-0	01	1	9002-9306	●
47	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> L=50	1-47475-299-2	01	1	9307-	●
47	BRACKET; PIPE CLIP L=50	1-47475-299-2	01	1	9307-		●
48	BOLT; CLIP BRKT SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	04	1	9002-9204	●	●
48	BOLT; CLIP BRKT SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9306	●	●
48	BOLT; CLIP BRKT SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	03	1	9307-	●
49	BOLT; PIPE CLIP SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28010-820-0	01	1	9002-9204	●	●
49	BOLT; PIPE CLIP SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●
54	CLIP; AIR PIPE SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9002-	●
54	CLIP; AIR PIPE SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9002-	●
55	BOLT; PIPE CLIP EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	0-50040-845-0	02	1	9307-	●
55	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	02	1	9307-		●
55	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X35 W/LK WASHER	9-01900-835-0	01	1	9002-9103	●
55	BOLT; PIPE CLIP M8X35 W/LK WASHER	9-01900-835-0	01	1	9002-9103		●
55	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	01	1	9104-9204	●
55	BOLT; PIPE CLIP M8X16 W/LK WASHER	9-01900-816-0	01	1	9104-9204		●
55	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204	●
55	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204		●
55	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-9306	●
55	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-9306		●
55	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-	●
55	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-		●
55	BOLT; PIPE CLIP 8PD1 STD ENG(38L) EXC. NYLON TUBE AIR PIPING<Z29> M8X50 W/LK WASHER	0-50040-850-0	01	1	9307-	●
68	BOLT; CLIP,AIR PIPE FRAME EQUIPMENT HEAVY DUTY<F03> ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	01	1	9307-	●
68	BOLT; CLIP,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28010-820-0	01	1	9002-9204	●
68	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28010-820-0	01	1	9002-9204		●
68	BOLT; CLIP,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9205-	●
68	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	01	1	9205-		●
68	BOLT; CLIP,AIR PIPE ISUZU M/T<X9A> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,TRANSMISSION SIDE PTO WO/LEVER(SH5),NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	01	1	9307-	●	●
68	BOLT; CLIP,AIR PIPE ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●
68	BOLT; CLIP,AIR PIPE ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	01	1	9205-9306	●	●
70	BOLT; CLIP,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	01	1	9002-9103	●
70	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28010-825-0	01	1	9002-9103		●
75	BOLT; CLIP AUTO CAB TILT<WV2> CAB UP 50MM(W60) EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	03	1	9002-9204	●
75	BOLT; CLIP AUTO CAB TILT<WV2> CAB UP 50MM(W60) EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	03	1	9205-9306	●
75	BOLT; CLIP AUTO CAB TILT<WV2> CAB UP 50MM(W60) EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204	●
75	BOLT; CLIP AUTO CAB TILT<WV2> CAB UP 50MM(W60) EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-9306	●
75	BOLT; CLIP EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	9-01900-830-0	01	1	9002-9103	●
75	BOLT; CLIP EXC. DUAL AIR GAUGE<UG2> M8X30 W/LK WASHER	9-01900-830-0	01	1	9002-9103		●
75	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9009	●
75	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	01	1	9010-9204	●
75	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9306	●
78	CLIP; AIR PIPE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=11 L=20	9-09525-035-0	01	1	9002-	●
78	CLIP; AIR PIPE AIR DRYER<PS7> (B) ID=13 & 7 L=16 & 14	1-09700-665-0	02	1	9002-	●	●
79	BOLT; PIPE CLIP HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●
79	BOLT; PIPE CLIP HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●
79	BOLT; PIPE CLIP HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9303-	●
79	BOLT; PIPE CLIP AIR DRYER<PS7> M8X16 W/LK WASHER	9-01900-816-0	03	1	9002-9005	●	●
79	BOLT; PIPE CLIP AIR DRYER<PS7> M8X16 W/LK WASHER	9-01900-816-0	02	1	9006-9204	●	●
79	BOLT; PIPE CLIP AIR DRYER<PS7> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9306	●	●
79	BOLT; PIPE CLIP AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	02	1	9307-	●	●
80	NUT; CLIP,AIR PIPE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9002-	●
80	NUT; CLIP,AIR PIPE AIR DRYER<PS7> M8	9-09110-408-0	03	1	9002-9005	●	●
80	NUT; CLIP,AIR PIPE AIR DRYER<PS7> M8	9-09110-408-0	02	1	9006-	●	●
83	NUT; CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9002-9306	●
93	BRACKET; PIPE CLIP 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L), 10PD1 STD ENG(40L) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47475-427-1	02	1	9002-	●
93	BRACKET; PIPE CLIP (B)	1-47475-427-1	02	1	9002-		●
93	BRACKET; PIPE CLIP 8PD1 STD ENG(38L) EXC. NYLON TUBE AIR PIPING<Z29> (A) L=50	1-47475-299-2	01	1	9307-	●
93	BRACKET; PIPE CLIP 8PD1 STD ENG(38L) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47475-427-1	01	1	9307-	●
129	CLIP; AIR PIPE ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9002-9404	●	●
129	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9405-	●	●
130	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●
130	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9404	●	●
130	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	01	1	9405-	●	●
131	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9104-	●
131	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9104-		●
152	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47475-427-1	02	1	9002-9103	●
152	BRACKET; PIPE CLIP (A)	1-47475-427-1	02	1	9002-9103		●
152	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47475-427-1	02	1	9002-9306	●
152	BRACKET; PIPE CLIP (A)	1-47475-427-1	02	1	9002-9306		●
152	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (B) L=50	1-47475-299-2	01	1	9104-	●
152	BRACKET; PIPE CLIP (B) L=50	1-47475-299-2	01	1	9104-		●
152	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47475-427-1	01	1	9104-	●
152	BRACKET; PIPE CLIP (A)	1-47475-427-1	01	1	9104-		●
186	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=11 & 13 L=15 & 16	1-09700-670-0	01	1	9002-	●
186	CLIP; AIR PIPE (A) ID=11 & 13 L=15 & 16	1-09700-670-0	01	1	9002-		●
186	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=11 & 13 L=21.5 & 21.5	1-09700-688-0	01	1	9002-	●
186	CLIP; AIR PIPE (A) ID=11 & 13 L=21.5 & 21.5	1-09700-688-0	01	1	9002-		●
186	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9008-9306	●
186	CLIP; AIR PIPE (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9008-9306		●
186	CLIP; AIR PIPE 6RB1TC ENG(30L),10PD1 STD ENG(40L) EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9307-	●
186	CLIP; AIR PIPE (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9307-		●
186	CLIP; AIR PIPE 8PD1 STD ENG(38L) EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=11 & 13 L=15 & 16	1-09700-670-0	02	1	9307-	●
263	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9008-9306	●
263	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9008-9306		●
263	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9307-	●	●
278	NUT; CLIP,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9002-	●
278	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9002-		●
278	NUT; CLIP,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-	●	●
279	NUT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-	●
279	NUT; BRKT M8	9-09110-408-0	02	1	9002-		●
280	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> ID=6 H=20 L=20	1-09700-603-0	02	1	9002-	●
280	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=6 H=20 L=20	1-09700-603-0	02	1	9002-		●
280	CLIP; AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9307-	●	●
280	CLIP; AIR PIPE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=6 H=20 L=20	1-09700-603-0	01	1	9307-	●	●
281	BOLT; CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	01	1	9002-9103	●
281	BOLT; CLIP EXC. DUAL AIR GAUGE<UG2> M8X25 FLANGE	0-28010-825-0	01	1	9002-9103		●
281	BOLT; CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	02	1	9104-9204	●
281	BOLT; CLIP EXC. DUAL AIR GAUGE<UG2> M8X25 FLANGE	0-28010-825-0	02	1	9104-9204		●
281	BOLT; CLIP EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9205-	●
281	BOLT; CLIP EXC. DUAL AIR GAUGE<UG2> M8X25 FLANGE	0-28080-825-0	02	1	9205-		●
282	NUT; CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-	●
282	NUT; CLIP EXC. DUAL AIR GAUGE<UG2> M8	9-09110-408-0	02	1	9002-		●
283	NUT; CLIP AUTO CAB TILT<WV2> CAB UP 50MM(W60) EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	9002-9306	●
286	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> L=250	1-09707-126-0	03	1	9002-	●
287	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=13 & 7 L=16 & 14	1-09700-665-0	01	1	9002-9009	●	●
288	BOLT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9009	●	●
289	NUT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8	9-09110-408-0	01	1	9002-9009	●	●
295	NUT; CLIP,AIR PIPE DRIVER SEAT W/ARM REST(SGP) M8	9-09110-408-0	01	1	9307-	●
295	NUT; CLIP,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9307-	●
295	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9307-		●
295	NUT; CLIP,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9002-9306	●
295	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9002-9306		●
295	NUT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8	9-09110-408-0	03	1	9002-	●	●
298	BOLT; CLIP 8PD1 STD ENG(38L) AIR DRYER<PS7> M8X20 W/LK WASHER	0-50040-820-0	01	1	9307-	●
298	BOLT; CLIP AIR DRYER<PS7> M8X20 FLANGE	0-28010-820-0	01	1	9002-9204	●	●
298	BOLT; CLIP AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	01	1	9205-9306	●	●
298	BOLT; CLIP 10PD1 STD ENG(40L) AIR DRYER<PS7> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●	●
298	BOLT; CLIP 10PD1 STD ENG(40L) AIR DRYER<PS7> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302	●	●
298	BOLT; CLIP 10PD1 STD ENG(40L) AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	01	1	9303-	●	●
298	BOLT; CLIP 6RB1TC ENG(30L),10PD1 STD ENG(40L) AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	01	1	9307-	●	●
299	NUT; CLIP AIR DRYER<PS7> M8	9-09110-408-0	01	1	9002-	●	●
299	NUT; CLIP V TYPE ENG<91L> AIR DRYER<PS7> M8	9-09110-408-0	01	1	9002-	●	●
308	BOLT; CLIP,AIR PIPE DRIVER SEAT W/ARM REST(SGP) M8X25 FLANGE	0-28080-825-0	02	1	9307-	●
308	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28080-825-0	02	1	9307-		●
308	BOLT; CLIP,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28010-820-0	01	1	9002-9204	●
308	BOLT; CLIP,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9205-	●
308	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28010-825-0	02	1	9002-9204		●
308	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28080-825-0	02	1	9205-9306		●
310	BRACKET; PIPE CLIP AUTO CAB TILT<WV2> CAB UP 50MM(W60) EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> (A) L=50	1-47475-299-2	02	1	9002-9306	●
310	BRACKET; PIPE CLIP EXC. DUAL AIR GAUGE<UG2>,AUTO CAB TILT<WV2>,CAB UP50MM(W60),NYLON TUBE AIR PIPING<Z29> (B)	1-47475-427-1	01	1	9002-	●	●
311	CLIP; AIR PIPE AUTO CAB TILT<WV2> CAB UP 50MM(W60) EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> ID=9 & 7 L=15 & 15	1-09700-653-0	04	1	9002-9306	●
311	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-9103	●	●
311	CLIP; AIR PIPE NYLON TUBE AIR PIPING<Z29> ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9104-9306	●
312	BRACKET; PIPE CLIP SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (A) L=50	1-47475-299-2	02	1	9002-	●	●
312	BRACKET; PIPE CLIP SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47475-303-1	01	1	9002-	●	●
313	NUT; PIPE CLIP SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9002-	●
314	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	9002-	●	●
316	BOLT; CLIP 8PD1 STD ENG(38L) EXC. AIR DRYER<PS7> M8X20 W/LK WASHER	0-50040-820-0	01	1	9307-	●
316	BOLT; CLIP EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●
316	BOLT; CLIP EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28080-825-0	01	1	9205-9306	●	●
316	BOLT; CLIP V TYPE ENG<91L> EXC. AIR DRYER<PS7> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●	●
316	BOLT; CLIP V TYPE ENG<91L> EXC. AIR DRYER<PS7> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●	●
316	BOLT; CLIP 6RB1TC ENG(30L),10PD1 STD ENG(40L) EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28080-825-0	01	1	9307-	●	●
316	BOLT; CLIP V TYPE ENG<91L> EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28080-825-0	01	1	9307-	●	●
317	NUT; CLIP EXC. AIR DRYER<PS7> M8	9-09110-408-0	01	1	9002-9306	●	●
317	NUT; CLIP V TYPE ENG<91L> EXC. AIR DRYER<PS7> M8	9-09110-408-0	01	1	9307-	●	●
317	NUT; CLIP EXC. AIR DRYER<PS7> M8	9-09110-408-0	01	1	9307-	●	●
318	CLIP; AIR PIPE 8PD1 STD ENG(38L) EXC. AIR DRYER<PS7> (B) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9307-	●
318	CLIP; AIR PIPE EXC. AIR DRYER<PS7> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9002-	●	●
318	CLIP; AIR PIPE V TYPE ENG<91L> EXC. AIR DRYER<PS7> (B) ID=13 & 7 L=16 & 14	1-09700-665-0	01	1	9002-	●	●
324	CLIP; AIR PIPE NYLON TUBE AIR PIPING<Z29> ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9002-9306	●
325	CLIP; AIR PIPE NYLON TUBE AIR PIPING<Z29> ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-9306	●
367	BRACKET ASM L=50	1-47475-299-2	01	1	9307-9404	●	●
367	BRACKET ASM EXC. NYLON TUBE AIR PIPING<Z29> L=50	1-47475-299-2	01	1	9405-	●	●
367	BRACKET ASM AIR DRYER<PS7> L=50	1-47475-299-2	03	1	9307-	●	●
369	CLIP; AIR PIPE DRIVER SEAT W/ARM REST(SGP) ID=6 H=20 L=20	1-09700-603-0	02	1	9307-	●
369	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	02	1	9307-		●
369	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	02	1	9002-9306		●
369	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> ID=6 H=20 L=20	1-09700-603-0	01	1	9002-	●
370	BRACKET; PIPE CLIP DRIVER SEAT W/ARM REST(SGP) (B)	1-47475-304-0	01	1	9307-	●
370	BRACKET; PIPE CLIP (B)	1-47475-304-0	01	1	9307-		●
370	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-34656-004-0	01	1	9002-	●
370	BRACKET; PIPE CLIP 10PD1 STD ENG(40L) AIR DRYER<PS7> (A)	1-47475-299-2	01	1	9002-9306	●	●
370	BRACKET; PIPE CLIP (B)	1-47475-304-0	01	1	9002-9306		●
371	BOLT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9009	●	●
371	BOLT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8X16 W/LK WASHER	9-01900-816-0	03	1	9010-9204	●	●
371	BOLT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8X16 W/LK WASHER	0-50040-816-0	03	1	9205-9306	●	●
371	BOLT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	03	1	9307-	●	●
374	BRACKET; PIPE CLIP HONG KONG EQUIPMENT(PQ1) L=50	1-47475-299-2	02	1	9002-	●
375	CLIP; AIR PIPE 8PD1 STD ENG(38L) AIR DRYER<PS7> (B) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9307-	●
375	CLIP; AIR PIPE AIR DRYER<PS7> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9002-9306	●	●
375	CLIP; AIR PIPE 6RB1TC ENG(30L),10PD1 STD ENG(40L) AIR DRYER<PS7> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9307-	●	●
375	CLIP; AIR PIPE 8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STD ENG(42L) AIR DRYER<PS7> (B) ID=13 & 7 L=16 & 14	1-09700-665-0	01	1	9002-	●	●

65 111 146 74 76 125 128 269 331 161 270 355 355 340 380 270 250 241 221 15 9 256 258 220 78 14 8 240 247 249 7 267 303 224 219 41 253 248 246 239 255 260 266 270 205 187 178 112 89 303 261 240 239 241 239 240 126 11 240 241 236 226 9 188 194 206 207 210 356 242 208 10 189 195 200 246 239 211 224 235 356 204 198 186 7 212 225 240 247 205 199 187 63 60 8 270 241 127 10 16 22 242 12 241 247 246 242 241 127 268 126 267 266 269 128 265 266 258 256 206 188 121 119 113 18 227 257 259 208 189 181 117 114 204 255 118 177 111 41 199 198 194 207 205 206 16 67 16 16 370 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9002-	●
7	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9002-		●
7	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-	●
7	CLIP; AIR PIPE (B) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-		●
8	BOLT; PIPE CLIP FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28080-830-0	01	1	9307-	●
8	BOLT; PIPE CLIP EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	01	1	9307-	●
8	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9307-		●
8	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●
8	BOLT; PIPE CLIP M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204		●
8	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302	●
8	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302		●
8	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X16 FLANGE	0-28080-816-0	01	1	9303-	●
8	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9303-		●
8	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●
8	BOLT; PIPE CLIP M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204		●
8	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●
8	BOLT; PIPE CLIP M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302		●
8	BOLT; PIPE CLIP EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	01	1	9303-9306	●
8	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9303-9306		●
9	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	9002-9103	●
9	NUT; PIPE CLIP M8	9-09110-408-0	03	1	9002-9103		●
9	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9104-	●
9	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9104-		●
10	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (A) L=50	1-47475-299-2	01	1	9002-9006	●
10	BRACKET; PIPE CLIP (A) L=50	1-47475-299-2	01	1	9002-9006		●
10	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (B) L=55	1-47475-304-0	01	1	9007-	●
10	BRACKET; PIPE CLIP (B) L=55	1-47475-304-0	01	1	9007-		●
11	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	01	1	9307-	●
11	BOLT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	01	1	9007-9204	●
11	BOLT; CLIP BRKT M8X25 W/LK WASHER	9-01900-825-0	01	1	9007-9204		●
11	BOLT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●
11	BOLT; CLIP BRKT M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302		●
11	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	01	1	9303-	●
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	01	1	9303-		●
12	NUT; CLIP BRKT SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	9307-	●
12	NUT; CLIP BRKT SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9002-9306	●	●
12	NUT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9007-	●
12	NUT; CLIP BRKT M8	9-09110-408-0	01	1	9007-		●
14	BOLT; PIPE CLIP EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●
14	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9204		●
14	BOLT; PIPE CLIP EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	01	1	9205-	●
14	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-		●
15	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9003-9306	●
15	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9003-9306		●
15	NUT; PIPE CLIP TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9307-	●	●
16	BRACKET; PIPE CLIP AUTO CAB TILT<WV2> CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> (E) 25X37	1-34656-004-0	01	1	9002-9306	●
16	BRACKET; PIPE CLIP AUTO CAB TILT<WV2> CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> (D) L=90 B=25	1-47475-530-0	01	1	9002-9306	●
16	BRACKET; PIPE CLIP CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> (B)	1-47476-045-1	01	1	9002-	●
16	BRACKET; PIPE CLIP NYLON TUBE AIR PIPING<Z29> (A)	1-47476-075-0	04	1	9002-9206	●
16	BRACKET; PIPE CLIP NYLON TUBE AIR PIPING<Z29> (F)	1-47475-601-0	01	1	9010-9306	●
16	BRACKET; PIPE CLIP NYLON TUBE AIR PIPING<Z29> (G)	1-47476-428-0	04	1	9207-	●
16	BRACKET; PIPE CLIP NYLON TUBE AIR PIPING<Z29> (H)	1-47476-429-0	04	1	9207-	●
16	BRACKET; PIPE CLIP NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) (C)	1-47476-346-0	01	1	9002-	●
16	BRACKET; PIPE CLIP NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) (I)	1-46159-029-0	01	1	9010-	●
18	NUT; CLIP HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	01	1	9002-	●
22	BRACKET; CLIP NYLON TUBE AIR PIPING<Z29> (B)	1-47475-601-0	01	1	9002-	●
22	BRACKET; CLIP NYLON TUBE AIR PIPING<Z29> (A)	1-47476-030-0	01	1	9002-	●
22	BRACKET; CLIP NYLON TUBE AIR PIPING<Z29> (C)	1-47475-304-0	02	1	9405-	●
41	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-09700-745-0	01	1	9003-9004	●
41	CLIP; AIR PIPE (A)	1-09700-745-0	01	1	9003-9004		●
41	CLIP; AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-09700-745-0	01	1	9005-9306	●	●
41	CLIP; AIR PIPE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-09700-603-0	01	1	9005-9306	●	●
60	BOLT; CLIP FIX TAIL PIPE SINGLE HORIZONTAL<NC2> M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204	●
60	BOLT; CLIP FIX TAIL PIPE SINGLE HORIZONTAL<NC2> M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-9302	●
60	BOLT; CLIP FIX TAIL PIPE SINGLE HORIZONTAL<NC2> M8X50 FLANGE	0-28080-850-0	02	1	9303-	●
63	BOLT; CLIP M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●	●
63	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9306	●	●
63	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9307-	●	●
65	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> ID=11 H=20 L=20	5-09700-351-0	01	1	9002-9103	●
65	CLIP; AIR PIPE ID=11 H=20 L=20	5-09700-351-0	01	1	9002-9103		●
67	BRACKET; CLIP NYLON TUBE AIR PIPING<Z29> (B)	1-47476-045-1	01	1	9002-	●
67	BRACKET; CLIP NYLON TUBE AIR PIPING<Z29> (A)	1-46159-029-0	01	1	9307-9404	●
74	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> L=250	1-09707-126-0	04	1	9307-	●
76	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> (B) L=135	1-09987-143-1	01	1	9002-9306	●
76	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> (A) L=140	5-09707-031-0	04	1	9002-9306	●
76	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) L=250	1-09707-126-0	06	1	9307-	●
78	CLIP; AIR PIPE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=11 L=20	9-09525-035-0	01	1	9002-	●
78	CLIP; AIR PIPE AIR DRYER<PS7> (B) ID=13 & 7 L=16 & 14	1-09700-665-0	02	1	9002-	●	●
89	BOLT; PIPE CLIP FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	01	1	9307-	●
89	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	0-50040-845-0	01	1	9002-	●
89	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	01	1	9002-		●
89	BOLT; PIPE CLIP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X45 W/LK WASHER	9-01900-845-0	03	1	9002-9204	●
89	BOLT; PIPE CLIP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X45 W/LK WASHER	0-50040-845-0	03	1	9205-9302	●
89	BOLT; PIPE CLIP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X50 FLANGE	0-28080-850-0	03	1	9303-	●
89	BOLT; PIPE CLIP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X16 W/LK WASHER	0-50040-816-0	01	1	9308-	●
89	BOLT; PIPE CLIP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> M8X50 FLANGE	0-28080-850-0	01	1	9303-	●
89	BOLT; PIPE CLIP M8X50 FLANGE	0-28080-850-0	01	1	9303-		●
89	BOLT; PIPE CLIP TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 W/LK WASHER	9-01900-820-0	01	1	9005-9204	●	●
89	BOLT; PIPE CLIP TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-	●	●
89	BOLT; PIPE CLIP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 W/LK WASHER	0-50040-825-0	01	1	9005-9306	●	●
89	BOLT; PIPE CLIP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 FLANGE	0-28080-825-0	01	1	9307-	●	●
111	CLIP; AIR PIPE NYLON TUBE AIR PIPING<Z29> (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9307-9404	●
111	CLIP; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B) ID=11 & 13 L=15 & 16	1-09700-670-0	01	1	9405-	●
111	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=16 & 11 L=18 & 17	1-09700-657-0	01	1	9002-	●
111	CLIP; AIR PIPE (B) ID=16 & 11 L=18 & 17	1-09700-657-0	01	1	9002-		●
111	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=16 & 16	1-09700-674-0	01	1	9002-	●
111	CLIP; AIR PIPE (B) ID=16 & 16	1-09700-674-0	01	1	9002-		●
112	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204	●
112	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204		●
112	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-9302	●
112	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-9302		●
112	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X50 FLANGE	0-28080-850-0	02	1	9303-	●
112	BOLT; PIPE CLIP M8X50 FLANGE	0-28080-850-0	02	1	9303-		●
113	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-	●
113	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9002-		●
114	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-427-1	02	1	9002-	●
114	BRACKET; PIPE CLIP	1-47475-427-1	02	1	9002-		●
117	BRACKET; PIPE CLIP TAIL PIPE SINGLE HORIZONTAL<NC2>	1-47475-427-1	02	1	9002-	●
117	BRACKET; PIPE CLIP TAIL PIPE SINGLE HORIZONTAL<NC2>	1-47475-427-1	03	1	9002-	●
117	BRACKET; PIPE CLIP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29>	1-47475-427-1	01	1	9002-	●
117	BRACKET; PIPE CLIP	1-47475-427-1	01	1	9002-		●
118	CLIP; AIR PIPE FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9307-	●
118	CLIP; AIR PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=16 & 11 L=18 & 17	1-09700-657-0	04	1	9002-9006	●
118	CLIP; AIR PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=16 & 11 L=18 & 17	1-09700-657-0	02	1	9307-	●
118	CLIP; AIR PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=16 & 11 L=18 & 17	1-09700-657-0	06	1	9007-9306	●
118	CLIP; AIR PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (B) ID=16 & 11 L=18 & 17	1-09700-657-0	01	1	9002-	●
118	CLIP; AIR PIPE (B) ID=16 & 11 L=18 & 17	1-09700-657-0	01	1	9002-		●
118	CLIP; AIR PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=16 & 11 L=18 & 17	1-09700-657-0	04	1	9307-	●
119	NUT; CLIP BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9002-	●
121	NUT; PIPE CLIP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	04	1	9002-	●
121	NUT; PIPE CLIP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9002-9306	●
121	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9002-9306		●
121	NUT; PIPE CLIP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9307-	●
121	NUT; PIPE CLIP FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9307-	●
121	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9307-		●
125	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> L=250	1-09707-126-0	01	1	9002-9009	●
125	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) L=250	1-09707-126-0	03	1	9002-9306	●
126	BOLT; CLIP BRKT AUTO CAB TILT<WV2> CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X28 W/LK WASHER	9-01900-828-0	02	1	9002-9204	●
126	BOLT; CLIP BRKT AUTO CAB TILT<WV2> CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X28 W/LK WASHER	0-50040-828-0	02	1	9205-9306	●
126	BOLT; CLIP BRKT CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●
126	BOLT; CLIP BRKT CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●
126	BOLT; CLIP BRKT CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	02	1	9303-9306	●
126	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	09	1	9002-9204	●
126	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	09	1	9205-9206	●
126	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●
126	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	0-50040-830-0	03	1	9205-	●
126	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	08	1	9207-9302	●
126	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	08	1	9303-9306	●
126	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	08	1	9307-	●
126	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9307-	●
127	NUT; CLIP BRKT AUTO CAB TILT<WV2> CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-9306	●
127	NUT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	10	1	9002-9306	●
127	NUT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	02	1	9002-9306	●
127	NUT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	13	1	9307-9404	●
127	NUT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	10	1	9405-	●
127	NUT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) M10	9-09110-510-0	01	1	9002-	●
128	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) ID=24 L=32	1-09700-766-1	02	1	9002-9404	●
128	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) ID=24.5 H=23 L=25	1-09700-862-0	02	1	9002-9404	●
128	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) ID=24.5 H=23 L=25	1-09700-862-0	04	1	9405-	●
128	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) ID=13X2 L=20	9-09535-236-0	02	1	9002-9404	●
128	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) ID=31	1-09700-969-0	02	1	9405-	●
128	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) ID=19 H=50 L=25	9-09916-622-0	02	1	9002-9404	●
128	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) L=250	1-09707-126-0	25	1	9307-	●
128	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> EXC. AUTO CAB TILT<WV2> (A) L=250	1-09707-126-0	01	1	9002-9306	●
128	CLIP; NYLON TUBE AUTO CAB TILT<WV2> NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) (A) L=250	1-09707-126-0	01	1	9002-9306	●
146	CLIP; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B)	1-09700-688-0	02	1	9002-9306	●
146	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A)	5-09700-351-0	02	1	9002-	●
146	CLIP; AIR PIPE (A)	5-09700-351-0	02	1	9002-		●
146	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-09700-670-0	02	1	9002-	●	●
161	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=11 H=20 L=20	5-09700-351-0	02	1	9002-	●
161	CLIP; AIR PIPE (A) ID=11 H=20 L=20	5-09700-351-0	02	1	9002-		●
161	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=11 & 7 L=15 & 15	1-09700-659-0	01	1	9104-	●
161	CLIP; AIR PIPE (B) ID=11 & 7 L=15 & 15	1-09700-659-0	01	1	9104-		●
177	CLIP; AIR PIPE HONG KONG EQUIPMENT(PQ1) ID=11 & 9 L=15 & 15	1-09700-655-0	01	1	9002-	●
178	BOLT; PIPE CLIP HONG KONG EQUIPMENT(PQ1) M8X40 W/LK WASHER	9-01900-840-0	01	1	9002-9204	●
178	BOLT; PIPE CLIP HONG KONG EQUIPMENT(PQ1) M8X40 W/LK WASHER	0-50040-840-0	01	1	9205-	●
181	BRACKET; PIPE CLIP HONG KONG EQUIPMENT(PQ1)	1-47475-427-1	01	1	9002-	●
186	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=11 & 13 L=15 & 16	1-09700-670-0	01	1	9002-	●
186	CLIP; AIR PIPE (A) ID=11 & 13 L=15 & 16	1-09700-670-0	01	1	9002-		●
186	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=11 & 13 L=21.5 & 21.5	1-09700-688-0	01	1	9002-	●
186	CLIP; AIR PIPE (A) ID=11 & 13 L=21.5 & 21.5	1-09700-688-0	01	1	9002-		●
186	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9008-9306	●
186	CLIP; AIR PIPE (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9008-9306		●
186	CLIP; AIR PIPE 6RB1TC ENG(30L),10PD1 STD ENG(40L) EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9307-	●
186	CLIP; AIR PIPE (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9307-		●
186	CLIP; AIR PIPE 8PD1 STD ENG(38L) EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=11 & 13 L=15 & 16	1-09700-670-0	02	1	9307-	●
187	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●
187	BOLT; PIPE CLIP M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204		●
187	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-	●
187	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-		●
187	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9103	●
187	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9103		●
187	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204	●
187	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204		●
187	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-	●
187	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-		●
187	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	01	1	9008-9204	●
187	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9008-9204		●
187	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	01	1	9205-	●
187	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-		●
187	BOLT; PIPE CLIP 8PD1 STD ENG(38L) EXC. NYLON TUBE AIR PIPING<Z29> M8X50 W/LK WASHER	0-50040-850-0	02	1	9307-	●
188	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-	●
188	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9002-		●
188	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9002-	●
188	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9002-		●
189	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (A) L=50	1-47475-299-2	01	1	9002-	●
189	BRACKET; PIPE CLIP (A) L=50	1-47475-299-2	01	1	9002-		●
189	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47475-427-1	02	1	9002-	●
189	BRACKET; PIPE CLIP (B)	1-47475-427-1	02	1	9002-		●
194	NUT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	05	1	9002-9009	●
194	NUT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9010-9306	●
195	BRACKET; PIPE CLIP EXC. DUAL AIR GAUGE<UG2> L=50	1-47475-299-2	02	1	9002-	●	●
195	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> L=50	1-47475-299-2	02	1	9002-	●
195	BRACKET; PIPE CLIP L=50	1-47475-299-2	02	1	9002-		●
198	CLIP; AIR PIPE NYLON TUBE AIR PIPING<Z29> ID=13 & 7 L=16 & 14	1-09700-665-0	03	1	9002-9009	●
198	CLIP; AIR PIPE NYLON TUBE AIR PIPING<Z29> ID=13 & 7 L=16 & 14	1-09700-665-0	02	1	9010-9306	●
198	CLIP; AIR PIPE NYLON TUBE AIR PIPING<Z29> ID=13 & 13 L=16 & 16	1-09700-666-0	01	1	9002-9306	●
199	BOLT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	04	1	9002-9009	●
199	BOLT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	03	1	9010-9204	●
199	BOLT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	03	1	9205-9306	●
199	BOLT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●
199	BOLT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9306	●
200	BRACKET; PIPE CLIP NYLON TUBE AIR PIPING<Z29> L=50	1-47475-299-2	01	1	9002-9306	●
204	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> 13X13 L=32	1-09700-666-0	04	1	9002-9306	●
204	CLIP; AIR PIPE 13X13 L=32	1-09700-666-0	04	1	9002-9306		●
204	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> 13X13 L=32	1-09700-666-0	02	1	9002-	●
204	CLIP; AIR PIPE 13X13 L=32	1-09700-666-0	02	1	9002-		●
204	CLIP; AIR PIPE 8PD1 STD ENG(38L) 13X13 L=36	1-09700-833-0	01	1	9307-	●
204	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> 13X7 L=30	1-09700-665-0	02	1	9002-	●	●
204	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> 13X13 L=43	1-09700-689-0	01	1	9307-	●	●
205	BOLT; PIPE CLIP FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> M8X50 W/LK WASHER	0-50040-850-0	01	1	9307-	●
205	BOLT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M12X40	9-01901-240-0	02	1	9002-9204	●
205	BOLT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M12X40 W/LK WASHER	0-50041-240-0	02	1	9205-9306	●
205	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	03	1	9002-9204	●
205	BOLT; PIPE CLIP M8X16 W/LK WASHER	9-01900-816-0	03	1	9002-9204		●
205	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	03	1	9205-9306	●
205	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	03	1	9205-9306		●
205	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●
205	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204		●
205	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9306	●
205	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9306		●
205	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204	●
205	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204		●
205	BOLT; PIPE CLIP EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-	●
205	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-		●
205	BOLT; PIPE CLIP 6RB1TC ENG(30L),10PD1 STD ENG(40L) EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-	●
205	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-		●
205	BOLT; PIPE CLIP EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204	●	●
205	BOLT; PIPE CLIP EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9306	●	●
205	BOLT; PIPE CLIP EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	02	1	9307-	●	●
205	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	02	1	9307-	●
205	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	01	1	9307-	●	●
206	NUT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	02	1	9002-9304	●
206	NUT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	02	1	9305-9306	●
206	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9002-9306	●
206	NUT; PIPE CLIP M8	9-09110-408-0	04	1	9002-9306		●
206	NUT; PIPE CLIP 8PD1 STD ENG(38L) M8	9-09110-408-0	01	1	9307-	●
206	NUT; PIPE CLIP EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-	●	●
207	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-	●
207	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9002-		●
207	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9307-	●	●
208	BRACKET; PIPE CLIP NYLON TUBE AIR PIPING<Z29> (C)	1-47476-446-0	01	1	9002-9306	●
208	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (A) L=50	1-47475-299-2	01	1	9002-	●
208	BRACKET; PIPE CLIP (A) L=50	1-47475-299-2	01	1	9002-		●
208	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47475-427-1	01	1	9002-	●
208	BRACKET; PIPE CLIP (B)	1-47475-427-1	01	1	9002-		●
208	BRACKET; PIPE CLIP 6RA1TC ENG(19L) EXC. NYLON TUBE AIR PIPING<Z29> (F)	1-47476-705-0	01	1	9010-9306	●
208	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (D)	1-47475-485-2	01	1	9002-	●	●
208	BRACKET; PIPE CLIP 12PD1 STD ENG(42L) (E)	1-47476-373-1	01	1	9002-9306		●
210	NUT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	04	1	9002-	●
210	NUT; CLIP BRKT M10	9-09110-510-0	03	1	9002-		●
211	CLIP; AIR PIPE AUTO CAB TILT<WV2> CAB UP 50MM(W60) EXC. NYLON TUBE AIR PIPING<Z29> ID=13 & 7 L=16 & 14	1-09700-665-0	01	1	9002-	●
211	CLIP; AIR PIPE AUTO CAB TILT<WV2> CAB UP 50MM(W60) EXC. NYLON TUBE AIR PIPING<Z29> ID=13 & 9 L=18 & 17	1-09700-667-0	01	1	9002-	●
211	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> ID=13 & 9 L=18 & 17	1-09700-667-0	02	1	9002-	●
211	CLIP; AIR PIPE ID=13 & 9 L=18 & 17	1-09700-667-0	02	1	9002-		●
212	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204	●
212	BOLT; PIPE CLIP M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204		●
212	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-	●
212	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-		●
219	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> ID=11 H=20 L=20	5-09700-351-0	01	1	9002-	●
219	CLIP; AIR PIPE ID=11 H=20 L=20	5-09700-351-0	01	1	9002-		●
220	BOLT; PIPE CLIP FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	01	1	9307-	●
220	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●
220	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9204		●
220	BOLT; PIPE CLIP EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	01	1	9205-	●
220	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-		●
220	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28010-830-0	01	1	9002-9103	●
220	BOLT; PIPE CLIP M8X30 FLANGE	0-28010-830-0	01	1	9002-9103		●
221	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9002-	●
221	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9002-		●
224	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9007-	●
224	CLIP; AIR PIPE (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9007-		●
224	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=16 & 11 L=18 & 17	1-09700-657-0	01	1	9104-	●
224	CLIP; AIR PIPE (B) ID=16 & 11 L=18 & 17	1-09700-657-0	01	1	9104-		●
225	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	9-01900-845-0	01	1	9104-9204	●
225	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	01	1	9104-9204		●
225	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-	●
225	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-		●
225	BOLT; PIPE CLIP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28010-830-0	01	1	9007-9103	●
225	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28010-830-0	01	1	9104-9204	●
225	BOLT; PIPE CLIP M8X30 FLANGE	0-28010-830-0	01	1	9104-9204		●
225	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	01	1	9205-	●
225	BOLT; PIPE CLIP M8X30 FLANGE	0-28080-830-0	01	1	9205-		●
226	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9104-	●
226	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9104-		●
226	NUT; PIPE CLIP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	01	1	9007-9103	●
227	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-427-1	01	1	9104-	●
227	BRACKET; PIPE CLIP	1-47475-427-1	01	1	9104-		●
235	CLIP; AIR PIPE ID=16 & 11 L=18 & 17	1-09700-657-0	01	1	9002-9404	●	●
235	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> ID=16 & 11 L=18 & 17	1-09700-657-0	01	1	9405-	●	●
236	NUT; CLIP M8	9-09110-408-0	01	1	9002-9404	●	●
236	NUT; CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9405-	●	●
239	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=11 H=20 L=20	5-09700-351-0	02	1	9002-	●
239	CLIP; AIR PIPE (B) ID=11 H=20 L=20	5-09700-351-0	02	1	9002-		●
239	CLIP; AIR PIPE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=11 & 9 L=15 & 15	1-09700-655-0	04	1	9002-	●	●
239	CLIP; AIR PIPE V TYPE ENG<91L> EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=11 & 9 L=15 & 15	1-09700-655-0	05	1	9104-	●	●
240	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	04	1	9002-9103	●
240	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	04	1	9002-9103		●
240	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	03	1	9104-9204	●
240	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	03	1	9104-9204		●
240	BOLT; PIPE CLIP EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	03	1	9205-	●
240	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	03	1	9205-		●
240	BOLT; PIPE CLIP L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	04	1	9002-9204	●	●
240	BOLT; PIPE CLIP L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	04	1	9205-9306	●	●
240	BOLT; PIPE CLIP L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> M8X16 FLANGE	0-28080-816-0	04	1	9307-	●
240	BOLT; PIPE CLIP V TYPE ENG<91L> EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	05	1	9104-9204	●	●
240	BOLT; PIPE CLIP V TYPE ENG<91L> EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	05	1	9205-9306	●	●
240	BOLT; PIPE CLIP V TYPE ENG<91L> EXC. NYLON TUBE AIR PIPING<Z29> M8X16 FLANGE	0-28080-816-0	05	1	9307-	●	●
241	NUT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	05	1	9002-9009	●
241	NUT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9010-9306	●
241	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	07	1	9002-	●
241	NUT; PIPE CLIP M8	9-09110-408-0	07	1	9002-		●
241	NUT; PIPE CLIP V TYPE ENG<91L> EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-	●	●
242	BRACKET; PIPE CLIP NYLON TUBE AIR PIPING<Z29> (B)	1-47476-074-0	01	1	9002-9306	●
242	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-47475-304-0	01	1	9002-	●
242	BRACKET; PIPE CLIP (C)	1-47475-304-0	01	1	9002-		●
242	BRACKET; PIPE CLIP NYLON TUBE AIR PIPING<Z29> (A)	1-47475-299-2	03	1	9002-	●	●
242	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47475-299-2	04	1	9002-9009	●	●
242	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47475-299-2	03	1	9010-	●	●
246	CLIP; AIR PIPE NYLON TUBE AIR PIPING<Z29> (A) ID=11 & 9 L=15 & 15	1-09700-655-0	05	1	9002-9009	●
246	CLIP; AIR PIPE NYLON TUBE AIR PIPING<Z29> (A) ID=11 & 9 L=15 & 15	1-09700-655-0	04	1	9010-9306	●
246	CLIP; AIR PIPE V TYPE ENG<91L> EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=9 L=20	9-09524-835-0	01	1	9002-	●	●
247	BOLT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	04	1	9002-9306	●
247	BOLT; PIPE CLIP V TYPE ENG<91L> EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●	●
247	BOLT; PIPE CLIP V TYPE ENG<91L> EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9306	●	●
247	BOLT; PIPE CLIP V TYPE ENG<91L> EXC. NYLON TUBE AIR PIPING<Z29> M8X16 FLANGE	0-28080-816-0	01	1	9307-	●	●
248	CLIP; AIR PIPE V TYPE ENG<91L> EXC. NYLON TUBE AIR PIPING<Z29> ID=8 H=20 L=20	1-09700-604-0	01	1	9002-9103	●	●
249	BOLT; PIPE CLIP V TYPE ENG<91L> M8X25 FLANGE	0-28010-825-0	01	1	9002-9103	●	●
250	NUT; PIPE CLIP V TYPE ENG<91L> EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9002-9103	●	●
253	CLIP; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=8 H=20 L=20	1-09700-604-0	01	1	9002-	●
253	CLIP; AIR PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	9002-		●
255	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-09700-604-0	01	1	9002-	●
255	CLIP; AIR PIPE (A)	1-09700-604-0	01	1	9002-		●
255	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-09700-669-0	01	1	9002-9103	●
255	CLIP; AIR PIPE (B)	1-09700-669-0	01	1	9002-9103		●
256	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9002-	●
256	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9002-		●
257	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-427-1	01	1	9002-9103	●
257	BRACKET; PIPE CLIP	1-47475-427-1	01	1	9002-9103		●
258	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9002-	●
258	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9002-		●
259	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-427-1	01	1	9002-9103	●
259	BRACKET; PIPE CLIP	1-47475-427-1	01	1	9002-9103		●
260	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9002-	●
260	CLIP; AIR PIPE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9002-		●
260	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-9103	●
260	CLIP; AIR PIPE (A) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-9103		●
260	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=11 & 11 L=15 & 15	1-09700-656-0	01	1	9002-9306	●
260	CLIP; AIR PIPE (A) ID=11 & 11 L=15 & 15	1-09700-656-0	01	1	9002-9306		●
261	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●
261	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9204		●
261	BOLT; PIPE CLIP EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	01	1	9205-	●
261	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-		●
261	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9103	●
261	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9103		●
265	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> L=250	1-09707-126-0	02	1	9002-	●
266	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	1-34656-004-0	01	1	9002-9404	●
266	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	1-09707-126-0	03	1	9307-	●
266	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	9-09525-286-0	02	1	9307-	●
267	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●
267	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●
267	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	0-50040-830-0	01	1	9303-9306	●
267	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	01	1	9307-9404	●
268	NUT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-9306	●
268	NUT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9307-9404	●
269	CLIP; BAND,NYLON TUBE NYLON TUBE AIR PIPING<Z29> L=250	1-09707-126-0	01	1	9002-	●
269	CLIP; BAND,NYLON TUBE NYLON TUBE AIR PIPING<Z29> L=140	5-09707-031-0	02	1	9002-	●
269	CLIP; BAND,NYLON TUBE NYLON TUBE AIR PIPING<Z29> L=250	1-09707-126-0	17	1	9307-	●
270	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) ID=27 H=40 L=33	1-09700-156-0	01	1	9002-9306	●
270	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) ID=12	1-09700-376-0	01	1	9002-	●
270	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) L=140	5-09707-031-0	01	1	9002-9306	●
270	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) ID=11X2 L=16	9-09535-025-0	04	1	9002-9306	●
270	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) L=250	1-09707-126-0	01	1	9010-	●
270	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) ID=23 H=30 L=35	1-09700-743-0	01	1	9307-9312	●
270	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) ID=13X2 L=20	9-09535-236-0	01	1	9307-	●
270	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) ID=30 H=40 L=35	1-09701-083-0	01	1	9410-	●
303	BOLT; PIPE CLIP EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204	●
303	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204		●
303	BOLT; PIPE CLIP EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301	●
303	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301		●
303	BOLT; PIPE CLIP EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	01	1	9302-9305	●
303	BOLT; PIPE CLIP M6X16 FLANGE	0-28080-616-0	01	1	9302-9305		●
303	BOLT; PIPE CLIP EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	01	1	9306-	●
303	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9306-		●
303	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	01	1	9002-9103	●
303	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9103		●
303	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9103	●
303	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9103		●
331	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=27	1-09700-441-0	03	1	9307-	●
331	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=9	9-09524-862-0	02	1	9307-	●
331	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=16X2 L=20	9-09535-533-0	01	1	9307-	●
340	CLIP; BAND,FLEX HOSE EXC. CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> L=250	5-09707-030-0	01	1	9002-	●	●
355	CLIP; BAND,CORRUGATE NYLON TUBE AIR PIPING<Z29> L=140	5-09707-031-0	04	1	9002-9306	●
355	CLIP; BAND,CORRUGATE NYLON TUBE AIR PIPING<Z29> L=140	5-09707-031-0	17	1	9307-9409	●
355	CLIP; BAND,CORRUGATE NYLON TUBE AIR PIPING<Z29> L=140	5-09707-031-0	12	1	9410-	●
356	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> (B)	9-09527-005-0	01	1	9002-	●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (A)	9-09524-515-0	01	1	9002-	●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (C)	1-47466-005-0	01	1	9407-		●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (D) ID=5 & 8	5-09700-165-0	01	1	9407-		●
370	BRACKET; PIPE CLIP DRIVER SEAT W/ARM REST(SGP) (B)	1-47475-304-0	01	1	9307-	●
370	BRACKET; PIPE CLIP (B)	1-47475-304-0	01	1	9307-		●
370	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-34656-004-0	01	1	9002-	●
370	BRACKET; PIPE CLIP 10PD1 STD ENG(40L) AIR DRYER<PS7> (A)	1-47475-299-2	01	1	9002-9306	●	●
370	BRACKET; PIPE CLIP (B)	1-47475-304-0	01	1	9002-9306		●
380	BAND; FLEX HOSE EXC. CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> L=175	1-09707-178-0	01	1	9307-	●	●

55 89 98 142 147 168 88 91 97 141 146 164 144 137 100 93 148 143 103 99 163 152 136 137 134 135 169 150 90 136 161 134 118 135 162 147 146 148 70 94 85 6 372 101 175 107 107 109 108 108 107 21 126 107 110 22 133 339 339 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	NUT; PIPE CLIP HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9002-	●
21	NUT; CLIP NYLON TUBE AIR PIPING<Z29> M6 FLANGE	1-09984-123-0	01	1	9401-	●
22	BRACKET; CLIP NYLON TUBE AIR PIPING<Z29> (B)	1-47475-601-0	01	1	9002-	●
22	BRACKET; CLIP NYLON TUBE AIR PIPING<Z29> (A)	1-47476-030-0	01	1	9002-	●
22	BRACKET; CLIP NYLON TUBE AIR PIPING<Z29> (C)	1-47475-304-0	02	1	9405-	●
55	BOLT; PIPE CLIP EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	0-50040-845-0	02	1	9307-	●
55	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	02	1	9307-		●
55	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X35 W/LK WASHER	9-01900-835-0	01	1	9002-9103	●
55	BOLT; PIPE CLIP M8X35 W/LK WASHER	9-01900-835-0	01	1	9002-9103		●
55	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	01	1	9104-9204	●
55	BOLT; PIPE CLIP M8X16 W/LK WASHER	9-01900-816-0	01	1	9104-9204		●
55	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204	●
55	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204		●
55	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-9306	●
55	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-9306		●
55	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-	●
55	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-		●
55	BOLT; PIPE CLIP 8PD1 STD ENG(38L) EXC. NYLON TUBE AIR PIPING<Z29> M8X50 W/LK WASHER	0-50040-850-0	01	1	9307-	●
70	BOLT; CLIP,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	01	1	9002-9103	●
70	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28010-825-0	01	1	9002-9103		●
85	NUT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9002-9103	●
85	NUT; CLIP BRKT M8	9-09110-408-0	01	1	9002-9103		●
85	NUT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9104-	●
85	NUT; CLIP BRKT M8	9-09110-408-0	02	1	9104-		●
88	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> ID=16 & 11 L=18 & 17	1-09700-657-0	01	1	9002-	●
88	CLIP; AIR PIPE ID=16 & 11 L=18 & 17	1-09700-657-0	01	1	9002-		●
89	BOLT; PIPE CLIP FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	01	1	9307-	●
89	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	0-50040-845-0	01	1	9002-	●
89	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	01	1	9002-		●
89	BOLT; PIPE CLIP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X45 W/LK WASHER	9-01900-845-0	03	1	9002-9204	●
89	BOLT; PIPE CLIP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X45 W/LK WASHER	0-50040-845-0	03	1	9205-9302	●
89	BOLT; PIPE CLIP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X50 FLANGE	0-28080-850-0	03	1	9303-	●
89	BOLT; PIPE CLIP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X16 W/LK WASHER	0-50040-816-0	01	1	9308-	●
89	BOLT; PIPE CLIP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> M8X50 FLANGE	0-28080-850-0	01	1	9303-	●
89	BOLT; PIPE CLIP M8X50 FLANGE	0-28080-850-0	01	1	9303-		●
89	BOLT; PIPE CLIP TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 W/LK WASHER	9-01900-820-0	01	1	9005-9204	●	●
89	BOLT; PIPE CLIP TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-	●	●
89	BOLT; PIPE CLIP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 W/LK WASHER	0-50040-825-0	01	1	9005-9306	●	●
89	BOLT; PIPE CLIP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 FLANGE	0-28080-825-0	01	1	9307-	●	●
90	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9002-	●
90	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9002-		●
91	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> ID=11 & 9 L=15 & 15	1-09700-655-0	02	1	9002-9306	●
91	CLIP; AIR PIPE ID=11 & 9 L=15 & 15	1-09700-655-0	02	1	9002-9306		●
91	CLIP; AIR PIPE EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> ID=11 & 9 L=15 & 15	1-09700-655-0	02	1	9307-	●
91	CLIP; AIR PIPE ID=11 & 9 L=15 & 15	1-09700-655-0	02	1	9307-		●
91	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> ID=11 & 9 L=15 & 15	1-09700-655-0	01	1	9002-	●
91	CLIP; AIR PIPE ID=11 & 9 L=15 & 15	1-09700-655-0	01	1	9002-		●
91	CLIP; AIR PIPE 8PD1 STD ENG(38L) EXC. NYLON TUBE AIR PIPING<Z29> ID=11 & 13 L=15 & 16	1-09700-670-0	02	1	9307-	●
92	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9002-	●
92	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9002-		●
93	BRACKET; PIPE CLIP 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L), 10PD1 STD ENG(40L) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47475-427-1	02	1	9002-	●
93	BRACKET; PIPE CLIP (B)	1-47475-427-1	02	1	9002-		●
93	BRACKET; PIPE CLIP 8PD1 STD ENG(38L) EXC. NYLON TUBE AIR PIPING<Z29> (A) L=50	1-47475-299-2	01	1	9307-	●
93	BRACKET; PIPE CLIP 8PD1 STD ENG(38L) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47475-427-1	01	1	9307-	●
94	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	02	1	9307-	●
94	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-	●
94	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	02	1	9307-		●
94	BOLT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	02	1	9002-9204	●
94	BOLT; CLIP BRKT M8X25 FLANGE	0-28010-825-0	02	1	9002-9204		●
94	BOLT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9205-9306	●
94	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	02	1	9205-9306		●
97	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> ID=11 & 9 L=15 & 15	1-09700-655-0	02	1	9002-	●
97	CLIP; AIR PIPE ID=11 & 9 L=15 & 15	1-09700-655-0	02	1	9002-		●
97	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9002-	●
97	CLIP; AIR PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9002-		●
97	CLIP; AIR PIPE 8PD1 STD ENG(38L) EXC. NYLON TUBE AIR PIPING<Z29> ID=11 & 9 L=15 & 15	1-09700-655-0	01	1	9307-	●
97	CLIP; AIR PIPE 8PD1 STD ENG(38L) EXC. NYLON TUBE AIR PIPING<Z29> ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9307-	●
98	BOLT; PIPE CLIP EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	0-50040-845-0	03	1	9307-	●
98	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	03	1	9307-		●
98	BOLT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	01	1	9307-9404	●
98	BOLT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8X16 FLANGE	0-28080-816-0	01	1	9405-	●
98	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X40 W/LK WASHER	9-01900-840-0	01	1	9002-9103	●
98	BOLT; PIPE CLIP M8X40 W/LK WASHER	9-01900-840-0	01	1	9002-9103		●
98	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X40 W/LK WASHER	0-50040-840-0	03	1	9104-9306	●
98	BOLT; PIPE CLIP M8X40 W/LK WASHER	0-50040-840-0	03	1	9104-9306		●
99	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-9103	●
99	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9002-9103		●
99	NUT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9307-	●
99	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	9104-	●
99	NUT; PIPE CLIP M8	9-09110-408-0	03	1	9104-		●
100	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-427-1	03	1	9104-	●
100	BRACKET; PIPE CLIP	1-47475-427-1	03	1	9104-		●
101	NUT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9002-9306	●
101	NUT; CLIP BRKT M8	9-09110-408-0	04	1	9002-9306		●
103	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-	●
103	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9002-		●
107	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) D=25 L=50	1-09700-650-0	01	1	9002-9306	●
107	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) D=24 L=32	1-09700-766-1	01	1	9002-9306	●
107	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) D=31 L=30	1-09700-969-0	04	1	9002-9404	●
107	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) D=31 L=30	1-09700-969-0	05	1	9405-	●
107	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) L=250	1-09707-126-0	02	1	9002-	●
107	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) D=11 L=16	9-09535-025-0	05	1	9002-9306	●
107	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) D=24 L=32	1-09700-766-1	01	1	9307-9404	●
107	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) D=40 L=28	1-09700-899-0	01	1	9307-	●
107	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) D=13 L=30	9-09535-236-0	05	1	9307-	●
108	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M6X20 W/LK&PL WASHER	1-09980-493-0	05	1	9002-	●
108	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●
108	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9306	●
108	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	9010-9204	●
108	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306	●
108	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9307-	●
108	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	04	1	9307-9404	●
108	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	06	1	9405-	●
109	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	9002-9306	●
109	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	05	1	9307-9404	●
109	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	07	1	9405-	●
110	CLIP; BAND,NYLON TUBE NYLON TUBE AIR PIPING<Z29> L=250	1-09707-126-0	16	1	9002-	●
110	CLIP; BAND,NYLON TUBE NYLON TUBE AIR PIPING<Z29> L=250	1-09707-126-0	01	1	9002-	●
118	CLIP; AIR PIPE FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9307-	●
118	CLIP; AIR PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=16 & 11 L=18 & 17	1-09700-657-0	04	1	9002-9006	●
118	CLIP; AIR PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=16 & 11 L=18 & 17	1-09700-657-0	02	1	9307-	●
118	CLIP; AIR PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=16 & 11 L=18 & 17	1-09700-657-0	06	1	9007-9306	●
118	CLIP; AIR PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (B) ID=16 & 11 L=18 & 17	1-09700-657-0	01	1	9002-	●
118	CLIP; AIR PIPE (B) ID=16 & 11 L=18 & 17	1-09700-657-0	01	1	9002-		●
118	CLIP; AIR PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=16 & 11 L=18 & 17	1-09700-657-0	04	1	9307-	●
126	BOLT; CLIP BRKT AUTO CAB TILT<WV2> CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X28 W/LK WASHER	9-01900-828-0	02	1	9002-9204	●
126	BOLT; CLIP BRKT AUTO CAB TILT<WV2> CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X28 W/LK WASHER	0-50040-828-0	02	1	9205-9306	●
126	BOLT; CLIP BRKT CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●
126	BOLT; CLIP BRKT CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●
126	BOLT; CLIP BRKT CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	02	1	9303-9306	●
126	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	09	1	9002-9204	●
126	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	09	1	9205-9206	●
126	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●
126	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	0-50040-830-0	03	1	9205-	●
126	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	08	1	9207-9302	●
126	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	08	1	9303-9306	●
126	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	08	1	9307-	●
126	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9307-	●
133	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M6X20	1-09980-279-0	01	1	9002-	●
134	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=12 H=24 L=20	1-09700-605-0	01	1	9002-	●
134	CLIP; AIR PIPE (A) ID=12 H=24 L=20	1-09700-605-0	01	1	9002-		●
134	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9002-	●
134	CLIP; AIR PIPE (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9002-		●
135	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●
135	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9204		●
135	BOLT; PIPE CLIP EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●
135	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●
135	BOLT; PIPE CLIP M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204		●
135	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-	●
135	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-		●
136	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9002-	●
136	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9002-		●
137	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (B) L=50	1-47475-299-2	01	1	9002-	●
137	BRACKET; PIPE CLIP (B) L=50	1-47475-299-2	01	1	9002-		●
137	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47475-427-1	01	1	9002-	●
137	BRACKET; PIPE CLIP (A)	1-47475-427-1	01	1	9002-		●
141	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> ID=11 & 13 L=15 & 16	1-09700-670-0	02	1	9002-	●	●
142	BOLT; PIPE CLIP FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> M8X50 W/LK WASHER	0-50040-850-0	02	1	9307-	●
142	BOLT; PIPE CLIP EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	0-50040-845-0	02	1	9307-	●
142	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	02	1	9307-		●
142	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204	●
142	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204		●
142	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-9306	●
142	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-9306		●
143	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-	●	●
144	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-427-1	02	1	9002-	●	●
146	CLIP; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B)	1-09700-688-0	02	1	9002-9306	●
146	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A)	5-09700-351-0	02	1	9002-	●
146	CLIP; AIR PIPE (A)	5-09700-351-0	02	1	9002-		●
146	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-09700-670-0	02	1	9002-	●	●
147	BOLT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204	●
147	BOLT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-9306	●
147	BOLT; PIPE CLIP EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	0-50040-845-0	01	1	9307-	●
147	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●
147	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204		●
147	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-	●	●
147	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204	●
147	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204		●
147	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-9306	●
147	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-9306		●
147	BOLT; PIPE CLIP FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> M8X50 W/LK WASHER	0-50040-850-0	01	1	9307-	●
148	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9002-9306	●	●
148	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9307-	●	●
150	NUT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	03	1	9002-	●
150	NUT; CLIP BRKT M10	9-09110-510-0	04	1	9002-		●
152	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47475-427-1	02	1	9002-9103	●
152	BRACKET; PIPE CLIP (A)	1-47475-427-1	02	1	9002-9103		●
152	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47475-427-1	02	1	9002-9306	●
152	BRACKET; PIPE CLIP (A)	1-47475-427-1	02	1	9002-9306		●
152	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (B) L=50	1-47475-299-2	01	1	9104-	●
152	BRACKET; PIPE CLIP (B) L=50	1-47475-299-2	01	1	9104-		●
152	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47475-427-1	01	1	9104-	●
152	BRACKET; PIPE CLIP (A)	1-47475-427-1	01	1	9104-		●
161	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=11 H=20 L=20	5-09700-351-0	02	1	9002-	●
161	CLIP; AIR PIPE (A) ID=11 H=20 L=20	5-09700-351-0	02	1	9002-		●
161	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=11 & 7 L=15 & 15	1-09700-659-0	01	1	9104-	●
161	CLIP; AIR PIPE (B) ID=11 & 7 L=15 & 15	1-09700-659-0	01	1	9104-		●
162	BOLT; PIPE CLIP EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-	●
162	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	02	1	9307-		●
162	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●
162	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9204		●
162	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	01	1	9205-9306	●
162	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-9306		●
162	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●
162	BOLT; PIPE CLIP M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204		●
162	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9306	●
162	BOLT; PIPE CLIP M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9306		●
162	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X40	0-28010-840-0	01	1	9104-9204	●
162	BOLT; PIPE CLIP M8X40	0-28010-840-0	01	1	9104-9204		●
162	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X40 FLANGE	0-28080-840-0	01	1	9205-9306	●
162	BOLT; PIPE CLIP M8X40 FLANGE	0-28080-840-0	01	1	9205-9306		●
162	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X50 W/LK WASHER	0-50040-850-0	01	1	9307-	●
162	BOLT; PIPE CLIP M8X50 W/LK WASHER	0-50040-850-0	01	1	9307-		●
163	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-427-1	01	1	9002-9103	●
163	BRACKET; PIPE CLIP	1-47475-427-1	01	1	9002-9103		●
164	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> ID=16 & 11 L=18 & 17	1-09700-657-0	01	1	9002-9103	●
164	CLIP; AIR PIPE ID=16 & 11 L=18 & 17	1-09700-657-0	01	1	9002-9103		●
168	BOLT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9103	●
168	BOLT; CLIP BRKT M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9103		●
169	NUT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9002-9103	●
169	NUT; CLIP BRKT M8	9-09110-408-0	01	1	9002-9103		●
175	WASHER; LK,BRKT CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> ID=10.2	9-09150-510-0	02	1	9002-9306	●
175	WASHER; LK,BRKT NYLON TUBE AIR PIPING<Z29> ID=10.2	9-09150-510-0	02	1	9307-	●
339	CLIP; BAND,NYLON TUBE NYLON TUBE AIR PIPING<Z29> L=140	5-09707-031-0	05	1	9002-	●
372	BOLT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	04	1	9002-9204	●
372	BOLT; CLIP BRKT M8X25 W/LK WASHER	9-01900-825-0	04	1	9002-9204		●
372	BOLT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9306	●
372	BOLT; CLIP BRKT M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9306		●
372	BOLT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	04	1	9307-	●
372	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	04	1	9307-		●

58 345 342 344 109 58 344 342 345 254 333 174 172 107 108 173 284 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
58	BOLT; CLIP BRKT M6X16 W/LK WASHER	0-50000-616-0	03	1	9002-9204		●
58	BOLT; CLIP BRKT M6X16 W/LK WASHER	0-50080-616-0	03	1	9205-9301		●
58	BOLT; CLIP BRKT M6X16 FLANGE	0-28080-616-0	03	1	9302-		●
107	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) D=25 L=50	1-09700-650-0	01	1	9002-9306	●
107	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) D=24 L=32	1-09700-766-1	01	1	9002-9306	●
107	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) D=31 L=30	1-09700-969-0	04	1	9002-9404	●
107	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) D=31 L=30	1-09700-969-0	05	1	9405-	●
107	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) L=250	1-09707-126-0	02	1	9002-	●
107	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) D=11 L=16	9-09535-025-0	05	1	9002-9306	●
107	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) D=24 L=32	1-09700-766-1	01	1	9307-9404	●
107	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) D=40 L=28	1-09700-899-0	01	1	9307-	●
107	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) D=13 L=30	9-09535-236-0	05	1	9307-	●
108	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M6X20 W/LK&PL WASHER	1-09980-493-0	05	1	9002-	●
108	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●
108	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9306	●
108	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	9010-9204	●
108	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306	●
108	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9307-	●
108	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	04	1	9307-9404	●
108	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	06	1	9405-	●
109	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	9002-9306	●
109	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	05	1	9307-9404	●
109	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	07	1	9405-	●
172	BRACKET; TUBE CLIP NYLON TUBE AIR PIPING<Z29>	1-47475-601-0	01	1	9307-9404	●
173	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●
173	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9306	●
173	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	02	1	9307-9404	●
173	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9405-	●
173	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	01	1	9010-9204	●
173	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9306	●
173	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-9404	●
173	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	01	1	9405-	●
174	NUT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9010-9306	●
174	NUT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9307-9404	●
174	NUT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9405-	●
174	NUT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	02	1	9307-	●
254	BOLT; PIPE CLIP M8X20 W/LK&PL WASHER	1-09980-512-0	04	1	9002-	●	●
284	CLIP; FLEX HOSE (A) L=250	5-09707-030-0	01	1	9002-	●	●
284	CLIP; FLEX HOSE (B) L=175	1-09707-178-0	01	1	9307-	●	●
333	BRACKET; BRK AIR PIPE NYLON TUBE AIR PIPING<Z29>	1-65671-124-1	01	1	9002-	●
333	BRACKET; BRK AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29>	1-65670-780-1	01	1	9002-	●
333	BRACKET; BRK AIR PIPE	1-65670-780-1	01	1	9002-		●
333	BRACKET; BRK AIR PIPE	1-65670-793-4	01	1	9002-	●	●
342	CLIP; AIR PIPE (A) ID=9 & 7 L=15 & 15	1-09700-060-0	01	1	9002-		●
342	CLIP; AIR PIPE (B) ID=11 L=16	9-09525-025-0	01	1	9002-		●
344	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204		●
344	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301		●
344	BOLT; PIPE CLIP M6X16 FLANGE	0-28080-616-0	01	1	9302-		●
344	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9306-		●
345	BRACKET; PIPE CLIP (A)	1-47465-169-1	01	1	9002-		●
345	BRACKET; PIPE CLIP (B)	1-47475-454-3	01	1	9002-		●

361 357 359 361 361 361 362 359 361 360 360 356

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
356	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> (B)	9-09527-005-0	01	1	9002-	●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (A)	9-09524-515-0	01	1	9002-	●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (C)	1-47466-005-0	01	1	9407-		●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (D) ID=5 & 8	5-09700-165-0	01	1	9407-		●
357	BOLT; CLIP FIX DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204	●
357	BOLT; CLIP FIX EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301	●
357	BOLT; CLIP FIX EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	01	1	9302-	●
357	BOLT; CLIP FIX EXC. DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50040-616-0	01	1	9407-		●
359	BOLT; CLIP DUAL AIR GAUGE<UG2> M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9002-9204	●	●
359	BOLT; CLIP DUAL AIR GAUGE<UG2> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-	●	●
359	BOLT; CLIP EXC. DUAL AIR GAUGE<UG2> M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9002-9204	●	●
359	BOLT; CLIP EXC. DUAL AIR GAUGE<UG2> M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-	●	●
360	CLIP; HOSE & CABLE DUAL AIR GAUGE<UG2> (B)	5-09707-032-0	02	1	9002-	●	●
360	CLIP; HOSE & CABLE EXC. DUAL AIR GAUGE<UG2> (A) ID=8.3 & 12	1-09987-122-0	01	1	9002-	●	●
360	CLIP; HOSE & CABLE EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=8.3 & 12	1-09987-122-0	01	1	9002-	●
360	CLIP; HOSE & CABLE (A) ID=8.3 & 12	1-09987-122-0	01	1	9002-		●
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> (A) ID=13X2 H=25 L=50	1-09700-777-0	02	1	9002-	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> (C) ID=17	1-09987-105-1	02	1	9002-	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> (C) ID=17	1-09987-105-1	01	1	9002-	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE EXC. NYLON TUBE AIR PIPING<Z29> (C) ID=17	1-09987-105-1	01	1	9002-	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE (C) ID=17	1-09987-105-1	01	1	9002-		●
361	CLIP; FLEX HOSE,AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> (B) ID=14	8-94157-443-0	01	1	9002-	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE (D) L=140	5-09707-031-0	01	1	9002-		●
362	BOLT; FLEX HOSE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9002-9204	●
362	BOLT; FLEX HOSE CLIP M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9002-9204		●
362	BOLT; FLEX HOSE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-	●
362	BOLT; FLEX HOSE CLIP M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-		●

42 13 13 361 359 361 361 361 362 359 361 360 360

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> (A)	1-47466-005-0	01	1	9002-		●
13	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> (B)	5-09700-165-0	01	1	9002-		●
42	BOLT; CLIP,AIR PIPE DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204		●
42	BOLT; CLIP,AIR PIPE DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301		●
42	BOLT; CLIP,AIR PIPE DUAL AIR GAUGE<UG2> M6X16 FLANGE	0-28080-616-0	01	1	9302-		●
359	BOLT; CLIP DUAL AIR GAUGE<UG2> M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9002-9204	●	●
359	BOLT; CLIP DUAL AIR GAUGE<UG2> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-	●	●
359	BOLT; CLIP EXC. DUAL AIR GAUGE<UG2> M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9002-9204	●	●
359	BOLT; CLIP EXC. DUAL AIR GAUGE<UG2> M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-	●	●
360	CLIP; HOSE & CABLE DUAL AIR GAUGE<UG2> (B)	5-09707-032-0	02	1	9002-	●	●
360	CLIP; HOSE & CABLE EXC. DUAL AIR GAUGE<UG2> (A) ID=8.3 & 12	1-09987-122-0	01	1	9002-	●	●
360	CLIP; HOSE & CABLE EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=8.3 & 12	1-09987-122-0	01	1	9002-	●
360	CLIP; HOSE & CABLE (A) ID=8.3 & 12	1-09987-122-0	01	1	9002-		●
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> (A) ID=13X2 H=25 L=50	1-09700-777-0	02	1	9002-	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> (C) ID=17	1-09987-105-1	02	1	9002-	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> (C) ID=17	1-09987-105-1	01	1	9002-	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE EXC. NYLON TUBE AIR PIPING<Z29> (C) ID=17	1-09987-105-1	01	1	9002-	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE (C) ID=17	1-09987-105-1	01	1	9002-		●
361	CLIP; FLEX HOSE,AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> (B) ID=14	8-94157-443-0	01	1	9002-	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE (D) L=140	5-09707-031-0	01	1	9002-		●
362	BOLT; FLEX HOSE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9002-9204	●
362	BOLT; FLEX HOSE CLIP M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9002-9204		●
362	BOLT; FLEX HOSE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-	●
362	BOLT; FLEX HOSE CLIP M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-		●

231 230 22 81 16 376 76 76 363

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	BRACKET; PIPE CLIP AUTO CAB TILT<WV2> CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> (E) 25X37	1-34656-004-0	01	1	9002-9306	●
16	BRACKET; PIPE CLIP AUTO CAB TILT<WV2> CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> (D) L=90 B=25	1-47475-530-0	01	1	9002-9306	●
16	BRACKET; PIPE CLIP CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> (B)	1-47476-045-1	01	1	9002-	●
16	BRACKET; PIPE CLIP NYLON TUBE AIR PIPING<Z29> (A)	1-47476-075-0	04	1	9002-9206	●
16	BRACKET; PIPE CLIP NYLON TUBE AIR PIPING<Z29> (F)	1-47475-601-0	01	1	9010-9306	●
16	BRACKET; PIPE CLIP NYLON TUBE AIR PIPING<Z29> (G)	1-47476-428-0	04	1	9207-	●
16	BRACKET; PIPE CLIP NYLON TUBE AIR PIPING<Z29> (H)	1-47476-429-0	04	1	9207-	●
16	BRACKET; PIPE CLIP NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) (C)	1-47476-346-0	01	1	9002-	●
16	BRACKET; PIPE CLIP NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) (I)	1-46159-029-0	01	1	9010-	●
22	BRACKET; CLIP NYLON TUBE AIR PIPING<Z29> (B)	1-47475-601-0	01	1	9002-	●
22	BRACKET; CLIP NYLON TUBE AIR PIPING<Z29> (A)	1-47476-030-0	01	1	9002-	●
22	BRACKET; CLIP NYLON TUBE AIR PIPING<Z29> (C)	1-47475-304-0	02	1	9405-	●
76	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> (B) L=135	1-09987-143-1	01	1	9002-9306	●
76	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> (A) L=140	5-09707-031-0	04	1	9002-9306	●
76	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) L=250	1-09707-126-0	06	1	9307-	●
81	BRACKET; CLIP EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-302-0	01	1	9002-	●
81	BRACKET; CLIP	1-47475-302-0	01	1	9002-		●
230	CLIP; PIPE,AIR EXC. NYLON TUBE AIR PIPING<Z29> ID=11 & 9 L=15 & 15	1-09700-062-0	01	1	9002-	●
230	CLIP; PIPE,AIR ID=11 & 9 L=15 & 15	1-09700-062-0	01	1	9002-		●
231	BOLT; CLIP EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	9-01900-616-0	01	1	9002-9204	●
231	BOLT; CLIP M6X16 W/LK WASHER	9-01900-616-0	01	1	9002-9204		●
231	BOLT; CLIP EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	01	1	9205-9210	●
231	BOLT; CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9205-9210		●
231	BOLT; CLIP EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	01	1	9303-9305	●
231	BOLT; CLIP M6X16 FLANGE	0-28080-616-0	01	1	9303-9305		●
231	BOLT; CLIP EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	01	1	9306-	●
231	BOLT; CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9306-		●
363	CLIP; BAND,CORRUGATE DUAL AIR GAUGE<UG2> NYLON TUBE AIR PIPING<Z29> L=140	5-09707-031-0	02	1	9002-9306	●
363	CLIP; BAND,CORRUGATE NYLON TUBE AIR PIPING<Z29> L=140	5-09707-031-0	02	1	9307-	●
376	BOLT; BRKT DRIVER SEAT W/ARM REST(SGP) M8X25 FLANGE	0-28080-825-0	01	1	9307-	●
376	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	9307-		●
376	BOLT; BRKT FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28080-830-0	02	1	9307-	●
376	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	9-01900-616-0	01	1	9002-9204	●
376	BOLT; BRKT M6X16 W/LK WASHER	9-01900-616-0	01	1	9002-9204		●
376	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	01	1	9205-9302	●
376	BOLT; BRKT M6X16 W/LK WASHER	0-50040-616-0	01	1	9205-9302		●
376	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	01	1	9303-	●
376	BOLT; BRKT M6X16 FLANGE	0-28080-616-0	01	1	9303-		●
376	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	01	1	9307-	●
376	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	01	1	9307-		●

354 353 348 303 348 303 348 354 353 353 340 340 354 353 353 354 354 353 349 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	NUT; PIPE CLIP M6	1-09984-073-0	01	1	9002-9302		●
53	NUT; PIPE CLIP M6 FLANGE	0-91150-106-0	01	1	9303-9410		●
53	NUT; PIPE CLIP EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6 FLANGE	0-91150-106-0	01	1	9411-	●
53	NUT; PIPE CLIP M6 FLANGE	0-91150-106-0	01	1	9411-		●
303	BOLT; PIPE CLIP EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204	●
303	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204		●
303	BOLT; PIPE CLIP EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301	●
303	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301		●
303	BOLT; PIPE CLIP EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	01	1	9302-9305	●
303	BOLT; PIPE CLIP M6X16 FLANGE	0-28080-616-0	01	1	9302-9305		●
303	BOLT; PIPE CLIP EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	01	1	9306-	●
303	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9306-		●
303	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	01	1	9002-9103	●
303	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9103		●
303	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9103	●
303	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9103		●
340	CLIP; BAND,FLEX HOSE EXC. CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> L=250	5-09707-030-0	01	1	9002-	●	●
348	CLIP; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=11 & 9 L=15 & 15	1-09700-062-0	01	1	9002-	●
348	CLIP; AIR PIPE ID=11 & 9 L=15 & 15	1-09700-062-0	01	1	9002-		●
349	WASHER; LK,PIPE CLIP	1-09985-118-0	01	1	9002-9302		●
353	CLIP; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A) ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	9002-	●
353	CLIP; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C)	1-47466-005-0	02	1	9002-	●
353	CLIP; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C)	1-47466-005-0	01	1	9002-	●
353	CLIP; AIR PIPE (C)	1-47466-005-0	01	1	9002-		●
353	CLIP; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B)	9-09527-010-0	01	1	9002-	●
353	CLIP; AIR PIPE (B)	9-09527-010-0	01	1	9002-		●
353	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-09700-062-0	01	1	9002-	●
353	CLIP; AIR PIPE (A)	1-09700-062-0	01	1	9002-		●
354	BOLT; PIPE CLIP EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	01	1	9306-9410	●
354	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9306-9410		●
354	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	01	1	9411-	●
354	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9411-		●
354	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	01	1	9002-9305	●
354	BOLT; PIPE CLIP M6X16 FLANGE	0-28080-616-0	01	1	9002-9305		●
354	BOLT; PIPE CLIP M6X16 FLANGE	0-28080-616-0	02	1	9002-9305	●	●
354	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	02	1	9306-9410	●	●
354	BOLT; PIPE CLIP HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50040-616-0	02	1	9411-	●

124 62 229 229 62 124 124 62 62 124 229 305 229 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> (B) ID=6 & 13 L=15 & 15	1-09700-751-0	01	1	9002-	●
62	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=13 & 13 L=16 & 16	1-09700-072-0	03	1	9002-	●
62	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=13 H=24 L=20	9-09527-012-0	01	1	9002-	●
62	CLIP; AIR PIPE (B) ID=11 & 13 L=15 & 16	1-09700-077-0	01	1	9002-		●
124	BOLT; PIPE CLIP EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204	●
124	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204		●
124	BOLT; PIPE CLIP EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301	●
124	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301		●
124	BOLT; PIPE CLIP EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	01	1	9302-	●
124	BOLT; PIPE CLIP M6X16 FLANGE	0-28080-616-0	01	1	9302-		●
124	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01910-816-0	02	1	9002-9005	●
124	BOLT; PIPE CLIP M8X16 W/LK WASHER	9-01910-816-0	02	1	9002-9005		●
124	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	02	1	9006-9306	●
124	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	02	1	9006-9306		●
124	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	01	1	9006-9306	●
124	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9006-9306		●
124	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	03	1	9302-	●
124	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9307-	●	●
229	BRACKET; PIPE CLIP EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> (C)	1-47466-005-0	01	1	9002-	●
229	BRACKET; PIPE CLIP (C)	1-47466-005-0	01	1	9002-		●
229	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47475-391-0	01	1	9002-	●
229	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47475-644-0	01	1	9002-	●
305	BOLT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50000-616-0	02	1	9002-9204	●
305	BOLT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50080-616-0	02	1	9205-9301	●
305	BOLT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M6X16	1-09980-296-0	02	1	9002-	●
305	BOLT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9302-	●

352 128 16 67 16 126 128 126 128 16 124 260 127 16 126 128 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	BRACKET; PIPE CLIP AUTO CAB TILT<WV2> CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> (E) 25X37	1-34656-004-0	01	1	9002-9306	●
16	BRACKET; PIPE CLIP AUTO CAB TILT<WV2> CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> (D) L=90 B=25	1-47475-530-0	01	1	9002-9306	●
16	BRACKET; PIPE CLIP CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> (B)	1-47476-045-1	01	1	9002-	●
16	BRACKET; PIPE CLIP NYLON TUBE AIR PIPING<Z29> (A)	1-47476-075-0	04	1	9002-9206	●
16	BRACKET; PIPE CLIP NYLON TUBE AIR PIPING<Z29> (F)	1-47475-601-0	01	1	9010-9306	●
16	BRACKET; PIPE CLIP NYLON TUBE AIR PIPING<Z29> (G)	1-47476-428-0	04	1	9207-	●
16	BRACKET; PIPE CLIP NYLON TUBE AIR PIPING<Z29> (H)	1-47476-429-0	04	1	9207-	●
16	BRACKET; PIPE CLIP NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) (C)	1-47476-346-0	01	1	9002-	●
16	BRACKET; PIPE CLIP NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) (I)	1-46159-029-0	01	1	9010-	●
67	BRACKET; CLIP NYLON TUBE AIR PIPING<Z29> (B)	1-47476-045-1	01	1	9002-	●
67	BRACKET; CLIP NYLON TUBE AIR PIPING<Z29> (A)	1-46159-029-0	01	1	9307-9404	●
124	BOLT; PIPE CLIP EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204	●
124	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204		●
124	BOLT; PIPE CLIP EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301	●
124	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301		●
124	BOLT; PIPE CLIP EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	01	1	9302-	●
124	BOLT; PIPE CLIP M6X16 FLANGE	0-28080-616-0	01	1	9302-		●
124	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01910-816-0	02	1	9002-9005	●
124	BOLT; PIPE CLIP M8X16 W/LK WASHER	9-01910-816-0	02	1	9002-9005		●
124	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	02	1	9006-9306	●
124	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	02	1	9006-9306		●
124	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	01	1	9006-9306	●
124	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9006-9306		●
124	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	03	1	9302-	●
124	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9307-	●	●
126	BOLT; CLIP BRKT AUTO CAB TILT<WV2> CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X28 W/LK WASHER	9-01900-828-0	02	1	9002-9204	●
126	BOLT; CLIP BRKT AUTO CAB TILT<WV2> CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X28 W/LK WASHER	0-50040-828-0	02	1	9205-9306	●
126	BOLT; CLIP BRKT CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●
126	BOLT; CLIP BRKT CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●
126	BOLT; CLIP BRKT CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	02	1	9303-9306	●
126	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	09	1	9002-9204	●
126	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	09	1	9205-9206	●
126	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●
126	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	0-50040-830-0	03	1	9205-	●
126	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	08	1	9207-9302	●
126	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	08	1	9303-9306	●
126	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	08	1	9307-	●
126	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9307-	●
127	NUT; CLIP BRKT AUTO CAB TILT<WV2> CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-9306	●
127	NUT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	10	1	9002-9306	●
127	NUT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	02	1	9002-9306	●
127	NUT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	13	1	9307-9404	●
127	NUT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	10	1	9405-	●
127	NUT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) M10	9-09110-510-0	01	1	9002-	●
128	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) ID=24 L=32	1-09700-766-1	02	1	9002-9404	●
128	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) ID=24.5 H=23 L=25	1-09700-862-0	02	1	9002-9404	●
128	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) ID=24.5 H=23 L=25	1-09700-862-0	04	1	9405-	●
128	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) ID=13X2 L=20	9-09535-236-0	02	1	9002-9404	●
128	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) ID=31	1-09700-969-0	02	1	9405-	●
128	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) ID=19 H=50 L=25	9-09916-622-0	02	1	9002-9404	●
128	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) L=250	1-09707-126-0	25	1	9307-	●
128	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> EXC. AUTO CAB TILT<WV2> (A) L=250	1-09707-126-0	01	1	9002-9306	●
128	CLIP; NYLON TUBE AUTO CAB TILT<WV2> NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) (A) L=250	1-09707-126-0	01	1	9002-9306	●
260	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9002-	●
260	CLIP; AIR PIPE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9002-		●
260	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-9103	●
260	CLIP; AIR PIPE (A) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-9103		●
260	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=11 & 11 L=15 & 15	1-09700-656-0	01	1	9002-9306	●
260	CLIP; AIR PIPE (A) ID=11 & 11 L=15 & 15	1-09700-656-0	01	1	9002-9306		●
352	CLIP; EXH HOSE ID=15	9-09715-098-0	02	1	9002-	●	●

352 352 51 182 17 208 208 207 206 208 205 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X22	9-01900-822-0	02	1	9002-9204	●
17	BOLT; CLIP BRKT M8X22	9-01900-822-0	02	1	9002-9204		●
17	BOLT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X22 W/LK WASHER	0-50040-822-0	02	1	9205-9306	●
17	BOLT; CLIP BRKT M8X22 W/LK WASHER	0-50040-822-0	02	1	9205-9306		●
17	BOLT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X22 FLANGE	0-28080-822-0	02	1	9307-	●	●
51	BRACKET; PIPE CLIP	1-47475-564-0	01	1	9002-		●
182	BOLT; CLIP BRKT M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204		●
182	BOLT; CLIP BRKT M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301		●
182	BOLT; CLIP BRKT M6X16 FLANGE	0-28080-616-0	01	1	9302-		●
204	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> 13X13 L=32	1-09700-666-0	04	1	9002-9306	●
204	CLIP; AIR PIPE 13X13 L=32	1-09700-666-0	04	1	9002-9306		●
204	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> 13X13 L=32	1-09700-666-0	02	1	9002-	●
204	CLIP; AIR PIPE 13X13 L=32	1-09700-666-0	02	1	9002-		●
204	CLIP; AIR PIPE 8PD1 STD ENG(38L) 13X13 L=36	1-09700-833-0	01	1	9307-	●
204	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> 13X7 L=30	1-09700-665-0	02	1	9002-	●	●
204	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> 13X13 L=43	1-09700-689-0	01	1	9307-	●	●
205	BOLT; PIPE CLIP FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> M8X50 W/LK WASHER	0-50040-850-0	01	1	9307-	●
205	BOLT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M12X40	9-01901-240-0	02	1	9002-9204	●
205	BOLT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M12X40 W/LK WASHER	0-50041-240-0	02	1	9205-9306	●
205	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	03	1	9002-9204	●
205	BOLT; PIPE CLIP M8X16 W/LK WASHER	9-01900-816-0	03	1	9002-9204		●
205	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	03	1	9205-9306	●
205	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	03	1	9205-9306		●
205	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●
205	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204		●
205	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9306	●
205	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9306		●
205	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204	●
205	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204		●
205	BOLT; PIPE CLIP EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-	●
205	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-		●
205	BOLT; PIPE CLIP 6RB1TC ENG(30L),10PD1 STD ENG(40L) EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-	●
205	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-		●
205	BOLT; PIPE CLIP EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204	●	●
205	BOLT; PIPE CLIP EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9306	●	●
205	BOLT; PIPE CLIP EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	02	1	9307-	●	●
205	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	02	1	9307-	●
205	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	01	1	9307-	●	●
206	NUT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	02	1	9002-9304	●
206	NUT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	02	1	9305-9306	●
206	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9002-9306	●
206	NUT; PIPE CLIP M8	9-09110-408-0	04	1	9002-9306		●
206	NUT; PIPE CLIP 8PD1 STD ENG(38L) M8	9-09110-408-0	01	1	9307-	●
206	NUT; PIPE CLIP EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-	●	●
207	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-	●
207	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9002-		●
207	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9307-	●	●
208	BRACKET; PIPE CLIP NYLON TUBE AIR PIPING<Z29> (C)	1-47476-446-0	01	1	9002-9306	●
208	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (A) L=50	1-47475-299-2	01	1	9002-	●
208	BRACKET; PIPE CLIP (A) L=50	1-47475-299-2	01	1	9002-		●
208	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47475-427-1	01	1	9002-	●
208	BRACKET; PIPE CLIP (B)	1-47475-427-1	01	1	9002-		●
208	BRACKET; PIPE CLIP 6RA1TC ENG(19L) EXC. NYLON TUBE AIR PIPING<Z29> (F)	1-47476-705-0	01	1	9010-9306	●
208	BRACKET; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> (D)	1-47475-485-2	01	1	9002-	●	●
208	BRACKET; PIPE CLIP 12PD1 STD ENG(42L) (E)	1-47476-373-1	01	1	9002-9306		●
352	CLIP; EXH HOSE ID=15	9-09715-098-0	02	1	9002-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
