Isuzu WW
▶
TRUCKS
▶
GXR
▶
11663 - GXR(LHD)CHINA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-75 - CONDENSER
▶
8-75 — CONDENSER
(#175272) — 27 parça
◀

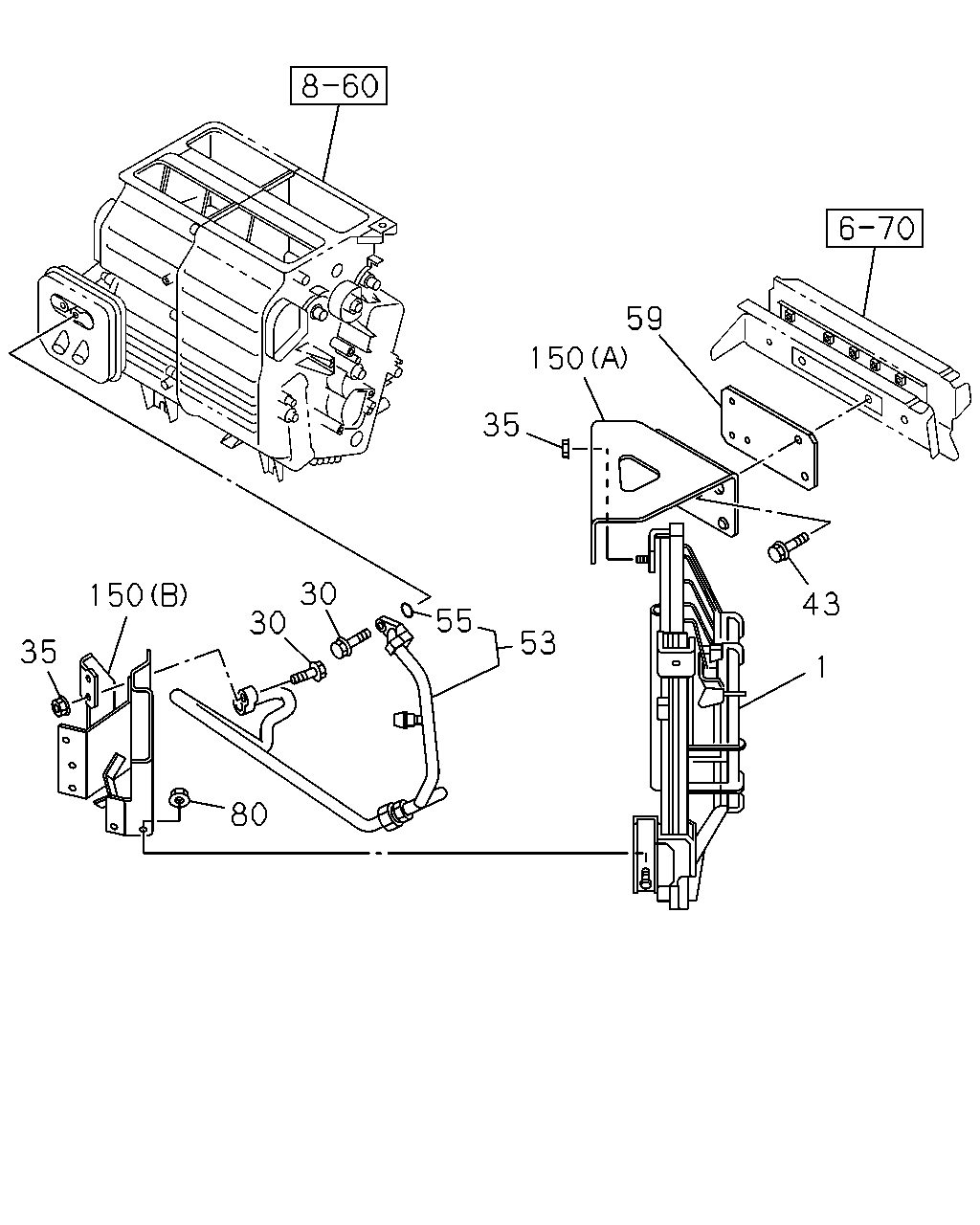

[875A] FIXING (10 parça)
[875A] COMPONENT (17 parça)
▶
35
150
30
30
80
55
53
35
150
59
43
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CONDENSER; A/C
8-97431-319-1
01
1
1509-
30
BOLT; CONDENSER,A/C
M8X20 FLANGE
0-28650-820-0
02
1
1509-
35
NUT; CONDENSER,A/C
M8 FLANGE
0-91180-108-0
02
1
1509-
43
BOLT; BRKT,CONDENSER
M8X20 FLANGE
0-28650-820-0
02
1
1509-
53
PIPE; CONDENSER
8-98228-346-0
01
1
1509-
55
GASKET; PIPE
ID=11.7
8-97095-907-0
01
1
1509-
59
BRACKET; CONDENSER
8-98228-353-0
01
1
1509-
80
NUT; CONDENSER BRKT
M8 FLANGE
0-91180-108-0
04
1
1509-
150
BRACKET; CONDENSER,MTG
(A)
8-98228-355-0
01
1
1509-
150
BRACKET; CONDENSER,MTG
(B)
8-98228-356-0
01
1
1509-

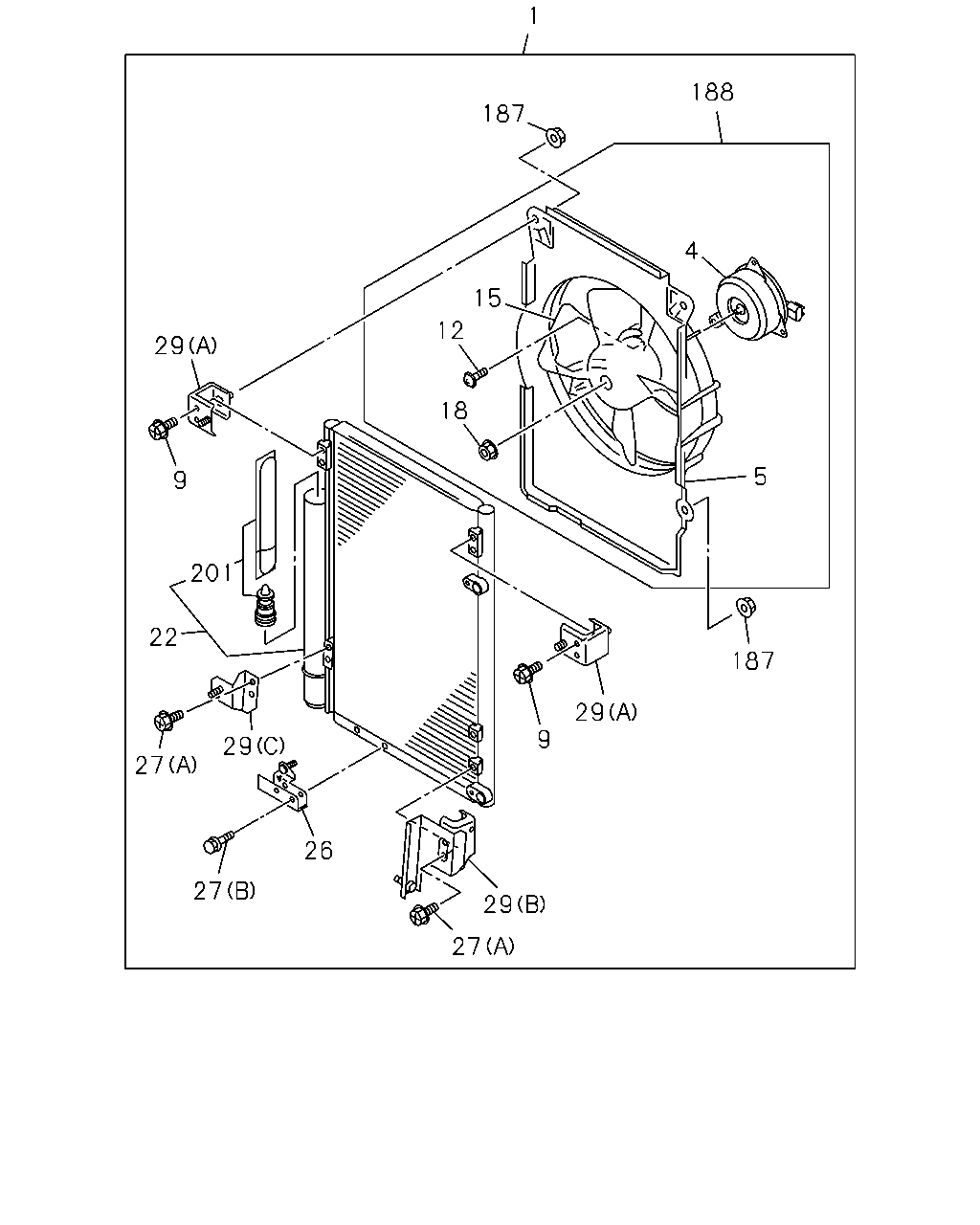

1
187
188
29
9
201
22
27
29
27
26
29
27
9
29
187
5
18
12
15
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CONDENSER; A/C
8-97431-319-1
01
1
1509-
4
MOTOR ASM; FAN
8-98116-586-0
01
1
1509-
5
SHROUD; FAN MOTOR
8-98076-093-0
01
1
1509-
9
BOLT; BRKT
M6X14
1-83539-382-0
04
1
1509-
12
BOLT; FAN MOTOR
8-97180-269-0
03
1
1509-
15
FAN; MOTOR
8-98076-092-0
01
1
1509-
18
NUT; FAN,CENTER
M5 FLANGE
8-94157-075-0
01
1
1509-
22
CONDENSER ASM; A/C
8-97431-258-0
01
1
1509-
26
BRACKET; LOW
8-98091-901-0
01
1
1509-
27
BOLT; BRKT,LOW SIDE
(A) M6X14
1-83539-382-0
04
1
1509-
27
BOLT; BRKT,LOW SIDE
(B) M5X25
8-97178-770-0
02
1
1509-
29
BRACKET; SIDE
(C)
8-98091-900-0
01
1
1509-
29
BRACKET; SIDE
(B)
8-98092-769-0
01
1
1509-
29
BRACKET; SIDE
(A)
8-98065-914-0
02
1
1509-
187
NUT; SHROUD
M6
1-83539-354-0
04
1
1509-
188
BLOWER ASM; SHROUD
8-98116-590-1
01
1
1509-
201
DRYER ASM; CONDENSER
1-83535-097-0
01
1
1509-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
