Isuzu WW
▶
TRUCKS
▶
GXR
▶
11663 - GXR(LHD)CHINA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-73 - BLOWER UNIT
▶

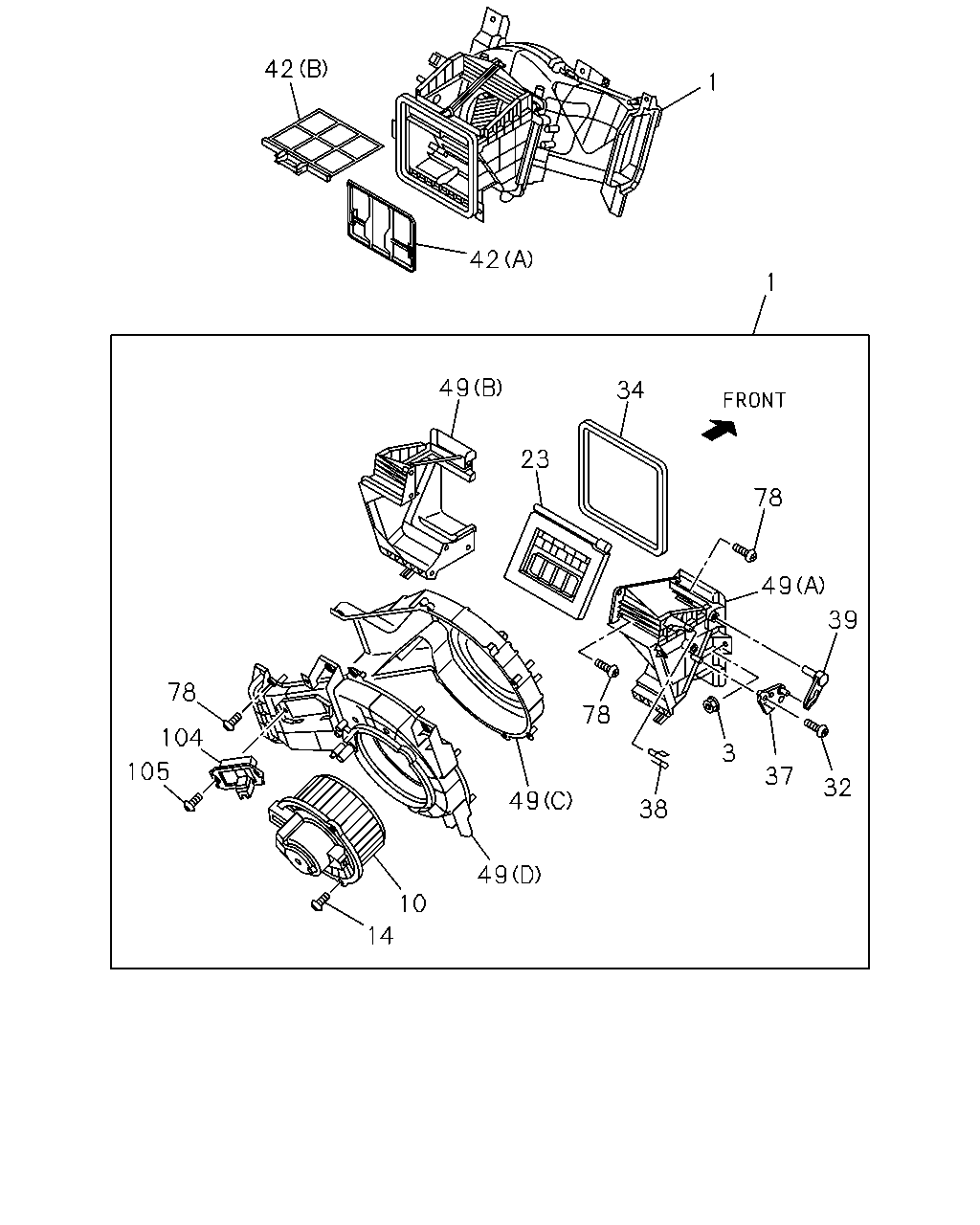

8-73 — BLOWER UNIT
(#175271) — 19 parça
42
42
49
78
104
105
14
10
49
49
23
34
78
49
39
32
37
3
38
78
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BLOWER ASM
8-97431-260-0
01
1
1509-
3
NUT; CASE
M6
1-83539-354-0
02
1
1509-
10
MOTOR ASM; FAN,BLOWER UNIT
8-98183-926-0
01
1
1509-
14
SCREW; COVER TO CASE
M5X16
8-98047-448-0
03
1
1509-
23
SHUTTER; BLOWER UNIT
8-98047-761-0
01
1
1509-
32
SCREW; LEVER
M4X16
8-98047-416-0
01
1
1509-
34
LINING; BLOWER UNIT
8-98096-453-0
01
1
1509-
37
LEVER; MODE LEVER
8-98047-453-0
01
1
1509-
38
CLIP; BLOWER UNIT
8-98047-417-0
01
1
1509-
39
LEVER; SHUTTER,BLOWER UNIT
8-98047-454-0
01
1
1509-
42
FILTER; BLOWER UNIT
(B)
8-97431-266-0
01
1
1509-
42
FILTER; BLOWER UNIT
(A)
8-97431-267-0
01
1
1509-
49
CASE; BLOWER UNIT
(A)
8-98077-416-0
01
1
1509-
49
CASE; BLOWER UNIT
(B)
8-98077-415-0
01
1
1509-
49
CASE; BLOWER UNIT
(C)
8-98047-445-0
01
1
1509-
49
CASE; BLOWER UNIT
(D)
8-98047-444-0
01
1
1509-
78
SCREW; CASE TO CASE
M4X16 TAPPING
8-97957-708-0
16
1
1509-
104
RESISTOR; BLOWER UNIT
8-98141-448-0
01
1
1509-
105
SCREW; RESISTOR
M4X16 TAPPING
8-97957-708-0
02
1
1509-
