8-52 — PIPING; AIR CONDITIONING
(#175267) — 25 parça
◀

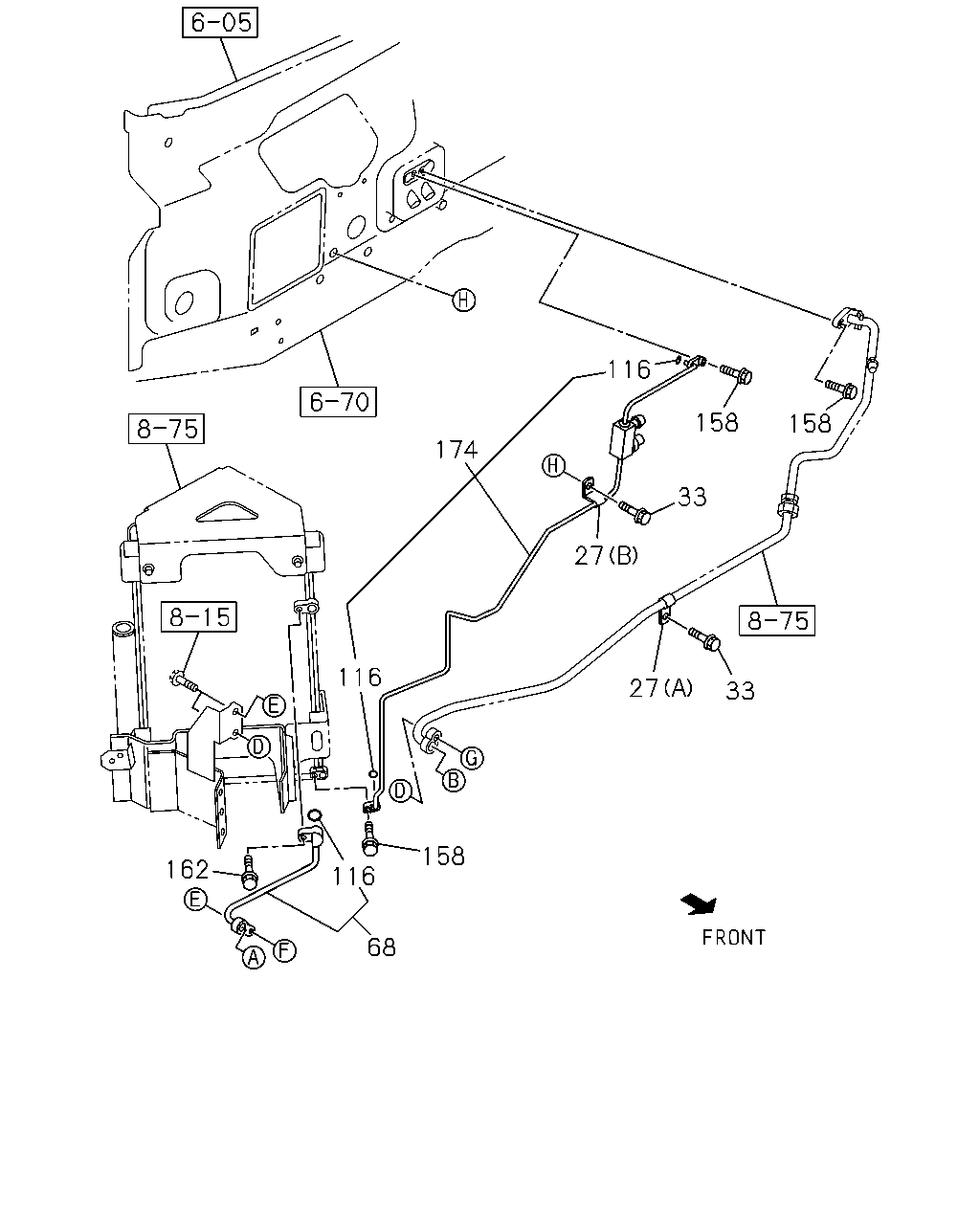

[852A] CAB SIDE (10 parça)

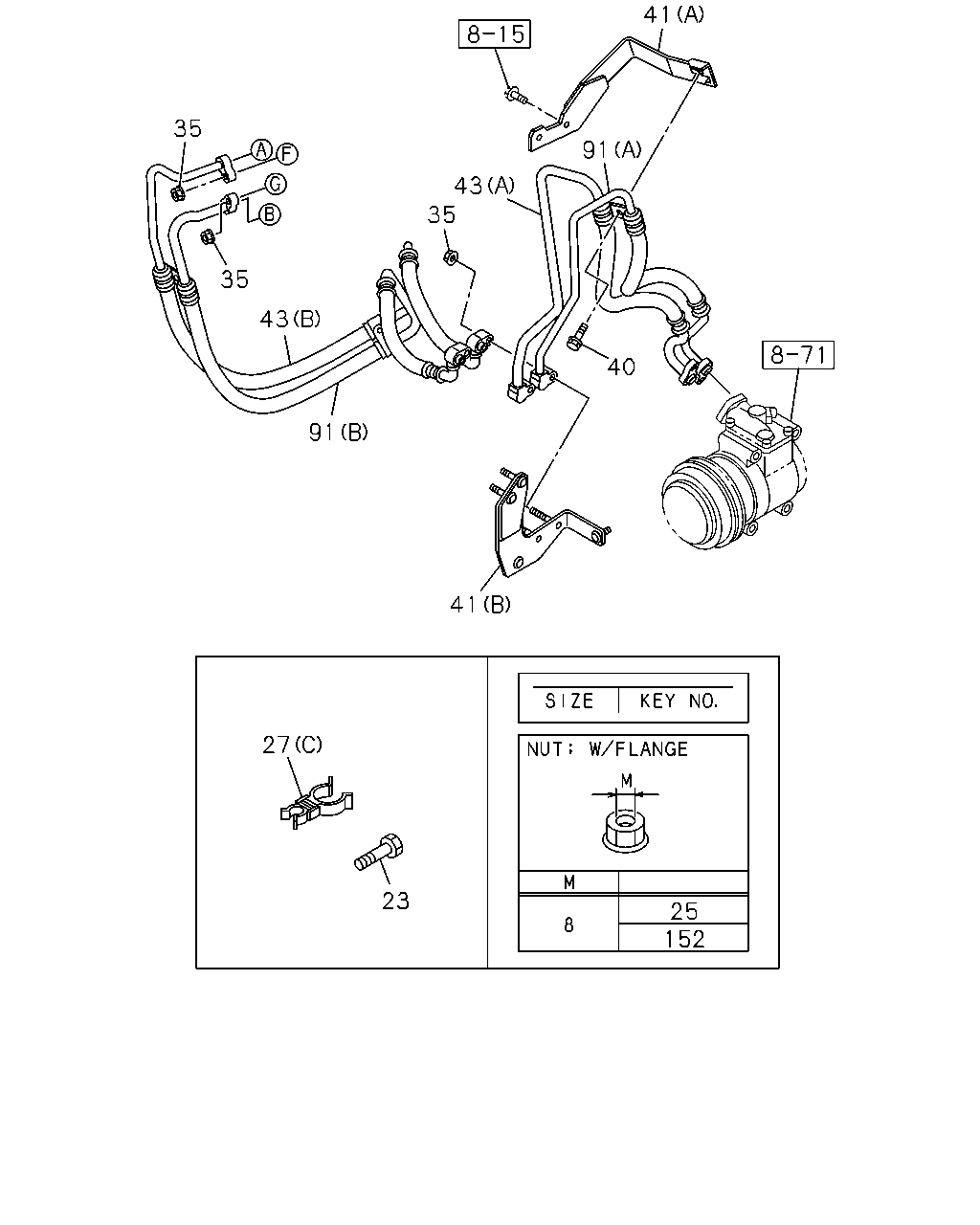

[852A] FRAME SIDE (15 parça)
▶
162
116
158
68
27
33
27
174
33
158
158
116
116
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
CLIP; COOLER PIPE
(A)
8-97431-310-0
01
1
1509-
27
CLIP; COOLER PIPE
(B)
8-97431-311-0
01
1
1509-
27
CLIP; COOLER PIPE
(C)
8-97431-312-0
01
1
1509-
33
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1509-
68
PIPE; EVAP TO UNION
8-98228-345-0
01
1
1509-
116
GASKET; PIPE
ID=11.7
8-97095-907-0
02
1
1509-
158
BOLT; PIPE FIX
M6X25 FLANGE
0-28050-625-0
02
1
1509-
158
BOLT; PIPE FIX
M6X25 FLANGE
0-28050-625-0
02
1
1509-
162
BOLT; FLEX HOSE
M6X25 FLANGE
0-28050-625-0
02
1
1509-
174
PIPE; COOLER,CONDENSER TO FLEX HOSE
8-98228-347-0
01
1
1509-
35
35
91
43
43
35
41
91
40
41
27
23
25
152
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
BOLT; BRKT
8-97431-302-0
02
1
1509-
25
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1509-
27
CLIP; COOLER PIPE
(A)
8-97431-310-0
01
1
1509-
27
CLIP; COOLER PIPE
(B)
8-97431-311-0
01
1
1509-
27
CLIP; COOLER PIPE
(C)
8-97431-312-0
01
1
1509-
35
NUT; FLEX HOSE,A/C
8-97431-309-0
04
1
1509-
40
BOLT; CLIP BRKT
M8X20 FLANGE
0-28650-820-0
01
1
1509-
40
BOLT; CLIP BRKT
8-97431-301-0
02
1
1509-
41
BRACKET; PIPE CLIP
(A)
8-98228-385-0
01
1
1509-
41
BRACKET; PIPE CLIP
(B)
8-98228-387-0
01
1
1509-
43
HOSE; FLEX,A/C,EVAP TO CMPR
(A)
8-98236-299-0
01
1
1509-
43
HOSE; FLEX,A/C,EVAP TO CMPR
(B)
8-98236-300-0
01
1
1509-
91
HOSE; FLEX,CMPR
(A)
8-98236-301-0
01
1
1509-
91
HOSE; FLEX,CMPR
(B)
8-98236-302-0
01
1
1509-
152
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1509-
