8-40 — HEATER SYSTEM
(#175264) — 28 parça
◀
[840A] OTHER PARTS (4 parça)

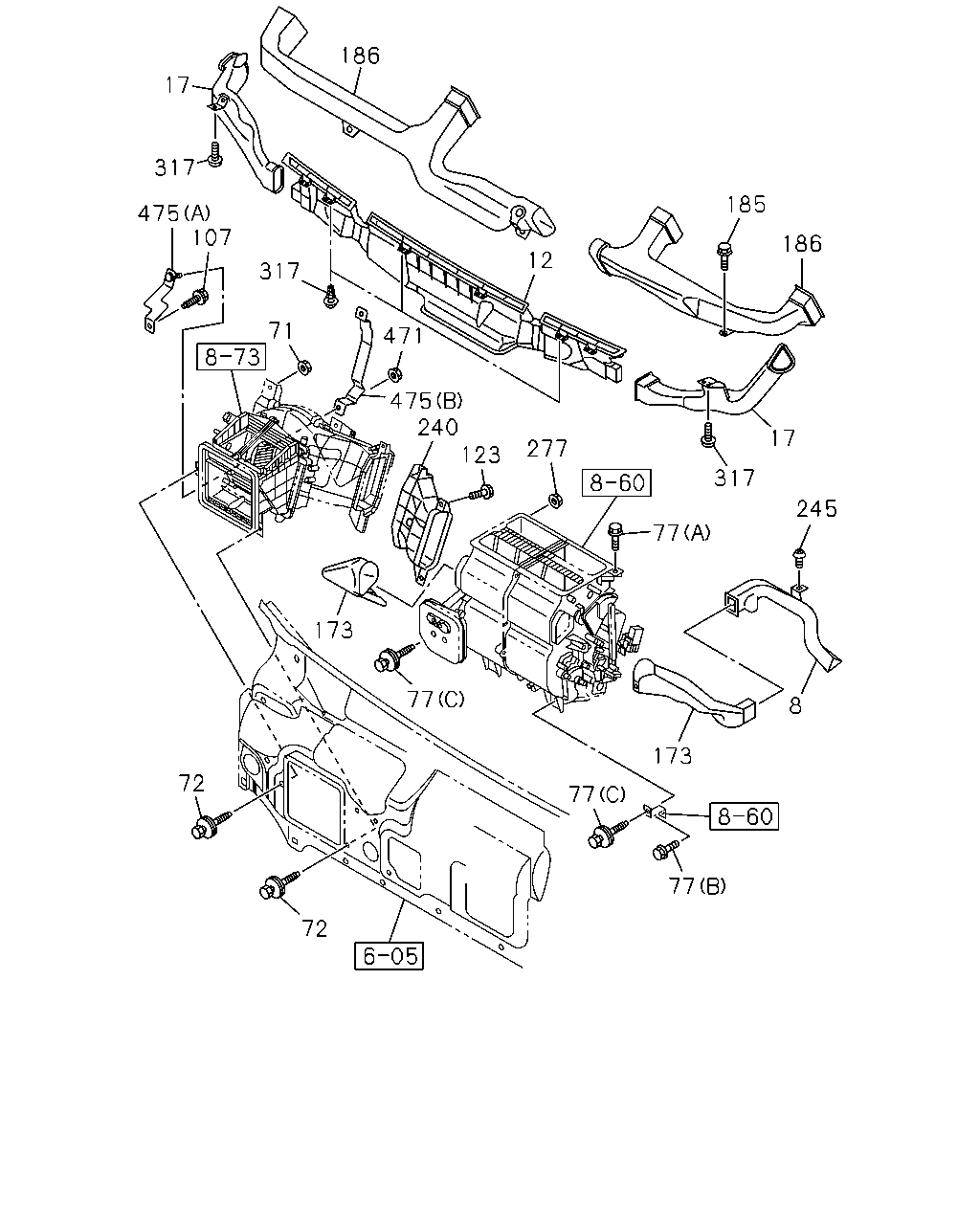

[840A] DUCT (24 parça)
▶
223
50
476
206
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
VALVE ASM; HTR
8-98080-998-1
01
1
1509-
206
GROMMET; A/C PIPE TO BLOWER UNIT
8-97431-263-0
01
1
1509-
223
GROMMET; SCREW
D=7.9X7.9 L=20 M5
8-94441-539-0
01
1
1509-
476
SCREW; VALVE
M5X16 TAPPING HEXALOBULAR
8-98062-675-0
01
1
1509-
186
12
185
186
17
317
8
245
77
173
77
77
72
72
77
173
123
277
240
475
471
71
317
107
475
317
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
DUCT; HTR AIR,DRIVER FOOT
8-98011-567-0
01
1
1509-
12
NOZZLE; DEFROSTER
8-98040-010-2
01
1
1509-
17
NOZZLE; DEFROSTER,SIDE
8-98040-014-0
01
1
1509-
17
NOZZLE; DEFROSTER,SIDE
8-98040-019-0
01
1
1509-
71
NUT; BLOWER UNIT TO DASH
8-97431-309-0
02
1
1509-
72
BOLT; BLOWER UNIT
M6X20 W/LK&PL WASHER
8-98081-175-0
02
1
1509-
77
BOLT; HTR UNIT
(A)
8-97431-303-0
01
1
1509-
77
BOLT; HTR UNIT
(B)
8-97431-304-0
02
1
1509-
77
BOLT; HTR UNIT
(C) M6X20 W/LK&PL WASHER
8-98081-175-0
03
1
1509-
107
BOLT; STAY,HTR UNIT
8-97431-305-0
01
1
1509-
123
SCREW; DUCT
8-97431-306-0
04
1
1509-
173
DUCT; FOOT,HTR
8-97585-508-1
01
1
1509-
173
DUCT; FOOT,HTR
8-98217-774-1
01
1
1509-
185
SCREW; VENT DUCT
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1509-
186
DUCT; VENTILATOR
8-98174-736-0
01
1
1509-
186
DUCT; VENTILATOR
8-98011-556-3
01
1
1509-
240
DUCT; AIR,HTR
8-97431-265-0
01
1
1509-
245
CLIP; FOOT DUCT
8-98056-059-0
03
1
1509-
277
NUT; HTR
8-97431-309-0
01
1
1509-
317
SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
06
1
1509-
317
SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1509-
471
NUT; BLOWER
8-97431-309-0
01
1
1509-
475
BRACKET; BLOWER
(A)
8-98028-309-1
01
1
1509-
475
BRACKET; BLOWER
(B)
8-98165-782-0
01
1
1509-
