◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXR ▶ 11663 - GXR(LHD)CHINA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#175263) — 52 parça

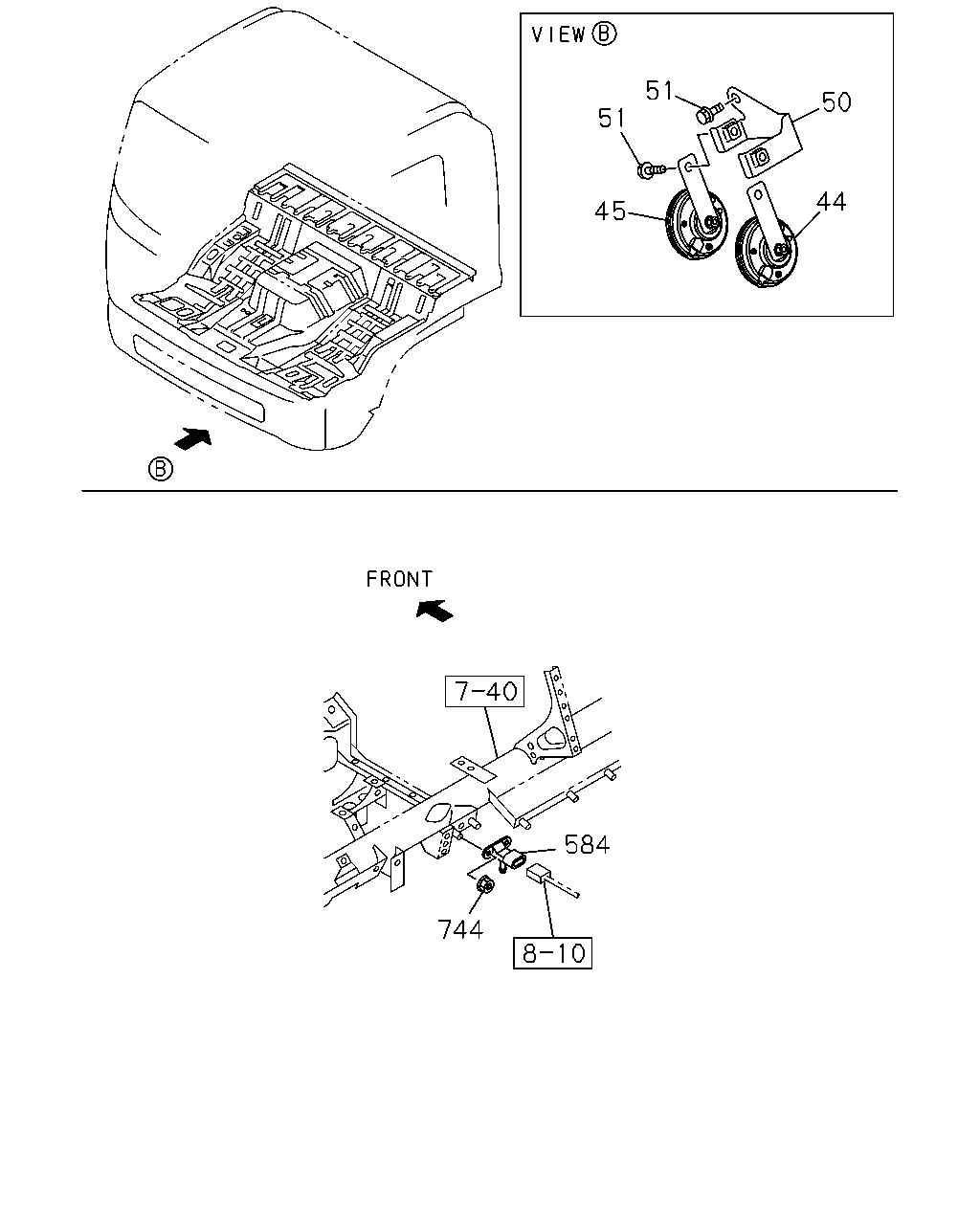

çizim 514067
51 51 45 44 50 584 744
BalonParca AdiParca NoAdetTipApplied Date
44 HORN; HIGH NOTE 8-97431-407-0 01 1 1509-
45 HORN; LOW NOTE 8-97431-408-0 01 1 1509-
50 BRACKET; HORN 8-97616-529-2 01 1 1509-
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1509-
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1509-
584 SENSOR; PRESSURE 8-98020-514-0 01 1 1509-
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 1509-
çizim 514137
22 694 754 115 770
BalonParca AdiParca NoAdetTipApplied Date
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1509-
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1509-
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO 		8-98005-631-0 01 1 1509-
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1509-
694 RELAY; RR FOG LAMP
24V 10A PANASONIC 		8-97173-035-1 01 1 1509-
754 RELAY; TRAILER STOP
24V 10A PANASONIC 		8-97173-035-1 01 1 1509-
770 RELAY; ENG BRK
24V 10A PANASONIC 		8-97173-035-1 01 1 1509-
çizim 514139
531 115 769
BalonParca AdiParca NoAdetTipApplied Date
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1509-
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO 		8-98005-631-0 01 1 1509-
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1509-
531 RELAY; MAIN
24V 30A MITSUBA 		8-97238-540-0 01 1 1509-
769 RELAY; TURBO CONT
24V 10A PANASONIC 		8-97173-035-1 01 1 1509-

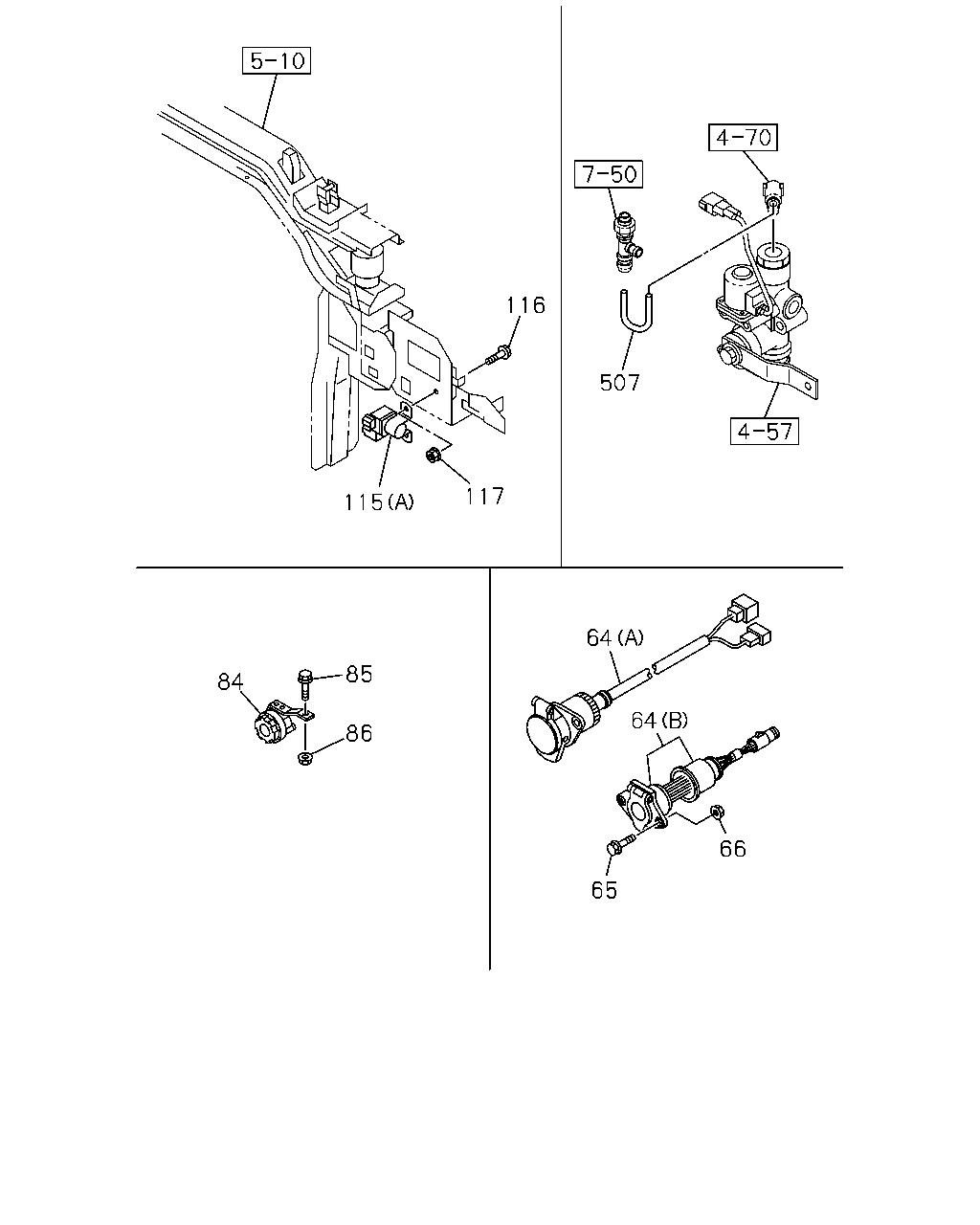

çizim 515009
115 117 116 507 84 85 86 64 64 65 66
BalonParca AdiParca NoAdetTipApplied Date
64 SOCKET; TRAILER
(A) 7P 		1-82523-014-0 01 1 1509-
64 SOCKET; TRAILER
(B) 		1-82698-178-2 01 1 1509-
65 BOLT; SOCKET FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1509-
66 NUT; SOCKET FIX
M8 FLANGE 		0-91180-108-0 02 1 1509-
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 1509-
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 1509-
86 NUT; BUZZER
M8 FLANGE 		0-91180-108-0 01 1 1509-
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1509-
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO 		8-98005-631-0 01 1 1509-
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1509-
116 BOLT; RELAY FIX
M8X20 FLANGE 		0-28650-820-0 02 1 1509-
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 1509-
507 TUBE; NYLON
X2 L=22 OD=6 		1-09389-003-0 01 1 1509-

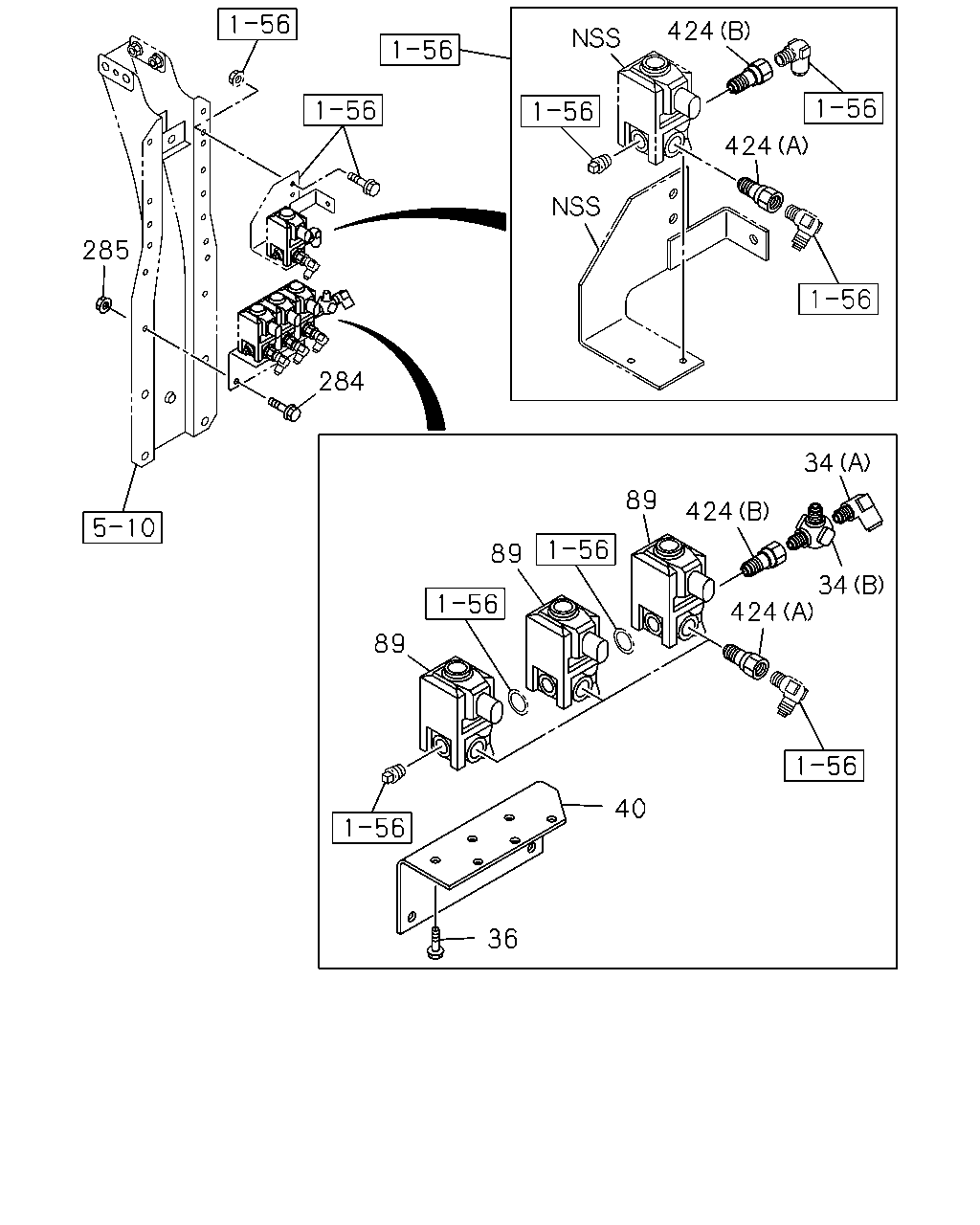

çizim 515090
285 284 424 424 34 34 424 424 89 89 89 36 40
BalonParca AdiParca NoAdetTipApplied Date
34 CONNECTOR; MAG VLV,INL PORT
(A) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1509-
34 CONNECTOR; MAG VLV,INL PORT
(B) DIN8 & R1/4 ELBOW 		8-97431-400-0 01 1 1509-
36 BOLT; MAG VLV,PTO CONT
M6X12 FLANGE 		0-28050-612-0 06 1 1509-
40 BRACKET; MAG VLV 8-97431-500-0 01 1 1509-
89 VALVE; MAG,DIFF LOCK 8-97431-459-0 03 1 1509-
284 BOLT; MAG VLV
M8X25 FLANGE 		0-28650-825-0 02 1 1509-
285 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 1509-
424 ADAPTER
(B) 		8-97431-769-0 01 1 1509-
424 ADAPTER
(A) 		8-97431-253-0 01 1 1509-
424 ADAPTER
(A) 		8-97431-253-0 03 1 1509-
424 ADAPTER
(B) 		8-97431-769-0 01 1 1509-

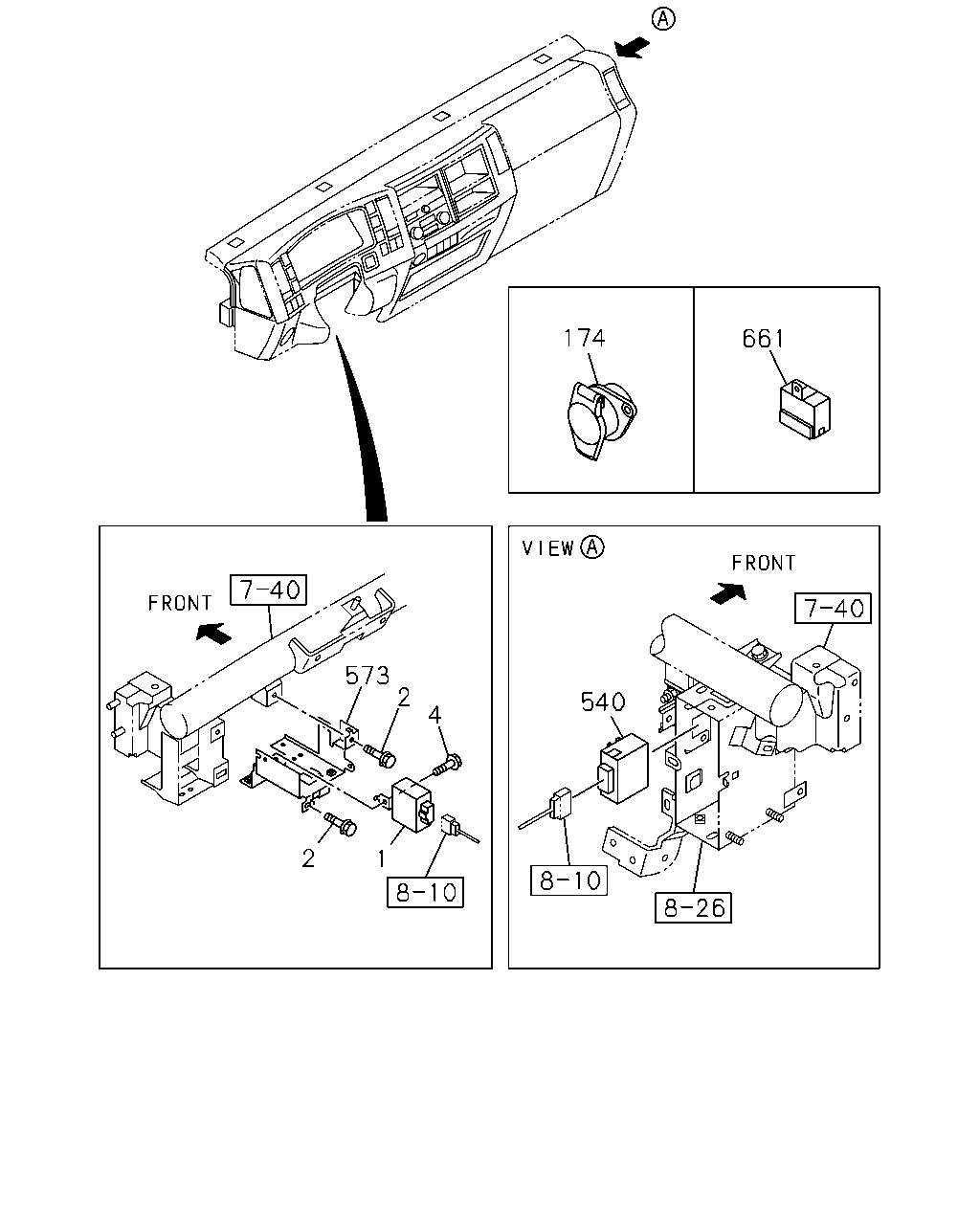

çizim 515181
174 661 573 2 4 2 1 540
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 8-97613-970-1 01 1 1509-
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 1509-
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 1509-
4 SCREW; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 01 1 1509-
4 SCREW; FLASHER UNIT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1509-
174 COVER 1-87223-009-0 01 1 1509-
540 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1509-
573 BRACKET; FLASHER UNIT 8-97616-351-3 01 1 1509-
661 CONTROL UNIT; FLASHER 1-83470-066-1 01 1 1509-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
