Isuzu WW
▶
TRUCKS
▶
GXR
▶
11663 - GXR(LHD)CHINA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#175261) — 52 parça
◀

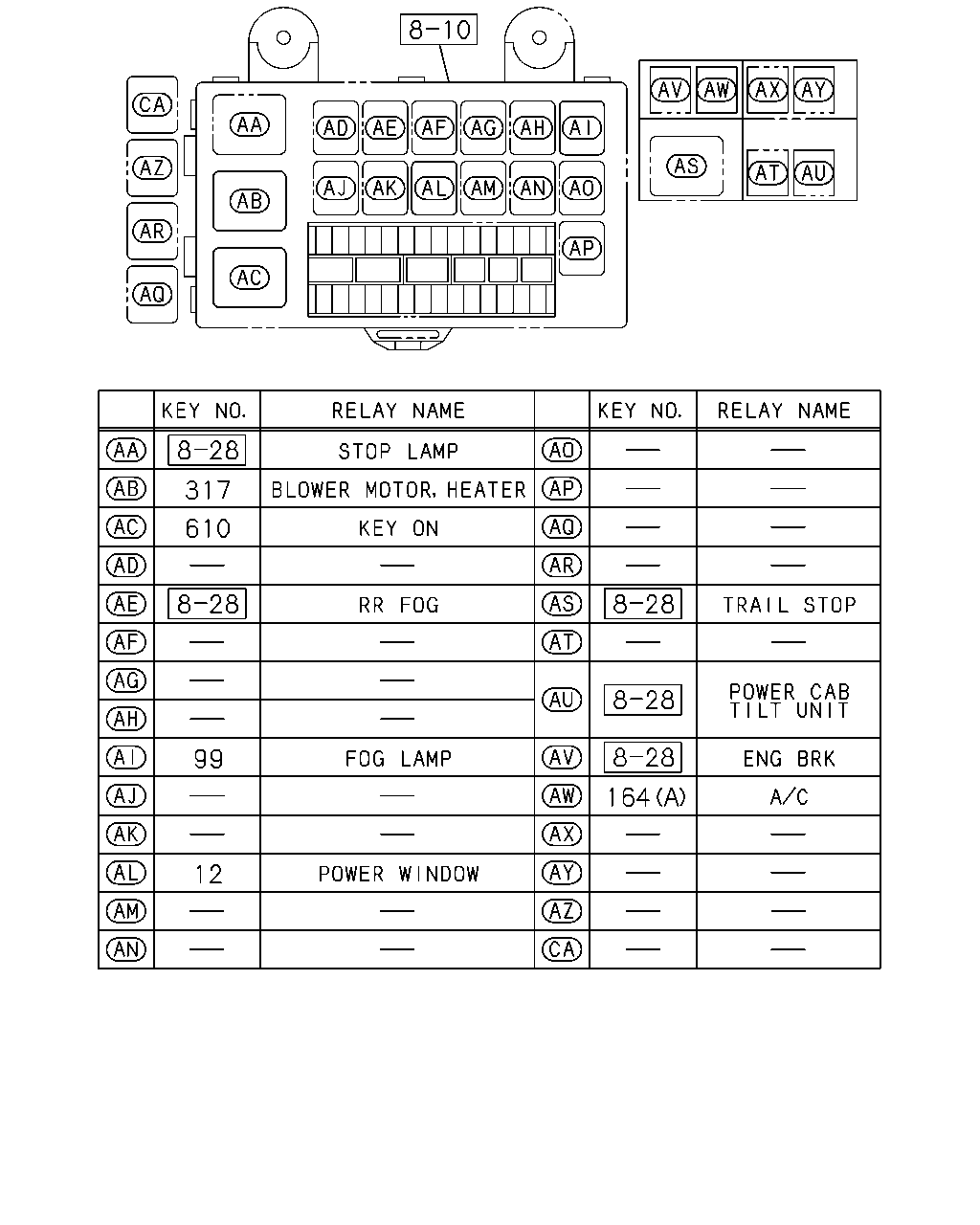

[825A] RELAY; CAB HARNESS (6 parça)
[825A] RELAY; FRAME HARNESS (2 parça)
[825A] SWITCH NO.2 (18 parça)
[825A] SWITCH NO.3 (16 parça)
[825A] RELAY; DOOR LOCK (1 parça)
[825A] SWITCH NO.1 (9 parça)
▶
164
12
99
610
317
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
RELAY; POWER WINDOW
24V 10A PANASONIC
8-97173-035-1
01
1
1509-
99
RELAY; FOG LAMP
24V 10A PANASONIC
8-97173-035-1
01
1
1509-
164
RELAY; A/C COMPRESSOR
(B) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1509-
164
RELAY; A/C COMPRESSOR
(A) 24V 10A PANASONIC
8-97173-035-1
01
1
1509-
317
RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC
8-97262-933-0
01
1
1509-
610
RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1509-
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
164
RELAY; A/C COMPRESSOR
(B) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1509-
164
RELAY; A/C COMPRESSOR
(A) 24V 10A PANASONIC
8-97173-035-1
01
1
1509-

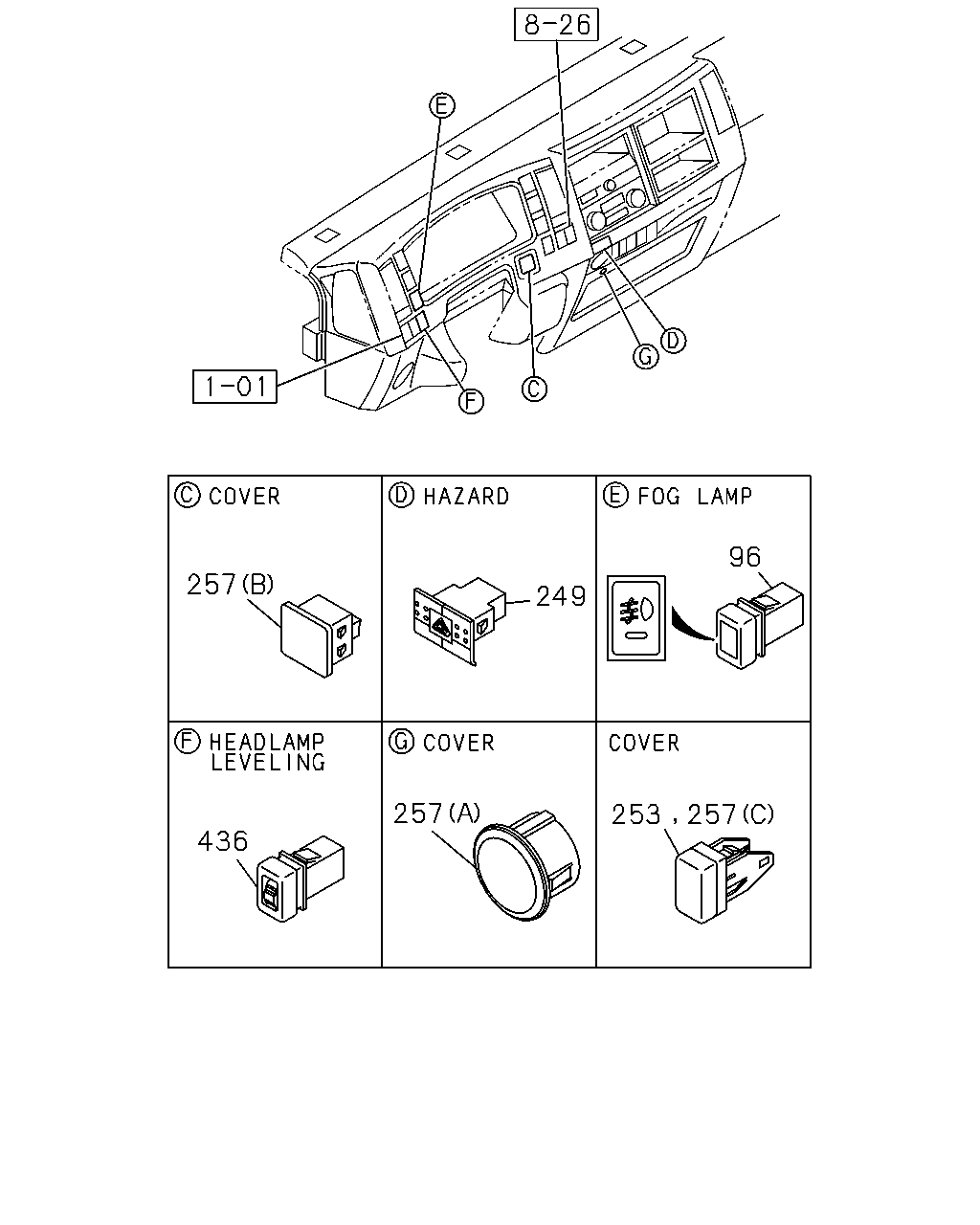

257
249
96
253
257
257
436
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
96
SWITCH; FOG LAMP
8-97387-031-3
01
1
1509-
249
SWITCH; HAZARD
8-97386-922-1
01
1
1509-
253
COVER; SW HOLE
8-98025-954-1
01
1
1509-
253
COVER; SW HOLE
8-98025-954-1
01
1
1509-
253
COVER; SW HOLE
8-98025-954-1
01
1
1509-
253
COVER; SW HOLE
8-98025-954-1
01
1
1509-
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
1509-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1509-
257
COVER; HOLE,SW
(D)
8-98029-917-0
01
1
1509-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1509-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1509-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1509-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1509-
257
COVER; HOLE,SW
(A)
8-98070-401-2
01
1
1509-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1509-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1509-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1509-
436
SWITCH; HEADLAMP LEVELING
8-97386-981-2
01
1
1509-

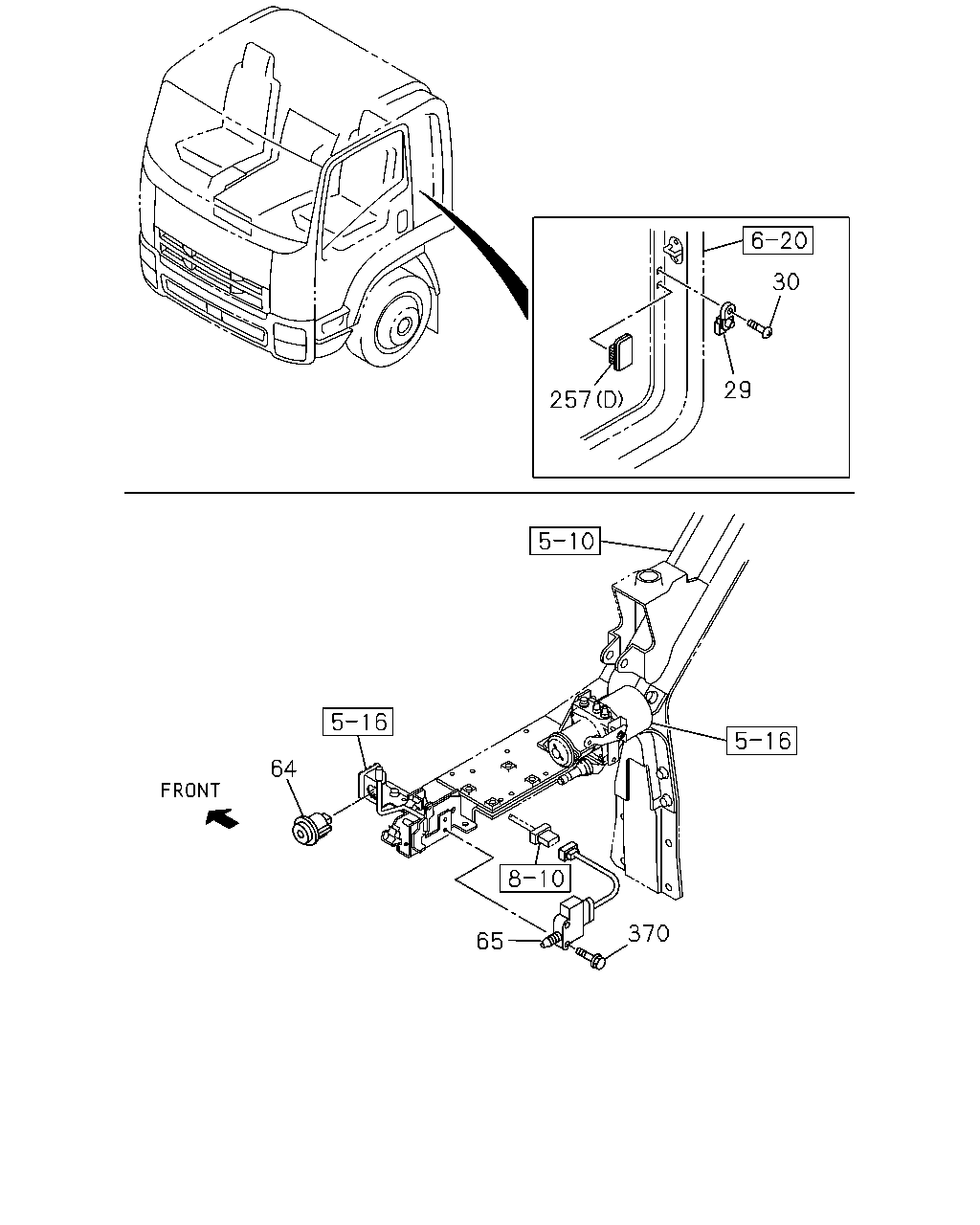

30
29
257
64
65
370
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
BLACK
8-98022-211-0
01
1
1509-
30
SCREW; DOOR SW
M5X18
8-98047-201-0
01
1
1509-
64
SWITCH; CAB TILT MAIN
1-82380-173-2
01
1
1509-
65
SWITCH; CAB TILT LK
STAMP NO
1-82380-172-1
01
1
1509-
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
1509-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1509-
257
COVER; HOLE,SW
(D)
8-98029-917-0
01
1
1509-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1509-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1509-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1509-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1509-
257
COVER; HOLE,SW
(A)
8-98070-401-2
01
1
1509-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1509-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1509-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1509-
370
BOLT; SW
M6X30 FLANGE
0-28650-630-0
02
1
1509-
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
RELAY; DOOR LK
8-98060-789-0
01
1
1509-

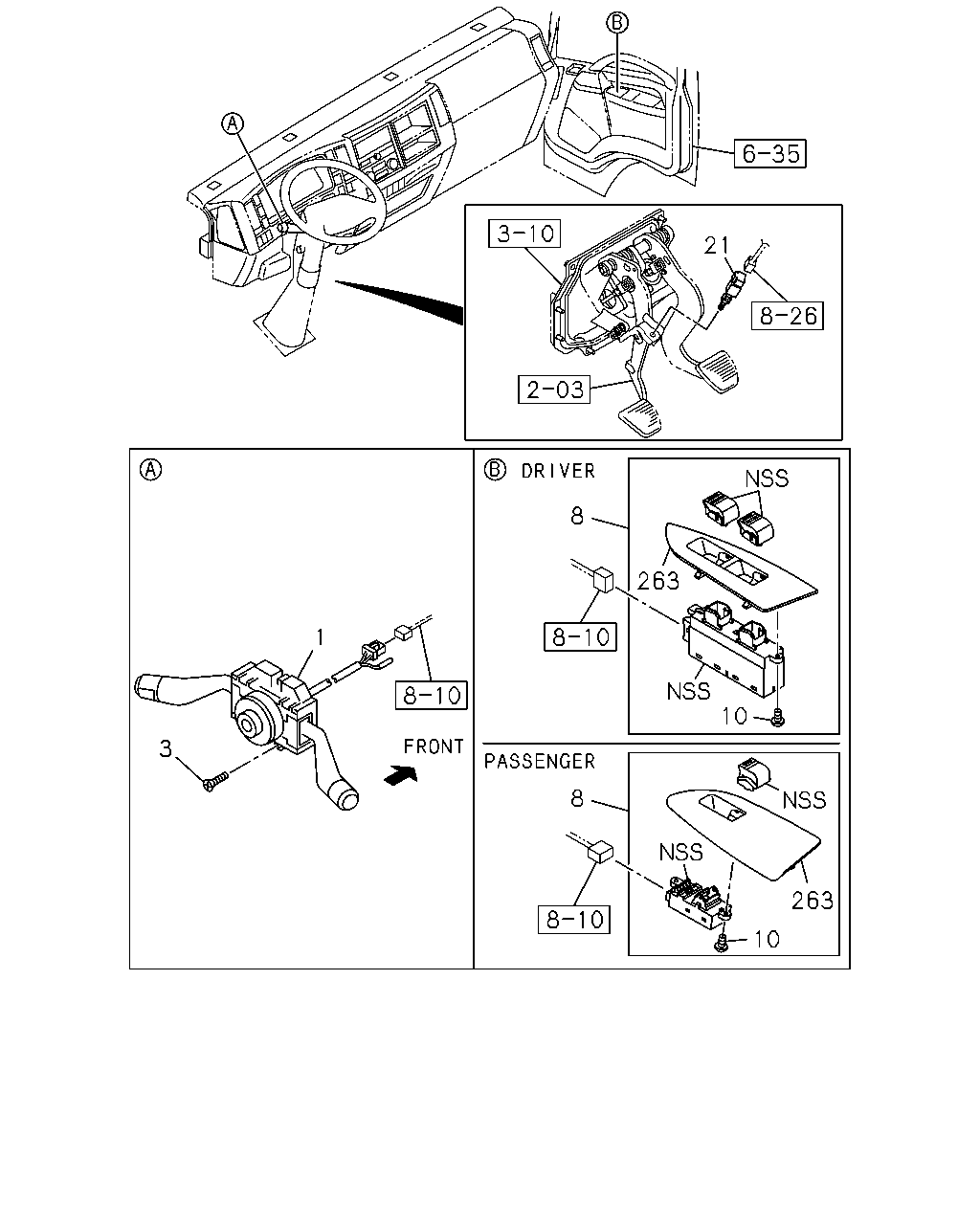

21
8
263
10
1
3
8
263
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
8-98240-592-0
01
1
1509-
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
1509-
8
SWITCH; POWER WINDOW
PASSENGER
8-98001-737-2
01
1
1509-
8
SWITCH; POWER WINDOW
DRIVER
8-98159-544-0
01
1
1509-
10
SCREW; POWER WINDOW SW
8-98153-865-0
02
1
1509-
10
SCREW; POWER WINDOW SW
8-98153-865-0
01
1
1509-
21
SWITCH; CLU
8-97358-248-0
01
1
1509-
263
COVER; SW
PASSENGER
8-98153-843-0
01
1
1509-
263
COVER; SW
DRIVER
8-98153-838-0
01
1
1509-
