Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#17526) — 223 parça

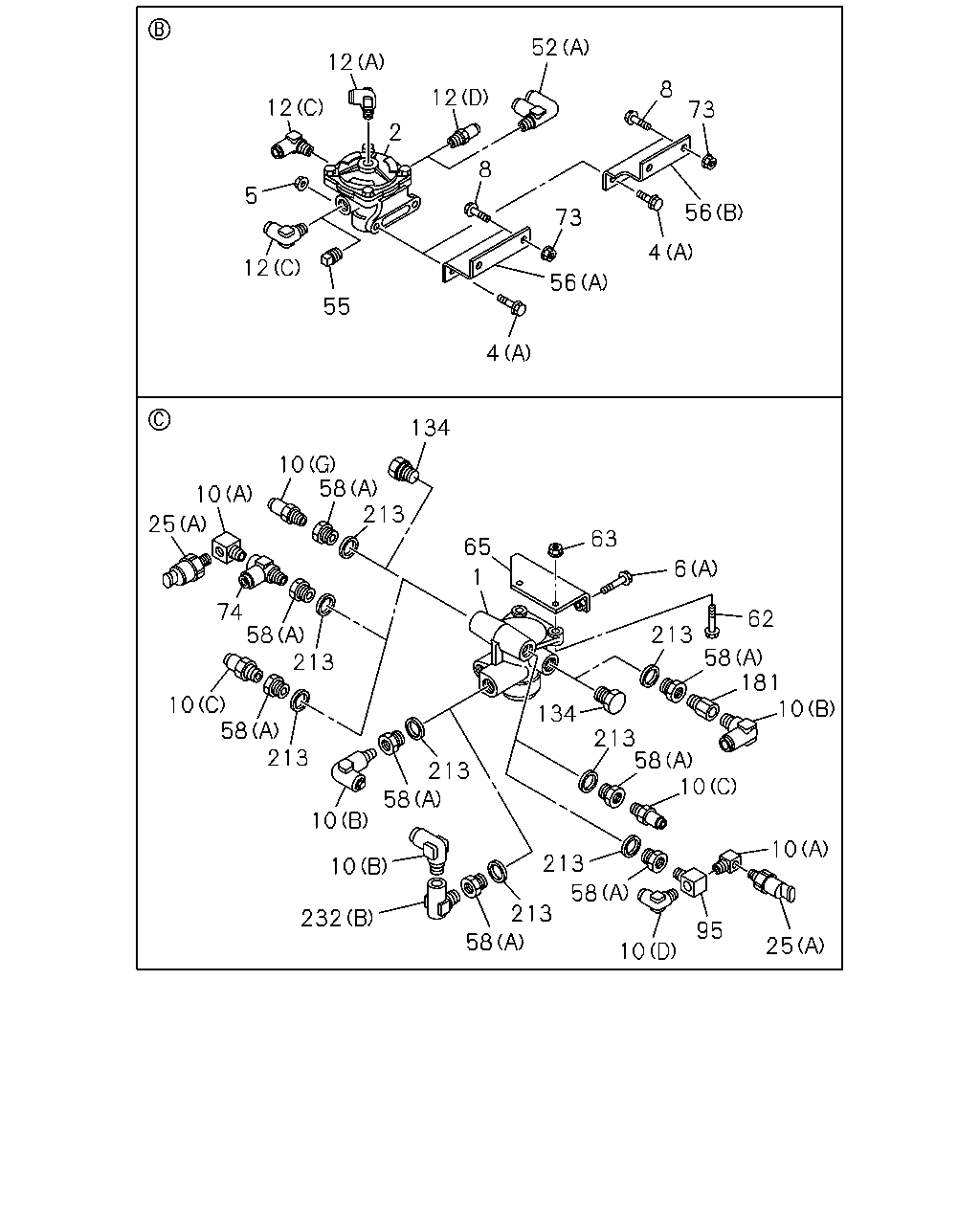

52 12 8 12 12 73 2 8 5 56 73 4 12 56 55 4 134 10 58 213 10 25 63 65 6 1 74 58 213 62 213 58 181 10 10 58 213 134 213 58 10 213 58 10 10 213 10 58 213 232 95 58 25 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR	1-48240-354-1	01	1	1109-
2	VALVE; RELAY	1-48210-875-0	01	1	1109-1210
2	VALVE; RELAY EXC. H.S.A SYSTEM<6EP>	1-48210-875-0	01	1	1109-1210
2	VALVE; RELAY	1-48210-875-0	01	1	1211-
4	BOLT; RELAY VLV TO BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	1109-1205
4	BOLT; RELAY VLV TO BRKT CHILE EQUIPMENT(KE1) (A) M10X30 FLANGE	0-28651-030-0	02	1	1206-
4	BOLT; RELAY VLV TO BRKT EXC. H.S.A SYSTEM<6EP> (B) M10X35 FLANGE	0-28651-035-0	02	1	1109-1205
4	BOLT; RELAY VLV TO BRKT EXC. CHILE EQUIPMENT(KE1),H.S.A SYSTEM<6EP> (B) M10X35 FLANGE	0-28651-035-0	02	1	1206-1210
4	BOLT; RELAY VLV TO BRKT EXC. CHILE EQUIPMENT(KE1) (B) M10X35 FLANGE	0-28651-035-0	02	1	1211-
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	1211-
5	NUT M10 FLANGE	0-91180-210-0	02	1	1109-1210
5	NUT EXC. H.S.A SYSTEM<6EP> M10 FLANGE	0-91180-210-0	02	1	1109-1210
5	NUT M10 FLANGE	0-91180-210-0	02	1	1211-
6	BOLT; VLV ANTI LOCK BRAKE<JE5> (B) M8X80 FLANGE	0-28050-880-0	04	1	1206-1410
6	BOLT; VLV ANTI LOCK BRAKE<JE5> (B) M8X85	1-09044-074-0	04	1	1411-
6	BOLT; VLV (A) M8X35 FLANGE	0-28650-835-0	02	1	1109-
8	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1109-
10	CONNECTOR EXC. CHILE EQUIPMENT(KE1) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1206-
10	CONNECTOR EXC. CHILE EQUIPMENT(KE1) (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1206-
10	CONNECTOR (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1109-
10	CONNECTOR (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1109-1205
10	CONNECTOR CHILE EQUIPMENT(KE1) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1206-
10	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1109-1205
10	CONNECTOR CHILE EQUIPMENT(KE1) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1206-
10	CONNECTOR (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1109-
10	CONNECTOR MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1109-
10	CONNECTOR VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1109-
12	CONNECTOR; RELAY VLV EXC. CHILE EQUIPMENT(KE1) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1206-
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1109-
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1109-1205
12	CONNECTOR; RELAY VLV CHILE EQUIPMENT(KE1) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1206-
12	CONNECTOR; RELAY VLV EXC. H.S.A SYSTEM<6EP> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1109-1205
12	CONNECTOR; RELAY VLV EXC. CHILE EQUIPMENT(KE1),H.S.A SYSTEM<6EP> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1206-1210
12	CONNECTOR; RELAY VLV EXC. CHILE EQUIPMENT(KE1) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1211-
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1211-
12	CONNECTOR; RELAY VLV EXC. H.S.A SYSTEM<6EP> (B) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1109-1210
12	CONNECTOR; RELAY VLV (B) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1211-
25	SWITCH; PRESSURE (A) STAMP 2.0	8-98010-856-2	01	1	1109-
25	SWITCH; PRESSURE VIN MODEL YEAR 2011<VZB> (B) STAMP 5.5	8-97609-249-0	01	1	1109-
52	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> H.S.A SYSTEM<6EP> (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1206-1210
52	CONNECTOR; RELAY VLV H.S.A SYSTEM<6EP> (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1211-
52	CONNECTOR; RELAY VLV (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1109-1205
52	CONNECTOR; RELAY VLV CHILE EQUIPMENT(KE1) (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1206-
52	CONNECTOR; RELAY VLV EXC. H.S.A SYSTEM<6EP> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1109-
52	CONNECTOR; RELAY VLV EXC. H.S.A SYSTEM<6EP> (B) DIN8 & R3/8 & RC3/8 3WAY	1-09661-271-0	01	1	1109-
55	PLUG; SUPPLY PT3/8	9-09204-517-0	01	1	1109-1205
55	PLUG; SUPPLY CHILE EQUIPMENT(KE1) PT3/8	9-09204-517-0	01	1	1206-
56	BRACKET; RELAY VLV EXC. CHILE EQUIPMENT(KE1) (B)	8-98126-366-0	01	1	1206-
56	BRACKET; RELAY VLV (A)	1-47478-233-0	01	1	1109-1205
56	BRACKET; RELAY VLV CHILE EQUIPMENT(KE1) (A)	1-47478-233-0	01	1	1206-
58	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1109-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1109-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1109-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (D) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1109-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (E)	8-98148-475-0	01	1	1109-
58	ADAPTER ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1109-1205
58	ADAPTER ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (F) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1206-
58	ADAPTER ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1109-1205
58	ADAPTER ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1206-
62	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	02	1	1109-
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	1109-
65	BRACKET; RELAY VLV RR	1-47471-032-0	01	1	1109-
73	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1109-
74	CONNECTOR; 3WAY EXC. CHILE EQUIPMENT(KE1) DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	1206-
95	UNION; AIR VLV R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1109-1205
95	UNION; AIR VLV CHILE EQUIPMENT(KE1) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1206-
134	PLUG; RELAY VALVE M22	1-09661-502-0	01	1	1109-
181	ADAPTER; PRESSURE SW PT3/8	1-09664-210-0	01	1	1109-1205
181	ADAPTER; PRESSURE SW CHILE EQUIPMENT(KE1) PT3/8	1-09664-210-0	01	1	1206-
213	GASKET ID=22.5	9-09571-422-0	04	1	1109-
232	VALVE; CHECK (B)	1-48320-031-1	01	1	1109-1205
232	VALVE; CHECK CHILE EQUIPMENT(KE1) (B)	1-48320-031-1	01	1	1206-
232	VALVE; CHECK VIN MODEL YEAR 2011<VZB> (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1109-

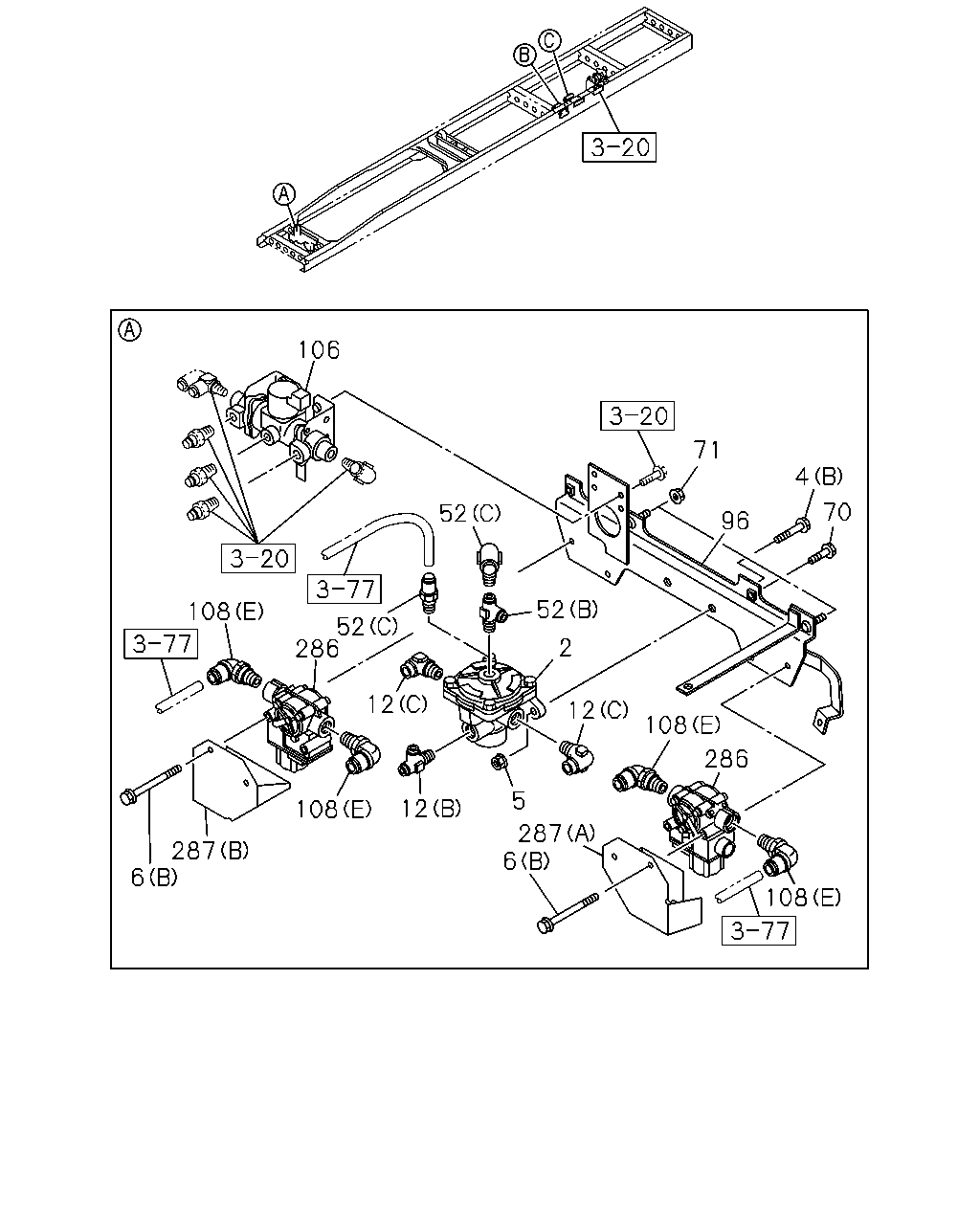

106 71 4 70 52 96 52 108 52 286 2 12 12 108 286 5 12 108 287 6 287 6 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY	1-48210-875-0	01	1	1109-1210
2	VALVE; RELAY EXC. H.S.A SYSTEM<6EP>	1-48210-875-0	01	1	1109-1210
2	VALVE; RELAY	1-48210-875-0	01	1	1211-
4	BOLT; RELAY VLV TO BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	1109-1205
4	BOLT; RELAY VLV TO BRKT CHILE EQUIPMENT(KE1) (A) M10X30 FLANGE	0-28651-030-0	02	1	1206-
4	BOLT; RELAY VLV TO BRKT EXC. H.S.A SYSTEM<6EP> (B) M10X35 FLANGE	0-28651-035-0	02	1	1109-1205
4	BOLT; RELAY VLV TO BRKT EXC. CHILE EQUIPMENT(KE1),H.S.A SYSTEM<6EP> (B) M10X35 FLANGE	0-28651-035-0	02	1	1206-1210
4	BOLT; RELAY VLV TO BRKT EXC. CHILE EQUIPMENT(KE1) (B) M10X35 FLANGE	0-28651-035-0	02	1	1211-
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	1211-
5	NUT M10 FLANGE	0-91180-210-0	02	1	1109-1210
5	NUT EXC. H.S.A SYSTEM<6EP> M10 FLANGE	0-91180-210-0	02	1	1109-1210
5	NUT M10 FLANGE	0-91180-210-0	02	1	1211-
6	BOLT; VLV ANTI LOCK BRAKE<JE5> (B) M8X80 FLANGE	0-28050-880-0	04	1	1206-1410
6	BOLT; VLV ANTI LOCK BRAKE<JE5> (B) M8X85	1-09044-074-0	04	1	1411-
6	BOLT; VLV (A) M8X35 FLANGE	0-28650-835-0	02	1	1109-
12	CONNECTOR; RELAY VLV EXC. CHILE EQUIPMENT(KE1) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1206-
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1109-
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1109-1205
12	CONNECTOR; RELAY VLV CHILE EQUIPMENT(KE1) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1206-
12	CONNECTOR; RELAY VLV EXC. H.S.A SYSTEM<6EP> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1109-1205
12	CONNECTOR; RELAY VLV EXC. CHILE EQUIPMENT(KE1),H.S.A SYSTEM<6EP> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1206-1210
12	CONNECTOR; RELAY VLV EXC. CHILE EQUIPMENT(KE1) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1211-
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1211-
12	CONNECTOR; RELAY VLV EXC. H.S.A SYSTEM<6EP> (B) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1109-1210
12	CONNECTOR; RELAY VLV (B) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1211-
52	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> H.S.A SYSTEM<6EP> (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1206-1210
52	CONNECTOR; RELAY VLV H.S.A SYSTEM<6EP> (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1211-
52	CONNECTOR; RELAY VLV (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1109-1205
52	CONNECTOR; RELAY VLV CHILE EQUIPMENT(KE1) (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1206-
52	CONNECTOR; RELAY VLV EXC. H.S.A SYSTEM<6EP> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1109-
52	CONNECTOR; RELAY VLV EXC. H.S.A SYSTEM<6EP> (B) DIN8 & R3/8 & RC3/8 3WAY	1-09661-271-0	01	1	1109-
70	BOLT; AIR VLV M8X25 FLANGE	0-28650-825-0	02	1	1109-
71	NUT; AIR VLV M8 FLANGE	0-91180-108-0	02	1	1109-
96	BRACKET ANTI LOCK BRAKE<JE5>	8-98273-968-0	01	1	1411-
96	BRACKET EXC. H.S.A SYSTEM<6EP>	8-98094-851-2	01	1	1109-1210
96	BRACKET	8-98094-851-2	01	1	1211-1410
96	BRACKET EXC. ANTI LOCK BRAKE<JE5>	8-98094-851-2	01	1	1411-
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1109-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (E) DIN12 & M22 ELBOW	1-09661-497-0	04	1	1206-
108	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (D) PT3/8 ELBOW	1-09660-696-0	01	1	1109-
108	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1109-
108	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1109-
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> (B) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1109-1205
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) VIN MODEL YEAR 2011<VZB> (B) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1206-1503
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) VIN MODEL YEAR 2011<VZB> (B) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-
286	MODULATOR; FRT ANTI LOCK BRAKE<JE5>	1-48240-115-0	02	1	1206-1410
286	MODULATOR; FRT ANTI LOCK BRAKE<JE5>	8-98215-454-0	02	1	1411-
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> (A)	1-47479-611-1	01	1	1206-1410
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> (B)	8-98273-493-0	01	1	1411-
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> (B)	8-98073-401-0	01	1	1206-1410
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> (A)	8-98273-494-0	01	1	1411-

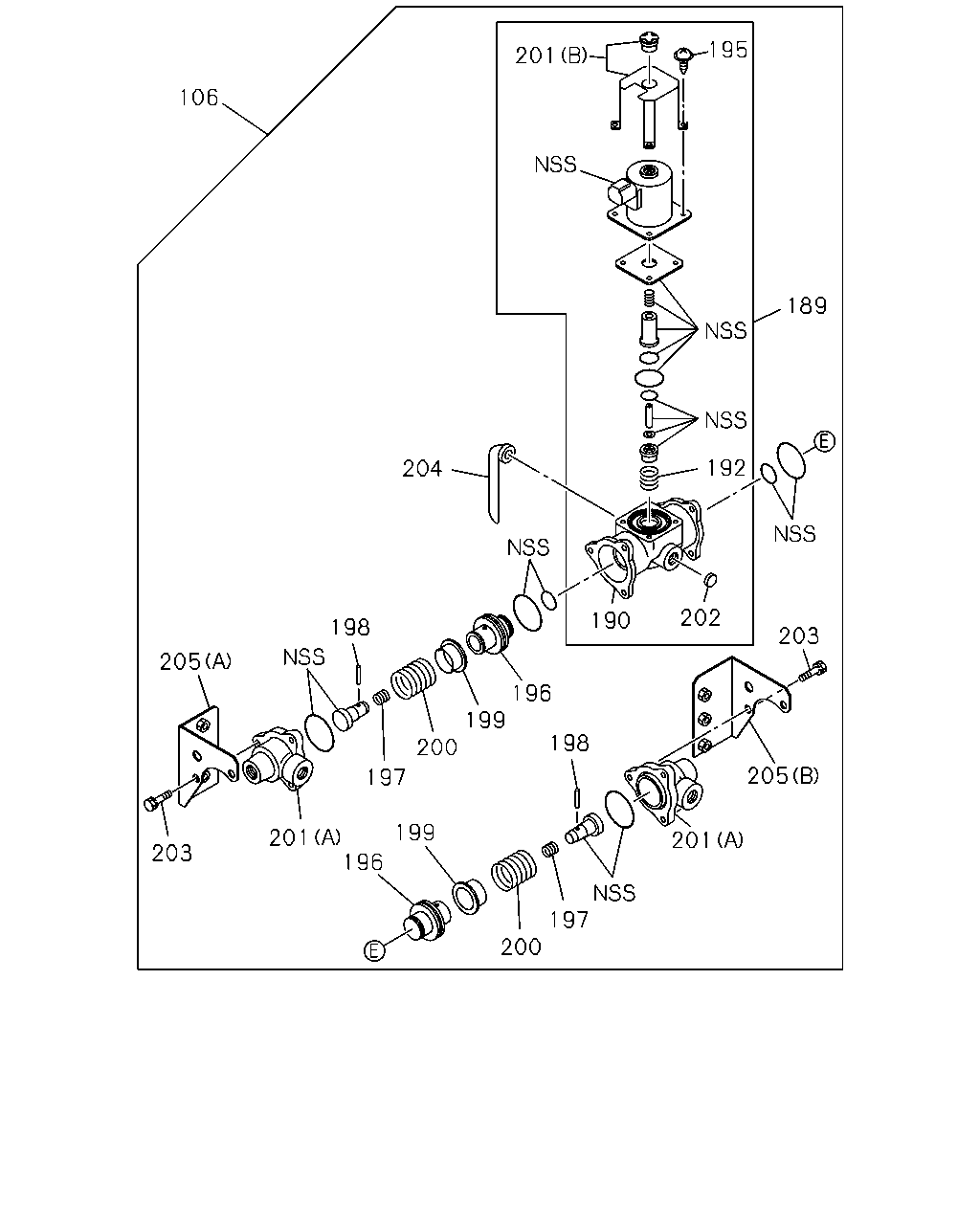

188 204

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	188	REPAIR KIT; HSA VLV H.S.A SYSTEM<6EP>	1-85576-304-1	01	1	1109-
	204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1109-

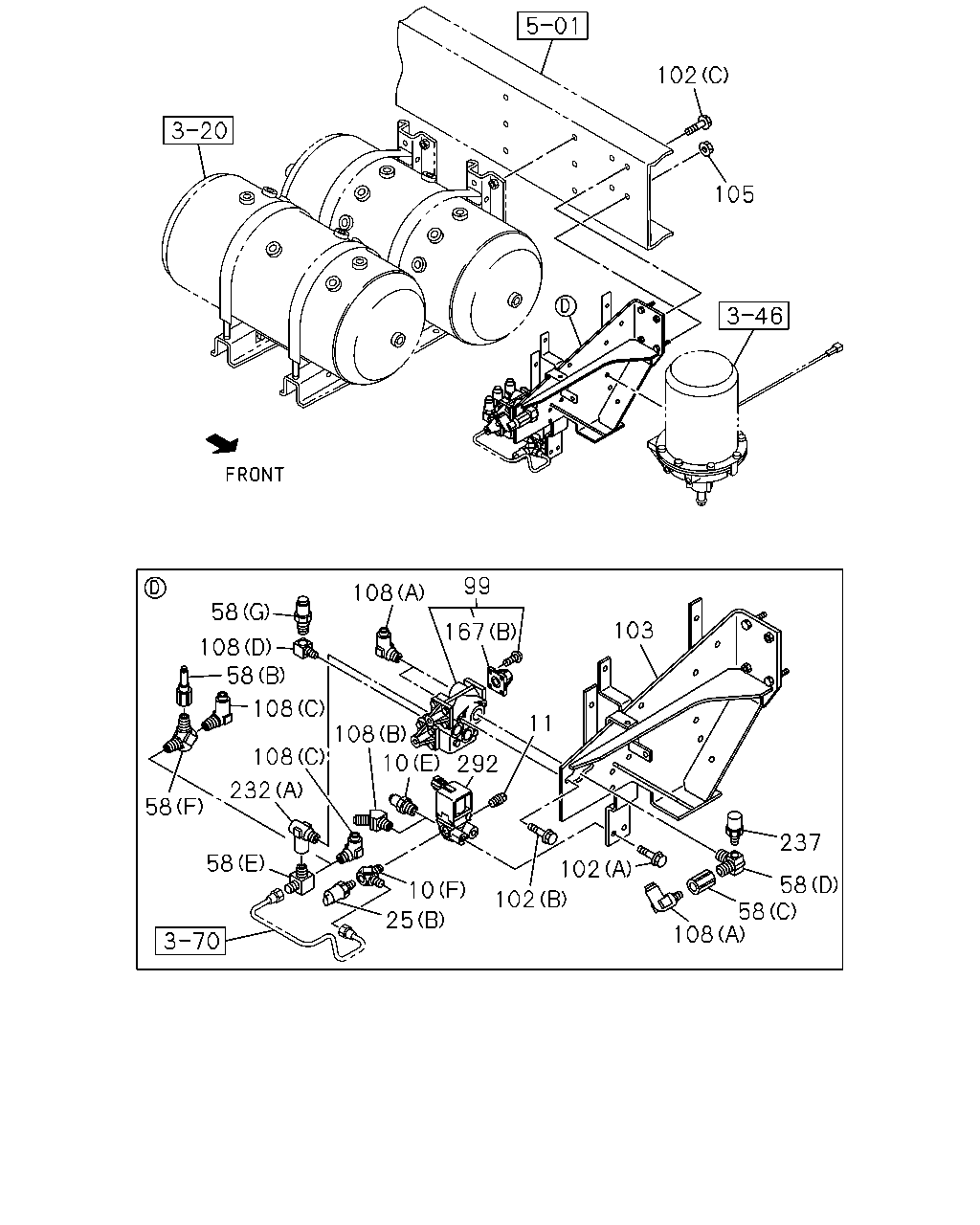

102 105 58 108 58 108 108 108 167 103 99 292 102 10 25 102 11 237 58 58 108 232 58 58 108 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	CONNECTOR EXC. CHILE EQUIPMENT(KE1) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1206-
10	CONNECTOR EXC. CHILE EQUIPMENT(KE1) (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1206-
10	CONNECTOR (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1109-
10	CONNECTOR (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1109-1205
10	CONNECTOR CHILE EQUIPMENT(KE1) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1206-
10	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1109-1205
10	CONNECTOR CHILE EQUIPMENT(KE1) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1206-
10	CONNECTOR (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1109-
10	CONNECTOR MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1109-
10	CONNECTOR VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1109-
11	PLUG VIN MODEL YEAR 2011<VZB> PT1/4	9-99204-513-0	01	1	1109-
25	SWITCH; PRESSURE (A) STAMP 2.0	8-98010-856-2	01	1	1109-
25	SWITCH; PRESSURE VIN MODEL YEAR 2011<VZB> (B) STAMP 5.5	8-97609-249-0	01	1	1109-
58	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1109-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1109-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1109-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (D) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1109-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (E)	8-98148-475-0	01	1	1109-
58	ADAPTER ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1109-1205
58	ADAPTER ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (F) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1206-
58	ADAPTER ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1109-1205
58	ADAPTER ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1206-
99	VALVE; PROTECTION MZW6P M/T(RSZ),FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) VIN MODEL YEAR 2011<VZB>	1-48110-294-3	01	1	1206-
99	VALVE; PROTECTION VIN MODEL YEAR 2011<VZB>	1-48110-288-3	01	1	1109-
102	BOLT; PROTECTION VALVE (C) M10X35 FLANGE	0-28651-035-0	02	1	1109-
102	BOLT; PROTECTION VALVE VIN MODEL YEAR 2011<VZB> (B) M8X16 FLANGE	0-28050-816-0	02	1	1109-
102	BOLT; PROTECTION VALVE VIN MODEL YEAR 2011<VZB> (A) M8X20 FLANGE	0-28650-820-0	02	1	1109-
103	BRACKET; PROTECTION VALVE VIN MODEL YEAR 2011<VZB>	8-98177-510-0	01	1	1109-
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	02	1	1109-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (E) DIN12 & M22 ELBOW	1-09661-497-0	04	1	1206-
108	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (D) PT3/8 ELBOW	1-09660-696-0	01	1	1109-
108	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1109-
108	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1109-
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> (B) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1109-1205
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) VIN MODEL YEAR 2011<VZB> (B) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1206-1503
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) VIN MODEL YEAR 2011<VZB> (B) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-
167	COVER; VALVE VIN MODEL YEAR 2011<VZB> (B)	1-48119-625-0	04	1	1109-
167	COVER; VALVE (A)	1-48219-070-0	01	1	1109-1210
167	COVER; VALVE EXC. H.S.A SYSTEM<6EP> (A)	1-48219-070-0	01	1	1109-1210
167	COVER; VALVE (A)	1-48219-070-0	01	1	1211-
232	VALVE; CHECK (B)	1-48320-031-1	01	1	1109-1205
232	VALVE; CHECK CHILE EQUIPMENT(KE1) (B)	1-48320-031-1	01	1	1206-
232	VALVE; CHECK VIN MODEL YEAR 2011<VZB> (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1109-
237	VALVE; SAFETY	1-48320-012-2	01	1	1109-
292	VALVE ASM; MAGNETIC VIN MODEL YEAR 2011<VZB>	1-82563-871-2	01	1	1109-

195 201 106 189 192 204 202 190 198 203 205 196 199 200 198 205 197 201 199 201 196 203 197 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1109-
189	VALVE ASM; SOLENOID,HSA VLV H.S.A SYSTEM<6EP>	1-46366-247-0	01	1	1109-
190	BODY; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-234-0	01	1	1109-
192	SPRING; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-181-0	01	1	1109-
195	SCREW; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-191-0	04	1	1109-
196	PISTON; HSA VLV H.S.A SYSTEM<6EP>	1-46366-232-0	02	1	1109-
197	SPRING; INNER,HSA VLV H.S.A SYSTEM<6EP>	1-46366-161-0	02	1	1109-
198	PIN; STRAIGHT,HSA VLV H.S.A SYSTEM<6EP>	1-46366-122-0	02	1	1109-
199	RETAINER; HSA VLV H.S.A SYSTEM<6EP>	1-46366-121-0	02	1	1109-
200	SPRING; OUTER,HSA VLV H.S.A SYSTEM<6EP>	1-46366-120-0	02	1	1109-
201	COVER; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-118-1	02	1	1109-
201	COVER; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-241-0	01	1	1109-
202	FILTER; HSA VLV H.S.A SYSTEM<6EP>	1-46366-117-1	02	1	1109-
203	SCREW; HSA VLV H.S.A SYSTEM<6EP>	1-46366-116-1	06	1	1109-
204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1109-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-149-0	01	1	1109-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-150-0	01	1	1109-

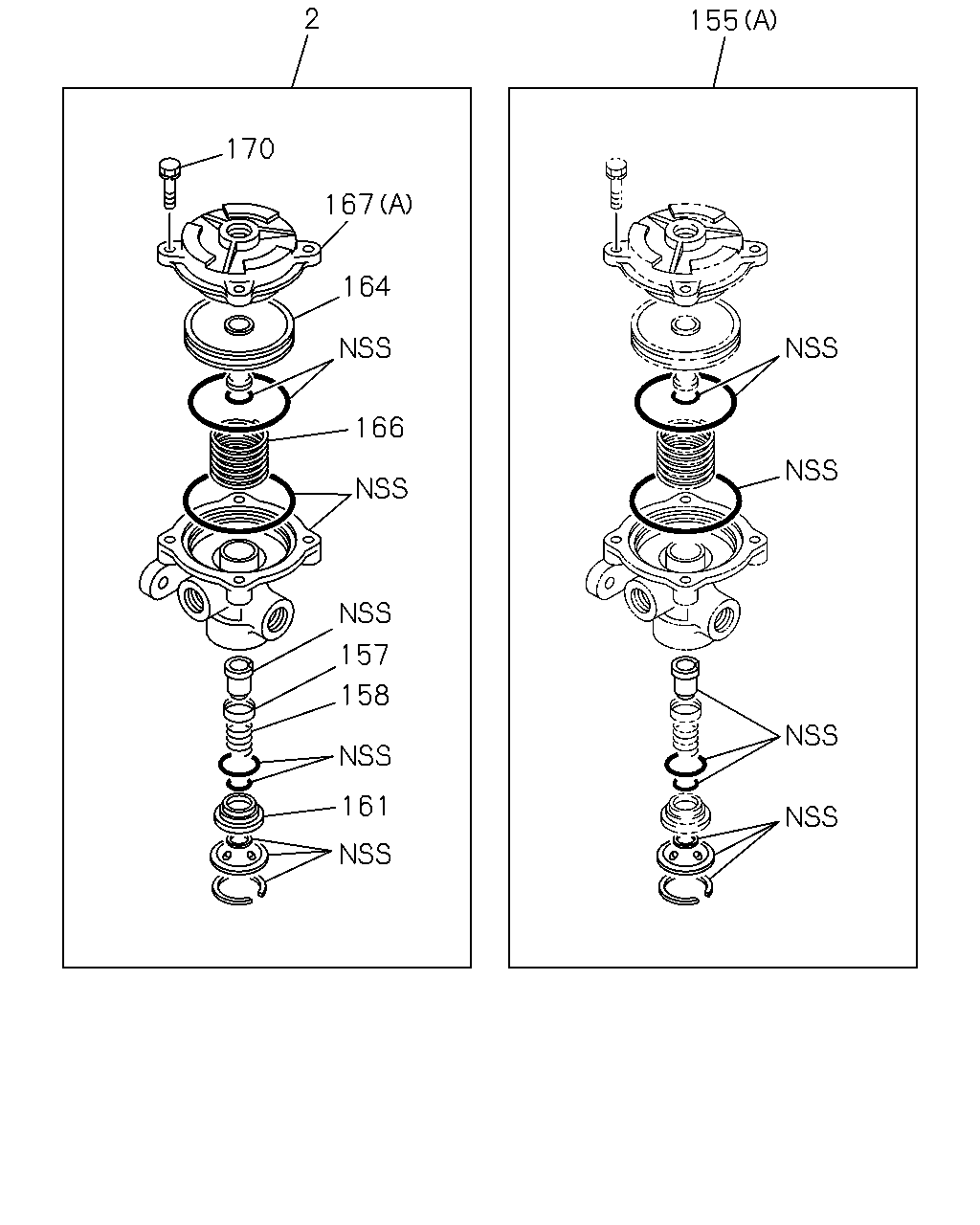

2 170 167 164 166 157 158 161 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY	1-48210-875-0	01	1	1109-1210
2	VALVE; RELAY EXC. H.S.A SYSTEM<6EP>	1-48210-875-0	01	1	1109-1210
2	VALVE; RELAY	1-48210-875-0	01	1	1211-
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	01	1	1109-1210
155	REPAIR KIT; RELAY VALVE EXC. H.S.A SYSTEM<6EP> (A)	1-85576-033-0	01	1	1109-1210
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	01	1	1211-
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	1109-
157	RETAINER; VALVE	1-48213-002-0	01	1	1109-1210
157	RETAINER; VALVE EXC. H.S.A SYSTEM<6EP>	1-48213-002-0	01	1	1109-1210
157	RETAINER; VALVE	1-48213-002-0	01	1	1211-
158	SPRING; VALVE	1-47819-089-0	01	1	1109-1210
158	SPRING; VALVE EXC. H.S.A SYSTEM<6EP>	1-47819-089-0	01	1	1109-1210
158	SPRING; VALVE	1-47819-089-0	01	1	1211-
161	GUIDE; VALVE	1-48129-014-0	01	1	1109-1210
161	GUIDE; VALVE EXC. H.S.A SYSTEM<6EP>	1-48129-014-0	01	1	1109-1210
161	GUIDE; VALVE	1-48129-014-0	01	1	1211-
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	1109-1210
164	PISTON; RELAY VALVE EXC. H.S.A SYSTEM<6EP>	1-48219-071-0	01	1	1109-1210
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	1211-
166	SPRING; PISTON	1-47819-090-0	01	1	1109-1210
166	SPRING; PISTON EXC. H.S.A SYSTEM<6EP>	1-47819-090-0	01	1	1109-1210
166	SPRING; PISTON	1-47819-090-0	01	1	1211-
167	COVER; VALVE VIN MODEL YEAR 2011<VZB> (B)	1-48119-625-0	04	1	1109-
167	COVER; VALVE (A)	1-48219-070-0	01	1	1109-1210
167	COVER; VALVE EXC. H.S.A SYSTEM<6EP> (A)	1-48219-070-0	01	1	1109-1210
167	COVER; VALVE (A)	1-48219-070-0	01	1	1211-
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	1109-1210
170	SCREW; COVER TO BODY EXC. H.S.A SYSTEM<6EP>	1-48219-039-0	04	1	1109-1210
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	1211-

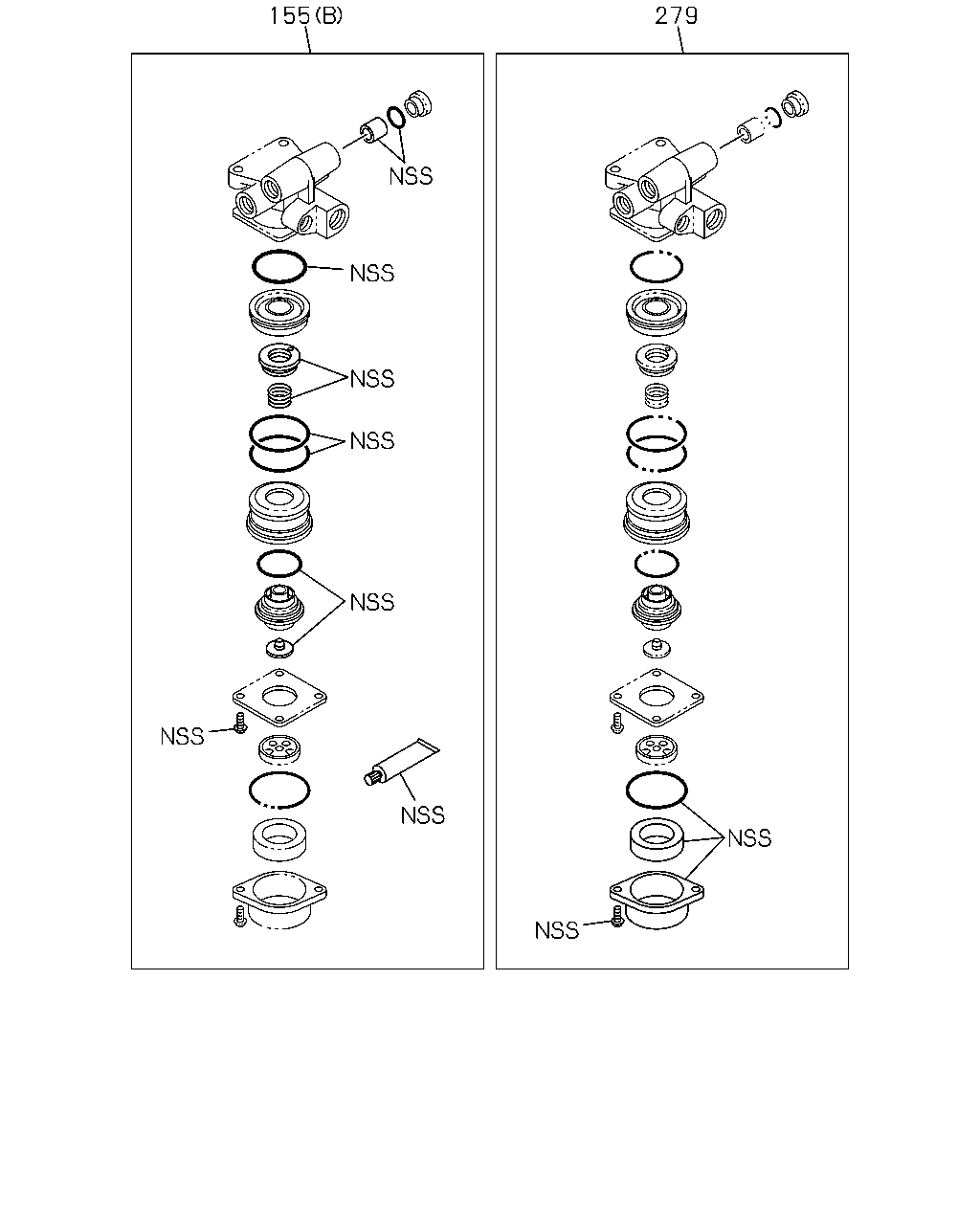

155 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	01	1	1109-1210
155	REPAIR KIT; RELAY VALVE EXC. H.S.A SYSTEM<6EP> (A)	1-85576-033-0	01	1	1109-1210
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	01	1	1211-
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	1109-
279	REPAIR KIT; SILENCER	1-85576-409-0	01	1	1109-

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	REPAIR KIT; PROTECTION VALVE VIN MODEL YEAR 2011<VZB>	1-85576-451-2	01	1	1109-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
