Isuzu WW
▶
TRUCKS
▶
GXR
▶
11663 - GXR(LHD)CHINA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶

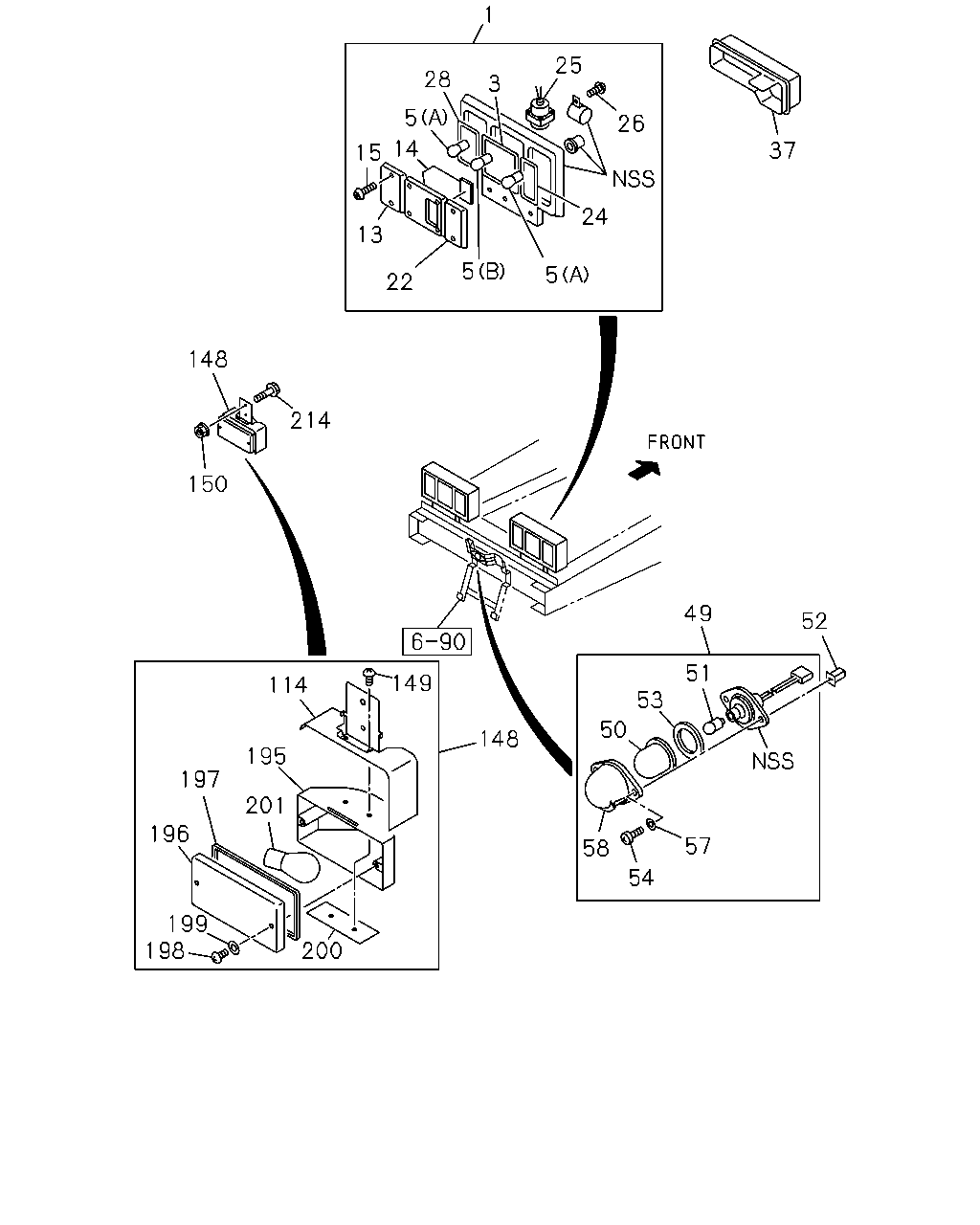

8-03 — LAMP; REAR AND REAR SIDE
(#175255) — 38 parça
1
28
3
25
26
24
5
5
22
13
15
5
14
148
214
150
114
195
201
197
196
199
198
200
149
49
52
51
53
50
57
54
58
148
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; RR COMB
1-82230-209-0
01
1
1509-
1
LAMP ASM; RR COMB
1-82230-208-0
01
1
1509-
3
GASKET; RR COMB LAMP
8-94257-505-0
02
1
1509-
5
BULB; RR COMB LAMP
(B) 24V 21/5W
1-82194-038-0
02
1
1509-
5
BULB; RR COMB LAMP
(A) 24V 21W
1-82194-036-0
04
1
1509-
13
LENS; TURN SIGNAL
8-94174-639-0
01
1
1509-
13
LENS; TURN SIGNAL
8-94174-638-0
01
1
1509-
14
LENS; TAIL & STOP,RR COMB LAMP
8-94178-625-0
01
1
1509-
14
LENS; TAIL & STOP,RR COMB LAMP
8-94178-624-0
01
1
1509-
15
SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS
0-71190-420-0
16
1
1509-
22
LENS; BACKUP,RR COMB LAMP
CLEAR
8-94257-512-1
02
1
1509-
24
GASKET; BACK,LAMP
8-94257-506-0
02
1
1509-
25
HORN ASM; BACK
8-94257-518-0
01
1
1509-
26
SCREW; BACK HORN
M4X14 TAPPING
9-07076-414-0
01
1
1509-
26
SCREW; BACK HORN
M4X12 TAPPING
9-07076-412-0
02
1
1509-
28
GASKET; TURN,LAMP
8-94257-507-0
02
1
1509-
37
COVER; RR COMB LAMP
1-82239-008-0
01
1
1509-
37
COVER; RR COMB LAMP
1-82239-007-0
01
1
1509-
49
LAMP; LICENSE PLATE
24V 10W
1-82120-024-1
01
1
1509-
50
LENS; LICENSE PLATE LAMP
1-82235-006-0
01
1
1509-
51
BULB; LICENSE PLATE LAMP
24V 10W
1-82194-037-0
01
1
1509-
52
GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK
8-94275-946-0
02
1
1509-
53
GASKET; LICENSE LAMP
1-82126-005-0
01
1
1509-
54
SCREW; LICENSE PLATE LAMP
M5X20
1-82129-007-0
02
1
1509-
57
WASHER; PL,LICENSE PLATE LAMP
1-82129-008-0
02
1
1509-
58
COVER; LICENSE PLATE LAMP
1-82129-005-0
01
1
1509-
114
BRACKET; RR FOG LAMP
8-97108-583-0
01
1
1509-
148
LAMP ASM; RR FOG
1-82110-477-0
01
1
1509-
149
SCREW; BRKT TO LAMP BODY
8-94336-372-0
02
1
1509-
150
NUT; RR FOG LAMP
M6 FLANGE
5-09440-004-0
01
1
1509-
195
LAMP UNIT; RR FOG
8-94336-322-0
01
1
1509-
196
LENS; RR FOG LAMP
8-94336-325-0
01
1
1509-
197
GASKET; RR FOG LAMP
8-94336-324-0
01
1
1509-
198
SCREW; LENS TO BODY
0-71190-416-0
02
1
1509-
199
WASHER; LENS,RR FOG LAMP
8-94336-326-0
02
1
1509-
200
PLATE; SET,RR FOG LAMP
8-94336-323-0
01
1
1509-
201
BULB; RR FOG LAMP
24V 21W
1-82194-036-0
01
1
1509-
214
BOLT; RR FOG LAMP
M6X20 FLANGE
0-28650-620-0
01
1
1509-
