◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11369 - FVR(LHD)EURO4 W/DOC ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#17525) — 118 parça

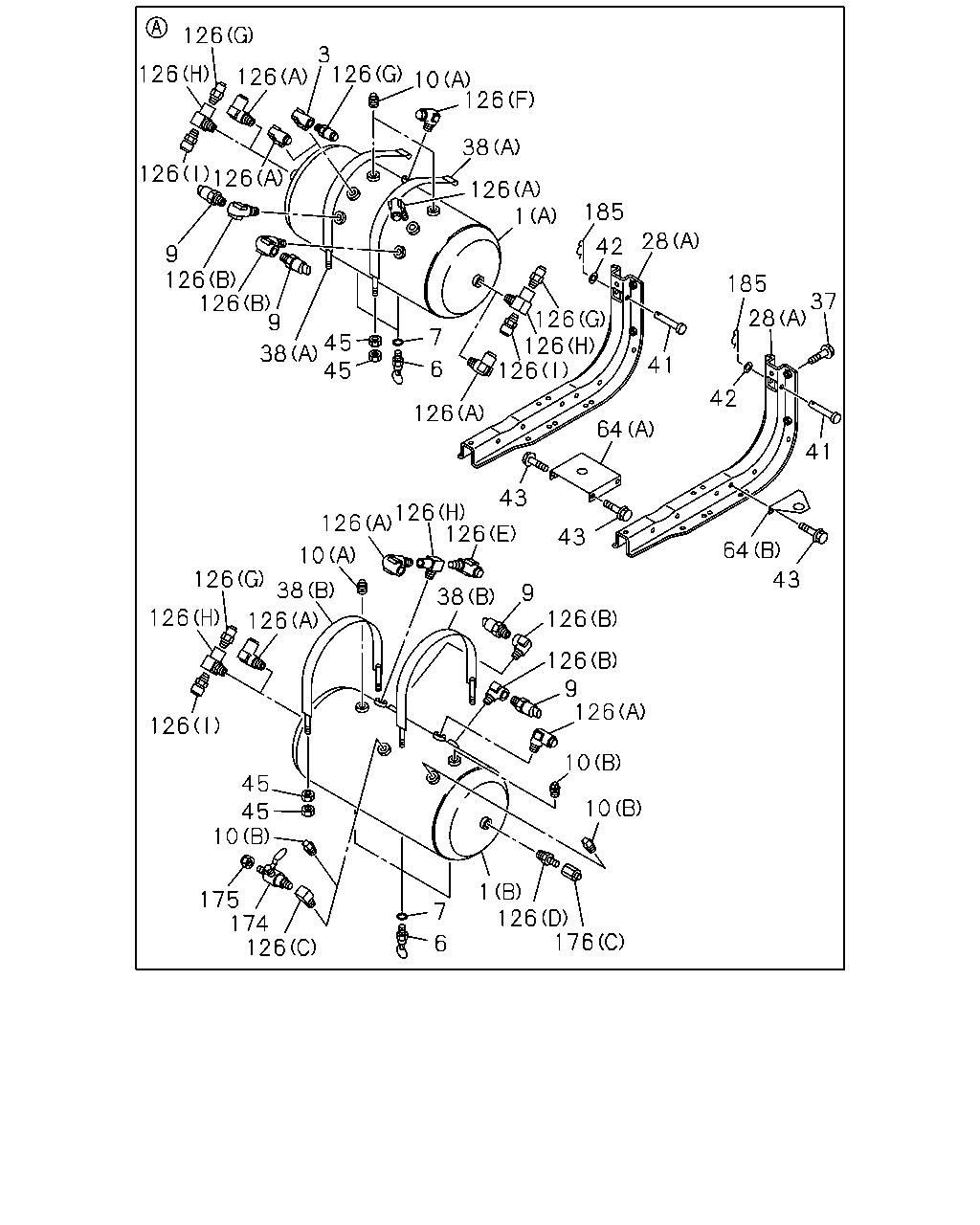

çizim 110075
126 3 126 126 126 10 126 38 126 126 126 1 185 28 42 9 126 126 9 185 37 28 126 126 126 7 45 45 38 41 6 42 126 64 41 43 126 126 126 43 64 10 126 43 38 9 38 126 126 126 126 9 126 126 10 45 45 10 10 1 126 176 175 174 126 7 6
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
BRAKE REGULATION ADR(TDU) (C) 		8-98081-870-1 01 1 1206-
1 TANK ASM; AIR
VIN MODEL YEAR 2011<VZB> (A) 		1-48370-181-1 01 1 1109-
1 TANK ASM; AIR
VIN MODEL YEAR 2011<VZB> (B) 		8-98184-783-0 01 1 1109-
3 VALVE; CHECK,AIR TANK
VIN MODEL YEAR 2011<VZB> 		1-48320-031-1 01 1 1109-1205
3 VALVE; CHECK,AIR TANK
VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) 		1-48320-031-1 01 1 1206-
6 COCK; DRAIN,AIR TANK
BRAKE REGULATION ADR(TDU) 		1-48312-015-0 01 1 1206-
6 COCK; DRAIN,AIR TANK
VIN MODEL YEAR 2011<VZB> 		1-48312-015-0 05 1 1109-
7 GASKET; DRAIN COCK
BRAKE REGULATION ADR(TDU) ID=14 		1-09630-145-0 01 1 1206-
7 GASKET; DRAIN COCK
VIN MODEL YEAR 2011<VZB> ID=14 		1-09630-145-0 05 1 1109-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
BRAKE REGULATION ADR(TDU) VIN MODEL YEAR 2011<VZB> STAMP 6.0 		8-97615-622-0 04 1 1206-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
VIN MODEL YEAR 2011<VZB> STAMP 5.5 		8-97609-249-0 04 1 1109-1205
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) STAMP 5.5 		8-97609-249-0 04 1 1206-
10 PLUG; AIR TANK
TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (B) PT3/8 		9-09204-517-0 02 1 1109-1205
10 PLUG; AIR TANK
TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (B) PT3/8 		9-09204-517-0 02 1 1206-
10 PLUG; AIR TANK
BRAKE REGULATION ADR(TDU) (B) PT3/8 		9-09204-517-0 02 1 1206-
10 PLUG; AIR TANK
VIN MODEL YEAR 2011<VZB> (A) PT3/4 		9-09204-526-0 03 1 1109-
10 PLUG; AIR TANK
VIN MODEL YEAR 2011<VZB> EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8 		9-09204-517-0 03 1 1109-1205
10 PLUG; AIR TANK
VIN MODEL YEAR 2011<VZB> EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8 		9-09204-517-0 03 1 1206-
28 BRACKET; AIR TANK
BRAKE REGULATION ADR(TDU) (B) 		8-98100-165-3 01 1 1206-
28 BRACKET; AIR TANK
VIN MODEL YEAR 2011<VZB> (A) 		1-48317-601-5 02 1 1109-
37 BOLT; AIR TANK
VIN MODEL YEAR 2011<VZB> M12X40 FLANGE 		0-28651-240-0 08 1 1109-
38 BAND; AIR TANK
VIN MODEL YEAR 2011<VZB> (A) 		1-48317-108-2 02 1 1109-
38 BAND; AIR TANK
VIN MODEL YEAR 2011<VZB> (B) 		1-48317-109-2 02 1 1109-
41 PIN; BAND FIX
VIN MODEL YEAR 2011<VZB> OD=10 L=60 		0-82254-060-0 02 1 1109-
42 WASHER; PL
VIN MODEL YEAR 2011<VZB> ID=10.5 		0-91614-510-0 02 1 1109-
43 BOLT; STAY,AIR TANK,MAIN
VIN MODEL YEAR 2011<VZB> M8X25 FLANGE 		0-28650-825-0 06 1 1109-
45 NUT; AIR TANK,MAIN
VIN MODEL YEAR 2011<VZB> M8 		0-91110-508-0 12 1 1109-
64 STAY; AIR TANK,MAIN
VIN MODEL YEAR 2011<VZB> (A) 		1-48317-607-0 01 1 1109-
64 STAY; AIR TANK,MAIN
VIN MODEL YEAR 2011<VZB> (B) 		1-48317-691-0 01 1 1109-
126 CONNECTOR; ELBOW
BRAKE REGULATION ADR(TDU) VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1206-
126 CONNECTOR; ELBOW
BRAKE REGULATION ADR(TDU) VIN MODEL YEAR 2011<VZB> (I) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 03 1 1206-
126 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 1206-
126 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (G) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1206-
126 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (H) R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 01 1 1206-
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1109-1205
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1206-
126 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (D) M22 & PT3/4 STRAIGHT 		1-09650-275-1 01 1 1109-
126 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (B) PT1/4 & PT1/4 2WAY 		1-09660-693-0 04 1 1109-
126 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1109-
126 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (F) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1109-
126 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 1109-1205
126 CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1206-
126 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (G) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1109-1205
126 CONNECTOR; ELBOW
BRAKE REGULATION ADR(TDU) VIN MODEL YEAR 2011<VZB> (G) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 1206-
126 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (H) R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 01 1 1109-1205
126 CONNECTOR; ELBOW
BRAKE REGULATION ADR(TDU) VIN MODEL YEAR 2011<VZB> (H) R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 04 1 1206-
174 COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> 		1-09680-099-0 01 1 1109-1205
174 COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) 		1-09680-099-0 01 1 1206-
175 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> 		9-48319-102-0 01 1 1109-1205
175 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) 		9-48319-102-0 01 1 1206-
176 ADAPTER
ANTI LOCK BRAKE<JE5> (A) INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1206-
176 ADAPTER
ANTI LOCK BRAKE<JE5> (B) PT3/8 		1-09664-210-0 01 1 1206-
176 ADAPTER
VIN MODEL YEAR 2011<VZB> (C) DIN12 & M12 STRAIGHT 		1-09660-878-0 01 1 1109-
185 PIN; SNAP
VIN MODEL YEAR 2011<VZB> L=32.6 		8-98062-280-0 02 1 1109-

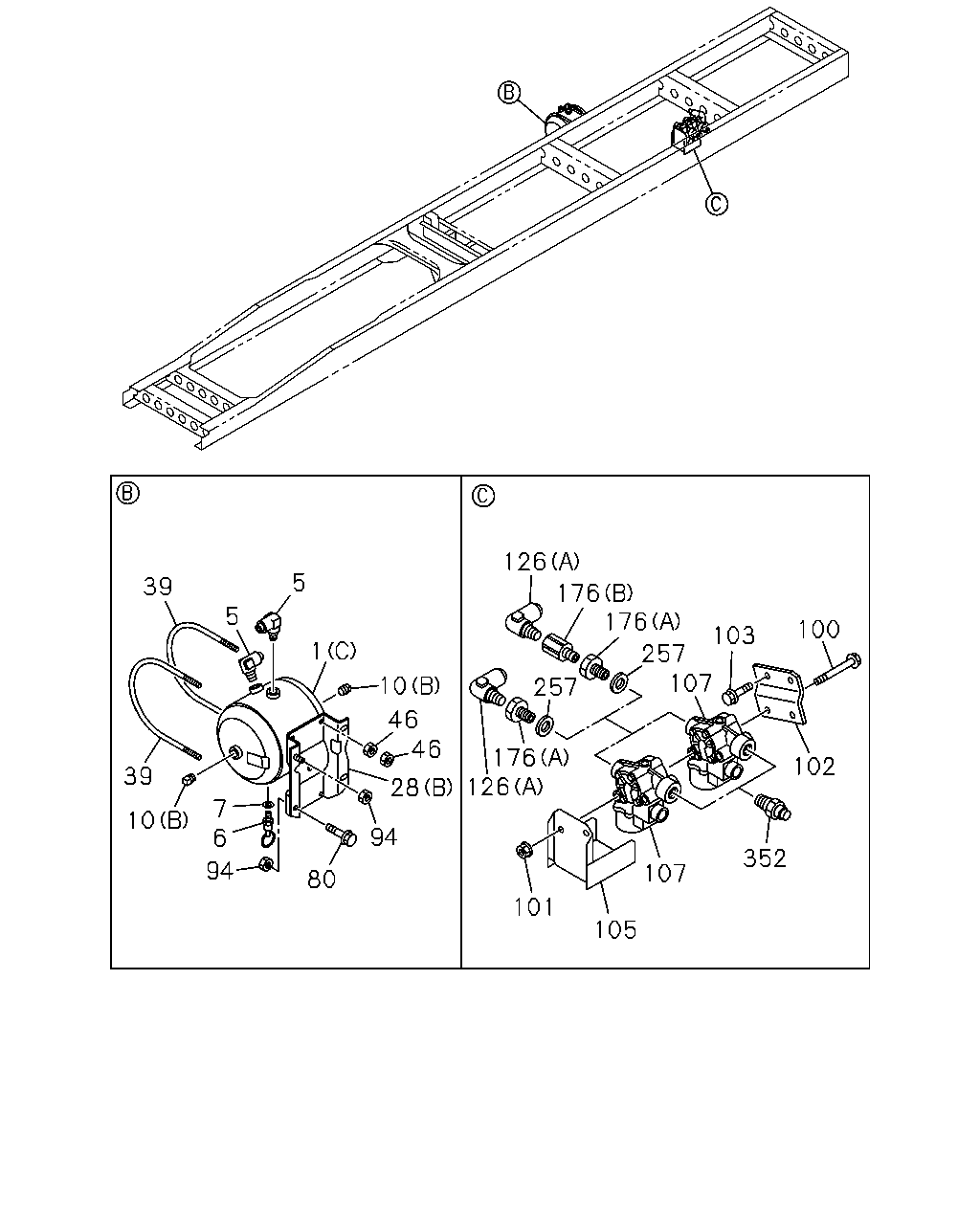

çizim 110078
126 5 39 176 176 5 100 103 1 257 107 10 257 46 46 176 126 102 39 28 7 6 10 94 352 94 107 80 101 105
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
BRAKE REGULATION ADR(TDU) (C) 		8-98081-870-1 01 1 1206-
1 TANK ASM; AIR
VIN MODEL YEAR 2011<VZB> (A) 		1-48370-181-1 01 1 1109-
1 TANK ASM; AIR
VIN MODEL YEAR 2011<VZB> (B) 		8-98184-783-0 01 1 1109-
5 UNION; AIR TANK
BRAKE REGULATION ADR(TDU) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1206-
6 COCK; DRAIN,AIR TANK
BRAKE REGULATION ADR(TDU) 		1-48312-015-0 01 1 1206-
6 COCK; DRAIN,AIR TANK
VIN MODEL YEAR 2011<VZB> 		1-48312-015-0 05 1 1109-
7 GASKET; DRAIN COCK
BRAKE REGULATION ADR(TDU) ID=14 		1-09630-145-0 01 1 1206-
7 GASKET; DRAIN COCK
VIN MODEL YEAR 2011<VZB> ID=14 		1-09630-145-0 05 1 1109-
10 PLUG; AIR TANK
TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (B) PT3/8 		9-09204-517-0 02 1 1109-1205
10 PLUG; AIR TANK
TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (B) PT3/8 		9-09204-517-0 02 1 1206-
10 PLUG; AIR TANK
BRAKE REGULATION ADR(TDU) (B) PT3/8 		9-09204-517-0 02 1 1206-
10 PLUG; AIR TANK
VIN MODEL YEAR 2011<VZB> (A) PT3/4 		9-09204-526-0 03 1 1109-
10 PLUG; AIR TANK
VIN MODEL YEAR 2011<VZB> EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8 		9-09204-517-0 03 1 1109-1205
10 PLUG; AIR TANK
VIN MODEL YEAR 2011<VZB> EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8 		9-09204-517-0 03 1 1206-
28 BRACKET; AIR TANK
BRAKE REGULATION ADR(TDU) (B) 		8-98100-165-3 01 1 1206-
28 BRACKET; AIR TANK
VIN MODEL YEAR 2011<VZB> (A) 		1-48317-601-5 02 1 1109-
39 U-BOLT; AIR TANK
BRAKE REGULATION ADR(TDU) L=210 		1-48317-458-1 02 1 1206-
46 NUT; U-BOLT
BRAKE REGULATION ADR(TDU) M8 		0-91110-508-0 08 1 1206-
80 BOLT; BRKT
BRAKE REGULATION ADR(TDU) M10X30 FLANGE 		0-28651-030-0 03 1 1206-
94 NUT; BRKT FIX
BRAKE REGULATION ADR(TDU) M10 FLANGE 		0-91180-210-0 04 1 1206-
100 BOLT; MODULATOR
ANTI LOCK BRAKE<JE5> M8X140 FLANGE 		0-28055-814-0 02 1 1206-
101 NUT; MODULATOR
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 02 1 1206-
102 BRACKET; MODULATOR
ANTI LOCK BRAKE<JE5> 		8-98075-781-0 01 1 1206-1410
102 BRACKET; MODULATOR
ANTI LOCK BRAKE<JE5> 		8-98272-718-0 01 1 1411-
103 BOLT; BRKT
ANTI LOCK BRAKE<JE5> M8X20 FLANGE 		0-28650-820-0 02 1 1206-
105 COVER; MODULATOR
ANTI LOCK BRAKE<JE5> 		1-47479-792-0 01 1 1206-1410
105 COVER; MODULATOR
ANTI LOCK BRAKE<JE5> 		8-98272-749-0 01 1 1411-
107 MODULATOR; RR
ANTI LOCK BRAKE<JE5> 		1-48240-115-0 02 1 1206-1410
107 MODULATOR; RR
ANTI LOCK BRAKE<JE5> 		8-98215-454-0 02 1 1411-
126 CONNECTOR; ELBOW
BRAKE REGULATION ADR(TDU) VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1206-
126 CONNECTOR; ELBOW
BRAKE REGULATION ADR(TDU) VIN MODEL YEAR 2011<VZB> (I) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 03 1 1206-
126 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 1206-
126 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (G) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1206-
126 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (H) R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 01 1 1206-
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1109-1205
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1206-
126 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (D) M22 & PT3/4 STRAIGHT 		1-09650-275-1 01 1 1109-
126 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (B) PT1/4 & PT1/4 2WAY 		1-09660-693-0 04 1 1109-
126 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1109-
126 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (F) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1109-
126 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 1109-1205
126 CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1206-
126 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (G) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1109-1205
126 CONNECTOR; ELBOW
BRAKE REGULATION ADR(TDU) VIN MODEL YEAR 2011<VZB> (G) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 1206-
126 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (H) R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 01 1 1109-1205
126 CONNECTOR; ELBOW
BRAKE REGULATION ADR(TDU) VIN MODEL YEAR 2011<VZB> (H) R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 04 1 1206-
176 ADAPTER
ANTI LOCK BRAKE<JE5> (A) INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1206-
176 ADAPTER
ANTI LOCK BRAKE<JE5> (B) PT3/8 		1-09664-210-0 01 1 1206-
176 ADAPTER
VIN MODEL YEAR 2011<VZB> (C) DIN12 & M12 STRAIGHT 		1-09660-878-0 01 1 1109-
257 GASKET; PLUG
ANTI LOCK BRAKE<JE5> ID=22.5 		9-09571-422-0 02 1 1206-
352 CONNECTOR; STRAIGHT
ANTI LOCK BRAKE<JE5> DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 1206-

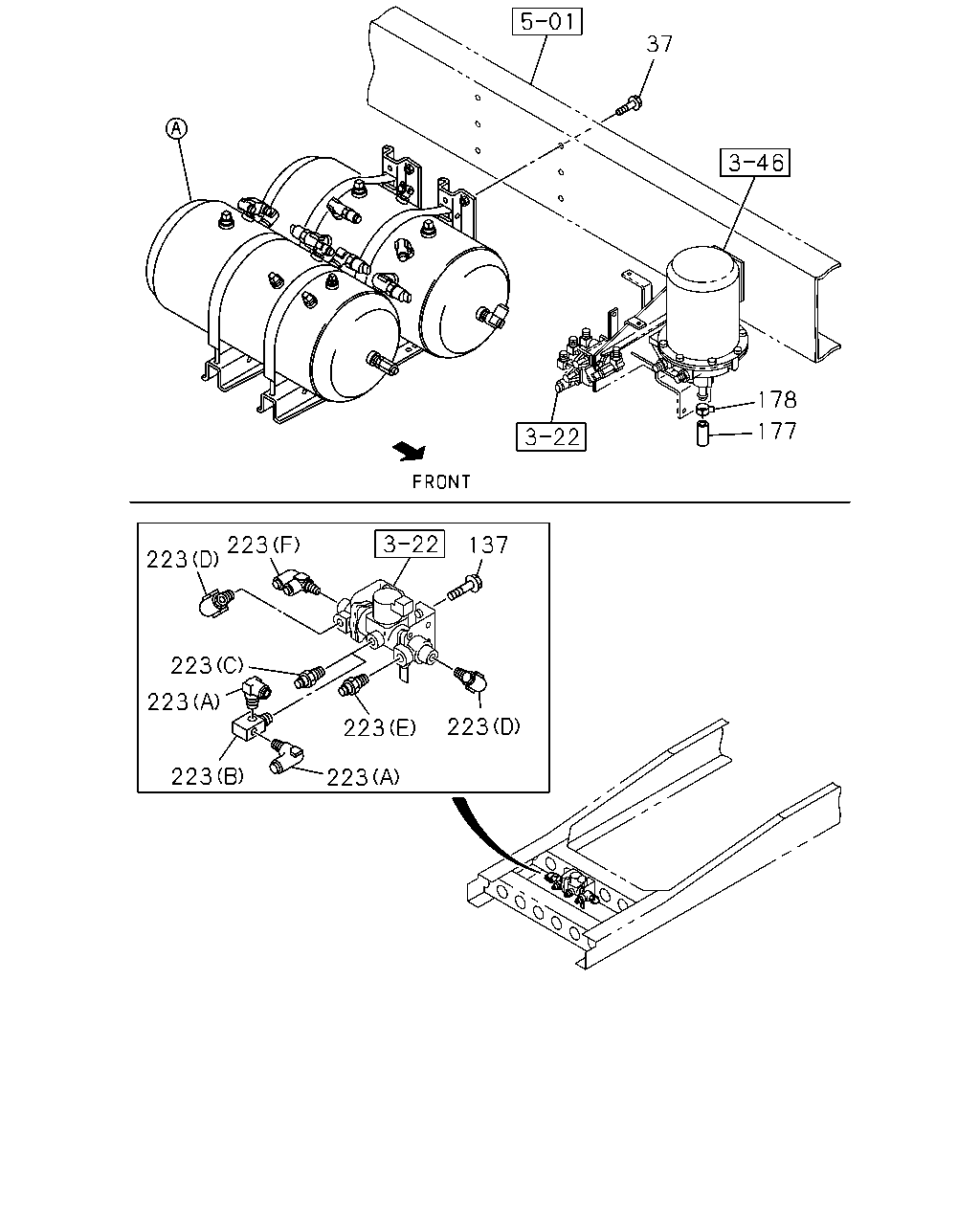

çizim 110079
37 178 177 223 223 137 223 223 223 223 223 223
BalonParca AdiParca NoAdetTipApplied Date
37 BOLT; AIR TANK
VIN MODEL YEAR 2011<VZB> M12X40 FLANGE 		0-28651-240-0 08 1 1109-
137 BOLT; BRKT
H.S.A SYSTEM<6EP> M8X25 FLANGE 		0-28650-825-0 04 1 1109-
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 		0-03566-300-0 01 1 1109-1205
177 HOSE; RUBBER,DRAIN
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) L=60 SERVICED BY L=3000 		0-03566-300-0 01 1 1206-
178 CLIP; HOSE
ID=21 		8-94242-034-0 01 1 1109-1205
178 CLIP; HOSE
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) ID=21 		8-94242-034-0 01 1 1206-
223 UNION
H.S.A SYSTEM<6EP> (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1109-
223 UNION
H.S.A SYSTEM<6EP> (E) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1109-
223 UNION
H.S.A SYSTEM<6EP> (F) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1109-
223 UNION
H.S.A SYSTEM<6EP> RIGID SEAT WO/ARM REST<TAZ> (C) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 1109-
223 UNION
H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> (A) DIN6 & R1/4 ELBOW 		1-09661-067-0 02 1 1109-
223 UNION
H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> (B) DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1109-

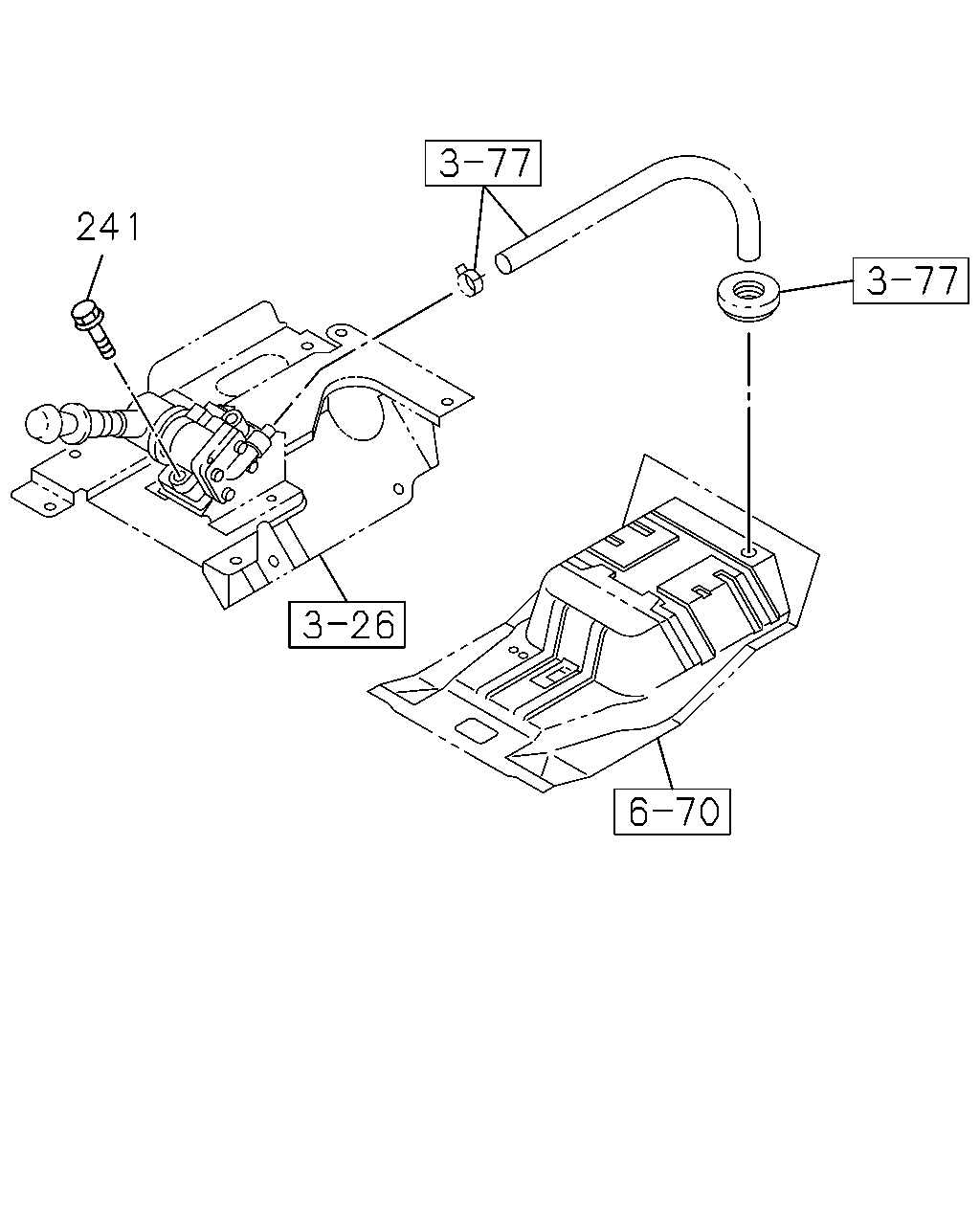

çizim 284323
241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 1109-
