Isuzu WW
▶
TRUCKS
▶
GXR
▶
11663 - GXR(LHD)CHINA
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#175249) — 53 parça
◀

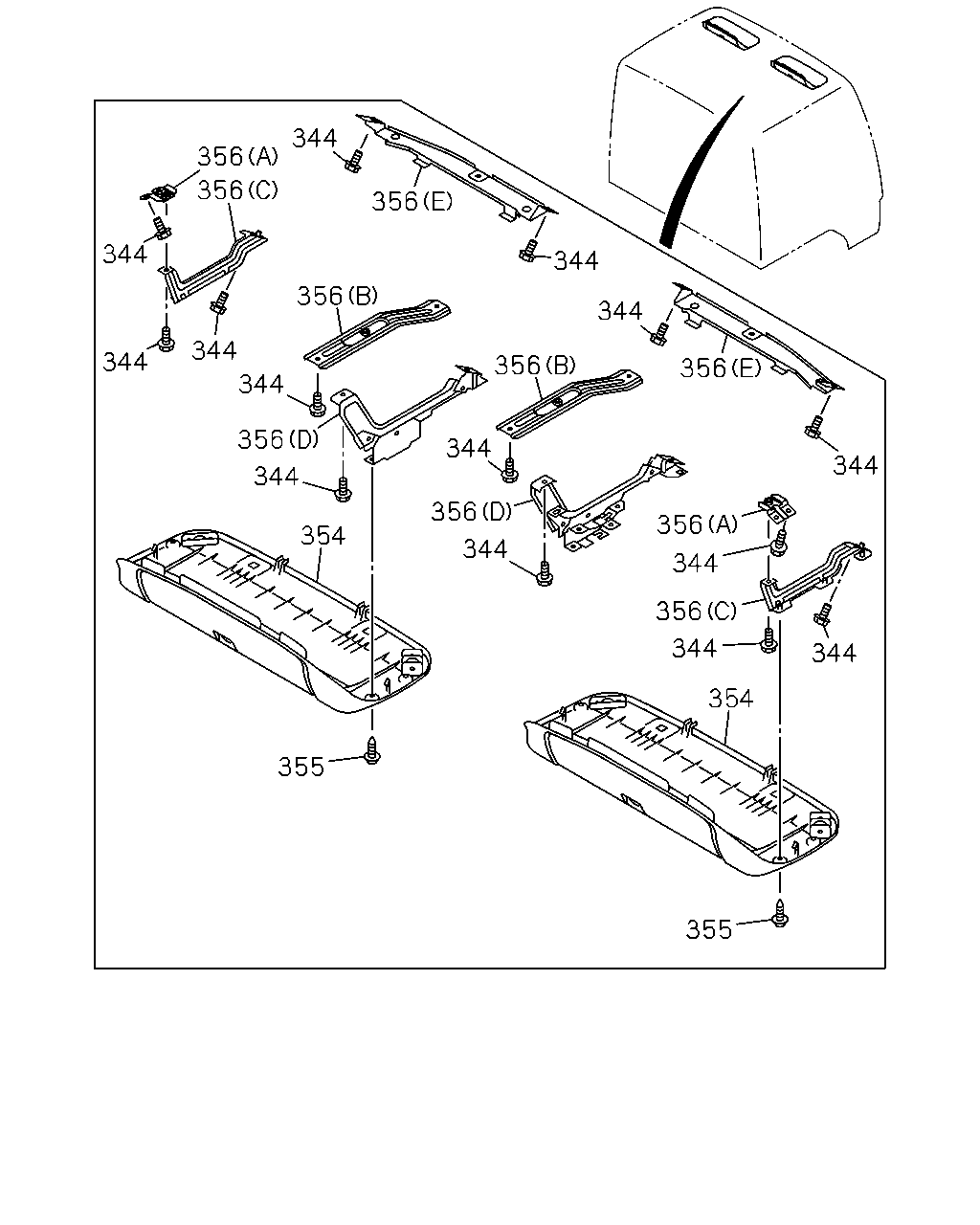

[743A] TRAY; HEADER ROOF (17 parça)

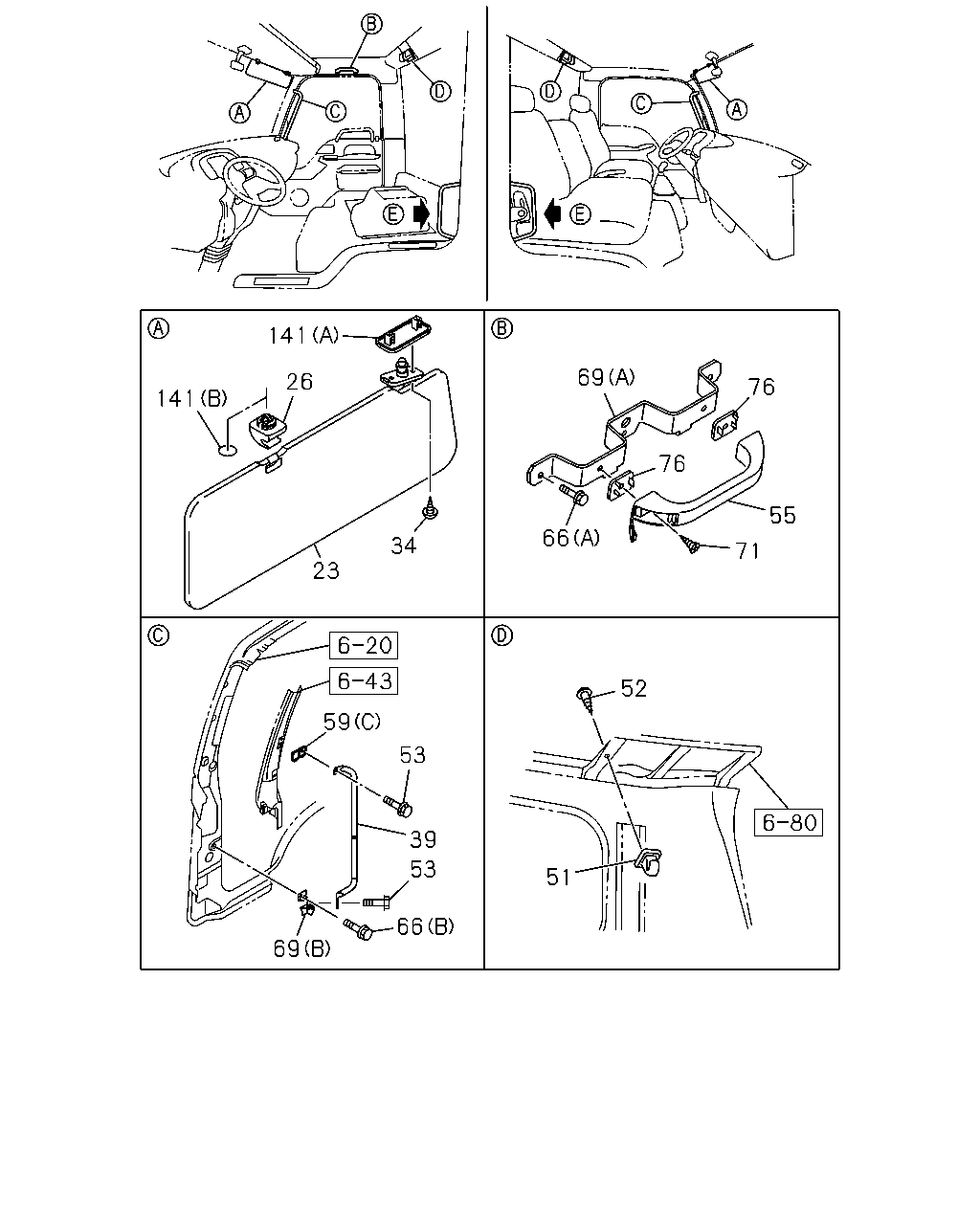

[743A] SUN VISOR AND ASSIST GRIP NO.1 (28 parça)

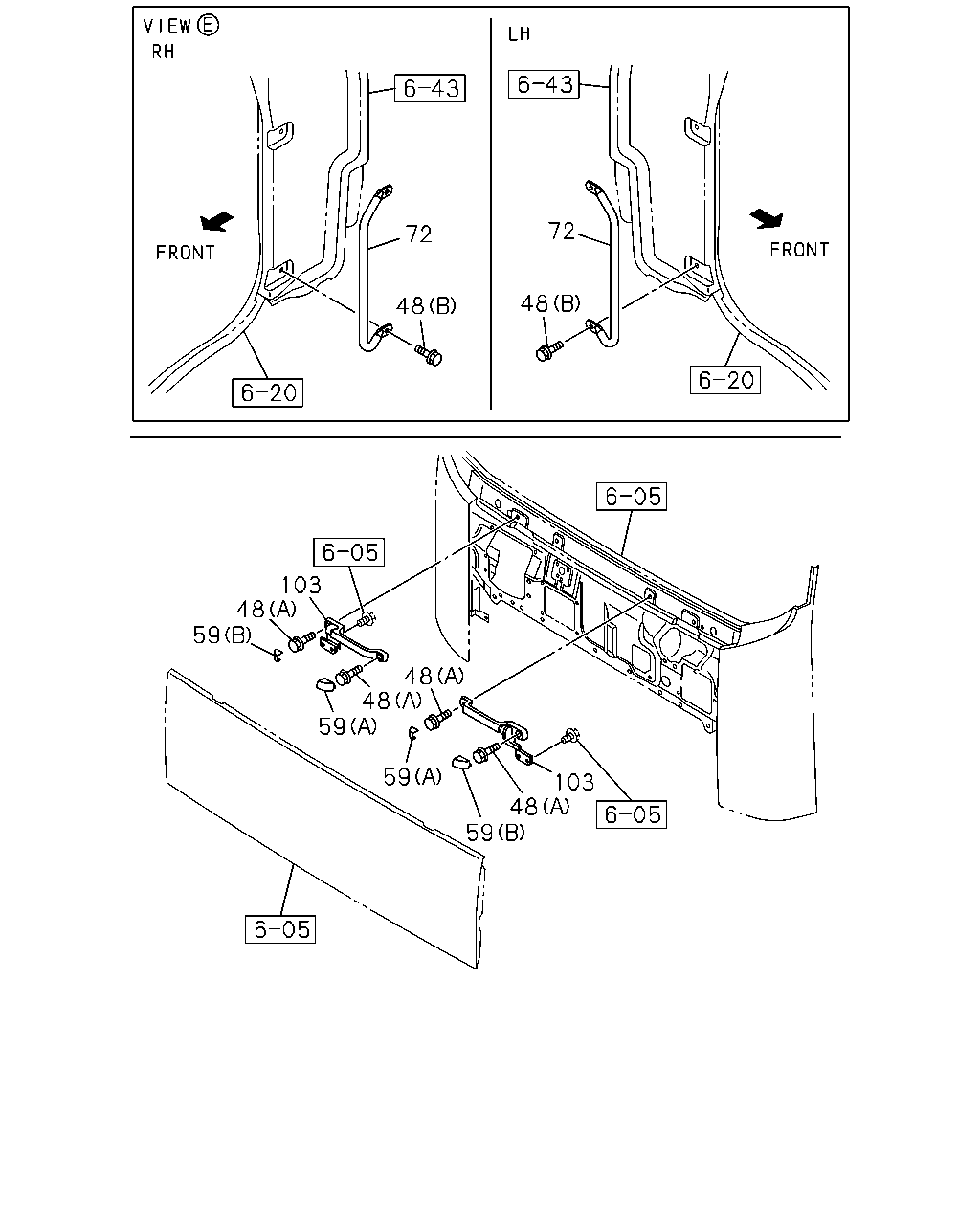

[743A] ASSIST GRIP NO.2 (8 parça)
▶
344
356
344
344
356
344
356
356
356
356
356
344
356
344
344
354
344
356
344
344
344
344
344
356
344
354
355
355
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
344
BOLT; BRKT,FRT
M6X12 FLANGE
8-97108-669-0
08
1
1509-
344
BOLT; BRKT,FRT
M6X12 FLANGE
8-97108-669-0
08
1
1509-
344
BOLT; BRKT,FRT
M6X12 FLANGE
8-97108-669-0
04
1
1509-
354
TRAY; HEADER ROOF
DARK GRAY
8-97407-386-5
01
1
1509-
354
TRAY; HEADER ROOF
DARK GRAY
8-97407-386-5
01
1
1509-
355
SCREW; TRAY
M5X16 TAPPING HEXALOBULAR
0-72380-516-0
04
1
1509-
355
SCREW; TRAY
M5X16 TAPPING HEXALOBULAR
0-72380-516-0
04
1
1509-
356
BRACKET; ROOF OUTER
(B)
8-98010-059-0
01
1
1509-
356
BRACKET; ROOF OUTER
(B)
8-98010-059-0
01
1
1509-
356
BRACKET; ROOF OUTER
(A)
8-97386-874-1
01
1
1509-
356
BRACKET; ROOF OUTER
(A)
8-97386-874-1
01
1
1509-
356
BRACKET; ROOF OUTER
(C)
8-98016-871-3
01
1
1509-
356
BRACKET; ROOF OUTER
(D)
8-98042-009-2
01
1
1509-
356
BRACKET; ROOF OUTER
(E)
8-98042-016-3
01
1
1509-
356
BRACKET; ROOF OUTER
(C)
8-98014-088-3
01
1
1509-
356
BRACKET; ROOF OUTER
(D)
8-98023-257-2
01
1
1509-
356
BRACKET; ROOF OUTER
(E)
8-98042-015-3
01
1
1509-
141
141
26
23
34
59
53
39
53
66
69
69
76
66
76
55
71
52
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
SUN VISOR
8-98029-371-2
01
1
1509-
23
SUN VISOR
DARK GRAY
8-97407-373-2
01
1
1509-
26
HOLDER; SUN VISOR
DARK GRAY
8-97405-171-0
01
1
1509-
26
HOLDER; SUN VISOR
DARK GRAY
8-97405-171-0
01
1
1509-
34
SCREW; SUN VISOR
M6X26
8-98033-674-0
02
1
1509-
34
SCREW; SUN VISOR
M6X26
8-98033-674-0
02
1
1509-
34
SCREW; SUN VISOR
M6X26
8-98033-674-0
02
1
1509-
34
SCREW; SUN VISOR
M6X26
8-98033-674-0
02
1
1509-
39
HANDLE; ASSIST,A-POST
DARK GRAY
8-97431-084-0
01
1
1509-
39
HANDLE; ASSIST,A-POST
DARK GRAY
8-97431-083-0
01
1
1509-
51
HOOK; COAT HANGER
DARK GRAY
8-97409-845-0
02
1
1509-
52
SCREW; HOOK
M4X20 TAPPING OVAL-HEAD
0-70540-420-0
02
1
1509-
53
SCREW; ASSIST HANDLE
M8X16 FLANGE
0-28050-816-0
02
1
1509-
53
SCREW; ASSIST HANDLE
M8X20 FLANGE
0-28650-820-0
02
1
1509-
55
GRIP; ASSIST,CAB SIDE UPR
DARK GRAY
8-97405-285-2
01
1
1509-
59
COVER; ASSIST GRIP
(B)
1-71998-789-2
02
1
1509-
59
COVER; ASSIST GRIP
(A)
1-71998-790-2
02
1
1509-
59
COVER; ASSIST GRIP
(C) DARK GRAY
8-97407-417-1
02
1
1509-
66
BOLT; ASSIST GRIP BRKT
(B) M8X16 FLANGE
0-28050-816-0
03
1
1509-
66
BOLT; ASSIST GRIP BRKT
(A) M6X12 FLANGE
8-97108-669-0
06
1
1509-
69
BRACKET; ASSIST GRIP
(B)
8-98057-973-3
01
1
1509-
69
BRACKET; ASSIST GRIP
(A)
8-98014-094-0
02
1
1509-
71
SCREW
M6X28
8-98004-344-0
02
1
1509-
76
SPACER; ASSIST GRIP
DARK GRAY
8-97405-286-0
02
1
1509-
141
COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY
8-97408-029-0
01
1
1509-
141
COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
01
1
1509-
141
COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY
8-97408-029-0
01
1
1509-
141
COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
01
1
1509-
72
72
48
48
103
48
59
59
48
48
59
59
103
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(A) M8X30 FLANGE
0-28660-830-0
04
1
1509-
48
BOLT; ASSIST GRIP
(B) M8X16 FLANGE
0-28060-816-0
04
1
1509-
59
COVER; ASSIST GRIP
(B)
1-71998-789-2
02
1
1509-
59
COVER; ASSIST GRIP
(A)
1-71998-790-2
02
1
1509-
59
COVER; ASSIST GRIP
(C) DARK GRAY
8-97407-417-1
02
1
1509-
72
GRIP; ASSIST,CAB ENTRY,BACK
8-97386-939-0
02
1
1509-
103
GRIP; ASSIST,FRT PNL
8-98036-565-1
01
1
1509-
103
GRIP; ASSIST,FRT PNL
8-98036-566-1
01
1
1509-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
