Isuzu WW
▶
TRUCKS
▶
GXR
▶
11663 - GXR(LHD)CHINA
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-40 - INSTRUMENT PANEL AND BOX
▶
7-40 — INSTRUMENT PANEL AND BOX
(#175247) — 98 parça
◀

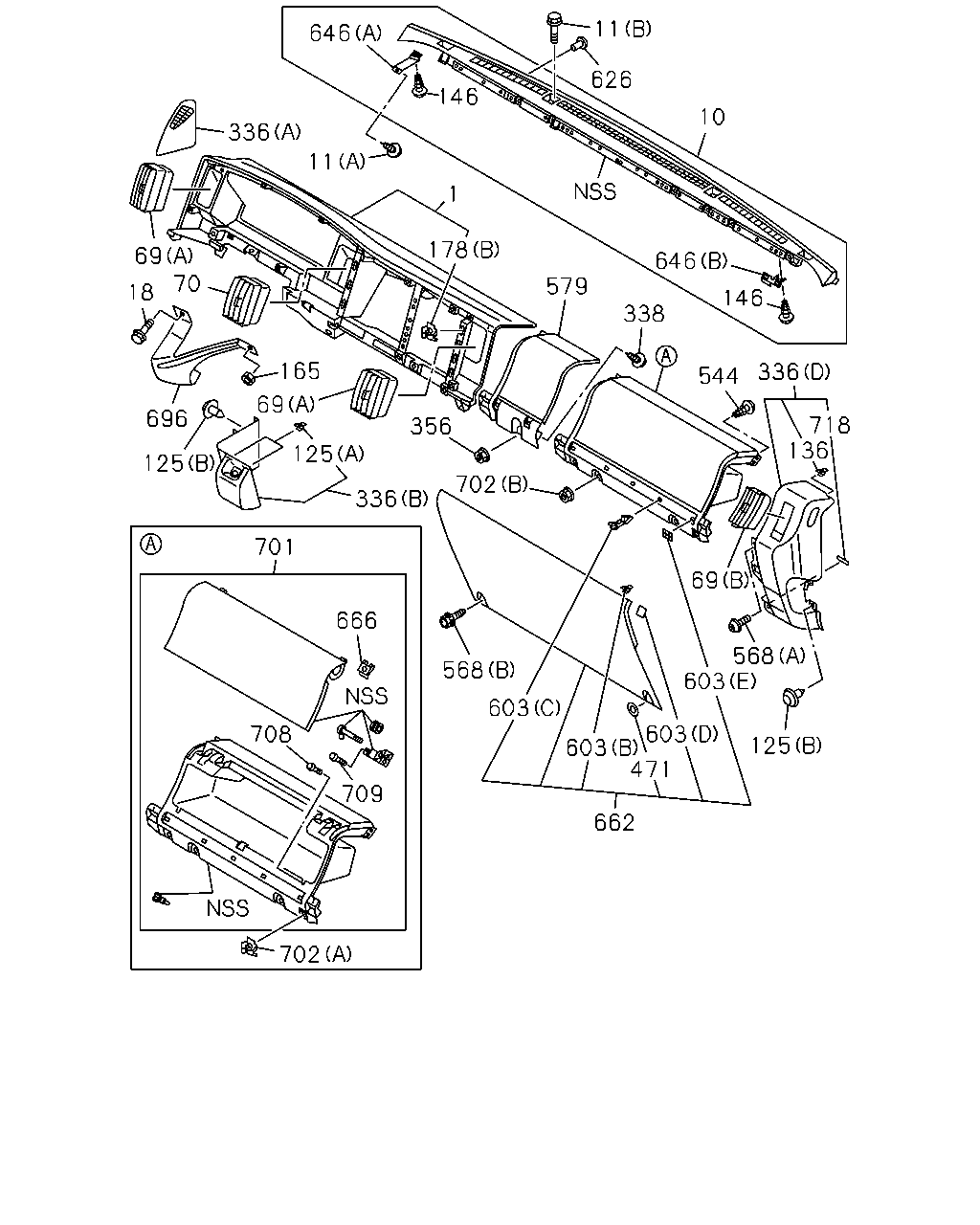

[740A] PANEL AND OTHER PARTS (46 parça)

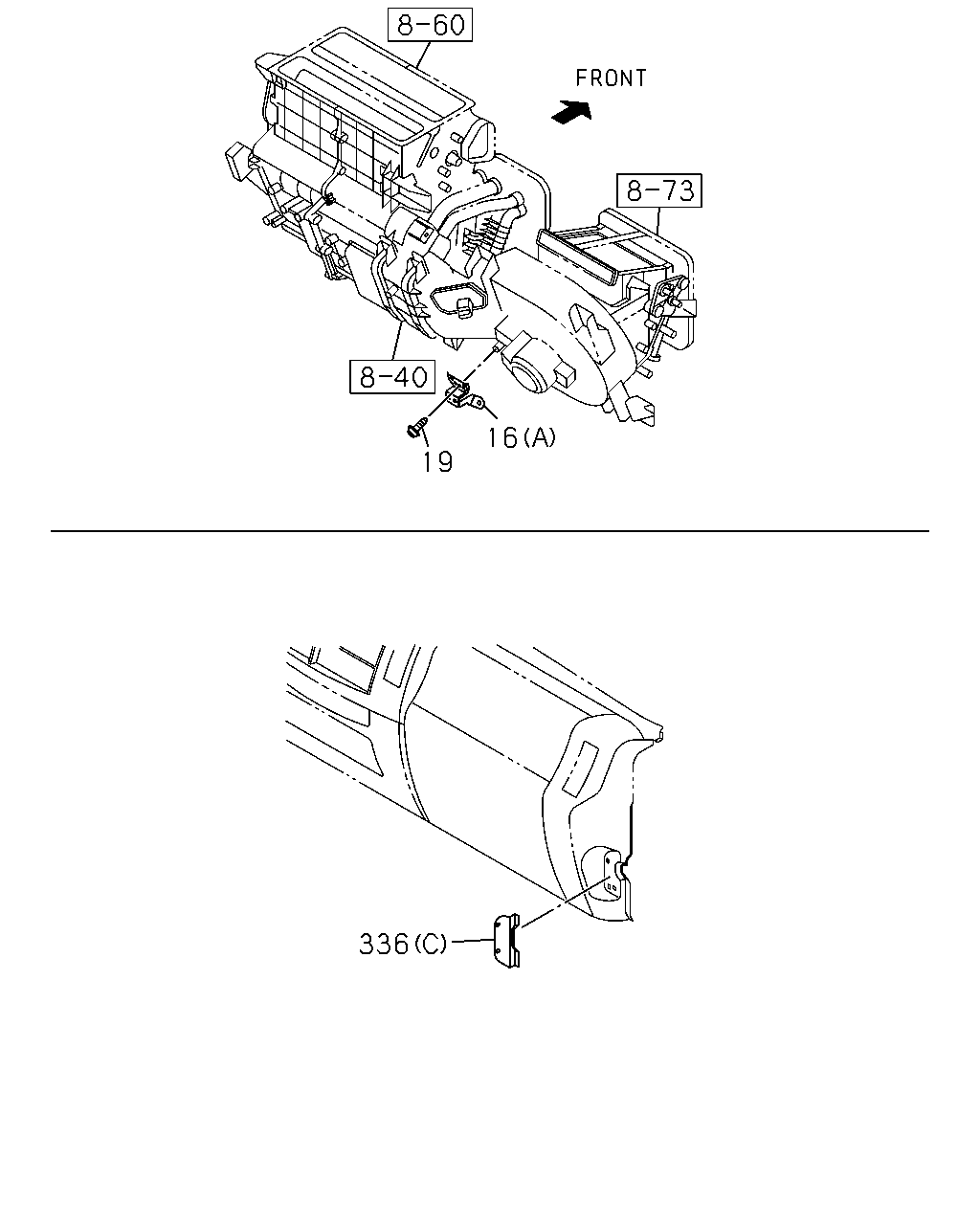

[740A] BRACKET AND COVER (9 parça)

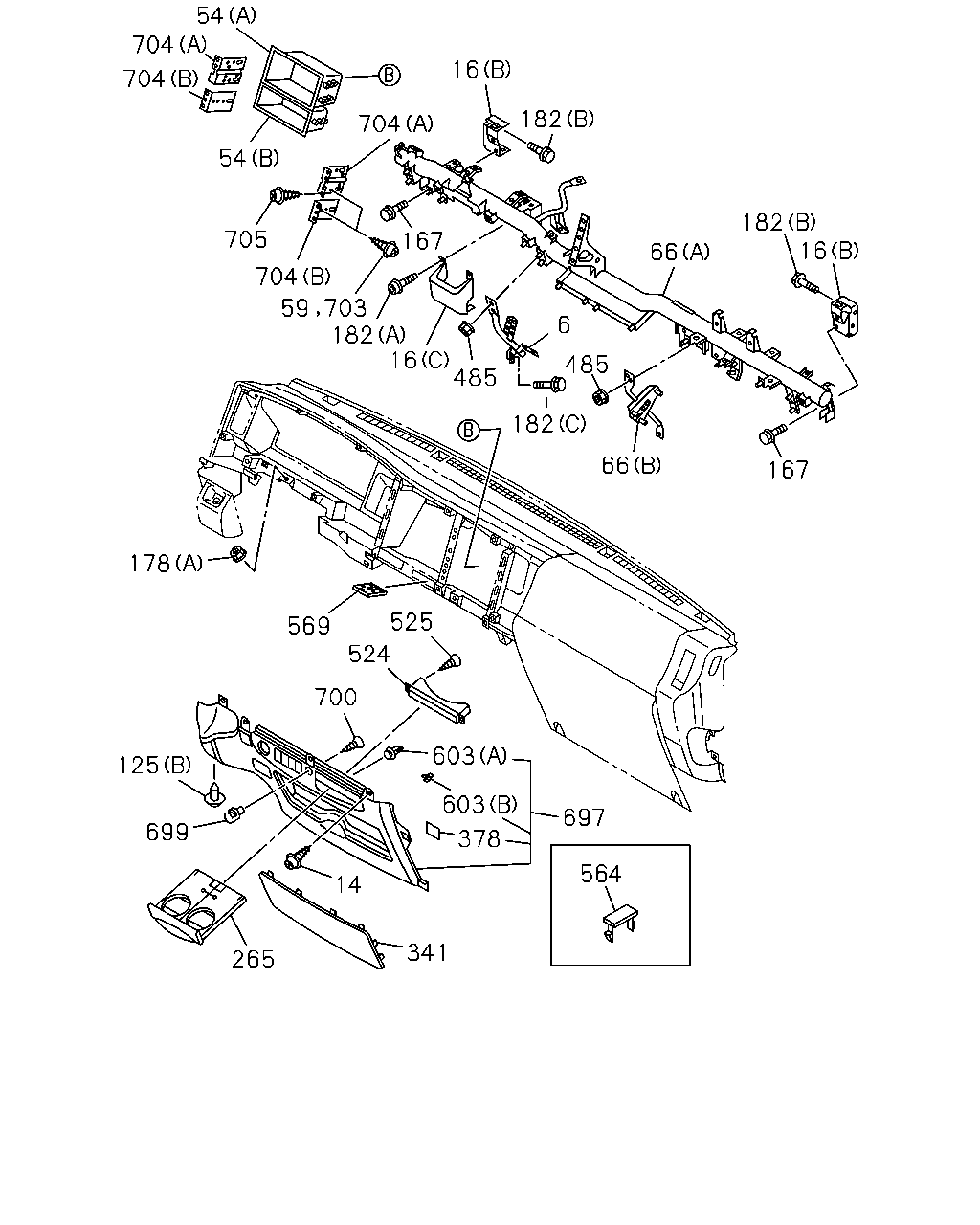

[740A] REINFORCEMENT AND OTHER PARTS (43 parça)
▶
336
646
146
11
626
10
646
178
579
544
338
336
718
11
69
165
356
702
336
125
69
696
125
701
666
708
709
702
662
603
603
603
603
125
568
69
568
136
70
18
471
146
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; INST
GRAY
8-97409-777-3
01
1
1509-
10
PANEL ASM; GARNISH
GRAY
8-97422-098-0
01
1
1509-
11
BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR
0-72180-516-0
08
1
1509-
11
BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER
8-98018-440-0
04
1
1509-
18
BOLT; BRKT
M6X12 W/LK&PL WASHER
0-52000-612-0
01
1
1509-
69
GRILLE; SIDE,AIR OUTLET
(B)
8-98028-562-2
01
1
1509-
69
GRILLE; SIDE,AIR OUTLET
(A)
8-98028-563-2
02
1
1509-
70
GRILLE; CENTER,AIR OUTLET
8-98028-561-2
01
1
1509-
125
CLIP; INST PANEL
(B) GRAY
8-97408-817-0
01
1
1509-
125
CLIP; INST PANEL
(B) GRAY
8-97408-817-0
01
1
1509-
125
CLIP; INST PANEL
(B) GRAY
8-97408-817-0
02
1
1509-
125
CLIP; INST PANEL
(A)
8-98021-271-0
02
1
1509-
136
CLIP; INST COVER
8-98076-254-0
02
1
1509-
146
SCREW; TAP
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
03
1
1509-
165
NUT; BRKT KNEE PAD
M6 FLANGE
0-91180-106-0
01
1
1509-
178
NUT; INST PANEL
(B)
8-98037-629-0
15
1
1509-
178
NUT; INST PANEL
(A) M6 FLANGE
0-91180-106-0
01
1
1509-
336
COVER; INST PANEL SIDE
(A) GRAY
8-97409-779-0
01
1
1509-
336
COVER; INST PANEL SIDE
(D) GRAY
8-97424-712-0
01
1
1509-
336
COVER; INST PANEL SIDE
(B) GRAY
8-97409-780-3
01
1
1509-
336
COVER; INST PANEL SIDE
(C) GRAY
8-97411-635-2
01
1
1509-
338
SCREW; COVER
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1509-
356
NUT; COVER
M6 FLANGE
0-91180-106-0
01
1
1509-
471
WASHER; PL
8-98179-641-0
02
1
1509-
544
SCREW; TRAY
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
03
1
1509-
568
BOLT; COVER
(B) M6X16 W/LK&PL WASHER
0-52010-616-0
02
1
1509-
568
BOLT; COVER
(A) M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1509-
579
COVER; INST PNL
GRAY
8-97411-560-2
01
1
1509-
603
CLIP; COVER
(B)
8-98021-271-0
01
1
1509-
603
CLIP; COVER
(A)
8-98004-025-0
01
1
1509-
603
CLIP; COVER
(B)
8-98021-271-0
04
1
1509-
603
CLIP; COVER
(C)
8-98152-030-0
03
1
1509-
603
CLIP; COVER
(E)
8-98152-031-0
03
1
1509-
603
CLIP; COVER
(D)
8-98167-222-0
02
1
1509-
626
RETAINER
OD=15 BLACK
8-94279-804-0
02
1
1509-
646
BRACKET; GARNISH PANEL
(A)
8-98066-952-1
01
1
1509-
646
BRACKET; GARNISH PANEL
(B)
8-98066-953-1
01
1
1509-
662
COVER; LWR,INST PANEL
GRAY
8-97422-093-2
01
1
1509-
666
INSERT; INST PANEL
8-98037-629-0
02
1
1509-
696
BRACKET; KNEE
8-98098-126-1
01
1
1509-
701
TRAY; INST
GRAY
8-97431-081-0
01
1
1509-
702
NUT; TRAY
(B) M6 FLANGE
0-91180-106-0
02
1
1509-
702
NUT; TRAY
(A)
8-98037-629-0
01
1
1509-
708
STOPPER; TRAY INST LID
GRAY
8-97431-096-0
01
1
1509-
709
SCREW; TRAY INST
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
03
1
1509-
718
SEAL; COVER
4X35
8-98185-153-0
01
1
1509-
336
19
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
BRACKET; INST PNL
(C)
8-98063-326-0
01
1
1509-
16
BRACKET; INST PNL
(B)
8-98017-204-1
01
1
1509-
16
BRACKET; INST PNL
(B)
8-98017-202-1
01
1
1509-
16
BRACKET; INST PNL
(A)
8-97585-612-2
01
1
1509-
19
SCREW; BRKT
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1509-
336
COVER; INST PANEL SIDE
(A) GRAY
8-97409-779-0
01
1
1509-
336
COVER; INST PANEL SIDE
(D) GRAY
8-97424-712-0
01
1
1509-
336
COVER; INST PANEL SIDE
(B) GRAY
8-97409-780-3
01
1
1509-
336
COVER; INST PANEL SIDE
(C) GRAY
8-97411-635-2
01
1
1509-
54
704
54
704
182
16
167
66
6
705
59
703
485
16
182
485
182
167
66
16
182
704
704
569
178
525
524
700
603
603
697
378
125
699
265
14
564
341
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
SUPPORT; INST PANEL
8-98064-936-1
01
1
1509-
14
SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1509-
16
BRACKET; INST PNL
(C)
8-98063-326-0
01
1
1509-
16
BRACKET; INST PNL
(B)
8-98017-204-1
01
1
1509-
16
BRACKET; INST PNL
(B)
8-98017-202-1
01
1
1509-
16
BRACKET; INST PNL
(A)
8-97585-612-2
01
1
1509-
54
POCKET; CENTER CLUSTER
(A) H=108.4 BLACK
8-97407-129-2
01
1
1509-
54
POCKET; CENTER CLUSTER
(B) H=69.8 BLACK
8-97408-865-2
01
1
1509-
59
SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR
8-98058-632-0
02
1
1509-
66
REINFORCEMENT; INST PANEL
(B)
8-97430-064-0
01
1
1509-
66
REINFORCEMENT; INST PANEL
(A)
8-98069-419-7
01
1
1509-
125
CLIP; INST PANEL
(B) GRAY
8-97408-817-0
01
1
1509-
125
CLIP; INST PANEL
(B) GRAY
8-97408-817-0
01
1
1509-
125
CLIP; INST PANEL
(B) GRAY
8-97408-817-0
02
1
1509-
125
CLIP; INST PANEL
(A)
8-98021-271-0
02
1
1509-
167
BOLT; REINF TO INST
M8X23 FLANGE
8-97264-766-0
04
1
1509-
178
NUT; INST PANEL
(B)
8-98037-629-0
15
1
1509-
178
NUT; INST PANEL
(A) M6 FLANGE
0-91180-106-0
01
1
1509-
182
BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER
0-52000-612-0
02
1
1509-
182
BOLT; BRKT,INST PANEL
(B) M8X16 FLANGE
0-28050-816-0
04
1
1509-
182
BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER
8-98018-439-0
01
1
1509-
265
HOLDER; CUP
GRAY
8-97418-528-0
01
1
1509-
341
LID; FUSE BOX
GRAY
8-97422-209-0
01
1
1509-
378
SEAL; INST PANEL
5X30
8-98176-199-0
01
1
1509-
485
NUT; SUPPORT CLIP,HARNESS
M6 FLANGE
0-91180-106-0
04
1
1509-
524
STAND ASM; CUP,INST
8-98054-414-0
01
1
1509-
525
SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
03
1
1509-
564
COVER; SW
8-97043-732-1
04
1
1509-
569
HOLDER; CARD
8-97410-276-0
01
1
1509-
603
CLIP; COVER
(B)
8-98021-271-0
01
1
1509-
603
CLIP; COVER
(A)
8-98004-025-0
01
1
1509-
603
CLIP; COVER
(B)
8-98021-271-0
04
1
1509-
603
CLIP; COVER
(C)
8-98152-030-0
03
1
1509-
603
CLIP; COVER
(E)
8-98152-031-0
03
1
1509-
603
CLIP; COVER
(D)
8-98167-222-0
02
1
1509-
697
PANEL; INST CENTER
GRAY
8-97422-208-1
01
1
1509-
699
HOOK; INST PANEL
GRAY
8-97408-927-0
01
1
1509-
700
BOLT; HOOK
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1509-
703
SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR
8-98058-632-0
04
1
1509-
704
BRACKET; CENTER POCKET
(A)
8-97585-618-2
02
1
1509-
704
BRACKET; CENTER POCKET
(B)
8-97585-616-2
02
1
1509-
705
SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR
0-72180-520-0
04
1
1509-
705
SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR
0-72180-520-0
04
1
1509-
