7-20 — MIRROR AND MIRROR STAY (#175245) — 73 parça

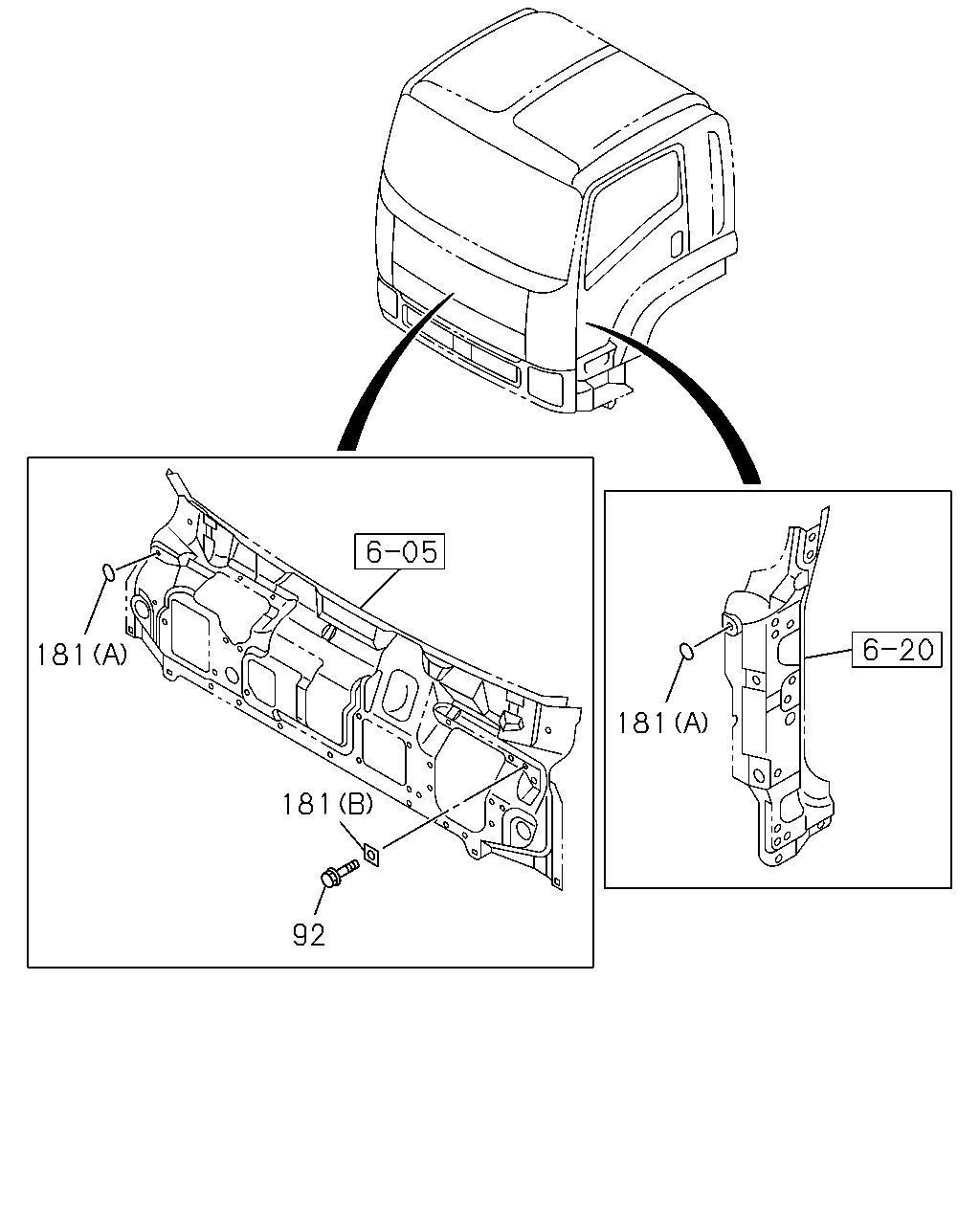

181 181 92 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
92	BOLT; STAY BRKT,MIRROR M8X16 FLANGE	8-98076-109-0	01	1	1509-
181	SEAL; BRKT (A) OD=25 BLACK	1-76798-019-0	02	1	1509-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1509-

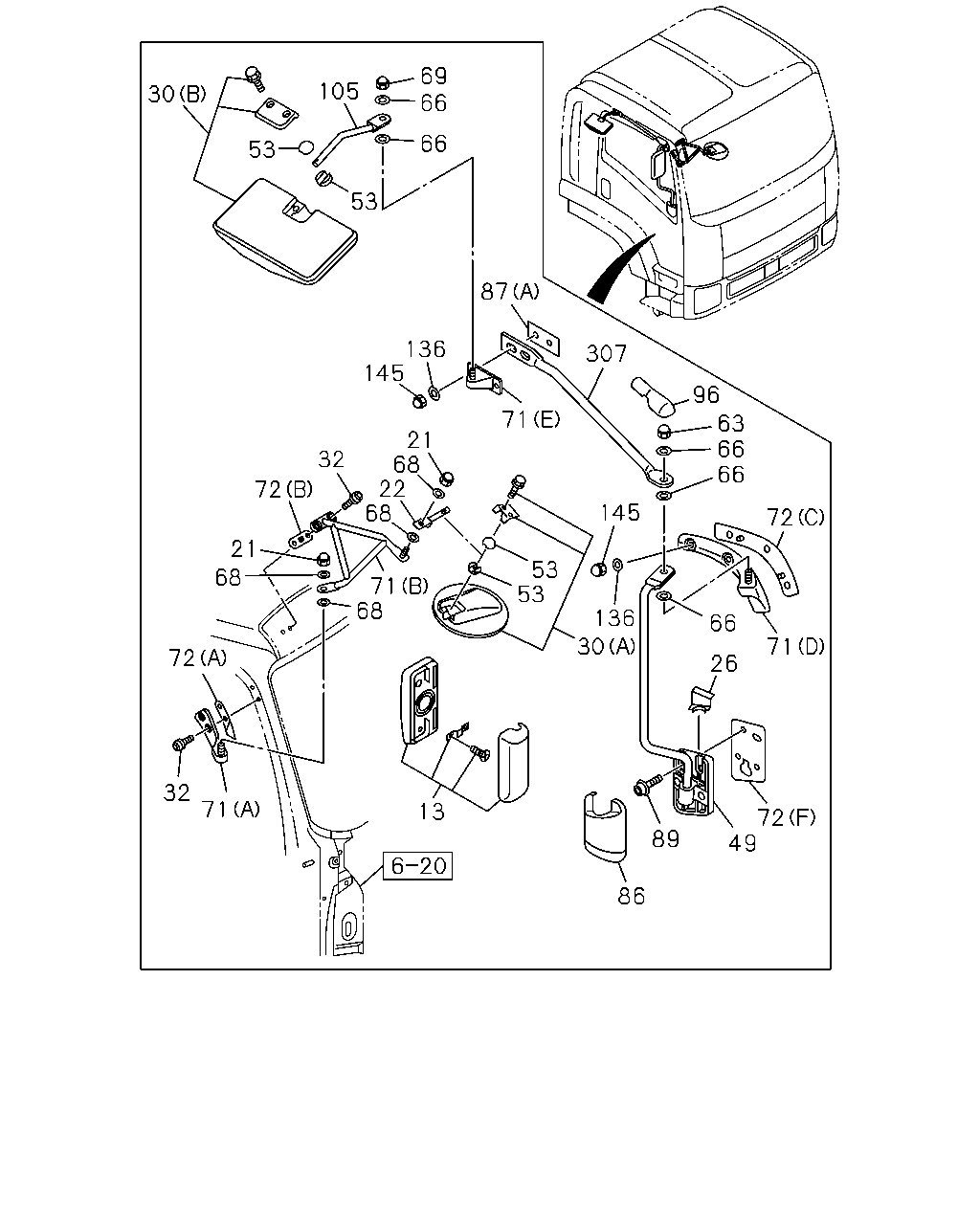

66 66 69 53 105 53 30 136 145 32 72 21 68 72 71 32 13 86 89 49 26 72 66 71 72 66 66 63 96 307 87 71 21 68 22 68 71 68 53 53 30 145 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	8-97431-225-0	01	1	1509-
13	MIRROR ASM; OUTSIDE RR VIEW	8-97431-224-0	01	1	1509-
21	NUT; MIRROR M10 CAP NUT	1-09984-134-0	02	1	1509-
22	STAY; OUTSIDE MIRROR	8-98092-493-0	01	1	1509-
26	COVER; OUTSIDE MIRROR	8-98031-806-0	01	1	1509-
26	COVER; OUTSIDE MIRROR	8-98031-805-0	01	1	1509-
30	MIRROR; UNDER (B)	8-97431-222-0	01	1	1509-
30	MIRROR; UNDER (A)	8-97431-226-0	01	1	1509-
32	SCREW; UNDER MIRROR M8X26 W/PL WASHER	8-98067-249-2	04	1	1509-
49	STAY; MIRROR SIDE	8-97431-069-0	01	1	1509-
49	STAY; MIRROR SIDE	8-97431-070-0	01	1	1509-
53	PIVOT; SIDE MIRROR ID=19.1	1-71737-633-2	02	1	1509-
53	PIVOT; SIDE MIRROR ID=19.1	1-71737-633-2	02	1	1509-
63	NUT; STAY M10 CAP NUT	1-09984-134-0	02	1	1509-
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	1509-
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1509-
68	WASHER; STAY ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1509-
69	NUT; CAP M10 CAP NUT	1-09984-134-0	01	1	1509-
71	BRACKET; OUTSIDE MIRROR (C)	8-98031-794-2	01	1	1509-
71	BRACKET; OUTSIDE MIRROR (D)	8-98031-793-2	01	1	1509-
71	BRACKET; OUTSIDE MIRROR (B)	8-98092-491-3	01	1	1509-
71	BRACKET; OUTSIDE MIRROR (A)	8-98064-775-0	01	1	1509-
71	BRACKET; OUTSIDE MIRROR (E)	1-71798-484-1	01	1	1509-
72	SHEET (E)	8-97431-072-0	01	1	1509-
72	SHEET (F)	8-97431-071-0	01	1	1509-
72	SHEET (D)	8-98031-797-0	01	1	1509-
72	SHEET (C)	8-98031-796-0	01	1	1509-
72	SHEET (B)	8-98060-225-1	01	1	1509-
72	SHEET (A)	8-98064-773-0	01	1	1509-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-803-2	01	1	1509-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-802-2	01	1	1509-
87	SPACER (B)	8-98063-789-0	01	1	1509-
87	SPACER (A)	8-98063-786-0	02	1	1509-
89	SCREW; BRKT,OUTSIDE MIRROR M8X23	8-97310-216-1	08	1	1509-
96	CAP; MIRROR STAY	8-98080-173-0	02	1	1509-
105	STAY; SUB UNDER MIRROR	8-98080-109-2	01	1	1509-
136	WASHER; LK,BRKT,MIRROR STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1509-
145	NUT; CAP,SUB STAY M8 CAP NUT	8-98059-914-0	10	1	1509-
307	STAY; MIRROR SUPPORT	8-98063-785-2	01	1	1509-
307	STAY; MIRROR SUPPORT	8-98063-784-2	01	1	1509-

96 63 66 66 72 71 72 26 66 49 89 86 13 136 145 307 87 136 87 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	8-97431-225-0	01	1	1509-
13	MIRROR ASM; OUTSIDE RR VIEW	8-97431-224-0	01	1	1509-
26	COVER; OUTSIDE MIRROR	8-98031-806-0	01	1	1509-
26	COVER; OUTSIDE MIRROR	8-98031-805-0	01	1	1509-
49	STAY; MIRROR SIDE	8-97431-069-0	01	1	1509-
49	STAY; MIRROR SIDE	8-97431-070-0	01	1	1509-
63	NUT; STAY M10 CAP NUT	1-09984-134-0	02	1	1509-
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	1509-
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1509-
71	BRACKET; OUTSIDE MIRROR (C)	8-98031-794-2	01	1	1509-
71	BRACKET; OUTSIDE MIRROR (D)	8-98031-793-2	01	1	1509-
71	BRACKET; OUTSIDE MIRROR (B)	8-98092-491-3	01	1	1509-
71	BRACKET; OUTSIDE MIRROR (A)	8-98064-775-0	01	1	1509-
71	BRACKET; OUTSIDE MIRROR (E)	1-71798-484-1	01	1	1509-
72	SHEET (E)	8-97431-072-0	01	1	1509-
72	SHEET (F)	8-97431-071-0	01	1	1509-
72	SHEET (D)	8-98031-797-0	01	1	1509-
72	SHEET (C)	8-98031-796-0	01	1	1509-
72	SHEET (B)	8-98060-225-1	01	1	1509-
72	SHEET (A)	8-98064-773-0	01	1	1509-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-803-2	01	1	1509-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-802-2	01	1	1509-
87	SPACER (B)	8-98063-789-0	01	1	1509-
87	SPACER (A)	8-98063-786-0	02	1	1509-
89	SCREW; BRKT,OUTSIDE MIRROR M8X23	8-97310-216-1	08	1	1509-
96	CAP; MIRROR STAY	8-98080-173-0	02	1	1509-
136	WASHER; LK,BRKT,MIRROR STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1509-
145	NUT; CAP,SUB STAY M8 CAP NUT	8-98059-914-0	10	1	1509-
307	STAY; MIRROR SUPPORT	8-98063-785-2	01	1	1509-
307	STAY; MIRROR SUPPORT	8-98063-784-2	01	1	1509-
