◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXR ▶ 11663 - GXR(LHD)CHINA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#175244) — 14 parça
çizim 513989
49 60 60 160
BalonParca AdiParca NoAdetTipApplied Date
49 PLATE; CAUTION,FUSE BOX 8-97431-406-0 01 1 1509-
60 PLATE; CAUTION,CAB TILT
(A) 		8-98191-063-0 01 1 1509-
60 PLATE; CAUTION,CAB TILT
(B) 		8-98171-036-0 01 1 1509-
160 PLATE; CAUTION,TOWING 8-98155-058-0 01 1 1509-

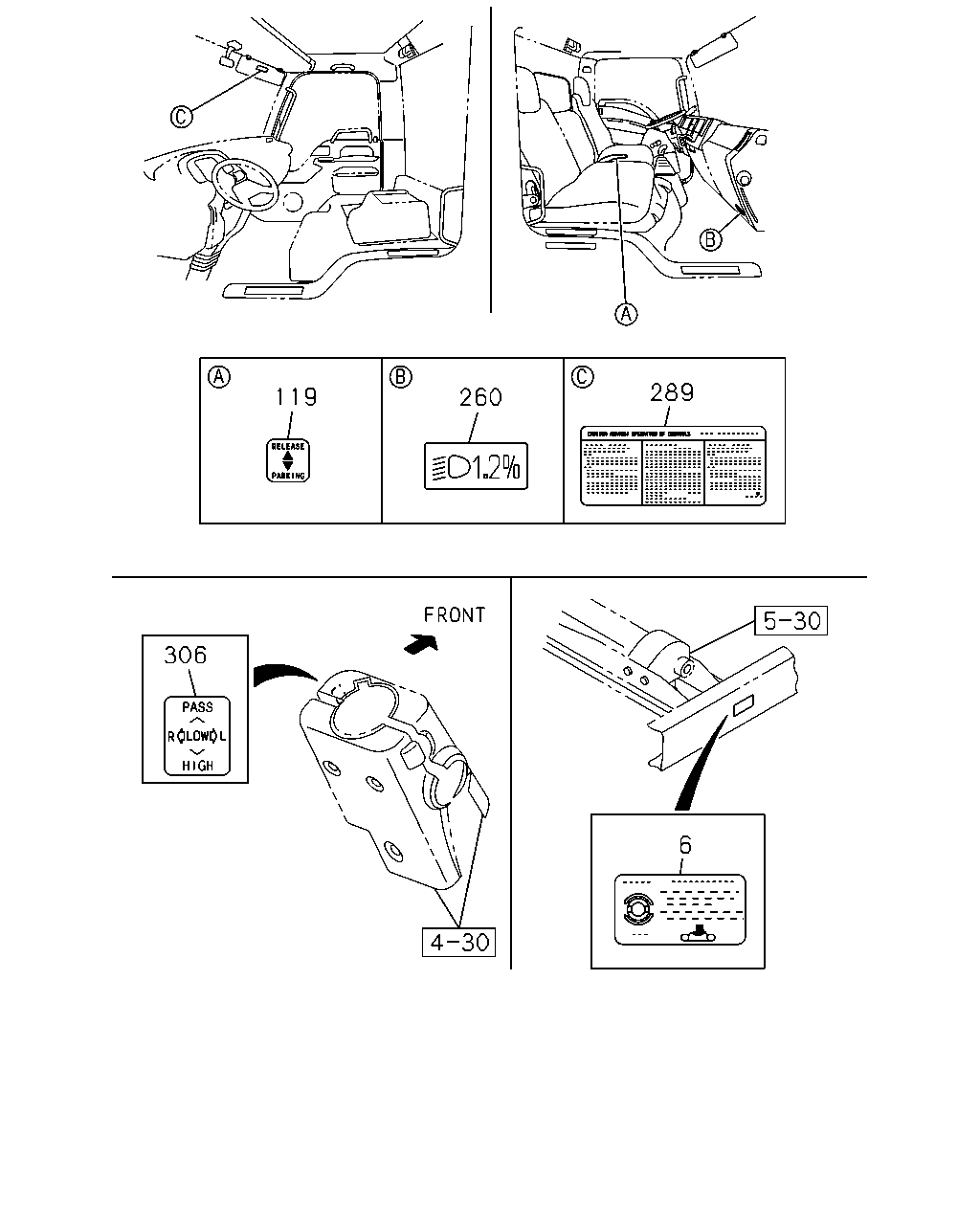

çizim 514433
119 260 289 306 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE 8-98082-438-0 01 1 1509-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-874-0 01 1 1509-
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 1509-
289 PLATE; CAUTION,DRIVING 1-85880-777-0 01 1 1509-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1509-

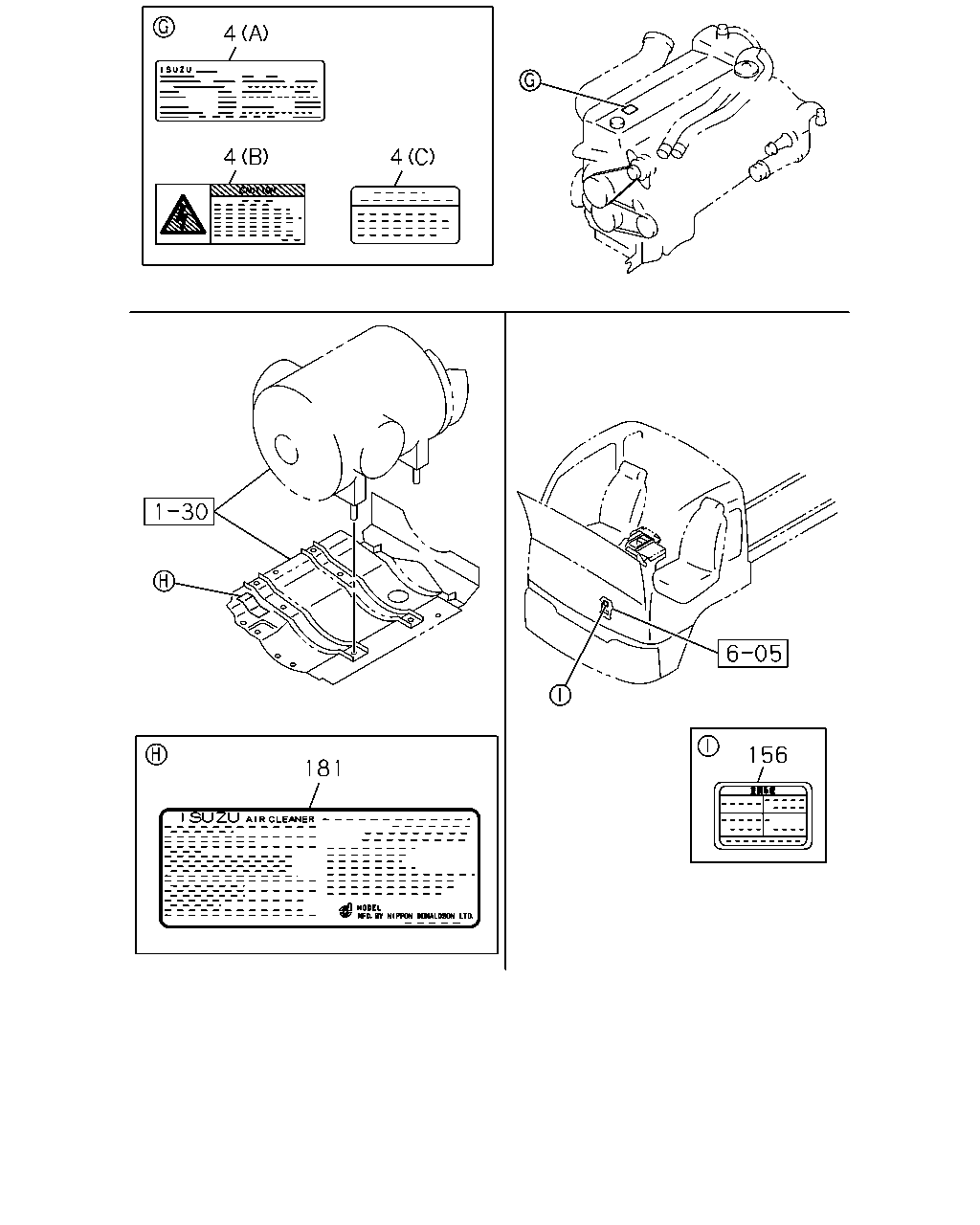

çizim 514501
4 4 4 181 156
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
(B) 		1-85875-456-0 01 1 1509-
4 LABEL; ENG MAINTENANCE
(C) 		8-98164-931-1 01 1 1509-
4 LABEL; ENG MAINTENANCE
(A) 		8-97431-646-0 01 1 1509-
156 PLATE; CAUTION,A/C 8-97431-426-0 01 1 1509-
181 PLATE; CAUTION,AIR CLEANER 1-85886-796-1 01 1 1509-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
