◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXR ▶ 11663 - GXR(LHD)CHINA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#175235) — 61 parça

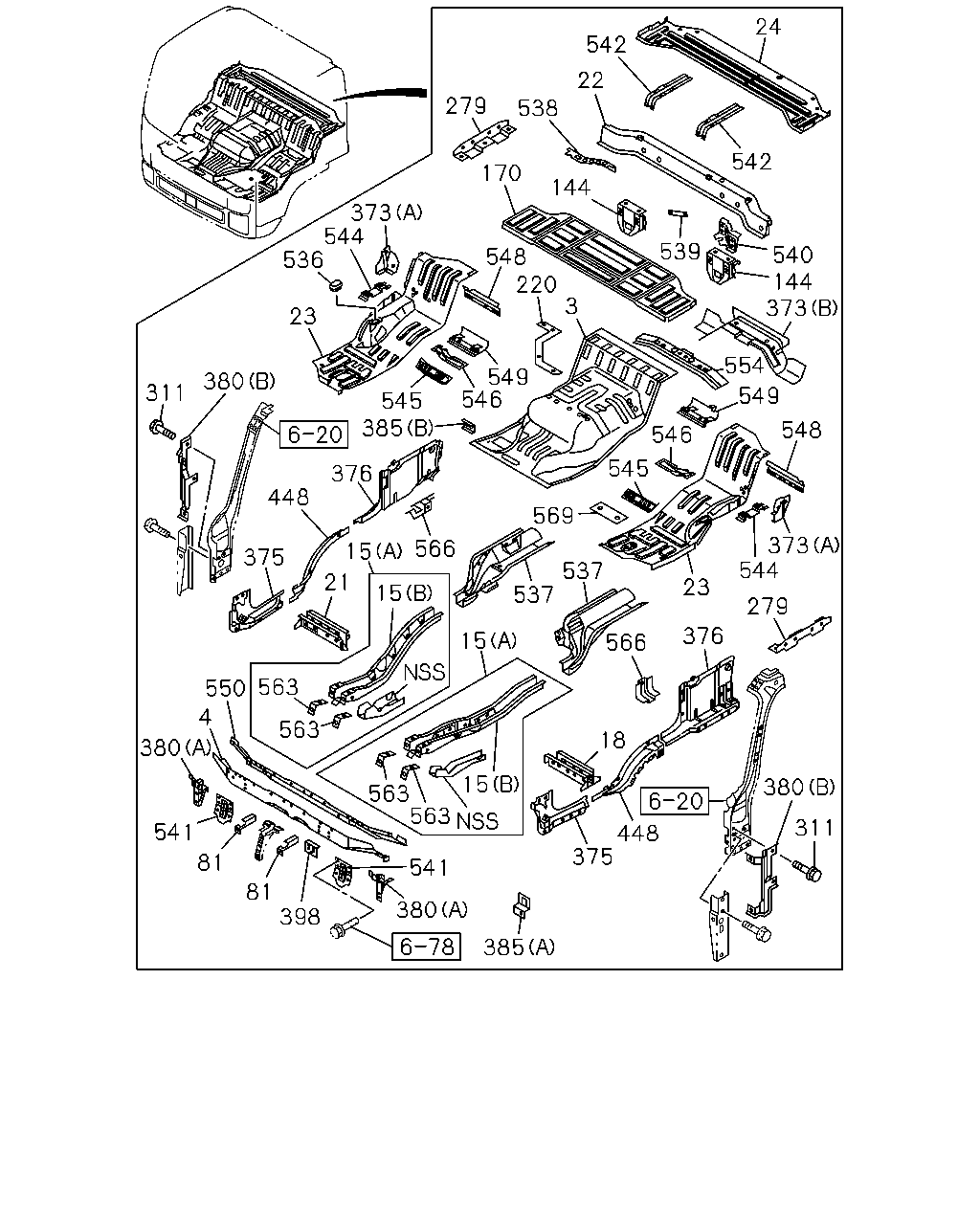

çizim 513388
24 542 542 144 170 548 3 540 549 546 545 569 545 546 554 373 144 549 385 536 373 544 538 22 279 548 373 544 279 376 566 537 537 380 448 375 541 380 398 81 81 541 380 550 23 380 311 448 15 21 375 563 563 563 566 220 539 23 311 385 563 15 376 18 15 15 4
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG 8-97430-014-1 01 1 1509-
4 FRAME; FLOOR,FRT 8-97431-037-0 01 1 1509-
15 FRAME; UNDER
(A) 		8-97430-018-0 01 1 1509-
15 FRAME; UNDER
(B) 		8-97430-019-0 01 1 1509-
15 FRAME; UNDER
(A) 		8-97430-027-1 01 1 1509-
15 FRAME; UNDER
(B) 		8-97430-333-0 01 1 1509-
18 FRAME; FLOOR,CENTER SIDE 8-97430-028-1 01 1 1509-
21 FRAME; FLOOR CENTER 8-97430-022-0 01 1 1509-
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1509-
23 PANEL; FLOOR,SIDE 8-97430-321-0 01 1 1509-
23 PANEL; FLOOR,SIDE 8-97430-324-0 01 1 1509-
24 PANEL; BED PAN 8-97584-378-6 01 1 1509-
81 BRACKET; HARNESS SUPPORT 8-97430-037-0 02 1 1509-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1509-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1509-
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1509-
220 PATCH 8-97430-015-0 01 1 1509-
279 REINFORCEMENT 8-97430-904-0 01 1 1509-
279 REINFORCEMENT 8-97430-904-0 01 1 1509-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1509-
373 REINFORCEMENT; SEAT BELT
(B) 		8-97430-880-0 01 1 1509-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1509-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1509-
375 CLOSING; PILLAR 8-97430-040-0 01 1 1509-
375 CLOSING; PILLAR 8-97430-043-0 01 1 1509-
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1509-
376 CLOSING; PILLAR,LWR 8-97589-556-4 01 1 1509-
380 BRACKET; HEAD LAMP
(B) 		8-97430-539-0 01 1 1509-
380 BRACKET; HEAD LAMP
(B) 		8-97430-538-0 01 1 1509-
380 BRACKET; HEAD LAMP
(A) 		8-97430-033-0 01 1 1509-
380 BRACKET; HEAD LAMP
(A) 		8-97589-708-1 01 1 1509-
385 BRACKET
(B) 		8-98053-825-1 01 1 1509-
385 BRACKET
(A) 		8-97430-035-0 01 1 1509-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1509-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1509-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1509-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1509-
537 SUPPORT ASM; MTG RR 8-97430-327-0 01 1 1509-
537 SUPPORT ASM; MTG RR 8-97430-328-0 01 1 1509-
538 REINFORCEMENT ASM; AIR INT DUCT 8-98098-707-1 01 1 1509-
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1509-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1509-
541 REINFORCEMENT; MTG,FRT 8-98076-127-0 02 1 1509-
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1509-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1509-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1509-
545 BRACKET; SEAT FRT 8-97430-976-0 01 1 1509-
545 BRACKET; SEAT FRT 8-97430-994-0 01 1 1509-
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 01 1 1509-
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 01 1 1509-
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1509-
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1509-
549 BRACKET; SEAT RR 8-97430-322-0 01 1 1509-
549 BRACKET; SEAT RR 8-97430-992-0 01 1 1509-
550 CLOSING ASM; MTG,FRT 8-97589-710-3 01 1 1509-
554 REINFORCEMENT; FLOOR CENTER 8-97430-973-0 01 1 1509-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 02 1 1509-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 02 1 1509-
566 REINFORCEMENT; FENDER,RR 8-97430-041-0 01 1 1509-
566 REINFORCEMENT; FENDER,RR 8-98076-133-0 01 1 1509-
569 REINFORCEMENT; FRT,ENG HOOD 8-98108-382-0 01 1 1509-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
