Isuzu WW
▶
TRUCKS
▶
GXR
▶
11663 - GXR(LHD)CHINA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-43 - SIDE TRIM
▶

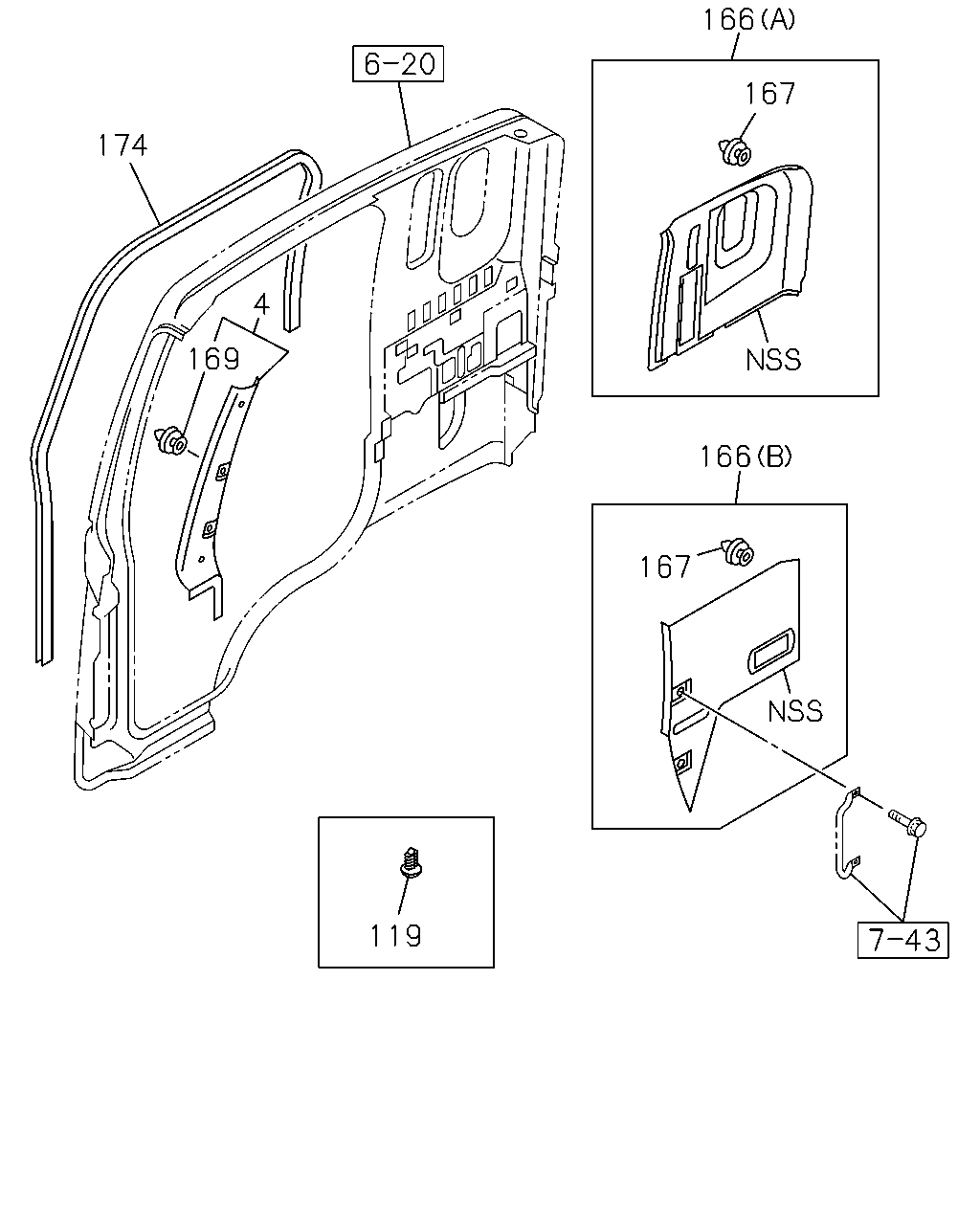

6-43 — SIDE TRIM
(#175231) — 15 parça
174
119
169
4
166
167
166
167
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
COVER; TRIM,FRT SIDE
DARK GRAY
8-97405-255-2
01
1
1509-
4
COVER; TRIM,FRT SIDE
DARK GRAY
8-97405-254-2
01
1
1509-
119
CLIP; FRT PILLAR
DARK GRAY
8-97411-875-0
02
1
1509-
166
TRIM; RR PILLAR
(A) DARK GRAY
8-97415-651-0
01
1
1509-
166
TRIM; RR PILLAR
(A) DARK GRAY
8-97415-652-0
01
1
1509-
166
TRIM; RR PILLAR
(B) GRAY
8-97425-039-0
01
1
1509-
166
TRIM; RR PILLAR
(B) GRAY
8-97425-038-0
01
1
1509-
167
CLIP; TRIM,RR PILLAR
8-98059-610-0
04
1
1509-
167
CLIP; TRIM,RR PILLAR
8-98059-610-0
04
1
1509-
167
CLIP; TRIM,RR PILLAR
8-98059-610-0
04
1
1509-
167
CLIP; TRIM,RR PILLAR
8-98059-610-0
04
1
1509-
169
CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK
8-94279-974-1
02
1
1509-
169
CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK
8-94279-974-1
02
1
1509-
174
FINISHER; BODY SIDE
8-98155-184-0
01
1
1509-
174
FINISHER; BODY SIDE
8-98155-183-0
01
1
1509-
