◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11369 - FVR(LHD)EURO4 W/DOC ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#17523) — 41 parça

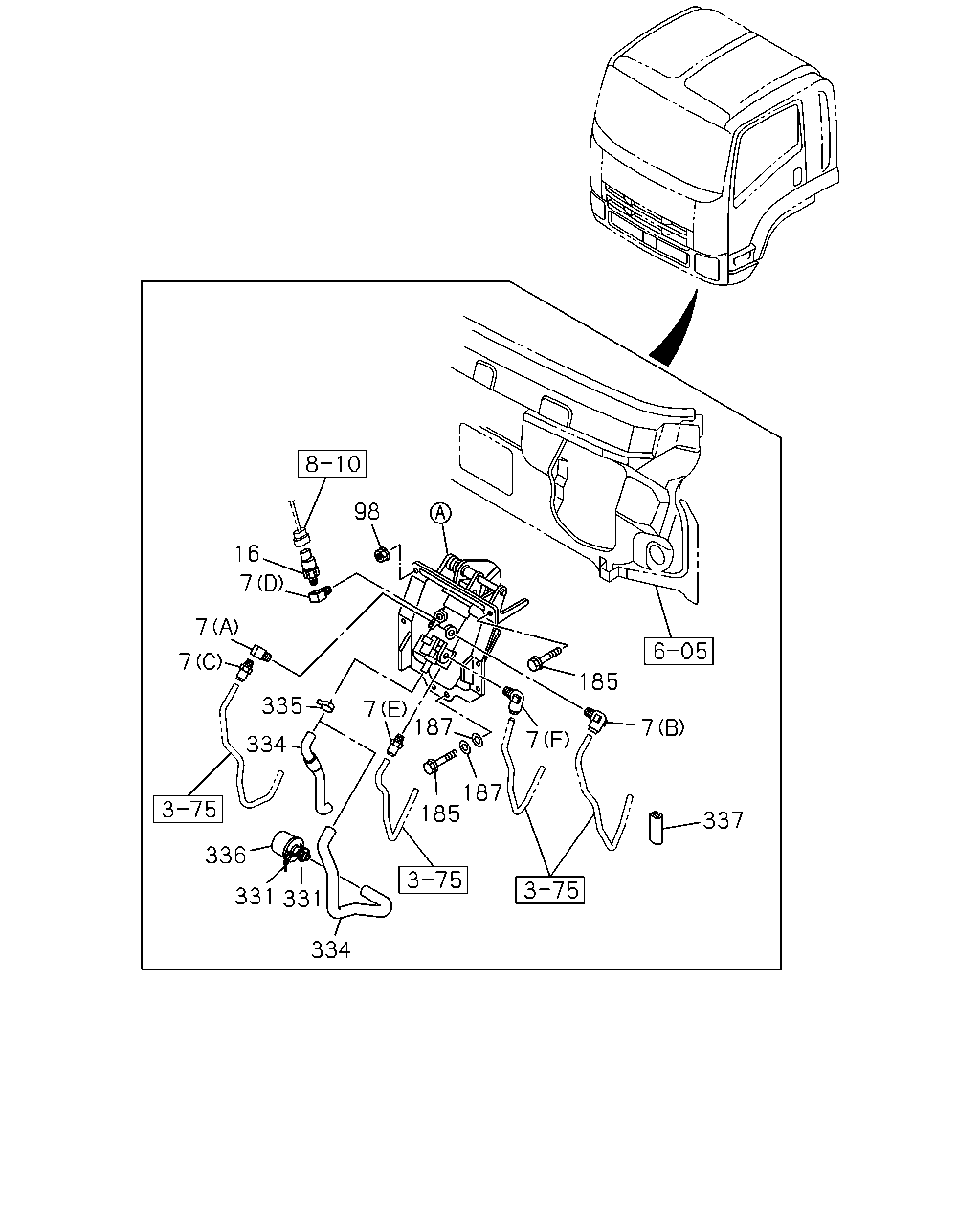

çizim 110067
98 16 7 7 7 185 335 7 187 7 7 334 187 185 337 336 331 331 334
BalonParca AdiParca NoAdetTipApplied Date
7 CONNECTOR; BRK VALVE
(D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1109-1205
7 CONNECTOR; BRK VALVE
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1206-
7 CONNECTOR; BRK VALVE
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1109-1205
7 CONNECTOR; BRK VALVE
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (A) PT3/8 ELBOW 		1-09660-696-0 01 1 1206-
7 CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1109-1205
7 CONNECTOR; BRK VALVE
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1206-
7 CONNECTOR; BRK VALVE
(F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1109-1205
7 CONNECTOR; BRK VALVE
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1206-
7 CONNECTOR; BRK VALVE
(C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1109-1205
7 CONNECTOR; BRK VALVE
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1206-
7 CONNECTOR; BRK VALVE
(E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1109-1205
7 CONNECTOR; BRK VALVE
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1206-
16 SWITCH; STOP LAMP
STAMP 0.3 		8-98010-857-0 01 1 1109-
98 NUT; BRKT
M8 FLANGE 		0-91180-208-0 01 1 1109-
185 BOLT; BRKT
M8X25 FLANGE 		8-98057-109-0 07 1 1109-1506
185 BOLT; BRKT
M8X25 HEXALOBULAR 		8-98316-699-0 07 1 1507-
187 WASHER; PL,BRKT
ID=8.4 OD=26 		0-91614-808-0 04 1 1109-1506
187 WASHER; PL,BRKT
ID=8.4 OD=26 		8-98316-762-0 04 1 1507-
331 CLIP; BAND
CHILE EQUIPMENT(KE1) BRAKE REGULATION ADR(TDU) L=197 		1-83574-032-0 02 1 1206-
334 HOSE; AIR,BRK
CHILE EQUIPMENT(KE1) BRAKE REGULATION ADR(TDU) 		8-98017-119-3 01 1 1206-
334 HOSE; AIR,BRK 8-97611-147-2 01 1 1109-1205
334 HOSE; AIR,BRK
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EXC. BRAKE REGULATION ADR(TDU) 		8-97611-147-2 01 1 1206-
334 HOSE; AIR,BRK
COLOMBIA EQUIPMENT(CB7) BRAKE REGULATION ADR(TDU) 		8-97611-147-2 01 1 1206-
335 CLAMP; HOSE
ID=24 		8-98025-921-0 01 1 1109-1205
335 CLAMP; HOSE
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) ID=24 		8-98025-921-0 01 1 1206-
336 SILENCER; AIR
BRAKE REGULATION ADR(TDU) EXC. COLOMBIA EQUIPMENT(CB7) 		1-48199-544-0 01 1 1206-
337 PROTECTOR; AIR BRK
CHILE EQUIPMENT(KE1) BRAKE REGULATION ADR(TDU) L=30 L=50 		8-94270-377-1 01 1 1206-

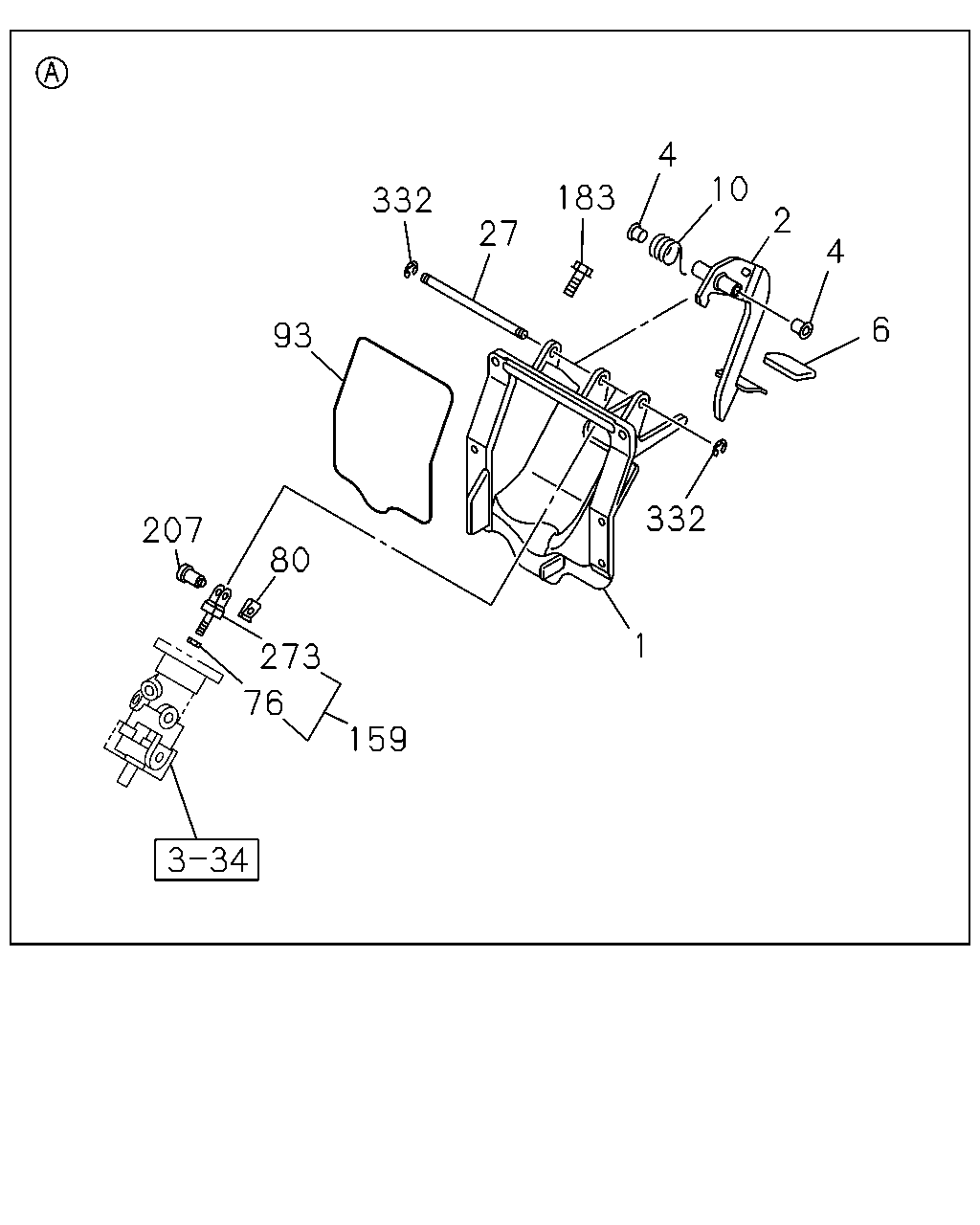

çizim 110069
4 10 183 332 2 27 4 6 93 332 207 80 1 273 76 159
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET ASM; PEDAL 8-98071-972-1 01 1 1109-
2 PEDAL; BRK 8-98064-200-0 01 1 1109-
4 BUSHING; BRK PEDAL 8-94238-596-0 02 1 1109-
6 COVER; BRK PEDAL 8-98056-865-0 01 1 1109-
10 SPRING; RETURN,BRK PEDAL 8-98057-232-1 01 1 1109-
27 SHAFT; BRK PEDAL 8-98057-231-0 01 1 1109-
76 NUT; PUSH ROD
M8 FLANGE 		0-91180-108-0 01 1 1109-
80 PIN; SNAP,BRK PEDAL 8-98007-161-0 01 1 1109-
93 SEAL; BRK PEDAL 1-48199-534-0 01 1 1109-
159 ROD ASM; PUSH,BRK 8-98057-234-0 01 1 1109-
183 BOLT; BRK VLV
M8X30 FLANGE 		0-28660-830-0 04 1 1109-
207 PIN; JOINT,BRK PEDAL LINK 8-98147-657-0 01 1 1109-
273 ROD; PULL 8-98057-233-0 01 1 1109-
332 RING; SNAP
ID=12 		0-91805-512-0 02 1 1109-
