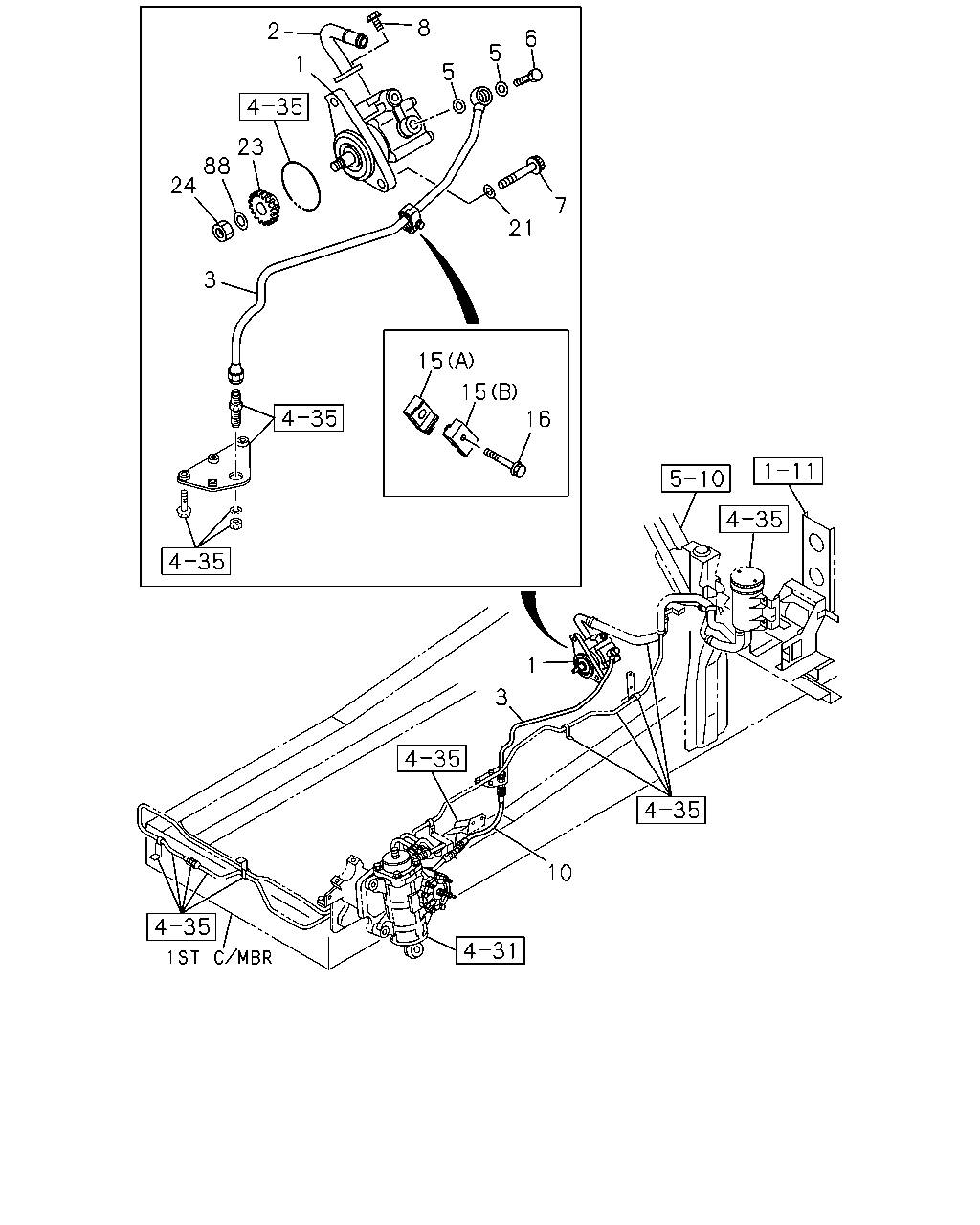

4-36 — POWER STEERING CONTROL; ENGINE SIDE
(#175206) — 15 parça
8
5
5
6
7
21
2
1
16
15
15
23
88
24
3
1
3
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; OIL,P/S
8-97431-991-0
01
1
1509-
2
PIPE ASM; OIL,SUCTION
8-97603-768-0
01
1
1509-
3
PIPE; OIL,CHARGE,P/S
8-98271-890-0
01
1
1509-
5
GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4
1-09630-087-0
02
1
1509-
6
BOLT; EYE,P/S PIPE
M18X33
1-09675-058-0
01
1
1509-
7
BOLT; OIL PUMP,P/S
M12X75
1-09070-058-0
02
1
1509-
8
BOLT; OIL PIPE
M8X16 FLANGE
0-28050-816-0
02
1
1509-
10
HOSE; FLEX,P/S OIL PUMP,INL
L=380
1-09365-226-0
01
1
1509-
15
CLIP; OIL PIPE SUCTION
(A) ID=8 L=14
8-98060-970-0
01
1
1509-
15
CLIP; OIL PIPE SUCTION
(B) ID=8 L=14
8-98060-971-0
01
1
1509-
16
BOLT; STAY,P/S OIL PUMP
M6X40 FLANGE
0-28650-640-0
01
1
1509-
21
WASHER; PL,P/S OIL PUMP
ID=12.5 OD=22
0-91610-512-0
02
1
1509-
23
GEAR; OIL PUMP
8-97430-609-1
01
1
1509-
24
NUT; GEAR,P/S PUMP
M16
9-19519-112-0
01
1
1509-
88
WASHER; GEAR,P/S PUMP
ID=16.2
9-09851-672-2
01
1
1509-
