4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#175205) — 82 parça

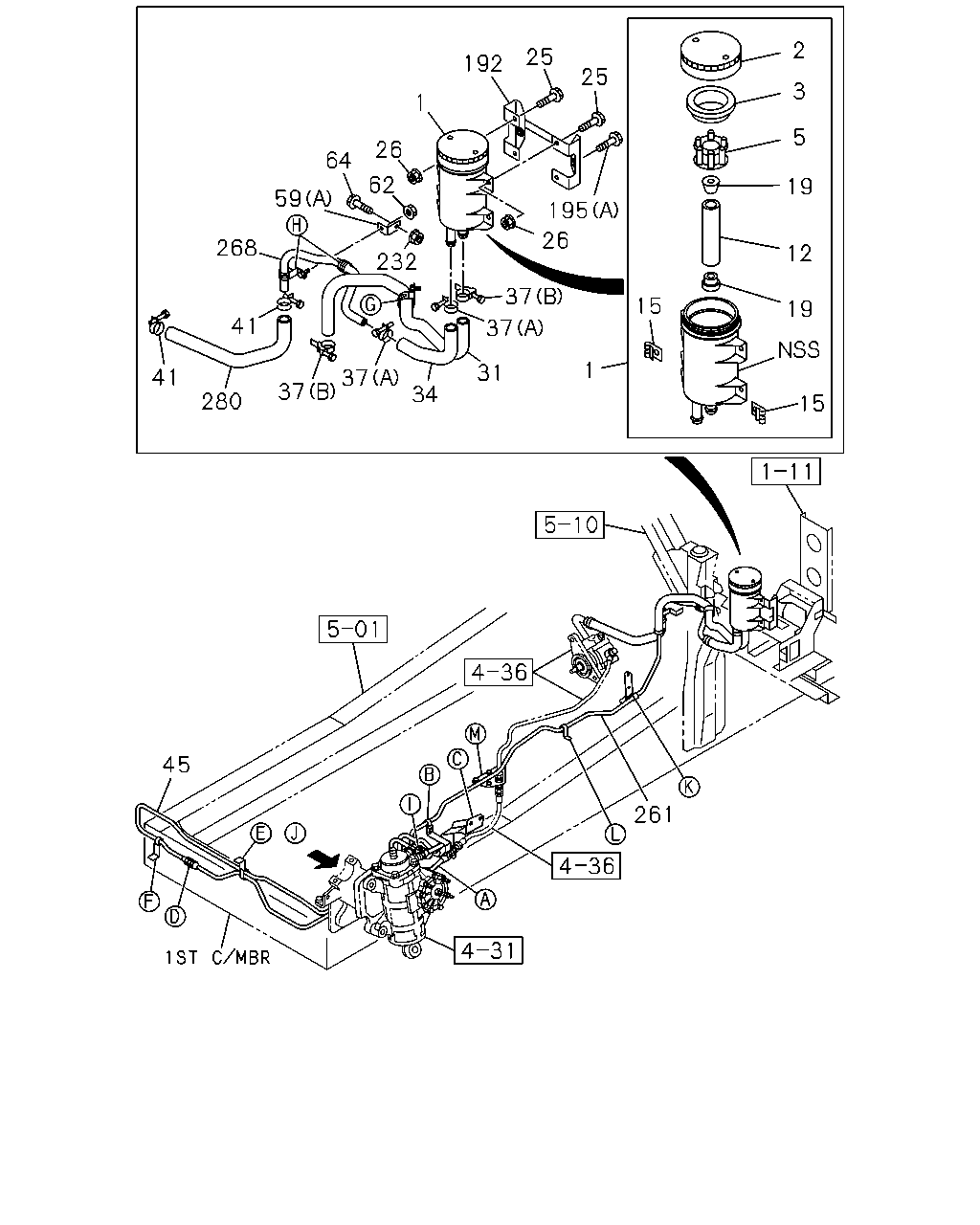

41 41 280 37 37 31 37 37 268 59 64 26 232 26 1 195 62 34 1 192 25 25 2 3 5 19 12 19 15 15 45 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-958-0	01	1	1509-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1509-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1509-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1509-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1509-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1509-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1509-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	1509-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	04	1	1509-
31	HOSE; P/S OIL TANK,INL	8-97430-525-0	01	1	1509-
34	HOSE; P/S OIL TANK,OUTLET	8-97430-527-0	01	1	1509-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1509-
37	CLIP; HOSE,P/S (A) ID=32	1-09704-085-0	02	1	1509-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1509-
45	PIPE; OIL,P/S UNIT TO UNION	8-97430-509-0	01	1	1509-
59	BRACKET; CLIP,OIL PIPE (A) L=40	1-47478-410-0	02	1	1509-
59	BRACKET; CLIP,OIL PIPE (B)	8-97430-507-0	01	1	1509-
59	BRACKET; CLIP,OIL PIPE (A) L=40	1-47478-410-0	01	1	1509-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1509-
64	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	01	1	1509-
192	BRACKET; P/S OIL TANK	8-97430-212-0	01	1	1509-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1509-
195	BOLT; BRKT (B) M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	1509-
232	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1509-
261	PIPE; OIL,UNION TO HOSE	8-97431-158-0	01	1	1509-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-97430-511-0	01	1	1509-
280	HOSE; P/S OIL PUMP,INL	8-97430-524-0	01	1	1509-

263 262 166 264 234 166 262 234 157 266 111 257 256 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
111	BRACKET; OIL PIPE	8-98086-991-0	01	1	1509-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77	1-09623-143-0	01	1	1509-
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1509-
166	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1509-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1509-
195	BOLT; BRKT (B) M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	1509-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	02	1	1509-
256	NUT; UNION M22	0-91111-522-0	01	1	1509-
256	NUT; UNION M22	0-91111-522-0	01	1	1509-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1509-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1509-
262	CLIP; P/S PIPE (A) ID=16 L=20	0-95235-535-0	01	1	1509-
262	CLIP; P/S PIPE (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1509-
263	BRACKET; P/S PIPE (A)	1-47471-191-1	01	1	1509-
263	BRACKET; P/S PIPE (B)	8-97430-506-0	01	1	1509-
264	BOLT; PIPE BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1509-
264	BOLT; PIPE BRKT (B) M8X40 FLANGE	0-28650-840-0	01	1	1509-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1509-

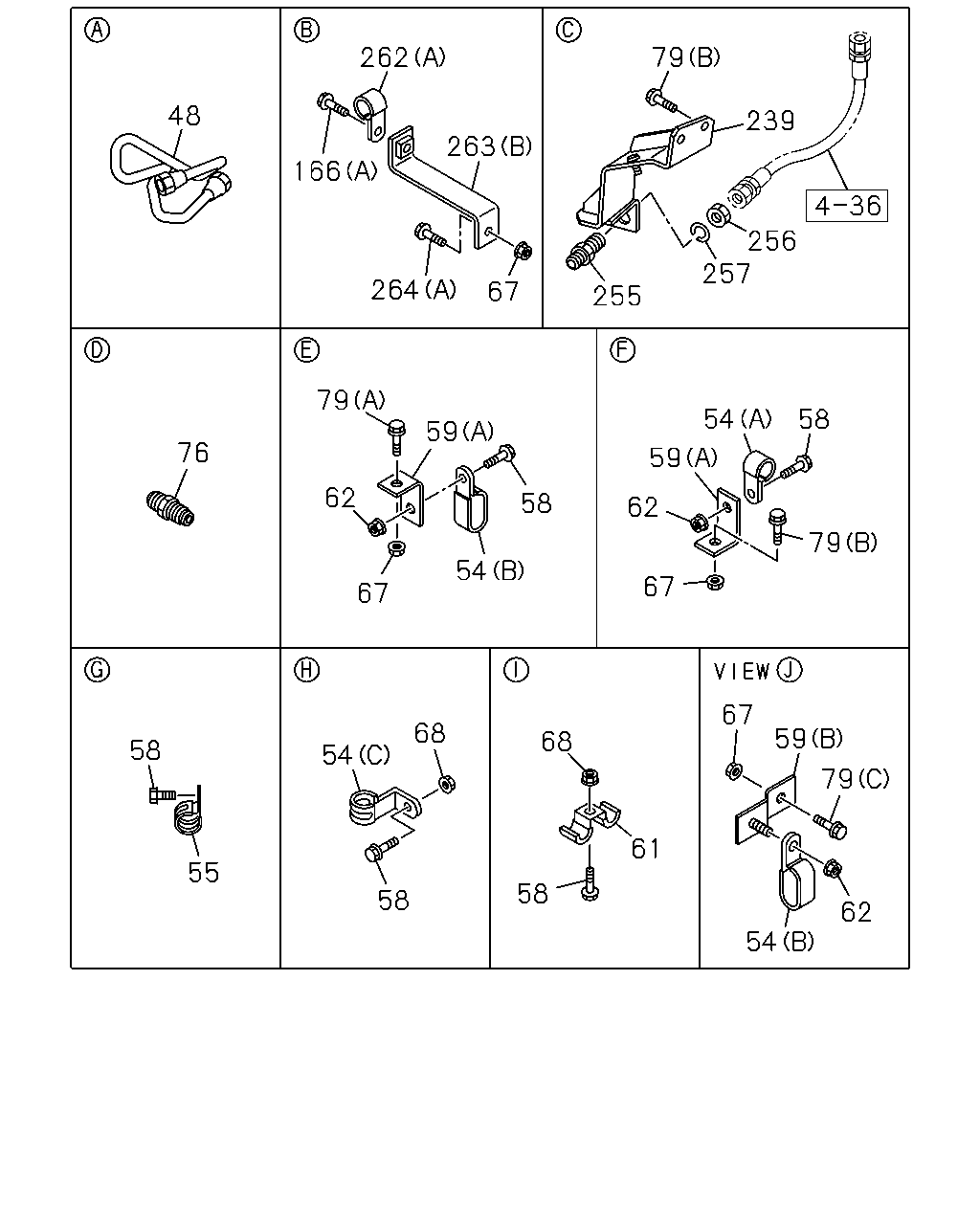

48 262 166 263 264 67 255 257 256 239 79 76 79 62 67 54 58 59 59 62 67 79 54 58 58 55 54 58 68 68 61 58 67 59 79 62 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97430-508-0	01	1	1509-
54	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-535-0	01	1	1509-
54	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1509-
54	CLIP; OIL PIPE (C) ID=19 L=24 H=21	1-09700-109-1	02	1	1509-
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1509-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1509-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1509-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1509-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1509-
59	BRACKET; CLIP,OIL PIPE (A) L=40	1-47478-410-0	02	1	1509-
59	BRACKET; CLIP,OIL PIPE (B)	8-97430-507-0	01	1	1509-
59	BRACKET; CLIP,OIL PIPE (A) L=40	1-47478-410-0	01	1	1509-
61	CLIP; OIL PIPE ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1509-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1509-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	1509-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1509-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1509-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1509-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1509-
79	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1509-
79	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1509-
79	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1509-
79	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	1509-
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1509-
166	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1509-
239	BRACKET; FLEX HOSE	8-97608-869-1	01	1	1509-
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1509-
256	NUT; UNION M22	0-91111-522-0	01	1	1509-
256	NUT; UNION M22	0-91111-522-0	01	1	1509-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1509-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1509-
262	CLIP; P/S PIPE (A) ID=16 L=20	0-95235-535-0	01	1	1509-
262	CLIP; P/S PIPE (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1509-
263	BRACKET; P/S PIPE (A)	1-47471-191-1	01	1	1509-
263	BRACKET; P/S PIPE (B)	8-97430-506-0	01	1	1509-
264	BOLT; PIPE BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1509-
264	BOLT; PIPE BRKT (B) M8X40 FLANGE	0-28650-840-0	01	1	1509-
