Isuzu WW
▶
TRUCKS
▶
FVR
▶
11369 - FVR(LHD)EURO4 W/DOC
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶

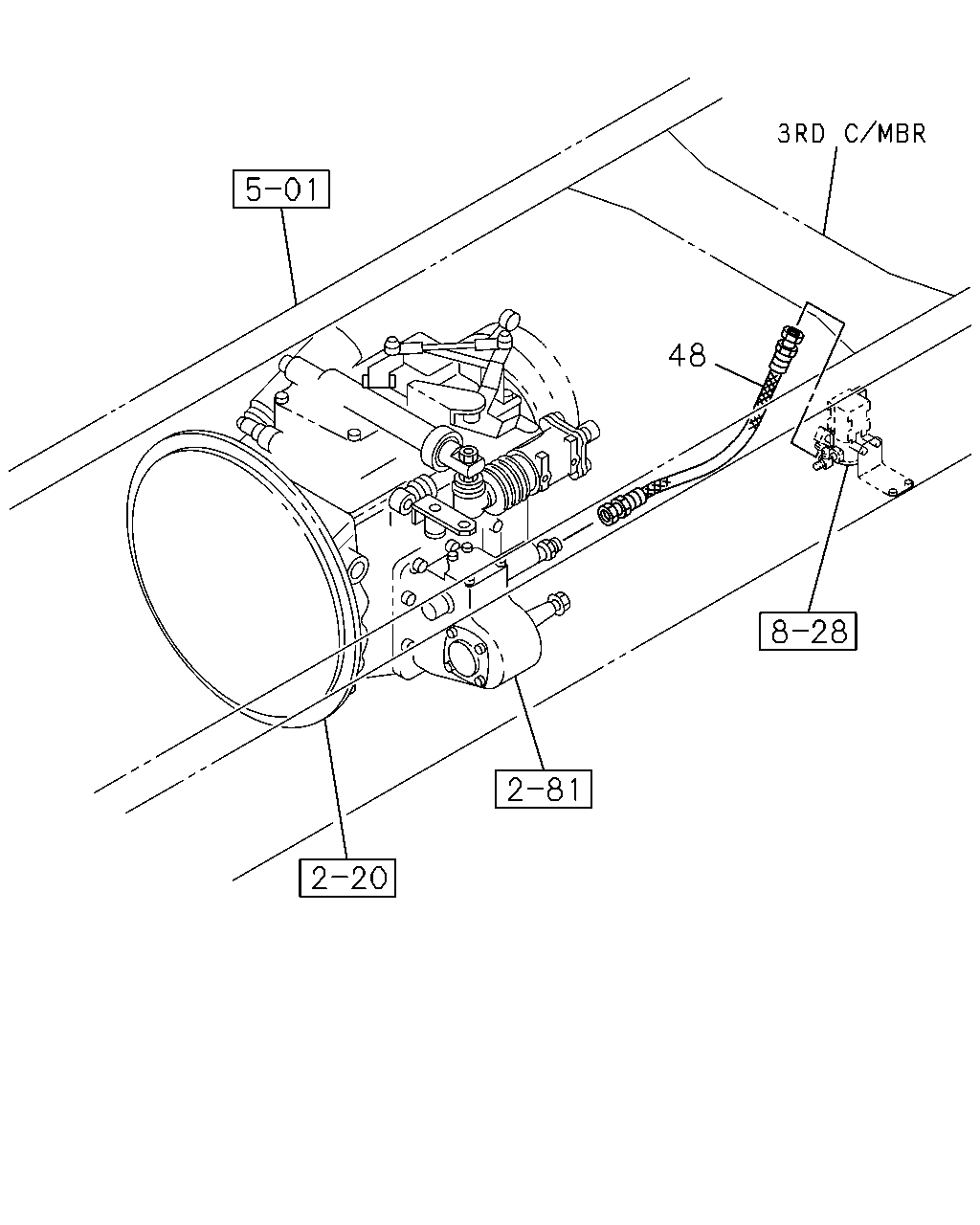

2-85 — POWER TAKE OFF CONTROL
(#17520) — 21 parça
◀

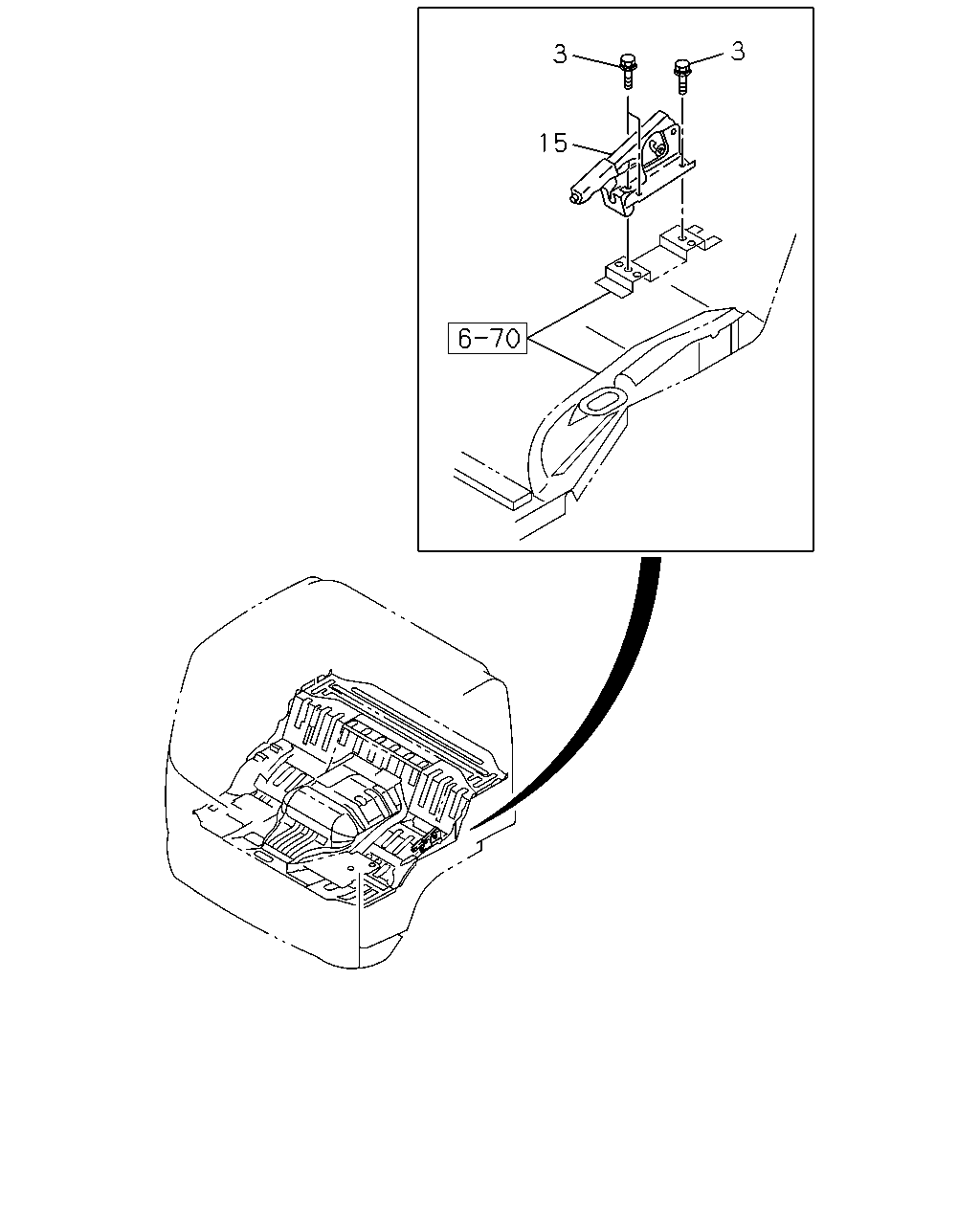

[285A] CONTROL LEVER (2 parça)

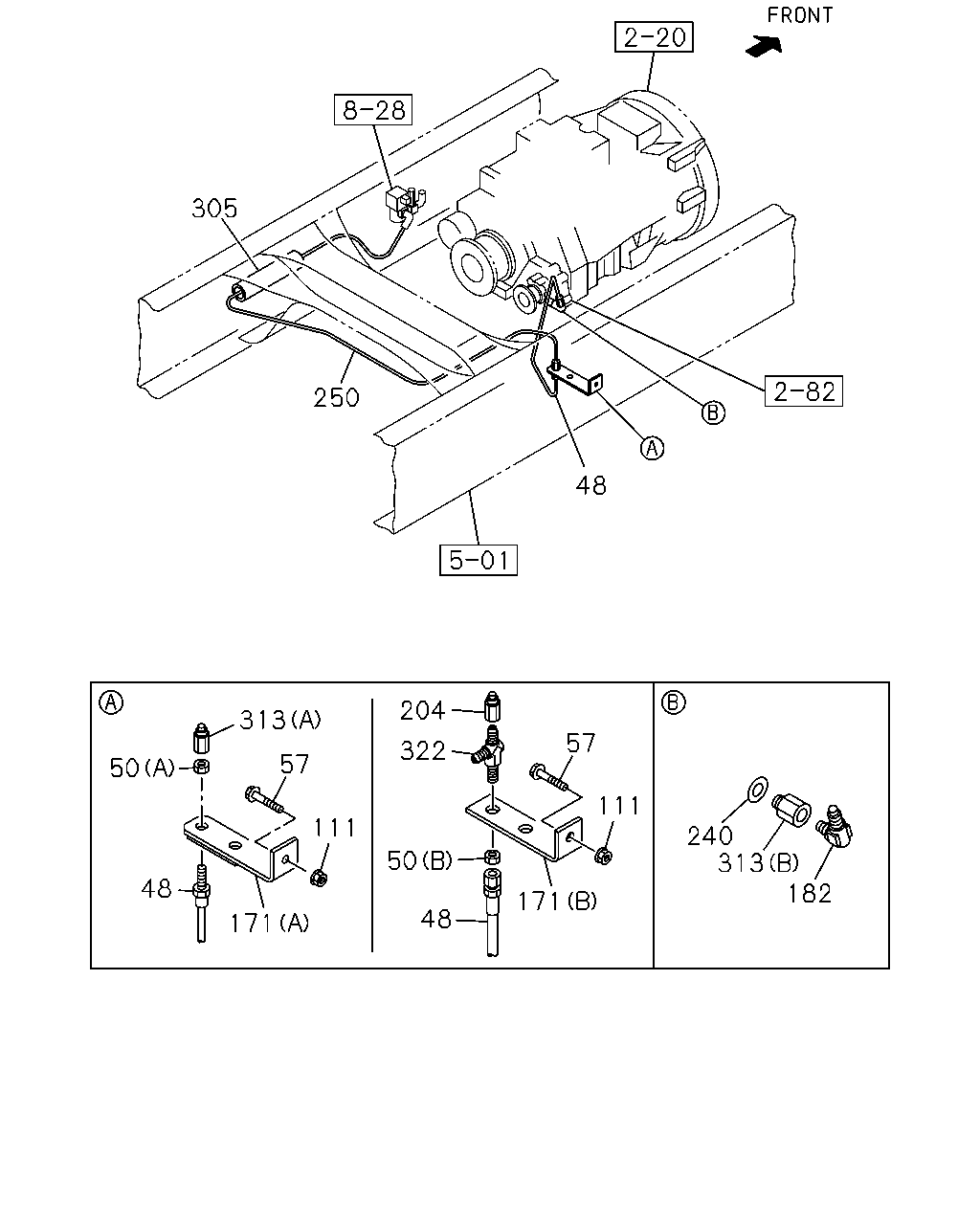

[285A] PTO PIPING;ZF (17 parça)
[285A] PTO PIPING;MZW (2 parça)
▶
3
3
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
1109-
15
LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4>
1-79996-092-0
01
1
1109-
305
250
48
204
313
57
322
57
50
111
111
240
313
182
50
48
171
48
171
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
HOSE; FLEX,PTO
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=470
1-09363-714-0
01
1
1109-
48
HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) VIN MODEL YEAR 2011<VZB> L=320
1-09363-625-0
01
1
1109-
50
NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) EXC. VIN MODEL YEAR 2011<VZB> (A) M12
9-09840-280-0
01
1
1109-
50
NUT; FLEX HOSE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) VIN MODEL YEAR 2011<VZB> (B) M12
0-91111-512-0
01
1
1109-
57
BOLT; BRKT
PTO ZF TRANS RR(BDM) M8X30 FLANGE
0-28650-830-0
01
1
1109-
111
NUT; BRKT
PTO ZF TRANS RR(BDM) M8 FLANGE
0-91180-108-0
01
1
1109-
171
BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) EXC. VIN MODEL YEAR 2011<VZB> (A)
8-98100-228-0
01
1
1109-
171
BRACKET; FLEX HOSE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) VIN MODEL YEAR 2011<VZB> (B)
8-98172-810-0
01
1
1109-
182
CONNECTOR; FLARE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1109-
204
CONNECTOR; NYLON TUBE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) VIN MODEL YEAR 2011<VZB> DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1109-
240
GASKET; CONNECTOR,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) ID=12.2
1-09630-084-0
01
1
1109-1312
240
GASKET; CONNECTOR,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) ID=12.2
8-98251-344-0
01
1
1401-
250
TUBE; NYLON
PTO ZF TRANS RR(BDM) VIN MODEL YEAR 2011<VZB> SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
1109-
305
TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) VIN MODEL YEAR 2011<VZB> SERVICED BY L=2000 ID=10
1-87411-019-0
01
1
1109-
313
ADAPTER
PTO ZF TRANS RR(BDM) EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1109-
313
ADAPTER
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (B) PT1/4
1-09654-396-0
01
1
1109-
322
UNION
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) VIN MODEL YEAR 2011<VZB> M12 2WAY
1-09654-059-2
01
1
1109-
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
HOSE; FLEX,PTO
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=470
1-09363-714-0
01
1
1109-
48
HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) VIN MODEL YEAR 2011<VZB> L=320
1-09363-625-0
01
1
1109-
