Sayfa 3-77 - Isuzu EPC

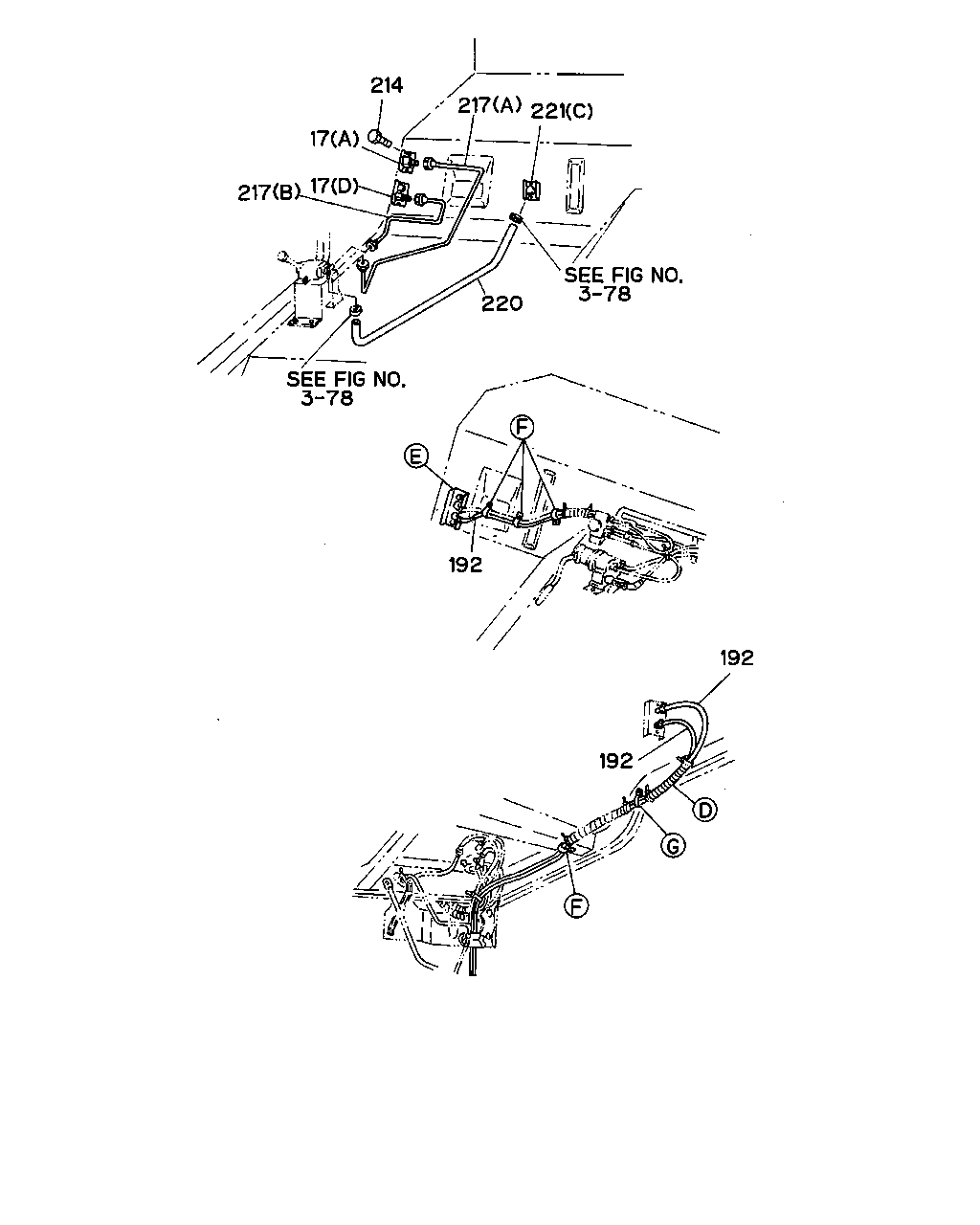

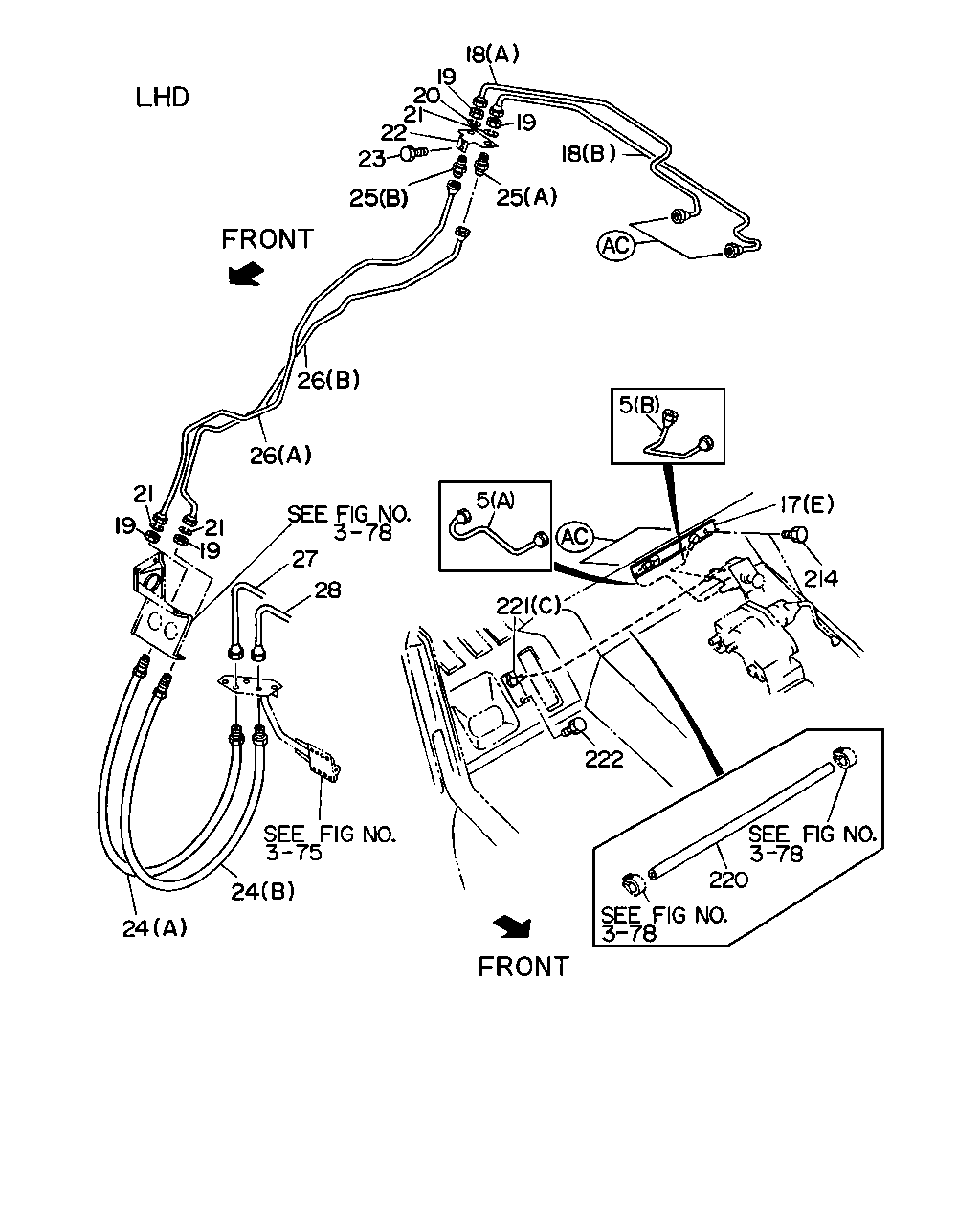

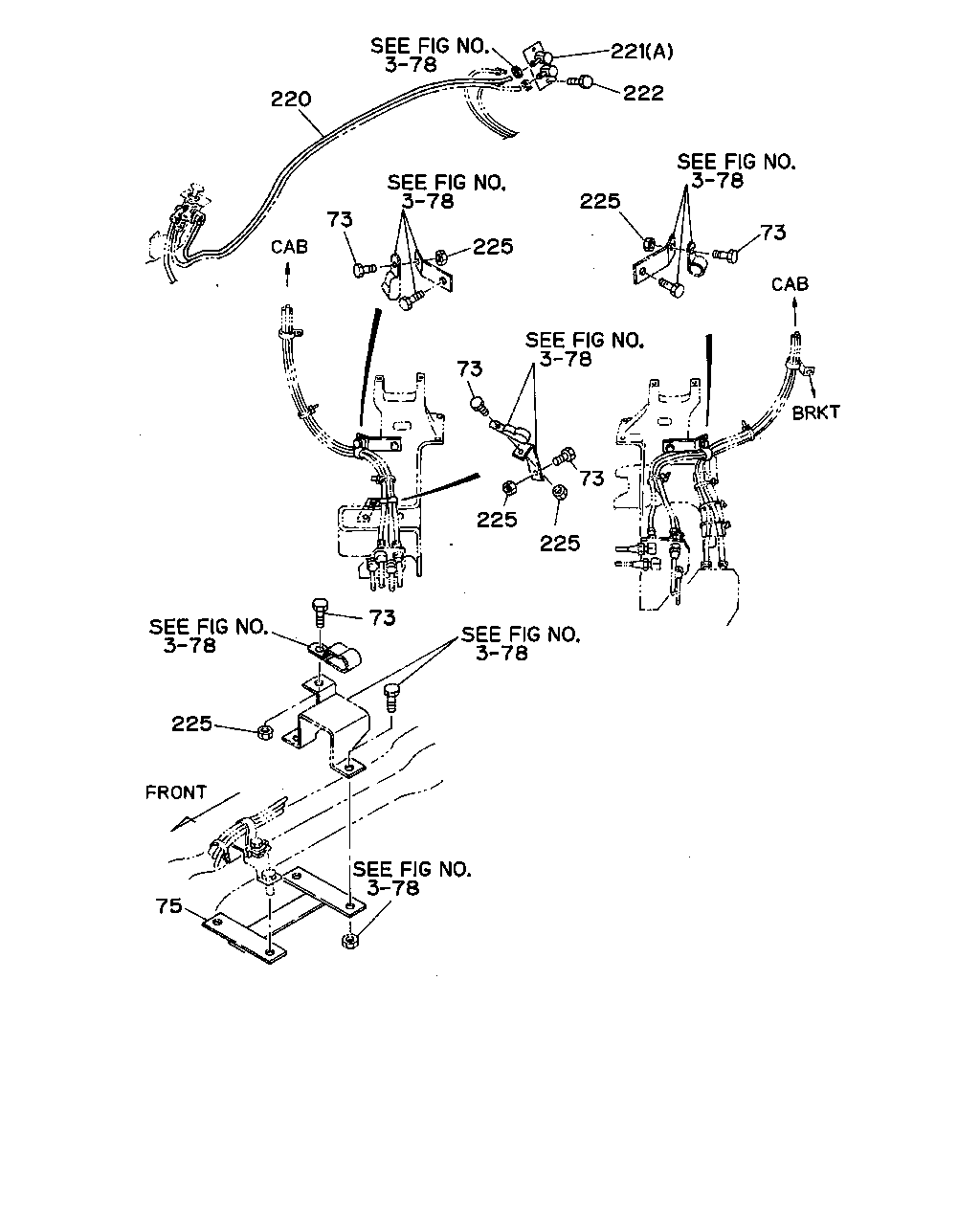

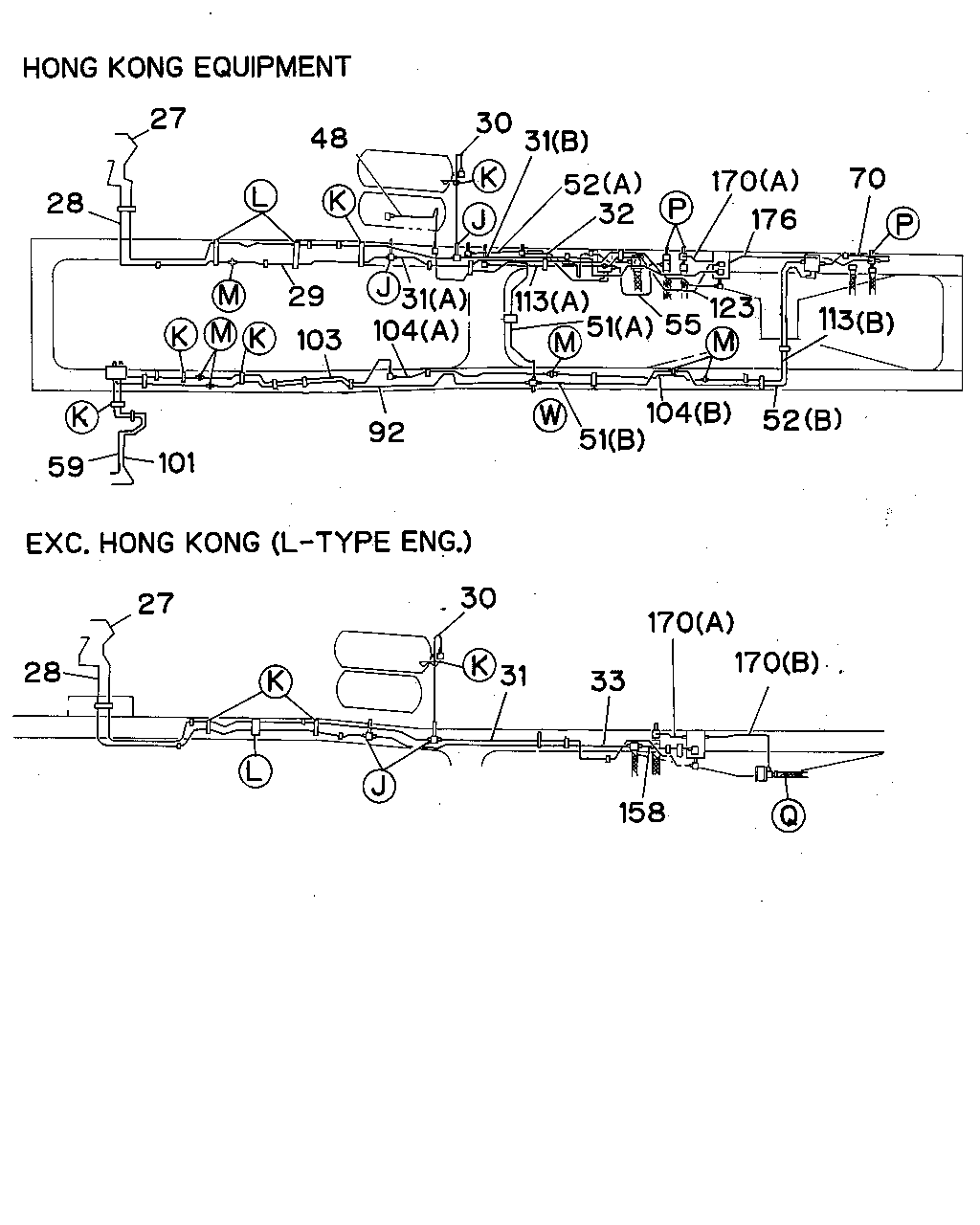

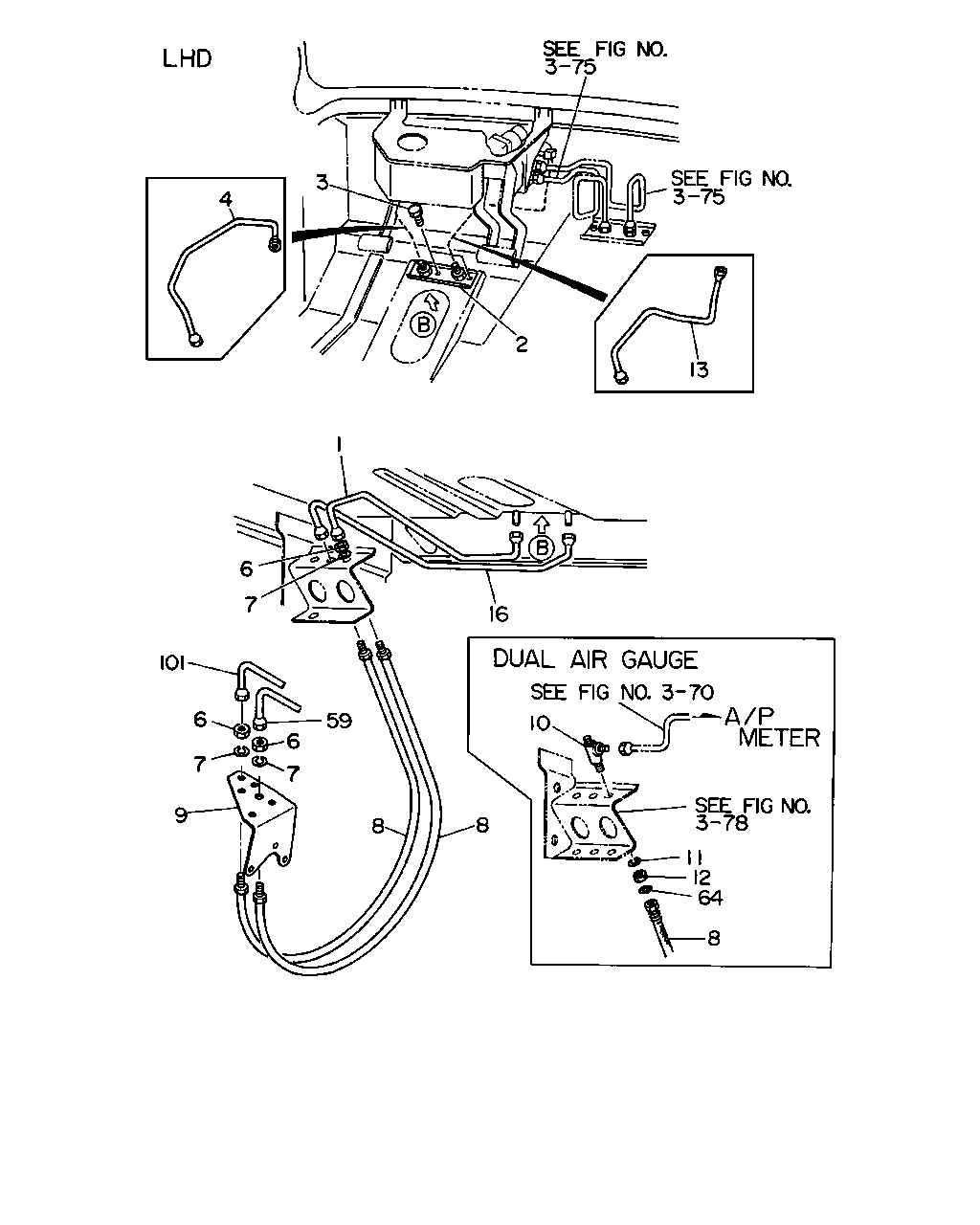

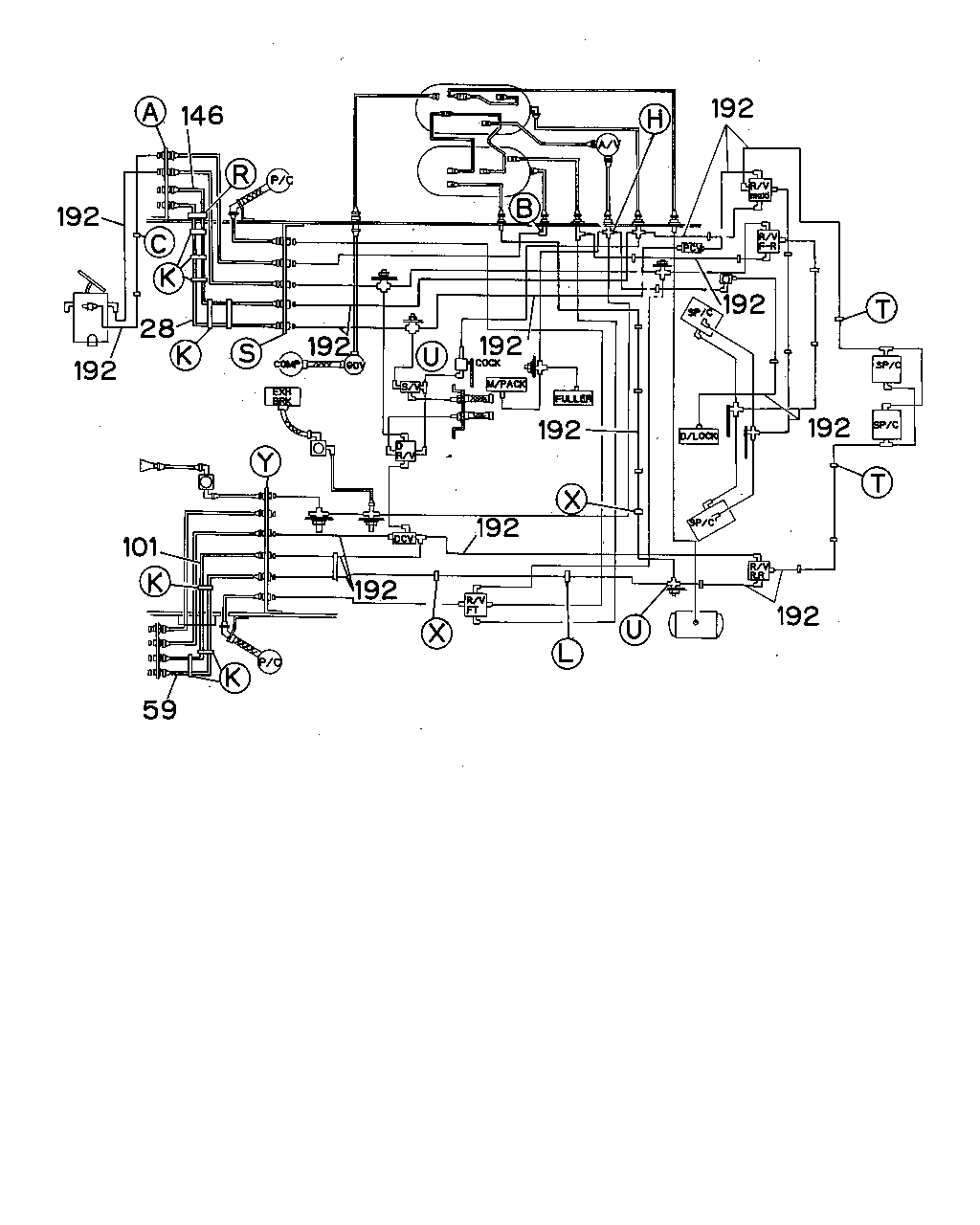

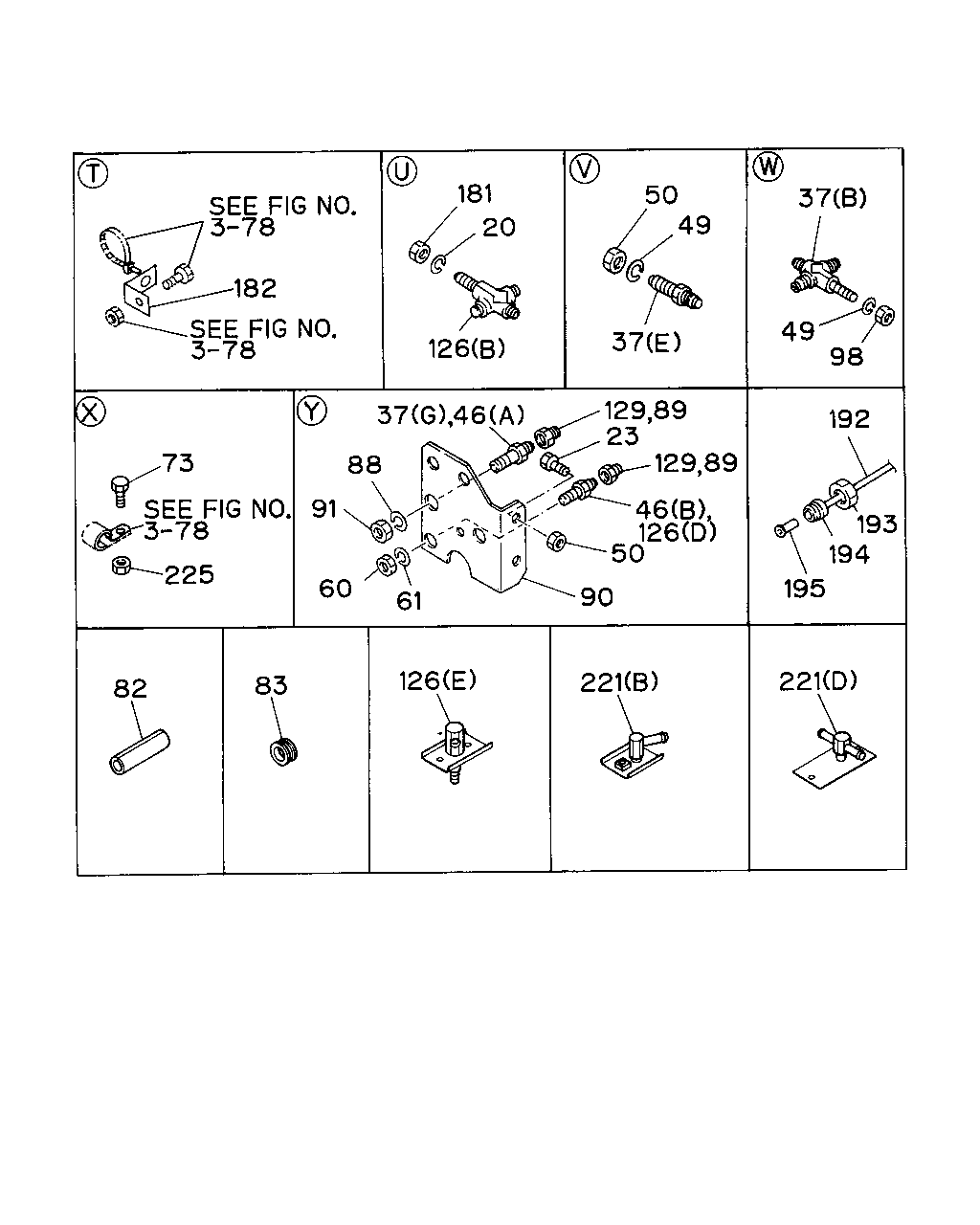

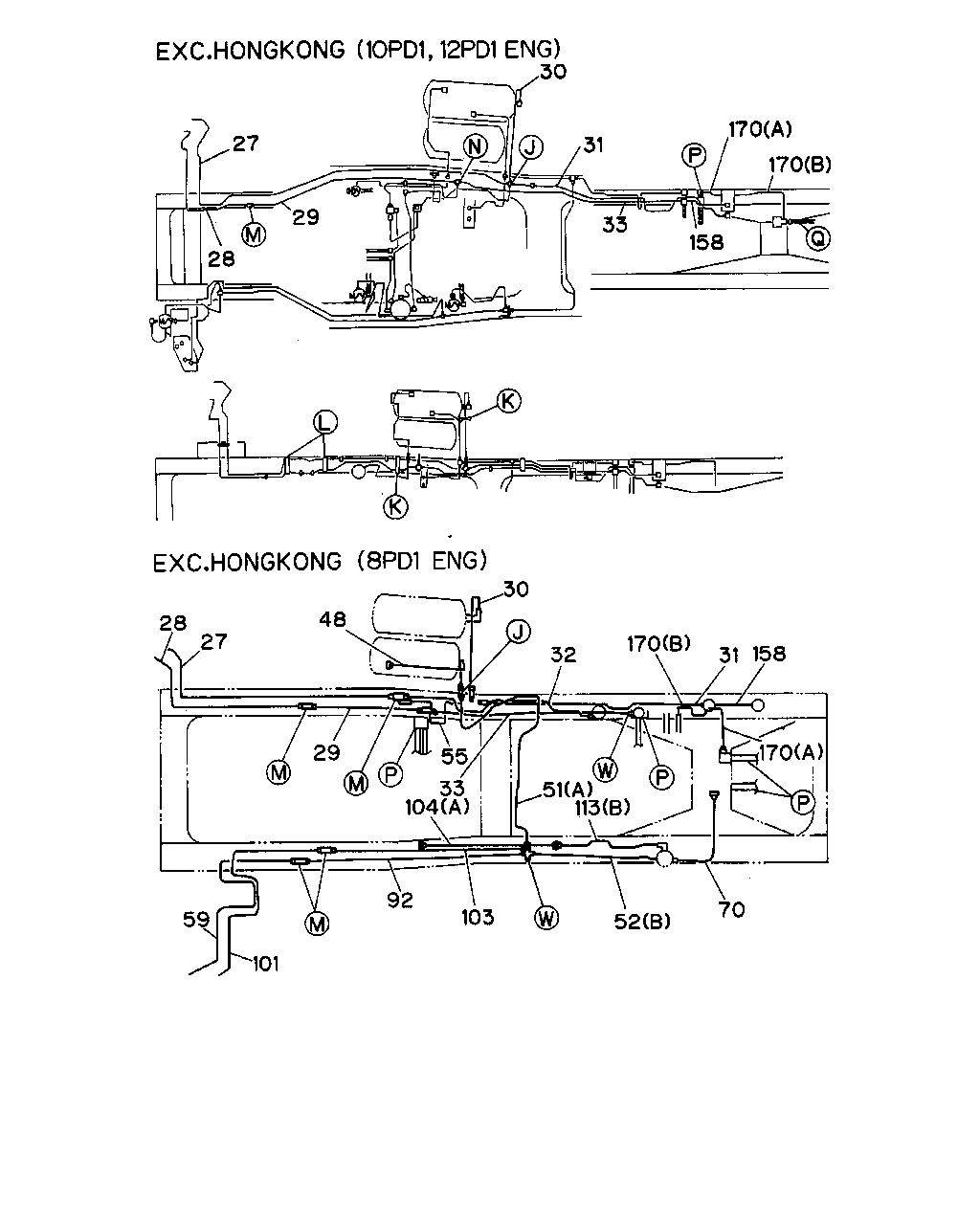

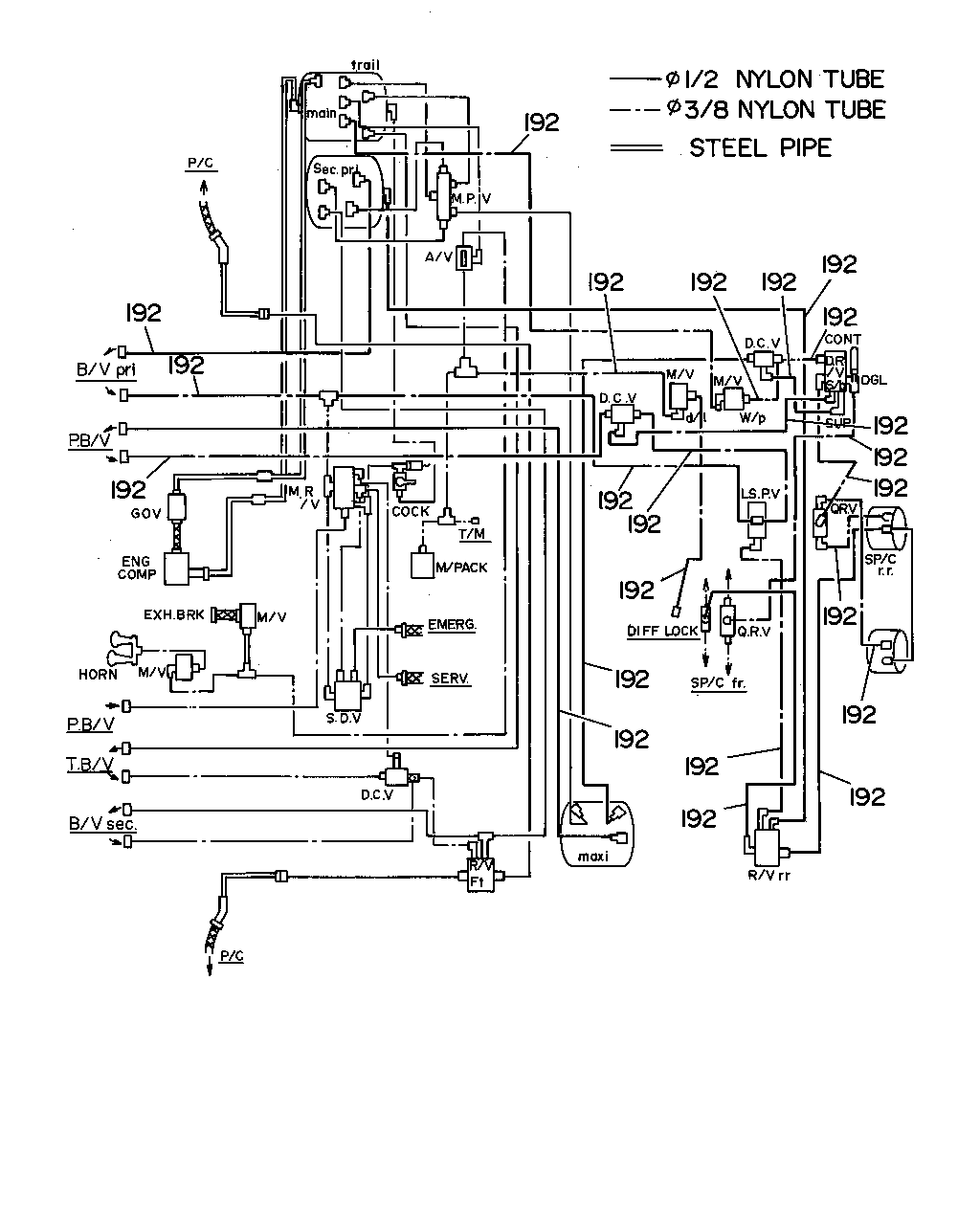

3-77 — BRAKE PIPING; AIR,REAR (#1752) — 1251 parça

37 49 98 192 193 195 194 221 221 90 50 126 46 129 89 23 89 129 46 37 88 91 60 61 126 37 49 50 181 20 182 73 225 82 83 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

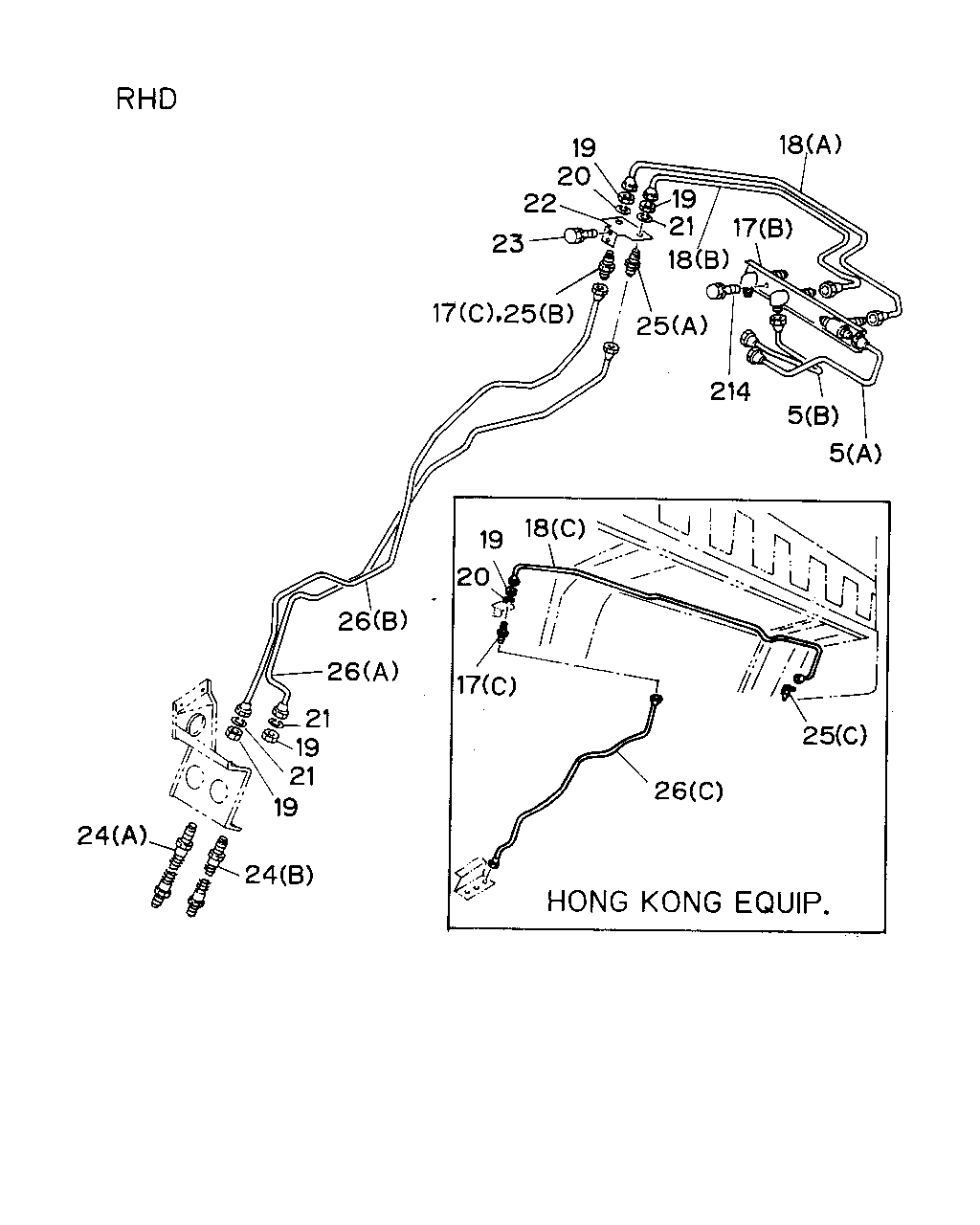

20	WASHER; LK,PIPE UNION HONG KONG EQUIPMENT(PQ1) ID=14.2	9-09150-514-0	01	1	9002-	●
20	WASHER; LK,PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	01	1	9002-	●
20	WASHER; LK,PIPE UNION ID=16.2	9-09150-516-0	01	1	9002-		●
20	WASHER; LK,PIPE UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9306	●
23	BOLT; UNION BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204	●
23	BOLT; UNION BRKT M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204		●
23	BOLT; UNION BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302	●
23	BOLT; UNION BRKT M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302		●
23	BOLT; UNION BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9303-	●
23	BOLT; UNION BRKT M6X16 FLANGE	0-28080-616-0	02	1	9303-		●
23	BOLT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M12X35 W/LK WASHER	9-01901-235-0	02	1	9002-9204	●
23	BOLT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M12X35 W/LK WASHER	0-50041-235-0	02	1	9205-9306	●
37	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (C)	9-09235-215-1	01	1	9002-9306	●
37	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (F)	1-09656-390-1	01	1	9002-	●
37	UNION; AIR PIPE (F)	1-09656-390-1	01	1	9002-		●
37	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (E) M22	9-09233-315-1	01	1	9002-	●
37	UNION; AIR PIPE (E) M22	9-09233-315-1	01	1	9002-		●
37	UNION; AIR PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9002-	●
37	UNION; AIR PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-09650-251-1	01	1	9002-	●
37	UNION; AIR PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	9-09233-015-1	01	1	9002-	●
37	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (G) M20 & M16 2 WAY	1-09654-177-1	01	1	9002-	●	●
46	NIPPLE; AIR PIPE HONG KONG EQUIPMENT(PQ1) (E) M14X1.5 L=48 M14 2WAY	1-09654-176-2	01	1	9002-	●
46	NIPPLE; AIR PIPE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B) M27X1.5 L=42	1-09650-100-1	01	1	9002-9305	●
46	NIPPLE; AIR PIPE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (G) M14X1.5 L=59	1-09650-272-2	01	1	9002-	●
46	NIPPLE; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (E) M14X1.5 L=76.5	9-09228-308-1	01	1	9002-	●
46	NIPPLE; AIR PIPE (E) M14X1.5 L=76.5	9-09228-308-1	01	1	9002-		●
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B) M14X1.5 L=64.5	9-09223-208-1	02	1	9002-9306	●
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B) M16X1.5 L=70	9-09233-210-1	02	1	9002-9306	●
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (C) M20X1.5 L=89	9-09235-112-1	01	1	9002-9306	●
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (A) M20X1.5 L=77.5	9-09233-212-1	02	1	9002-9306	●
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (H) M27X1.5 L=42 M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9002-	●
46	NIPPLE; AIR PIPE (H) M27X1.5 L=42 M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9002-		●
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C) M20X1.5 L=59	1-09650-251-1	01	1	9002-	●
46	NIPPLE; AIR PIPE (C) M20X1.5 L=59	1-09650-251-1	01	1	9002-		●
46	NIPPLE; AIR PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (D) M16X1.5 L=42	9-09233-010-1	01	1	9002-	●
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (D) M16X1.5 L=42	9-09233-010-1	01	1	9002-	●
46	NIPPLE; AIR PIPE (D) M16X1.5 L=42	9-09233-010-1	01	1	9002-		●
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (D) M20X1.5 L=46	9-09233-012-1	01	1	9002-	●	●
46	NIPPLE; AIR PIPE V TYPE ENG<91L> EXC. NYLON TUBE AIR PIPING<Z29> (D) M14X1.5 L=41	9-09223-008-1	01	1	9002-9306	●	●
46	NIPPLE; AIR PIPE V TYPE ENG<91L> EXC. NYLON TUBE AIR PIPING<Z29> (D) M14X1.5 L=41	9-09233-008-1	01	1	9307-9509	●	●
46	NIPPLE; AIR PIPE V TYPE ENG<91L> EXC. NYLON TUBE AIR PIPING<Z29> (D) M14 STRAIGHT	9-09223-008-1	01	1	9510-	●	●
49	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	01	1	9002-9312	●
49	WASHER; LK,PIPE UNION ID=14.2	9-09150-514-0	01	1	9002-9312		●
49	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=22.5	9-09150-522-0	01	1	9307-9312	●
49	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	9307-9312		●
49	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	9002-9306	●	●
50	NUT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	02	1	9002-9304	●
50	NUT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	02	1	9305-9306	●
50	NUT; UNION BRKT M22	9-09111-422-0	01	1	9002-9306	●	●
50	NUT; UNION BRKT EXC. NYLON TUBE AIR PIPING<Z29> M22	9-09111-422-0	01	1	9307-	●
50	NUT; UNION BRKT M22	9-09111-422-0	01	1	9307-		●
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M14	9-99110-414-0	01	1	9002-9306	●
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	02	1	9307-9410	●
60	NUT; NIPPLE,AIR PIPE M20	9-99111-420-0	02	1	9307-9410		●
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M16	9-99110-416-0	01	1	9002-9306	●
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M20	9-99110-420-0	01	1	9002-	●
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	01	1	9002-9306	●
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	01	1	9002-9306	●
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9004-9304	●
60	NUT; NIPPLE,AIR PIPE M12	9-99110-412-0	01	1	9004-9304		●
60	NUT; NIPPLE,AIR PIPE M22	9-09111-422-0	01	1	9002-9404	●	●
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M22	9-09111-422-0	01	1	9405-	●	●
60	NUT; NIPPLE,AIR PIPE M20	9-99111-420-0	01	1	9002-9306	●	●
60	NUT; NIPPLE,AIR PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> M20	9-99111-420-0	01	1	9307-9410	●
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9411-	●	●
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9411-	●	●
60	NUT; NIPPLE,AIR PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> M20	9-99111-420-0	01	1	9411-	●
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-	●	●
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	02	1	9002-9306	●
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	03	1	9002-9306	●
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	02	1	9002-9306	●
61	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9002-9306	●
61	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	01	1	9002-9306		●
61	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9312	●
61	WASHER; LK,NIPPLE ID=12.2	9-09150-512-0	01	1	9002-9312		●
61	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	02	1	9307-9410	●
61	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	02	1	9307-9410		●
61	WASHER; LK,NIPPLE TAIL PIPE SINGLE HORIZONTAL<NC2> ID=20.2	9-09150-520-0	01	1	9307-9410	●
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9307-9410	●
61	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	01	1	9411-	●	●
61	WASHER; LK,NIPPLE TAIL PIPE SINGLE HORIZONTAL<NC2> ID=20.2	9-09150-520-0	01	1	9411-	●
61	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9411-	●
61	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	01	1	9411-		●
61	WASHER; LK,NIPPLE ID=22.5	9-09150-522-0	01	1	9002-9312	●	●
62	HOSE; FLEX,FWD RR EXC. NYLON TUBE AIR PIPING<Z29> L=550	0-07909-550-0	01	1	9002-	●
62	HOSE; FLEX,FWD RR L=550	0-07909-550-0	01	1	9002-		●
73	BOLT; CLIP AUTO CAB TILT<WV2> CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204	●
73	BOLT; CLIP AUTO CAB TILT<WV2> CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9306	●
73	BOLT; CLIP AUTO CAB TILT<WV2> NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) M8X28 W/LK WASHER	9-01900-828-0	01	1	9002-9204	●
73	BOLT; CLIP AUTO CAB TILT<WV2> NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) M8X28 W/LK WASHER	0-50040-828-0	01	1	9205-9306	●
73	BOLT; CLIP CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●
73	BOLT; CLIP CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9205-	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	06	1	9002-9009	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	04	1	9010-9204	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9302	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	04	1	9303-	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	9010-9204	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9303-9404	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9306	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) M8X20 FLANGE	0-28080-820-0	02	1	9307-	●
82	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> L=40	1-09337-012-0	02	1	9307-	●
82	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> L=150	1-09360-677-1	01	1	9307-	●
82	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> L=250 L=250	1-09369-907-0	02	1	9307-	●
83	GROMMET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=28 OD=35 T=25	1-09332-011-1	01	1	9307-9404	●
83	GROMMET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=28 OD=35 T=25	1-09332-011-1	02	1	9405-	●
83	GROMMET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=28 OD=35 T=17	9-09956-256-1	04	1	9307-9404	●
83	GROMMET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=28 OD=35 T=17	9-09956-256-1	02	1	9405-	●
88	WASHER; LK,PIPE UNION NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9002-9306	●
89	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29>	1-47459-002-0	02	1	9307-	●
90	BRACKET; PIPE UNION NYLON TUBE AIR PIPING<Z29>	1-47476-071-0	01	1	9002-9306	●
91	NUT; PIPE UNION NYLON TUBE AIR PIPING<Z29> M20	9-99110-420-0	01	1	9002-9306	●
98	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M14	9-99110-414-0	01	1	9002-	●
98	NUT; PIPE UNION M14	9-99110-414-0	01	1	9002-		●
98	NUT; PIPE UNION EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9002-	●
98	NUT; PIPE UNION M20	9-99111-420-0	01	1	9002-		●
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M14X1.5 L=57	1-09664-066-0	01	1	9002-9306	●
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M18X1.5 L=57	1-09664-067-0	01	1	9002-9306	●
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M14X1.5 & M18X1.5 L=50	1-47470-231-0	01	1	9002-9306	●
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M16X1.5 L=76	9-09235-110-1	01	1	9002-9306	●
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) UNS 2A THD 17/24	1-09660-545-0	01	1	9307-	●
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) UNS 17/32-24 UNS 17/32-24 L=57	1-09664-083-0	03	1	9307-	●
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) PT1/4 L=51	1-47470-312-0	01	1	9307-	●
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (E) M12X1.5 & M20X1.5 L=50	1-47470-313-0	01	1	9307-	●
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) M20X1.5 L=77.5	9-09233-212-1	01	1	9307-	●
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M20X1.5 L=89.0	9-09235-112-1	01	1	9307-	●
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M14 & M14 STRAIGHT	1-09660-219-0	02	1	9002-9306	●
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M14 & M16 STRAIGHT	1-09660-220-0	01	1	9002-9306	●
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M18 & M20 STRAIGHT	1-09660-221-0	02	1	9002-9306	●
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M18 & M22 STRAIGHT	1-09660-222-0	02	1	9002-9306	●
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M16 & M18 STRAIGHT	1-09660-223-0	01	1	9002-9306	●
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M14 & M20 STRAIGHT	1-09660-255-0	01	1	9002-9306	●
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE M12X30	1-09650-373-0	01	1	9307-	●
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> PT1/4XPT1/4 L=87	1-09660-335-0	01	1	9307-	●
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> PT1/4XUNS17/32-24 L=32 17/32" PT1/4	1-09660-573-0	01	1	9307-	●
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> FOR 1/2" TUBE M12X36 M20X36	1-09660-576-0	05	1	9307-	●
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ELBOW PT1/4XUNS17/32-24	1-09660-606-0	01	1	9307-	●
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> PT3/8XUMN11/16-20 L=33	1-09660-608-0	01	1	9307-	●
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> PT1/4XUM17/32-24 L=30	1-09660-609-0	01	1	9307-	●
181	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9002-9304	●
181	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-9306	●
181	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	01	1	9002-9306	●
181	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> UNS 17/32-24 B=17	1-09487-023-0	01	1	9307-	●
181	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M12	9-99110-312-0	01	1	9307-	●
181	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M20	9-99110-420-0	01	1	9307-	●
182	BRACKET; TUBE CLIP NYLON TUBE AIR PIPING<Z29> 25X37	1-34656-004-0	01	1	9002-9306	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9307-9404	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-250-0	01	1	9307-	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9307-	●
192	TUBE; NYLON EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	01	1	9307-9307	●
192	TUBE; NYLON SERVICED BY L=30000 OD=3/8"	1-09368-247-0	02	1	9307-9307	●	●
192	TUBE; NYLON SERVICED BY L=30000 OD=3/8"	1-09368-247-0	02	1	9307-9404	●	●
192	TUBE; NYLON EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	02	1	9307-9404	●
192	TUBE; NYLON SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9405-	●	●
192	TUBE; NYLON EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9405-	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9405-	●
192	TUBE; NYLON SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-9307	●	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-9307	●
192	TUBE; NYLON SERVICED BY L=30000 OD=1/2"	1-09368-251-0	02	1	9307-	●	●
192	TUBE; NYLON EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> SERVICED BY L=30000 OD=1/2"	1-09368-251-0	02	1	9307-	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-251-0	02	1	9307-	●
193	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-9306	●
193	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M18	1-09660-213-0	AR	1	9002-9306	●
193	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	AR	1	9307-	●
193	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09660-558-0	AR	1	9307-	●
193	NUT; SLEEVE EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> OD=1/2"	1-09660-558-0	02	1	9307-9307	●
193	NUT; SLEEVE OD=3/8"	1-09660-557-0	04	1	9307-9307	●	●
193	NUT; SLEEVE OD=3/8"	1-09660-557-0	04	1	9307-	●	●
193	NUT; SLEEVE EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> OD=3/8"	1-09660-557-0	04	1	9307-	●
193	NUT; SLEEVE OD=1/2"	1-09660-558-0	04	1	9307-	●	●
193	NUT; SLEEVE EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> OD=1/2"	1-09660-558-0	04	1	9307-	●
193	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09660-558-0	04	1	9307-	●
194	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09666-042-0	AR	1	9002-9306	●
194	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09666-043-0	AR	1	9002-9306	●
194	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9307-	●
194	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9307-	●
194	SLEEVE; TUBE EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	02	1	9307-9307	●
194	SLEEVE; TUBE ID=9.75 OD=12.17 L=9.91	1-09666-060-0	04	1	9307-9307	●	●
194	SLEEVE; TUBE ID=9.75 OD=12.17 L=9.91	1-09666-060-0	04	1	9307-	●	●
194	SLEEVE; TUBE EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	04	1	9307-	●
194	SLEEVE; TUBE ID=12.93 OD=15.85 L=10.92	1-09666-061-0	04	1	9307-	●	●
194	SLEEVE; TUBE EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	04	1	9307-	●
194	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	04	1	9307-	●
195	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-9306	●
195	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09669-055-0	AR	1	9002-9306	●
195	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	AR	1	9307-	●
195	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	AR	1	9307-	●
195	RING; INSERT EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> OD=1/2"	1-09669-107-0	02	1	9307-9307	●
195	RING; INSERT OD=1/2"	1-09669-107-0	04	1	9307-	●	●
195	RING; INSERT EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> OD=1/2"	1-09669-107-0	04	1	9307-	●
195	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	04	1	9307-	●
195	RING; INSERT OD=3/8"	1-09669-108-0	04	1	9307-9307	●	●
195	RING; INSERT OD=3/8"	1-09669-108-0	04	1	9307-	●	●
195	RING; INSERT EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> OD=3/8"	1-09669-108-0	04	1	9307-	●
221	CONNECTOR; EXH HONG KONG EQUIPMENT(PQ1) (B)	1-47470-262-0	01	1	9002-	●
221	CONNECTOR; EXH EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C)	1-47470-165-1	01	1	9002-	●
221	CONNECTOR; EXH (C)	1-47470-165-1	01	1	9002-		●
221	CONNECTOR; EXH EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-47470-166-0	01	1	9002-	●
221	CONNECTOR; EXH (A)	1-47470-166-0	01	1	9002-		●
221	CONNECTOR; EXH NYLON TUBE AIR PIPING<Z29> (D)	1-47470-336-0	01	1	9307-	●
225	NUT; TUBE CLIP AUTO CAB TILT<WV2> CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-9306	●
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) M8	9-09110-408-0	02	1	9002-9306	●
225	NUT; TUBE CLIP AUTO CAB TILT<WV2> NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) M8	9-09110-408-0	01	1	9002-9306	●
225	NUT; TUBE CLIP CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9002-9306	●
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M6 FLANGE	1-09984-141-0	01	1	9002-9306	●
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9002-9306	●
225	NUT; TUBE CLIP CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9307-	●
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M6 FLANGE	1-09984-141-0	01	1	9307-9409	●
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M6 FLANGE	1-09984-141-0	02	1	9410-	●
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	06	1	9307-9404	●
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9405-	●
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) M8	9-09110-408-0	02	1	9307-	●

46 129 129 46 61 60 61 61 60 60 60 61 204 46 46 81 129 129 81 60 127 37 46 129 126 61 205 99 225 205 224 126 129 129 129 46 97 61 60 140 73 225 64 42 37 46 61 46 60 81 29 46 60 61 149 141 71 64 46 37 61 60 175 163 37 46 60 61 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	PIPE; AIR,UNION TO UNION 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> L=1271 SERVICED BY L=1400	1-47426-389-0	01	1	9307-	●
29	PIPE; AIR,UNION TO UNION 8PD1 STD ENG(38L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=1272 SERVICED BY L=1400	1-47426-389-0	01	1	9307-	●
29	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=1257 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●	●
29	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) L=1257 SERVICED BY L=1400	1-47426-389-0	01	1	9307-	●	●
37	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (C)	9-09235-215-1	01	1	9002-9306	●
37	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (F)	1-09656-390-1	01	1	9002-	●
37	UNION; AIR PIPE (F)	1-09656-390-1	01	1	9002-		●
37	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (E) M22	9-09233-315-1	01	1	9002-	●
37	UNION; AIR PIPE (E) M22	9-09233-315-1	01	1	9002-		●
37	UNION; AIR PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9002-	●
37	UNION; AIR PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-09650-251-1	01	1	9002-	●
37	UNION; AIR PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	9-09233-015-1	01	1	9002-	●
37	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (G) M20 & M16 2 WAY	1-09654-177-1	01	1	9002-	●	●
42	GASKET; CONNECTOR NYLON TUBE AIR PIPING<Z29> ID=11 OD=18	9-09572-510-0	01	1	9002-	●
46	NIPPLE; AIR PIPE HONG KONG EQUIPMENT(PQ1) (E) M14X1.5 L=48 M14 2WAY	1-09654-176-2	01	1	9002-	●
46	NIPPLE; AIR PIPE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B) M27X1.5 L=42	1-09650-100-1	01	1	9002-9305	●
46	NIPPLE; AIR PIPE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (G) M14X1.5 L=59	1-09650-272-2	01	1	9002-	●
46	NIPPLE; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (E) M14X1.5 L=76.5	9-09228-308-1	01	1	9002-	●
46	NIPPLE; AIR PIPE (E) M14X1.5 L=76.5	9-09228-308-1	01	1	9002-		●
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B) M14X1.5 L=64.5	9-09223-208-1	02	1	9002-9306	●
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B) M16X1.5 L=70	9-09233-210-1	02	1	9002-9306	●
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (C) M20X1.5 L=89	9-09235-112-1	01	1	9002-9306	●
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (A) M20X1.5 L=77.5	9-09233-212-1	02	1	9002-9306	●
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (H) M27X1.5 L=42 M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9002-	●
46	NIPPLE; AIR PIPE (H) M27X1.5 L=42 M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9002-		●
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C) M20X1.5 L=59	1-09650-251-1	01	1	9002-	●
46	NIPPLE; AIR PIPE (C) M20X1.5 L=59	1-09650-251-1	01	1	9002-		●
46	NIPPLE; AIR PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (D) M16X1.5 L=42	9-09233-010-1	01	1	9002-	●
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (D) M16X1.5 L=42	9-09233-010-1	01	1	9002-	●
46	NIPPLE; AIR PIPE (D) M16X1.5 L=42	9-09233-010-1	01	1	9002-		●
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (D) M20X1.5 L=46	9-09233-012-1	01	1	9002-	●	●
46	NIPPLE; AIR PIPE V TYPE ENG<91L> EXC. NYLON TUBE AIR PIPING<Z29> (D) M14X1.5 L=41	9-09223-008-1	01	1	9002-9306	●	●
46	NIPPLE; AIR PIPE V TYPE ENG<91L> EXC. NYLON TUBE AIR PIPING<Z29> (D) M14X1.5 L=41	9-09233-008-1	01	1	9307-9509	●	●
46	NIPPLE; AIR PIPE V TYPE ENG<91L> EXC. NYLON TUBE AIR PIPING<Z29> (D) M14 STRAIGHT	9-09223-008-1	01	1	9510-	●	●
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M14	9-99110-414-0	01	1	9002-9306	●
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	02	1	9307-9410	●
60	NUT; NIPPLE,AIR PIPE M20	9-99111-420-0	02	1	9307-9410		●
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M16	9-99110-416-0	01	1	9002-9306	●
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M20	9-99110-420-0	01	1	9002-	●
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	01	1	9002-9306	●
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	01	1	9002-9306	●
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9004-9304	●
60	NUT; NIPPLE,AIR PIPE M12	9-99110-412-0	01	1	9004-9304		●
60	NUT; NIPPLE,AIR PIPE M22	9-09111-422-0	01	1	9002-9404	●	●
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M22	9-09111-422-0	01	1	9405-	●	●
60	NUT; NIPPLE,AIR PIPE M20	9-99111-420-0	01	1	9002-9306	●	●
60	NUT; NIPPLE,AIR PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> M20	9-99111-420-0	01	1	9307-9410	●
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9411-	●	●
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9411-	●	●
60	NUT; NIPPLE,AIR PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> M20	9-99111-420-0	01	1	9411-	●
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-	●	●
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	02	1	9002-9306	●
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	03	1	9002-9306	●
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	02	1	9002-9306	●
61	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9002-9306	●
61	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	01	1	9002-9306		●
61	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9312	●
61	WASHER; LK,NIPPLE ID=12.2	9-09150-512-0	01	1	9002-9312		●
61	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	02	1	9307-9410	●
61	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	02	1	9307-9410		●
61	WASHER; LK,NIPPLE TAIL PIPE SINGLE HORIZONTAL<NC2> ID=20.2	9-09150-520-0	01	1	9307-9410	●
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9307-9410	●
61	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	01	1	9411-	●	●
61	WASHER; LK,NIPPLE TAIL PIPE SINGLE HORIZONTAL<NC2> ID=20.2	9-09150-520-0	01	1	9411-	●
61	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9411-	●
61	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	01	1	9411-		●
61	WASHER; LK,NIPPLE ID=22.5	9-09150-522-0	01	1	9002-9312	●	●
62	HOSE; FLEX,FWD RR EXC. NYLON TUBE AIR PIPING<Z29> L=550	0-07909-550-0	01	1	9002-	●
62	HOSE; FLEX,FWD RR L=550	0-07909-550-0	01	1	9002-		●
64	GASKET; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> ID=17.5	9-09572-515-0	04	1	9002-9306	●
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	04	1	9002-9306		●
64	GASKET; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> ID=17.5	9-09572-515-0	06	1	9307-	●
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	06	1	9307-		●
64	GASKET; FLEX HOSE TAIL PIPE SINGLE HORIZONTAL<NC2> ID=11.0	9-09572-510-0	02	1	9002-	●
64	GASKET; FLEX HOSE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> ID=17.5	9-09572-515-0	02	1	9002-	●
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	02	1	9002-		●
64	GASKET; FLEX HOSE DUAL AIR GAUGE<UG2> ID=11.0	9-09572-510-0	01	1	9002-		●
71	HOSE; FLEX,RWD RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=580	0-07847-580-1	01	1	9002-	●
71	HOSE; FLEX,RWD RR TAIL PIPE SINGLE HORIZONTAL<NC2> (A) L=550	0-07909-550-0	01	1	9002-	●
71	HOSE; FLEX,RWD RR EXC. NYLON TUBE AIR PIPING<Z29> (A) L=550	0-07909-550-0	01	1	9002-	●
71	HOSE; FLEX,RWD RR (A) L=550	0-07909-550-0	01	1	9002-		●
71	HOSE; FLEX,RWD RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (B) L=670	0-07909-670-0	01	1	9002-	●
71	HOSE; FLEX,RWD RR (B) L=670	0-07909-670-0	01	1	9002-		●
71	HOSE; FLEX,RWD RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (B) L=710	0-07909-710-0	01	1	9009-	●
71	HOSE; FLEX,RWD RR (B) L=710	0-07909-710-0	01	1	9009-		●
73	BOLT; CLIP AUTO CAB TILT<WV2> CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204	●
73	BOLT; CLIP AUTO CAB TILT<WV2> CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9306	●
73	BOLT; CLIP AUTO CAB TILT<WV2> NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) M8X28 W/LK WASHER	9-01900-828-0	01	1	9002-9204	●
73	BOLT; CLIP AUTO CAB TILT<WV2> NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) M8X28 W/LK WASHER	0-50040-828-0	01	1	9205-9306	●
73	BOLT; CLIP CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●
73	BOLT; CLIP CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9205-	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	06	1	9002-9009	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	04	1	9010-9204	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9302	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	04	1	9303-	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	9010-9204	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9303-9404	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9306	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) M8X20 FLANGE	0-28080-820-0	02	1	9307-	●
81	CONNECTOR; NYLON TUBE,FRAME NYLON TUBE AIR PIPING<Z29>	1-09660-216-0	01	1	9002-9306	●
81	CONNECTOR; NYLON TUBE,FRAME NYLON TUBE AIR PIPING<Z29>	1-09660-550-0	01	1	9307-	●
97	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) M22	1-09656-099-1	01	1	9002-	●
97	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-09656-494-1	01	1	9002-	●
97	UNION; AIR PIPE	1-09656-494-1	01	1	9002-		●
99	WASHER; LK,BRKT EXC. NYLON TUBE AIR PIPING<Z29> ID=10.2	9-09150-510-0	04	1	9002-	●
99	WASHER; LK,BRKT ID=10.2	9-09150-510-0	03	1	9002-		●
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M14X1.5 L=57	1-09664-066-0	01	1	9002-9306	●
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M18X1.5 L=57	1-09664-067-0	01	1	9002-9306	●
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M14X1.5 & M18X1.5 L=50	1-47470-231-0	01	1	9002-9306	●
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M16X1.5 L=76	9-09235-110-1	01	1	9002-9306	●
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) UNS 2A THD 17/24	1-09660-545-0	01	1	9307-	●
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) UNS 17/32-24 UNS 17/32-24 L=57	1-09664-083-0	03	1	9307-	●
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) PT1/4 L=51	1-47470-312-0	01	1	9307-	●
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (E) M12X1.5 & M20X1.5 L=50	1-47470-313-0	01	1	9307-	●
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) M20X1.5 L=77.5	9-09233-212-1	01	1	9307-	●
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M20X1.5 L=89.0	9-09235-112-1	01	1	9307-	●
127	NUT; UNION NYLON TUBE AIR PIPING<Z29> UNS 17/32-24 B=17	1-09487-023-0	02	1	9307-	●
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M14 & M14 STRAIGHT	1-09660-219-0	02	1	9002-9306	●
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M14 & M16 STRAIGHT	1-09660-220-0	01	1	9002-9306	●
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M18 & M20 STRAIGHT	1-09660-221-0	02	1	9002-9306	●
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M18 & M22 STRAIGHT	1-09660-222-0	02	1	9002-9306	●
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M16 & M18 STRAIGHT	1-09660-223-0	01	1	9002-9306	●
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M14 & M20 STRAIGHT	1-09660-255-0	01	1	9002-9306	●
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE M12X30	1-09650-373-0	01	1	9307-	●
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> PT1/4XPT1/4 L=87	1-09660-335-0	01	1	9307-	●
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> PT1/4XUNS17/32-24 L=32 17/32" PT1/4	1-09660-573-0	01	1	9307-	●
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> FOR 1/2" TUBE M12X36 M20X36	1-09660-576-0	05	1	9307-	●
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ELBOW PT1/4XUNS17/32-24	1-09660-606-0	01	1	9307-	●
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> PT3/8XUMN11/16-20 L=33	1-09660-608-0	01	1	9307-	●
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> PT1/4XUM17/32-24 L=30	1-09660-609-0	01	1	9307-	●
140	BRACKET; AIR PIPE L=50	1-47475-299-2	01	1	9002-9306	●	●
141	NUT; PIPE BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-9306	●
149	BOLT; PIPE BRKT NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●
149	BOLT; PIPE BRKT NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9306	●
163	BRACKET; FLEX HOSE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29>	1-47475-540-1	01	1	9002-	●
163	BRACKET; FLEX HOSE	1-47475-540-1	01	1	9002-		●
175	BOLT; HOSE BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> M8X35 W/LK WASHER	9-01900-835-0	02	1	9002-9204	●
175	BOLT; HOSE BRKT M8X35 W/LK WASHER	9-01900-835-0	02	1	9002-9204		●
175	BOLT; HOSE BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> M8X35 W/LK WASHER	0-50040-835-0	02	1	9205-9302	●
175	BOLT; HOSE BRKT M8X35 W/LK WASHER	0-50040-835-0	02	1	9205-9302		●
175	BOLT; HOSE BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X35 W/LK WASHER	0-50040-835-0	02	1	9303-9306	●
175	BOLT; HOSE BRKT M8X35 W/LK WASHER	0-50040-835-0	02	1	9303-9306		●
175	BOLT; HOSE BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> M8X35 FLANGE	0-28080-835-0	02	1	9303-	●
175	BOLT; HOSE BRKT M8X35 FLANGE	0-28080-835-0	02	1	9303-		●
204	BRACKET; TUBE UNION CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29>	1-47476-072-0	01	1	9002-9306	●
204	BRACKET; TUBE UNION NYLON TUBE AIR PIPING<Z29>	1-47476-893-0	01	1	9307-	●
204	BRACKET; TUBE UNION NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60)	1-47476-345-0	01	1	9002-9306	●
205	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M6X20 W/LK&PL WASHER	1-09980-493-0	05	1	9002-9306	●
205	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-	●
205	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9307-9409	●
205	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9410-	●
224	BOLT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50000-616-0	02	1	9002-9204	●
224	BOLT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50080-616-0	02	1	9205-9301	●
224	BOLT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	02	1	9302-9302	●
224	BOLT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9303-9306	●
224	BOLT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	04	1	9307-9312	●
224	BOLT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M6X20 FLANGE	0-28080-620-0	04	1	9401-	●
225	NUT; TUBE CLIP AUTO CAB TILT<WV2> CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-9306	●
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) M8	9-09110-408-0	02	1	9002-9306	●
225	NUT; TUBE CLIP AUTO CAB TILT<WV2> NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) M8	9-09110-408-0	01	1	9002-9306	●
225	NUT; TUBE CLIP CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9002-9306	●
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M6 FLANGE	1-09984-141-0	01	1	9002-9306	●
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9002-9306	●
225	NUT; TUBE CLIP CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9307-	●
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M6 FLANGE	1-09984-141-0	01	1	9307-9409	●
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M6 FLANGE	1-09984-141-0	02	1	9410-	●
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	06	1	9307-9404	●
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9405-	●
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) M8	9-09110-408-0	02	1	9307-	●

214 17 17 217 217 221 220 192 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A)	1-47470-205-1	01	1	9002-	●
17	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B)	1-47470-278-1	01	1	9002-	●
17	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C)	9-09223-208-1	01	1	9002-	●
17	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (D)	1-47470-183-3	01	1	9002-	●
17	UNION; AIR PIPE (E)	1-47470-178-3	01	1	9002-		●
62	HOSE; FLEX,FWD RR EXC. NYLON TUBE AIR PIPING<Z29> L=550	0-07909-550-0	01	1	9002-	●
62	HOSE; FLEX,FWD RR L=550	0-07909-550-0	01	1	9002-		●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9307-9404	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-250-0	01	1	9307-	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9307-	●
192	TUBE; NYLON EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	01	1	9307-9307	●
192	TUBE; NYLON SERVICED BY L=30000 OD=3/8"	1-09368-247-0	02	1	9307-9307	●	●
192	TUBE; NYLON SERVICED BY L=30000 OD=3/8"	1-09368-247-0	02	1	9307-9404	●	●
192	TUBE; NYLON EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	02	1	9307-9404	●
192	TUBE; NYLON SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9405-	●	●
192	TUBE; NYLON EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9405-	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9405-	●
192	TUBE; NYLON SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-9307	●	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-9307	●
192	TUBE; NYLON SERVICED BY L=30000 OD=1/2"	1-09368-251-0	02	1	9307-	●	●
192	TUBE; NYLON EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> SERVICED BY L=30000 OD=1/2"	1-09368-251-0	02	1	9307-	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-251-0	02	1	9307-	●
214	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204	●
214	BOLT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204	●
214	BOLT; PIPE UNION M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204		●
214	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302	●
214	BOLT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302	●
214	BOLT; PIPE UNION M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302		●
214	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9303-9306	●
214	BOLT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M6X16 FLANGE	0-28080-616-0	02	1	9303-9306	●
214	BOLT; PIPE UNION M6X16 FLANGE	0-28080-616-0	02	1	9303-9306		●
214	BOLT; PIPE UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9307-	●
214	BOLT; PIPE UNION M6X16 FLANGE	0-28080-616-0	02	1	9307-		●
217	PIPE; AIR,PARKING BRK VLV TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=709 SERVICED BY L=660	1-47437-954-0	01	1	9002-9306	●
217	PIPE; AIR,PARKING BRK VLV TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=709 SERVICED BY L=730	1-47426-382-0	01	1	9307-	●
217	PIPE; AIR,PARKING BRK VLV TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=361 SERVICED BY L=400	9-47415-378-0	01	1	9002-9306	●
217	PIPE; AIR,PARKING BRK VLV TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=362 SERVICED BY L=400	1-47426-374-0	01	1	9307-	●
220	HOSE; VINYL,EXH,PARKING BRK VLV HONG KONG EQUIPMENT(PQ1) L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●
220	HOSE; VINYL,EXH,PARKING BRK VLV NYLON TUBE AIR PIPING<Z29> L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9002-		●
221	CONNECTOR; EXH HONG KONG EQUIPMENT(PQ1) (B)	1-47470-262-0	01	1	9002-	●
221	CONNECTOR; EXH EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C)	1-47470-165-1	01	1	9002-	●
221	CONNECTOR; EXH (C)	1-47470-165-1	01	1	9002-		●
221	CONNECTOR; EXH EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-47470-166-0	01	1	9002-	●
221	CONNECTOR; EXH (A)	1-47470-166-0	01	1	9002-		●
221	CONNECTOR; EXH NYLON TUBE AIR PIPING<Z29> (D)	1-47470-336-0	01	1	9307-	●

19 20 22 23 21 19 18 17 25 18 214 5 5 25 17 18 19 20 17 26 25 26 26 21 19 21 19 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	PIPE; AIR,UNION TO PARKING VLV HONG KONG EQUIPMENT(PQ1) (A) L=368 SERVICED BY L=400	1-47434-471-0	01	1	9002-9306	●
5	PIPE; AIR,UNION TO PARKING VLV HONG KONG EQUIPMENT(PQ1) (A) L=369 SERVICED BY L=400	1-47426-404-0	01	1	9307-	●
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=430	1-47445-967-2	01	1	9002-9212	●
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=430	1-47495-965-0	01	1	9301-	●
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=283	1-47446-021-0	01	1	9002-9306	●
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=284	1-47495-968-0	01	1	9307-	●
5	PIPE; AIR,UNION TO PARKING VLV (A) L=431	1-47445-569-1	01	1	9002-9306		●
5	PIPE; AIR,UNION TO PARKING VLV (A) L=431	1-47495-978-0	01	1	9307-		●
5	PIPE; AIR,UNION TO PARKING VLV (B) L=240	1-47445-570-1	01	1	9002-9306		●
5	PIPE; AIR,UNION TO PARKING VLV (B) L=256	1-47495-979-0	01	1	9307-		●
17	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A)	1-47470-205-1	01	1	9002-	●
17	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B)	1-47470-278-1	01	1	9002-	●
17	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C)	9-09223-208-1	01	1	9002-	●
17	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (D)	1-47470-183-3	01	1	9002-	●
17	UNION; AIR PIPE (E)	1-47470-178-3	01	1	9002-		●
18	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=2692 SERVICED BY L=2700	1-47434-415-0	01	1	9002-9306	●
18	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=2692 SERVICED BY L=3000	1-47426-397-0	01	1	9307-	●
18	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=994 SERVICED BY L=1000	1-47437-956-0	01	1	9002-9306	●
18	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=994 SERVICED BY L=1100	1-47426-387-0	01	1	9307-	●
18	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1240 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306	●
18	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1240 SERVICED BY L=1300	1-47426-417-0	01	1	9307-	●
18	PIPE; AIR,UNION TO UNION (B) L=1616 SERVICED BY L=1800	1-47434-413-0	01	1	9002-9306		●
18	PIPE; AIR,UNION TO UNION (B) L=1722 SERVICED BY L=1950	1-47426-393-0	01	1	9307-		●
18	PIPE; AIR,UNION TO UNION (A) L=1616 SERVICED BY L=1700	1-47434-478-0	01	1	9002-9306		●
18	PIPE; AIR,UNION TO UNION (A) L=1617 SERVICED BY L=1700	1-47426-420-0	01	1	9307-		●
19	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	02	1	9002-	●
19	NUT; PIPE UNION M14	9-99111-414-0	02	1	9002-		●
19	NUT; PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	01	1	9002-	●
19	NUT; PIPE UNION M14	9-99111-414-0	01	1	9002-		●
19	NUT; PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	01	1	9002-	●
19	NUT; PIPE UNION M16	9-99111-416-0	01	1	9002-		●
19	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	02	1	9002-	●
19	NUT; PIPE UNION M16	9-99111-416-0	02	1	9002-		●
20	WASHER; LK,PIPE UNION HONG KONG EQUIPMENT(PQ1) ID=14.2	9-09150-514-0	01	1	9002-	●
20	WASHER; LK,PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	01	1	9002-	●
20	WASHER; LK,PIPE UNION ID=16.2	9-09150-516-0	01	1	9002-		●
20	WASHER; LK,PIPE UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9306	●
21	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=10.2	9-09150-510-0	02	1	9002-9306	●
21	WASHER; LK,UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	02	1	9002-	●
21	WASHER; LK,UNION ID=14.2	9-09150-514-0	02	1	9002-		●
21	WASHER; LK,UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	02	1	9002-	●
21	WASHER; LK,UNION ID=16.2	9-09150-516-0	02	1	9002-		●
21	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9002-	●	●
22	BRACKET; PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-47475-259-0	01	1	9002-	●
22	BRACKET; PIPE UNION	1-47475-259-0	01	1	9002-		●
23	BOLT; UNION BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204	●
23	BOLT; UNION BRKT M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204		●
23	BOLT; UNION BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302	●
23	BOLT; UNION BRKT M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302		●
23	BOLT; UNION BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9303-	●
23	BOLT; UNION BRKT M6X16 FLANGE	0-28080-616-0	02	1	9303-		●
23	BOLT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M12X35 W/LK WASHER	9-01901-235-0	02	1	9002-9204	●
23	BOLT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M12X35 W/LK WASHER	0-50041-235-0	02	1	9205-9306	●
24	HOSE; FLEX,PARKING BRK CAB UP 50MM(W60) EXC. NYLON TUBE AIR PIPING<Z29> (B) L=700	0-07404-700-0	01	1	9002-	●	●
24	HOSE; FLEX,PARKING BRK CAB UP 50MM(W60) EXC. NYLON TUBE AIR PIPING<Z29> (A) L=700	0-07424-700-0	01	1	9002-	●	●
24	HOSE; FLEX,PARKING BRK EXC. CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> (B) L=580	0-07404-580-0	01	1	9002-	●	●
24	HOSE; FLEX,PARKING BRK HONG KONG EQUIPMENT(PQ1) (B) L=580	0-07404-580-0	01	1	9002-	●
24	HOSE; FLEX,PARKING BRK EXC. CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> (A) L=590	0-07424-590-0	01	1	9002-	●	●
25	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B) M14	1-09656-391-2	01	1	9002-	●
25	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C) M16	1-09656-579-1	01	1	9002-	●
25	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A) M14	9-09225-008-1	01	1	9002-	●
25	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) M14	9-09223-308-1	01	1	9002-	●
25	UNION; AIR PIPE (A) M14	9-09223-308-1	01	1	9002-		●
25	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M16 L=70 STRAIGHT	9-09233-210-1	01	1	9002-	●
25	UNION; AIR PIPE (B) M16 L=70 STRAIGHT	9-09233-210-1	01	1	9002-		●
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=1447 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9306	●
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=1447 SERVICED BY L=1550	1-47426-390-0	01	1	9307-	●
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1311 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306	●
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1308 SERVICED BY L=1400	1-47426-418-0	01	1	9307-	●
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=1677	1-47481-086-0	01	1	9002-9306	●
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=1677	1-47495-973-0	01	1	9307-	●
26	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1521 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9306	●
26	PIPE; AIR,FLEX HOSE TO UNION (B) L=1521 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9306		●
26	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1522	1-47495-972-0	01	1	9307-	●
26	PIPE; AIR,FLEX HOSE TO UNION (B) L=1522	1-47495-972-0	01	1	9307-		●
26	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1488	1-47447-663-2	01	1	9002-9306	●
26	PIPE; AIR,FLEX HOSE TO UNION (A) L=1488	1-47447-663-2	01	1	9002-9306		●
26	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1489	1-47495-961-0	01	1	9307-	●
26	PIPE; AIR,FLEX HOSE TO UNION (A) L=1489	1-47495-961-0	01	1	9307-		●
62	HOSE; FLEX,FWD RR EXC. NYLON TUBE AIR PIPING<Z29> L=550	0-07909-550-0	01	1	9002-	●
62	HOSE; FLEX,FWD RR L=550	0-07909-550-0	01	1	9002-		●
214	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204	●
214	BOLT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204	●
214	BOLT; PIPE UNION M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204		●
214	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302	●
214	BOLT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302	●
214	BOLT; PIPE UNION M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302		●
214	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9303-9306	●
214	BOLT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M6X16 FLANGE	0-28080-616-0	02	1	9303-9306	●
214	BOLT; PIPE UNION M6X16 FLANGE	0-28080-616-0	02	1	9303-9306		●
214	BOLT; PIPE UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9307-	●
214	BOLT; PIPE UNION M6X16 FLANGE	0-28080-616-0	02	1	9307-		●

4 3 2 13 16 1 6 6 6 7 7 7 101 59 8 8 9 10 11 12 64 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,FLEX HOSE TO BRK VLV DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> L=1481 SERVICED BY L=1600	1-47437-985-0	01	1	9002-9306	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> L=1481 SERVICED BY L=1600	1-49111-448-0	01	1	9307-	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=1511 SERVICED BY L=1600	1-47437-985-0	01	1	9002-9306	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=1512 SERVICED BY L=1600	1-49111-448-0	01	1	9307-	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV DUAL AIR GAUGE<UG2> L=352	1-47448-196-0	01	1	9002-9306		●
1	PIPE; AIR,FLEX HOSE TO BRK VLV DUAL AIR GAUGE<UG2> L=352	1-47495-942-0	01	1	9307-		●
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=372	1-47448-184-0	01	1	9002-9306		●
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=373	1-47495-941-0	01	1	9307-		●
2	UNION; AIR PIPE DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29>	1-47470-175-2	01	1	9002-	●
2	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29>	1-47470-181-2	01	1	9002-	●
2	UNION; AIR PIPE	1-47470-187-2	01	1	9002-		●
3	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16	1-09980-296-0	02	1	9002-	●	●
4	PIPE; AIR,UNION TO BRK VLV EXC. NYLON TUBE AIR PIPING<Z29> L=925 SERVICED BY L=1000	1-47434-485-0	01	1	9002-9306	●
4	PIPE; AIR,UNION TO BRK VLV EXC. NYLON TUBE AIR PIPING<Z29> L=925 SERVICED BY L=1000	1-49111-443-0	01	1	9307-	●
4	PIPE; AIR,UNION TO BRK VLV L=493 SERVICED BY L=550	1-47437-976-0	01	1	9002-9306		●
4	PIPE; AIR,UNION TO BRK VLV L=494 SERVICED BY L=500	1-49111-435-0	01	1	9307-		●
6	WASHER; LK,FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	02	1	9002-	●
6	WASHER; LK,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> ID=20.2	9-09150-520-0	02	1	9002-		●
6	WASHER; LK,FLEX HOSE DUAL AIR GAUGE<UG2> ID=20.2	9-09150-520-0	01	1	9002-		●
7	NUT; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	02	1	9002-	●
7	NUT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M20	9-99111-420-0	02	1	9002-		●
7	NUT; FLEX HOSE DUAL AIR GAUGE<UG2> M20	9-99111-420-0	01	1	9002-		●
8	HOSE; FLEX,AIR,CAB SIDE CAB UP 50MM(W60) EXC. NYLON TUBE AIR PIPING<Z29> L=960	0-07706-960-0	01	1	9002-	●
8	HOSE; FLEX,AIR,CAB SIDE CAB UP 50MM(W60) EXC. DUAL AIR GAUGE<UG2> L=960	0-07706-960-0	01	1	9002-		●
8	HOSE; FLEX,AIR,CAB SIDE EXC. CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> L=850	0-07706-850-0	01	1	9002-9408	●
8	HOSE; FLEX,AIR,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,CAB UP 50MM(W60) L=850	0-07706-850-0	01	1	9002-9408		●
8	HOSE; FLEX,AIR,CAB SIDE EXC. CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> L=850	0-07706-850-0	01	1	9409-9409	●
8	HOSE; FLEX,AIR,CAB SIDE EXC. DUAL AIR GAUGE<UG2> L=850	0-07706-850-0	01	1	9409-9409		●
8	HOSE; FLEX,AIR,CAB SIDE EXC. CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> L=830	0-07706-830-0	01	1	9409-9409	●	●
8	HOSE; FLEX,AIR,CAB SIDE EXC. CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> L=830	0-07706-830-0	01	1	9410-	●
8	HOSE; FLEX,AIR,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,CAB UP 50MM(W60) L=830	0-07706-830-0	01	1	9410-		●
8	HOSE; FLEX,AIR,CAB SIDE DUAL AIR GAUGE<UG2> CAB UP 50MM(W60) L=880	1-09363-369-2	01	1	9002-9306		●
8	HOSE; FLEX,AIR,CAB SIDE DUAL AIR GAUGE<UG2> EXC. CAB UP 50MM(W60) L=770	1-09363-329-4	01	1	9002-		●
9	BRACKET; FLEX HOSE,CAB SIDE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29>	1-47476-274-0	01	1	9002-	●
9	BRACKET; FLEX HOSE,CAB SIDE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-47475-583-1	01	1	9002-	●
9	BRACKET; FLEX HOSE,CAB SIDE	1-47475-582-0	01	1	9002-		●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2>	1-09656-359-1	01	1	9002-		●
11	WASHER; LK,CONNECTOR DUAL AIR GAUGE<UG2> ID=20.2	9-09150-520-0	01	1	9002-		●
12	NUT; CONNECTOR DUAL AIR GAUGE<UG2> M20	9-99111-420-0	01	1	9002-		●
13	PIPE; AIR,BRK VLV TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1083 SERVICED BY L=1100	1-47437-982-0	01	1	9002-9306	●
13	PIPE; AIR,BRK VLV TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1083 SERVICED BY L=1100	1-49111-444-0	01	1	9307-	●
13	PIPE; AIR,BRK VLV TO UNION L=422 SERVICED BY L=550	1-47437-976-0	01	1	9002-9306		●
13	PIPE; AIR,BRK VLV TO UNION L=423 SERVICED BY L=500	1-49111-435-0	01	1	9307-		●
16	PIPE; AIR,UNION TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=1386 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●
16	PIPE; AIR,UNION TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=1387 SERVICED BY L=1450	1-49111-447-0	01	1	9307-	●
16	PIPE; AIR,UNION TO FLEX HOSE L=675 SERVICED BY L=730	1-47437-979-0	01	1	9002-9306		●
16	PIPE; AIR,UNION TO FLEX HOSE L=611 SERVICED BY L=660	1-49111-438-0	01	1	9307-		●
59	PIPE; AIR,UNION TO FLEX HOSE CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> L=1425 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●
59	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) L=1316 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●
59	PIPE; AIR,UNION TO FLEX HOSE 6RA1TC ENG(19L) EXC. NYLON TUBE AIR PIPING<Z29> L=2008 SERVICED BY L=2250	1-47437-987-0	01	1	9012-9306	●
59	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1934 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306	●	●
59	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1935 SERVICED BY L=2000	1-49111-450-0	01	1	9307-	●
59	PIPE; AIR,UNION TO FLEX HOSE L=1935 SERVICED BY L=2000	1-49111-450-0	01	1	9307-		●
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2259 SERVICED BY L=2500	1-47434-488-0	01	1	9002-9004	●	●
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2253 SERVICED BY L=2500	1-47434-488-0	01	1	9005-9011	●	●
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2253 SERVICED BY L=2500	1-47434-488-0	01	1	9012-9306	●	●
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2253 SERVICED BY L=2500	1-49111-452-0	01	1	9307-	●
59	PIPE; AIR,UNION TO FLEX HOSE 12PD1 STD ENG(42L) L=1884 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306		●
59	PIPE; AIR,UNION TO FLEX HOSE 8PD1 STD ENG(38L) L=1936 SERVICED BY L=2000	1-49111-450-0	01	1	9307-	●
62	HOSE; FLEX,FWD RR EXC. NYLON TUBE AIR PIPING<Z29> L=550	0-07909-550-0	01	1	9002-	●
62	HOSE; FLEX,FWD RR L=550	0-07909-550-0	01	1	9002-		●
64	GASKET; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> ID=17.5	9-09572-515-0	04	1	9002-9306	●
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	04	1	9002-9306		●
64	GASKET; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> ID=17.5	9-09572-515-0	06	1	9307-	●
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	06	1	9307-		●
64	GASKET; FLEX HOSE TAIL PIPE SINGLE HORIZONTAL<NC2> ID=11.0	9-09572-510-0	02	1	9002-	●
64	GASKET; FLEX HOSE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> ID=17.5	9-09572-515-0	02	1	9002-	●
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	02	1	9002-		●
64	GASKET; FLEX HOSE DUAL AIR GAUGE<UG2> ID=11.0	9-09572-510-0	01	1	9002-		●
101	PIPE; AIR,FLEX HOSE TO UNION CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> L=1447 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●
101	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) L=1325 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●
101	PIPE; AIR,FLEX HOSE TO UNION 6RA1TC ENG(19L) EXC. NYLON TUBE AIR PIPING<Z29> L=1912 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306	●
101	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1787 SERVICED BY L=1800	1-47434-487-0	01	1	9002-9306	●	●
101	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1785 SERVICED BY L=1800	1-49111-449-0	01	1	9307-	●
101	PIPE; AIR,FLEX HOSE TO UNION L=1785 SERVICED BY L=1800	1-49111-449-0	01	1	9307-		●
101	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=1994 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306	●	●
101	PIPE; AIR,FLEX HOSE TO UNION 6RB1TC ENG(30L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=1994 SERVICED BY L=2000	1-49111-450-0	01	1	9307-	●
101	PIPE; AIR,FLEX HOSE TO UNION 12PD1 STD ENG(42L) L=1773 SERVICED BY L=1800	1-47434-487-0	01	1	9002-9306		●
101	PIPE; AIR,FLEX HOSE TO UNION 8PD1 STD ENG(38L) L=1791 SERVICED BY L=1800	1-49111-449-0	01	1	9307-	●

18 19 20 21 22 23 19 25 18 25 26 26 21 19 21 19 27 221 5 5 17 214 222 24 24 28 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	PIPE; AIR,UNION TO PARKING VLV HONG KONG EQUIPMENT(PQ1) (A) L=368 SERVICED BY L=400	1-47434-471-0	01	1	9002-9306	●
5	PIPE; AIR,UNION TO PARKING VLV HONG KONG EQUIPMENT(PQ1) (A) L=369 SERVICED BY L=400	1-47426-404-0	01	1	9307-	●
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=430	1-47445-967-2	01	1	9002-9212	●
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=430	1-47495-965-0	01	1	9301-	●
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=283	1-47446-021-0	01	1	9002-9306	●
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=284	1-47495-968-0	01	1	9307-	●
5	PIPE; AIR,UNION TO PARKING VLV (A) L=431	1-47445-569-1	01	1	9002-9306		●
5	PIPE; AIR,UNION TO PARKING VLV (A) L=431	1-47495-978-0	01	1	9307-		●
5	PIPE; AIR,UNION TO PARKING VLV (B) L=240	1-47445-570-1	01	1	9002-9306		●
5	PIPE; AIR,UNION TO PARKING VLV (B) L=256	1-47495-979-0	01	1	9307-		●
17	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A)	1-47470-205-1	01	1	9002-	●
17	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B)	1-47470-278-1	01	1	9002-	●
17	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C)	9-09223-208-1	01	1	9002-	●
17	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (D)	1-47470-183-3	01	1	9002-	●
17	UNION; AIR PIPE (E)	1-47470-178-3	01	1	9002-		●
18	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=2692 SERVICED BY L=2700	1-47434-415-0	01	1	9002-9306	●
18	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=2692 SERVICED BY L=3000	1-47426-397-0	01	1	9307-	●
18	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=994 SERVICED BY L=1000	1-47437-956-0	01	1	9002-9306	●
18	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=994 SERVICED BY L=1100	1-47426-387-0	01	1	9307-	●
18	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1240 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306	●
18	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1240 SERVICED BY L=1300	1-47426-417-0	01	1	9307-	●
18	PIPE; AIR,UNION TO UNION (B) L=1616 SERVICED BY L=1800	1-47434-413-0	01	1	9002-9306		●
18	PIPE; AIR,UNION TO UNION (B) L=1722 SERVICED BY L=1950	1-47426-393-0	01	1	9307-		●
18	PIPE; AIR,UNION TO UNION (A) L=1616 SERVICED BY L=1700	1-47434-478-0	01	1	9002-9306		●
18	PIPE; AIR,UNION TO UNION (A) L=1617 SERVICED BY L=1700	1-47426-420-0	01	1	9307-		●
19	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	02	1	9002-	●
19	NUT; PIPE UNION M14	9-99111-414-0	02	1	9002-		●
19	NUT; PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	01	1	9002-	●
19	NUT; PIPE UNION M14	9-99111-414-0	01	1	9002-		●
19	NUT; PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	01	1	9002-	●
19	NUT; PIPE UNION M16	9-99111-416-0	01	1	9002-		●
19	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	02	1	9002-	●
19	NUT; PIPE UNION M16	9-99111-416-0	02	1	9002-		●
20	WASHER; LK,PIPE UNION HONG KONG EQUIPMENT(PQ1) ID=14.2	9-09150-514-0	01	1	9002-	●
20	WASHER; LK,PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	01	1	9002-	●
20	WASHER; LK,PIPE UNION ID=16.2	9-09150-516-0	01	1	9002-		●
20	WASHER; LK,PIPE UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9306	●
21	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=10.2	9-09150-510-0	02	1	9002-9306	●
21	WASHER; LK,UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	02	1	9002-	●
21	WASHER; LK,UNION ID=14.2	9-09150-514-0	02	1	9002-		●
21	WASHER; LK,UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	02	1	9002-	●
21	WASHER; LK,UNION ID=16.2	9-09150-516-0	02	1	9002-		●
21	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9002-	●	●
22	BRACKET; PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-47475-259-0	01	1	9002-	●
22	BRACKET; PIPE UNION	1-47475-259-0	01	1	9002-		●
23	BOLT; UNION BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204	●
23	BOLT; UNION BRKT M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204		●
23	BOLT; UNION BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302	●
23	BOLT; UNION BRKT M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302		●
23	BOLT; UNION BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9303-	●
23	BOLT; UNION BRKT M6X16 FLANGE	0-28080-616-0	02	1	9303-		●
23	BOLT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M12X35 W/LK WASHER	9-01901-235-0	02	1	9002-9204	●
23	BOLT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M12X35 W/LK WASHER	0-50041-235-0	02	1	9205-9306	●
24	HOSE; FLEX,PARKING BRK CAB UP 50MM(W60) EXC. NYLON TUBE AIR PIPING<Z29> (B) L=700	0-07404-700-0	01	1	9002-	●	●
24	HOSE; FLEX,PARKING BRK CAB UP 50MM(W60) EXC. NYLON TUBE AIR PIPING<Z29> (A) L=700	0-07424-700-0	01	1	9002-	●	●
24	HOSE; FLEX,PARKING BRK EXC. CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> (B) L=580	0-07404-580-0	01	1	9002-	●	●
24	HOSE; FLEX,PARKING BRK HONG KONG EQUIPMENT(PQ1) (B) L=580	0-07404-580-0	01	1	9002-	●
24	HOSE; FLEX,PARKING BRK EXC. CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> (A) L=590	0-07424-590-0	01	1	9002-	●	●
25	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B) M14	1-09656-391-2	01	1	9002-	●
25	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C) M16	1-09656-579-1	01	1	9002-	●
25	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A) M14	9-09225-008-1	01	1	9002-	●
25	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) M14	9-09223-308-1	01	1	9002-	●
25	UNION; AIR PIPE (A) M14	9-09223-308-1	01	1	9002-		●
25	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M16 L=70 STRAIGHT	9-09233-210-1	01	1	9002-	●
25	UNION; AIR PIPE (B) M16 L=70 STRAIGHT	9-09233-210-1	01	1	9002-		●
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=1447 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9306	●
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=1447 SERVICED BY L=1550	1-47426-390-0	01	1	9307-	●
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1311 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306	●
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1308 SERVICED BY L=1400	1-47426-418-0	01	1	9307-	●
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=1677	1-47481-086-0	01	1	9002-9306	●
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=1677	1-47495-973-0	01	1	9307-	●
26	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1521 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9306	●
26	PIPE; AIR,FLEX HOSE TO UNION (B) L=1521 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9306		●
26	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1522	1-47495-972-0	01	1	9307-	●
26	PIPE; AIR,FLEX HOSE TO UNION (B) L=1522	1-47495-972-0	01	1	9307-		●
26	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1488	1-47447-663-2	01	1	9002-9306	●
26	PIPE; AIR,FLEX HOSE TO UNION (A) L=1488	1-47447-663-2	01	1	9002-9306		●
26	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1489	1-47495-961-0	01	1	9307-	●
26	PIPE; AIR,FLEX HOSE TO UNION (A) L=1489	1-47495-961-0	01	1	9307-		●
27	PIPE; AIR,UNION TO FLEX HOSE 8PD1 STD ENG(38L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=3151 SERVICED BY L=3300	1-47426-426-0	01	1	9307-	●
27	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=3181 SERVICED BY L=3300	1-47426-426-0	01	1	9307-	●	●
27	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=3181 SERVICED BY L=3300	1-47437-975-0	01	1	9002-9306	●	●
27	PIPE; AIR,UNION TO FLEX HOSE 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> L=3147 SERVICED BY L=3300	1-47426-426-0	01	1	9307-	●
27	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=3188 SERVICED BY L=3300	1-47437-975-0	01	1	9002-9306	●	●
27	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=3188 SERVICED BY L=3300	1-47426-426-0	01	1	9307-	●
28	PIPE; AIR,FLEX HOSE TO UNION CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> L=1289 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1739 SERVICED BY L=1800	1-47426-392-0	01	1	9307-9410	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> L=1739 SERVICED BY L=1800	1-47426-392-0	01	1	9411-	●
28	PIPE; AIR,FLEX HOSE TO UNION L=1739 SERVICED BY L=1800	1-47426-392-0	01	1	9411-		●
28	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) L=1291 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> L=1758 SERVICED BY L=1800	1-47426-392-0	01	1	9411-	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=1679 SERVICED BY L=1700	1-47434-412-0	01	1	9002-9002	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=1697 SERVICED BY L=1700	1-47434-412-0	01	1	9003-9009	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=1704 SERVICED BY L=1800	1-47434-413-0	01	1	9010-9306	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 8PD1 STD ENG(38L) L=1664 SERVICED BY L=1800	1-47426-392-0	01	1	9307-	●
28	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2953 SERVICED BY L=3300	1-47434-416-0	01	1	9002-9002	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2971 SERVICED BY L=3300	1-47434-416-0	01	1	9003-9009	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2978 SERVICED BY L=3300	1-47434-416-0	01	1	9010-9306	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=3017 SERVICED BY L=3300	1-47426-398-0	01	1	9307-	●
62	HOSE; FLEX,FWD RR EXC. NYLON TUBE AIR PIPING<Z29> L=550	0-07909-550-0	01	1	9002-	●
62	HOSE; FLEX,FWD RR L=550	0-07909-550-0	01	1	9002-		●
214	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204	●
214	BOLT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204	●
214	BOLT; PIPE UNION M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204		●
214	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302	●
214	BOLT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302	●
214	BOLT; PIPE UNION M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302		●
214	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9303-9306	●
214	BOLT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M6X16 FLANGE	0-28080-616-0	02	1	9303-9306	●
214	BOLT; PIPE UNION M6X16 FLANGE	0-28080-616-0	02	1	9303-9306		●
214	BOLT; PIPE UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9307-	●
214	BOLT; PIPE UNION M6X16 FLANGE	0-28080-616-0	02	1	9307-		●
220	HOSE; VINYL,EXH,PARKING BRK VLV HONG KONG EQUIPMENT(PQ1) L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●
220	HOSE; VINYL,EXH,PARKING BRK VLV NYLON TUBE AIR PIPING<Z29> L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9002-		●
221	CONNECTOR; EXH HONG KONG EQUIPMENT(PQ1) (B)	1-47470-262-0	01	1	9002-	●
221	CONNECTOR; EXH EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C)	1-47470-165-1	01	1	9002-	●
221	CONNECTOR; EXH (C)	1-47470-165-1	01	1	9002-		●
221	CONNECTOR; EXH EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-47470-166-0	01	1	9002-	●
221	CONNECTOR; EXH (A)	1-47470-166-0	01	1	9002-		●
221	CONNECTOR; EXH NYLON TUBE AIR PIPING<Z29> (D)	1-47470-336-0	01	1	9307-	●
222	BOLT; CONNECTOR HONG KONG EQUIPMENT(PQ1) M6X20	9-01910-620-0	01	1	9002-9005	●
222	BOLT; CONNECTOR HONG KONG EQUIPMENT(PQ1) M6X20 W/LK WASHER	0-50040-620-0	01	1	9006-9302	●
222	BOLT; CONNECTOR HONG KONG EQUIPMENT(PQ1) M6X20 FLANGE	0-28080-620-0	01	1	9303-	●
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204	●
222	BOLT; CONNECTOR M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204		●
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302	●
222	BOLT; CONNECTOR M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302		●
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1) M6X16 FLANGE	0-28080-616-0	02	1	9303-9312	●
222	BOLT; CONNECTOR M6X16 FLANGE	0-28080-616-0	02	1	9303-9312		●
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1) M6X20 FLANGE	0-28080-620-0	02	1	9401-	●
222	BOLT; CONNECTOR M6X20 FLANGE	0-28080-620-0	02	1	9401-		●

146 192 192 28 192 192 192 192 192 192 192 192 192 59 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	PIPE; AIR,FLEX HOSE TO UNION CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> L=1289 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1739 SERVICED BY L=1800	1-47426-392-0	01	1	9307-9410	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> L=1739 SERVICED BY L=1800	1-47426-392-0	01	1	9411-	●
28	PIPE; AIR,FLEX HOSE TO UNION L=1739 SERVICED BY L=1800	1-47426-392-0	01	1	9411-		●
28	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) L=1291 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> L=1758 SERVICED BY L=1800	1-47426-392-0	01	1	9411-	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=1679 SERVICED BY L=1700	1-47434-412-0	01	1	9002-9002	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=1697 SERVICED BY L=1700	1-47434-412-0	01	1	9003-9009	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=1704 SERVICED BY L=1800	1-47434-413-0	01	1	9010-9306	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 8PD1 STD ENG(38L) L=1664 SERVICED BY L=1800	1-47426-392-0	01	1	9307-	●
28	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2953 SERVICED BY L=3300	1-47434-416-0	01	1	9002-9002	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2971 SERVICED BY L=3300	1-47434-416-0	01	1	9003-9009	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2978 SERVICED BY L=3300	1-47434-416-0	01	1	9010-9306	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=3017 SERVICED BY L=3300	1-47426-398-0	01	1	9307-	●
59	PIPE; AIR,UNION TO FLEX HOSE CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> L=1425 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●
59	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) L=1316 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●
59	PIPE; AIR,UNION TO FLEX HOSE 6RA1TC ENG(19L) EXC. NYLON TUBE AIR PIPING<Z29> L=2008 SERVICED BY L=2250	1-47437-987-0	01	1	9012-9306	●
59	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1934 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306	●	●
59	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1935 SERVICED BY L=2000	1-49111-450-0	01	1	9307-	●
59	PIPE; AIR,UNION TO FLEX HOSE L=1935 SERVICED BY L=2000	1-49111-450-0	01	1	9307-		●
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2259 SERVICED BY L=2500	1-47434-488-0	01	1	9002-9004	●	●
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2253 SERVICED BY L=2500	1-47434-488-0	01	1	9005-9011	●	●
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2253 SERVICED BY L=2500	1-47434-488-0	01	1	9012-9306	●	●
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2253 SERVICED BY L=2500	1-49111-452-0	01	1	9307-	●
59	PIPE; AIR,UNION TO FLEX HOSE 12PD1 STD ENG(42L) L=1884 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306		●
59	PIPE; AIR,UNION TO FLEX HOSE 8PD1 STD ENG(38L) L=1936 SERVICED BY L=2000	1-49111-450-0	01	1	9307-	●
62	HOSE; FLEX,FWD RR EXC. NYLON TUBE AIR PIPING<Z29> L=550	0-07909-550-0	01	1	9002-	●
62	HOSE; FLEX,FWD RR L=550	0-07909-550-0	01	1	9002-		●
101	PIPE; AIR,FLEX HOSE TO UNION CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> L=1447 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●
101	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) L=1325 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●
101	PIPE; AIR,FLEX HOSE TO UNION 6RA1TC ENG(19L) EXC. NYLON TUBE AIR PIPING<Z29> L=1912 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306	●
101	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1787 SERVICED BY L=1800	1-47434-487-0	01	1	9002-9306	●	●
101	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1785 SERVICED BY L=1800	1-49111-449-0	01	1	9307-	●
101	PIPE; AIR,FLEX HOSE TO UNION L=1785 SERVICED BY L=1800	1-49111-449-0	01	1	9307-		●
101	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=1994 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306	●	●
101	PIPE; AIR,FLEX HOSE TO UNION 6RB1TC ENG(30L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=1994 SERVICED BY L=2000	1-49111-450-0	01	1	9307-	●
101	PIPE; AIR,FLEX HOSE TO UNION 12PD1 STD ENG(42L) L=1773 SERVICED BY L=1800	1-47434-487-0	01	1	9002-9306		●
101	PIPE; AIR,FLEX HOSE TO UNION 8PD1 STD ENG(38L) L=1791 SERVICED BY L=1800	1-49111-449-0	01	1	9307-	●
146	PIPE; AIR,UNION TO FLEX HOSE CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> L=1246 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306	●
146	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) L=1290 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9307-9404	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-250-0	01	1	9307-	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9307-	●
192	TUBE; NYLON EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	01	1	9307-9307	●
192	TUBE; NYLON SERVICED BY L=30000 OD=3/8"	1-09368-247-0	02	1	9307-9307	●	●
192	TUBE; NYLON SERVICED BY L=30000 OD=3/8"	1-09368-247-0	02	1	9307-9404	●	●
192	TUBE; NYLON EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	02	1	9307-9404	●
192	TUBE; NYLON SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9405-	●	●
192	TUBE; NYLON EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9405-	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9405-	●
192	TUBE; NYLON SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-9307	●	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-9307	●
192	TUBE; NYLON SERVICED BY L=30000 OD=1/2"	1-09368-251-0	02	1	9307-	●	●
192	TUBE; NYLON EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> SERVICED BY L=30000 OD=1/2"	1-09368-251-0	02	1	9307-	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-251-0	02	1	9307-	●

13 14 15 16 6 6 7 7 8 8 9 1 3 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,FLEX HOSE TO BRK VLV DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> L=1481 SERVICED BY L=1600	1-47437-985-0	01	1	9002-9306	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> L=1481 SERVICED BY L=1600	1-49111-448-0	01	1	9307-	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=1511 SERVICED BY L=1600	1-47437-985-0	01	1	9002-9306	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=1512 SERVICED BY L=1600	1-49111-448-0	01	1	9307-	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV DUAL AIR GAUGE<UG2> L=352	1-47448-196-0	01	1	9002-9306		●
1	PIPE; AIR,FLEX HOSE TO BRK VLV DUAL AIR GAUGE<UG2> L=352	1-47495-942-0	01	1	9307-		●
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=372	1-47448-184-0	01	1	9002-9306		●
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=373	1-47495-941-0	01	1	9307-		●
2	UNION; AIR PIPE DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29>	1-47470-175-2	01	1	9002-	●
2	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29>	1-47470-181-2	01	1	9002-	●
2	UNION; AIR PIPE	1-47470-187-2	01	1	9002-		●
3	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16	1-09980-296-0	02	1	9002-	●	●
4	PIPE; AIR,UNION TO BRK VLV EXC. NYLON TUBE AIR PIPING<Z29> L=925 SERVICED BY L=1000	1-47434-485-0	01	1	9002-9306	●
4	PIPE; AIR,UNION TO BRK VLV EXC. NYLON TUBE AIR PIPING<Z29> L=925 SERVICED BY L=1000	1-49111-443-0	01	1	9307-	●
4	PIPE; AIR,UNION TO BRK VLV L=493 SERVICED BY L=550	1-47437-976-0	01	1	9002-9306		●
4	PIPE; AIR,UNION TO BRK VLV L=494 SERVICED BY L=500	1-49111-435-0	01	1	9307-		●
6	WASHER; LK,FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	02	1	9002-	●
6	WASHER; LK,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> ID=20.2	9-09150-520-0	02	1	9002-		●
6	WASHER; LK,FLEX HOSE DUAL AIR GAUGE<UG2> ID=20.2	9-09150-520-0	01	1	9002-		●
7	NUT; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	02	1	9002-	●
7	NUT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M20	9-99111-420-0	02	1	9002-		●
7	NUT; FLEX HOSE DUAL AIR GAUGE<UG2> M20	9-99111-420-0	01	1	9002-		●
8	HOSE; FLEX,AIR,CAB SIDE CAB UP 50MM(W60) EXC. NYLON TUBE AIR PIPING<Z29> L=960	0-07706-960-0	01	1	9002-	●
8	HOSE; FLEX,AIR,CAB SIDE CAB UP 50MM(W60) EXC. DUAL AIR GAUGE<UG2> L=960	0-07706-960-0	01	1	9002-		●
8	HOSE; FLEX,AIR,CAB SIDE EXC. CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> L=850	0-07706-850-0	01	1	9002-9408	●
8	HOSE; FLEX,AIR,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,CAB UP 50MM(W60) L=850	0-07706-850-0	01	1	9002-9408		●
8	HOSE; FLEX,AIR,CAB SIDE EXC. CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> L=850	0-07706-850-0	01	1	9409-9409	●
8	HOSE; FLEX,AIR,CAB SIDE EXC. DUAL AIR GAUGE<UG2> L=850	0-07706-850-0	01	1	9409-9409		●
8	HOSE; FLEX,AIR,CAB SIDE EXC. CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> L=830	0-07706-830-0	01	1	9409-9409	●	●
8	HOSE; FLEX,AIR,CAB SIDE EXC. CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> L=830	0-07706-830-0	01	1	9410-	●
8	HOSE; FLEX,AIR,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,CAB UP 50MM(W60) L=830	0-07706-830-0	01	1	9410-		●
8	HOSE; FLEX,AIR,CAB SIDE DUAL AIR GAUGE<UG2> CAB UP 50MM(W60) L=880	1-09363-369-2	01	1	9002-9306		●
8	HOSE; FLEX,AIR,CAB SIDE DUAL AIR GAUGE<UG2> EXC. CAB UP 50MM(W60) L=770	1-09363-329-4	01	1	9002-		●
9	BRACKET; FLEX HOSE,CAB SIDE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29>	1-47476-274-0	01	1	9002-	●
9	BRACKET; FLEX HOSE,CAB SIDE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-47475-583-1	01	1	9002-	●
9	BRACKET; FLEX HOSE,CAB SIDE	1-47475-582-0	01	1	9002-		●
13	PIPE; AIR,BRK VLV TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1083 SERVICED BY L=1100	1-47437-982-0	01	1	9002-9306	●
13	PIPE; AIR,BRK VLV TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1083 SERVICED BY L=1100	1-49111-444-0	01	1	9307-	●
13	PIPE; AIR,BRK VLV TO UNION L=422 SERVICED BY L=550	1-47437-976-0	01	1	9002-9306		●
13	PIPE; AIR,BRK VLV TO UNION L=423 SERVICED BY L=500	1-49111-435-0	01	1	9307-		●
14	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29>	1-47470-184-2	01	1	9002-	●
15	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	02	1	9002-9302	●
15	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9303-	●
16	PIPE; AIR,UNION TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=1386 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●
16	PIPE; AIR,UNION TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=1387 SERVICED BY L=1450	1-49111-447-0	01	1	9307-	●
16	PIPE; AIR,UNION TO FLEX HOSE L=675 SERVICED BY L=730	1-47437-979-0	01	1	9002-9306		●
16	PIPE; AIR,UNION TO FLEX HOSE L=611 SERVICED BY L=660	1-49111-438-0	01	1	9307-		●
62	HOSE; FLEX,FWD RR EXC. NYLON TUBE AIR PIPING<Z29> L=550	0-07909-550-0	01	1	9002-	●
62	HOSE; FLEX,FWD RR L=550	0-07909-550-0	01	1	9002-		●

220 73 225 225 222 221 73 73 225 73 225 73 225 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	HOSE; FLEX,FWD RR EXC. NYLON TUBE AIR PIPING<Z29> L=550	0-07909-550-0	01	1	9002-	●
62	HOSE; FLEX,FWD RR L=550	0-07909-550-0	01	1	9002-		●
73	BOLT; CLIP AUTO CAB TILT<WV2> CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204	●
73	BOLT; CLIP AUTO CAB TILT<WV2> CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9306	●
73	BOLT; CLIP AUTO CAB TILT<WV2> NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) M8X28 W/LK WASHER	9-01900-828-0	01	1	9002-9204	●
73	BOLT; CLIP AUTO CAB TILT<WV2> NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) M8X28 W/LK WASHER	0-50040-828-0	01	1	9205-9306	●
73	BOLT; CLIP CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●
73	BOLT; CLIP CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9205-	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	06	1	9002-9009	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	04	1	9010-9204	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9302	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	04	1	9303-	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	9010-9204	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9303-9404	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9306	●
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) M8X20 FLANGE	0-28080-820-0	02	1	9307-	●
75	PLATE; BRKT NYLON TUBE AIR PIPING<Z29> L=230	1-47476-076-0	01	1	9002-9206	●
75	PLATE; BRKT NYLON TUBE AIR PIPING<Z29> L=115	1-47476-077-0	01	1	9002-9206	●
220	HOSE; VINYL,EXH,PARKING BRK VLV HONG KONG EQUIPMENT(PQ1) L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●
220	HOSE; VINYL,EXH,PARKING BRK VLV NYLON TUBE AIR PIPING<Z29> L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9002-		●
221	CONNECTOR; EXH HONG KONG EQUIPMENT(PQ1) (B)	1-47470-262-0	01	1	9002-	●
221	CONNECTOR; EXH EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C)	1-47470-165-1	01	1	9002-	●
221	CONNECTOR; EXH (C)	1-47470-165-1	01	1	9002-		●
221	CONNECTOR; EXH EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-47470-166-0	01	1	9002-	●
221	CONNECTOR; EXH (A)	1-47470-166-0	01	1	9002-		●
221	CONNECTOR; EXH NYLON TUBE AIR PIPING<Z29> (D)	1-47470-336-0	01	1	9307-	●
222	BOLT; CONNECTOR HONG KONG EQUIPMENT(PQ1) M6X20	9-01910-620-0	01	1	9002-9005	●
222	BOLT; CONNECTOR HONG KONG EQUIPMENT(PQ1) M6X20 W/LK WASHER	0-50040-620-0	01	1	9006-9302	●
222	BOLT; CONNECTOR HONG KONG EQUIPMENT(PQ1) M6X20 FLANGE	0-28080-620-0	01	1	9303-	●
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204	●
222	BOLT; CONNECTOR M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204		●
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302	●
222	BOLT; CONNECTOR M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302		●
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1) M6X16 FLANGE	0-28080-616-0	02	1	9303-9312	●
222	BOLT; CONNECTOR M6X16 FLANGE	0-28080-616-0	02	1	9303-9312		●
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1) M6X20 FLANGE	0-28080-620-0	02	1	9401-	●
222	BOLT; CONNECTOR M6X20 FLANGE	0-28080-620-0	02	1	9401-		●
225	NUT; TUBE CLIP AUTO CAB TILT<WV2> CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-9306	●
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) M8	9-09110-408-0	02	1	9002-9306	●
225	NUT; TUBE CLIP AUTO CAB TILT<WV2> NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) M8	9-09110-408-0	01	1	9002-9306	●
225	NUT; TUBE CLIP CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9002-9306	●
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M6 FLANGE	1-09984-141-0	01	1	9002-9306	●
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9002-9306	●
225	NUT; TUBE CLIP CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9307-	●
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M6 FLANGE	1-09984-141-0	01	1	9307-9409	●
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M6 FLANGE	1-09984-141-0	02	1	9410-	●
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	06	1	9307-9404	●
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9405-	●
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) M8	9-09110-408-0	02	1	9307-	●

27 29 28 30 31 33 158 170 170 170 31 158 32 30 48 27 28 29 55 33 51 113 170 70 52 103 92 101 59 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	PIPE; AIR,UNION TO FLEX HOSE 8PD1 STD ENG(38L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=3151 SERVICED BY L=3300	1-47426-426-0	01	1	9307-	●
27	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=3181 SERVICED BY L=3300	1-47426-426-0	01	1	9307-	●	●
27	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=3181 SERVICED BY L=3300	1-47437-975-0	01	1	9002-9306	●	●
27	PIPE; AIR,UNION TO FLEX HOSE 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> L=3147 SERVICED BY L=3300	1-47426-426-0	01	1	9307-	●
27	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=3188 SERVICED BY L=3300	1-47437-975-0	01	1	9002-9306	●	●
27	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=3188 SERVICED BY L=3300	1-47426-426-0	01	1	9307-	●
28	PIPE; AIR,FLEX HOSE TO UNION CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> L=1289 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1739 SERVICED BY L=1800	1-47426-392-0	01	1	9307-9410	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> L=1739 SERVICED BY L=1800	1-47426-392-0	01	1	9411-	●
28	PIPE; AIR,FLEX HOSE TO UNION L=1739 SERVICED BY L=1800	1-47426-392-0	01	1	9411-		●
28	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) L=1291 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> L=1758 SERVICED BY L=1800	1-47426-392-0	01	1	9411-	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=1679 SERVICED BY L=1700	1-47434-412-0	01	1	9002-9002	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=1697 SERVICED BY L=1700	1-47434-412-0	01	1	9003-9009	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=1704 SERVICED BY L=1800	1-47434-413-0	01	1	9010-9306	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 8PD1 STD ENG(38L) L=1664 SERVICED BY L=1800	1-47426-392-0	01	1	9307-	●
28	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2953 SERVICED BY L=3300	1-47434-416-0	01	1	9002-9002	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2971 SERVICED BY L=3300	1-47434-416-0	01	1	9003-9009	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2978 SERVICED BY L=3300	1-47434-416-0	01	1	9010-9306	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=3017 SERVICED BY L=3300	1-47426-398-0	01	1	9307-	●
29	PIPE; AIR,UNION TO UNION 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> L=1271 SERVICED BY L=1400	1-47426-389-0	01	1	9307-	●
29	PIPE; AIR,UNION TO UNION 8PD1 STD ENG(38L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=1272 SERVICED BY L=1400	1-47426-389-0	01	1	9307-	●
29	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=1257 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●	●
29	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) L=1257 SERVICED BY L=1400	1-47426-389-0	01	1	9307-	●	●
30	PIPE; AIR,AIR TANK TO JOINT EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=868 SERVICED BY L=1000	1-47434-491-0	01	1	9307-	●
30	PIPE; AIR,AIR TANK TO JOINT L=868 SERVICED BY L=1000	1-47434-491-0	01	1	9307-		●
30	PIPE; AIR,AIR TANK TO JOINT L=868 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9306	●	●
30	PIPE; AIR,AIR TANK TO JOINT FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> L=875 SERVICED BY L=1000	1-47434-491-0	01	1	9307-	●
31	PIPE; AIR,UNION TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-47484-298-0	01	1	9307-	●
31	PIPE; AIR,UNION TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-47485-821-0	01	1	9307-	●
31	PIPE; AIR,UNION TO UNION	1-47485-821-0	01	1	9307-		●
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47426-395-0	01	1	9002-	●
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47486-709-0	01	1	9002-	●
31	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-47485-821-0	01	1	9002-9306	●
31	PIPE; AIR,UNION TO UNION	1-47485-821-0	01	1	9002-9306		●
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK EXC. NYLON TUBE AIR PIPING<Z29> L=968 SERVICED BY L=1000	1-47426-350-0	01	1	9002-9306	●
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK L=968 SERVICED BY L=1000	1-47426-350-0	01	1	9002-9306		●
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK EXC. NYLON TUBE AIR PIPING<Z29> L=945 SERVICED BY L=1000	1-47426-350-0	01	1	9307-	●
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK L=945 SERVICED BY L=1000	1-47426-350-0	01	1	9307-		●
33	PIPE; AIR,UNION TO CONT VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1606 SERVICED BY L=1700	1-47434-412-0	01	1	9002-9306	●
33	PIPE; AIR,UNION TO CONT VLV L=1606 SERVICED BY L=1700	1-47434-412-0	01	1	9002-9306		●
33	PIPE; AIR,UNION TO CONT VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1601 SERVICED BY L=1800	1-47426-392-0	01	1	9307-	●
33	PIPE; AIR,UNION TO CONT VLV L=1601 SERVICED BY L=1800	1-47426-392-0	01	1	9307-		●
48	PIPE; AIR,AIR TANK TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=671 SERVICED BY L=1000	1-47434-491-0	01	1	9307-	●
48	PIPE; AIR,AIR TANK TO UNION L=671 SERVICED BY L=1000	1-47434-491-0	01	1	9307-		●
48	PIPE; AIR,AIR TANK TO UNION L=671 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9306	●	●
48	PIPE; AIR,AIR TANK TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> L=678 SERVICED BY L=1000	1-47434-491-0	01	1	9307-	●
51	PIPE; AIR,UNION TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (A) L=1828 SERVICED BY L=2000	1-47434-493-0	01	1	9307-	●
51	PIPE; AIR,UNION TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (A) L=1824 SERVICED BY L=2000	1-47434-493-0	01	1	9307-	●
51	PIPE; AIR,UNION TO UNION (A) L=1824 SERVICED BY L=2000	1-47434-493-0	01	1	9307-		●
51	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> (A) L=1824 SERVICED BY L=2000	1-47434-493-0	01	1	9002-9306	●
51	PIPE; AIR,UNION TO UNION (A) L=1824 SERVICED BY L=2000	1-47434-493-0	01	1	9002-9306		●
51	PIPE; AIR,UNION TO UNION TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=1090 SERVICED BY L=1100	1-47437-991-0	01	1	9002-9006	●
51	PIPE; AIR,UNION TO UNION TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=975 SERVICED BY L=1000	1-47434-491-0	01	1	9007-	●
52	PIPE; AIR,UNION TO RELAY VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (B) L=1264 SERVICED BY L=1350	1-47437-995-0	01	1	9307-	●
52	PIPE; AIR,UNION TO RELAY VLV (B) L=1264 SERVICED BY L=1350	1-47437-995-0	01	1	9307-		●
52	PIPE; AIR,UNION TO RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (A) L=1020 SERVICED BY L=1050	1-47437-990-0	01	1	9002-	●
52	PIPE; AIR,UNION TO RELAY VLV (A) L=1020 SERVICED BY L=1050	1-47437-990-0	01	1	9002-		●
52	PIPE; AIR,UNION TO RELAY VLV TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=1842	1-47488-483-0	01	1	9002-9006	●
52	PIPE; AIR,UNION TO RELAY VLV TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=2199	1-47491-510-0	01	1	9007-9307	●
52	PIPE; AIR,UNION TO RELAY VLV TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=2199	1-49111-213-0	01	1	9308-	●
52	PIPE; AIR,UNION TO RELAY VLV EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (B) L=1264 SERVICED BY L=1350	1-47437-995-0	01	1	9002-9306	●
52	PIPE; AIR,UNION TO RELAY VLV (B) L=1264 SERVICED BY L=1350	1-47437-995-0	01	1	9002-9306		●
52	PIPE; AIR,UNION TO RELAY VLV FRAME EQUIPMENT HEAVY DUTY<F03> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (B) L=1260 SERVICED BY L=1350	1-47437-995-0	01	1	9307-	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=461 SERVICED BY L=550	1-47437-976-0	01	1	9002-9306	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE L=461 SERVICED BY L=550	1-47437-976-0	01	1	9002-9306		●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=461 SERVICED BY L=500	1-49111-435-0	01	1	9307-	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE L=461 SERVICED BY L=500	1-49111-435-0	01	1	9307-		●
59	PIPE; AIR,UNION TO FLEX HOSE CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> L=1425 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●
59	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) L=1316 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●
59	PIPE; AIR,UNION TO FLEX HOSE 6RA1TC ENG(19L) EXC. NYLON TUBE AIR PIPING<Z29> L=2008 SERVICED BY L=2250	1-47437-987-0	01	1	9012-9306	●
59	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1934 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306	●	●
59	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1935 SERVICED BY L=2000	1-49111-450-0	01	1	9307-	●
59	PIPE; AIR,UNION TO FLEX HOSE L=1935 SERVICED BY L=2000	1-49111-450-0	01	1	9307-		●
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2259 SERVICED BY L=2500	1-47434-488-0	01	1	9002-9004	●	●
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2253 SERVICED BY L=2500	1-47434-488-0	01	1	9005-9011	●	●
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2253 SERVICED BY L=2500	1-47434-488-0	01	1	9012-9306	●	●
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2253 SERVICED BY L=2500	1-49111-452-0	01	1	9307-	●
59	PIPE; AIR,UNION TO FLEX HOSE 12PD1 STD ENG(42L) L=1884 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306		●
59	PIPE; AIR,UNION TO FLEX HOSE 8PD1 STD ENG(38L) L=1936 SERVICED BY L=2000	1-49111-450-0	01	1	9307-	●
62	HOSE; FLEX,FWD RR EXC. NYLON TUBE AIR PIPING<Z29> L=550	0-07909-550-0	01	1	9002-	●
62	HOSE; FLEX,FWD RR L=550	0-07909-550-0	01	1	9002-		●
70	PIPE; AIR,RELAY VLV TO FLEX HOSE FRAME EQUIPMENT HEAVY DUTY<F03> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> L=641	1-47496-047-0	01	1	9307-	●
70	PIPE; AIR,RELAY VLV TO FLEX HOSE TAIL PIPE SINGLE HORIZONTAL<NC2> L=685 SERVICED BY L=700	1-49111-439-0	01	1	9002-	●
70	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> L=640 SERVICED BY L=660	1-47437-978-0	01	1	9002-9306	●
70	PIPE; AIR,RELAY VLV TO FLEX HOSE L=640 SERVICED BY L=660	1-47437-978-0	01	1	9002-9306		●
70	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> L=641 SERVICED BY L=660	1-49111-438-0	01	1	9307-	●
70	PIPE; AIR,RELAY VLV TO FLEX HOSE L=641 SERVICED BY L=660	1-49111-438-0	01	1	9307-		●
92	PIPE; AIR,UNION TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> L=2301 SERVICED BY L=2500	1-49111-452-0	01	1	9307-	●
92	PIPE; AIR,UNION TO UNION TAIL PIPE SINGLE HORIZONTAL<NC2> V TYPE ENG<91L> L=2417 SERVICED BY L=2500	1-47434-488-0	01	1	9002-9306	●
92	PIPE; AIR,UNION TO UNION TAIL PIPE SINGLE HORIZONTAL<NC2> V TYPE ENG<91L> L=2417 SERVICED BY L=2800	1-49111-453-0	01	1	9307-9404	●
92	PIPE; AIR,UNION TO UNION TAIL PIPE SINGLE HORIZONTAL<NC2> V TYPE ENG<91L> L=2410 SERVICED BY L=2500	1-49111-452-0	01	1	9405-	●
92	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=2018 SERVICED BY L=2250	1-47437-987-0	01	1	9002-9008	●	●
92	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1987 SERVICED BY L=2250	1-47437-987-0	01	1	9009-9306	●	●
92	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1987 SERVICED BY L=2250	1-49111-451-0	01	1	9307-9404	●
92	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1984 SERVICED BY L=2000	1-49111-450-0	01	1	9405-	●
92	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> L=2312 SERVICED BY L=2500	1-47434-488-0	01	1	9002-9306	●	●
92	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> L=2312 SERVICED BY L=2500	1-49111-452-0	01	1	9307-9404	●
92	PIPE; AIR,UNION TO UNION L=2312 SERVICED BY L=2500	1-49111-452-0	01	1	9307-9404		●
92	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> L=2308 SERVICED BY L=2500	1-49111-452-0	01	1	9405-	●
92	PIPE; AIR,UNION TO UNION L=2308 SERVICED BY L=2500	1-49111-452-0	01	1	9405-		●
101	PIPE; AIR,FLEX HOSE TO UNION CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> L=1447 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●
101	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) L=1325 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●
101	PIPE; AIR,FLEX HOSE TO UNION 6RA1TC ENG(19L) EXC. NYLON TUBE AIR PIPING<Z29> L=1912 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306	●
101	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1787 SERVICED BY L=1800	1-47434-487-0	01	1	9002-9306	●	●
101	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1785 SERVICED BY L=1800	1-49111-449-0	01	1	9307-	●
101	PIPE; AIR,FLEX HOSE TO UNION L=1785 SERVICED BY L=1800	1-49111-449-0	01	1	9307-		●
101	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=1994 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306	●	●
101	PIPE; AIR,FLEX HOSE TO UNION 6RB1TC ENG(30L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=1994 SERVICED BY L=2000	1-49111-450-0	01	1	9307-	●
101	PIPE; AIR,FLEX HOSE TO UNION 12PD1 STD ENG(42L) L=1773 SERVICED BY L=1800	1-47434-487-0	01	1	9002-9306		●
101	PIPE; AIR,FLEX HOSE TO UNION 8PD1 STD ENG(38L) L=1791 SERVICED BY L=1800	1-49111-449-0	01	1	9307-	●
103	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1648 SERVICED BY L=1700	1-47434-478-0	01	1	9005-9204	●	●
103	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1658 SERVICED BY L=1900	1-47437-971-0	01	1	9205-9306	●	●
103	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1654 SERVICED BY L=1700	1-47426-420-0	01	1	9307-	●
103	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> V TYPE ENG<91L> L=1728 SERVICED BY L=1900	1-47437-971-0	01	1	9005-9204	●	●
103	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> V TYPE ENG<91L> L=1734 SERVICED BY L=1900	1-47437-971-0	01	1	9205-9306	●	●
103	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> V TYPE ENG<91L> EXC. NYLON TUBE AIR PIPING<Z29> L=1741 SERVICED BY L=1900	1-47426-421-0	01	1	9307-	●	●
103	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1248 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9204	●	●
103	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1251 SERVICED BY L=1400	1-47437-969-0	01	1	9205-9306	●	●
103	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1251 SERVICED BY L=1400	1-47426-418-0	01	1	9307-	●
103	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> V TYPE ENG<91L> L=1455 SERVICED BY L=1700	1-47434-478-0	01	1	9002-9204	●	●
103	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> V TYPE ENG<91L> L=1458 SERVICED BY L=1700	1-47434-478-0	01	1	9205-9306	●	●
103	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> V TYPE ENG<91L> EXC. NYLON TUBE AIR PIPING<Z29> L=1465 SERVICED BY L=1550	1-47426-419-0	01	1	9307-	●	●
104	PIPE; AIR,UNION TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> (A) L=1230 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●
104	PIPE; AIR,UNION TO UNION TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=1181 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306	●
104	PIPE; AIR,UNION TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (A) L=1225 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●
104	PIPE; AIR,UNION TO UNION (A) L=1225 SERVICED BY L=1250	1-47426-416-0	01	1	9307-		●
104	PIPE; AIR,UNION TO UNION TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (A) L=1224 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9003	●
104	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> (A) L=1224 SERVICED BY L=1250	1-47437-968-0	01	1	9004-9306	●
104	PIPE; AIR,UNION TO UNION (A) L=1224 SERVICED BY L=1250	1-47437-968-0	01	1	9004-9306		●
104	PIPE; AIR,UNION TO UNION TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=1181 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●
104	PIPE; AIR,UNION TO UNION EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (A) L=1219 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9003	●
104	PIPE; AIR,UNION TO UNION (A) L=1219 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9003		●
113	PIPE; AIR,UNION TO RELAY VLV FRAME EQUIPMENT HEAVY DUTY<F03> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (B) L=1224 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●
113	PIPE; AIR,UNION TO RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (A) L=412 SERVICED BY L=450	1-47437-962-0	01	1	9002-9306	●
113	PIPE; AIR,UNION TO RELAY VLV (A) L=412 SERVICED BY L=450	1-47437-962-0	01	1	9002-9306		●
113	PIPE; AIR,UNION TO RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (A) L=413 SERVICED BY L=450	1-47426-405-0	01	1	9307-	●
113	PIPE; AIR,UNION TO RELAY VLV (A) L=413 SERVICED BY L=450	1-47426-405-0	01	1	9307-		●
113	PIPE; AIR,UNION TO RELAY VLV TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=1691 SERVICED BY L=1700	1-47434-478-0	01	1	9002-9006	●
113	PIPE; AIR,UNION TO RELAY VLV TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=1903 SERVICED BY L=2100	1-47437-972-0	01	1	9007-9306	●
113	PIPE; AIR,UNION TO RELAY VLV TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=1903 SERVICED BY L=2100	1-47426-422-0	01	1	9307-9307	●
113	PIPE; AIR,UNION TO RELAY VLV TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=1880 SERVICED BY L=1900	1-47426-421-0	01	1	9308-	●
113	PIPE; AIR,UNION TO RELAY VLV EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (B) L=1210 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306	●
113	PIPE; AIR,UNION TO RELAY VLV (B) L=1210 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306		●
113	PIPE; AIR,UNION TO RELAY VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (B) L=1210 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●
113	PIPE; AIR,UNION TO RELAY VLV (B) L=1210 SERVICED BY L=1250	1-47426-416-0	01	1	9307-		●
158	PIPE; AIR,PRESS CONT VALVE TO RELAY VL EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=492 SERVICED BY L=500	1-47426-376-0	01	1	9307-	●
158	PIPE; AIR,PRESS CONT VALVE TO RELAY VL L=492 SERVICED BY L=500	1-47426-376-0	01	1	9307-		●
158	PIPE; AIR,PRESS CONT VALVE TO RELAY VL EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=493 SERVICED BY L=500	9-47415-380-0	01	1	9002-9306	●
158	PIPE; AIR,PRESS CONT VALVE TO RELAY VL L=493 SERVICED BY L=500	9-47415-380-0	01	1	9002-9306		●
158	PIPE; AIR,PRESS CONT VALVE TO RELAY VL FRAME EQUIPMENT HEAVY DUTY<F03> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=487 SERVICED BY L=500	1-47426-376-0	01	1	9307-	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE FRAME EQUIPMENT HEAVY DUTY<F03> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=366 SERVICED BY L=400	1-49111-434-0	01	1	9307-	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE FRAME EQUIPMENT HEAVY DUTY<F03> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=641 SERVICED BY L=660	1-49111-438-0	01	1	9307-	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (A) L=360 SERVICED BY L=400	9-47415-378-0	01	1	9002-9306	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (A) L=360 SERVICED BY L=400	1-47426-374-0	01	1	9307-	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=372 SERVICED BY L=550	1-47437-976-0	01	1	9002-9306	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE (A) L=372 SERVICED BY L=550	1-47437-976-0	01	1	9002-9306		●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=372 SERVICED BY L=400	1-49111-434-0	01	1	9307-	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE (A) L=372 SERVICED BY L=400	1-49111-434-0	01	1	9307-		●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=641 SERVICED BY L=660	1-47437-978-0	01	1	9002-9306	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE (B) L=641 SERVICED BY L=660	1-47437-978-0	01	1	9002-9306		●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=641 SERVICED BY L=660	1-49111-438-0	01	1	9307-	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE (B) L=641 SERVICED BY L=660	1-49111-438-0	01	1	9307-		●

192 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	HOSE; FLEX,FWD RR EXC. NYLON TUBE AIR PIPING<Z29> L=550	0-07909-550-0	01	1	9002-	●
62	HOSE; FLEX,FWD RR L=550	0-07909-550-0	01	1	9002-		●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9307-9404	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-250-0	01	1	9307-	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9307-	●
192	TUBE; NYLON EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	01	1	9307-9307	●
192	TUBE; NYLON SERVICED BY L=30000 OD=3/8"	1-09368-247-0	02	1	9307-9307	●	●
192	TUBE; NYLON SERVICED BY L=30000 OD=3/8"	1-09368-247-0	02	1	9307-9404	●	●
192	TUBE; NYLON EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	02	1	9307-9404	●
192	TUBE; NYLON SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9405-	●	●
192	TUBE; NYLON EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9405-	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9405-	●
192	TUBE; NYLON SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-9307	●	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-9307	●
192	TUBE; NYLON SERVICED BY L=30000 OD=1/2"	1-09368-251-0	02	1	9307-	●	●
192	TUBE; NYLON EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> SERVICED BY L=30000 OD=1/2"	1-09368-251-0	02	1	9307-	●
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-251-0	02	1	9307-	●

27 28 48 30 32 52 31 170 176 70 113 123 55 51 113 31 104 103 29 92 51 104 52 101 59 27 28 30 31 33 170 170 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	PIPE; AIR,UNION TO FLEX HOSE 8PD1 STD ENG(38L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=3151 SERVICED BY L=3300	1-47426-426-0	01	1	9307-	●
27	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=3181 SERVICED BY L=3300	1-47426-426-0	01	1	9307-	●	●
27	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=3181 SERVICED BY L=3300	1-47437-975-0	01	1	9002-9306	●	●
27	PIPE; AIR,UNION TO FLEX HOSE 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> L=3147 SERVICED BY L=3300	1-47426-426-0	01	1	9307-	●
27	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=3188 SERVICED BY L=3300	1-47437-975-0	01	1	9002-9306	●	●
27	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=3188 SERVICED BY L=3300	1-47426-426-0	01	1	9307-	●
28	PIPE; AIR,FLEX HOSE TO UNION CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> L=1289 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1739 SERVICED BY L=1800	1-47426-392-0	01	1	9307-9410	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> L=1739 SERVICED BY L=1800	1-47426-392-0	01	1	9411-	●
28	PIPE; AIR,FLEX HOSE TO UNION L=1739 SERVICED BY L=1800	1-47426-392-0	01	1	9411-		●
28	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) L=1291 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> L=1758 SERVICED BY L=1800	1-47426-392-0	01	1	9411-	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=1679 SERVICED BY L=1700	1-47434-412-0	01	1	9002-9002	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=1697 SERVICED BY L=1700	1-47434-412-0	01	1	9003-9009	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=1704 SERVICED BY L=1800	1-47434-413-0	01	1	9010-9306	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 8PD1 STD ENG(38L) L=1664 SERVICED BY L=1800	1-47426-392-0	01	1	9307-	●
28	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2953 SERVICED BY L=3300	1-47434-416-0	01	1	9002-9002	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2971 SERVICED BY L=3300	1-47434-416-0	01	1	9003-9009	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2978 SERVICED BY L=3300	1-47434-416-0	01	1	9010-9306	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=3017 SERVICED BY L=3300	1-47426-398-0	01	1	9307-	●
29	PIPE; AIR,UNION TO UNION 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> L=1271 SERVICED BY L=1400	1-47426-389-0	01	1	9307-	●
29	PIPE; AIR,UNION TO UNION 8PD1 STD ENG(38L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=1272 SERVICED BY L=1400	1-47426-389-0	01	1	9307-	●
29	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=1257 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●	●
29	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) L=1257 SERVICED BY L=1400	1-47426-389-0	01	1	9307-	●	●
30	PIPE; AIR,AIR TANK TO JOINT EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=868 SERVICED BY L=1000	1-47434-491-0	01	1	9307-	●
30	PIPE; AIR,AIR TANK TO JOINT L=868 SERVICED BY L=1000	1-47434-491-0	01	1	9307-		●
30	PIPE; AIR,AIR TANK TO JOINT L=868 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9306	●	●
30	PIPE; AIR,AIR TANK TO JOINT FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> L=875 SERVICED BY L=1000	1-47434-491-0	01	1	9307-	●
31	PIPE; AIR,UNION TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-47484-298-0	01	1	9307-	●
31	PIPE; AIR,UNION TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-47485-821-0	01	1	9307-	●
31	PIPE; AIR,UNION TO UNION	1-47485-821-0	01	1	9307-		●
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47426-395-0	01	1	9002-	●
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47486-709-0	01	1	9002-	●
31	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-47485-821-0	01	1	9002-9306	●
31	PIPE; AIR,UNION TO UNION	1-47485-821-0	01	1	9002-9306		●
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK EXC. NYLON TUBE AIR PIPING<Z29> L=968 SERVICED BY L=1000	1-47426-350-0	01	1	9002-9306	●
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK L=968 SERVICED BY L=1000	1-47426-350-0	01	1	9002-9306		●
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK EXC. NYLON TUBE AIR PIPING<Z29> L=945 SERVICED BY L=1000	1-47426-350-0	01	1	9307-	●
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK L=945 SERVICED BY L=1000	1-47426-350-0	01	1	9307-		●
33	PIPE; AIR,UNION TO CONT VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1606 SERVICED BY L=1700	1-47434-412-0	01	1	9002-9306	●
33	PIPE; AIR,UNION TO CONT VLV L=1606 SERVICED BY L=1700	1-47434-412-0	01	1	9002-9306		●
33	PIPE; AIR,UNION TO CONT VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1601 SERVICED BY L=1800	1-47426-392-0	01	1	9307-	●
33	PIPE; AIR,UNION TO CONT VLV L=1601 SERVICED BY L=1800	1-47426-392-0	01	1	9307-		●
48	PIPE; AIR,AIR TANK TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=671 SERVICED BY L=1000	1-47434-491-0	01	1	9307-	●
48	PIPE; AIR,AIR TANK TO UNION L=671 SERVICED BY L=1000	1-47434-491-0	01	1	9307-		●
48	PIPE; AIR,AIR TANK TO UNION L=671 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9306	●	●
48	PIPE; AIR,AIR TANK TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> L=678 SERVICED BY L=1000	1-47434-491-0	01	1	9307-	●
51	PIPE; AIR,UNION TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (A) L=1828 SERVICED BY L=2000	1-47434-493-0	01	1	9307-	●
51	PIPE; AIR,UNION TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (A) L=1824 SERVICED BY L=2000	1-47434-493-0	01	1	9307-	●
51	PIPE; AIR,UNION TO UNION (A) L=1824 SERVICED BY L=2000	1-47434-493-0	01	1	9307-		●
51	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> (A) L=1824 SERVICED BY L=2000	1-47434-493-0	01	1	9002-9306	●
51	PIPE; AIR,UNION TO UNION (A) L=1824 SERVICED BY L=2000	1-47434-493-0	01	1	9002-9306		●
51	PIPE; AIR,UNION TO UNION TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=1090 SERVICED BY L=1100	1-47437-991-0	01	1	9002-9006	●
51	PIPE; AIR,UNION TO UNION TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=975 SERVICED BY L=1000	1-47434-491-0	01	1	9007-	●
52	PIPE; AIR,UNION TO RELAY VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (B) L=1264 SERVICED BY L=1350	1-47437-995-0	01	1	9307-	●
52	PIPE; AIR,UNION TO RELAY VLV (B) L=1264 SERVICED BY L=1350	1-47437-995-0	01	1	9307-		●
52	PIPE; AIR,UNION TO RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (A) L=1020 SERVICED BY L=1050	1-47437-990-0	01	1	9002-	●
52	PIPE; AIR,UNION TO RELAY VLV (A) L=1020 SERVICED BY L=1050	1-47437-990-0	01	1	9002-		●
52	PIPE; AIR,UNION TO RELAY VLV TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=1842	1-47488-483-0	01	1	9002-9006	●
52	PIPE; AIR,UNION TO RELAY VLV TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=2199	1-47491-510-0	01	1	9007-9307	●
52	PIPE; AIR,UNION TO RELAY VLV TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=2199	1-49111-213-0	01	1	9308-	●
52	PIPE; AIR,UNION TO RELAY VLV EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (B) L=1264 SERVICED BY L=1350	1-47437-995-0	01	1	9002-9306	●
52	PIPE; AIR,UNION TO RELAY VLV (B) L=1264 SERVICED BY L=1350	1-47437-995-0	01	1	9002-9306		●
52	PIPE; AIR,UNION TO RELAY VLV FRAME EQUIPMENT HEAVY DUTY<F03> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (B) L=1260 SERVICED BY L=1350	1-47437-995-0	01	1	9307-	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=461 SERVICED BY L=550	1-47437-976-0	01	1	9002-9306	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE L=461 SERVICED BY L=550	1-47437-976-0	01	1	9002-9306		●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=461 SERVICED BY L=500	1-49111-435-0	01	1	9307-	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE L=461 SERVICED BY L=500	1-49111-435-0	01	1	9307-		●
59	PIPE; AIR,UNION TO FLEX HOSE CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> L=1425 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●
59	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) L=1316 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●
59	PIPE; AIR,UNION TO FLEX HOSE 6RA1TC ENG(19L) EXC. NYLON TUBE AIR PIPING<Z29> L=2008 SERVICED BY L=2250	1-47437-987-0	01	1	9012-9306	●
59	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1934 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306	●	●
59	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1935 SERVICED BY L=2000	1-49111-450-0	01	1	9307-	●
59	PIPE; AIR,UNION TO FLEX HOSE L=1935 SERVICED BY L=2000	1-49111-450-0	01	1	9307-		●
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2259 SERVICED BY L=2500	1-47434-488-0	01	1	9002-9004	●	●
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2253 SERVICED BY L=2500	1-47434-488-0	01	1	9005-9011	●	●
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2253 SERVICED BY L=2500	1-47434-488-0	01	1	9012-9306	●	●
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2253 SERVICED BY L=2500	1-49111-452-0	01	1	9307-	●
59	PIPE; AIR,UNION TO FLEX HOSE 12PD1 STD ENG(42L) L=1884 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306		●
59	PIPE; AIR,UNION TO FLEX HOSE 8PD1 STD ENG(38L) L=1936 SERVICED BY L=2000	1-49111-450-0	01	1	9307-	●
62	HOSE; FLEX,FWD RR EXC. NYLON TUBE AIR PIPING<Z29> L=550	0-07909-550-0	01	1	9002-	●
62	HOSE; FLEX,FWD RR L=550	0-07909-550-0	01	1	9002-		●
70	PIPE; AIR,RELAY VLV TO FLEX HOSE FRAME EQUIPMENT HEAVY DUTY<F03> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> L=641	1-47496-047-0	01	1	9307-	●
70	PIPE; AIR,RELAY VLV TO FLEX HOSE TAIL PIPE SINGLE HORIZONTAL<NC2> L=685 SERVICED BY L=700	1-49111-439-0	01	1	9002-	●
70	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> L=640 SERVICED BY L=660	1-47437-978-0	01	1	9002-9306	●
70	PIPE; AIR,RELAY VLV TO FLEX HOSE L=640 SERVICED BY L=660	1-47437-978-0	01	1	9002-9306		●
70	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> L=641 SERVICED BY L=660	1-49111-438-0	01	1	9307-	●
70	PIPE; AIR,RELAY VLV TO FLEX HOSE L=641 SERVICED BY L=660	1-49111-438-0	01	1	9307-		●
92	PIPE; AIR,UNION TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> L=2301 SERVICED BY L=2500	1-49111-452-0	01	1	9307-	●
92	PIPE; AIR,UNION TO UNION TAIL PIPE SINGLE HORIZONTAL<NC2> V TYPE ENG<91L> L=2417 SERVICED BY L=2500	1-47434-488-0	01	1	9002-9306	●
92	PIPE; AIR,UNION TO UNION TAIL PIPE SINGLE HORIZONTAL<NC2> V TYPE ENG<91L> L=2417 SERVICED BY L=2800	1-49111-453-0	01	1	9307-9404	●
92	PIPE; AIR,UNION TO UNION TAIL PIPE SINGLE HORIZONTAL<NC2> V TYPE ENG<91L> L=2410 SERVICED BY L=2500	1-49111-452-0	01	1	9405-	●
92	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=2018 SERVICED BY L=2250	1-47437-987-0	01	1	9002-9008	●	●
92	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1987 SERVICED BY L=2250	1-47437-987-0	01	1	9009-9306	●	●
92	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1987 SERVICED BY L=2250	1-49111-451-0	01	1	9307-9404	●
92	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1984 SERVICED BY L=2000	1-49111-450-0	01	1	9405-	●
92	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> L=2312 SERVICED BY L=2500	1-47434-488-0	01	1	9002-9306	●	●
92	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> L=2312 SERVICED BY L=2500	1-49111-452-0	01	1	9307-9404	●
92	PIPE; AIR,UNION TO UNION L=2312 SERVICED BY L=2500	1-49111-452-0	01	1	9307-9404		●
92	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> L=2308 SERVICED BY L=2500	1-49111-452-0	01	1	9405-	●
92	PIPE; AIR,UNION TO UNION L=2308 SERVICED BY L=2500	1-49111-452-0	01	1	9405-		●
101	PIPE; AIR,FLEX HOSE TO UNION CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> L=1447 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●
101	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) L=1325 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●
101	PIPE; AIR,FLEX HOSE TO UNION 6RA1TC ENG(19L) EXC. NYLON TUBE AIR PIPING<Z29> L=1912 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306	●
101	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1787 SERVICED BY L=1800	1-47434-487-0	01	1	9002-9306	●	●
101	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1785 SERVICED BY L=1800	1-49111-449-0	01	1	9307-	●
101	PIPE; AIR,FLEX HOSE TO UNION L=1785 SERVICED BY L=1800	1-49111-449-0	01	1	9307-		●
101	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=1994 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306	●	●
101	PIPE; AIR,FLEX HOSE TO UNION 6RB1TC ENG(30L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=1994 SERVICED BY L=2000	1-49111-450-0	01	1	9307-	●
101	PIPE; AIR,FLEX HOSE TO UNION 12PD1 STD ENG(42L) L=1773 SERVICED BY L=1800	1-47434-487-0	01	1	9002-9306		●
101	PIPE; AIR,FLEX HOSE TO UNION 8PD1 STD ENG(38L) L=1791 SERVICED BY L=1800	1-49111-449-0	01	1	9307-	●
103	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1648 SERVICED BY L=1700	1-47434-478-0	01	1	9005-9204	●	●
103	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1658 SERVICED BY L=1900	1-47437-971-0	01	1	9205-9306	●	●
103	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1654 SERVICED BY L=1700	1-47426-420-0	01	1	9307-	●
103	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> V TYPE ENG<91L> L=1728 SERVICED BY L=1900	1-47437-971-0	01	1	9005-9204	●	●
103	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> V TYPE ENG<91L> L=1734 SERVICED BY L=1900	1-47437-971-0	01	1	9205-9306	●	●
103	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> V TYPE ENG<91L> EXC. NYLON TUBE AIR PIPING<Z29> L=1741 SERVICED BY L=1900	1-47426-421-0	01	1	9307-	●	●
103	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1248 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9204	●	●
103	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1251 SERVICED BY L=1400	1-47437-969-0	01	1	9205-9306	●	●
103	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1251 SERVICED BY L=1400	1-47426-418-0	01	1	9307-	●
103	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> V TYPE ENG<91L> L=1455 SERVICED BY L=1700	1-47434-478-0	01	1	9002-9204	●	●
103	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> V TYPE ENG<91L> L=1458 SERVICED BY L=1700	1-47434-478-0	01	1	9205-9306	●	●
103	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> V TYPE ENG<91L> EXC. NYLON TUBE AIR PIPING<Z29> L=1465 SERVICED BY L=1550	1-47426-419-0	01	1	9307-	●	●
104	PIPE; AIR,UNION TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> (A) L=1230 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●
104	PIPE; AIR,UNION TO UNION TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=1181 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306	●
104	PIPE; AIR,UNION TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (A) L=1225 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●
104	PIPE; AIR,UNION TO UNION (A) L=1225 SERVICED BY L=1250	1-47426-416-0	01	1	9307-		●
104	PIPE; AIR,UNION TO UNION TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (A) L=1224 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9003	●
104	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> (A) L=1224 SERVICED BY L=1250	1-47437-968-0	01	1	9004-9306	●
104	PIPE; AIR,UNION TO UNION (A) L=1224 SERVICED BY L=1250	1-47437-968-0	01	1	9004-9306		●
104	PIPE; AIR,UNION TO UNION TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=1181 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●
104	PIPE; AIR,UNION TO UNION EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (A) L=1219 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9003	●
104	PIPE; AIR,UNION TO UNION (A) L=1219 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9003		●
113	PIPE; AIR,UNION TO RELAY VLV FRAME EQUIPMENT HEAVY DUTY<F03> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (B) L=1224 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●
113	PIPE; AIR,UNION TO RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (A) L=412 SERVICED BY L=450	1-47437-962-0	01	1	9002-9306	●
113	PIPE; AIR,UNION TO RELAY VLV (A) L=412 SERVICED BY L=450	1-47437-962-0	01	1	9002-9306		●
113	PIPE; AIR,UNION TO RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (A) L=413 SERVICED BY L=450	1-47426-405-0	01	1	9307-	●
113	PIPE; AIR,UNION TO RELAY VLV (A) L=413 SERVICED BY L=450	1-47426-405-0	01	1	9307-		●
113	PIPE; AIR,UNION TO RELAY VLV TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=1691 SERVICED BY L=1700	1-47434-478-0	01	1	9002-9006	●
113	PIPE; AIR,UNION TO RELAY VLV TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=1903 SERVICED BY L=2100	1-47437-972-0	01	1	9007-9306	●
113	PIPE; AIR,UNION TO RELAY VLV TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=1903 SERVICED BY L=2100	1-47426-422-0	01	1	9307-9307	●
113	PIPE; AIR,UNION TO RELAY VLV TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=1880 SERVICED BY L=1900	1-47426-421-0	01	1	9308-	●
113	PIPE; AIR,UNION TO RELAY VLV EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (B) L=1210 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306	●
113	PIPE; AIR,UNION TO RELAY VLV (B) L=1210 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306		●
113	PIPE; AIR,UNION TO RELAY VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (B) L=1210 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●
113	PIPE; AIR,UNION TO RELAY VLV (B) L=1210 SERVICED BY L=1250	1-47426-416-0	01	1	9307-		●
123	PIPE; AIR,RELAY VLV TO RELAY VLV HONG KONG EQUIPMENT(PQ1) L=790 SERVICED BY L=800	1-47434-475-0	01	1	9002-9306	●
123	PIPE; AIR,RELAY VLV TO RELAY VLV HONG KONG EQUIPMENT(PQ1) L=790 SERVICED BY L=800	1-47426-412-0	01	1	9307-	●
158	PIPE; AIR,PRESS CONT VALVE TO RELAY VL EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=492 SERVICED BY L=500	1-47426-376-0	01	1	9307-	●
158	PIPE; AIR,PRESS CONT VALVE TO RELAY VL L=492 SERVICED BY L=500	1-47426-376-0	01	1	9307-		●
158	PIPE; AIR,PRESS CONT VALVE TO RELAY VL EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=493 SERVICED BY L=500	9-47415-380-0	01	1	9002-9306	●
158	PIPE; AIR,PRESS CONT VALVE TO RELAY VL L=493 SERVICED BY L=500	9-47415-380-0	01	1	9002-9306		●
158	PIPE; AIR,PRESS CONT VALVE TO RELAY VL FRAME EQUIPMENT HEAVY DUTY<F03> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=487 SERVICED BY L=500	1-47426-376-0	01	1	9307-	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE FRAME EQUIPMENT HEAVY DUTY<F03> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=366 SERVICED BY L=400	1-49111-434-0	01	1	9307-	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE FRAME EQUIPMENT HEAVY DUTY<F03> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=641 SERVICED BY L=660	1-49111-438-0	01	1	9307-	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (A) L=360 SERVICED BY L=400	9-47415-378-0	01	1	9002-9306	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (A) L=360 SERVICED BY L=400	1-47426-374-0	01	1	9307-	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=372 SERVICED BY L=550	1-47437-976-0	01	1	9002-9306	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE (A) L=372 SERVICED BY L=550	1-47437-976-0	01	1	9002-9306		●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=372 SERVICED BY L=400	1-49111-434-0	01	1	9307-	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE (A) L=372 SERVICED BY L=400	1-49111-434-0	01	1	9307-		●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=641 SERVICED BY L=660	1-47437-978-0	01	1	9002-9306	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE (B) L=641 SERVICED BY L=660	1-47437-978-0	01	1	9002-9306		●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=641 SERVICED BY L=660	1-49111-438-0	01	1	9307-	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE (B) L=641 SERVICED BY L=660	1-49111-438-0	01	1	9307-		●
176	PIPE; AIR,RELAY VLV TO RELAY VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=1307 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●
176	PIPE; AIR,RELAY VLV TO RELAY VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> L=1308 SERVICED BY L=1400	1-47426-389-0	01	1	9307-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
