Isuzu WW
▶
TRUCKS
▶
GXR
▶
11663 - GXR(LHD)CHINA
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

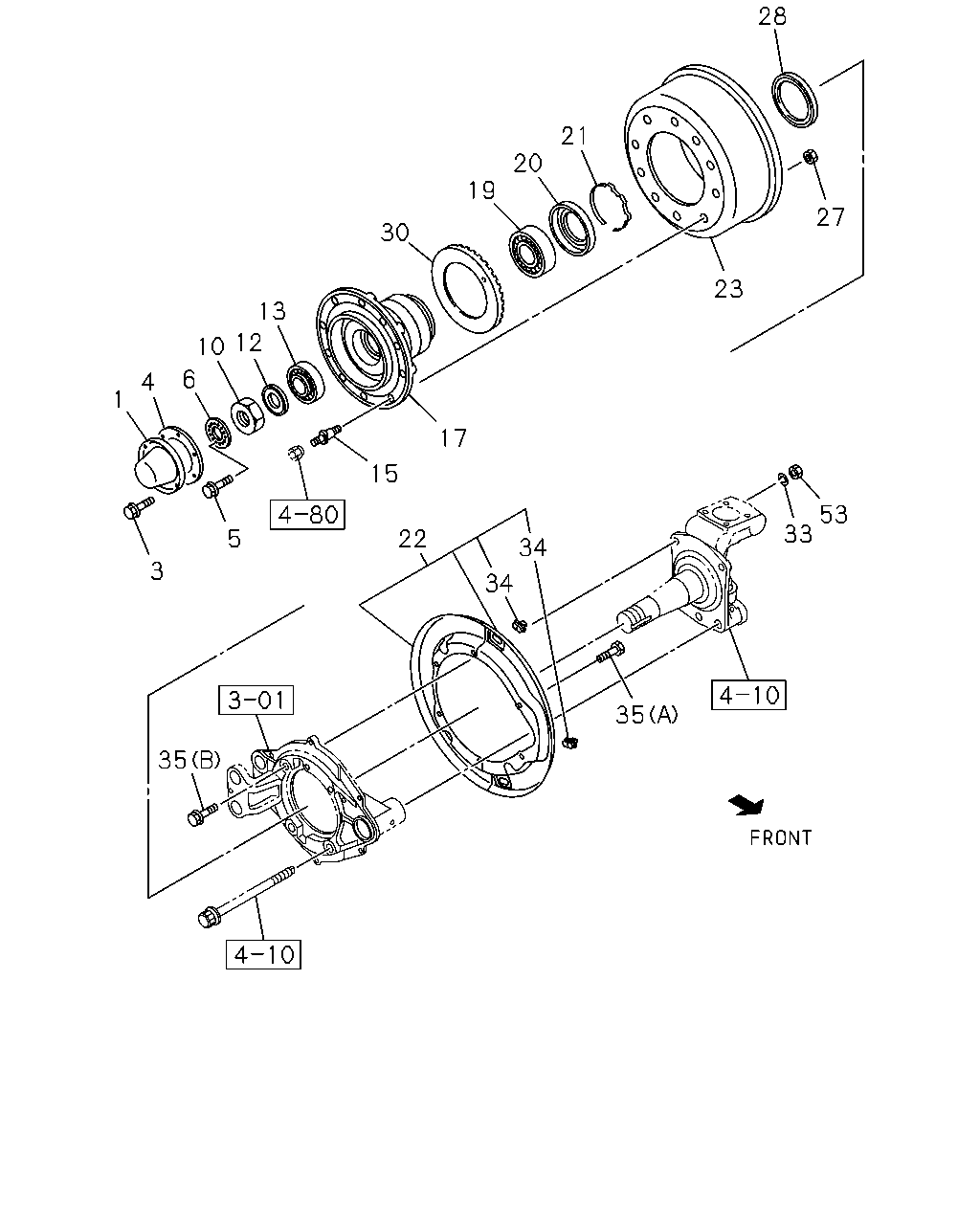

4-11 - FRONT HUB AND DRUM OR ROTOR
▶
4-11 — FRONT HUB AND DRUM OR ROTOR
(#175199) — 29 parça
1
4
6
10
12
13
30
19
20
21
28
27
23
33
35
34
22
15
17
5
3
35
53
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
OD=156
9-42313-123-2
02
1
1509-
3
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
0-28050-812-0
12
1
1509-
4
GASKET; HUB CAP,FRT WHEEL
1-42319-185-2
02
1
1509-
5
BOLT; LK WASHER
M6X16 FLANGE
0-28650-616-0
04
1
1509-
6
WASHER; LK,FRT HUB
ID=48
1-09533-012-1
02
1
1509-
10
NUT; FRT HUB BRG
M48
1-09840-012-5
02
1
1509-
12
WASHER; LK,FRT HUB BRG
ID=48
1-09533-016-0
02
1
1509-
13
BEARING; HUB OUTER,FRT AXLE
JTEKT
1-09812-234-0
02
1
1509-
15
PIN; WHEEL,FRT AXLE
M22X42.8,M22X55.5 RH THREAD
1-42337-067-1
10
1
1509-
15
PIN; WHEEL,FRT AXLE
M22X42.8,M22X55.5 RH THREAD
1-42337-067-1
10
1
1509-
17
HUB; FRT AXLE
1-42312-100-1
01
1
1509-
17
HUB; FRT AXLE
1-42312-100-1
01
1
1509-
19
BEARING; HUB INNER,FRT AXLE
JTEKT
1-09812-231-0
02
1
1509-
20
COVER; HUB BRG INNER
1-42319-039-0
02
1
1509-
21
RING; SNAP,HUB
1-09587-017-0
02
1
1509-
22
COVER SET; FRT BRK DRUM
1-47151-459-1
02
1
1509-
23
DRUM; BRK,FRT
1-42315-380-0
01
1
1509-
23
DRUM; BRK,FRT
1-42315-380-0
01
1
1509-
27
NUT; WHEEL PIN,FRT AXLE
M22
1-09400-071-0
10
1
1509-
27
NUT; WHEEL PIN,FRT AXLE
M22
1-09400-071-0
10
1
1509-
28
SEAL; OIL,FRT HUB
OD=140
1-09625-041-0
02
1
1509-
30
RING; EXCITER,FRT HUB
1-87223-003-0
01
1
1509-
30
RING; EXCITER,FRT HUB
1-87223-003-0
01
1
1509-
33
WASHER; LK,DRUM COVER
ID=16.2
0-91510-816-0
04
1
1509-
34
COVER; CHECK HOLE,DRUM COVER
1-09333-151-0
04
1
1509-
35
BOLT; DRUM COVER
(B) M16X59 FLANGE
1-09044-002-2
04
1
1509-
35
BOLT; DRUM COVER
(A) M10X12
1-47159-187-0
06
1
1509-
35
BOLT; DRUM COVER
(A) M10X12
1-47159-187-0
06
1
1509-
53
NUT; DRUM COVER
M16
0-91110-516-0
04
1
1509-
