◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXR ▶ 11663 - GXR(LHD)CHINA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#175198) — 89 parça

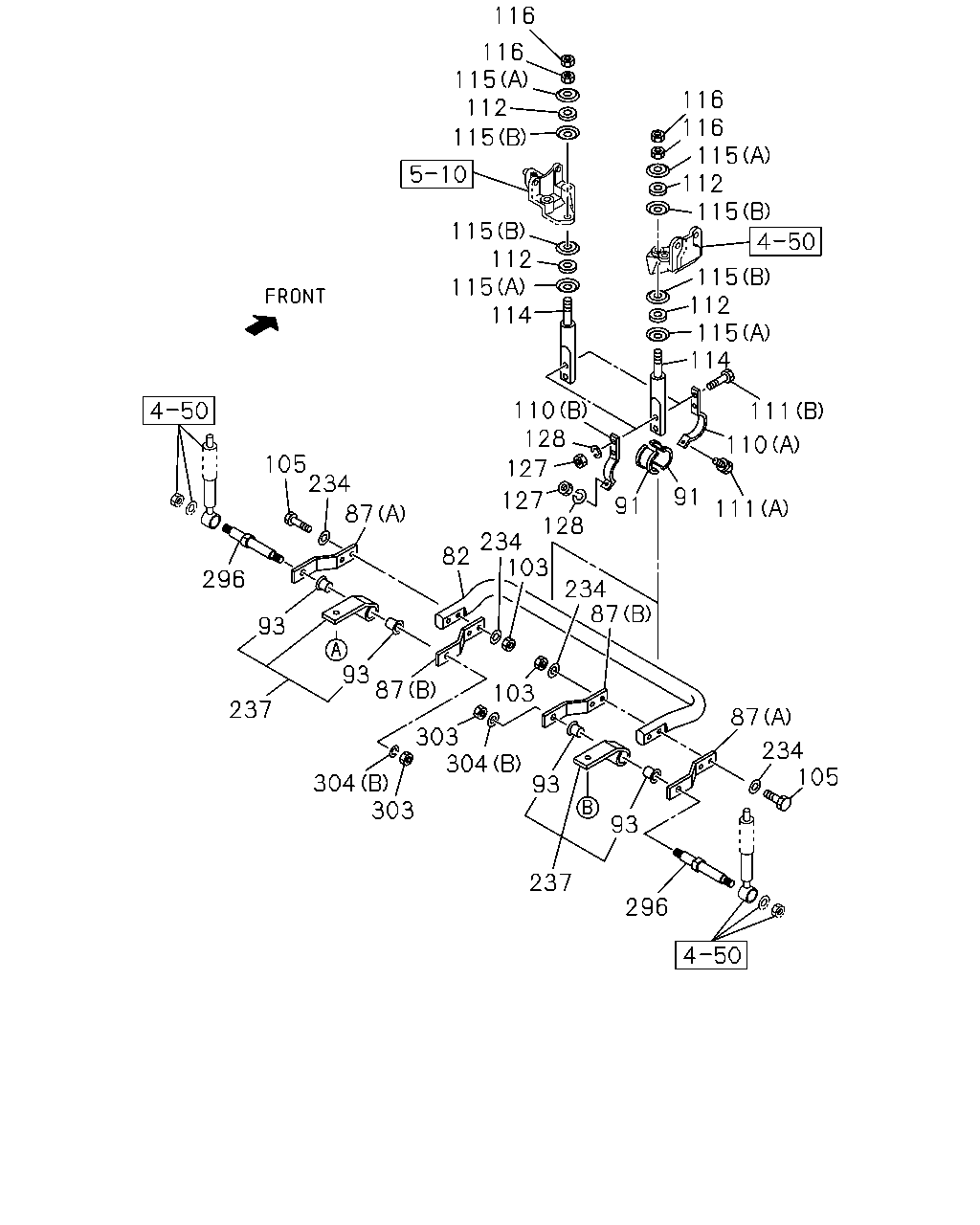

çizim 513551
105 234 87 111 110 111 114 115 112 115 115 112 115 116 116 116 116 112 115 115 115 115 112 114 110 127 128 127 234 128 91 91 87 82 87 234 105 296 93 93 87 304 303 237 303 304 93 93 296 237 103 103 234
BalonParca AdiParca NoAdetTipApplied Date
82 BAR; STAB,FRT SUSP 1-51771-136-1 02 1 1509-
87 BRACKET; STABILIZER
(A) 		8-98012-958-0 02 1 1509-
87 BRACKET; STABILIZER
(B) 		8-98012-959-0 02 1 1509-
91 BUSHING; RUBBER,STAB BAR 1-51779-087-1 04 1 1509-
93 BUSHING; STABILIZER 1-51689-015-3 04 1 1509-
103 NUT; BRKT FIX
M14 		0-91110-514-0 04 1 1509-
105 BOLT; BRKT FIX
M14X70 		0-10956-470-0 04 1 1509-
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 1509-
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 1509-
111 BOLT; CLAMP TO ROD
M12X50 		0-20851-250-0 04 1 1509-
111 BOLT; CLAMP TO ROD
M12X30 		0-20851-230-0 02 1 1509-
112 BUSHING; ROD 9-51631-039-0 04 1 1509-
114 ROD; STAB BAR 1-51773-072-2 02 1 1509-
115 WASHER; CENTER,STAB TO FRAME
(A) ID=16.5 		9-51631-040-0 04 1 1509-
115 WASHER; CENTER,STAB TO FRAME
(B) ID=20.8 		9-51631-041-0 04 1 1509-
116 NUT; LK,STAB TO FRAME
M14 		0-91111-514-0 04 1 1509-
127 NUT; CLAMP
M12 		0-91110-512-0 06 1 1509-
128 WASHER; LK,CLAMP
ID=12.2 		0-91510-812-0 06 1 1509-
234 WASHER; STAB
ID=15 		8-98010-627-1 08 1 1509-
237 SUPPORT; STAB BAR 1-51681-662-0 02 1 1509-
296 PIN; STAB 8-98022-874-1 02 1 1509-
303 NUT; PIN
M20 		0-91110-520-0 02 1 1509-
304 WASHER; PL
ID=12.5 		0-91614-512-0 02 1 1509-
304 WASHER; PL
ID=12.5 		0-91614-512-0 02 1 1509-
304 WASHER; PL
ID=21 		0-91614-520-0 02 1 1509-
347 STABILIZER BAR ASM 8-98127-346-2 01 1 1509-

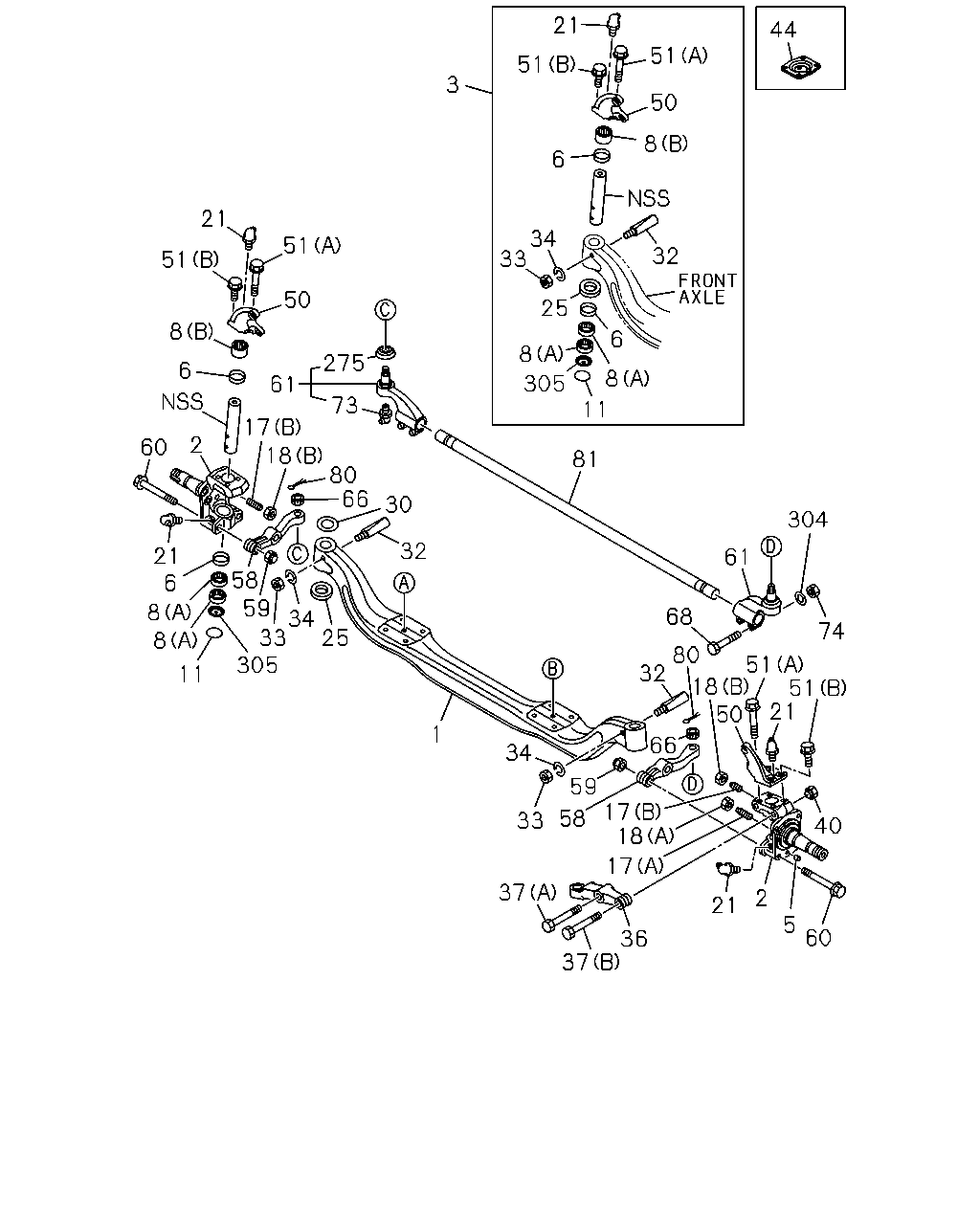

çizim 513794
51 51 21 50 18 80 61 74 304 68 32 66 2 21 5 60 17 17 18 33 34 58 59 37 36 1 81 32 30 66 80 18 17 61 275 50 51 21 51 25 34 33 305 11 8 8 21 6 59 58 2 60 6 8 8 8 11 305 32 6 25 33 34 6 3 51 21 50 8 51 44 37 73 40
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT 8-98116-056-4 01 1 1509-
2 KNUCKLE; FRT AXLE 1-43132-079-1 01 1 1509-
2 KNUCKLE; FRT AXLE 1-43131-079-1 01 1 1509-
3 KING PIN SET 1-87831-435-0 02 1 1509-
5 PIN; KNUCKLE TO DRUM COVER 1-09740-072-0 01 1 1509-
5 PIN; KNUCKLE TO DRUM COVER 1-09740-072-0 01 1 1509-
6 SEAL; KING PIN 9-09926-024-0 04 1 1509-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1509-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1509-
11 RING; SNAP,KNUCKLE PLUG 9-09950-204-0 02 1 1509-
17 BOLT; STOPPER KNUCKLE
(A) M18X53 		1-09009-066-0 01 1 1509-
17 BOLT; STOPPER KNUCKLE
(B) M18X43 		1-09009-190-0 02 1 1509-
18 NUT; STOPPER BOLT,KNUCKLE
(B) M18 		0-91110-518-0 02 1 1509-
18 NUT; STOPPER BOLT,KNUCKLE
(A) OCTAGON M18 		1-09469-011-1 01 1 1509-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1509-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1509-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 1509-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 1509-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 1509-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 1509-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1509-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1509-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1509-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1509-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 1509-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 1509-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 1509-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 1509-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 1509-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 1509-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 1509-
32 BOLT; KEY,KING PIN 1-43116-002-1 02 1 1509-
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1509-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1509-
36 ARM; KNUCKLE 8-97430-854-0 01 1 1509-
37 BOLT; KNUCKLE ARM
(A) M22X179 		8-98052-380-1 01 1 1509-
37 BOLT; KNUCKLE ARM
(B) M22X167 		8-98052-381-1 01 1 1509-
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1509-
44 COVER; KING PIN 8-98100-655-0 02 1 1509-
50 BRACKET; POWER CHAMBER 1-43145-009-3 01 1 1509-
50 BRACKET; POWER CHAMBER 1-43145-010-3 01 1 1509-
51 BOLT; POWER CHAMBER BRKT
(A) M12X60 FLANGE 		0-28051-260-0 02 1 1509-
51 BOLT; POWER CHAMBER BRKT
(B) M12X25 FLANGE 		0-28651-225-0 06 1 1509-
58 ARM; TIE ROD 1-43134-042-3 01 1 1509-
58 ARM; TIE ROD 1-43135-042-3 01 1 1509-
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1509-
60 BOLT; TIE ROD ARM
M22X193 		8-98052-379-1 04 1 1509-
61 ROD END; TIE ROD 8-98236-798-0 01 1 1509-
61 ROD END; TIE ROD 8-98236-799-0 01 1 1509-
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1509-
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 02 1 1509-
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 02 1 1509-
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1509-
74 NUT; TIE ROD END
M12 		0-91110-512-0 02 1 1509-
74 NUT; TIE ROD END
M12 		0-91110-512-0 02 1 1509-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1509-
81 ROD; TIE 1-43151-121-0 01 1 1509-
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1509-
304 WASHER; PL
ID=12.5 		0-91614-512-0 02 1 1509-
304 WASHER; PL
ID=12.5 		0-91614-512-0 02 1 1509-
304 WASHER; PL
ID=21 		0-91614-520-0 02 1 1509-
305 COVER; KNUCKLE 8-98052-291-0 02 1 1509-
347 STABILIZER BAR ASM 8-98127-346-2 01 1 1509-
