Isuzu WW
▶
TRUCKS
▶
GXR
▶
11663 - GXR(LHD)CHINA
▶
3 - Brakes, Brake System
▶
3-70 - BRAKE PIPING; AIR,AIR MASTER
▶
3-70 — BRAKE PIPING; AIR,AIR MASTER
(#175191) — 73 parça
◀
[370A] NO.1 (11 parça)
[370A] NO.2 (30 parça)
[370A] NO.3 (22 parça)
[370A] NO.4 (10 parça)
▶

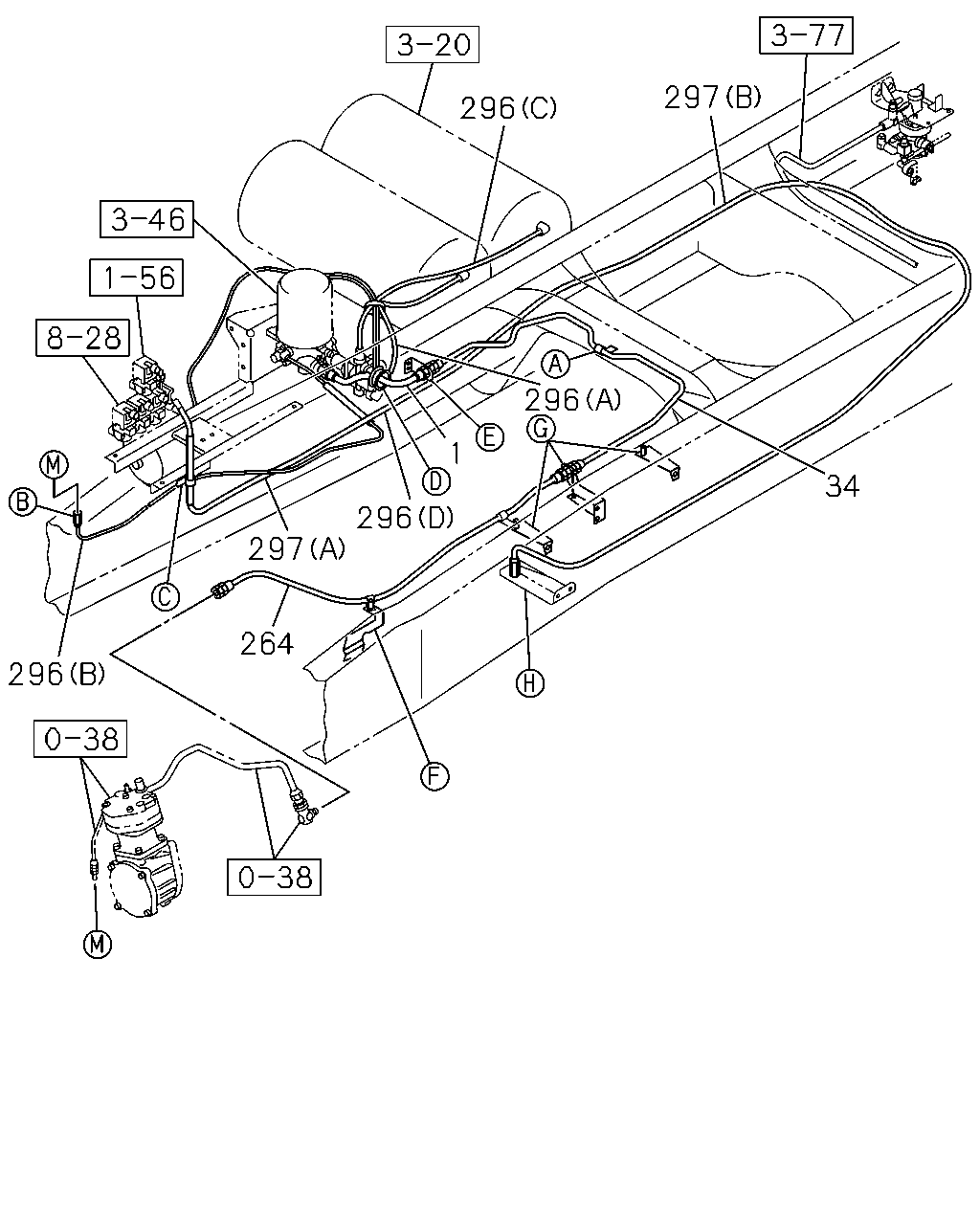

296
297
34
296
1
296
297
264
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,AIR TANK
8-97431-507-0
01
1
1509-
34
PIPE; AIR
8-97431-647-0
01
1
1509-
264
HOSE; FLEX
L=1176
8-97431-586-0
01
1
1509-
296
TUBE; NYLON
(B)
8-97431-582-0
01
1
1509-
296
TUBE; NYLON
(D) SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
1509-
296
TUBE; NYLON
(A)
8-97431-676-0
01
1
1509-
296
TUBE; NYLON
(C) SERVICED BY L=2000 OD=12
1-87410-069-0
01
1
1509-
297
TUBE; NYLON
(A)
8-97431-540-0
01
1
1509-
297
TUBE; NYLON
(B)
8-97431-679-0
01
1
1509-
297
TUBE; NYLON
(C) X2 SERVICED BY L=2000 OD=6
1-87411-001-0
01
1
1509-
297
TUBE; NYLON
(C) X2 SERVICED BY L=2000 OD=6
1-87411-001-0
01
1
1509-

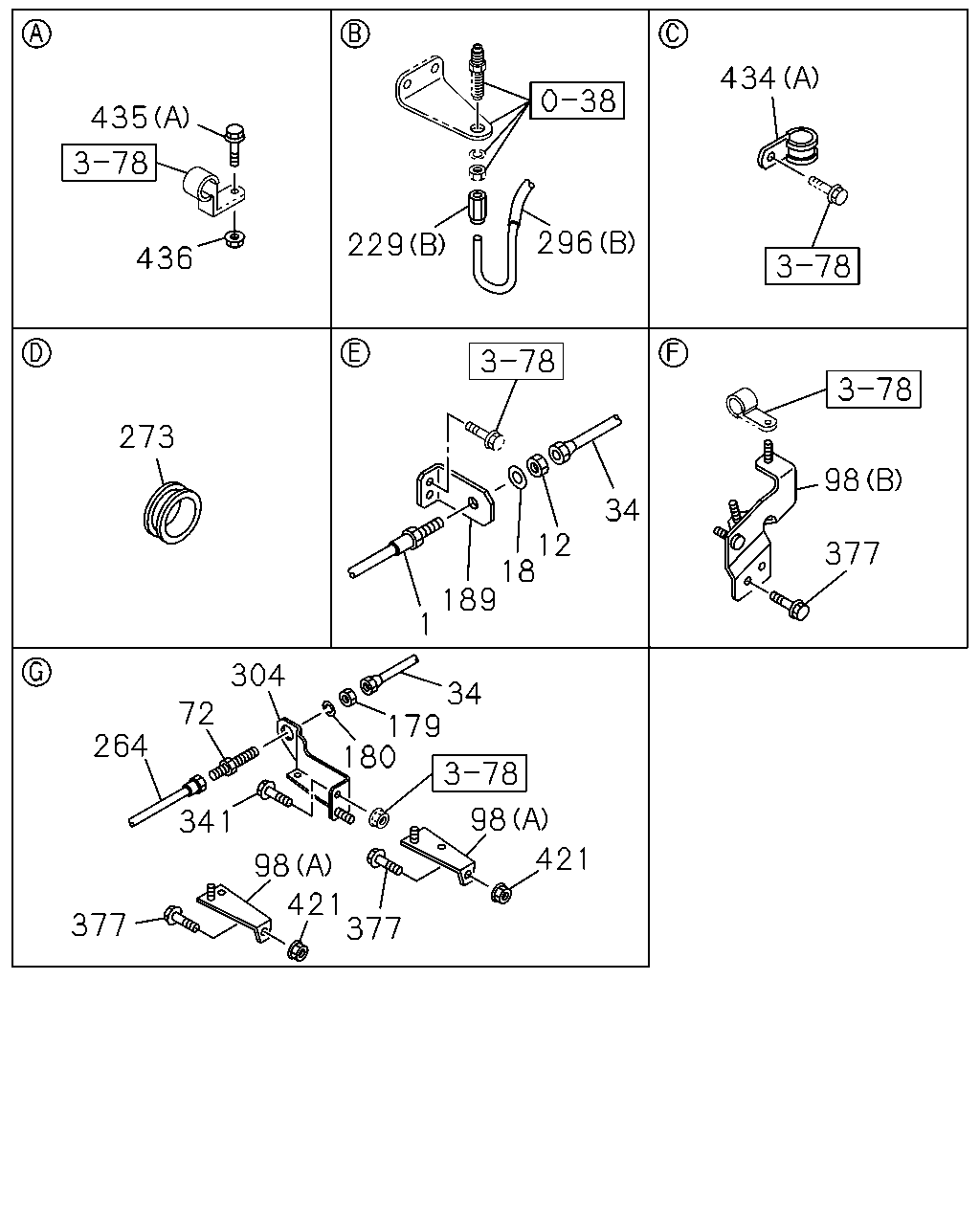

435
436
229
296
434
273
1
189
18
12
34
98
377
377
264
304
72
34
179
180
341
98
421
98
421
377
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,AIR TANK
8-97431-507-0
01
1
1509-
12
NUT; UNION
M22
0-91111-522-0
01
1
1509-
18
WASHER; LK,UNION
ID=22.5
0-91510-522-0
01
1
1509-
34
PIPE; AIR
8-97431-647-0
01
1
1509-
72
UNION; AIR PIPE
M22
0-92123-315-0
01
1
1509-
98
BRACKET; AIR PIPE
(A)
8-97609-096-0
02
1
1509-
98
BRACKET; AIR PIPE
(B)
8-97610-999-0
01
1
1509-
179
NUT; UNION
M22
0-91111-522-0
01
1
1509-
180
WASHER; LK,UNION
ID=22.5
0-91510-522-0
01
1
1509-
189
BRACKET; FLEX HOSE
1-47479-473-0
01
1
1509-
229
ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT
8-97431-585-0
01
1
1509-
229
ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT
8-97431-454-0
01
1
1509-
264
HOSE; FLEX
L=1176
8-97431-586-0
01
1
1509-
273
GROMMET
ID=32 OD=40 T=18
1-09891-003-0
01
1
1509-
296
TUBE; NYLON
(B)
8-97431-582-0
01
1
1509-
296
TUBE; NYLON
(D) SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
1509-
296
TUBE; NYLON
(A)
8-97431-676-0
01
1
1509-
296
TUBE; NYLON
(C) SERVICED BY L=2000 OD=12
1-87410-069-0
01
1
1509-
304
BRACKET; UNION
8-97610-362-1
01
1
1509-
341
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
01
1
1509-
377
BOLT; BRKT FIX
M8X25 FLANGE
0-28650-825-0
02
1
1509-
377
BOLT; BRKT FIX
M8X35 FLANGE
0-28650-835-0
02
1
1509-
421
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1509-
434
CLIP
(B) L=350
1-09707-183-0
02
1
1509-
434
CLIP
(A) ID=18 L=28
1-09701-067-0
01
1
1509-
434
CLIP
(C) X2 ID=7 L=16
0-95234-622-0
01
1
1509-
434
CLIP
(D) X2
1-09987-161-0
01
1
1509-
435
BOLT; CLIP
(A) M8X20 FLANGE
0-28650-820-0
01
1
1509-
435
BOLT; CLIP
(B) X2 M6X16 FLANGE
0-28650-616-0
01
1
1509-
436
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1509-

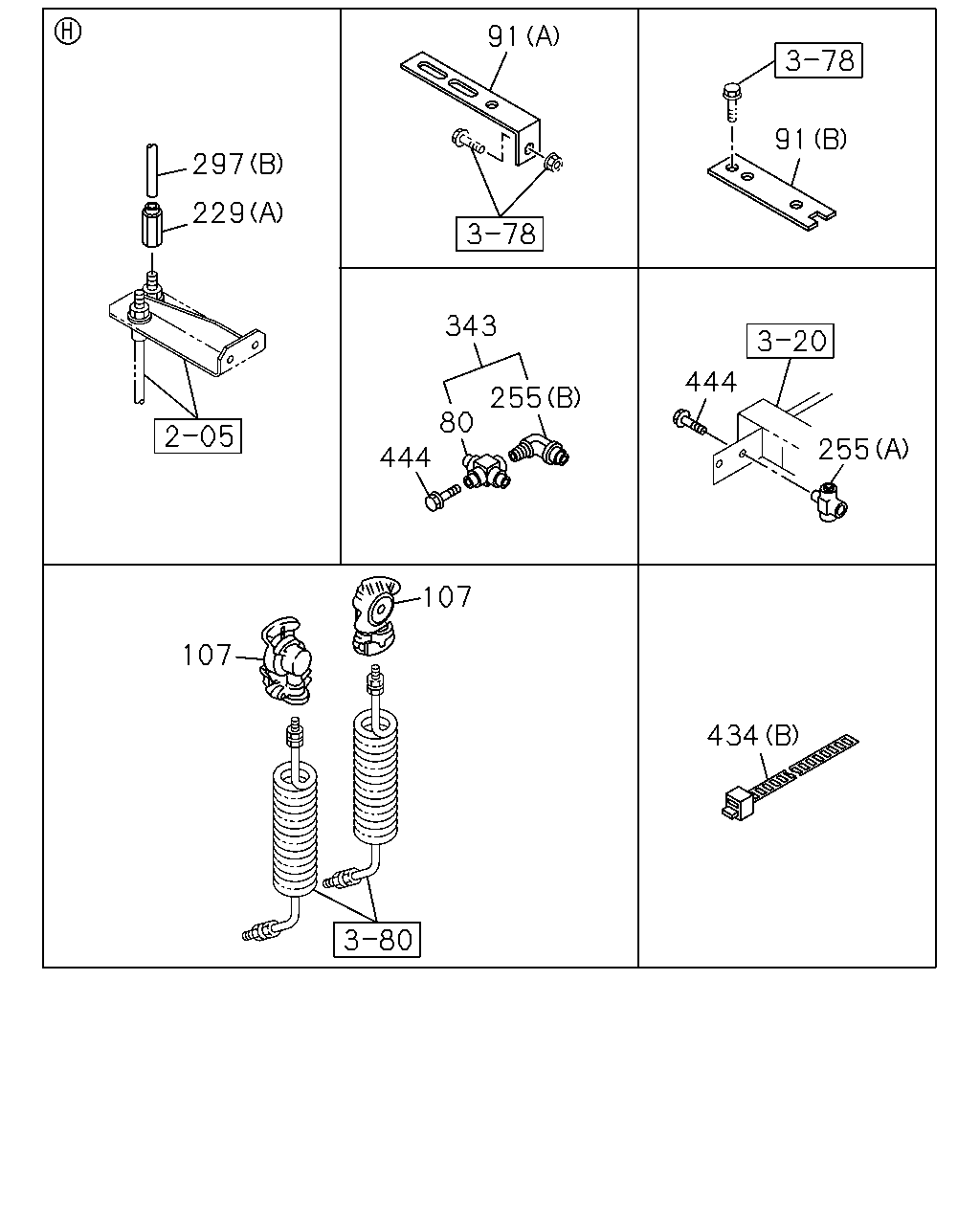

297
229
91
91
255
444
255
80
343
444
107
107
434
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
80
UNION; 3 WAY
Q2 DIN8 RC1/4 & M8
8-97431-457-0
01
1
1509-
80
UNION; 3 WAY
X2 DIN8 RC1/4 & M8
8-97431-457-0
01
1
1509-
91
BRACKET; TUBE CLIP
(A) L=100 H=30
1-47477-645-2
02
1
1509-
91
BRACKET; TUBE CLIP
(B)
8-97431-488-0
01
1
1509-
107
COUPLING; SERVICE
SERVICE
8-97431-422-0
01
1
1509-
107
COUPLING; SERVICE
EMERGENCY
8-97431-421-0
01
1
1509-
229
ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT
8-97431-585-0
01
1
1509-
229
ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT
8-97431-454-0
01
1
1509-
255
UNION; NYLON TUBE
(A)
8-97431-597-0
01
1
1509-
255
UNION; NYLON TUBE
(B) Q2
8-97431-695-0
01
1
1509-
255
UNION; NYLON TUBE
(B) X2
8-97431-696-0
01
1
1509-
297
TUBE; NYLON
(A)
8-97431-540-0
01
1
1509-
297
TUBE; NYLON
(B)
8-97431-679-0
01
1
1509-
297
TUBE; NYLON
(C) X2 SERVICED BY L=2000 OD=6
1-87411-001-0
01
1
1509-
297
TUBE; NYLON
(C) X2 SERVICED BY L=2000 OD=6
1-87411-001-0
01
1
1509-
343
UNION; NYLON TUBE
8-97431-544-0
01
1
1509-
434
CLIP
(B) L=350
1-09707-183-0
02
1
1509-
434
CLIP
(A) ID=18 L=28
1-09701-067-0
01
1
1509-
434
CLIP
(C) X2 ID=7 L=16
0-95234-622-0
01
1
1509-
434
CLIP
(D) X2
1-09987-161-0
01
1
1509-
444
BOLT; UNION
M8X20 FLANGE
0-28650-820-0
01
1
1509-
444
BOLT; UNION
M8X25 FLANGE
0-28650-825-0
01
1
1509-

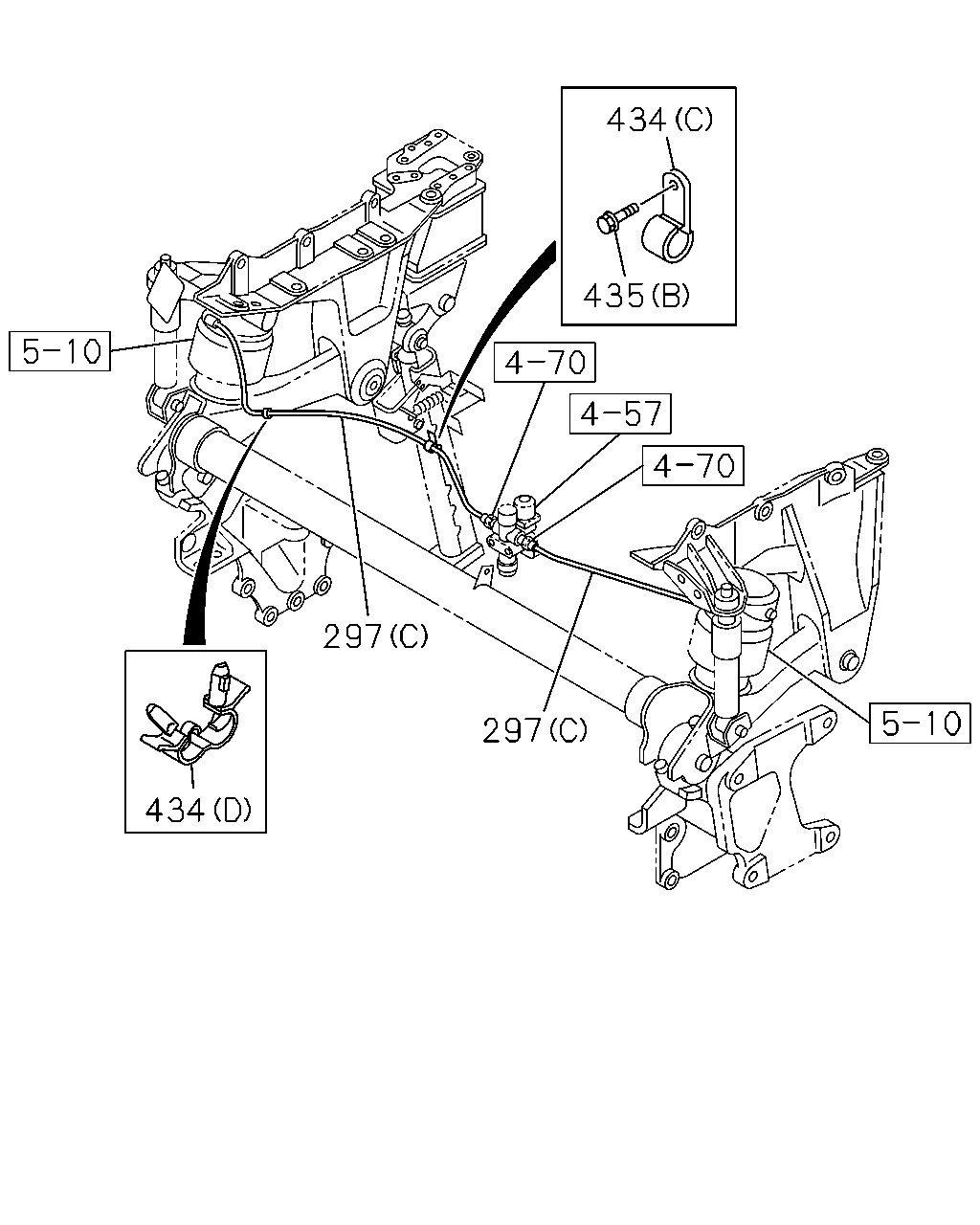

434
297
297
434
435
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
297
TUBE; NYLON
(A)
8-97431-540-0
01
1
1509-
297
TUBE; NYLON
(B)
8-97431-679-0
01
1
1509-
297
TUBE; NYLON
(C) X2 SERVICED BY L=2000 OD=6
1-87411-001-0
01
1
1509-
297
TUBE; NYLON
(C) X2 SERVICED BY L=2000 OD=6
1-87411-001-0
01
1
1509-
434
CLIP
(B) L=350
1-09707-183-0
02
1
1509-
434
CLIP
(A) ID=18 L=28
1-09701-067-0
01
1
1509-
434
CLIP
(C) X2 ID=7 L=16
0-95234-622-0
01
1
1509-
434
CLIP
(D) X2
1-09987-161-0
01
1
1509-
435
BOLT; CLIP
(A) M8X20 FLANGE
0-28650-820-0
01
1
1509-
435
BOLT; CLIP
(B) X2 M6X16 FLANGE
0-28650-616-0
01
1
1509-
