3-46 — AIR DRYER (#175189) — 13 parça

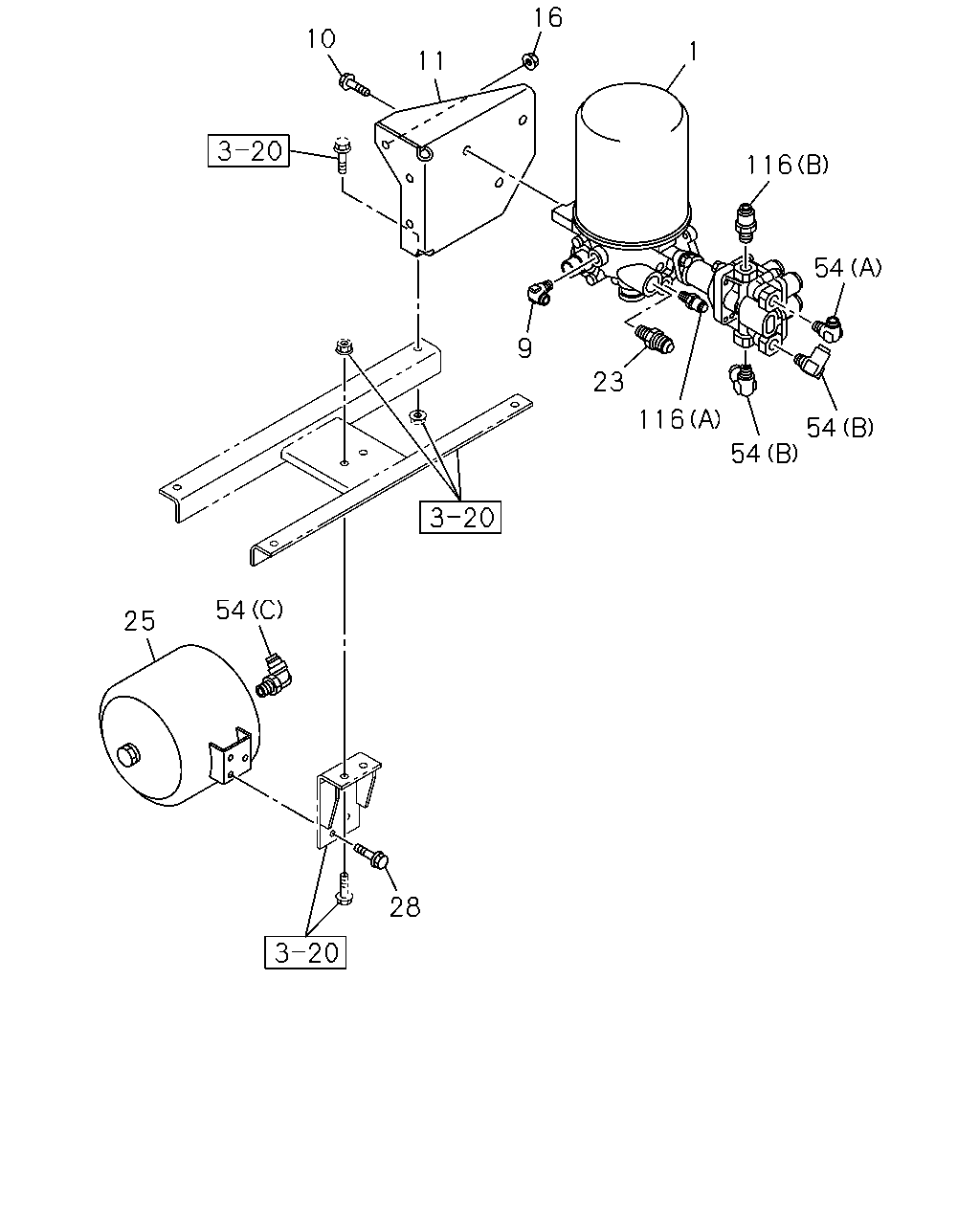

çizim 512974
11 16 1 10 116 54 54 54 116 23 9 54 25 28
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR 8-97431-171-0 01 1 1509-
9 CONNECTOR; PIPE,AIR DRYER
DIN6 & R1/4 ELBOW 		8-97431-410-0 01 1 1509-
10 BOLT; AIR DRYER
M12X30 FLANGE 		0-28651-230-0 03 1 1509-
11 BRACKET; AIR DRYER 8-97431-490-0 01 1 1509-
16 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1509-
23 CONNECTOR; AIR TANK
M22 & PT1/2 FLARE 		0-92121-815-0 01 1 1509-
25 TANK; PURGE 8-97431-812-0 01 1 1509-
28 BOLT; PURGE TANK
M8X25 FLANGE 		0-28650-825-0 03 1 1509-
54 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		8-97431-398-0 01 1 1509-
54 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		8-97431-399-0 02 1 1509-
54 CONNECTOR
(C) DIN8 & M22 ELBOW 		8-97431-447-0 01 1 1509-
116 CONNECTOR; STRAIGHT
(A) DIN8 R1/4 STRAIGHT 		8-97431-401-0 01 1 1509-
116 CONNECTOR; STRAIGHT
(B) DIN12 & R3/8 STRAIGHT 		8-97431-397-0 01 1 1509-
