Isuzu WW
▶
TRUCKS
▶
GXR
▶
11663 - GXR(LHD)CHINA
▶
3 - Brakes, Brake System
▶
3-22 - AIR CONTROL PARTS
▶
3-22 — AIR CONTROL PARTS
(#175183) — 31 parça
◀

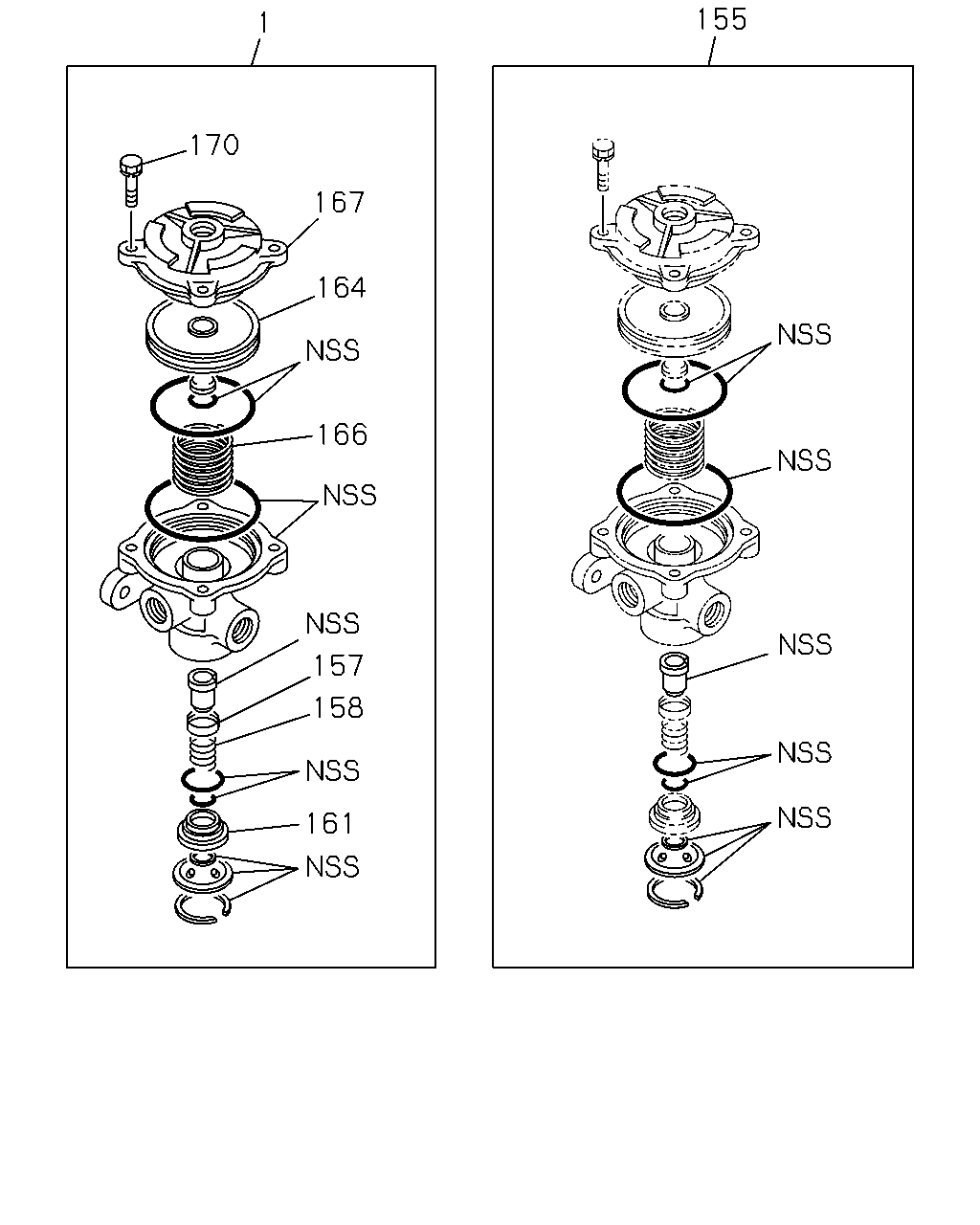

[322A] NO.2 (9 parça)
[322A] NO.1 (22 parça)
▶
1
155
170
167
164
166
157
158
161
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; RELAY RWD RR
8-97431-416-0
01
1
1509-
155
REPAIR KIT; RELAY VALVE
1-85576-033-0
01
1
1509-
157
RETAINER; VALVE
1-48213-002-0
01
1
1509-
158
SPRING; VALVE
1-47819-089-0
01
1
1509-
161
GUIDE; VALVE
1-48129-014-0
01
1
1509-
164
PISTON; RELAY VALVE
1-48219-071-0
01
1
1509-
166
SPRING; PISTON
1-47819-090-0
01
1
1509-
167
COVER; VALVE
1-48219-070-0
01
1
1509-
170
SCREW; COVER TO BODY
1-48219-039-0
04
1
1509-
65
7
6
10
76
63
25
11
10
10
48
142
40
49
6
114
12
13
12
19
21
21
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; RELAY RWD RR
8-97431-416-0
01
1
1509-
6
BOLT; VLV
M8X25 FLANGE
0-28650-825-0
02
1
1509-
6
BOLT; VLV
M8X25 FLANGE
0-28650-825-0
02
1
1509-
7
NUT; RELAY VLV
M8 FLANGE
0-91180-108-0
02
1
1509-
10
CONNECTOR
(A) DIN12 & R3/8 ELBOW
8-97431-399-0
01
1
1509-
10
CONNECTOR
(B)
8-97431-669-0
01
1
1509-
11
PLUG
PT3/8
9-09204-517-0
01
1
1509-
12
CONNECTOR; RELAY VLV
DIN12 & R3/8 STRAIGHT
8-97431-397-0
02
1
1509-
13
VALVE ASM; QUICK RELEASE
8-97431-415-0
01
1
1509-
19
BRACKET; QUICK RELEASE VLV
8-97431-479-0
01
1
1509-
21
CONNECTOR; QUICK RELEASE VLV
(A)
8-97431-643-0
01
1
1509-
21
CONNECTOR; QUICK RELEASE VLV
(A)
8-97431-643-0
01
1
1509-
21
CONNECTOR; QUICK RELEASE VLV
(B) M16 & RC3/8 STRAIGHT
8-97431-631-0
01
1
1509-
25
SWITCH; PRESSURE
STAMP 2.0
8-98010-856-1
01
1
1509-
40
BOLT; HEAT PROTECTOR
M8X20 FLANGE
0-28650-820-0
04
1
1509-
48
BOLT; QUICK RELEASE VLV
M8X25 FLANGE
0-28650-825-0
02
1
1509-
49
NUT; QUICK RELEASE VLV
M8 FLANGE
0-91180-108-0
02
1
1509-
63
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
02
1
1509-
65
BRACKET; RELAY VLV RR
8-97431-478-0
01
1
1509-
76
CONNECTOR; CONT VLV
DIN12 & R3/8 STRAIGHT
8-97431-397-0
01
1
1509-
114
NUT; VLV
M8 FLANGE
0-91180-108-0
02
1
1509-
142
PROTECTOR; HEAT
8-97431-494-0
01
1
1509-
