3-05 — REAR WHEEL BRAKE (#175180) — 93 parça

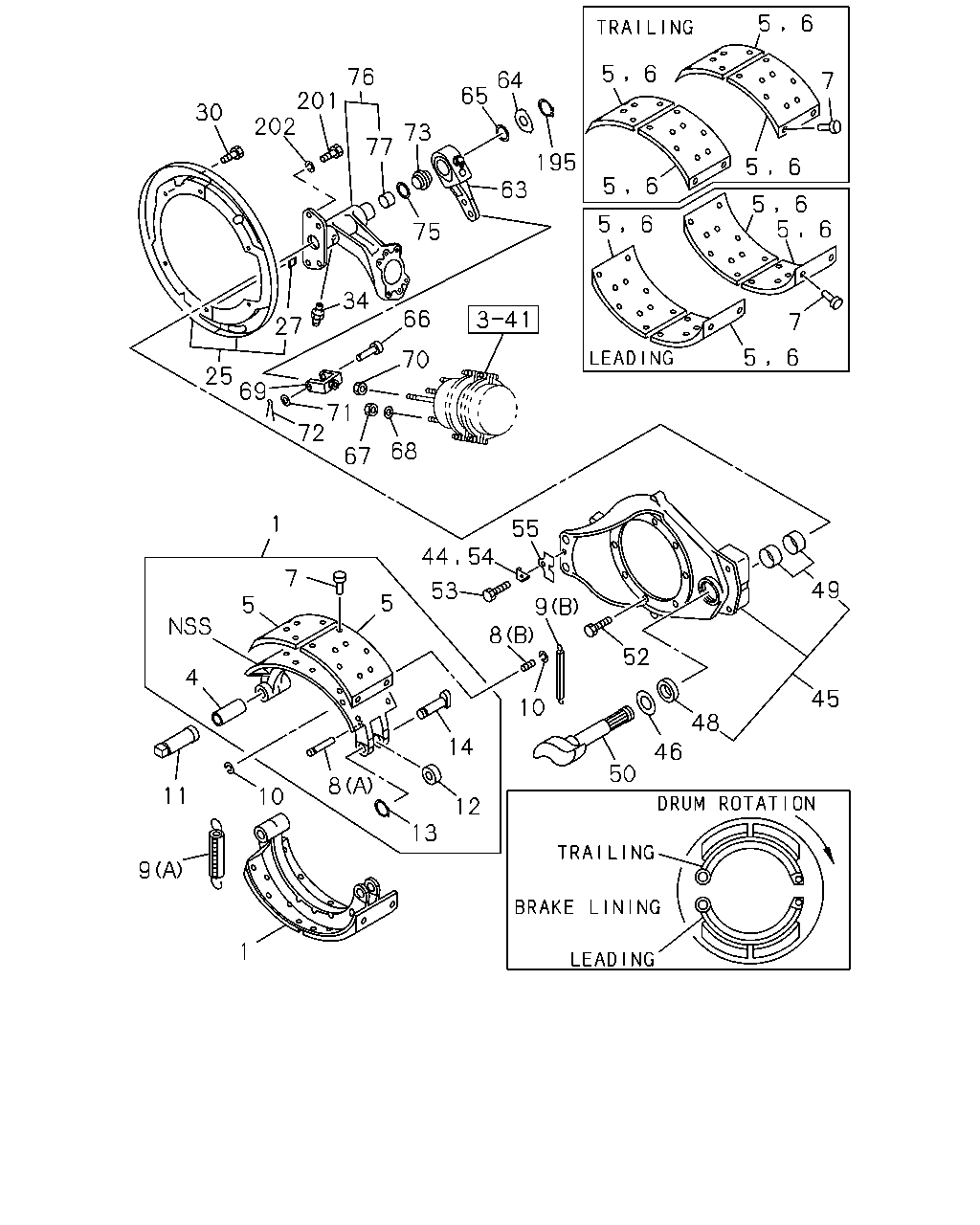

çizim 513744
76 65 64 195 63 75 73 77 34 27 25 72 69 30 201 202 70 66 68 67 71 1 7 5 4 11 9 1 10 13 14 12 5 44 53 55 54 8 10 9 52 46 50 48 45 49 5 6 7 5 6 6 5 5 6 6 5 5 6 5 6 5 6 7 8
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR
LEADING 		1-47120-713-0 01 1 1509-
1 SHOE; BRK,RR
TRAILING 		1-47120-714-0 01 1 1509-
1 SHOE; BRK,RR
LEADING 		1-47120-715-0 01 1 1509-
1 SHOE; BRK,RR
TRAILING 		1-47120-716-0 01 1 1509-
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 01 1 1509-
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 01 1 1509-
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 01 1 1509-
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 01 1 1509-
5 LINING; RR BRK SHOE,STANDARD
LEADING 		1-47125-797-0 04 1 1509-
5 LINING; RR BRK SHOE,STANDARD
TRAILING 		1-47125-799-0 04 1 1509-
6 LINING; RR BRK SHOE,OVER SIZE
LEADING 		1-47125-798-0 04 1 1509-
6 LINING; RR BRK SHOE,OVER SIZE
TRAILING 		1-47125-800-0 04 1 1509-
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 30 1 1509-
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 30 1 1509-
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 30 1 1509-
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 30 1 1509-
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-47119-029-0 01 1 1509-
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-47119-029-0 01 1 1509-
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-47119-021-0 02 1 1509-
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-47119-029-0 01 1 1509-
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-47119-029-0 01 1 1509-
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-47119-021-0 02 1 1509-
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-175-0 01 1 1509-
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-196-0 01 1 1509-
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-175-0 01 1 1509-
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-196-0 01 1 1509-
10 RING; SNAP,SPR PIN
ID=10 		9-09185-410-0 04 1 1509-
10 RING; SNAP,SPR PIN
ID=10 		9-09185-410-0 04 1 1509-
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 02 1 1509-
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 02 1 1509-
12 ROLLER; CAM,BRK SHOE 1-47113-005-0 01 1 1509-
12 ROLLER; CAM,BRK SHOE 1-47113-005-0 01 1 1509-
12 ROLLER; CAM,BRK SHOE 1-47113-005-0 01 1 1509-
12 ROLLER; CAM,BRK SHOE 1-47113-005-0 01 1 1509-
13 CLIP; ROLLER PIN,BRK SHOE 9-47119-022-0 01 1 1509-
13 CLIP; ROLLER PIN,BRK SHOE 9-47119-022-0 01 1 1509-
13 CLIP; ROLLER PIN,BRK SHOE 9-47119-022-0 01 1 1509-
13 CLIP; ROLLER PIN,BRK SHOE 9-47119-022-0 01 1 1509-
14 PIN; CAM ROLLER,BRK SHOE 1-09744-061-0 01 1 1509-
14 PIN; CAM ROLLER,BRK SHOE 1-09744-061-0 01 1 1509-
14 PIN; CAM ROLLER,BRK SHOE 1-09744-061-0 01 1 1509-
14 PIN; CAM ROLLER,BRK SHOE 1-09744-061-0 01 1 1509-
25 COVER SET; RR BRK DRUM 1-47151-462-1 02 1 1509-
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1509-
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 06 1 1509-
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 06 1 1509-
34 NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 1509-
34 NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 1509-
44 WASHER; ADJ SCREW 1-47133-011-0 01 1 1509-
45 BRACKET; ANCHOR PIN,W/BUSHING 1-47137-120-2 01 1 1509-
45 BRACKET; ANCHOR PIN,W/BUSHING 1-47137-120-2 01 1 1509-
46 RING; SPACER,CM/SHF,RR BRK 1-47143-005-0 01 1 1509-
46 RING; SPACER,CM/SHF,RR BRK 1-47143-005-0 01 1 1509-
48 SEAL; OIL,CM/SHF,RR BRK 1-09625-228-0 01 1 1509-
48 SEAL; OIL,CM/SHF,RR BRK 1-09625-228-0 01 1 1509-
49 BUSHING; CM/SHF,RR BRK 1-47146-003-1 02 1 1509-
49 BUSHING; CM/SHF,RR BRK 1-47146-003-1 02 1 1509-
50 CAMSHAFT; BRK,RR BRK 1-47141-053-0 01 1 1509-
50 CAMSHAFT; BRK,RR BRK 1-47141-054-0 01 1 1509-
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 01 1 1509-
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 01 1 1509-
53 BOLT; LOCK PLATE
M10X16 		9-02041-016-0 01 1 1509-
53 BOLT; LOCK PLATE
M10X16 		9-02041-016-0 01 1 1509-
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 01 1 1509-
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 01 1 1509-
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 01 1 1509-
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-046-0 01 1 1509-
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-045-0 01 1 1509-
64 PLATE; STOPPER,CM/SHF 1-47149-022-0 01 1 1509-
64 PLATE; STOPPER,CM/SHF 1-47149-022-0 01 1 1509-
65 SPACER; SLACK ADJ,BRK 1-09333-151-0 01 1 1509-
65 SPACER; SLACK ADJ,BRK 1-09333-151-0 01 1 1509-
66 PIN; JAW JOINT 1-09744-088-0 02 1 1509-
67 NUT; POWER CHAMBER FIX
M16 		0-91110-516-0 08 1 1509-
68 WASHER; LK,CHAMBER
ID=16.2 		0-91510-816-0 08 1 1509-
69 JOINT; JAW 1-09768-060-1 02 1 1509-
70 NUT; LK,JAW JOINT
M16 		0-91111-516-0 02 1 1509-
71 WASHER; PL,JAW JOINT
ID=17 OD=32 		9-09160-616-0 02 1 1509-
72 PIN; SPLIT
OD=3.7 L=28 		0-81124-028-0 02 1 1509-
73 COLLAR; FELT RING,CM/SHF 1-47143-016-0 01 1 1509-
73 COLLAR; FELT RING,CM/SHF 1-47143-016-0 01 1 1509-
75 RING; FELT,CM/SHF 1-09620-009-0 01 1 1509-
75 RING; FELT,CM/SHF 1-09620-009-0 01 1 1509-
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-084-0 01 1 1509-
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-083-0 01 1 1509-
77 BUSHING 1-47146-003-1 01 1 1509-
77 BUSHING 1-47146-003-1 01 1 1509-
195 RING; SNAP,CM/SHF 9-09180-038-0 01 1 1509-
195 RING; SNAP,CM/SHF 9-09180-038-0 01 1 1509-
201 BOLT; BRKT,POWER CHAMBER
M14X35 		0-20801-435-0 04 1 1509-
201 BOLT; BRKT,POWER CHAMBER
M14X35 		0-20801-435-0 04 1 1509-
202 WASHER; LK,BRKT
ID=14.2 		9-09150-514-0 04 1 1509-
202 WASHER; LK,BRKT
ID=14.2 		9-09150-514-0 04 1 1509-
