Isuzu WW
▶
TRUCKS
▶
GXR
▶
11663 - GXR(LHD)CHINA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-50 - EXHAUST PIPE AND SILENCER
▶
1-50 — EXHAUST PIPE AND SILENCER
(#175166) — 27 parça
◀
[150A] NO.3 (4 parça)
[150A] NO.2 (15 parça)
[150A] NO.1 (8 parça)
▶

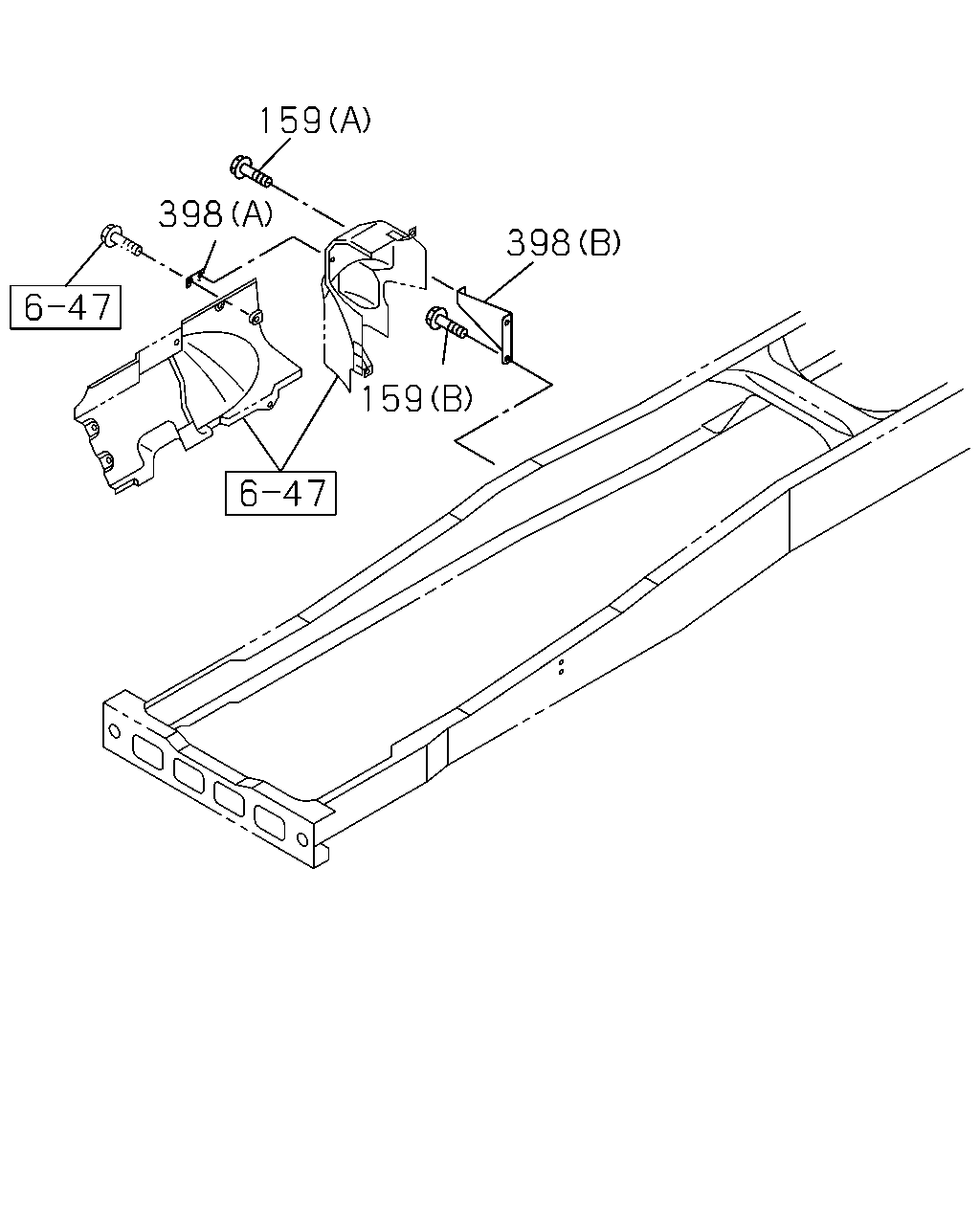

398
159
159
398
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
159
BOLT; HEAT PROTECTOR
M8X20 FLANGE
0-28650-820-0
01
1
1509-
159
BOLT; HEAT PROTECTOR
M8X30 FLANGE
0-28650-830-0
02
1
1509-
398
BRACKET; HEAT PROTECTOR
(A)
8-98039-501-1
01
1
1509-
398
BRACKET; HEAT PROTECTOR
(B)
8-98127-027-0
01
1
1509-
105
94
81
75
56
24
72
75
107
107
115
530
113
56
115
118
94
89
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
COLLAR; DIST,CLAMP
L=22
9-22159-024-0
02
1
1509-
56
BRACKET; CLAMP,EXH PIPE
(A)
8-97430-181-0
01
1
1509-
56
BRACKET; CLAMP,EXH PIPE
(B)
8-98055-106-0
01
1
1509-
72
WASHER; LK,BRKT
ID=10.2
0-91510-810-0
02
1
1509-
75
RUBBER; SUPPORT,BRKT
OD=40
1-22159-094-0
04
1
1509-
81
NUT; BRKT
M10
0-91110-510-0
02
1
1509-
89
CLAMP; EXH SILENCER,RR
8-97621-090-0
01
1
1509-
94
BOLT; CLAMP
M8X30 FLANGE
0-28050-830-0
04
1
1509-
105
NUT; CLAMP
M8 FLANGE
0-91180-108-0
04
1
1509-
107
BOLT; BRKT
M10X60
0-10856-060-0
02
1
1509-
107
BOLT; BRKT
M10X60
0-10856-060-0
02
1
1509-
113
COLLAR; DIST,MTG BRKT
L=22
9-22159-024-0
02
1
1509-
115
RUBBER; MTG,SILENCER
OD=40
1-22159-094-0
04
1
1509-
118
NUT; SILENCER MTG BRKT
M10
0-91110-510-0
02
1
1509-
530
WASHER
ID=10.2
0-91510-810-0
02
1
1509-

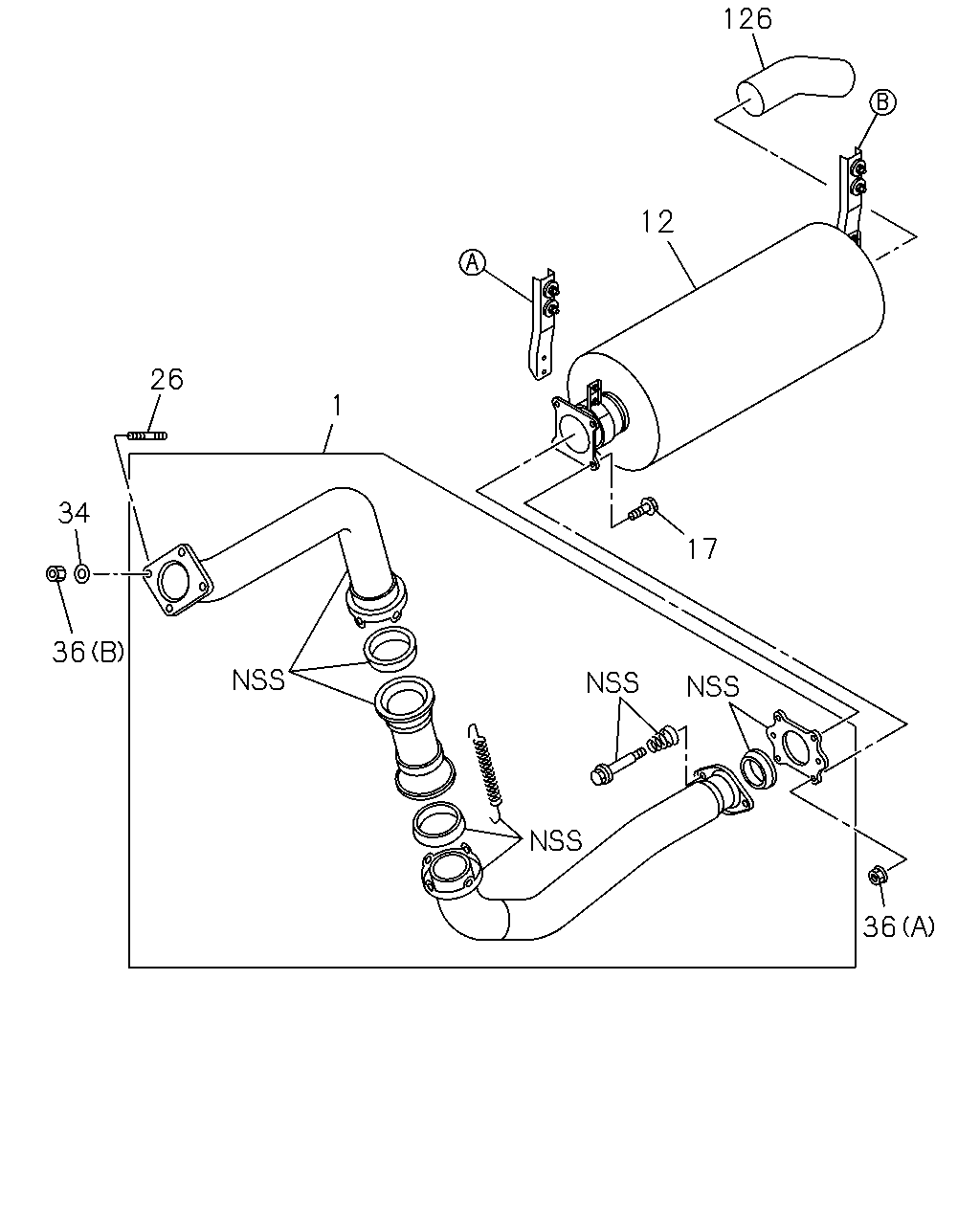

34
36
26
1
17
36
12
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; EXH
8-97430-177-0
01
1
1509-
12
SILENCER ASM; EXH
8-98183-450-2
01
1
1509-
17
BOLT; EXH PIPE
M12X25 FLANGE
1-09000-604-0
04
1
1509-
26
STUD; EXH MANIF
M12X140 L=160
1-09302-163-0
04
1
1509-
34
WASHER; EXH PIPE
ID=13 OD=26
1-09556-020-0
04
1
1509-
36
NUT; EXH PIPE
(A) M12
0-91110-512-0
04
1
1509-
36
NUT; EXH PIPE
(B) M12
1-09400-131-0
04
1
1509-
126
PIPE; EXH,RR
8-97430-179-0
01
1
1509-
