Isuzu WW
▶
TRUCKS
▶
GXR
▶
11663 - GXR(LHD)CHINA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#175161) — 30 parça
◀

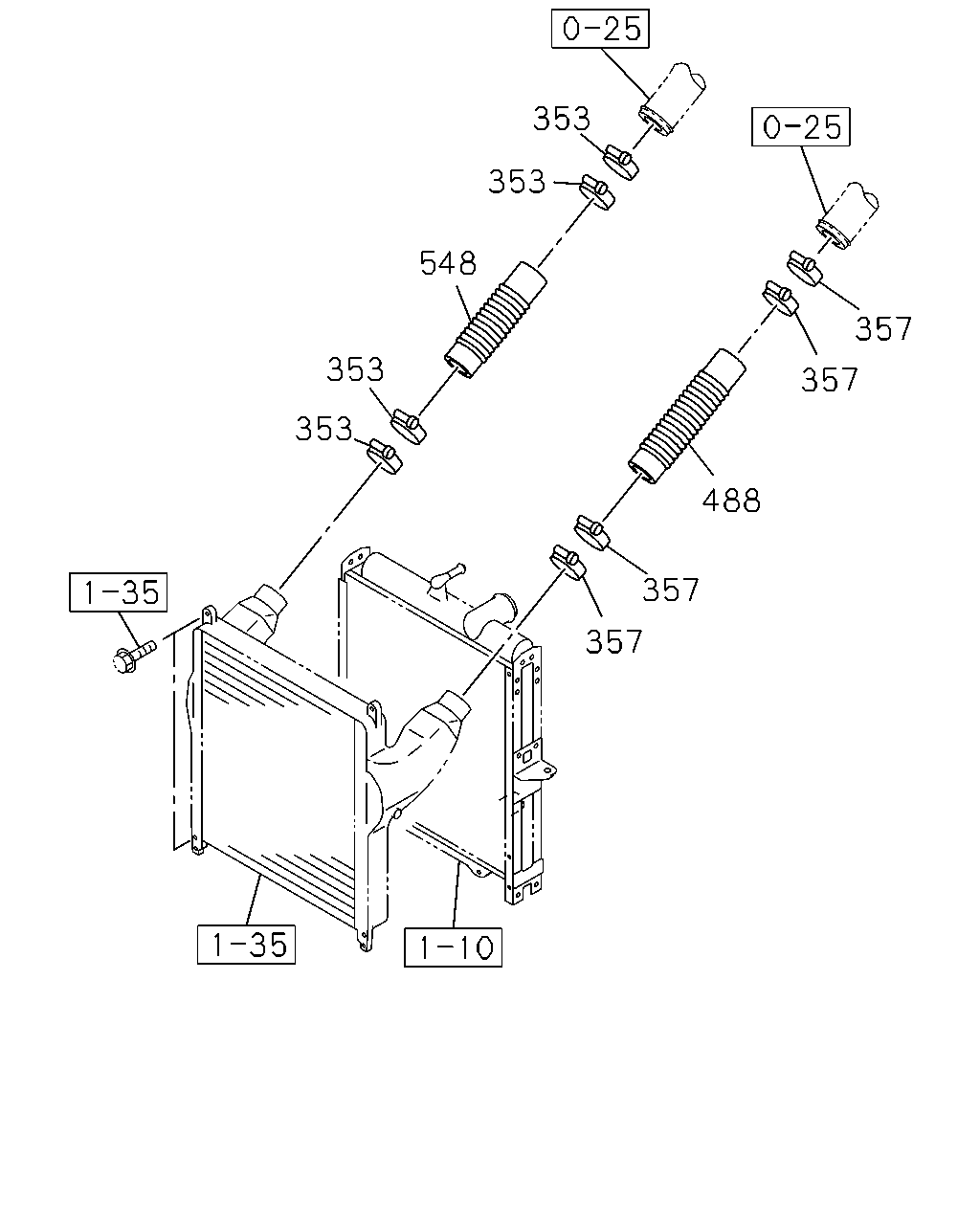

[131A] PIPING (4 parça)
[131A] DUCT FIXING NO.1 (13 parça)
[131A] DUCT FIXING NO.2 (13 parça)
▶
353
353
548
353
353
357
488
357
357
357
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
353
CLIP; RUBBER HOSE
ID=87-116
1-09707-138-0
04
1
1509-
357
CLIP; RUBBER HOSE
ID=87-116
1-09707-138-0
04
1
1509-
488
HOSE; RUBBER,PIPE
8-97430-176-0
01
1
1509-
548
HOSE; RUBBER,TURBO TO INL PIPE
8-98258-228-0
01
1
1509-
5
320
5
71
252
381
64
296
296
156
153
155
153
155
155
155
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(A) ID=104-142
1-09707-155-0
01
1
1509-
5
CLIP; AIR DUCT
(B) ID=155-184
1-09707-182-0
01
1
1509-
64
BOLT; BRKT,AIR DUCT
M10X25 FLANGE
0-28651-025-0
01
1
1509-
71
CLIP; AIR DUCT
ID=155-184
1-09707-182-0
01
1
1509-
153
BRACKET; ACL,FRT
(B)
8-97430-173-0
01
1
1509-
153
BRACKET; ACL,FRT
(A)
8-98198-554-0
01
1
1509-
155
BOLT; BRKT
(A) M8X70 FLANGE
0-28050-870-0
02
1
1509-
155
BOLT; BRKT
(B) M12X30 FLANGE
0-28051-230-0
03
1
1509-
156
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1509-
252
DUCT; AIR INT
8-97430-174-0
01
1
1509-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
1509-
320
HOSE; CONN,ACL
8-97430-175-0
01
1
1509-
381
NUT; BRKT,AIR DUCT
M10 FLANGE
0-91180-210-0
01
1
1509-
49
56
56
58
26
56
56
49
58
245
48
58
61
242
49
242
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98203-688-0
01
1
1509-
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
1509-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
1509-
49
NUT; AIR DUCT
(C) M8 FLANGE
1-09984-126-0
01
1
1509-
49
NUT; AIR DUCT
(A) M8 FLANGE
8-94279-517-0
01
1
1509-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
1509-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
1509-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1509-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1509-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1509-
242
BRACKET; AIR DUCT
(A)
8-98019-301-3
01
1
1509-
242
BRACKET; AIR DUCT
(B)
8-98095-684-0
01
1
1509-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1509-
