Isuzu WW
▶
TRUCKS
▶
GXR
▶
11663 - GXR(LHD)CHINA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#175159) — 22 parça
◀

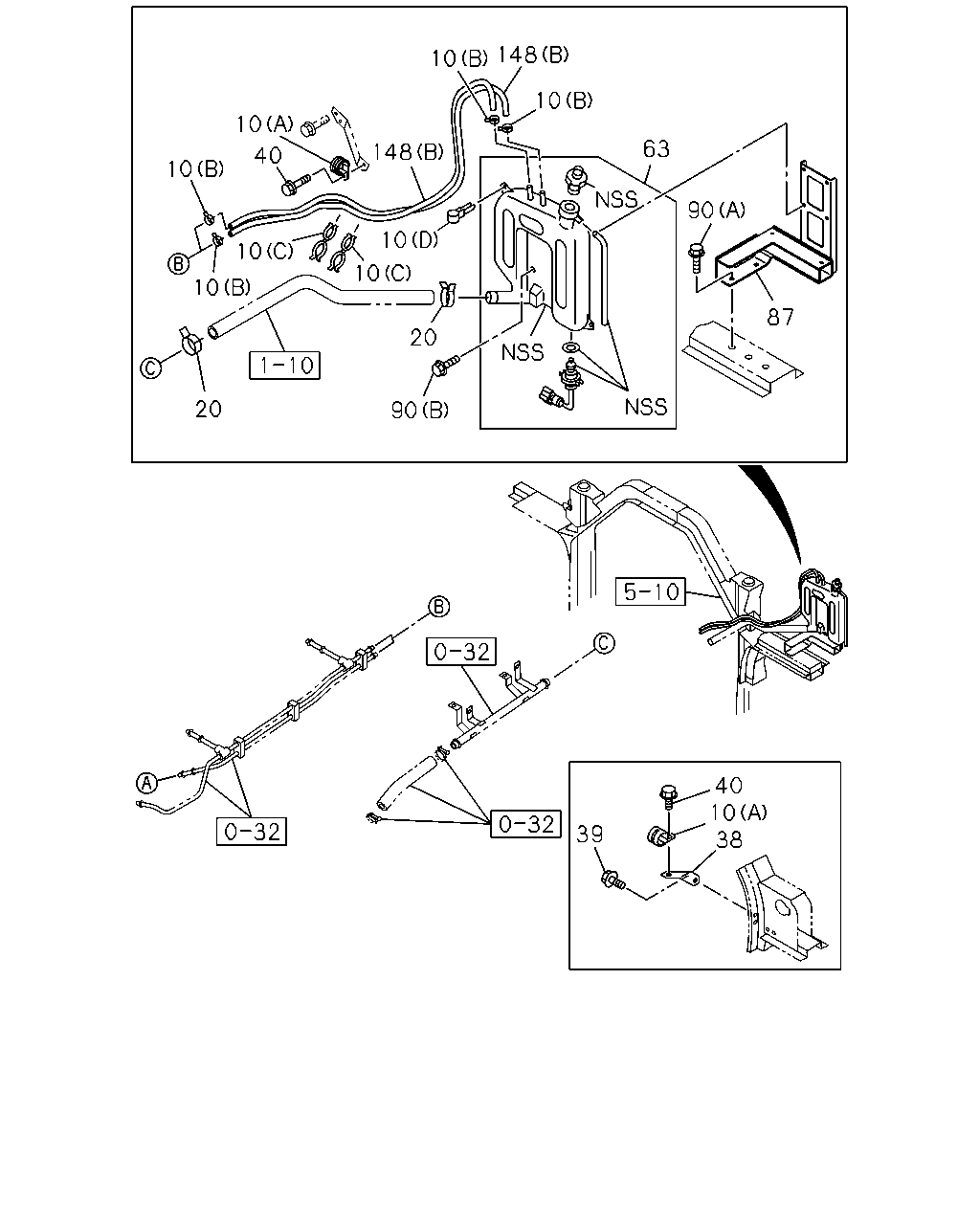

[111A] SUB TANK SIDE (14 parça)

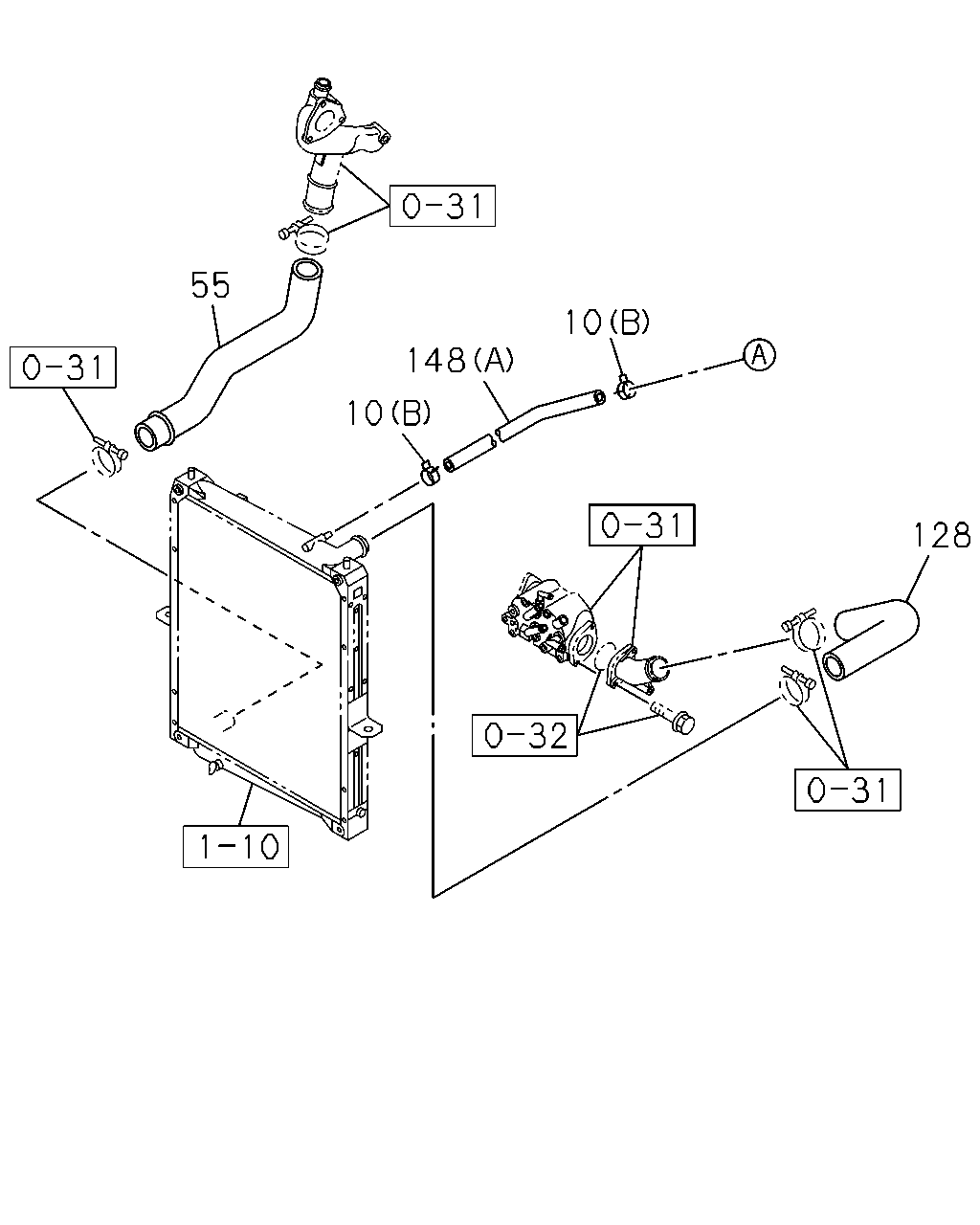

[111A] RADIATOR SIDE (8 parça)
▶
10
148
10
63
90
87
20
90
20
10
10
10
10
148
10
10
40
40
10
38
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
06
1
1509-
10
CLIP; RUBBER HOSE
(D) ID=28 L=58
1-09700-400-0
02
1
1509-
10
CLIP; RUBBER HOSE
(C) ID=44 & 16
1-09709-125-0
08
1
1509-
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
02
1
1509-
20
CLIP; HOSE,RAD
ID=31
1-09707-093-1
02
1
1509-
38
BRACKET; RUBBER HOSE
8-97608-796-0
01
1
1509-
39
BOLT; BRKT FIX
M10X20 FLANGE
0-28151-020-0
01
1
1509-
40
BOLT; CLIP
M10X25 FLANGE
0-28651-025-0
02
1
1509-
63
TANK ASM; SUB
1-21481-143-2
01
1
1509-
87
BRACKET; SUB TANK
8-97430-191-1
01
1
1509-
90
BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER
1-09030-027-0
04
1
1509-
90
BOLT; SUB TANK TO BRKT
(A) M12X30 FLANGE
0-28051-230-0
03
1
1509-
148
HOSE; RUBBER,OUT
(A) L=450
8-97430-214-0
01
1
1509-
148
HOSE; RUBBER,OUT
(B) L=1530
8-97430-215-0
02
1
1509-
10
148
10
55
128
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
06
1
1509-
10
CLIP; RUBBER HOSE
(D) ID=28 L=58
1-09700-400-0
02
1
1509-
10
CLIP; RUBBER HOSE
(C) ID=44 & 16
1-09709-125-0
08
1
1509-
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
02
1
1509-
55
HOSE; WATER,RAD OUTLET
8-98193-421-0
01
1
1509-
128
HOSE; WATER,RAD INL
8-98193-418-0
01
1
1509-
148
HOSE; RUBBER,OUT
(A) L=450
8-97430-214-0
01
1
1509-
148
HOSE; RUBBER,OUT
(B) L=1530
8-97430-215-0
02
1
1509-
